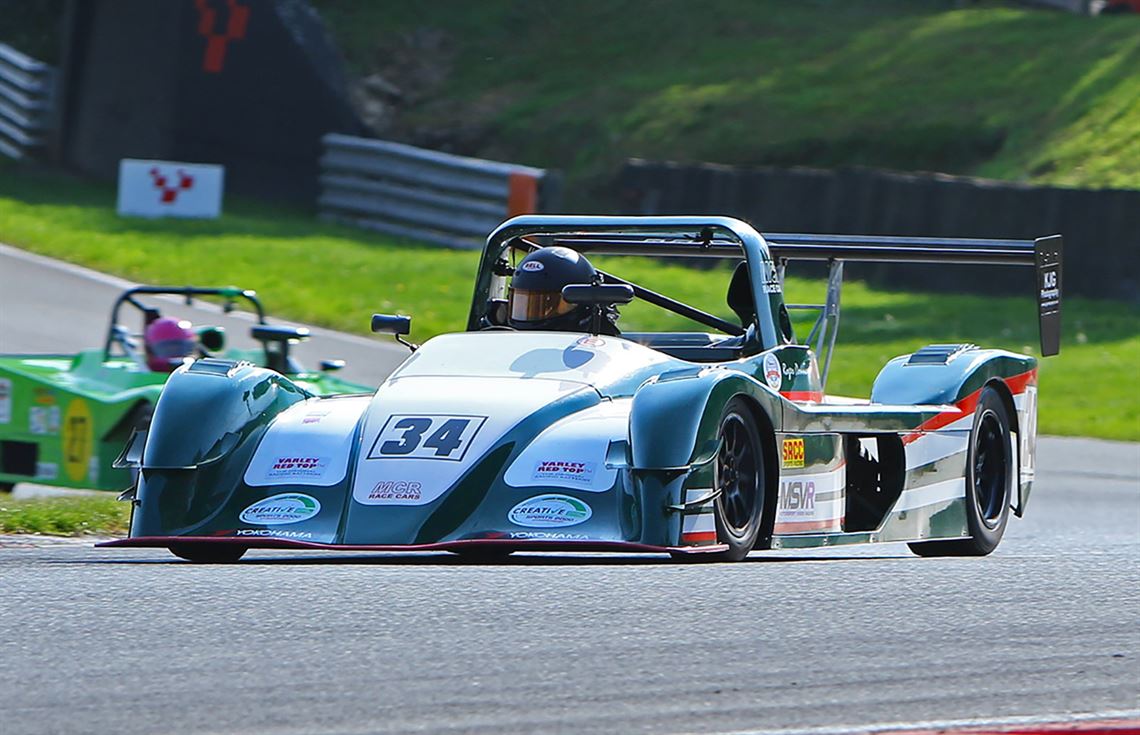

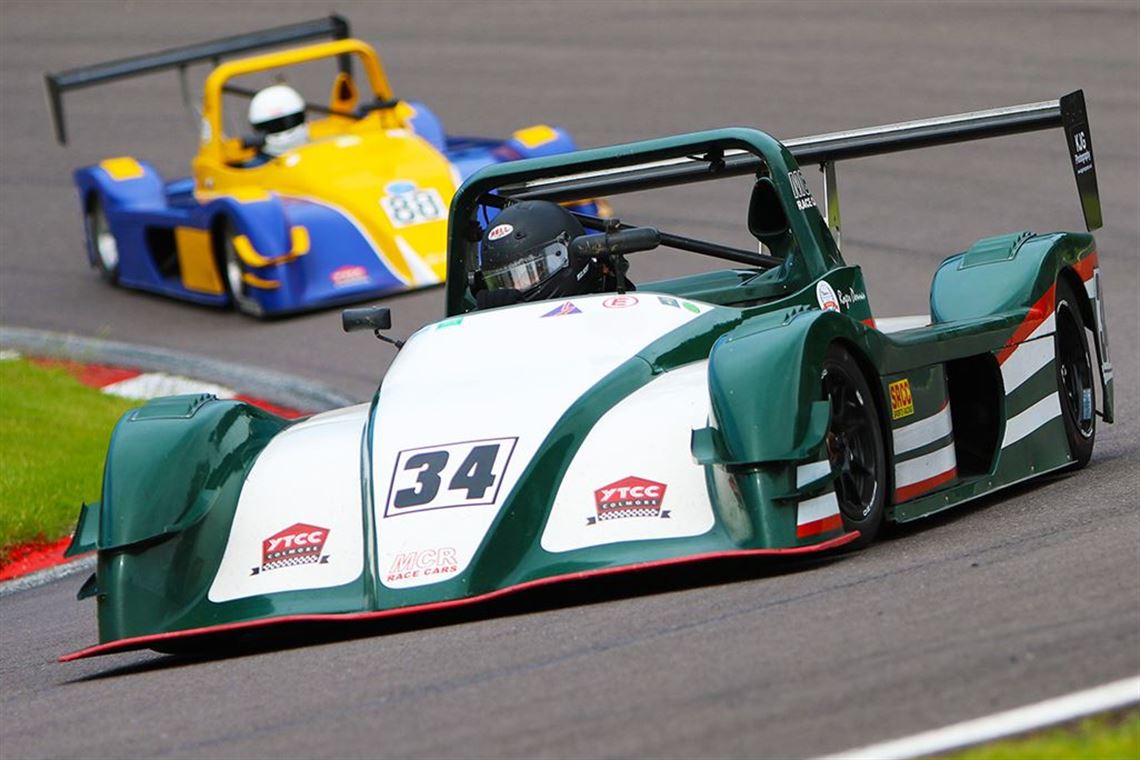

MCR S2 Sports Prototype racing car - SOLD
This is now SOLD. Search for similar items.
Description:
Album:
https://photos.app.goo.gl/SDDH28GXpvZDoo3M8
Chassis No. 006 Year built. 2009
This car has been fully upgraded to current MCR specification. It is currently running in the Sports 2000 Championship.
Notable Results
Overall 1st place Derek Bell trophy 2018. Overall 2nd place in the Endurance Championship 2018
Engine:
Ford Duratec 2 ltr inline 4 cylinder engine producing approx. 200 bhp.
Raceline dry sump system. Engine just refreshed September 2021.
Current spec stainless exhaust system.
Bodywork:
5-piece lightweight fibreglass bodywork in green and white (front section renewed in 2019).
Quick Detach front splitter to current design.
Single element carbon fibre composite rear wing with adjustable angle (new style wing mounts).
Transmission:
Elite 5-speed sequential gearbox (5 forward, 1 reverse). Supplied with complete set of 16 ratios.
New CWP and layshaft fitted 2016. All bearings renewed 2018.
Suspension:
Pushrod/rocker activation of Penske coil over damper unit at each wheel.
Steel fabricated double wishbones all around.
Simple anti-roll bar adjustment mechanism with easy access for bar changes.
Ride height, camber and toe settings adjustable for each corner
Chassis:
Box tubular space frame construction with integral safety cage.
Rack-and-pinion steering.
Anti-intrusion side structures, stressed aluminium alloy panels.
Aluminium crash box.
45 ltr aluminium fuel cell for over 1 hour of running.
Brakes:
Dual Wilwood master cylinders with dash board mounted brake bias adjustment.
Front and rear Wilwood 4-pot aluminium racing callipers.
255mm vented disks front and rear.
Wheels:
Compomotive wheels, 6" x 13" front, 8" x 13" rears, centre lock, 2 sets.
Electrics:
New wiring harness fitted 2019.
Race technology DL1 Club Data logger with Dash 4 pro display.
Safety:
FIA approved 6-point safety harness. Expire 2023.
