Description:

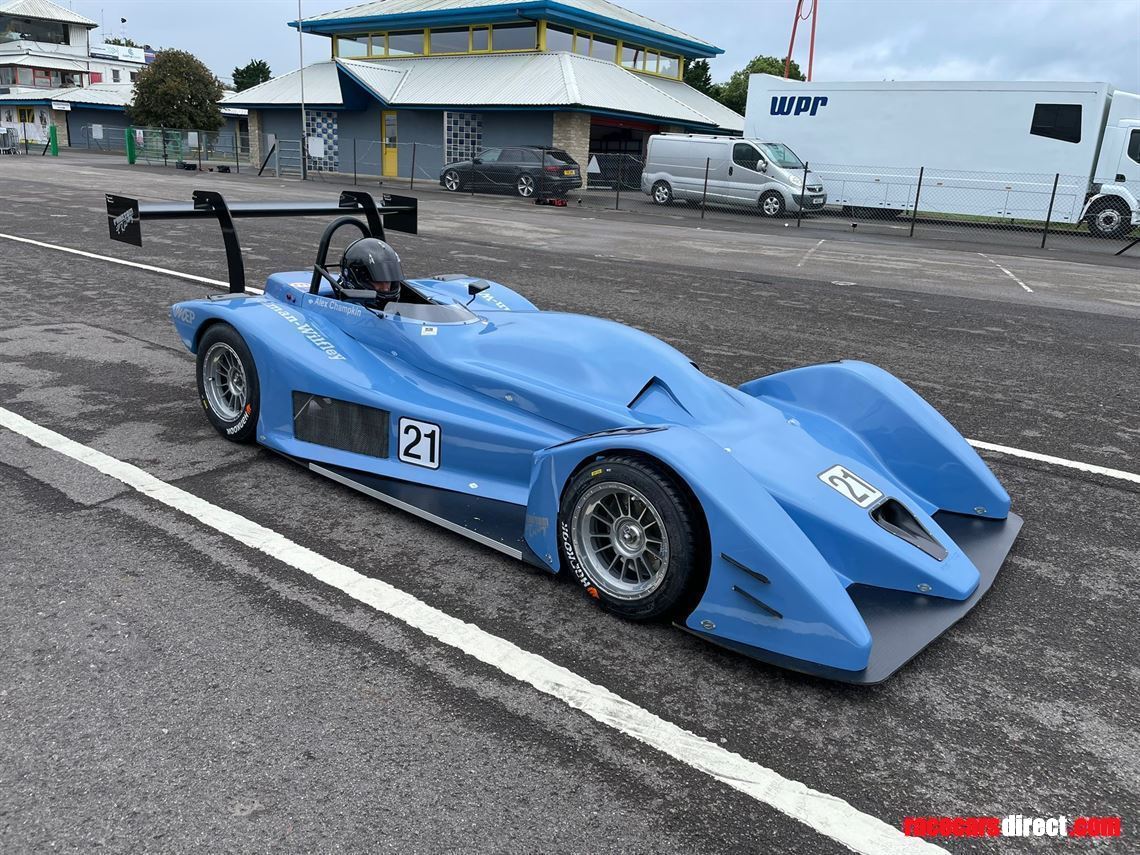

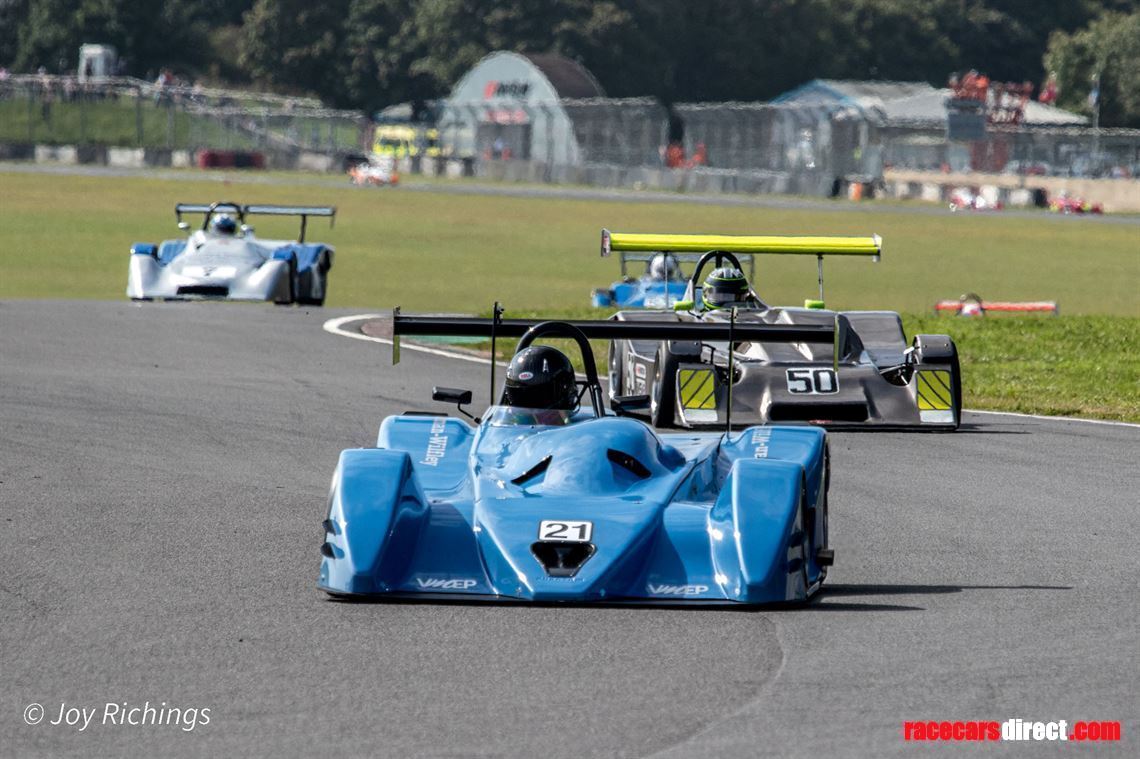

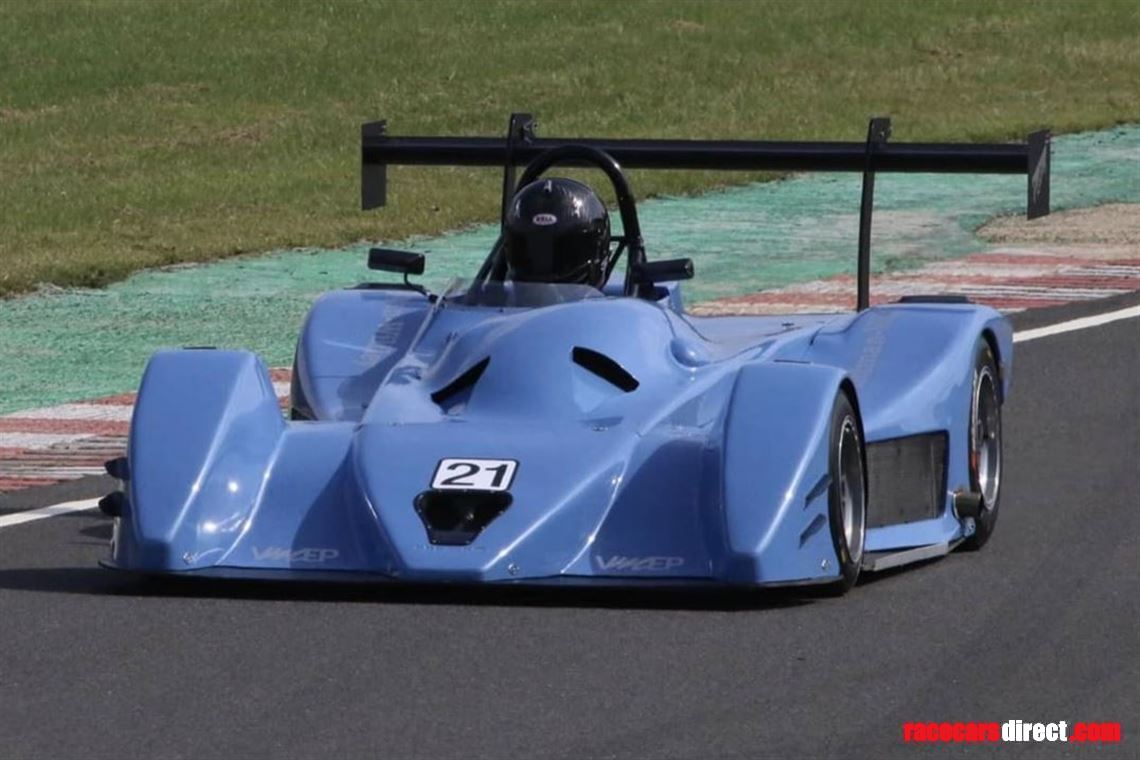

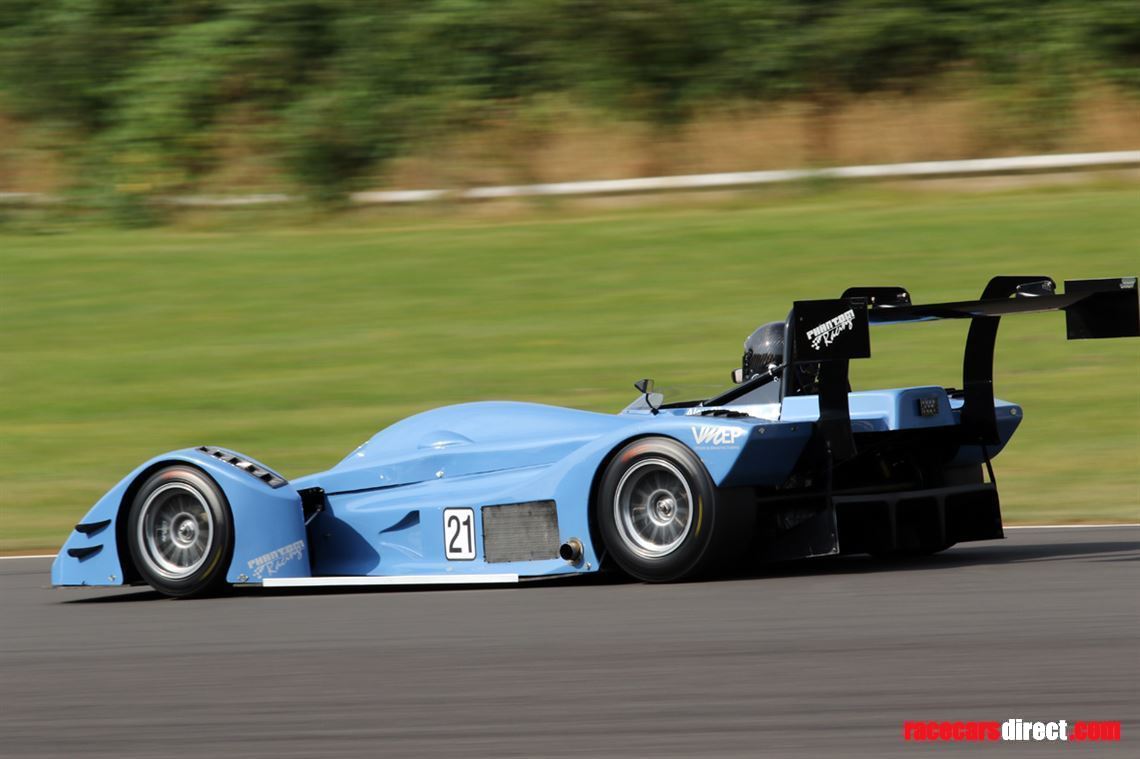

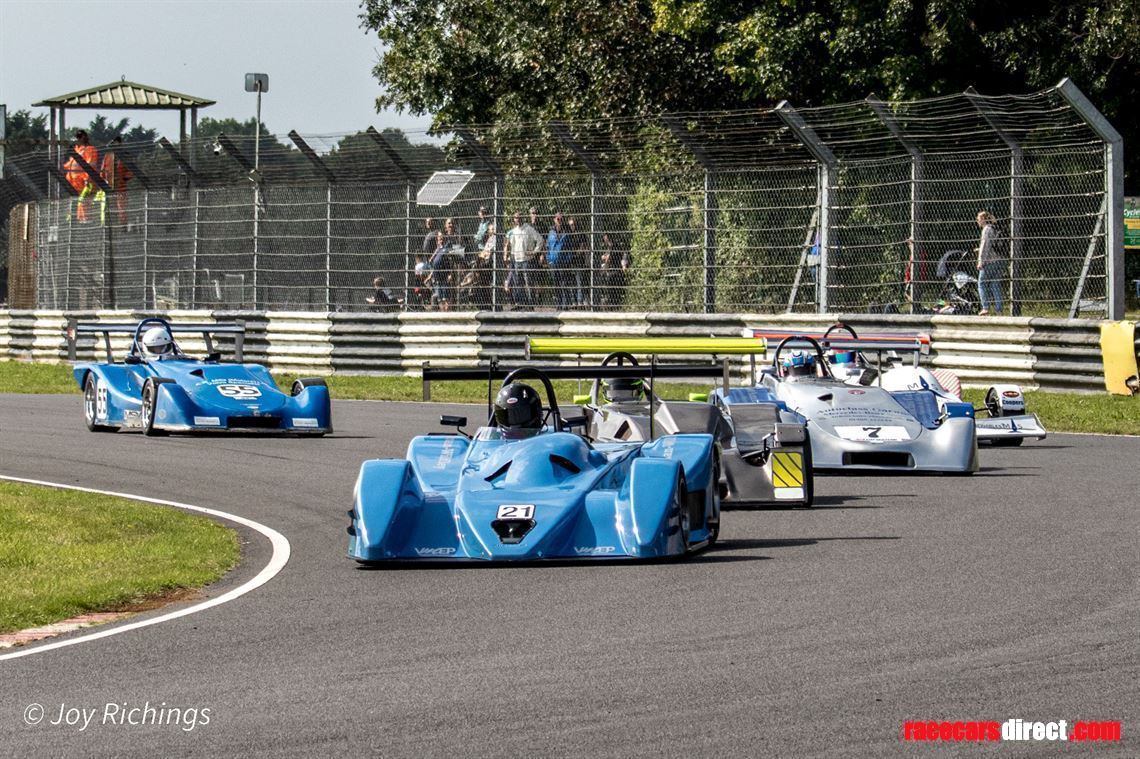

Phantom PR24 sports prototype eligible for 750mc bikesports, Clubmans Sports Prototype, Zeo, Sports Prototype cup, allcomers & track day events.

Engine:

​Suzuki Hayabusa engine 1340cc by RLM, dry sump producing 180bhp at the wheels. Includes warranty. Estimated 40 hour between precautionary checks.

​Stock crank, rods, pistons and cams. Upgraded parts included during the RLM build to their recommendations

6 speed paddle shift, with TGM paddle shift kit and MME paddles. Autoblip down change and flatshift up.

​​​Chassis:

​TIG welded steel spaceframe chassis, powder coated.

Bodywork:

​Glass fibre, painted in a choice of colours.

​Front suspension:

​Double wishbone, pushrod suspension with inboard rockers & Quantum dampers. Front anti roll bar also fitted.

Billet aluminium uprights from aerospace aluminium and hard anodised.

​Rear suspension:

​De-dion tube, Watts linkage, radius arms, Quantum dampers & anti roll bar.

Billet aluminium rear uprights from aerospace aluminium and hard anodised.

Steering:

​Bespoke Phantom fast steering rack with aluminium housing.

​Brakes:

​AP Racing F3 calipers with floating vented front and rear discs, both aluminium mounting bells hard anodised.

Cockpit adjustable bias with Tilton pedal box.

Wheels / tyres:

Evocorse Dallara F3 fitment centre lock wheels, with Hankook slick/wet tyres.

9" x 13" front.
10.5" x 13" rear.​

Other:​

• Life ECU - auto engine cut off if low oil pressure, high oil / water temperature or low fuel pressure are detected.

• AIM MXM dash with Cartek PDM / switch panel / battery isolator.

• Motorsport wiring loom.

• SuperB 15 lithium battery.

• Lifeline latest fire extinguisher system & belts.

• 19L Fuel Safe Racing Cell bag tank with enclosure, integral pump & filter.

​Aerodynamics:​

• Front splitter with venturis.

• Flat bottom with rear diffusor.

• Adjustable carbon fibre DJ Race cars single element wing, swan neck mounts.

​Weight:

​485Kgs complete with fluids.

​​​Additionally we can install AIM camera systems and configure to the AIM dash for data analysis / video replay.

​All cars supplied set up, with our spring / damper combinations & geometry.

​Additionally engines are run in on the dyno at RLM prior to install in the chassis and then the paddle shift set up once a complete car on the rolling road back at RLM.

​Base car as listed above, £70,000 + VAT.
