Description:

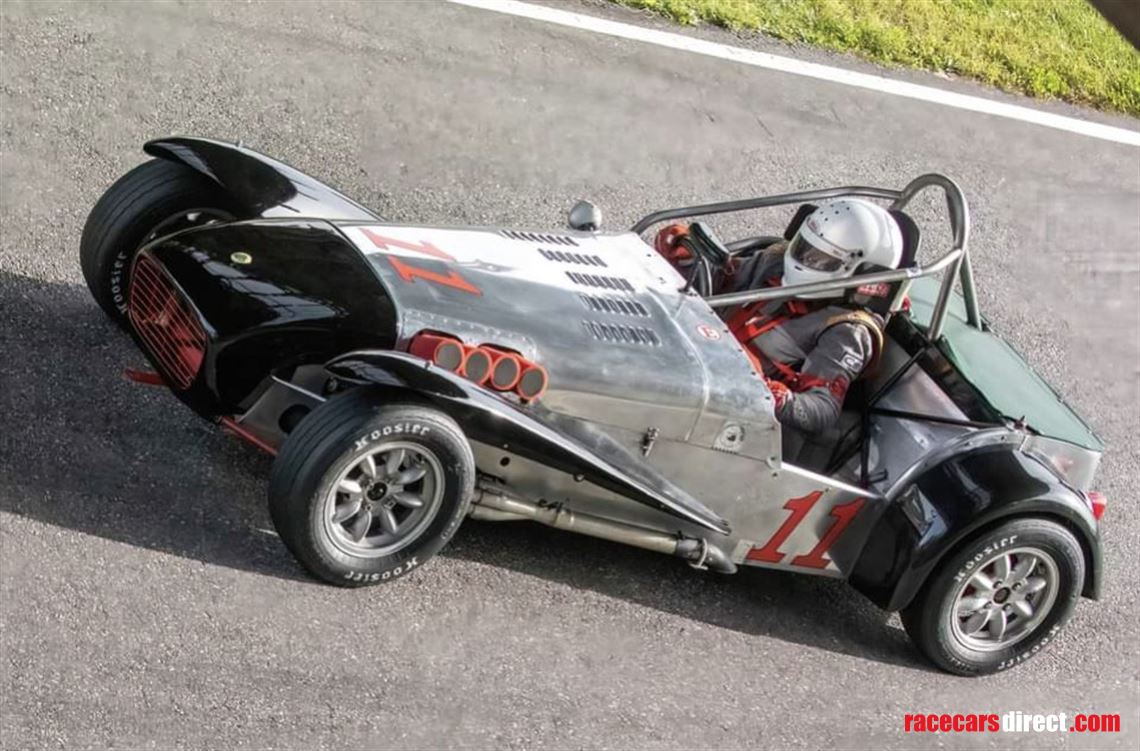

One of the Fastest Legal Vintage Sevens in the USA -

Legal with all race groups and recently raced with SVRA, HSR, VRG, Lime Rock Festival and VSCCA with incredible race Win record. Serial number SB1125 with log books from the early 1980’s. Complete Rebuild 2022 with updated cage, chassis, fuel system, brakes. Fresh LEGAL 1500 non Cross Flow. All steel internals with Fresh Super Close ratio Dog Box. Minimum weight at 1025 pounds.

Professional build. Includes:

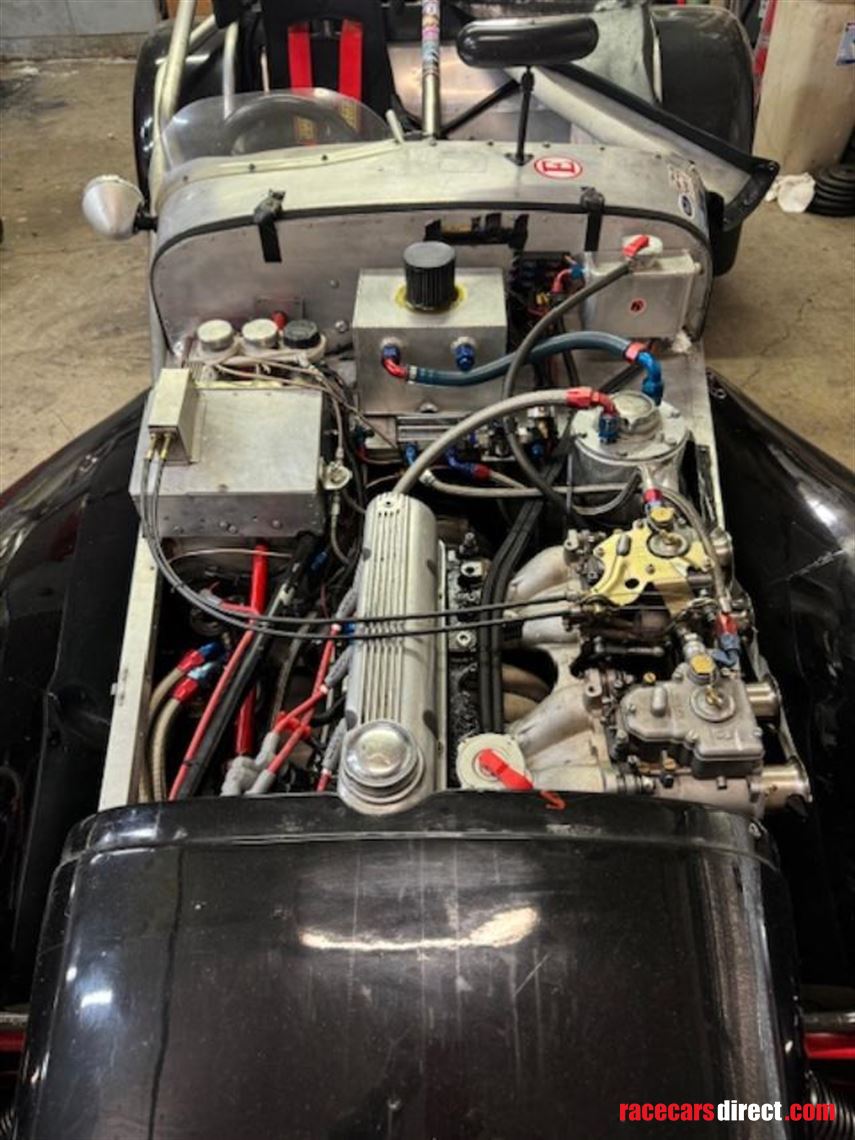

Engine: Original build 2022 with 10 events. Dyno development results available for 2022/23/24. 2737 Block, steel crank, Carrilo rods, CP pistons/low friction Total Seal rings. Dry sump oiling system. Head: new 2024 - valves/Beehive springs light. wt. retainers – flow box development results available - $ Race weekends. Weber DCOE 40’s with match lowed Al intake, Uni filters. Al flywheel with 7 ¼” Ap clutch/pressure plate and hydraulic throw out bearing. Ceramic coated progressive tube headers. Lite wt Al roller rockers with proper valve scrub geometry. MSD electronic ignition and rev Limiter – new MSD wires. Single wire alternator with cog belt crank/water pump underdrive pulleys. Remote Surge tank.

Trans – updated 2024 –  2 events. Fresh legal super close ratio. Spriget Rib case with full Hewland Dog gears. Custom remote shifter. New driveshaft/yoke/U-joints.

Rear axle: 3.9 Torsen Reinforced/bridged 3 link Spriget axle. Dual bearing hubs – HD axles. ARP Wheel studs

Suspension: New 2024 custom Aluminum body double adjustable coil overs with dampers/springs built specifically for the car/corner weights - calcs available. Frt - New upper/lower A Arms. New uprights/trunions/ new big bearing spindles /bushings 2023.

Brakes: frt – new Girling LF14 calipers/rotors. Rear - Spriget 8” drums – drums/pads matched. All Dash 3 Aero. New Tilton Masters. Brake balance bar.

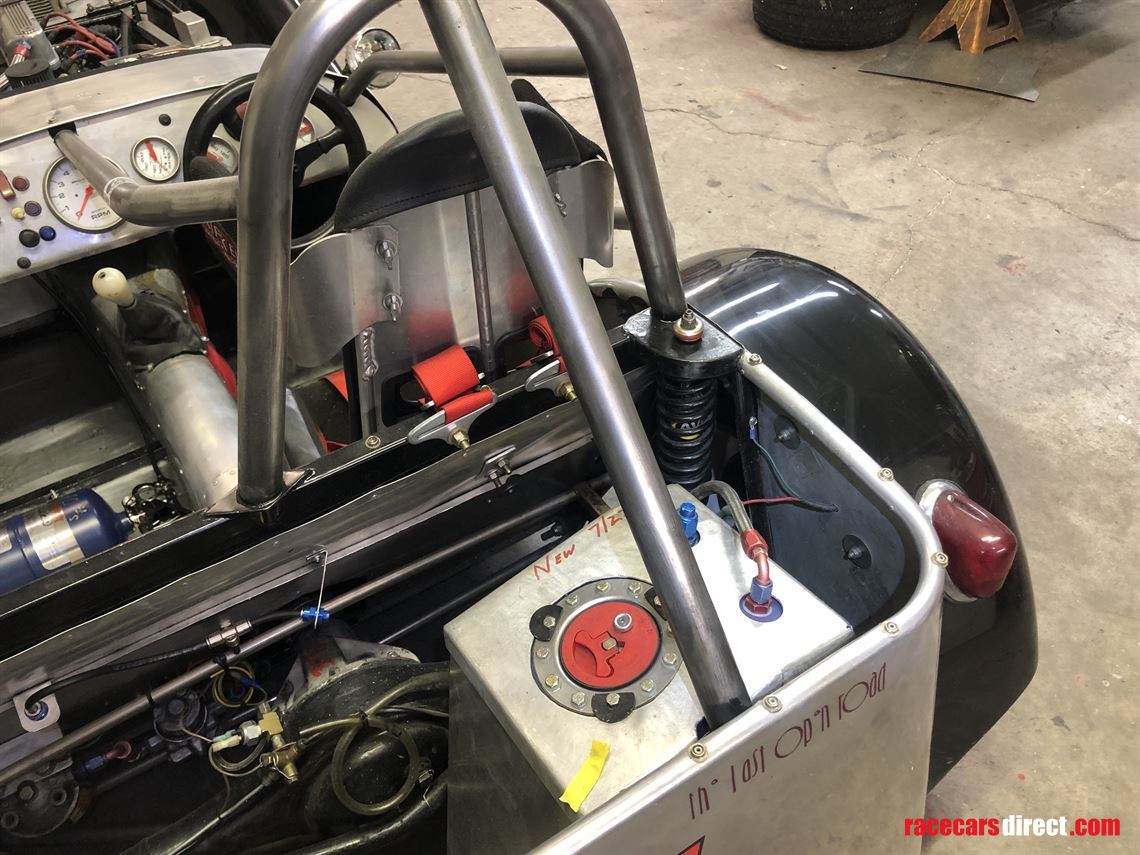

Safety: Fuel safe 5 gal. cell with custom mt. Facet high flow pump, fuel pressure regulator, gauge, all new Dash 6 lines and fittings. Kirky seat. LifeLine 10 # /4 nozzle fire system. Removable leather wheel. Autometer gauges. Memory 8” tack with shift lite. Inovate Wide range O2, OMP Belts. Race Panasorts on car. Lots more.

Complete spares package available including: 2 sets of race Panasports with race and rains. Complete fronts suspension with upper and lower A Arms, Uprights Big bearing spindles/bearings, calipers, rotors, pads and bushings. Rear brake assemblies. Springs. Rear diffs. Engine parts: Blocks, Fresh Race heads – too much to list. Photobucket available with dozens of photos of the build available for people who contact me.

Facebook:

https://www.facebook.com/marketplace/item/1321768079127537

Video:

Keyword Search Terms:

Lotus, Lotus Seven, Vintage, Kent , Dog Box, Hewland, HP
