Description:

Engine:

Built by Top End Performance of Southern California

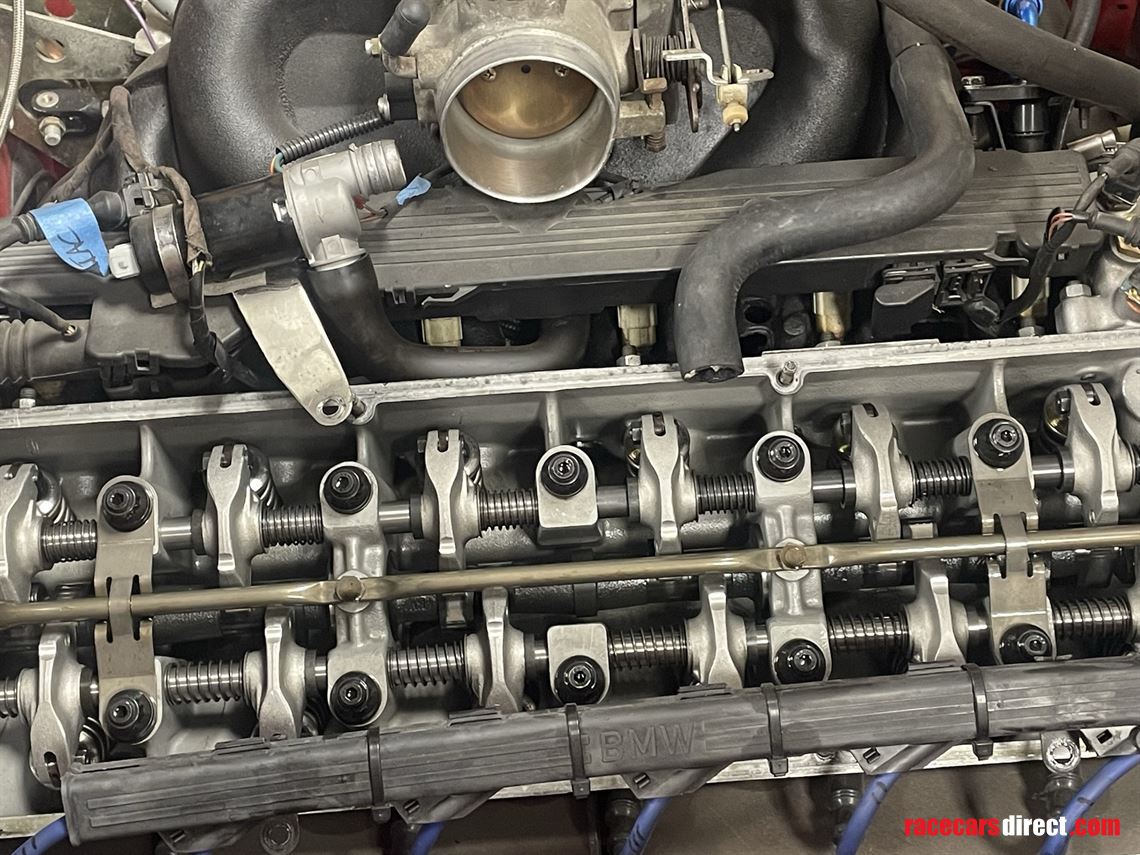

M30B35 Block and Head

13:1 Compression

Forged Pauter Rods

JE Forged Pistons

High Volume Oil Pump

Head Ported and Polished with +1mm intake and exhaust valves

308 Duration Camshaft

Alpina Stage 3 Extrude honed intake manifold

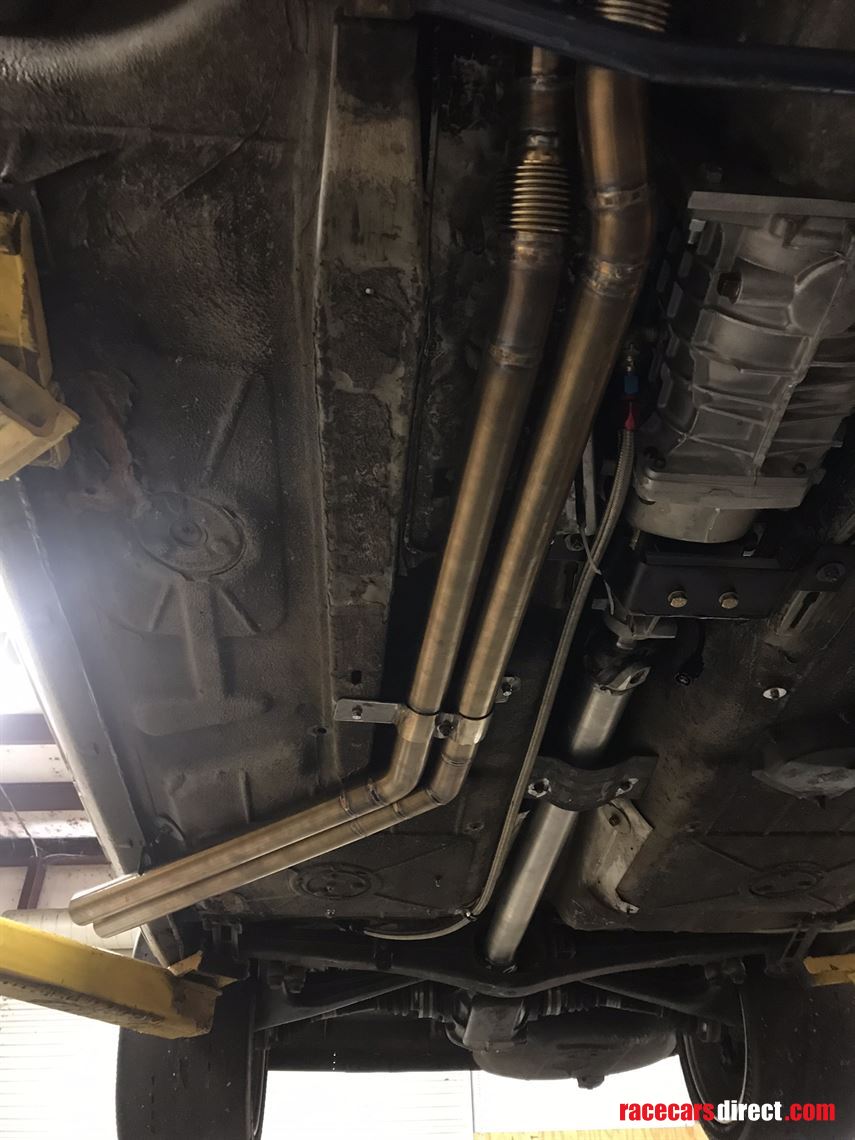

1-3/4” 3-2 Headers

Custom 90mm throttle body

Bosch hi-flow injectors

Megasquirt PnP Management

Driveline:

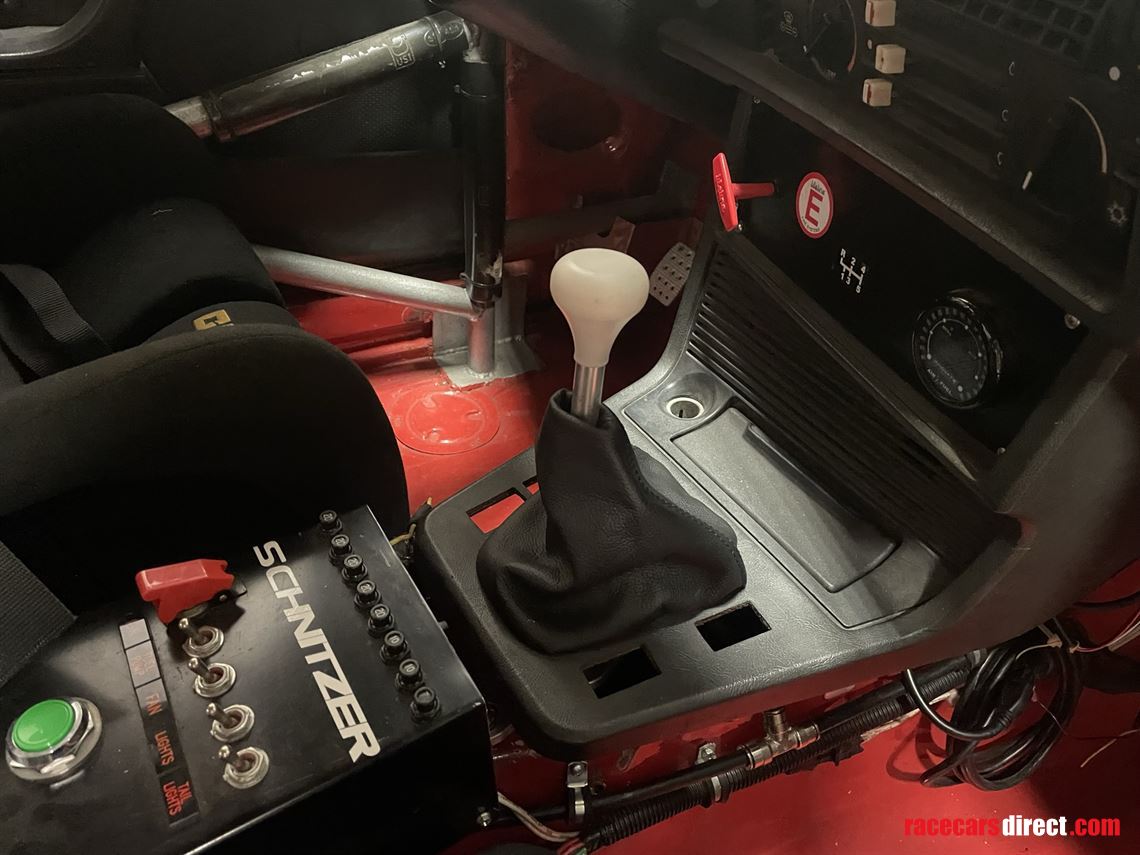

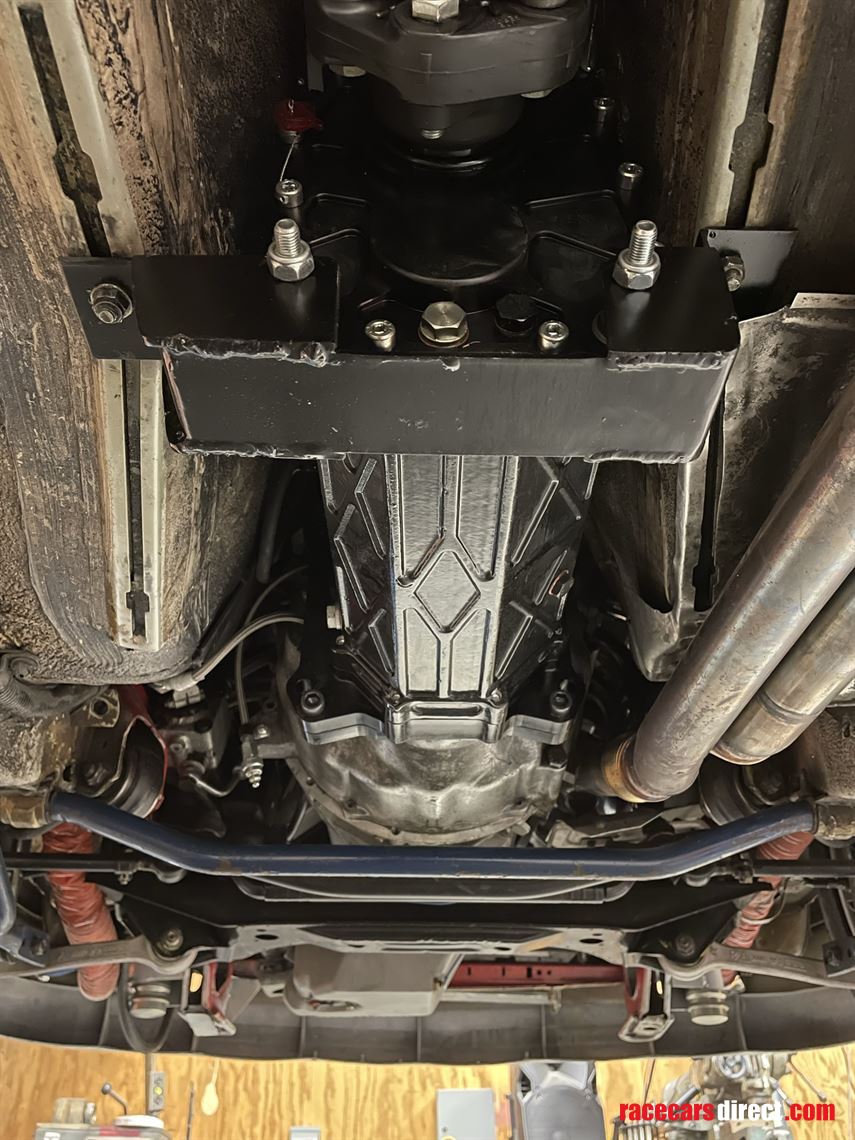

Samsonas Motorsport Dog-ring 6 speed H-Pattern 2.452, 1.8, 1.471, 1.19, 1, 0.875

AKG Motorsports solid shifter

Sachs Performance clutch with Tilton Hydraulic Release bearing in Getrag 265 Bellhousing

Driveshaft specialist 2 piece driveshaft

Jim Blanton built BMW Motorsport 4.1 large case 7 clutch 30/60 120 Nm Static lock differential

Mocal 12 Row Cooler with Tilton pump

Brakes:

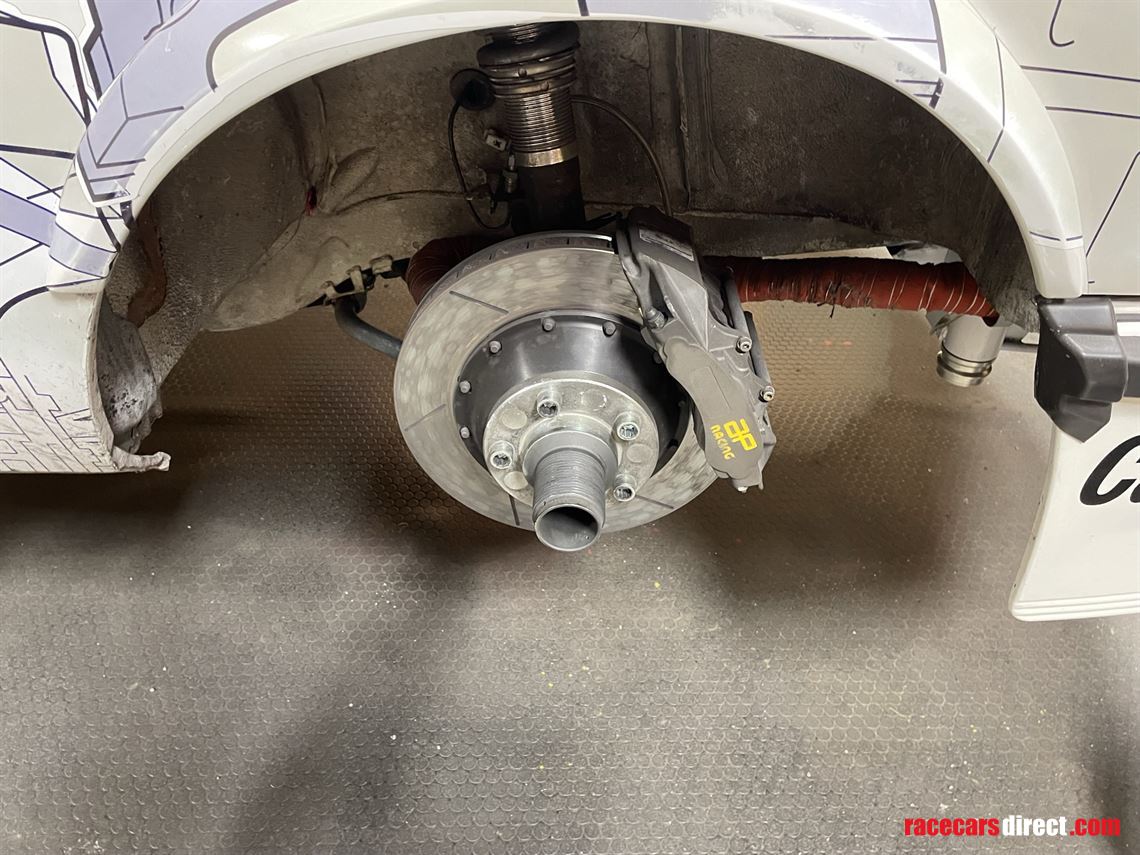

AP Racing 6 Piston CP5800 Front Calipers with 2 piece Coleman Racing 332x25mm Floating Rotors

Custom aluminum backplates for 3inch cooling hoses routed to the front spoiler

AP Racing 4 Piston CP5610 Rear Calipers with 2 Piece Coleman Racing 310x20mm Solid Rotors

Full manual pedal assembly (custom) with Tilton Front and Rear Masters with Bias Adjustment

Front Suspension:

Aluminum Mono-ball lower control arms and Spherical bearing upper arms

Custom valved Bilstein strut inserts inside Alpina coil-over housings with 2.5ID Springs with Alpina camber plates

M635csi quick ratio steering gearbox

Rear Suspension:

Subframe modified for camber and toe adjustment

Custom valved adjustable AFCO shocks (rebound and bump adjustable) with 2.5ID coil-over springs

Wheels/Tires:

Centre Lock wheels from Image Wheels in the UK – 2 Sets

Front 8x17

Rear 10x17

Safety:

Custom 6 point cage by Winding Road Racing Austin TX with logbook and certification

FIA Approved Momo Seat with side impact head protection

FIA Approved 2017 Dated 22 gallon ATL Fuel Cell – Bladder is good with no signs of degradation

FIA Approved 5L AFFF Fire System (2024 Date) with 2.5lb hand held extinguisher

FIA Belts good till 2025 (Saebelt)

Quick release steering wheel (NRG)

Cool-shirt system

Misc:

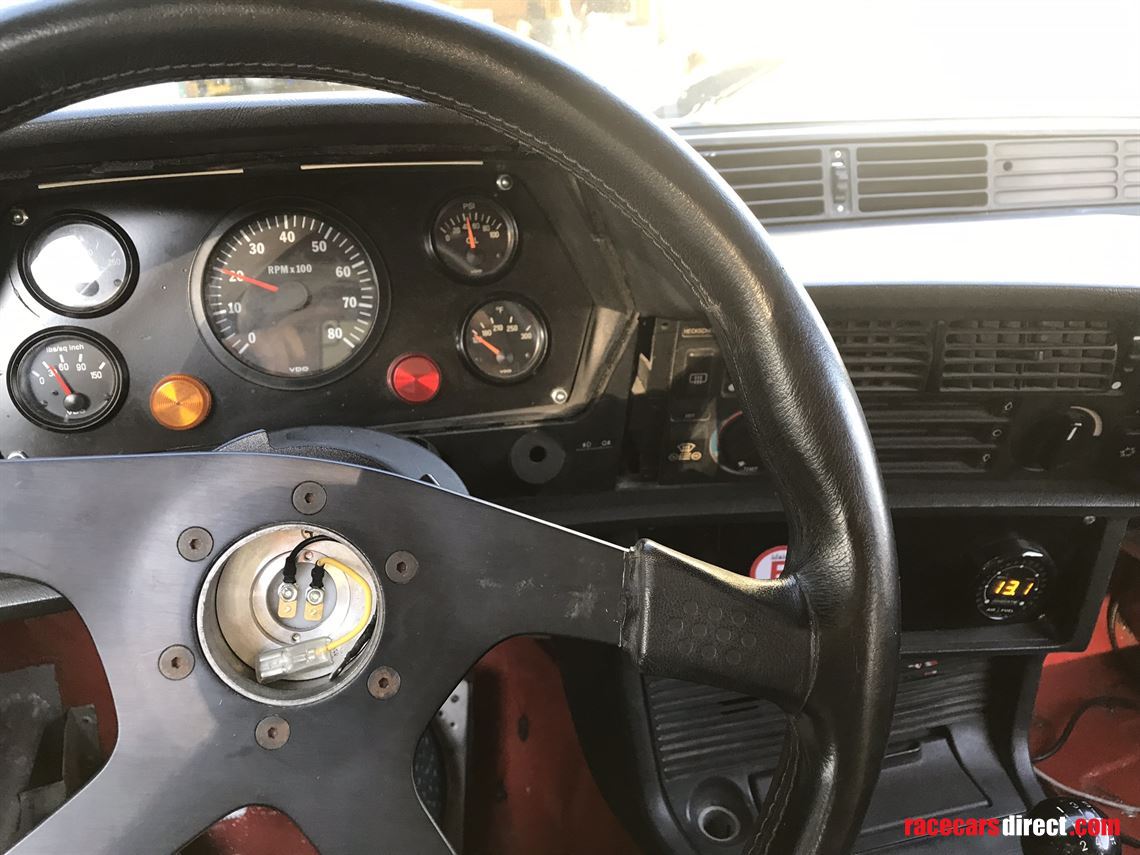

VDO Gauges with wideband – Large Oil and Electrical Warning Lights

Electrical redone with Klixon aircraft breakers and Honeywell aircraft switches

Single Euro Wiper and working lights for night and racing in the rain

Plexiglass side windows and glass front and rear windscreens per FIA regulations

Stock dashboard and door panels per FIA regulations

ATL quick fill fuel system with vent

Krontec Air Jack System, hose and wand included but not the N2 tank.
