Description:

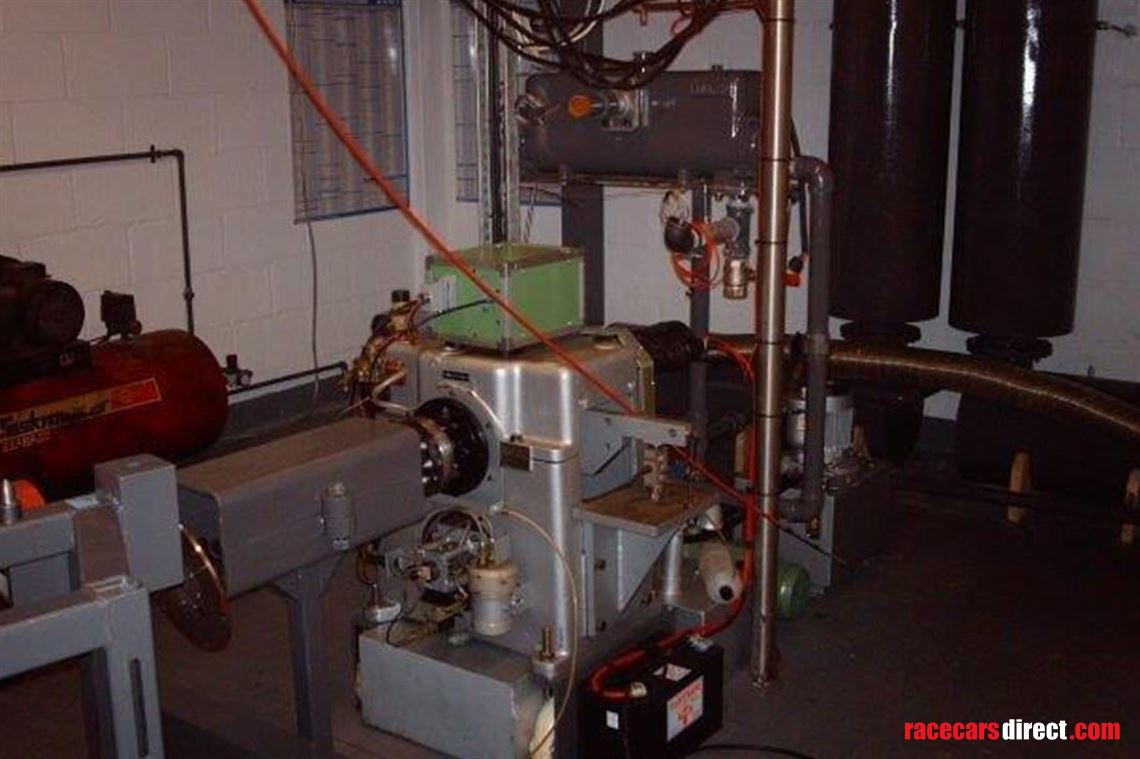

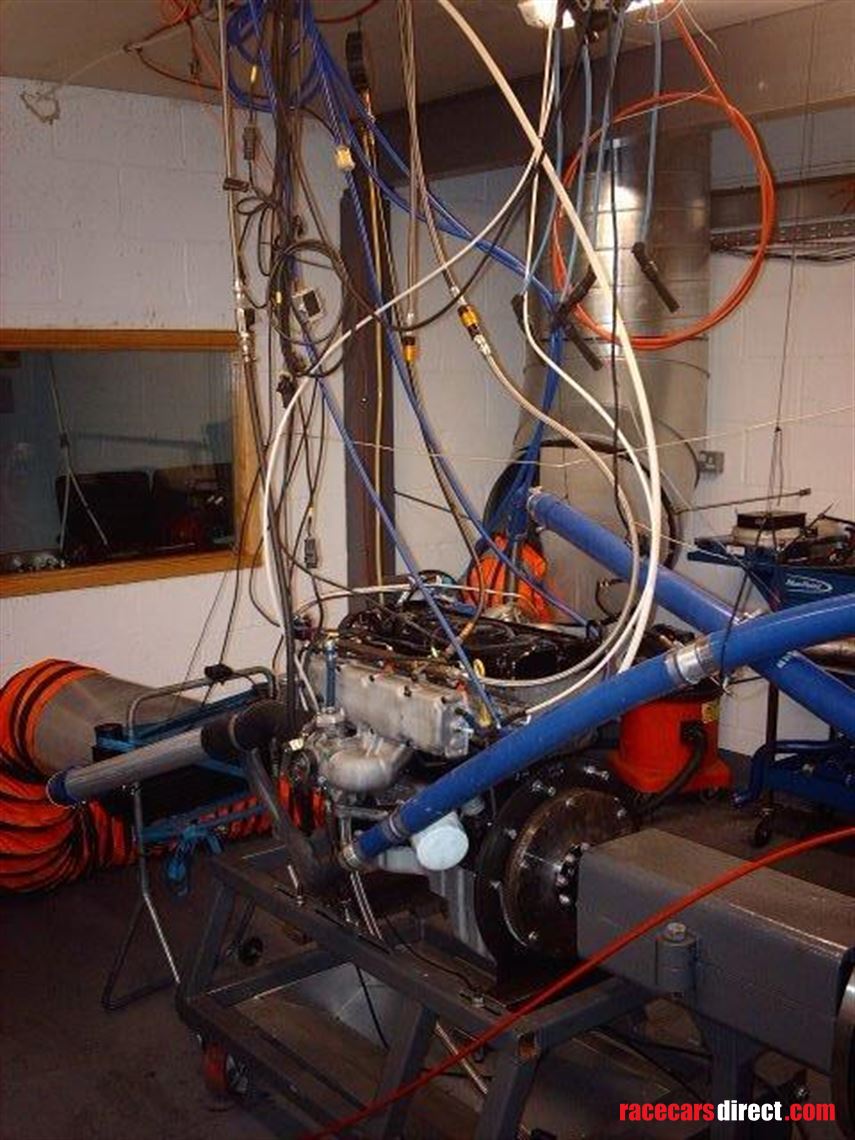

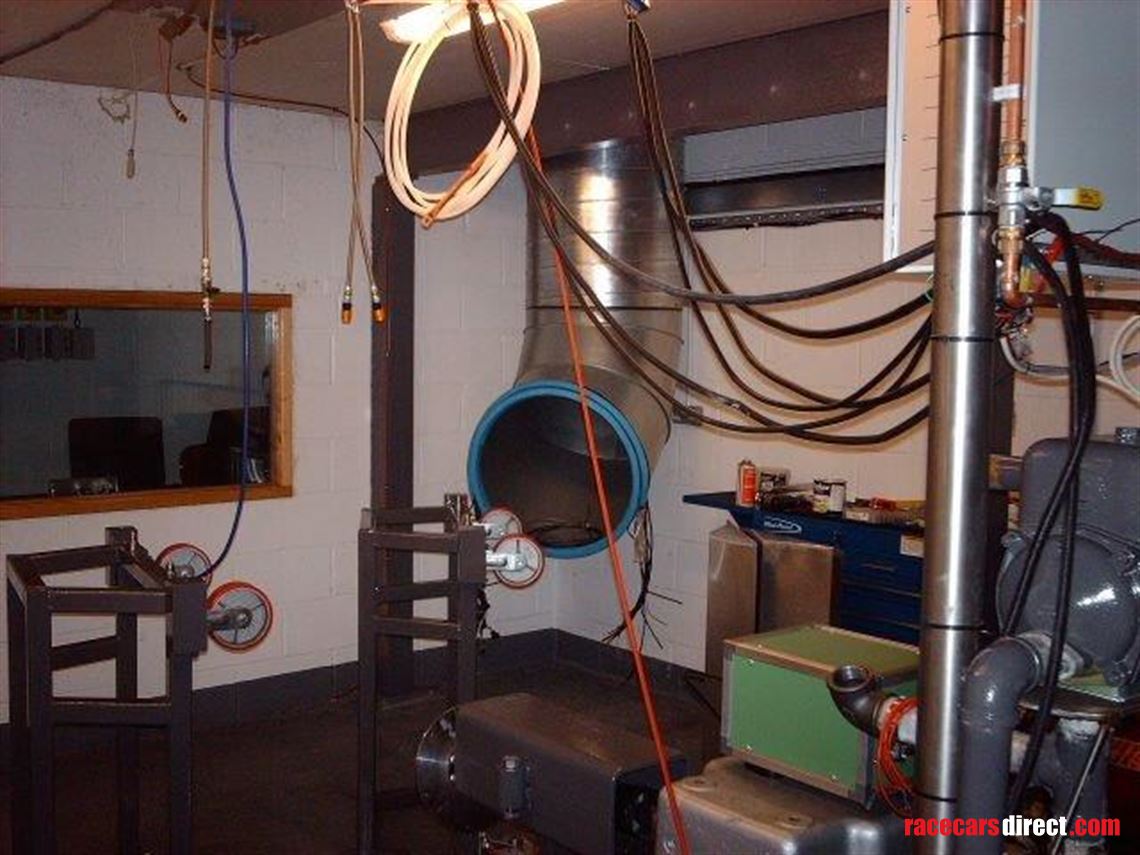

DSG supplied Froude 201-45 water brake engine dyno with Oil Mist Bearings

You won’t often find a complete engine dyno with everything you need to be up and running, this one is only offered for sale as I am now retiring.

Specs: Continuous running 10,000 RPM 800 bls ft

Oil mist bearings to allow short-term running over 10000 rpm.

Fly by wire electronic throttle control system which can be pre-programmed for automated runs or running in cycles. Accurate return to load point time after time, can also be programmed with track data logs for testing engine performance around a given racetrack.

Manual throttle can also be used.

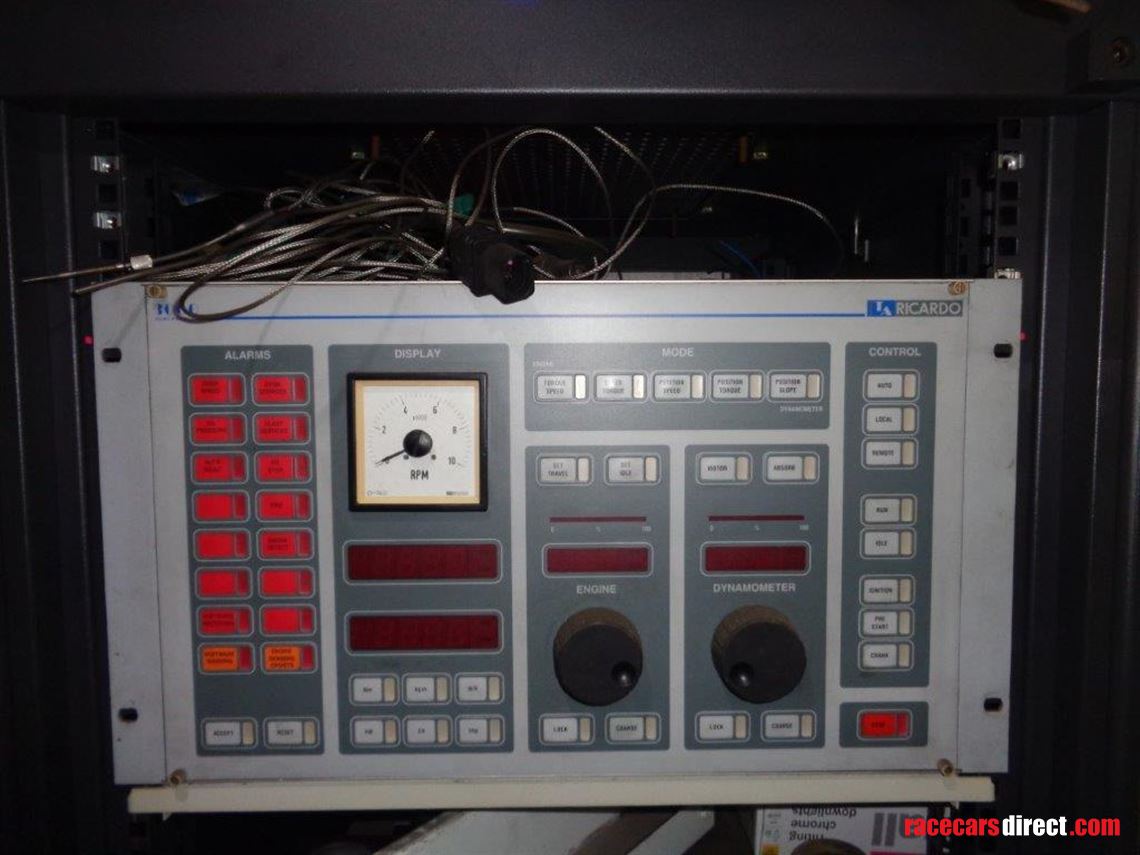

Control is Ricardo TA3000 digital 19 rack mount fitting.

32 channel data logging

TC610 NTK Horiba wide band lambda sensors

K type thermocouples range upto 1000 degrees C

Bowman water header tank

Bowman oil cooler

Included in the sale price.

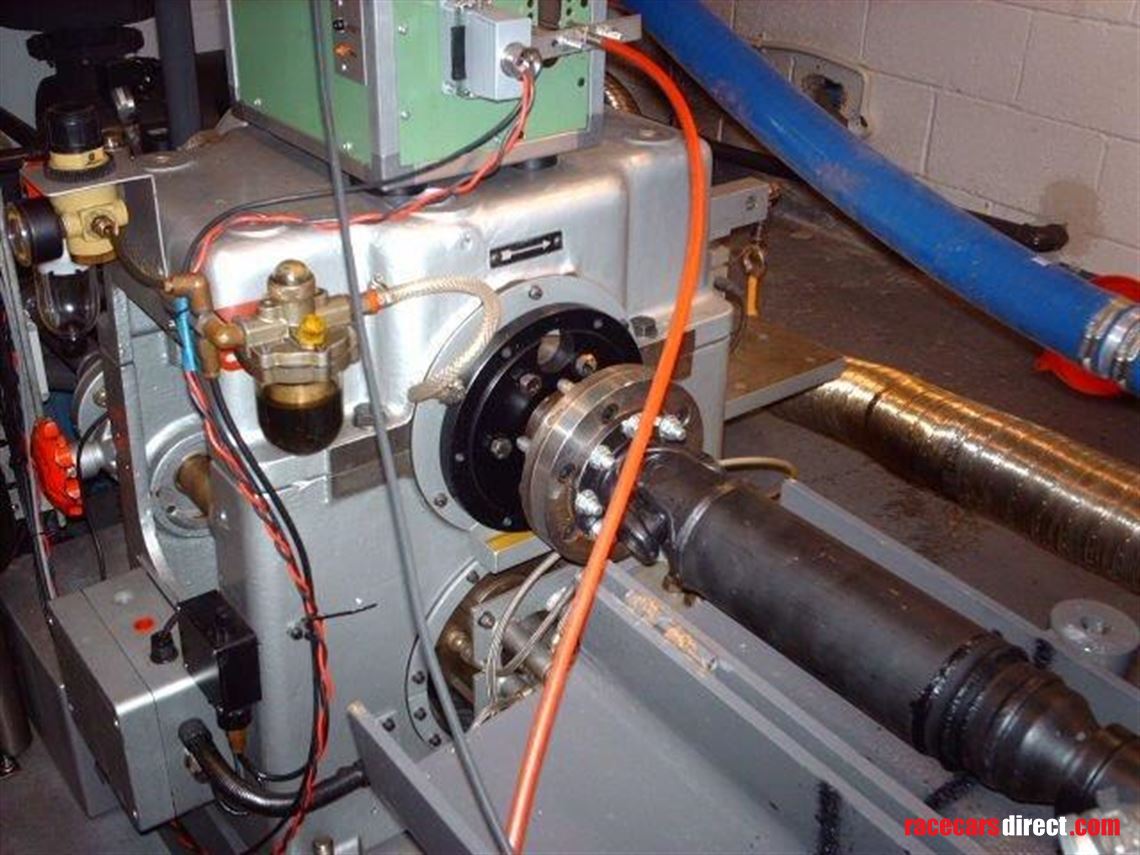

Dyno head Froude 201-45 Oil Mist bearing

Galvanised water Tee tank

10,000 litre plastic water storage tank

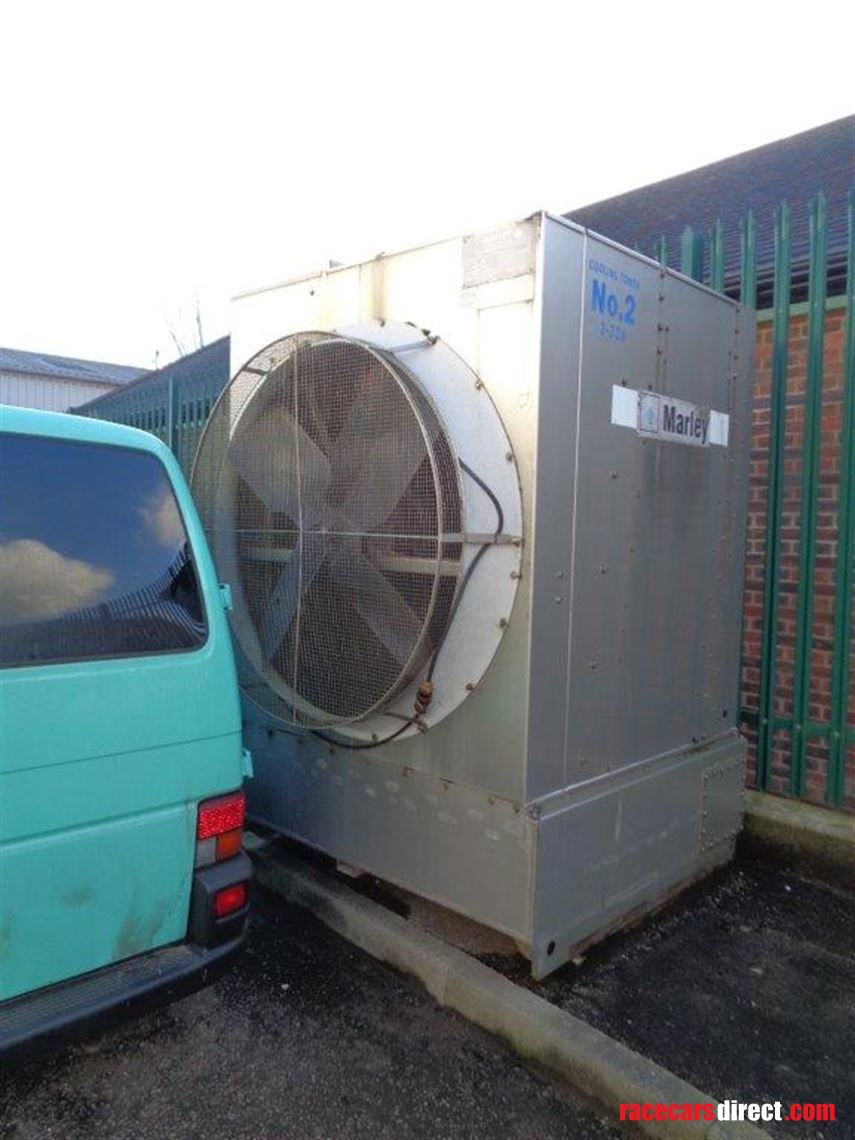

Marley stainless steel water cooling tower ( ex F1) with 500 litre tank in base

Cooling tower support stand (3 meters high)

2 x water pumps feed and return 3 phase.

Electric water bypass valve

Bowman water & oil cooling tanks

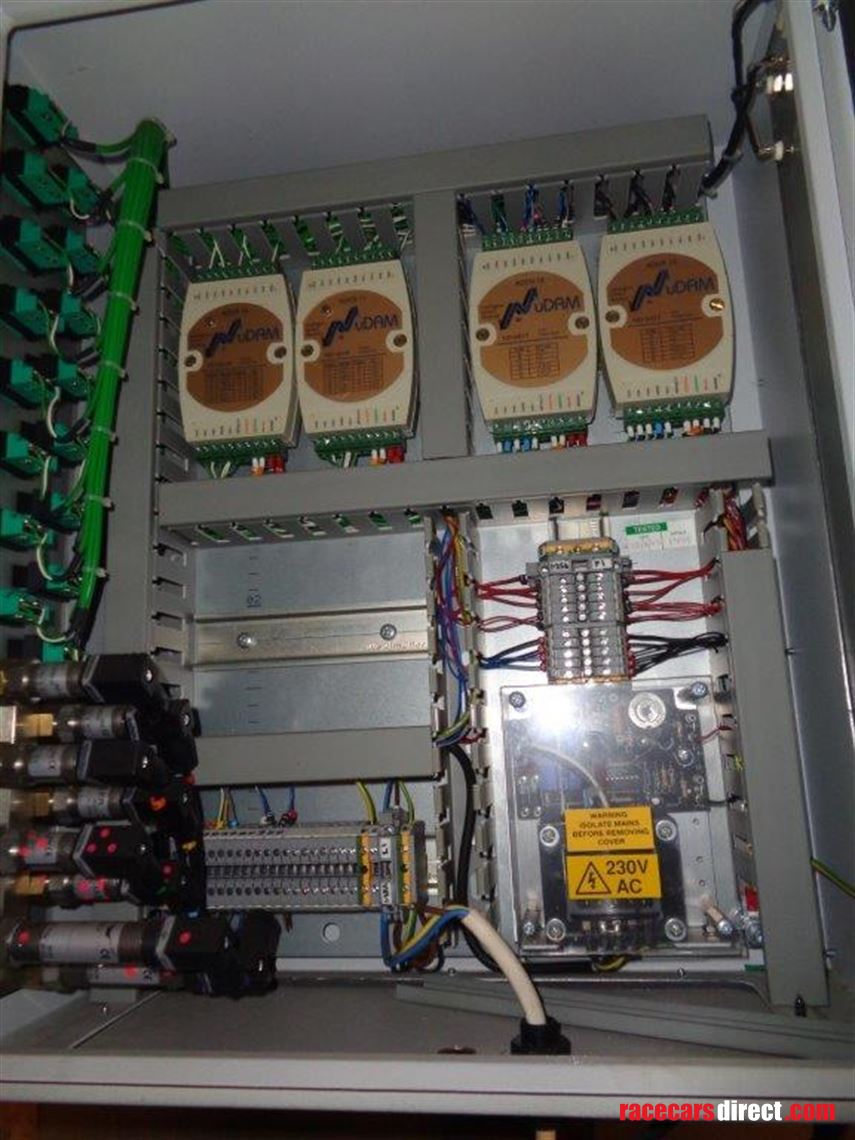

32 Channel data logging cabinet in stainless steel frame also holds Bowman water cooling header unit.

Automated throttle servo unit and cable with all required wiring

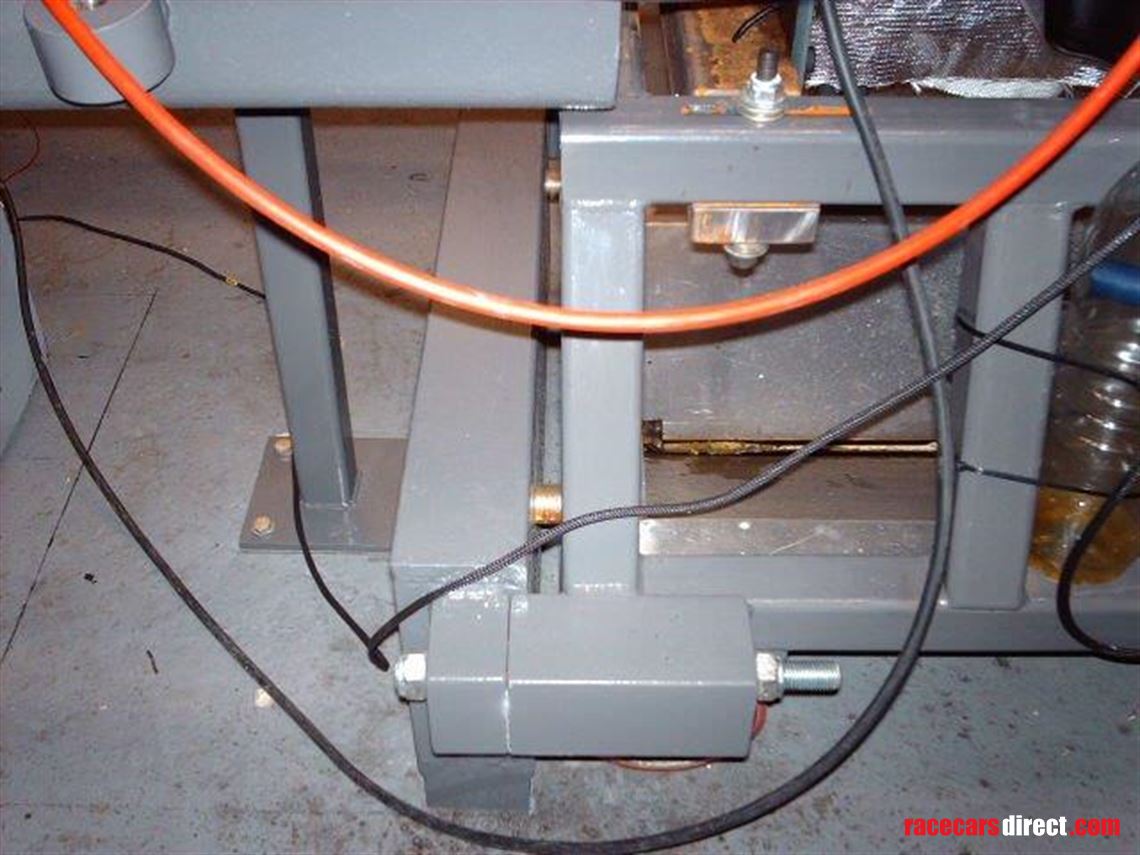

2 x engine docking carts (One modified slightly)

All required wiring

184mm & 140mm jack shaft adaptors for race clutch flywheels

Ford/Renault/Peugeot flywheel and cart adaptors

Spare blank adaptors

Jack shaft/rubber couplers and safety case

1 x 500 mm radial fans 3 phase can be speed controlled.

2 x twin silencer, exhaust silencing stacks

K Type thermo couples and stainless adaptors

1 x NTK Horiba wide band lambda sensors and control boxes

Ricardo TA3000 digital control with all required wiring

Ricardo power supply with all required wiring

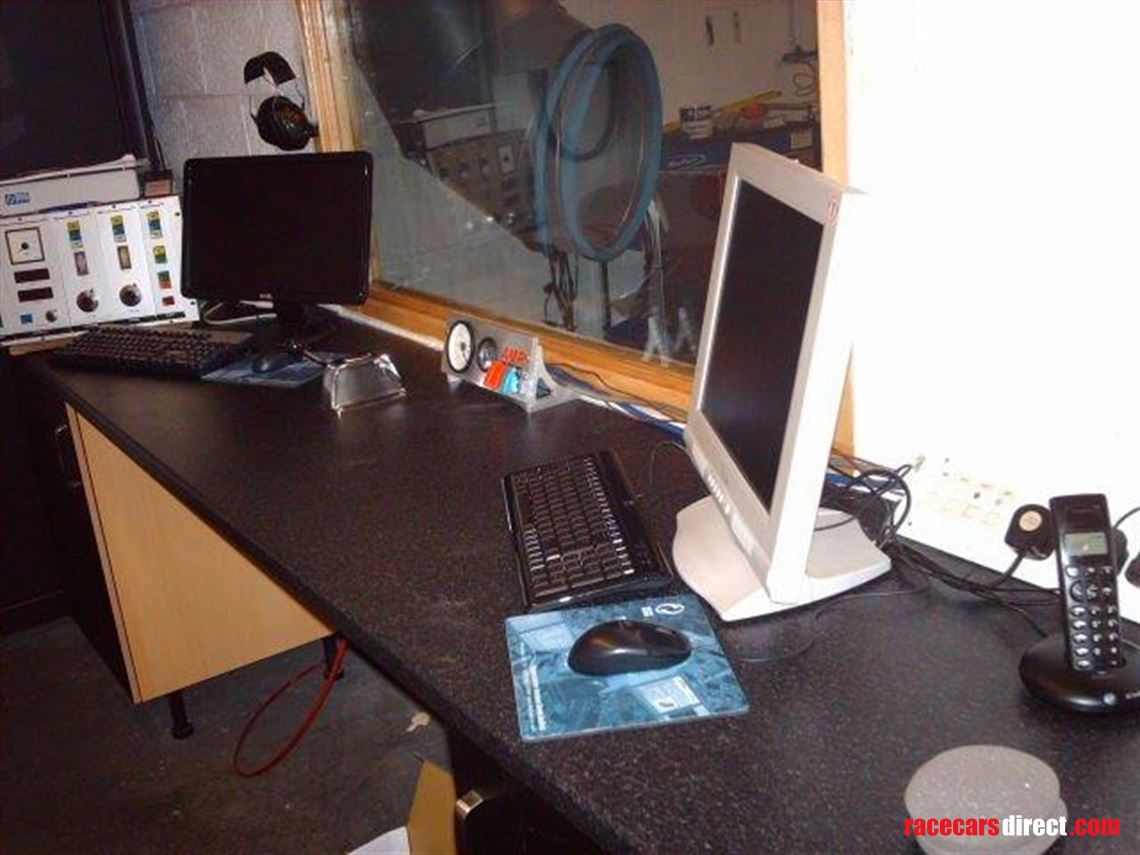

P C with dynamometer control & data logging software installed

19-inch rack mount cabinet

All operator manuals / wiring manuals / repair manuals

All required interconnecting wiring and E stops.

Hydraulic pack (spare one also included)

Full engine starting kit installed on dyno head.

This dyno was calibrated Dec 2019 and decommissioned February 2020 and is currently in storage.

Further pictures can be sent of any of the equipment if needed. A VAT invoice can be supplied if required.

Price is £17500 ONO
