Description:

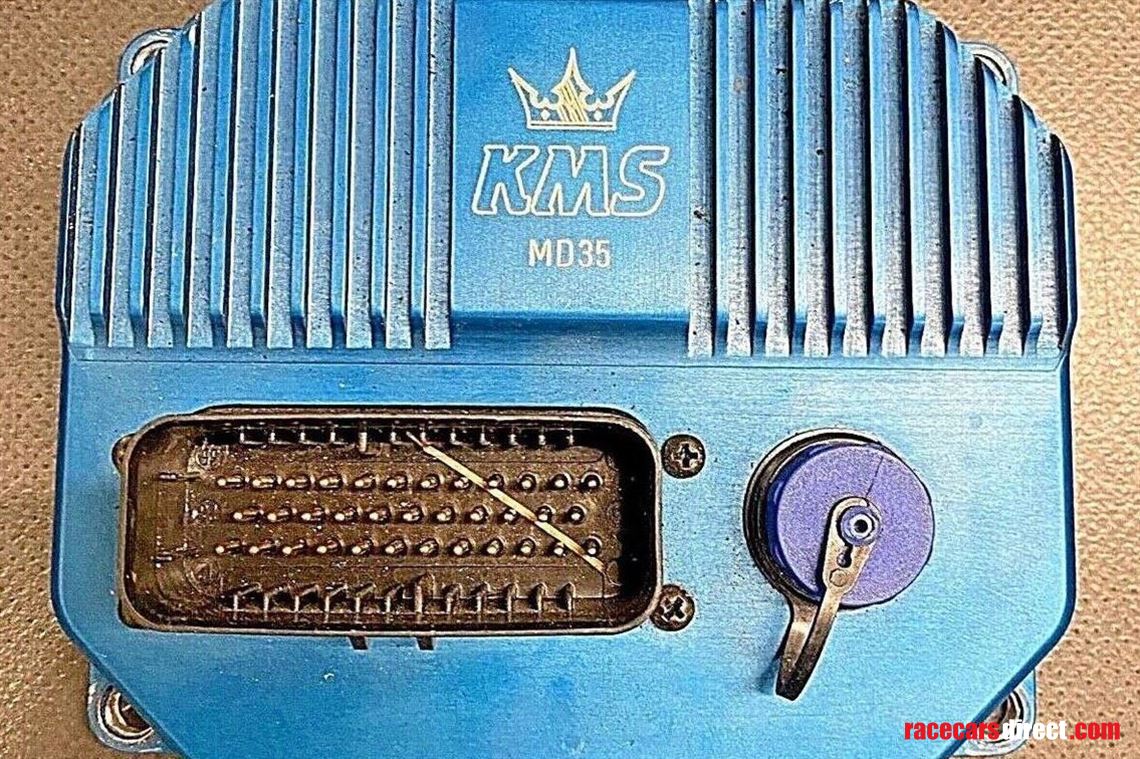

KMS MD35 - Standalone ECU



Engine Management System - Removed from a BMW M3 Race car fitted with an S54.

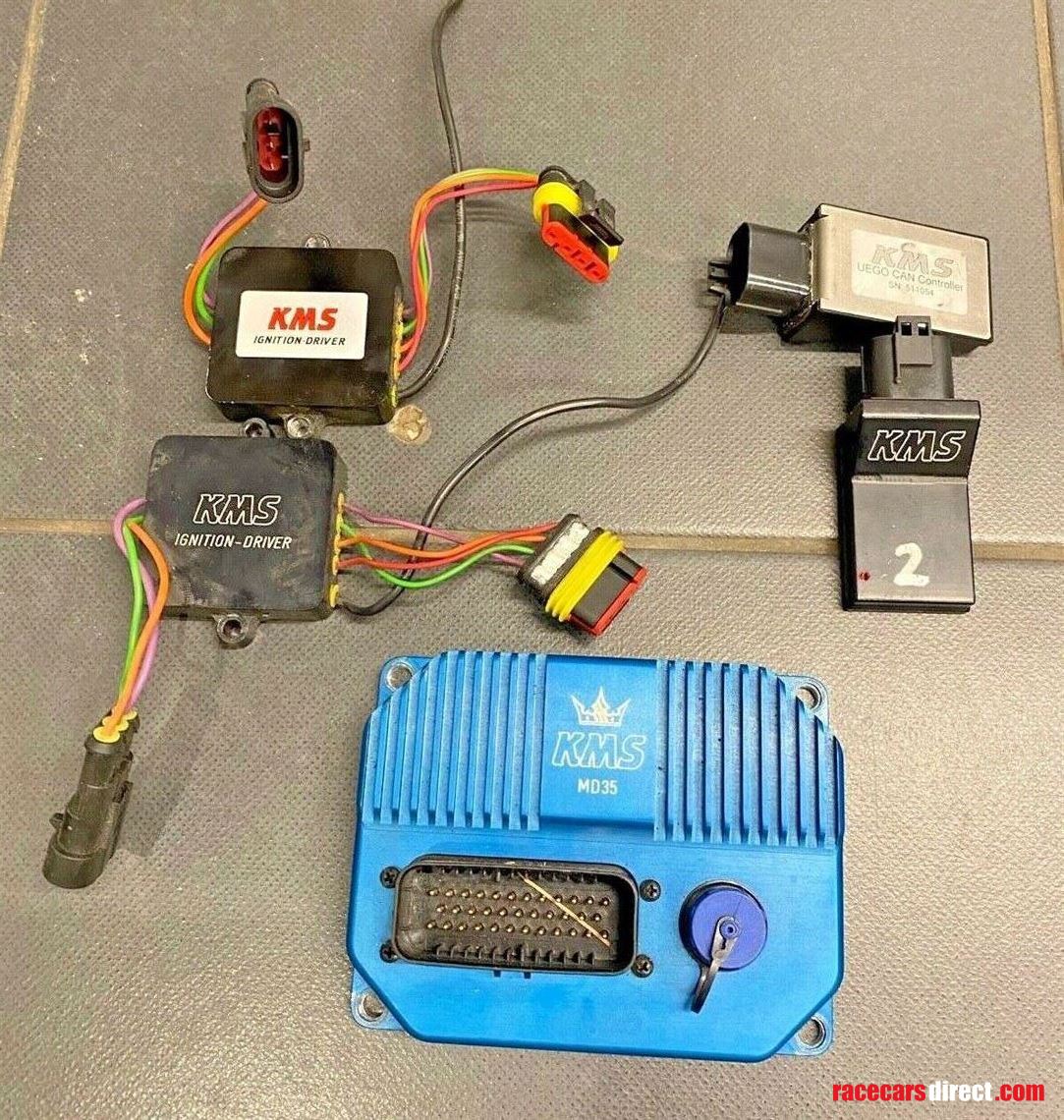

Includes:



• 2x UEGO CAN Controllers
• 2x Ignition Drivers

Features:
• Complete engine management system up to 12 cylinders
• Dual self-learning lambda control in combination with KMS UEGO CAN controllers
• Odd firing angles
• Direct fire in combination with cam-sensor
• Inductive / Hall crank trigger
• Staged / Banked injection
• Map selector
• Engine diagnostics
• Shortcut protected outputs
• 38 channel 4Mb data logging
• Dual processor technology
• Water resistant
• Connector with gold-plated pins
• USB interface
• CAN communication (used for extra in-/outputs, KMS CAN display, etc)
• 2 engine load sensors
• 3 analog inputs (2nd lambda, gearbox position, G-force sensor, EGT, etc.)
• 3 auxiliary outputs (Shift light, water-injection, cooling fan, etc.)
• Pit lane and speed limiter (variable)
• RPM limiter
• A.L.S. (variable)
• Powershift (separate delay and cut-off time for each gear)
• Boost control (gear, speed and time-dependent)

• Launch control (variable, separate time delay possible)
• Idle control
• Speed inputs from external KMS speed sensor >CAN converter 4-channel
• Traction control



Can be supplied with Engine Harness if required



Contact us on 01280 701230 for further information
