Ford type 9 Race 5 speed dog gearbox - SOLD


This is now SOLD. Search for similar items.

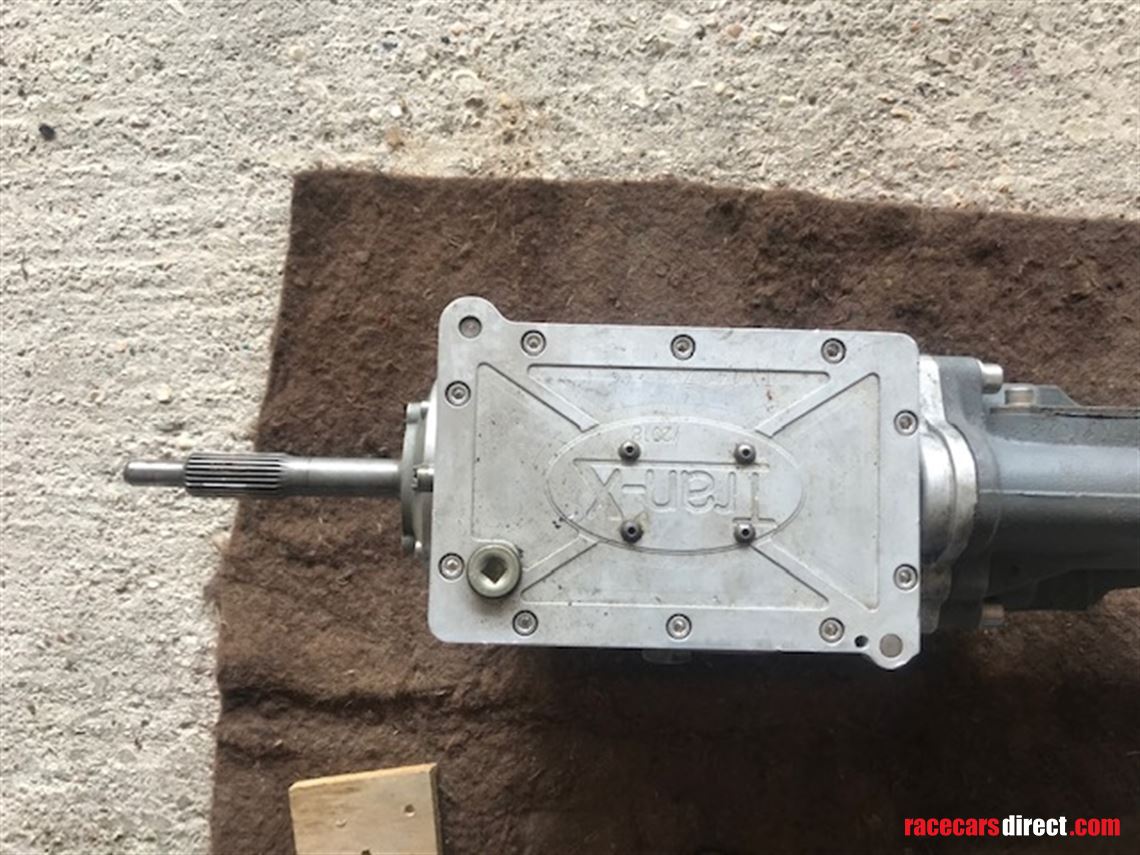

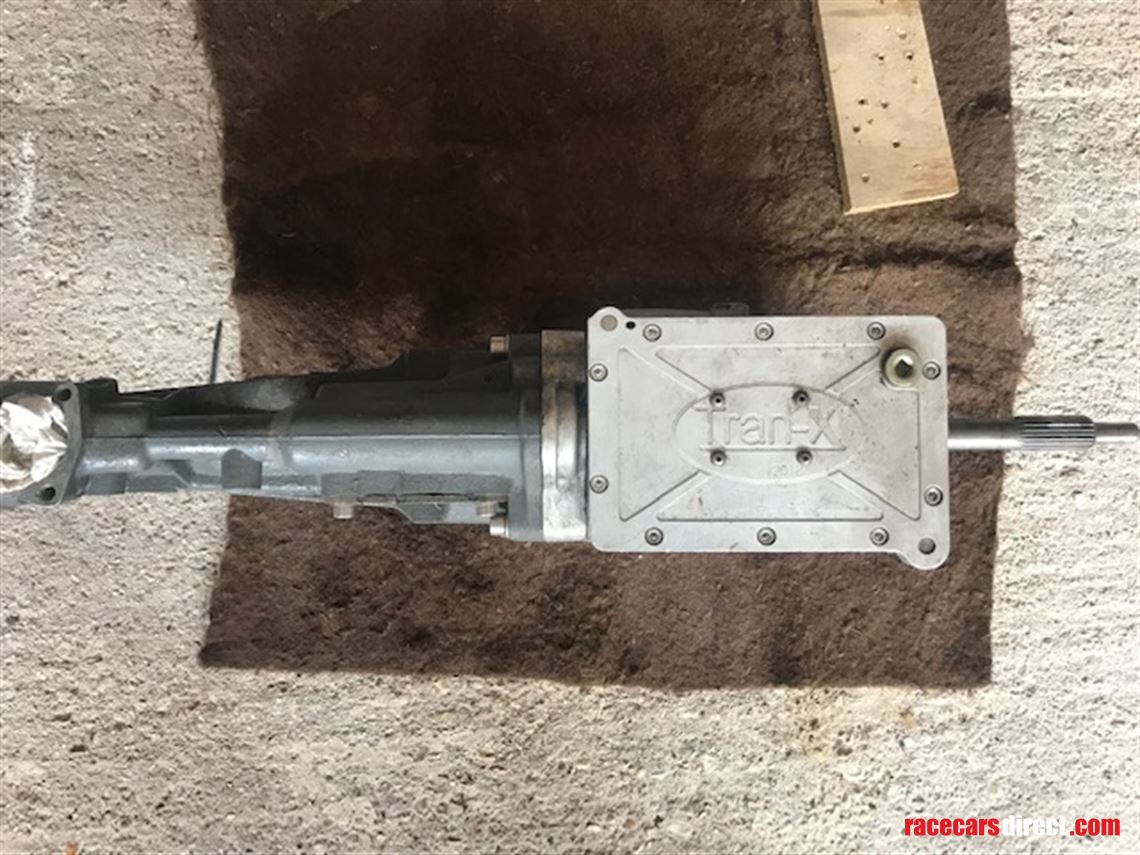

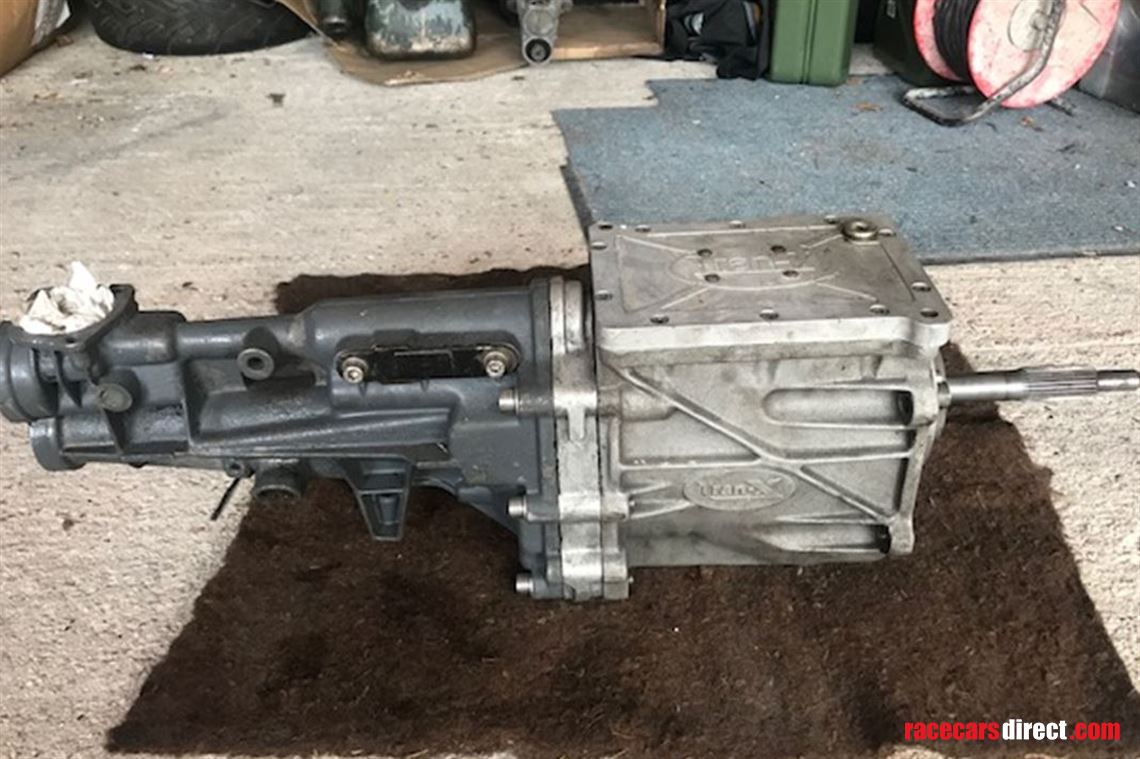

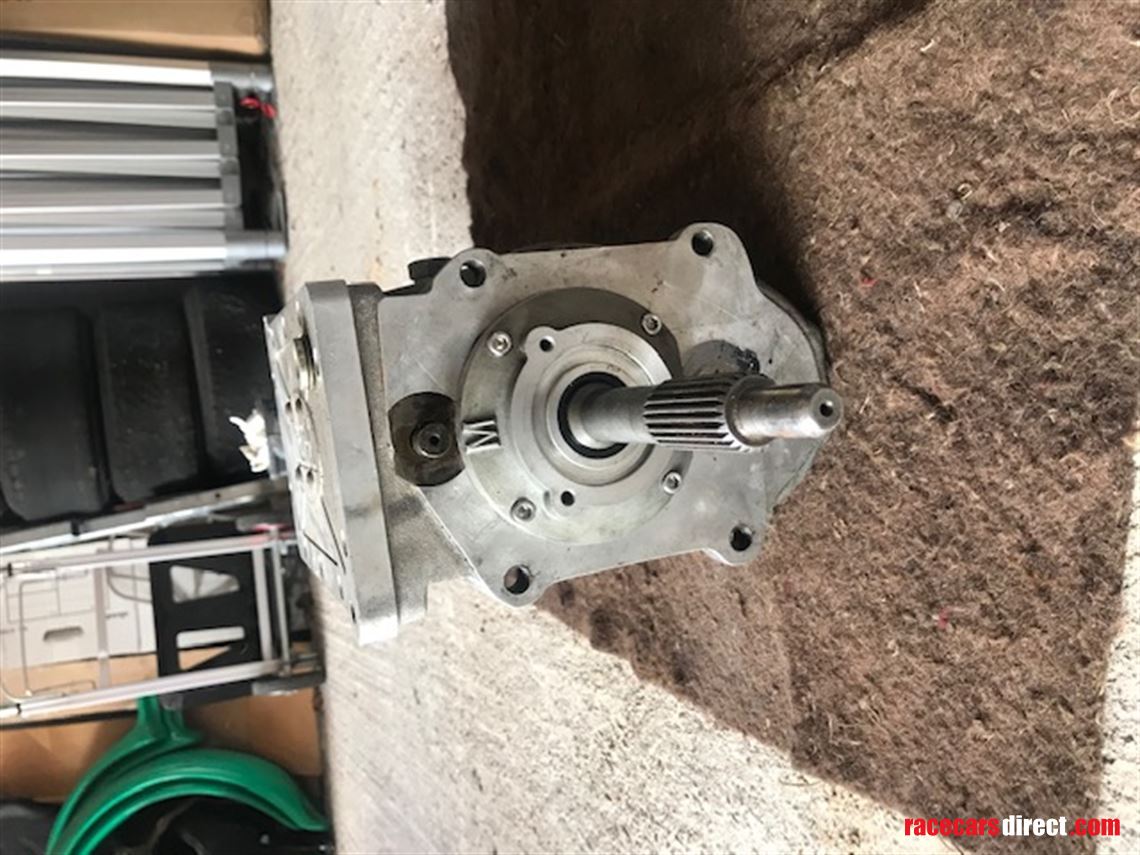

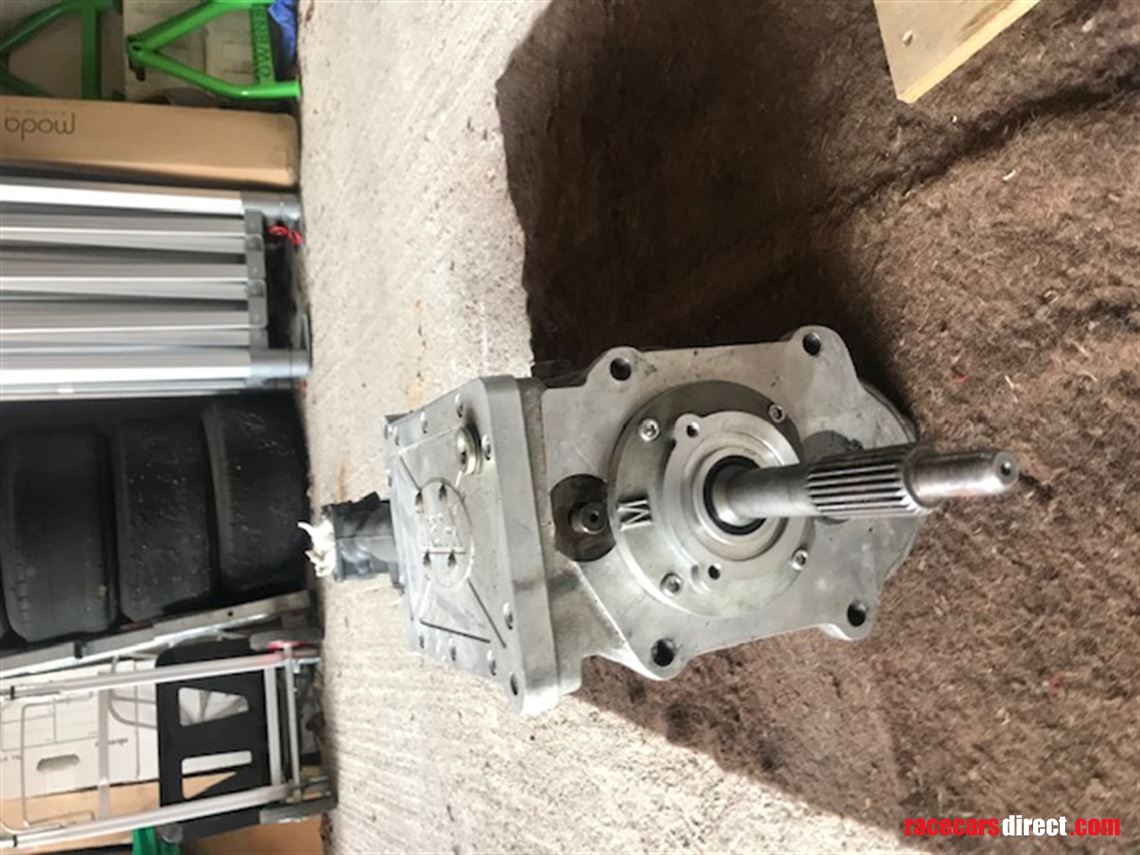

  • Ford type 9 Race 5 speed dog gearbox Capri Escort Sierra 2.0 Pinto: Cost £4,700

  • Quaife/TranX Engineering’s 5-speed dog engagement Ford Sierra Type 9 gearbox, suitable for classic Ford models including the Escort Mk1/2 and Sierra. Available only as a complete assembled unit, box is designed as an outright competition gearbox, with the latest four dog open face design to ensure ultra-rapid, positive gearshifts, while the layshaft is assembled using separate gears.

  • To ensure reliability, the box features free running gears supported by precision needle roller bearings. An alloy maincase, alloy top cover and Quaife gear lever are supplied as standard fitment.

  • Rated to a maximum of 250bhp, features power loss minimising straight-cut, close-ratio gears in a wide choice of motorsport orientated gear ratios.

  • Key features of the Ford Sierra Type 9 5-speed dog engagement gearbox include:

  • Straight-cut, close-ratio dog engagement gears for rapid shifts

  • Phone: Peter 07766 232964
