Wyles Hardy

28,000+VAT

Ultima Evo Rolling Chassis - SOLD

Wyles Hardy

This is now SOLD. Search for similar items.

Description:

Parts included:

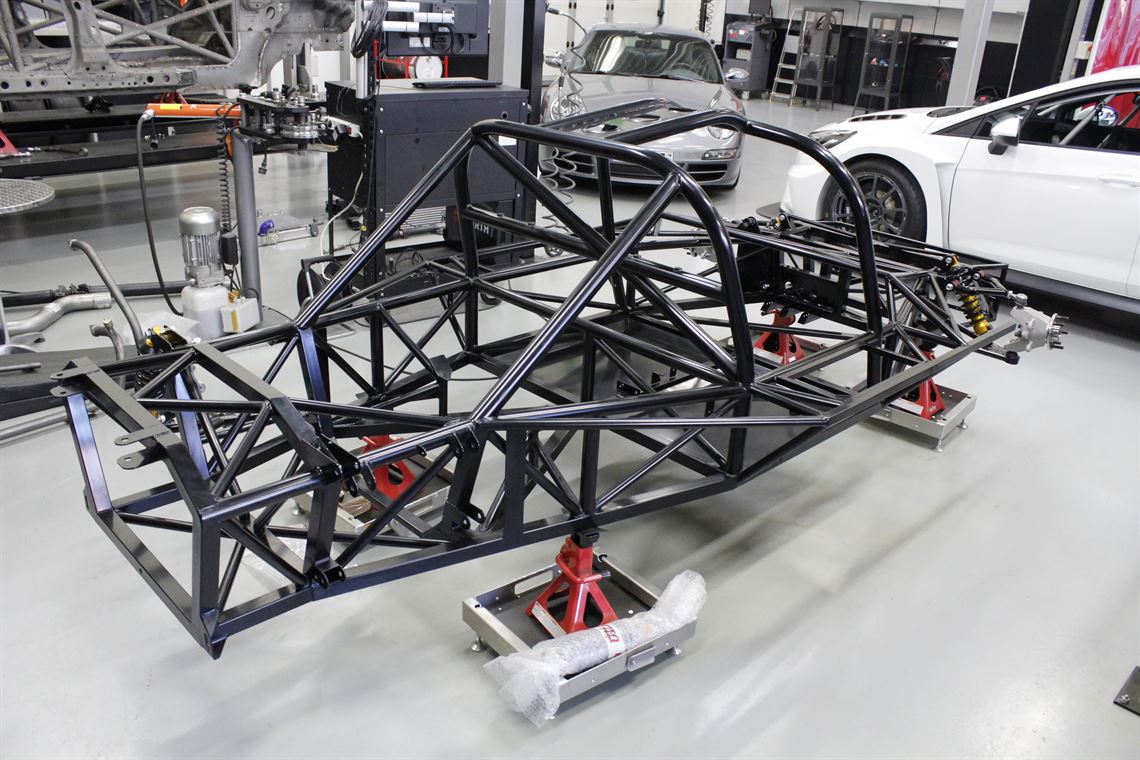

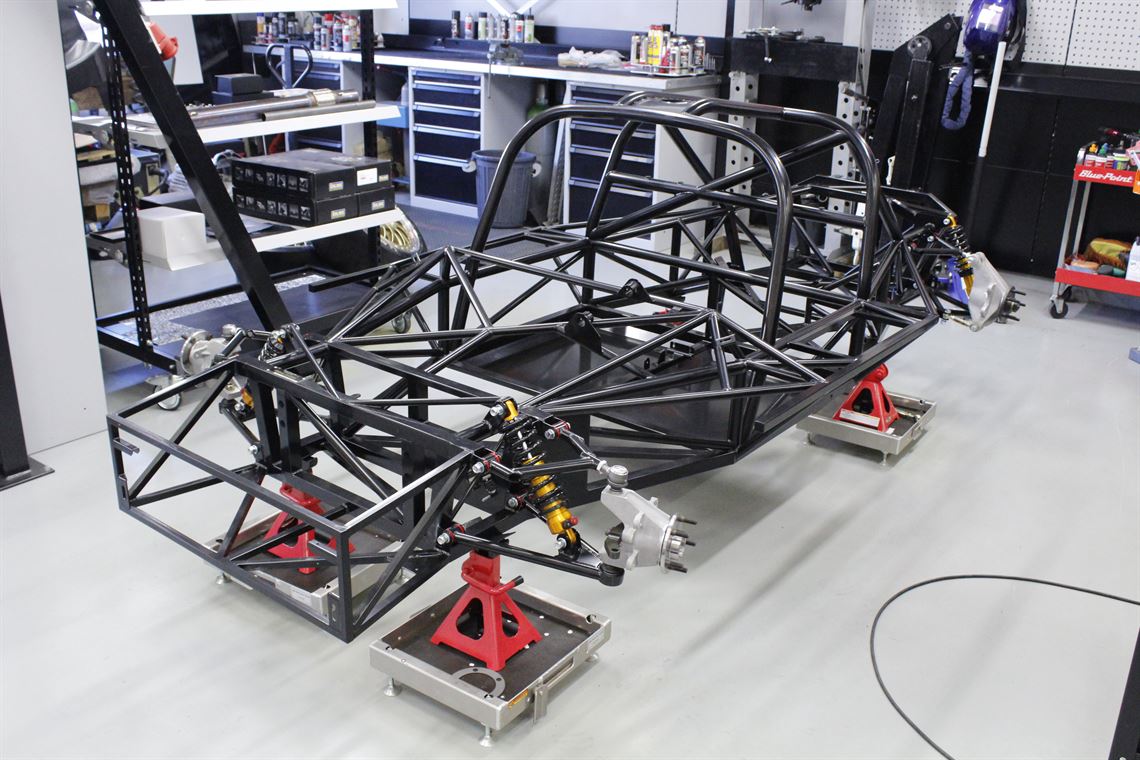

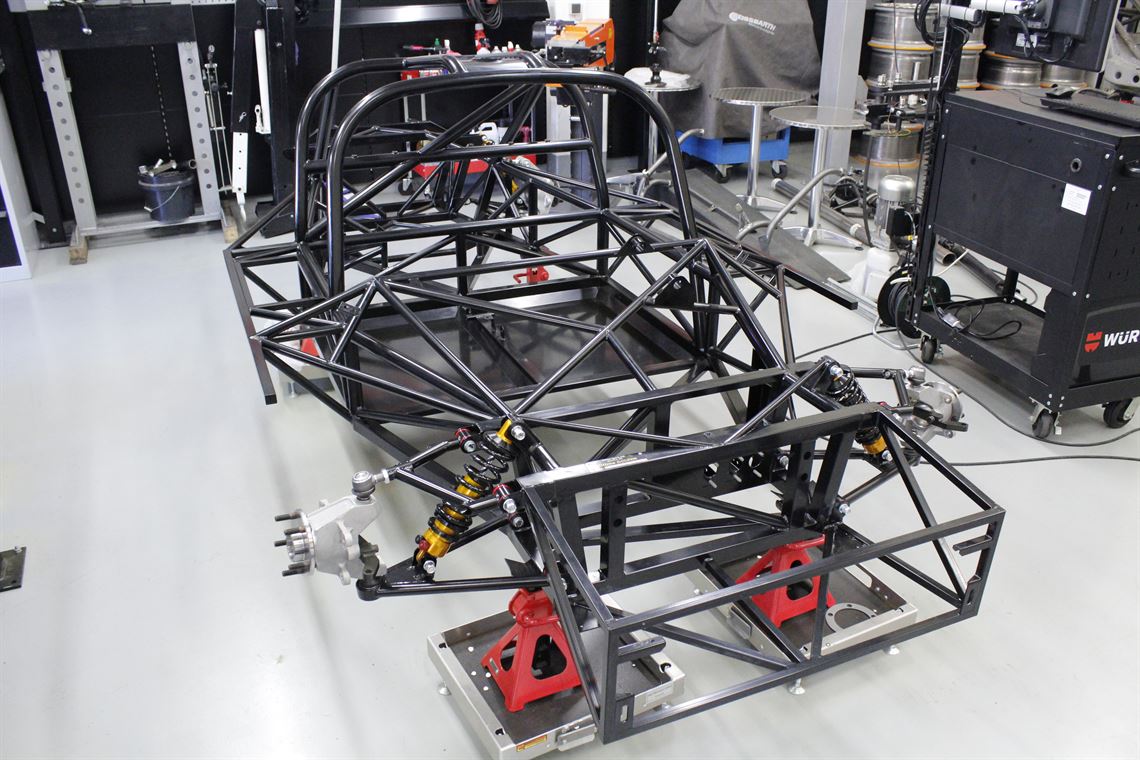

MIG welded round and square tube space frame chassis, fully

bracketed to accept a Chevrolet V8 engine plus Ultima steering, fuel

tanks, seat belts, pedals, radiator, handbrake, gear lever and

Porsche transaxle. All powder coated in a black satin finish LHD

Full roll cage in 44mm x 3.2mm CDS tubing comprising interconnected

front and rear roll over hoops with the rear hoop braced into the

engine bay all welded to the chassis

Alloy panel kit in NS4 16swg aluminium sheet, polythene surface

protection both sides for cockpit floor, sides and bulkheads. Panels are

pre-cut and bent plus bonding adhesive, pop rivets and skin pins are

also included.

Lightweight fabricated TIG welded brake, clutch and throttle pedal set

with adjustable foot pads. Includes all bearings, plated fixing nuts, bolts

and washers. Pedals are black satin powder coat finish with zinc gold

plated foot pads.

Brake and clutch master cylinders with float level indicators, adjustable

brake bias bar, clutch clevises and all fixing nuts, bolts and washers

TIG welded wishbone set with urethane suspension bushes and

stainless steel bearings including all plated fixing nuts, bolts and

washers

Front suspension upper and lower ball joints.

Front uprights in LM25 heat treated alloy, fully machined to accept

Ultima manufactured hubs, bearings and brakes. Including plated

steel steering arms

Rear uprights in LM25 heat treated alloy, fully machined to accept

Ultima manufactured hubs, bearings and brakes.

Rear toe in adjusters including rose joints and fixing bolts.

Front set of wheel hubs, wheel bearings, oil seals, dust caps, hub nuts

washers and long wheel studs

Rear hubs and bearings

Double adjustable dampers and springs

designed and valved specifically for the Ultima, coil springs to suit

proposed finished weight of car including all fixing nuts, bolts, spacers

and washers

Gear change short shift mechanism for Porsche transaxle including,

cable actuator, transaxle brackets, mounting plates, carbon fibre

style centre console covers

Set of four 12.7" vented disc brake and calliper kit comprising of four

AP racing 320mm x 30mm curved vane vented cross drilled brake

discs and AP Racing four pot callipers (1.5" & 1.65" pistons with double

seals) full brake pad car set complete with billet fixing kit, all bolts,

lock tight, and AP 5.1 dot brake fluid

Pair of separate Brembo/AP handbrake callipers with alloy billet

fixing brackets and bolt kit

Brake line kit in clear neoprene coated braided stainless steel pressure

tested flexible pipe with stainless steel fittings including all fixing clips,

washers and a brake light pressure operated switch

Handbrake lever in stainless steel with twin cables and bias adjuster

Steering column in plated thick walled CDS tube complete with

composite nylon/rubber bearings, universal joints and fixings

Ultima alloy steering rack with 2.1 turns lock to lock complete with track

rod ends, alloy mounting clamps, rack boot kit and fixings

Steering wheel boss with deformable structure

Front mounted radiator and cooling kit comprising of five row radiator,

twin fans with rad mounted thermostat, preformed alloy water pipes

front to rear, alloy expansion tank, alloy swirl pot and pre-formed

fixing brackets.

Silicon water hose kit comprising formed blue hoses and welded

alloy pipe bends

Ultima wiring loom utilising standard colour coded lightweight wires with

machine made ends and terminals all wired to a relay socket block and

fuse block. The loom has multi connectors for separate front and rear

loom assemblies including all fixing clips brackets and bolts

Relays and fuses to suit Ultima wiring loom

EVO Steering wheel mounted wireless button controls, with billet

switches and key operated ignition switch

Battery cables comprising front to rear and two earth straps all in a

multi-strand flexible wire and machine made terminals plus fixing clips

Battery race quality sealed Odyssey extreme 40

Battery fixing clamp

Headlamp flash relay

Horn

Pantograph wiper and washer kit

Engine loom fitting kit comprising of alloy bracketry to fit ECU etc.

Set of body grills in black anodised hex shaped perforated alloy. Grills

are supplied pre-formed and cut to size

Gas strut kit for rear canopy to maintain canopy at correct open angle

Seat belt pair of six point fixing with twist buckle release 50mm wide

specifically manufactured to fit the Ultima supplied in black as standard

Braided stainless steel clutch pipe clear neoprene anti scuff coated

and all fittings

Exhaust system for LS engines comprising of 4 into 1 headers of 1.75"

dia with 3" collectors, pair of sports catalytic converters, oval

re-packable silencers, polished 3" tail pipes and all mounting brackets.

Ceramic coating in silver



Transaxle invert kit comprising transaxle mountings and a breather

system that vents the inverted transaxle

Engine/transaxle adapter comprising of a steel flywheel to suit the

Porsche bell housing with a Chevrolet mounting bolt pattern, a needle

roller bearing and an alloy connecting plate including all fixing bolts

Starter motors gear reduction type

Starter motor mounting boss

Clutch kit, alloy cover, plate, thrust bearing, bolts

Porsche starter ring gear

Speedo sensor

Engine fixing kit inc. polyurethane/steel mounts and adapters

Aluminium coated glass cloth canopy heat protection kit

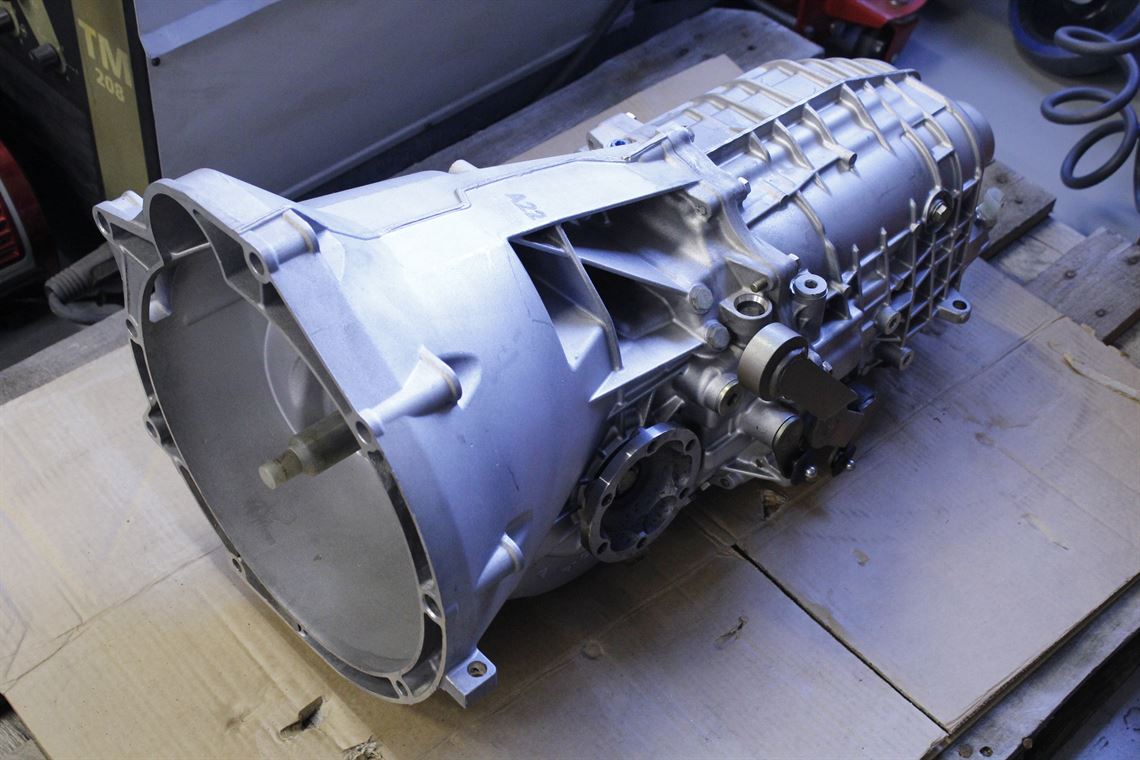

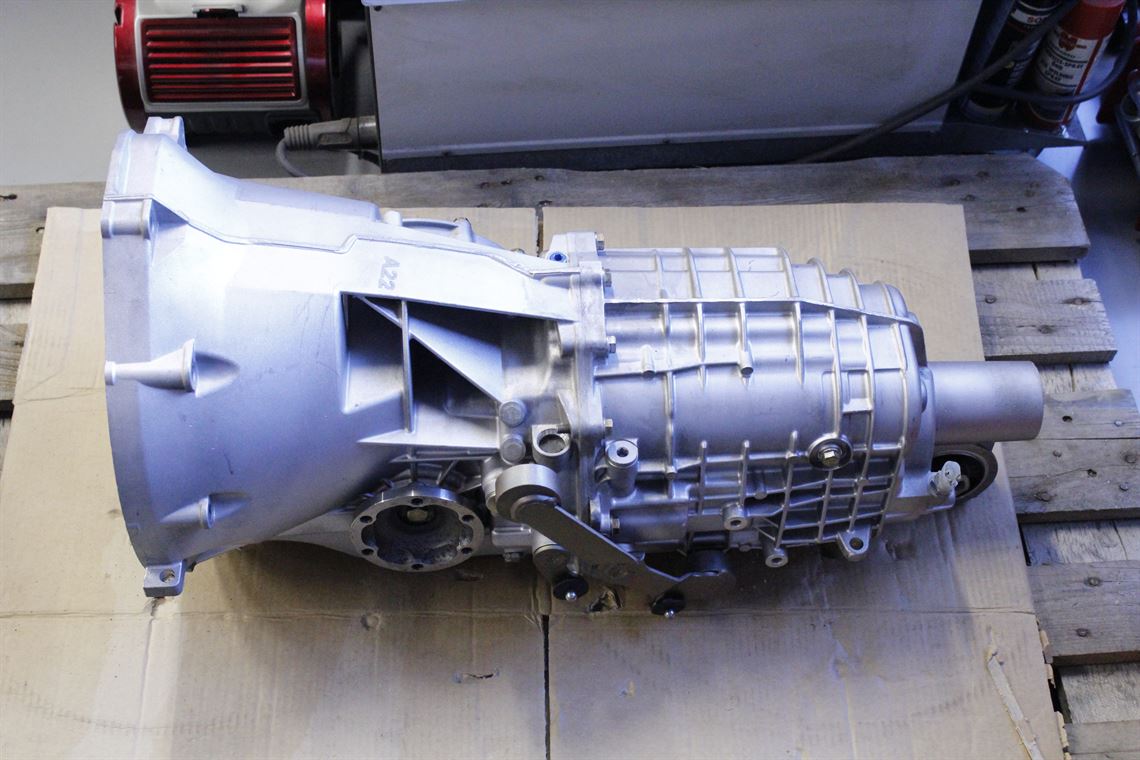

New 996 gearbox




Website:

http://www.japo-motorsport.de
