Description:

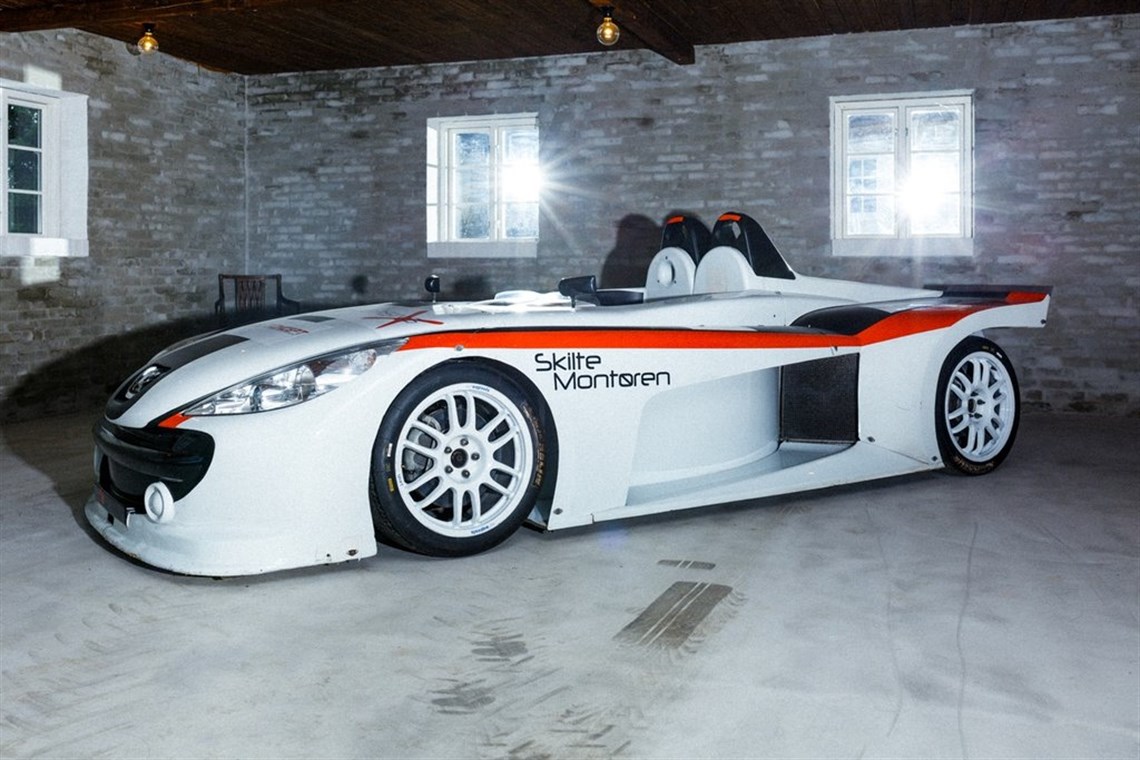

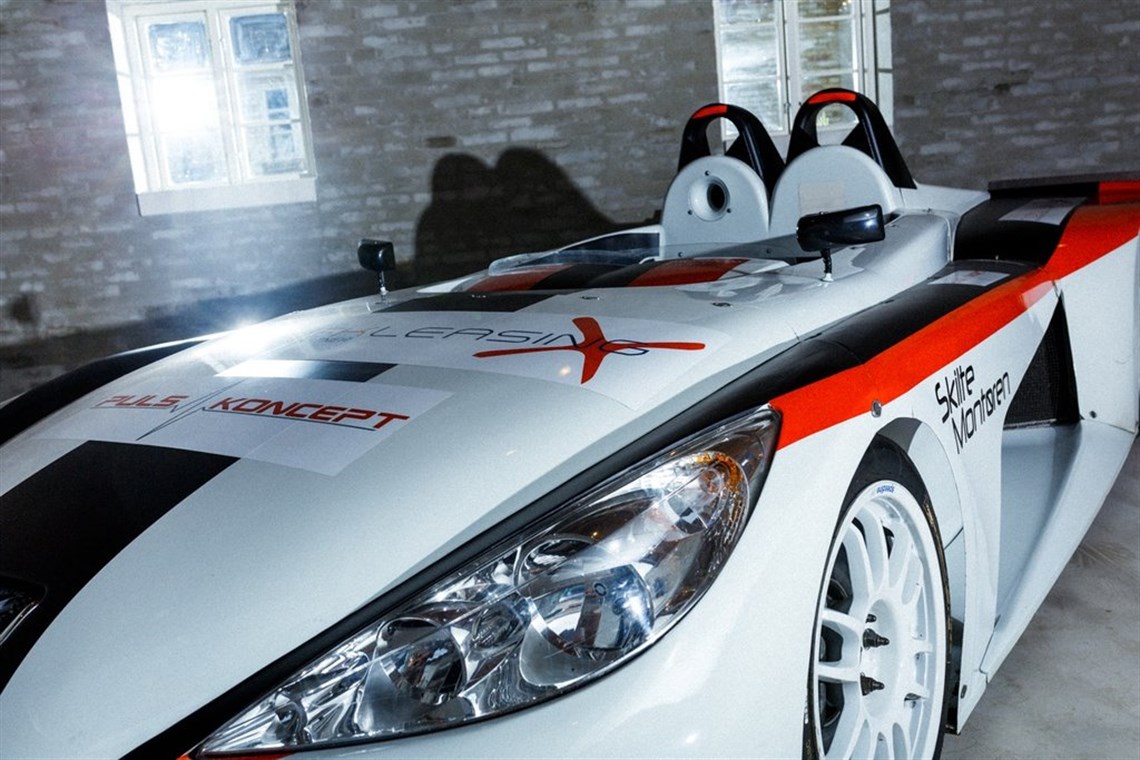

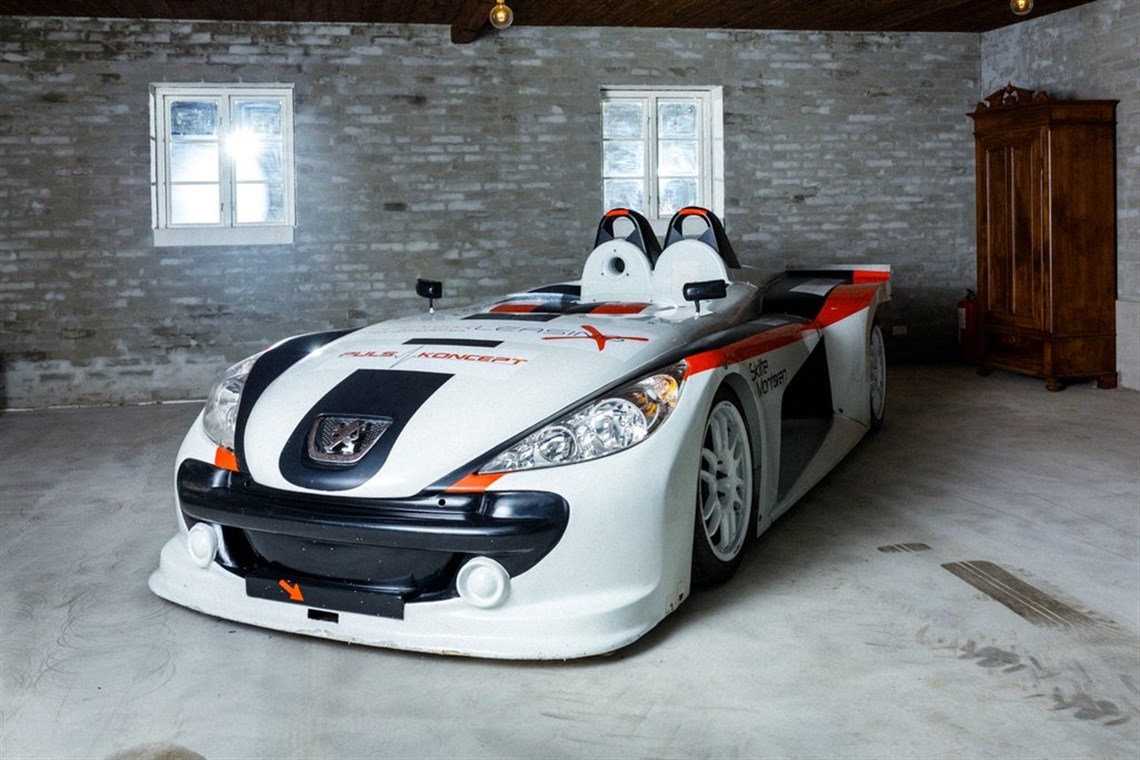

Peugeot Spider THP

ENGINE:

• Peugeot - 1.6 THP EP6 DTS, 1598 cm³, 16 valves turbocharged, 220 hp at 6500 rpm, torque 250 N.m.
• Electronics: Magneti Marelli.

SUSPENSION:

Double wishbone with Koni coil and damper unit. Push rod operation and anti-roll bar front and rear.

GEARBOX:

SADEV ST75-14, 6 speed with dog engagement. Paddle shiftsystem. Engine and gearbox assembly transversely mounted at rear

BRAKES:

Ventilated brake discs

• Front: diameter 330 mm, two piston calliper
• Rear: diameter 283 mm, single piston calliper
• Brake disc thickness 26 mm. Dual braking circuit with a brake balance adjuster.

TYRES:

Michelin 21/65-18 : Slicks S8B - P2C rain. Speedline Corse aluminium monobloc 8"x18" rims.

CHASSIS:

Three-part tubular construction (front subframe, survival cell, rear subframe)

STEERING:

Power assisted steering rack. Removable steering wheel hub. FIA homologated collapsible steering column

SAFETY:

• FIA homologated front crash box structure, roll hoops and steering column
• 4 kg mechanical extinguisher system, Sparco Harness 6 points

COOLING:

Double radiator.

BODYWORK:

Fibreglass composite / polyester resin.

FUEL TANK:

60 liters FIA FT3 homologated.

WHEEL BASE:

2600 mm

FRONT TRACK:

1505 mm

REAR TRACK:

1615 mm

WEIGHT:

765 kg
