Description:

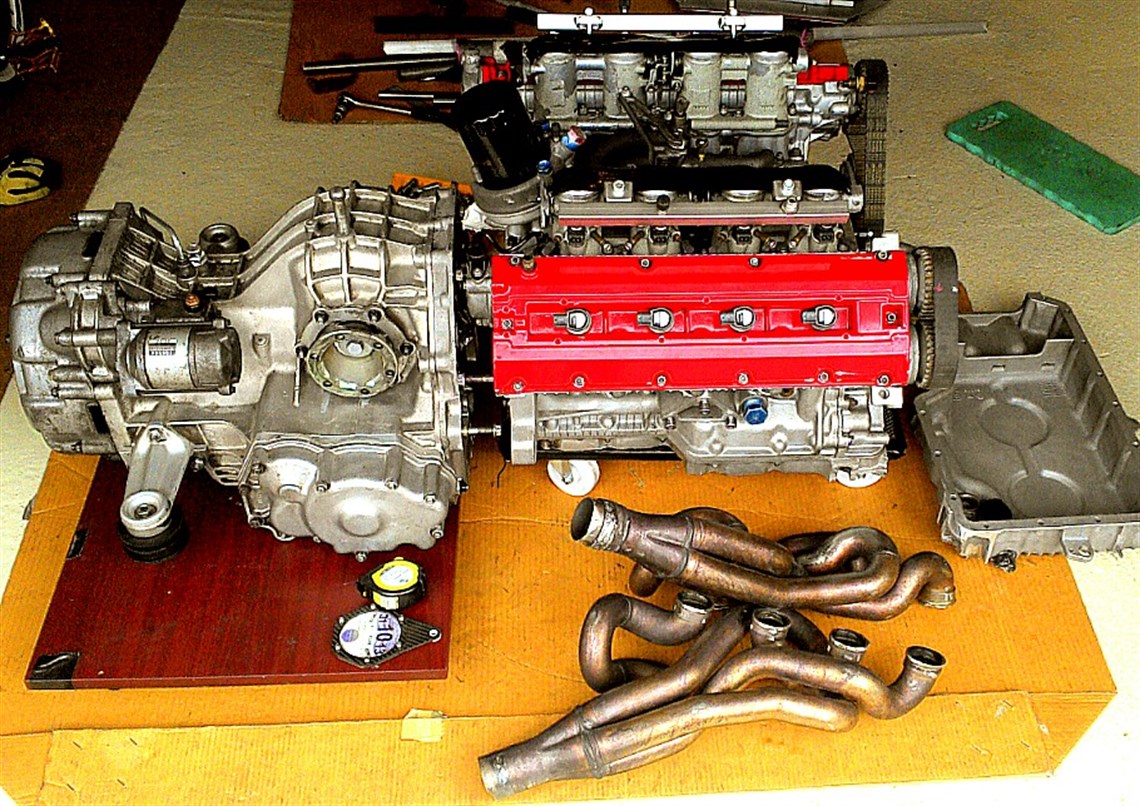

• Ferrari F355 engine. 8x ITBS, flow-bench tested trumpet intake system, 5valves per cyl, titanium con-rods, dry sump as standard, etc etc. Should be easily over 400bhp at the flywheel. Waterpump and aircon removed, Electric waterpump included. Already 50% set-up and running well, throttles balanced etc. Just requires final mapping for ignition and fuel.



• Ferrari F355 6-speed manual gearbox with LSD. Currently has broken transfer shaft (quite a common issue - see http://www.fcars.co.uk/forum/showthread.php?14645-355-Flywheel-Free-wheeling - new 348 shafts are only £120). Gearbox is otherwise in excellent condition.



• Billet steel lightweight flywheel.
• Brand new Paddle clutch (sprung centre)
• Billet harmonic pendulum balancer.
• Ferrari F355 gear-lever housing.
• William Hill Engineering aftermarket Ferrari shift gate.
• Custom gear linkage.
• 2x Ferrari 360 fuel rails and 8x Ferrari 360 injectors.
• Set of -6AN braided fuel lines.
• brand new Denso Coil-on-Plug conversion.
• Custom, equal length, fully-TIG welded exhaust headers.
• 1 x Absorbative single-can silencer.

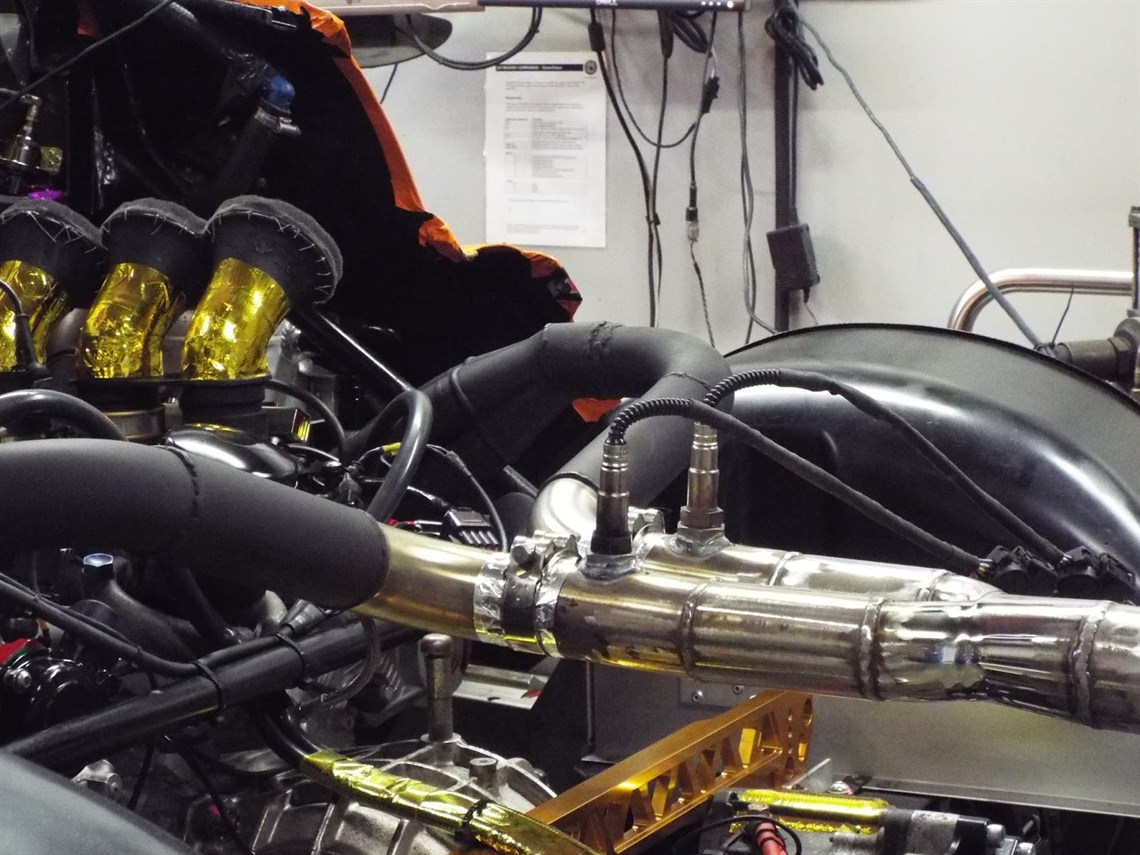

• 1 x Straight-through mapping spec exhaust system with provision for twin-wideband lambda.
• Sytec 255lph fuel pump. Adjustable billet FPR.
• 0-5bar fuel pressure transducer.
• Custom Aluminium dry sump oil tank.
• 0-10bar oil pressure transducer.
• Aston Martin OEM Fuel Pump Driver Module with closed-loop functionality (fuel pump speed control already 90% mapped)
• Full Raychem motorsport spec engine wiring loom included.
• BOSCH TPS, BOSCH Crank & Cam Sensors, Map sensor, Air temp sensor, ECT sensor, Oil temp thermocouple
• Denso Alternator. Custom camshaft driven Alternator pulley. Custom Alternator bracket.
• OEM Pierburg E90 BMW 335i Electric Waterpump with custom motorsport AV mount.
• Dave Mac Props “unbreakable” rear driveshafts with Porsche Inner CVs and standard S2 Lotus Elise/Exige outer CVs.
• Small spares package included - coils, sensors, oil filter etc.



Spreadsheet/dataset with current base ignition and fuel maps, sensor calibrations, compensation tables will be included to get you up and running with the engine quickly and easily.



Can be delivered on pallet at cost, or collection from Leicestershire, UK.
