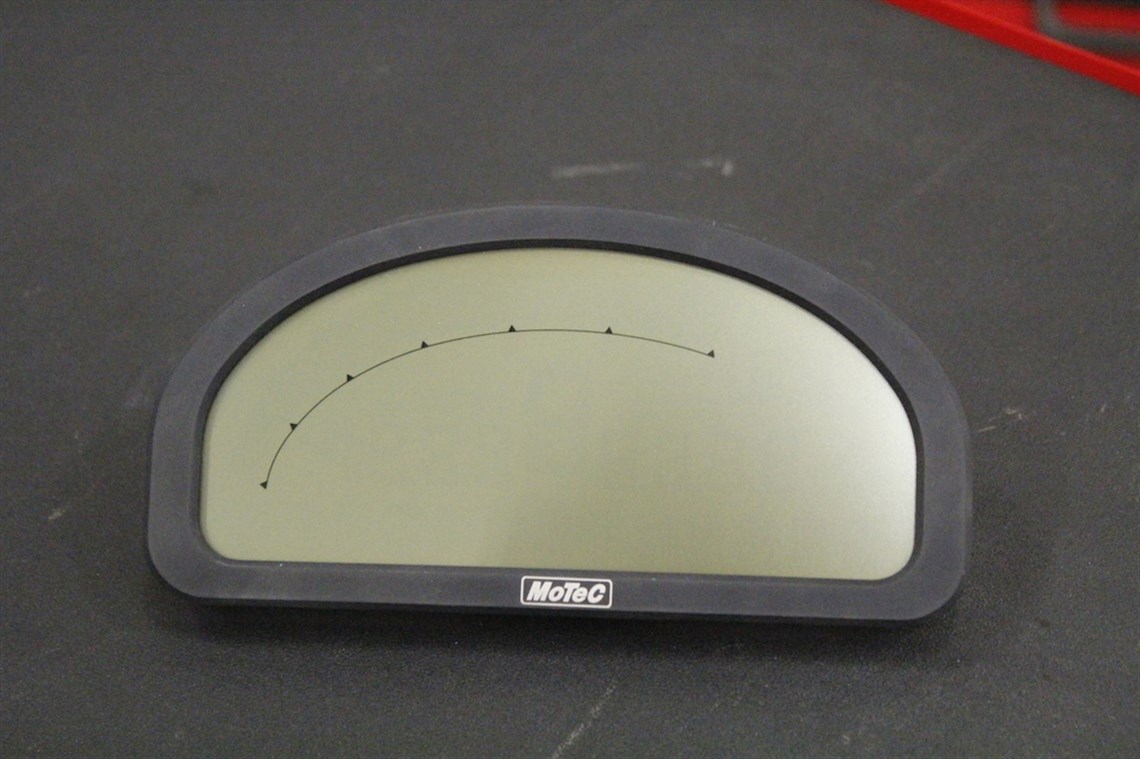

MoTeC ADL2

The MoTeC ADL2 Advanced Dash Logger is a combined LCD dash and high performance data logger. A big advantage of the ADL2 over other products in the market is its flexibility, allowing it to be adapted to any application.

With an impressive list of advanced functions, it is not only a sophisticated display and logging device, it is also very effective as a problem solving tool.

The ADL2 supersedes MoTeCs original ADL, delivering significant upgrades for maximum user benefit.

New Features (compared to ADL)

• USB Communications
• Doesnt require a parallel port - download 16Mb in under 1 minute via USB
• 8Mb logging memory
• Increased resolution over 5V on eight of the AV inputs
• 16 CAN templates (up from 6)
• More powerful processor

Download or view the ADL2 brochure

The ADL2 can be fully integrated with a MoTeC Engine Management System (ECU). This avoids duplication of sensors and allows display or logging of more than 170 ECU channels. The various options may be enabled at any time by entering a password.

Many vehicle, marine and industrial applications require separate products to perform logging, controlling and display functions. The MoTeC ADL2, however, offers seamless integration of all three.

All aspects of the MoTeC ADL2 are fully configurable, including which sensor is connected to which input, what to log, how fast to log it, which channels to display, warning alarms and control outputs.

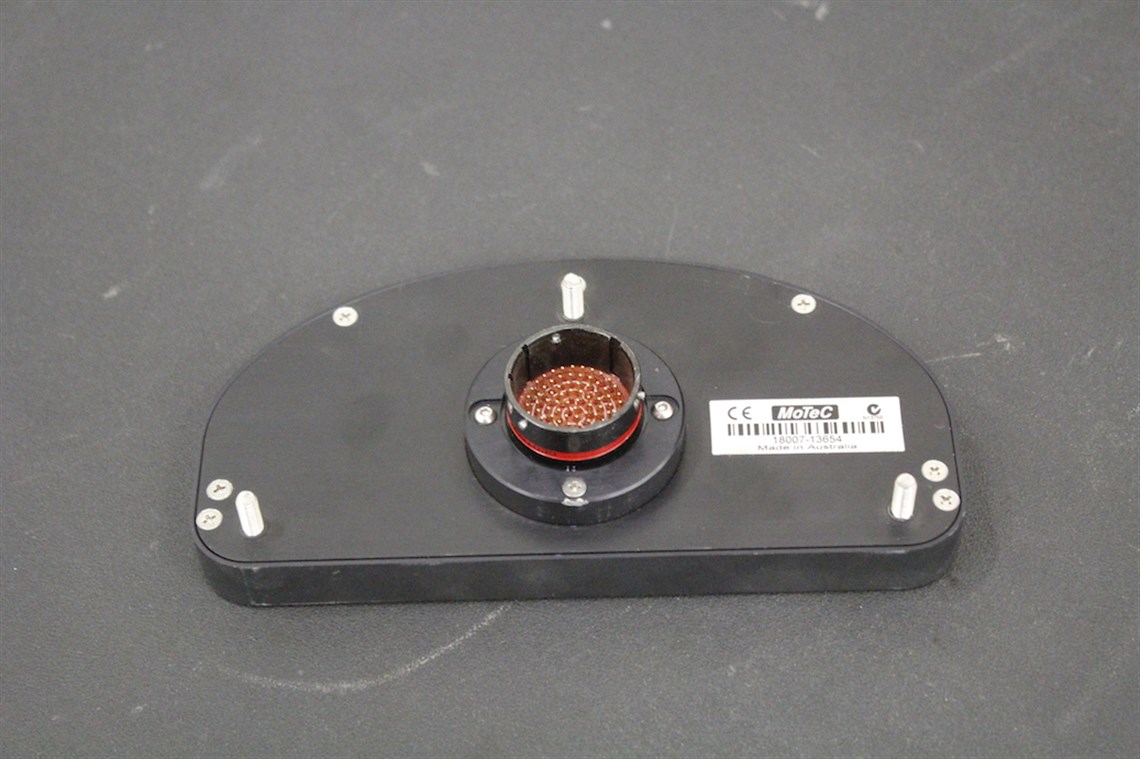

The MoTeC ADL2 uses a high speed 32 bit microprocessor and incorporates a 79 pin autosport connector.
