Description:

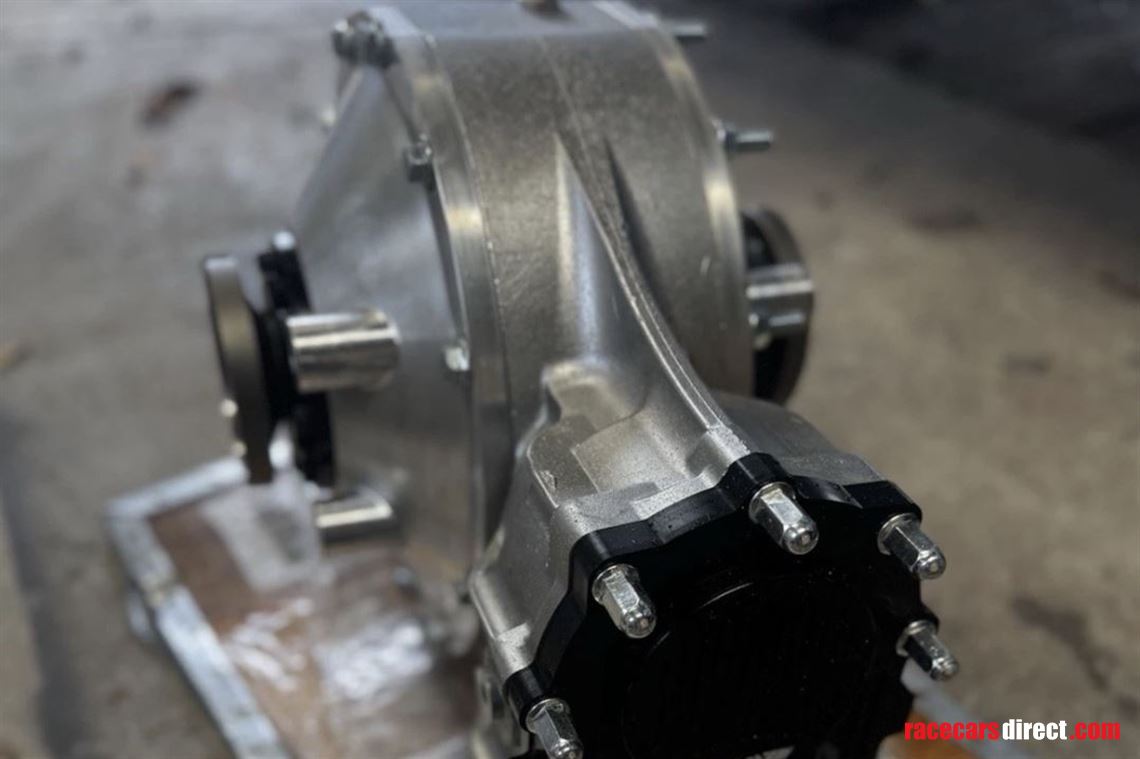

E-Rom Winters Bulldog Quick Change Differential 10” Drift Drag Gearset


E-Rom Quick-Change Differential, 1,000hp support.

The E-ROM quick-change differential assembly is specifically designed for competitive environments and high-performance drift racing that require ultimate transmission efficiency and quick adjustment. This product features a modular quick-release design, integrating a high-strength differential housing, an integrated differential core, and a quick-change gear set, effectively addressing the inconvenience of adjusting the transmission differential and the complexity of changing gear ratios. It is particularly suitable for drift vehicles that need to quickly adjust the final transmission ratio according to different track characteristics, allowing teams to optimize the vehicle’s acceleration characteristics in the shortest possible time.
Using high-quality alloy steel and precise processing techniques, it ensures smooth and reliable power distribution, while providing excellent durability and quiet performance.
– Spiral gear design, quieter operation
– Optimized tooth shape parameters, improved transmission efficiency
– Enhanced heat dissipation structure, extended service life
For different usage scenarios, E-ROM offers a full range of gear ratios from street performance to professional competition.
1. Change torque output
2. Adapt to different driving conditions
3. Match with the engine’s speed

Technical data

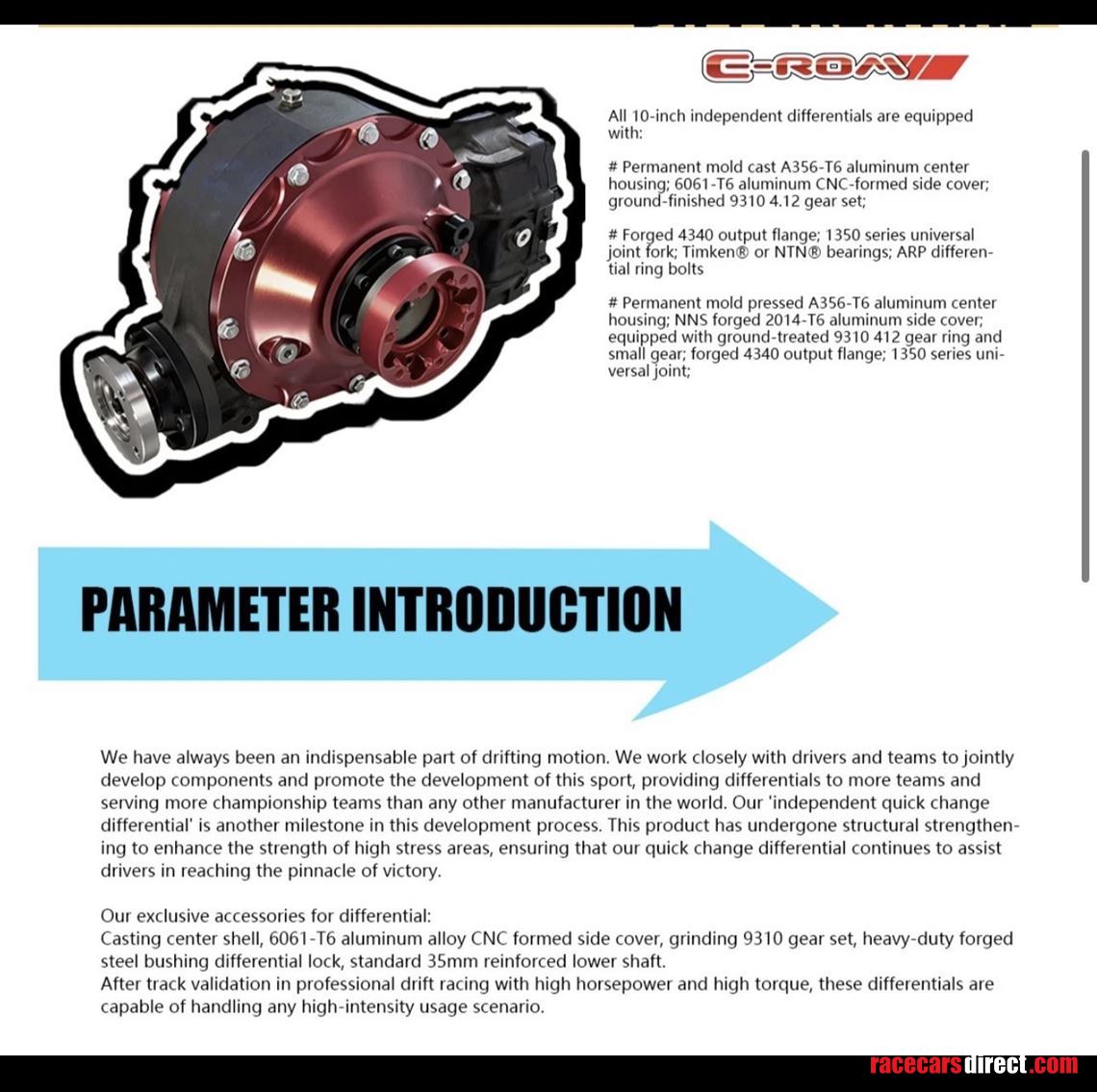

All 10-inch independent differentials are equipped with:
# Permanent mold cast A356-T6 aluminum center
housing; 6061-T6 aluminum CNC-formed side cover; ground-finished 9310 4.12 gear set;
# Forged 4340 output flange; 1350 series universal
joint fork; Timken® or NTN® bearings; ARP differential ring bolts
# Permanent mold pressed A356-T6 aluminum center
housing; NNS forged 2014-T6 aluminum side cover; equipped with ground-treated 9310 412 gear ring and small gear; forged 4340 output flange, standard 35mm reinforced lower shaft. 1350 series universal joint

Gearing selection from the chart in picture.

Identical fitment with Winters performance and Bulldog, ideal spare or upgrade for your existing subframe or subframe kit from the above.

Available in raw finish, or anodised finish, custom gearing from the chart attached, can include DIY subframe mount kit +£120.00 and input shaft ends to customise your prop to suit +£180.00


£3,850.00 unit only, message for availability, gearing and options. Plus shipping, can ship to Europe at cost.
