Description:

AUDI 80 B4 QUATTRO COMPETITION 1995 2.0ltr ABF 16v 500/550whp 2.2bar Etanol E85

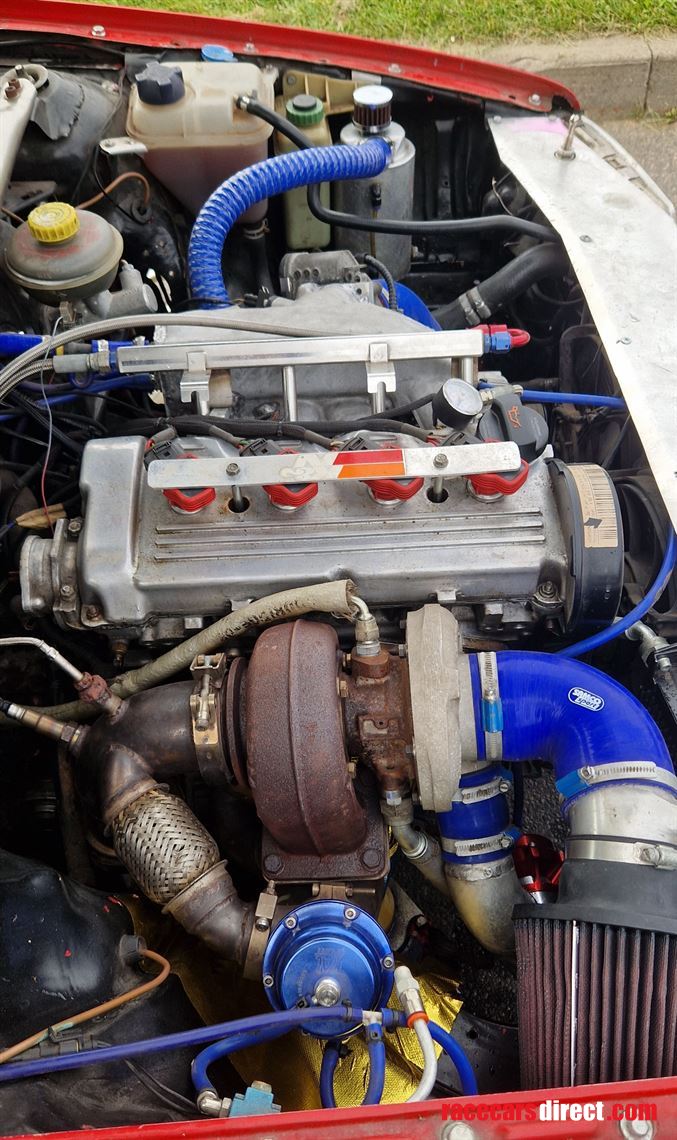

Engine head:

Fully rebilded Ported head with all new components

Supertech Intake/exhaust valves

FCP Engineering high performance racing valve double spring and titanium retainer

New INA valve lifters

Supertech valve Intake/exhaust seal

FCP Adjustable camshaft chain gear

Adjustable camshaft chain gear

Gates racing timing belt

ARP head studs

All others seals are Victor reinz



Engine block:

Wossner forged pistons 83mm CR 8.5:1

Fcp X-beam forged steel connecting roads 159mm

King racing main bearing

King racing connecting roads bearing

ARP main studs

ARP 2000 bolts connecting roads

ARP flywheel bolts

Aluminum oil catch can 2ltr

Oil cooler Motamec + sadwich plate

Custom made polyurethane engine and gear box mounts and Powerflex front mount



Intake/exhaust:

Intake manifold made from AAN

DBW throttle body

Aluminum turbo piping + silicon connectings

K&N air filter

NEW Turbo Borgwarner 200sx Billet

Custom made Exhaust manifold stainless steel 4:2:1

Exhaust piping 76mm till end with two MAGNAFLOW resonators connected with V-Band

Wastegate Tial 44mm

Blow off valve TIAL

Big Mishimoto intercooler

Oil filter for turbo and goodrich hose.



Transmission:

Light flywheel

ARP flywheel bolts

Sachs Duble clutch cover assembly

Sachs performance ceramic clutch disc

sahc metal Thrust Bearing

01E gearbox 4.11 from audi s4b5 6gear

4.1. Redlane transmisine OIL 75w90

Shorted and balanced cardan shaft with new hanging bearing and new CV Joints SKF

Rear differential fully rebilded with new seal victor reinz and ne transmission Redline oil 75w90

Wheel shaft painted with brand new CV Joints 8pcs. and Redline CV2 Grease



Suspension:

Painted Audi’s bottom and also painted all suspension elements

Front and rear subframe stands on custom made aluminum bushes

All other bushes are POWERFLEX Black polyurethane

4.Front wheel PowerAlign Camber Bolt Kit POWERFLEX

Front wheels ball joint lemforder

6.Stearing whell ball joint lemforder

7. Front 25mm stabilisator with ball joint arms lemforder, Powerflex polyurethane bushes

Rear stabilisator: powerflex bushes, lemforder ball joint arms

Rear axel PowerAlign bolts Audi OEM 4pcs. with PowerAlign arms lemforder

Front axel ARMS are new FEBI

New Wheel hub baring SKF 4pcs.

KW v3 coilover kit fully adjustable

OZ raicing wheel r17 painted + OZ racing wheel spacer 20mm + Federall 595 pro semi slick new tire

Motorsport wheel studs



Brakes:

Custom made brake tubs

Goodridge Sport brake armor polyurethane hoses with Goodridge fitings and stucers

Valeo new main brake cylinder

Front brake calipers from Audi s2, fully rebild and painted ,280mm brake disc

Rear brakes are stock, fully rebild and paited

Hidraulic hand brake Coolerworx with cilynder Wilwood 0.75cc

Brake pressure reguliator Wilwood

New Bosch clutch cilynder + Goodridge armor polyurethane hose with Goodridge fitings and stucers

ATE sport brake flude



Fuiling system:

Hidroscand armor polyurethane hose

Fuel presure reguliatirius QSP

Fuel rail big capasity

Qsp an6 fitings and polyurethane hose

Bosch injectors 2200cc

2x Bosch 0 580 464 200 motorsport fuel pumps

Facet motorsport fuel pump

40ltr Aluminum fuel tank

Bosch fuel filter

TurboSmart fuel filter

Turbo works Fuel surge tank

Car goes on etanol E85



Electronic:

EMU classic stand alone ecu with bluetooth modul

Lenovo pad for gauges

3.MAC turbo presure regulator

4.VDO gauges, turbo, temp, oil pressure

Bosch cranfshaft meter

Lambda Bosch LSU 4.2

EGT

Beru spark plugs

Bosch sparks

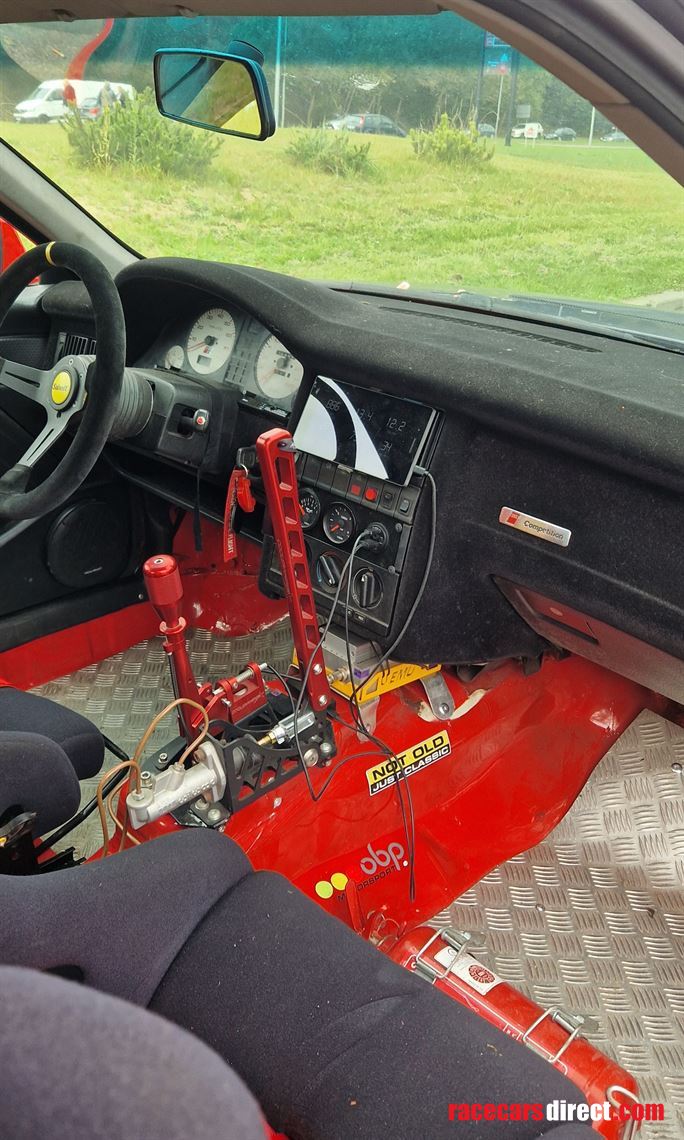

Interior:

Sabelt steering wheel offset 45mm

Sabelt sport seats GT-090 2vnt

Sabelt 6point 3inch sport seat bealts

4.Sabelt metal sport seats mounts

Homologated rollbar

OMP fire extinguisher system

Coolerworx short shiftet

8.Coolerworx hydraulic hand brake

9.Painted interior

Power battery in trunk



Exterior:

Windshield new and Protection Film wraped

Kamei front grill

Audi S2 body kit (look), it goes original in Audi 80 competition.



Shortcomings:

Exterior body works and painting
