Description:

BMW Z4 Coupe GTR

This project was started a few years ago for a very good client of ours. Unfortunately, our client passed away before the project was finished and so it has been stood for a while to allow the family to decide how to proceed. There are no other racers in the family and so it has had to be put up for sale.

The start of the project was when a BMW Z4 arrived at our workshops. It was in very good condition and would make a great base to start from.

The car was fully stripped to a bare shell and dipped.

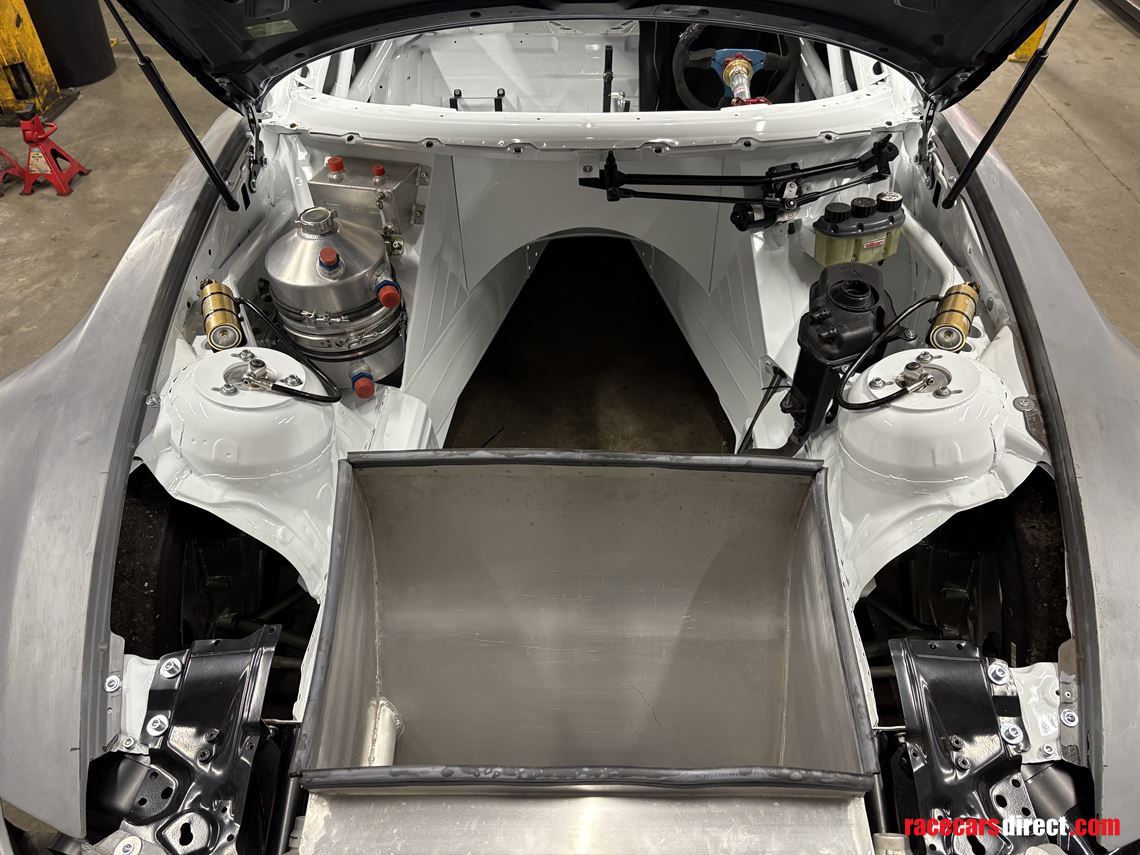

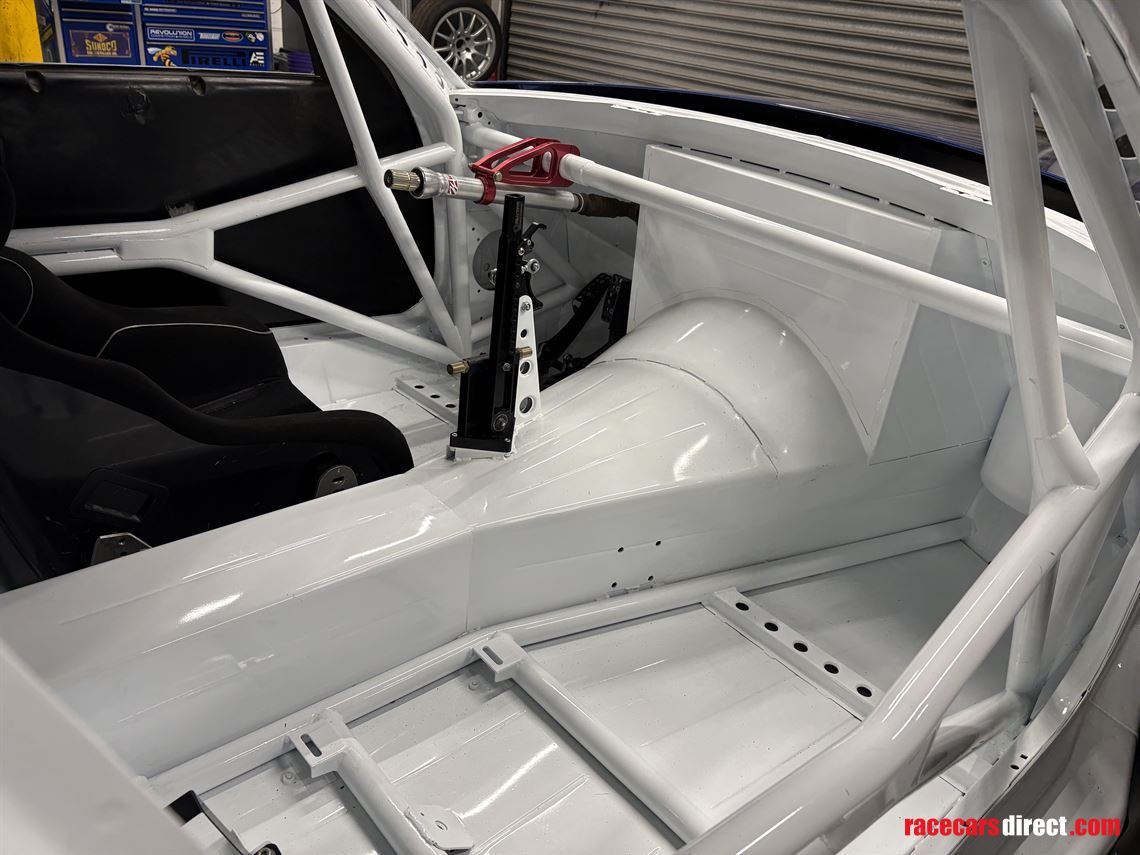

Once dipped we started modifications to allow the install of the BMW S85 V10 engine and Tractive 6 speed sequential gearbox. We positioned the package as far back in the engine bay as possible for best weight distribution and to allow maximum radiator/oil cooling efficiency. Massive modifications to the bulkhead and transmission tunnel were carried out along with the floor pan being lifted to allow room for the exhaust system

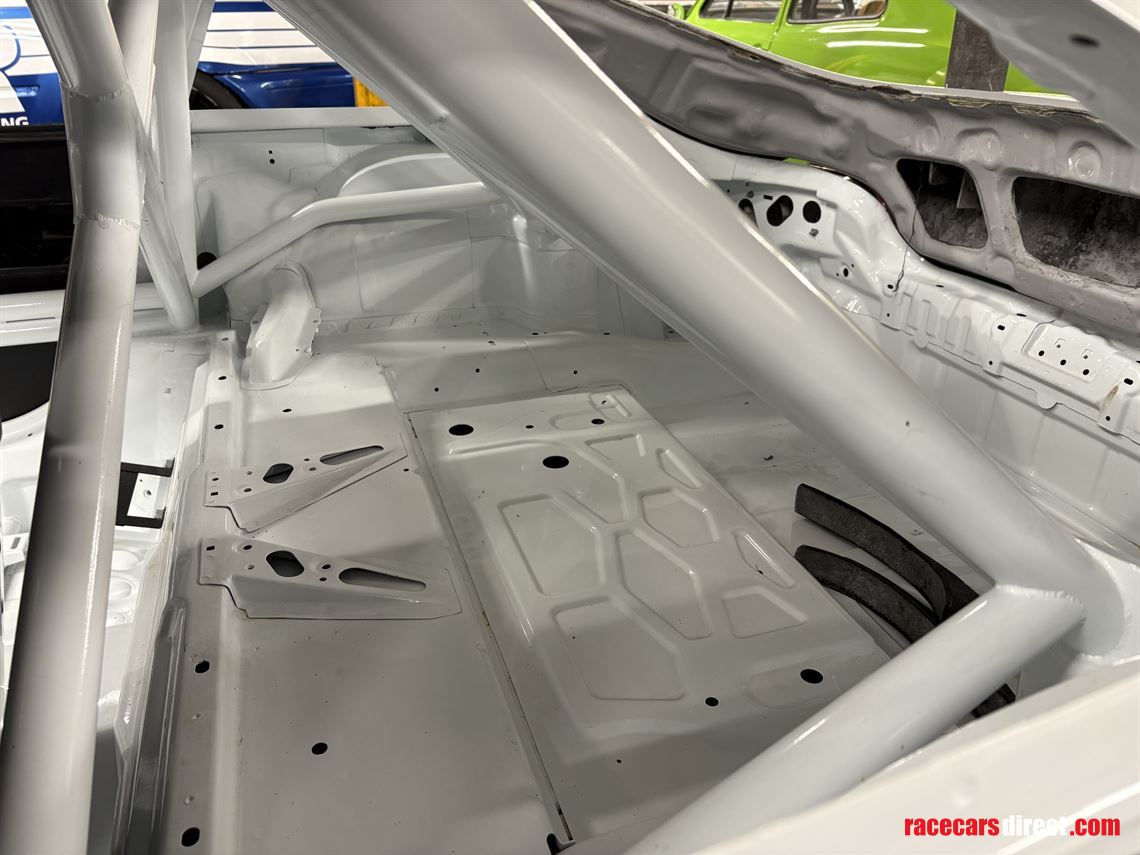

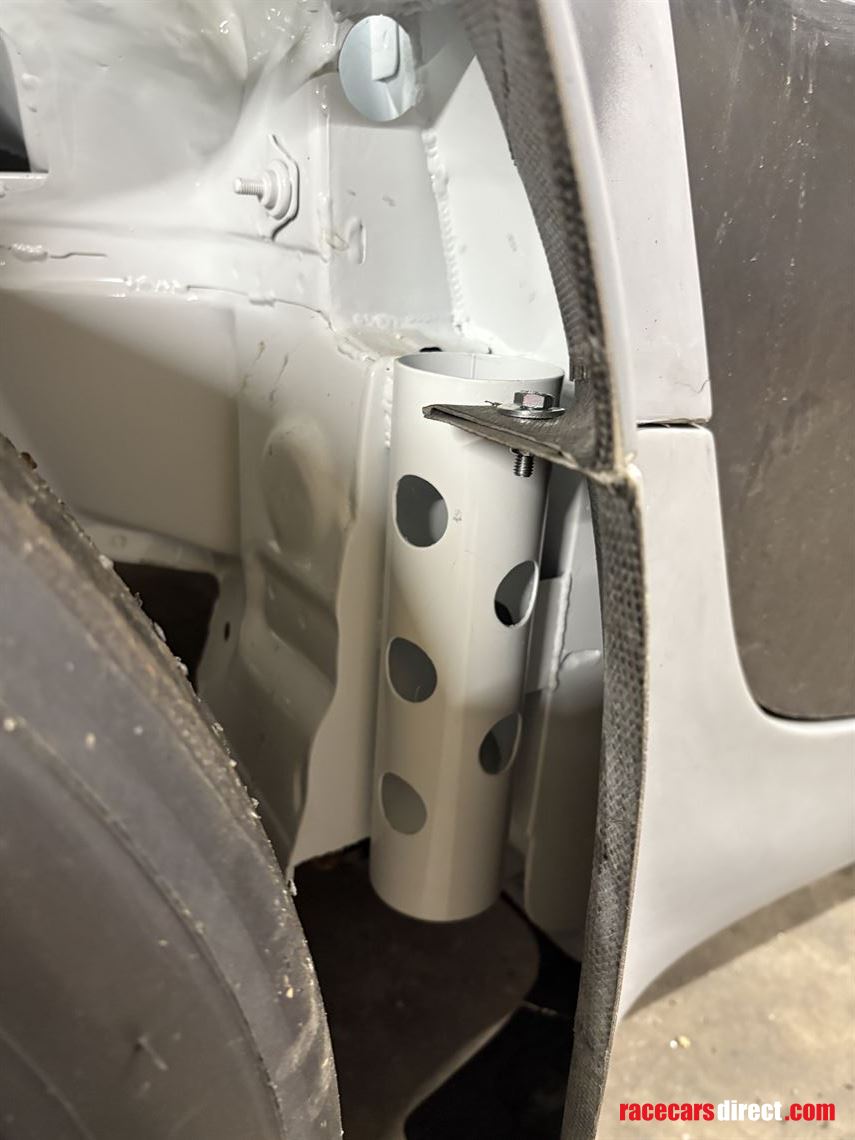

The cage is fully integrated, T45 and TIG welded. Air jack tubes installed

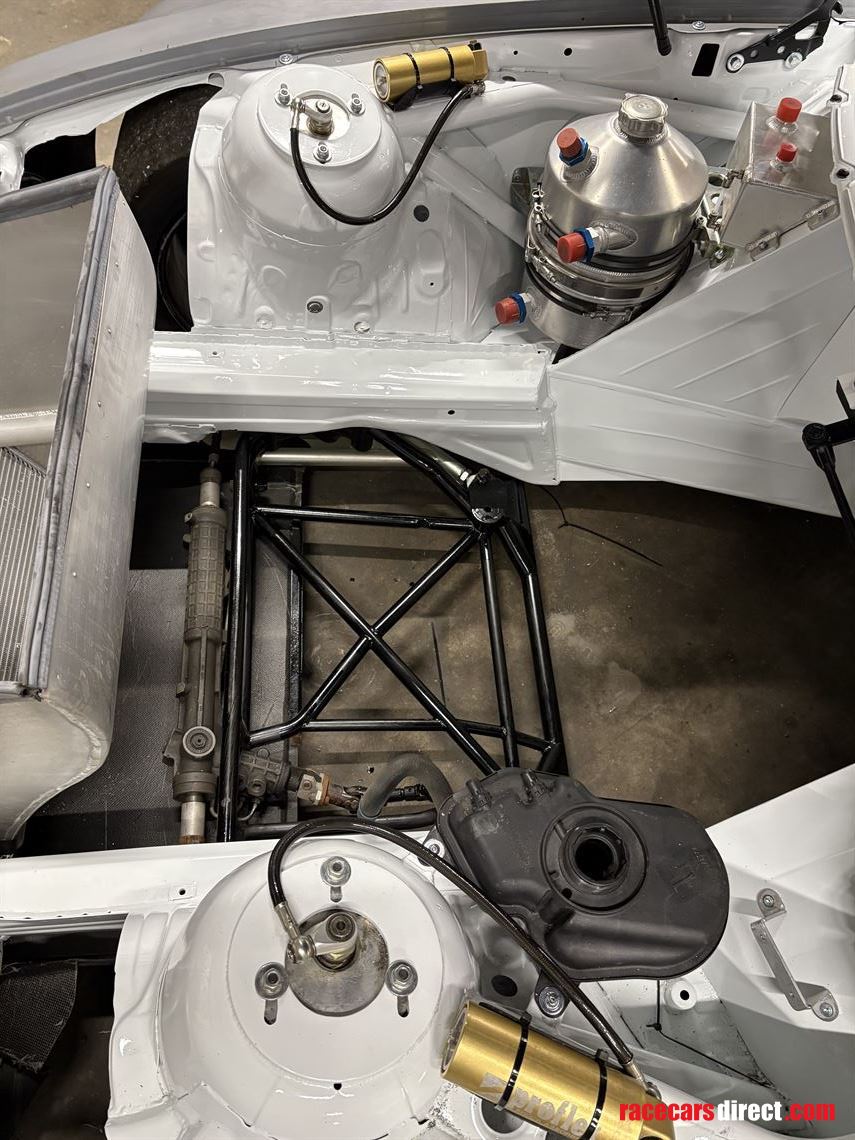

The front custom subframe was designed and built by Cornering Force and supports the engine mounts and suspension bottom arms. The engine and gearbox have been installed and all mounts are supplied with the car.

Once the first “dry build” had been done the car was fully stripped again to have the bare body shell sprayed white.

The rear axle is from the BMW E46 M3. There is no diff supplied.

The front suspension has billet aluminium front uprights (Ric Wood designed and manufactured) with Proflex front dampers. The front hubs use the BMW E92 M3 wheel bearing. There are currently no rear dampers as we needed to measure up lengths before ordering and didn’t get to that stage. They can be ordered directly from Proflex in the UK.

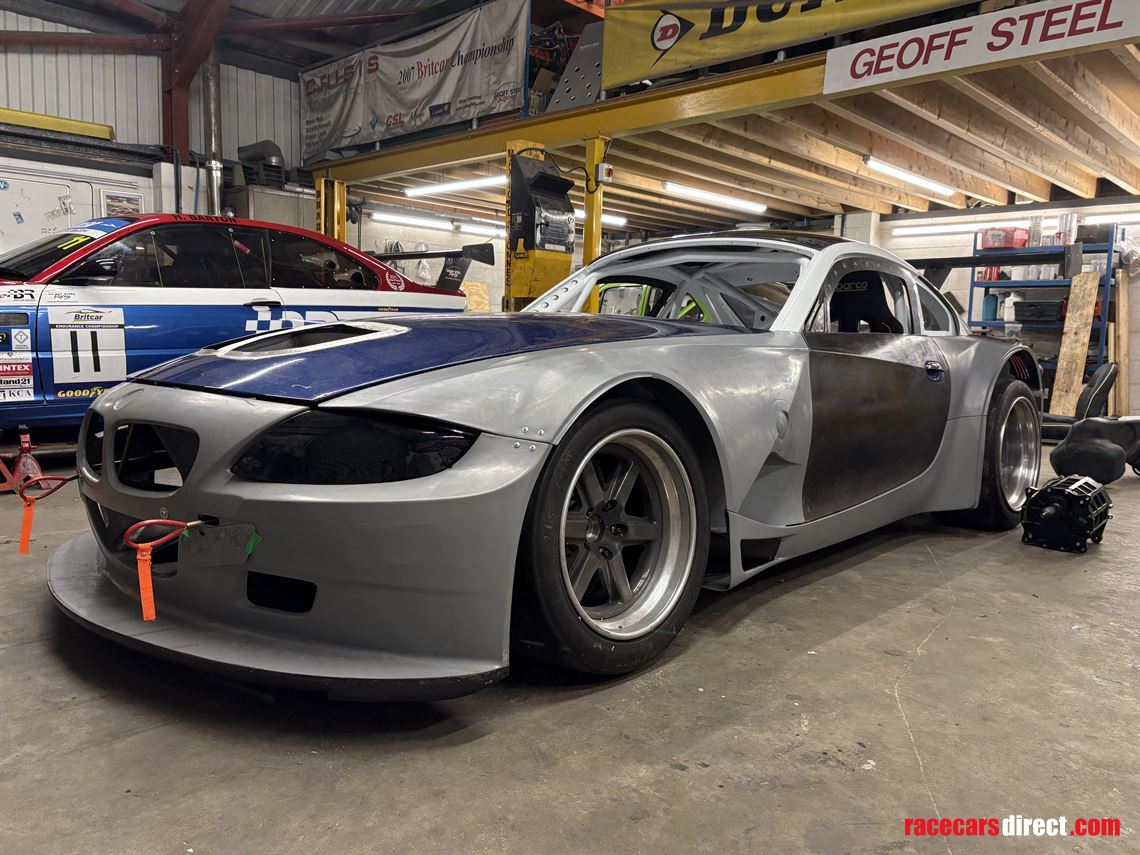

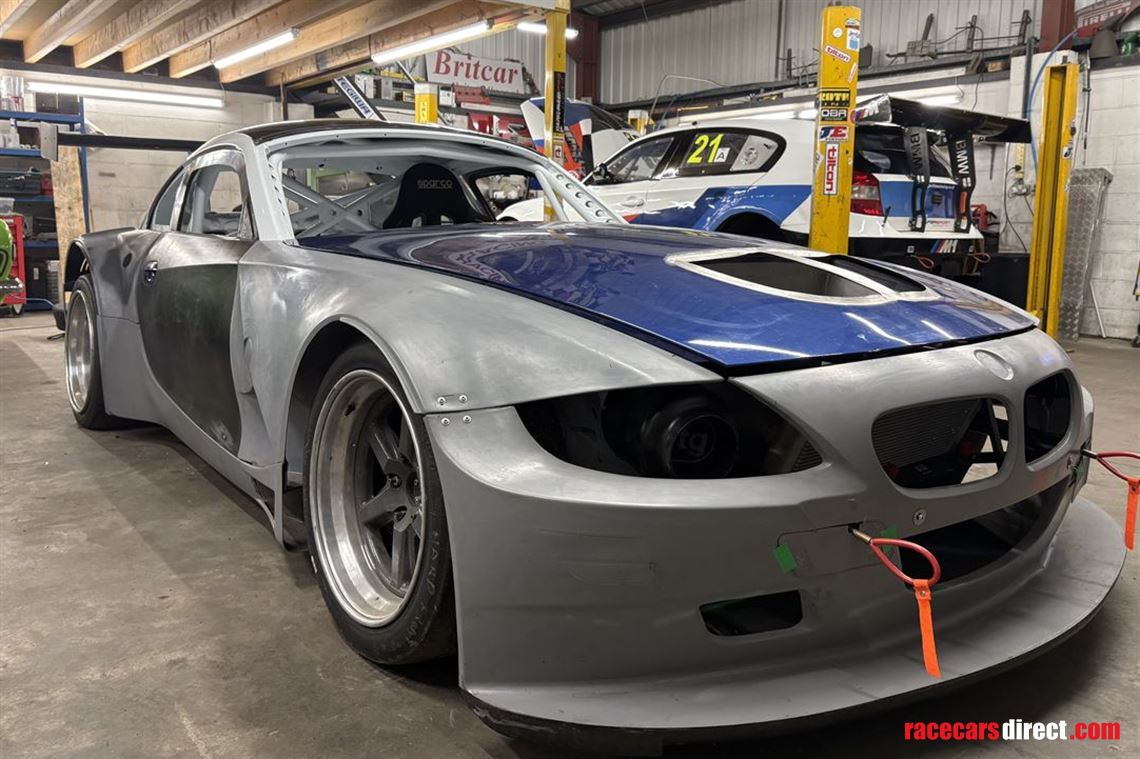

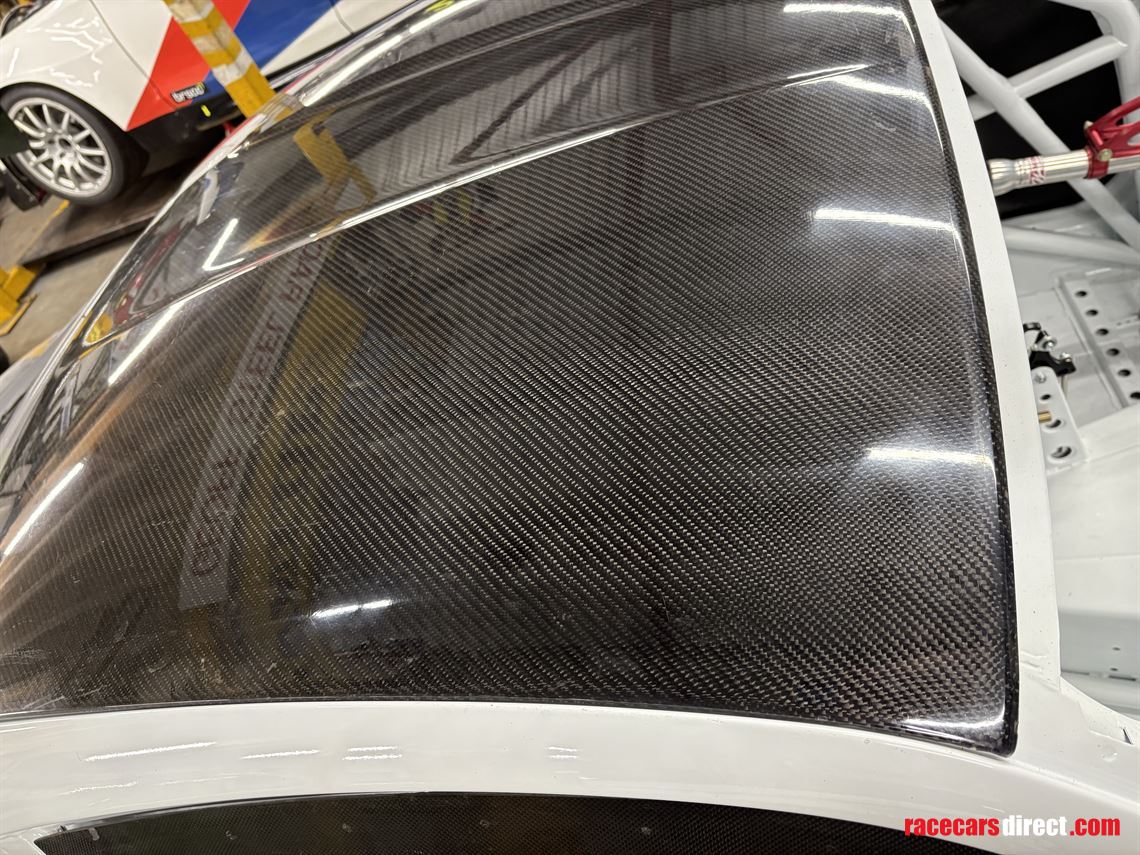

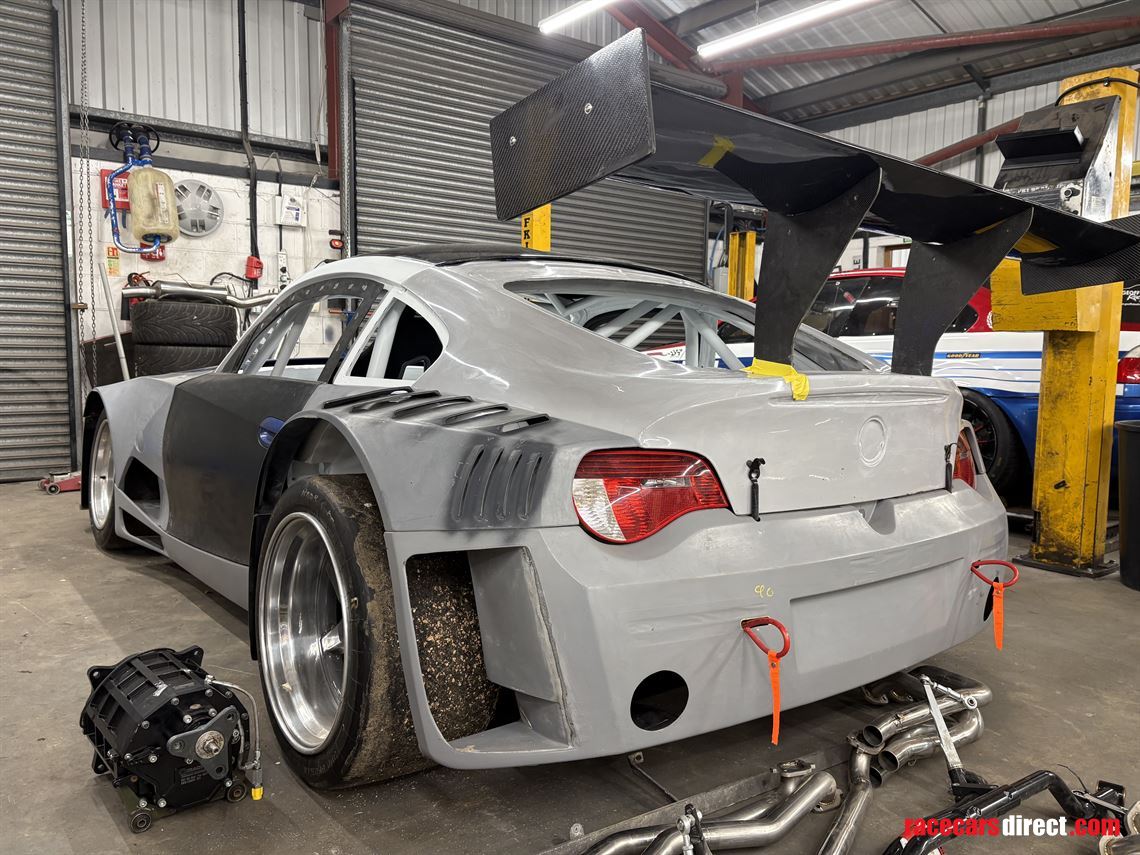

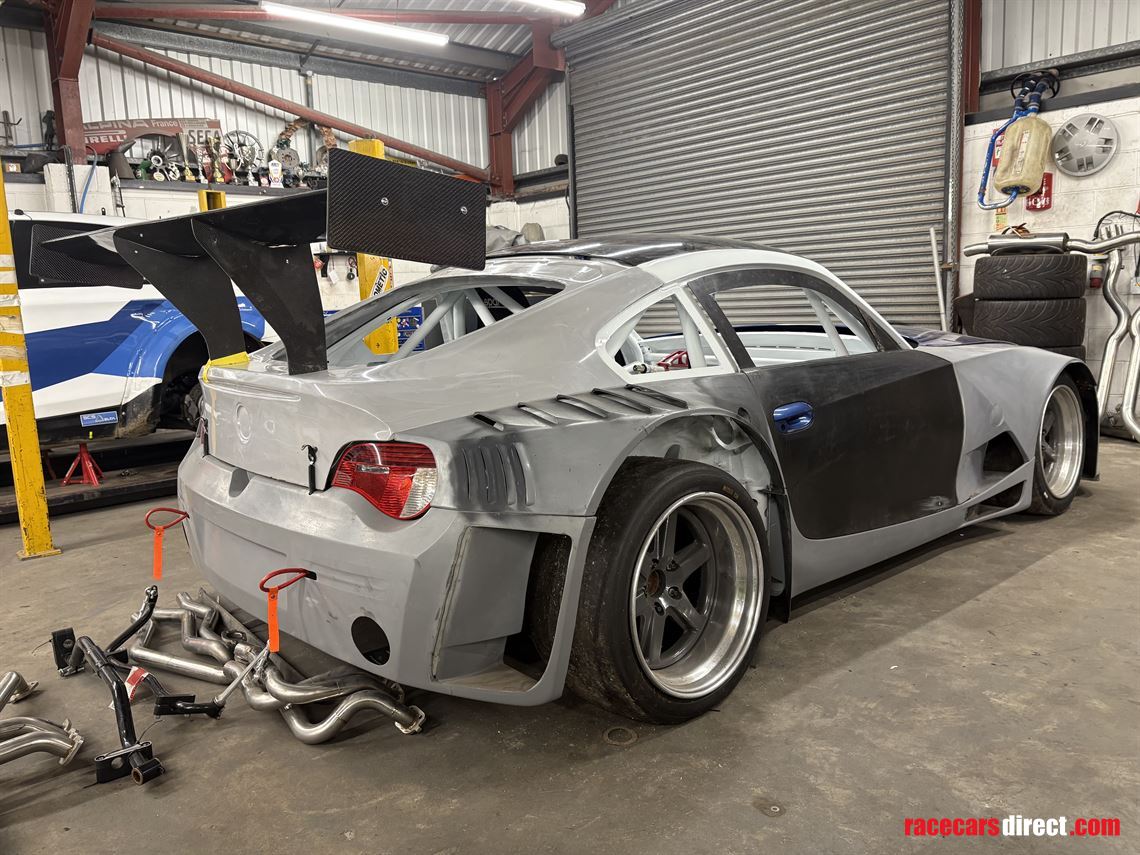

Full Flossman supplied GTR body kit along with a Geoff Steel carbon roof skin and Geoff Steel lightweigh, composite tailgate. Carbon doors.

This will be an amazing car once completed and has the potential to have huge power figures.

The following is a list of what is included in the sale price:

BMW Z4, heavily modified rolling shell

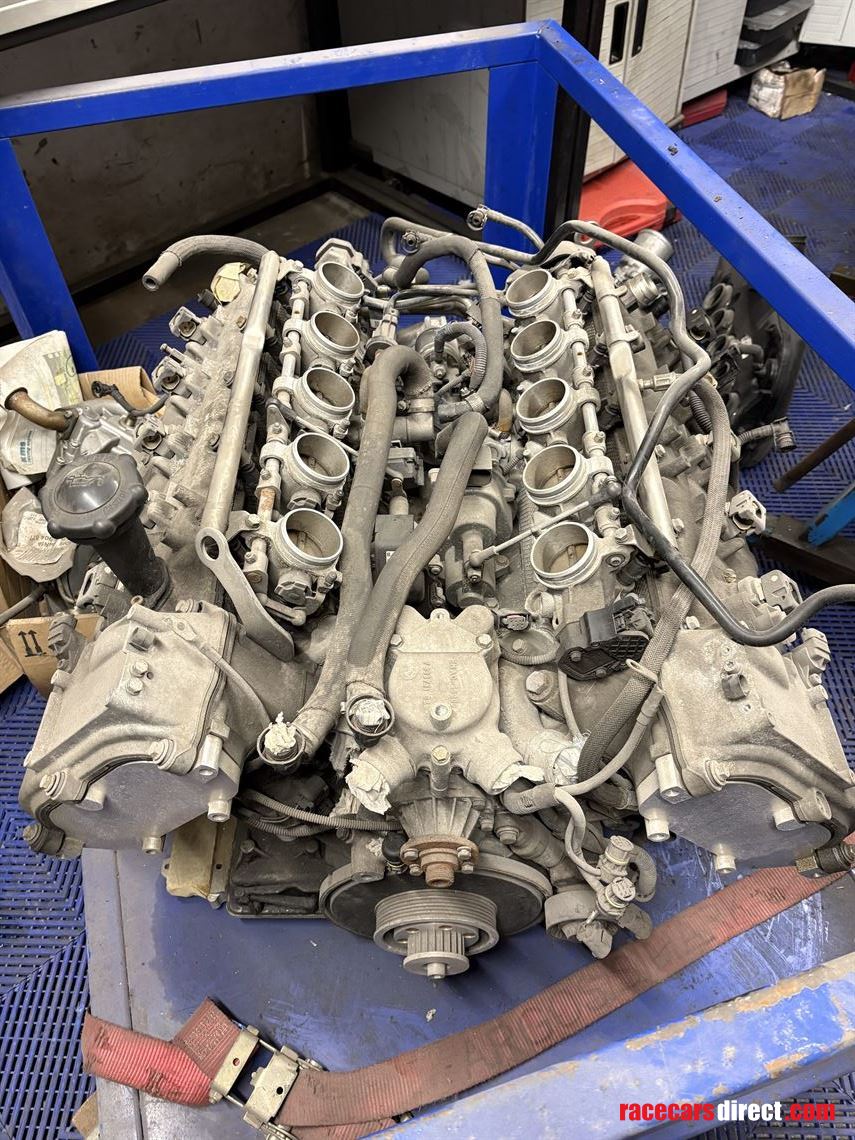

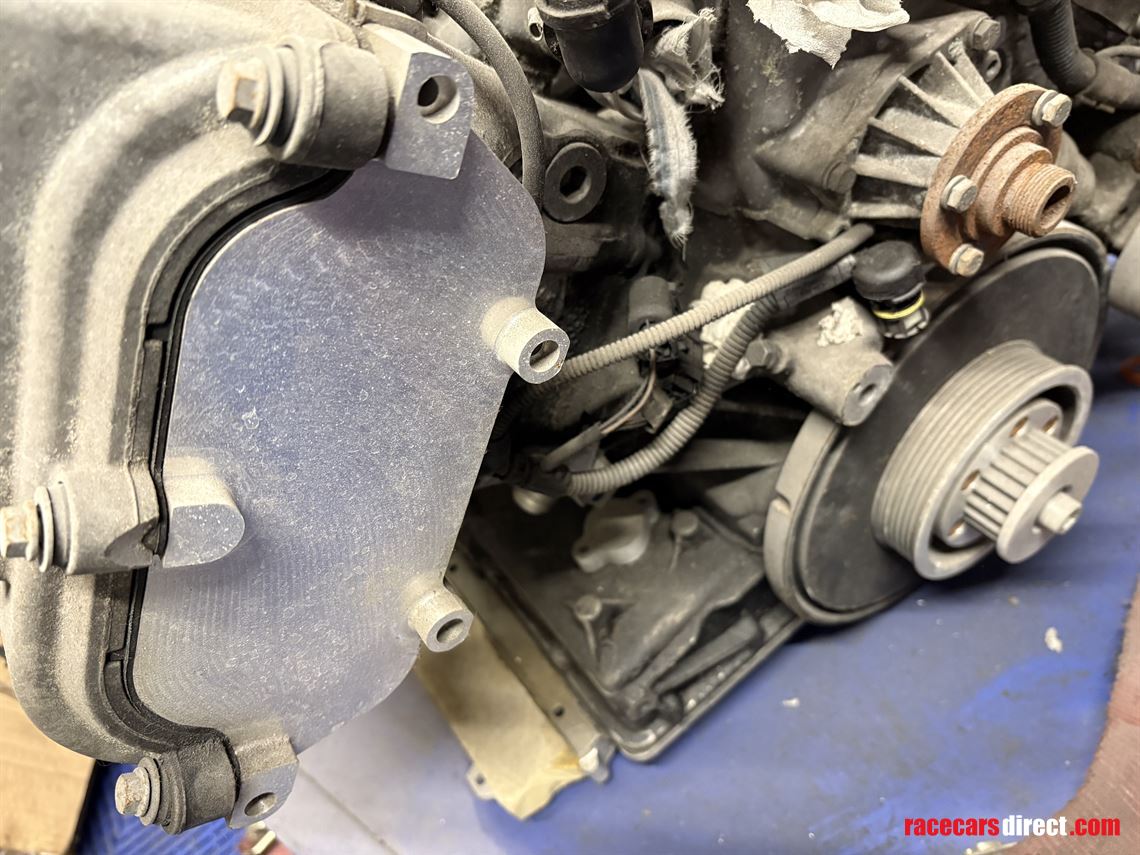

BMW V10 S85 engine including De-vanos plates and dry sump pan. This engine has not been inspected and will require inspection before use.

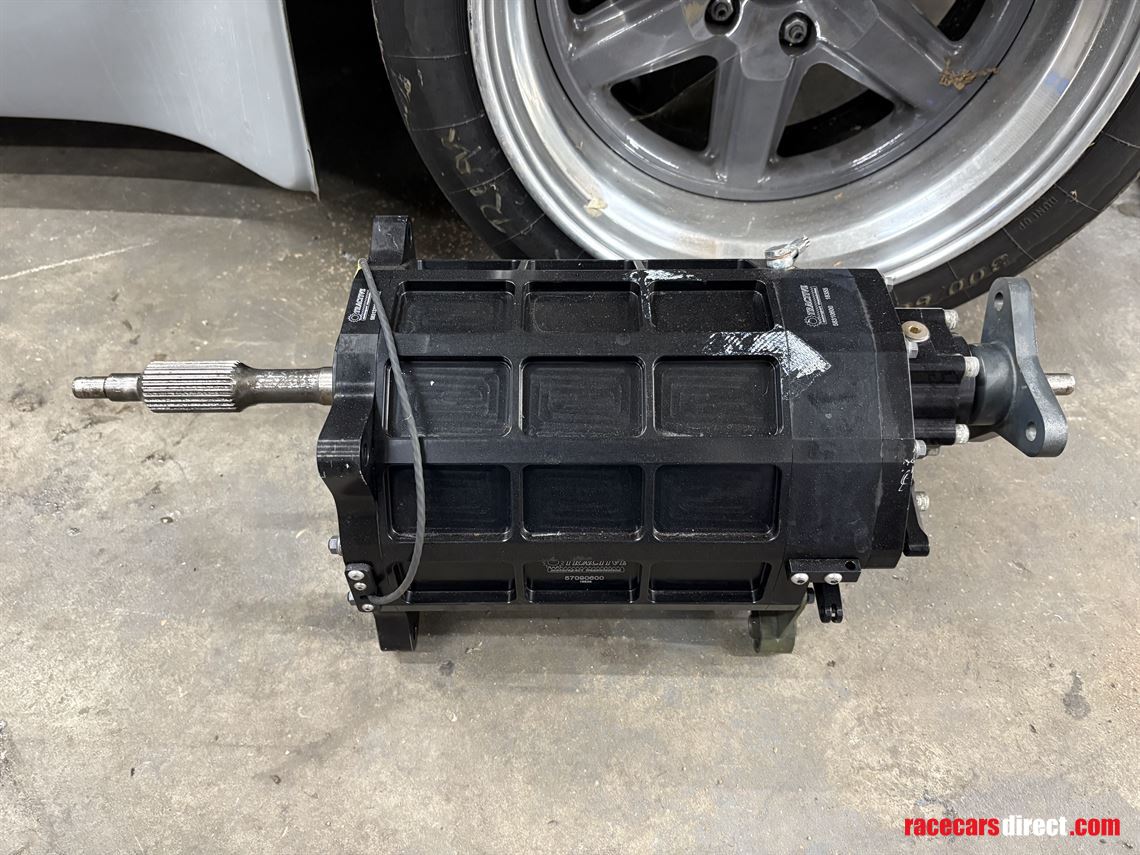

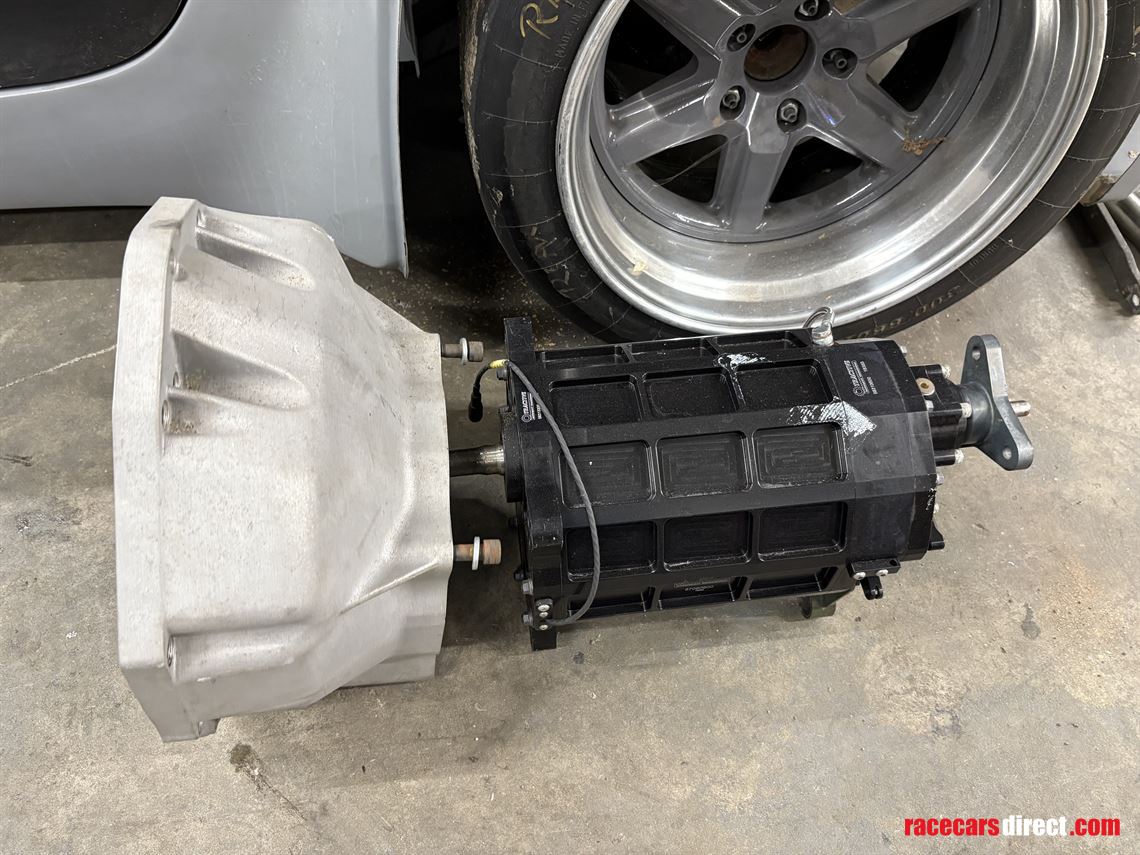

New Tractive 6 speed sequential gearbox with bell housing and gearlever

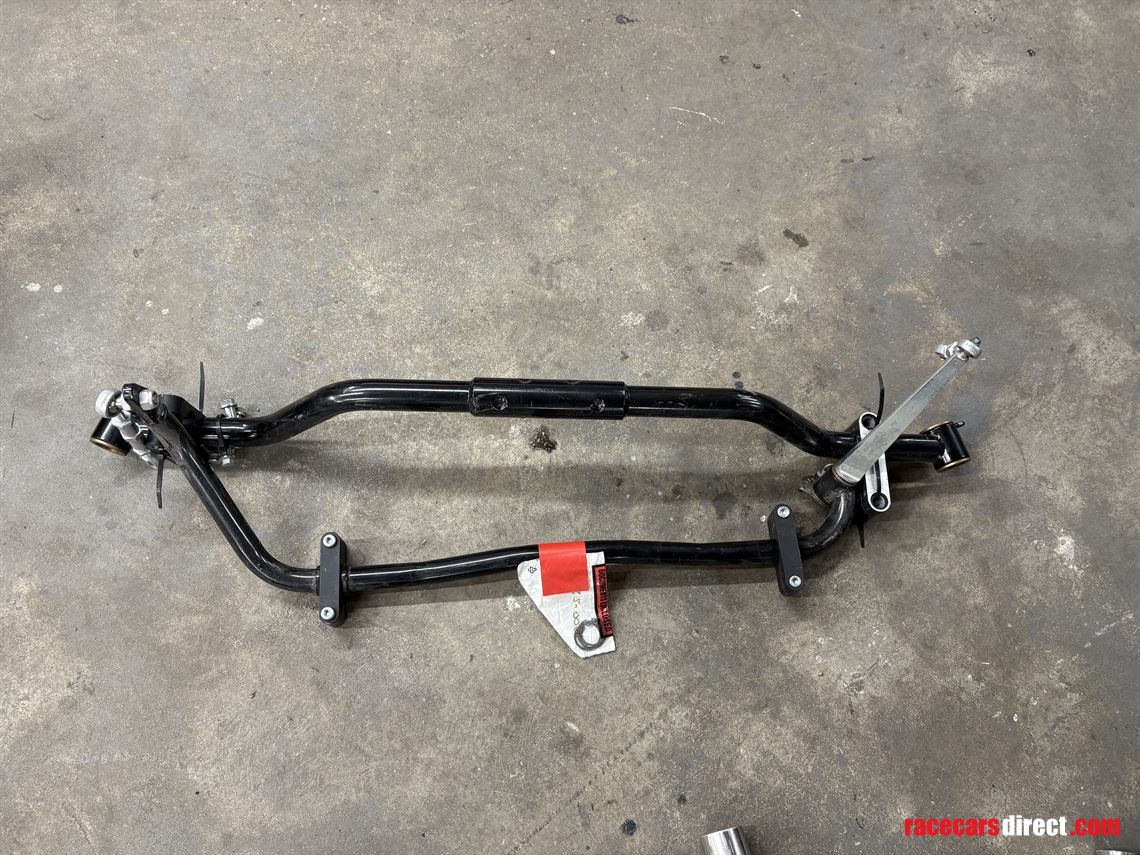

Front subframe and associated suspension parts

Rear axle, BMW E46 M3

Proflex front dampers and uprights

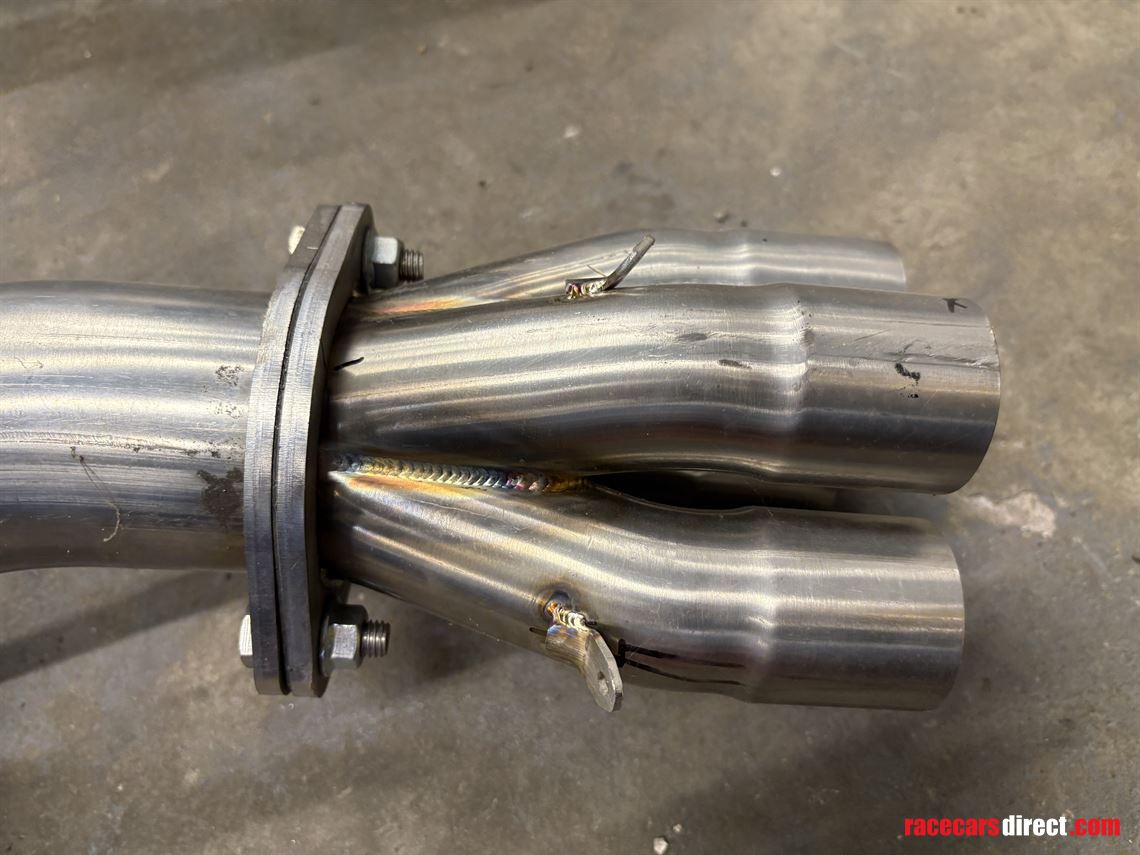

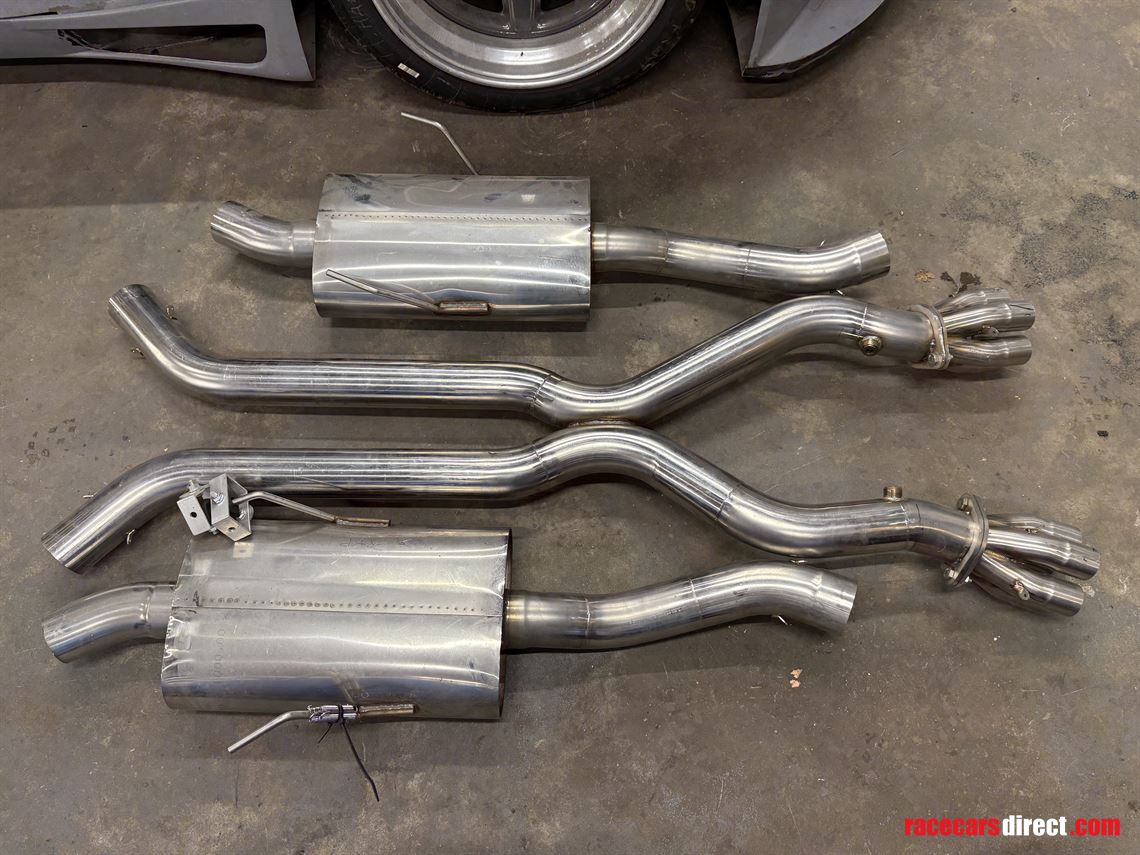

Full stainless exhaust system including manifolds. All custom made on the car

Willward steering column system

8 wheels

Blade adjustable front and rear anti roll bars

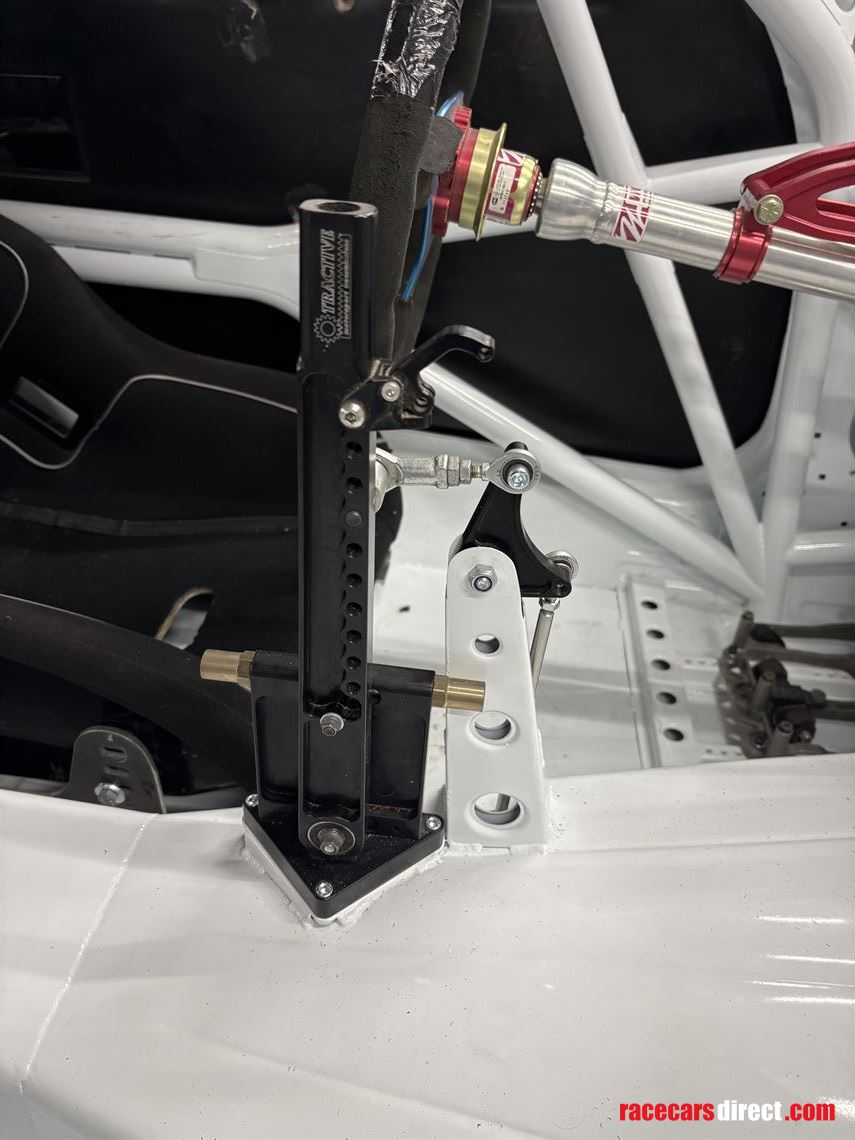

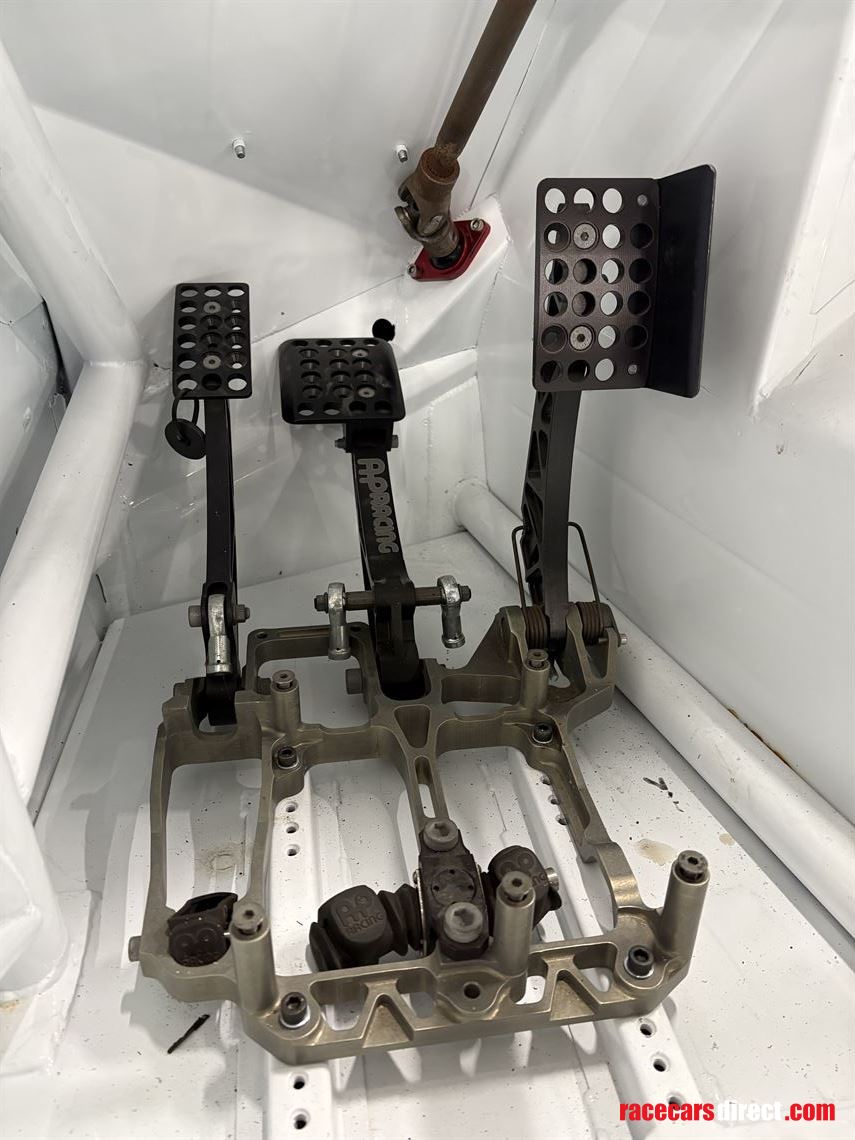

AP Racing reverse mount pedal box

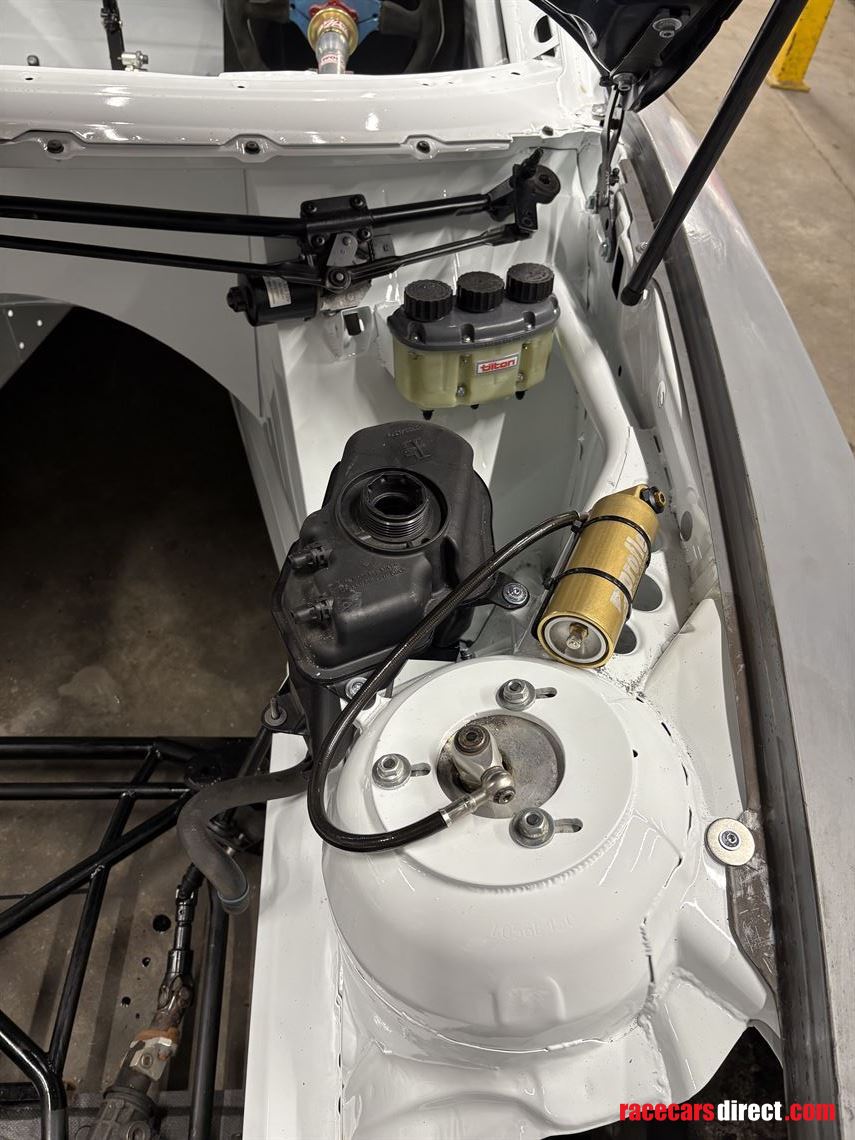

Tilton triple fluid reservoir

Dry sump tank

Alloy engine breather tank

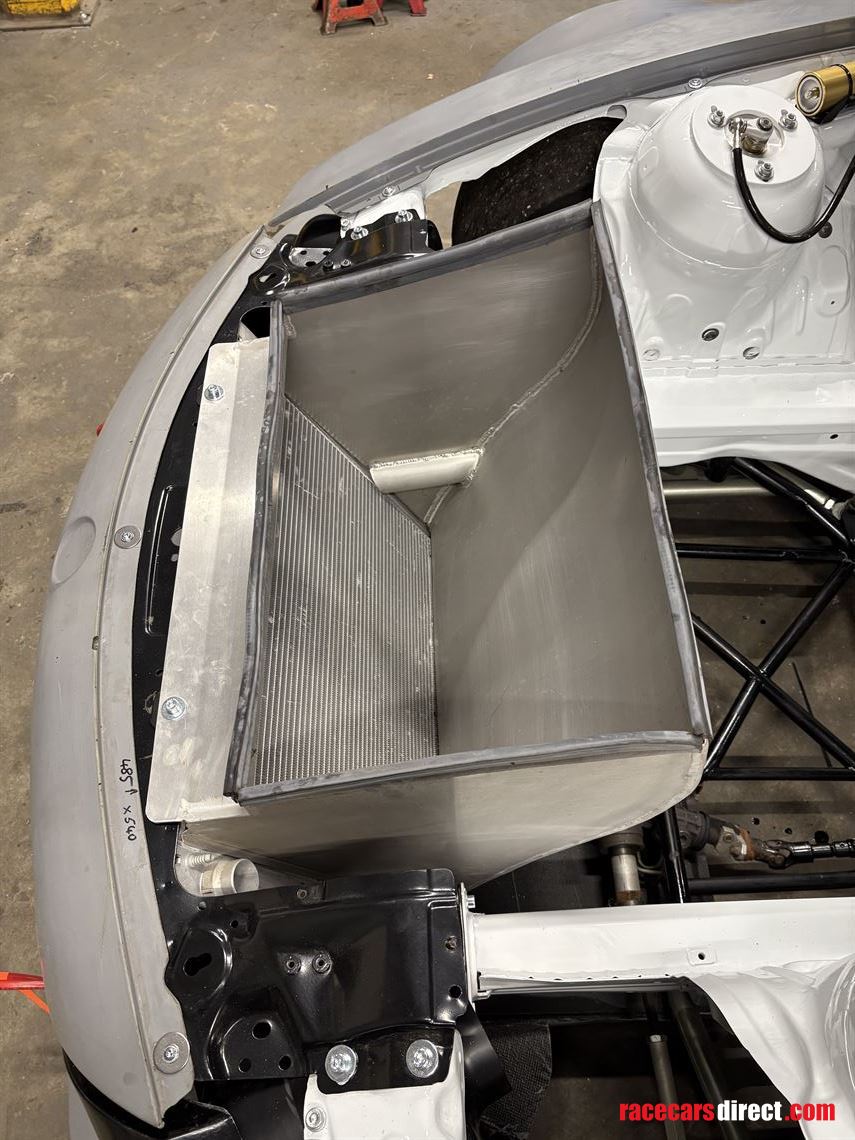

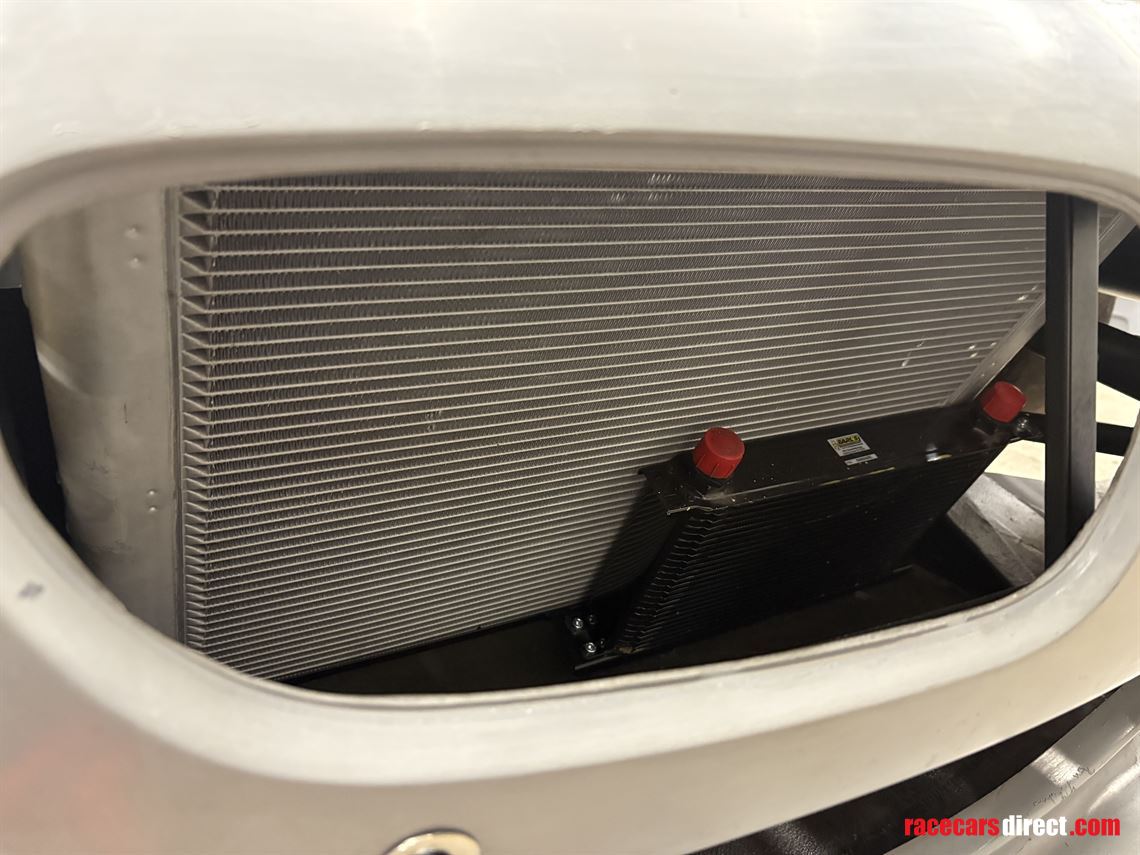

Aluminium radiator with fabricated aluminium ducting to bonnet

Oil cooler

Carbon head light blanks

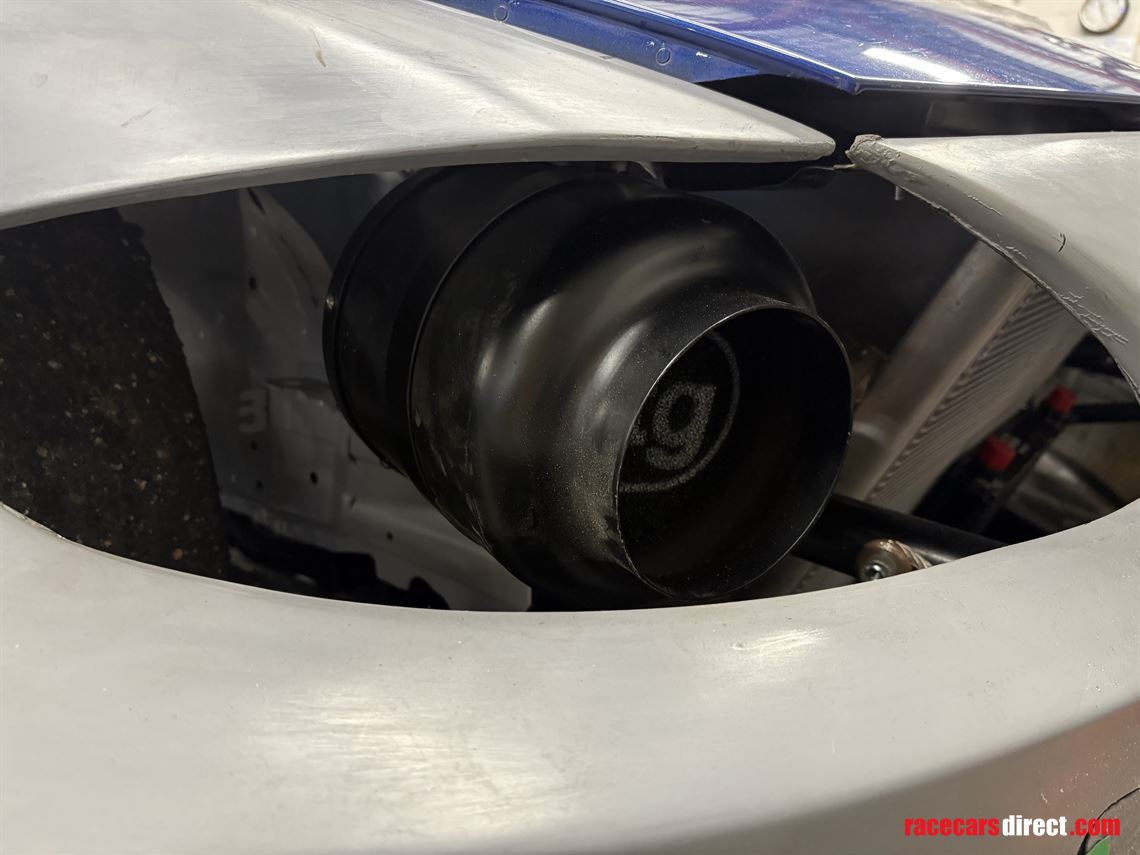

2x ITG air filters

Fuel tank

Coolant expansion bottle

I’m sure there is more that I have forgotten, the pictures probably show more detail than my explanation. I can send the pictures on whats app if you want to view them closer.

We can offer to complete the build for you if you prefer. Please contact me for more details.

Worldwide shipping can also be arranged. We ship cars all over the world regularly and have an agent who can help with this.

Would be Eligable for Britcar, 750 Club Enduro, Supersport Endurance, CSCC, etc
