Description:

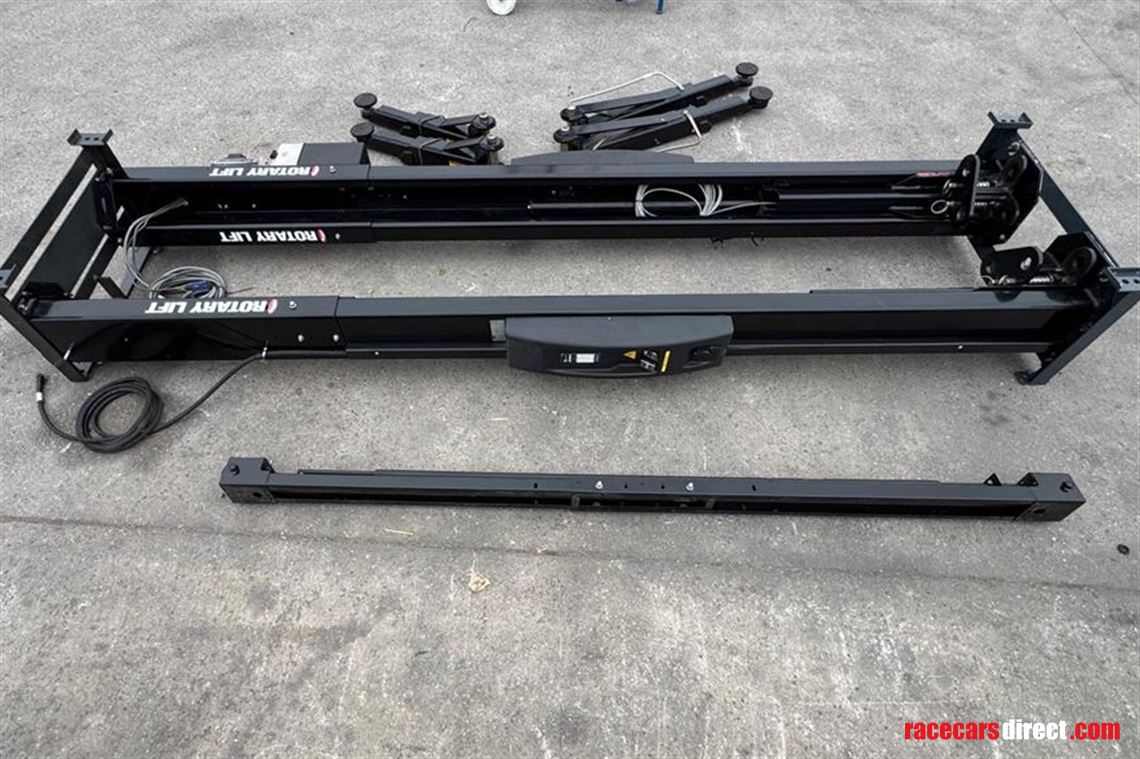

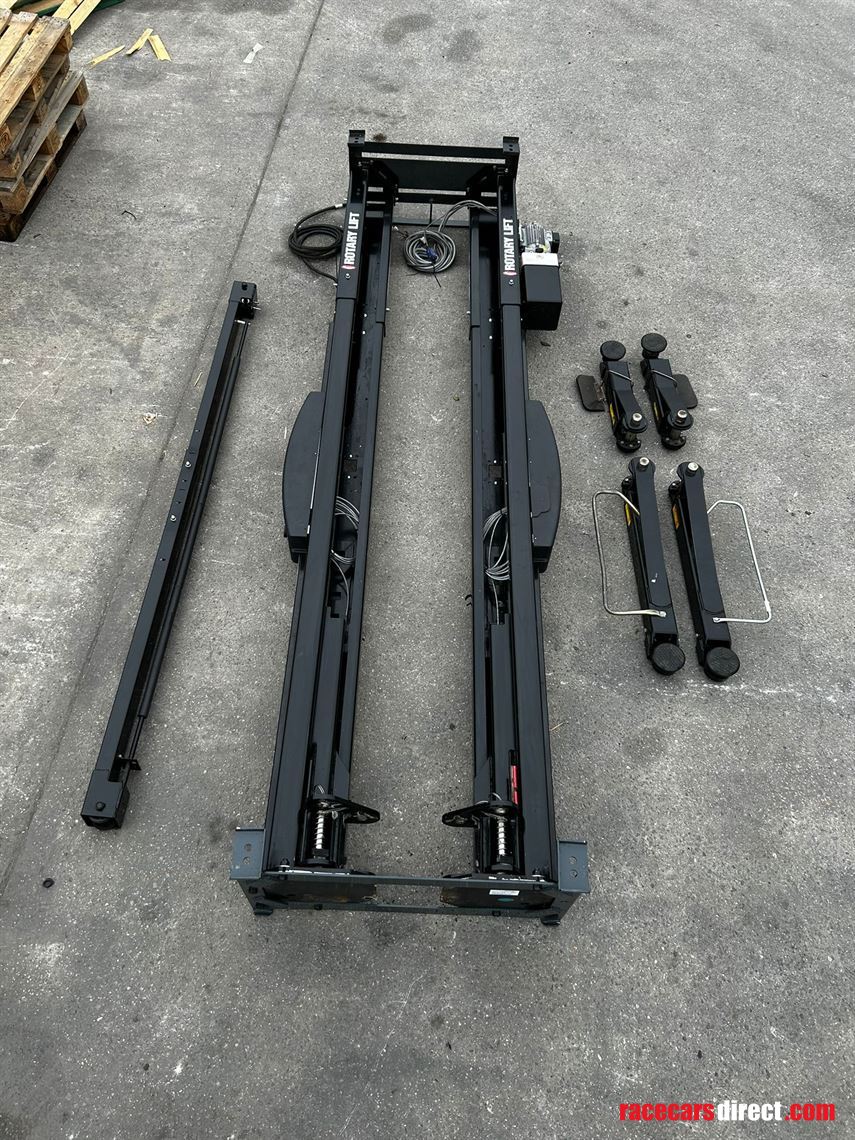

Packaged ready for collection on your trailer, we have a forklift to assist. Available in black or grey please let me know your preference upon ordering.

Installation service is available at extra cost - please contact me on 07983743340 to discuss your requirements, minimum charge for installation is £795+VAT plus transport costs.

The Rotary SPOA3T is the lift you will see installed in almost all main dealer workshops and service centres throughout the UK. Trusted for their reliability and safety from Ford to Ferrari.

We keep these lifts in stock - please let me know if you need more than one for your workshop.

Electrohydraulic, push button operation with electronic lock release, and controls on both posts.

Baseless design for ease of access for lifting tables, transmission jacks etc.

Modern, simple hydraulic concept with low maintenance mechanism.

Mechanical safety latches integrated on both sides with automatic actuation.

Load-free synchronization pulleys secure the load during the lifting and lowering process.

Hydraulic system secured by non-return valve including maintenance-free high-pressure cylinder in both posts.

Min ceiling height required: 3,925mm

Load capacity - 3.500kg

A - Stroke: 1,957mm

B - Overall Height: 3,865mm

C - Overall Width: 3,000mm

D - Drive-through width: 2,560mm

E - Switchoff Level: 3,760mm

F: Support bracket min length: 550mm

G: Support bracket max length: 1,106mm

H: Support bracket min length:876mm

I: Support bracket max length: 1,472mm

Driving power: 4Kw

Power supply: 400v
