Description:



AB Performance Arion Chassis - 2018

Engine and Gearbox

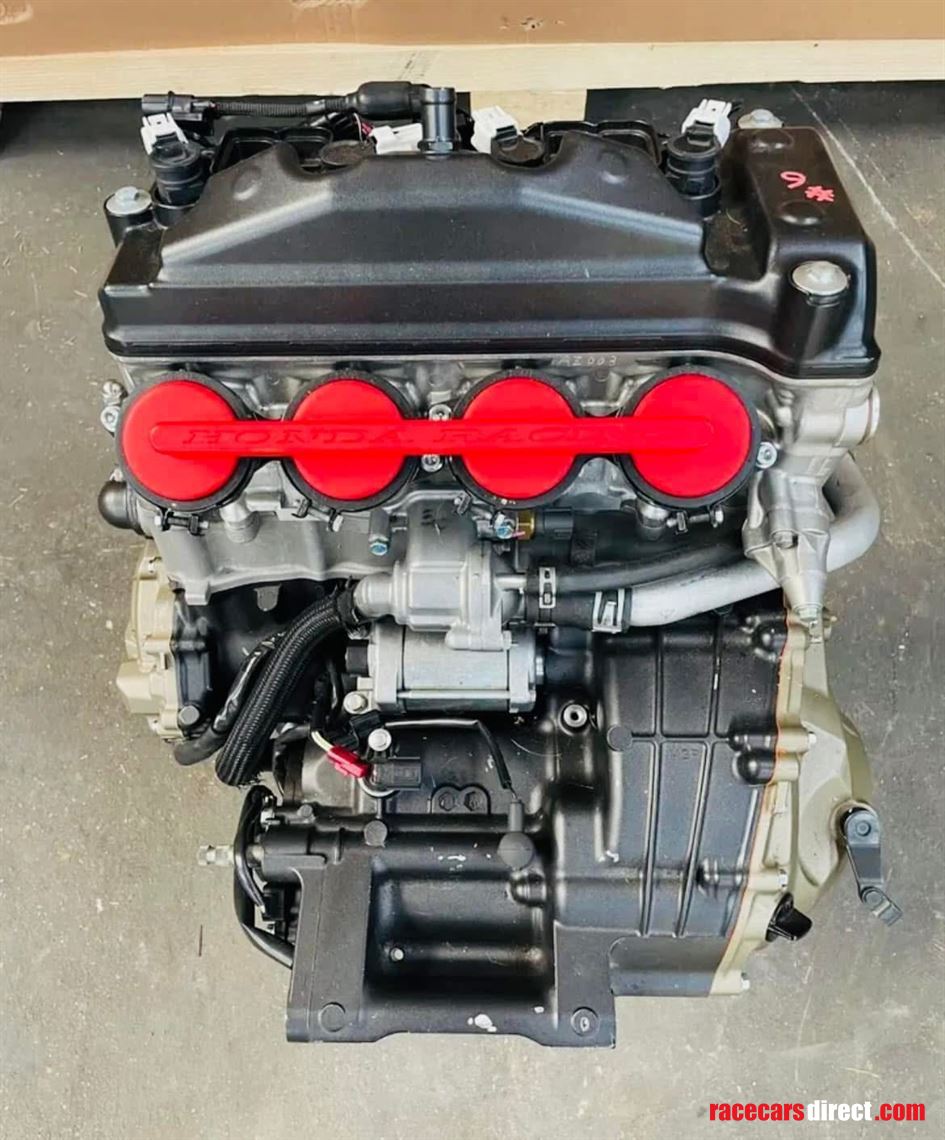

Honda CBR-1000RR ( World Endurance spec) Engine
Billet two-piece sump and baffle plate

Suter clutch pack
Propshaft Adaptor
Billet Oil Cooler Sandwich Plate
AN10 Aeroquip braided stainless lines
Powder Commander PC5 with custom MAP to suit the race engine
AB Performance Airbox with Billet Aluminium bellmouths
Flashed ECU with modified advance curve
Bailey Morris two piece propshaft with resilient tube rear section
Quaife ATB Limited Slip Differential
CPS Drivelink driveshaft's with inboard tripod joints
Twin pass alloy race radiator
Electric water pump
Aluminium header tank
12" fan
AB Works exhaust system in stainless steel



Suspension, Brakes and Wheels

Rose Jointed CDS wishbones and rockers
Billet Aluminium rear uprights with modular rear hub assemblies
Forged front uprights with AB geometry extensions
Protech double adjustable shock absorbers
Front and Rear anti roll bars
4 pot wilwood powerlite calipers (front)
4 pot wilwood powerlite calipers (rear)
Poly matrix A compound brake pads all round
Braided stainless AN3 brake hoses all round with stainless AN3 T pieces
Top Mounted Wilwood pedal box with billet pedals and integral brake bias
Team Dynamics Pro Race 1.2 7 x 13" wheels with Nankang AR1 tyres fitted.

Exterior Specification

2 Piece Arion Bodywork in white gelcoat
Full roll cage
Front Lighting Pack
Rear Lighting Pack



Interior Specification

Tillett B6 Screamer carbon seats
6 Point driver Harness (Hans compatible), four point passenger harness.
ETB Digi dash with GPS
Suede, detachable Momo Steering Wheel
FIA Quick Release Steering Boss
Stick Shift.
