Description:

The 16v integrale was developed for rallying, introduced at the 1989 Geneva Motor Show,[35] and made a winning debut on the 1989 San Remo Rally.

It featured a raised centre of the bonnet to accommodate the new 16-valve engine, as well as wider wheels and tyres and new identity badges front and rear. The torque split was changed to 47% front and 53% rear.

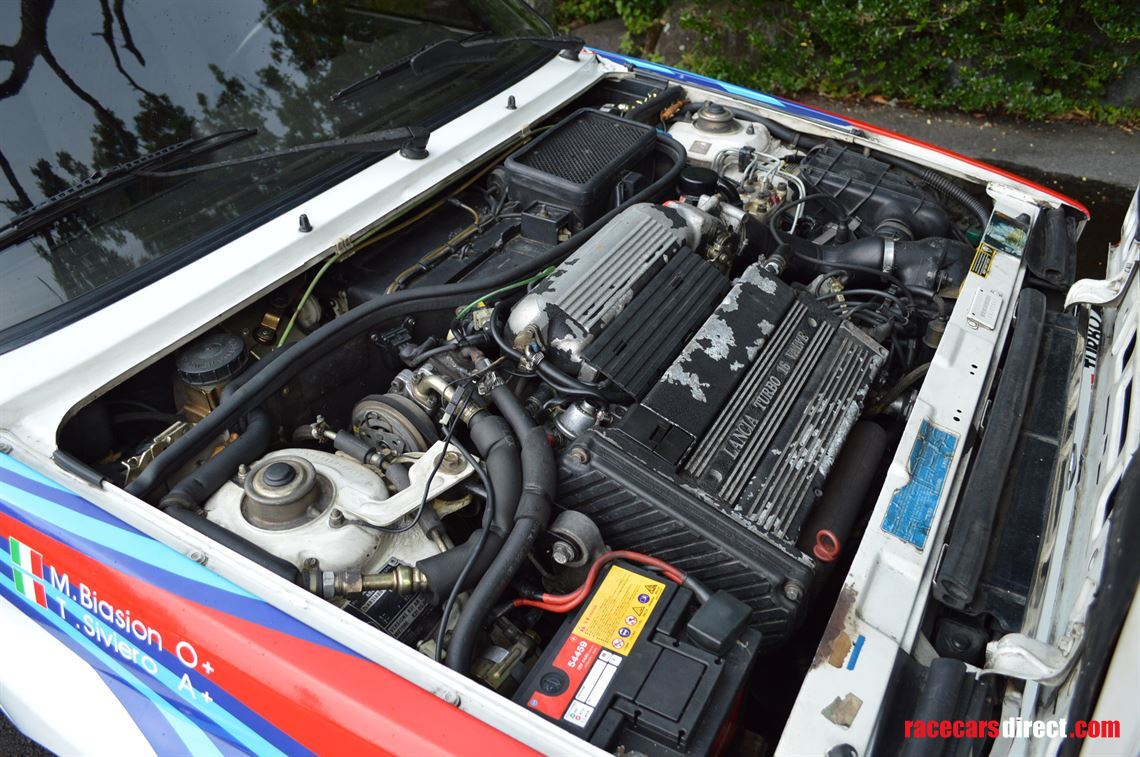

The turbocharged two-litre Lancia 16v engine produced 200 PS (147 kW; 197 hp) at 5,500 rpm, for a maximum speed of 137 mph (220 km/h) and 0–100 km/h (0-62 mph) in 5.7 seconds. Changes included larger injectors, a more responsive Garrett T3 turbocharger, a more efficient intercooler, and the ability to run on unleaded fuel without modification.

Alongside the 16v Lancia introduced an eight-valve variant equipped with a three-way catalytic converter—which reduced output to 177 PS (130 kW; 175 hp) — intended for those European markets where such emission control equipment was mandatory.

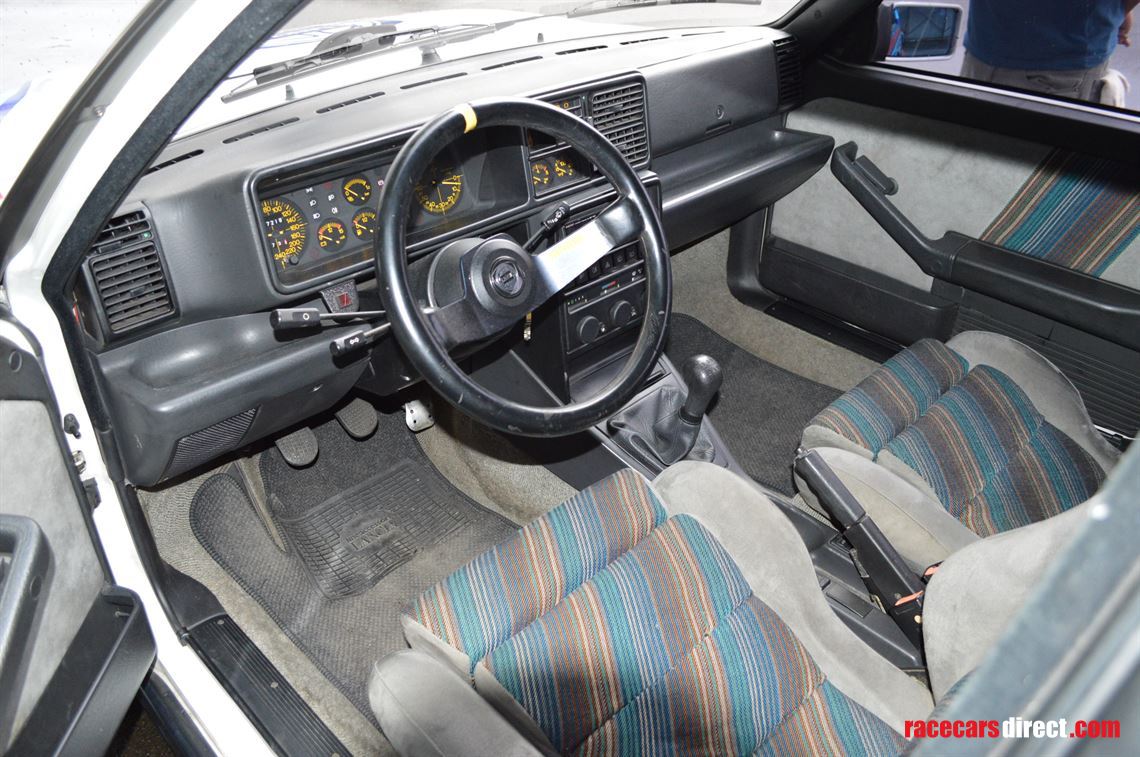

In the summer of 1990 some small updates were made to all Delta sports models, with the integrale receiving new upholstery materials.[27] Like on the HF turbo, the combination of light grey Alcantara and multicolour stripe cloth used since 1986 was replaced by dark grey Alcantara with diagonal stripe velour. If the Recaro optional seats were ordered, the buyer could choose either full dark grey or green embossed Alcantara upholstery, or extra-cost perforated black leather.(Wikipedia)

SPECIFICATIONS

Engine type - Number of cylinders :

Inline 4

Engine Code :

831D5.000

Fuel type :

Petrol

Fuel System :

MPI - Weber-Marelli IAW

Engine Alignment :

Transverse

Engine Position :

Front

Engine displacement :

1995 cm3 / 121.7 cu-in

Bore x Stroke :

84.0 x 90.0 mm
3.31 x 3.54 inches

Number of valves :

16 Valves

Aspiration :

Turbo + Intercooler

Compression Ratio :

8.0

Horsepower :

200 PS / 197 HP / 147 kW
@ 5500 rpm

Maximum torque :

310 Nm / 228 lb-ft
@ 3000 rpm

Drive wheels - Traction - Drivetrain :

AWD

Transmission Gearbox - Number of speeds :

5 speed Manual

Fuel Consumption - Economy - Combined:

9.9 L/100 km
29 MPG UK
24 MPG US

Range :

575 km / 357 miles

Fuel Tank Capacity :

57 L
15.1 US gallons
12.5 UK gallons

Top Speed :

220 km/h / 137 Mph

Acceleration 0 to 100 km/h (0 to 62 mph) :

5.7 s

Front Brakes - Disc dimensions :

Vented Discs



Rear Brakes - Disc dimensions :

Discs



Front Tyres - Rims dimensions :

205/50 R15



Rear Tyres - Rims dimensions :

205/50 R15



Front Suspension :

Independent McPherson

Rear Suspension :

Independent McPherson



Body Style:       Compact Hatchback

Doors:               5

Seats:                 5

Cargo Space:    260-940L

Weight:              1250kg

Gross Weight: 1700kg

Length:             3898mm

Width:               1620mm

Height:              1365mm

Wheelbase:       2479mm

Front Track:     1409mm

Rear Track:       1404mm

The car has been maintained and serviced in 2024 exchanged lots of parts.

If you have any interest on this car, please request us for more information.
