Description:

Only travelled 1965km. You will know you're alive driving this car.

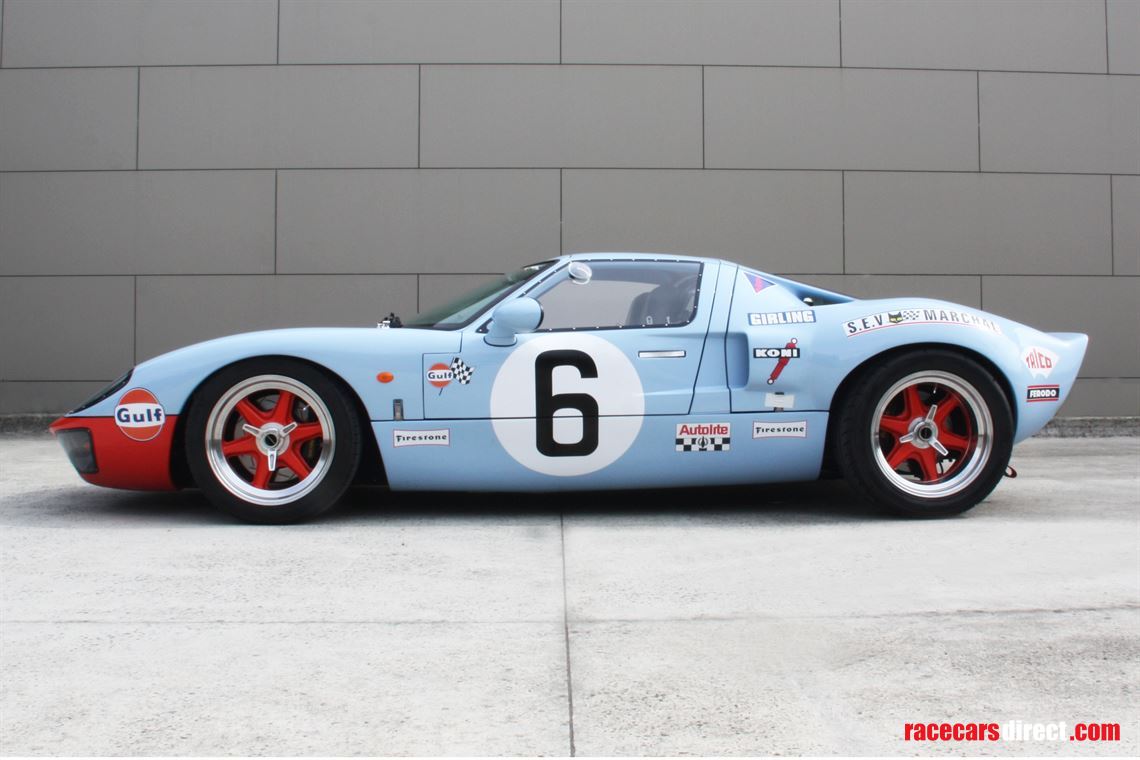

Roaring Forties tribute - professional built by Motorsports division and VCM performance tuned

+ Full Road Registered. Private collection and just not been used a true dream car:

Presents like new (no marks or scratches in immaculate condition) offered at a fraction of the cost to build.

Can assist in oversea inspection & all shipping requirments + full detailed Video - call or international enquiries please email

Frame

RF GT40 designed, full spaceframe

Front Suspension

Independent, non-parallel, unequal length “A” frames

Rear Suspension

Lower inverted “A” frame & upper transverse link, independent twin drag links from rear bulkhead

Springs & Dampers

Competition coil over gas shocks with adjustable damping rates and variable spring height

Brakes

Dual hydraulic circuit front/rear split

Master Cylinder

Front Brakes AP RACING

315mm vented, four piston,

Rear Brakes AP RACING

330mm vented, twin piston, floating calliper with internal drum handbrake system.

Steering

Rack & pinion

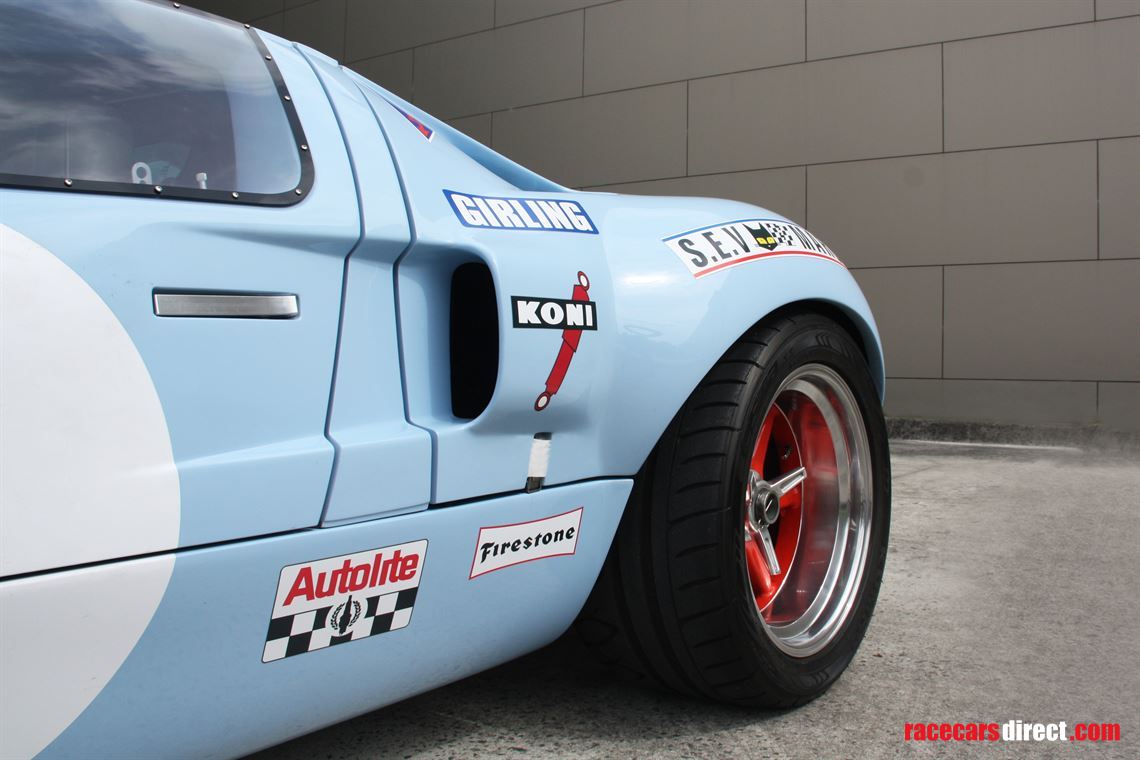

Wheels

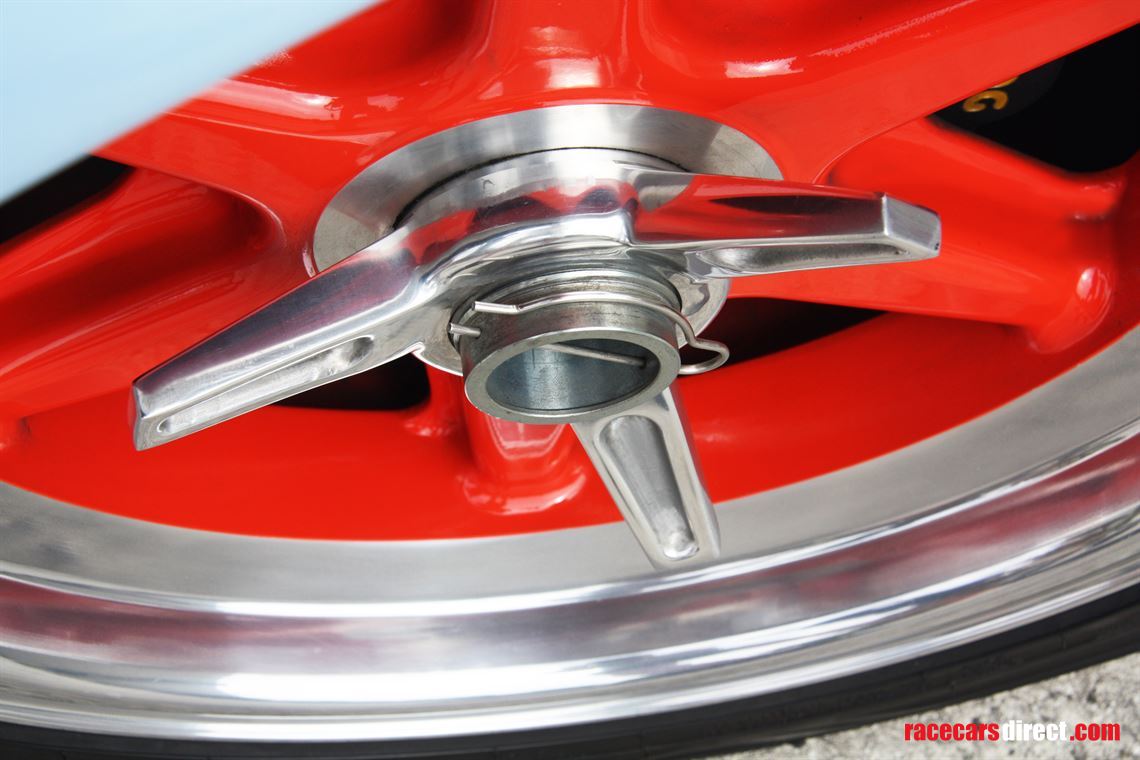

CNC machined, one piece, alloy Halibrand

Fuel Tanks

Baffled aluminium sill tanks, 2 x 40 litre capacity. Integrated swirl pot

Radiator - Front mounted, heavy duty, aluminium multi-pass

Gear Change - Cable linkage RHS sill mount

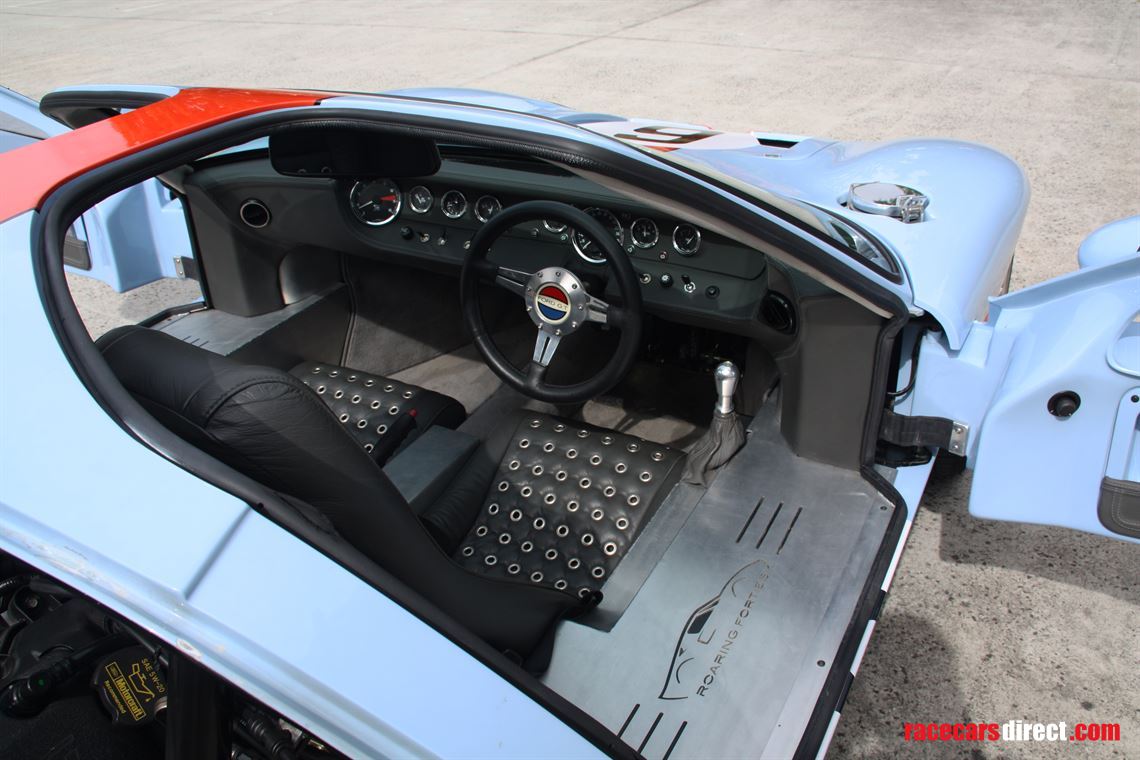

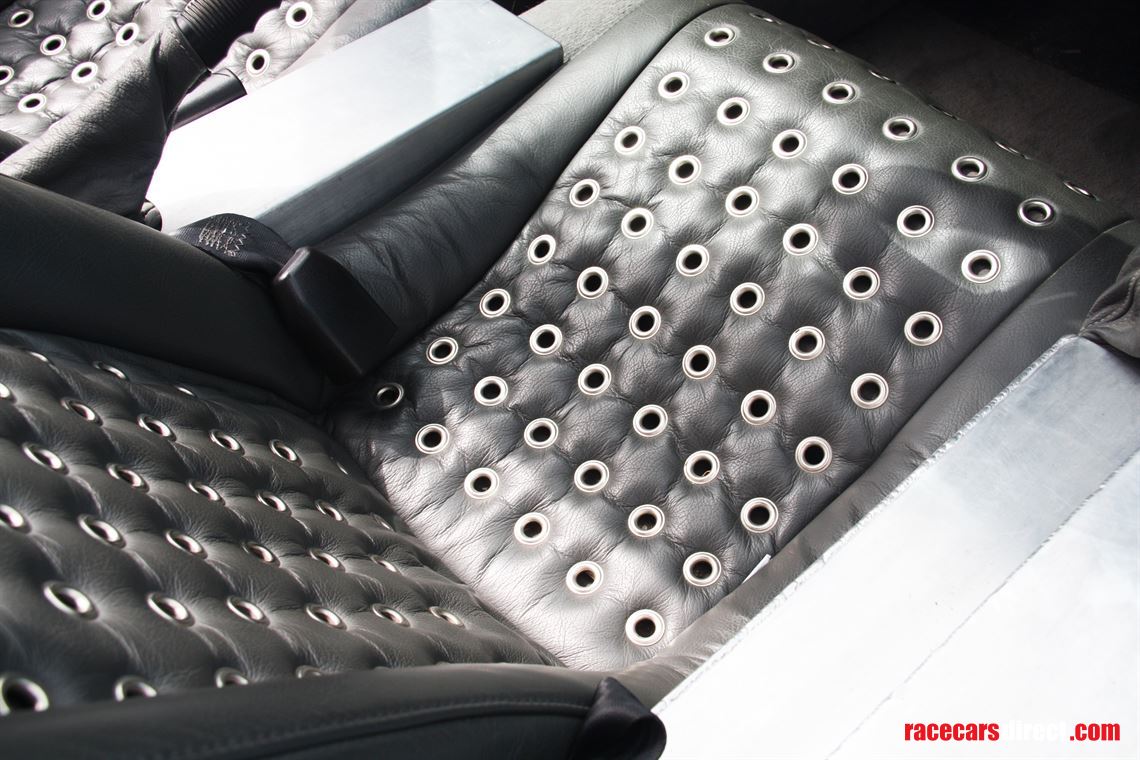

Seats - Custom made leather with stainless rings & lumbar support

Instruments - 300km/h speedo, 8000 RPM tacho, fuel, oil pressure, coolant temperature, alternator voltage, analogue clock

Air Conditioning -R134 refrigerant, fan forced, vent ducted heating & cooling and demisting

Drivetrain

Engine - Ford 5.0 litre Coyote which is fully compliant

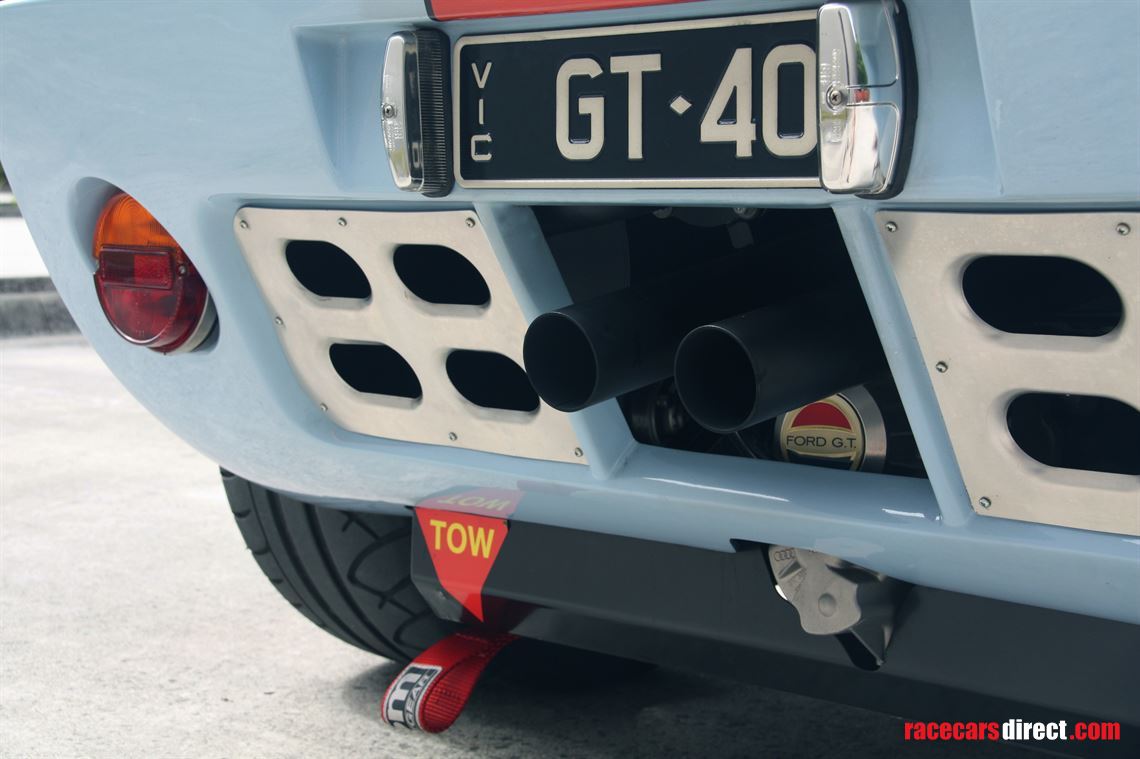

Exhaust -ADR compliant system

Transmission - 6 speed Getrag 50 transaxle

Clutch - Single Twin plate, dry, hydraulic concentric slave

Height - 40.5 inches (at top of front screen)

Drive shafts - Solid

Performance -POWER: 495HP / 369 kW / TORQUE: 420 ftlb / 569 Nm

The Engine

MOTec Management system Dynode in by VCM Performance

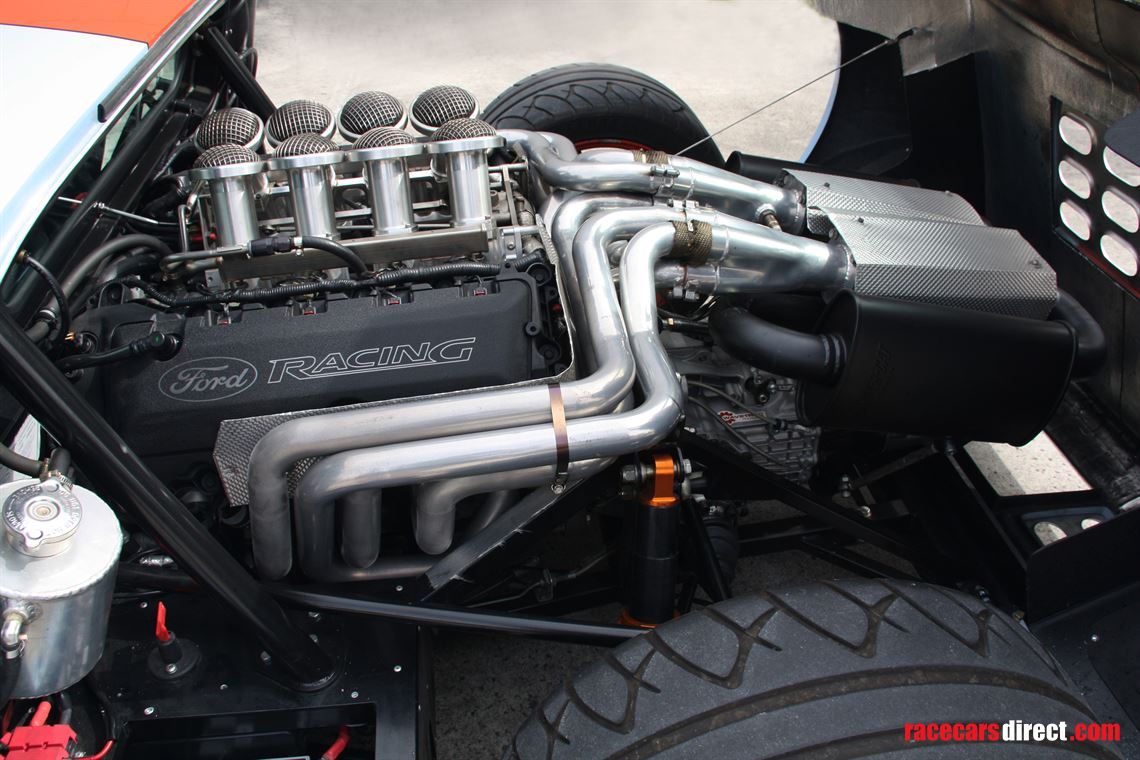

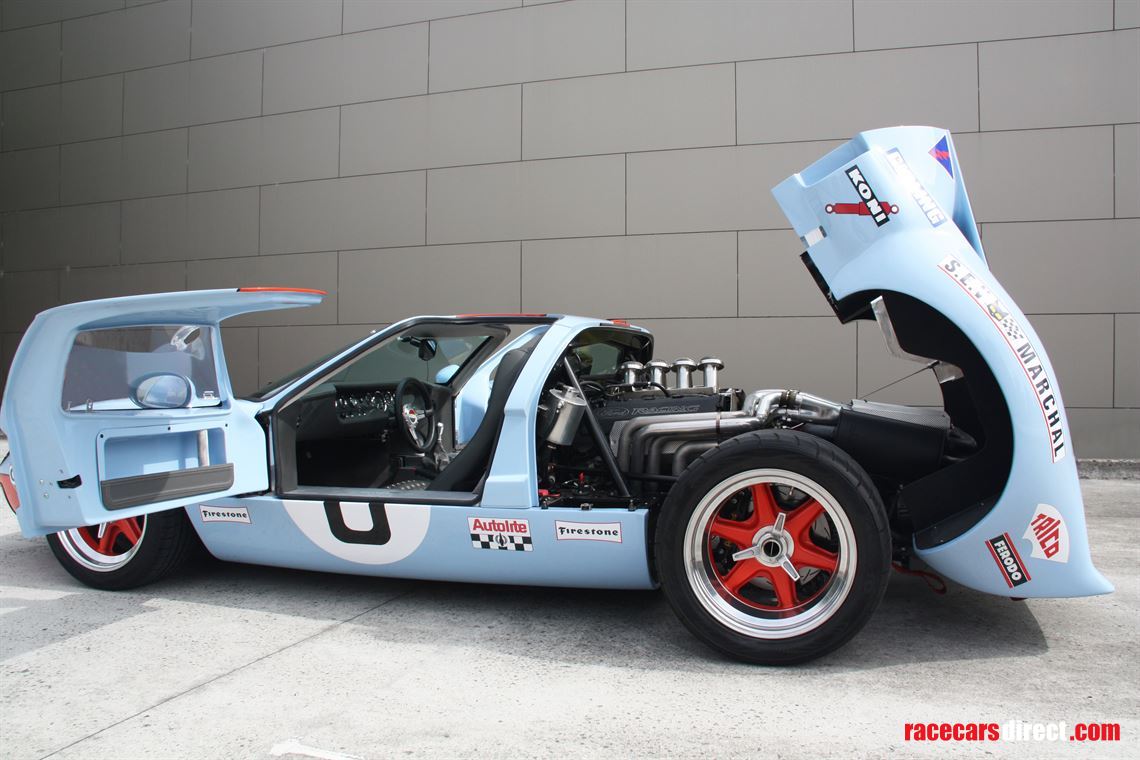

Ford Coyote 5.0 Generation II. This quad cam, full alloy V8 engine has full emission compliance whilst having proved itself in racing as being a very solid and reliable engine.

The basis of the RF GT40 is a more modern triangulated space frame with all mounting and fixings factory welded on precision jigs with roll over cage bar.

The suspension is very similar to the original Ford GT40, with double wishbone front suspension which comprises of independent, non-parallel, unequal length “A” frame control arms. The rear suspension has lower reversed “A” control arms, single top link and double radius arms magnesium uprights. All suspension “pickup” points have been positioned via computer design, CAD modelling, CNC machining and extensive road and track testing. The springing is provided by coil-over adjustable dampers front and rear.

This engine is emissions compliant in all states. The engine is mated to a Getrag 6 speed transaxle via specially designed and manufactured adaptor plates and flywheel, mated to a twin plate clutch.

Floor mounted pedal box.

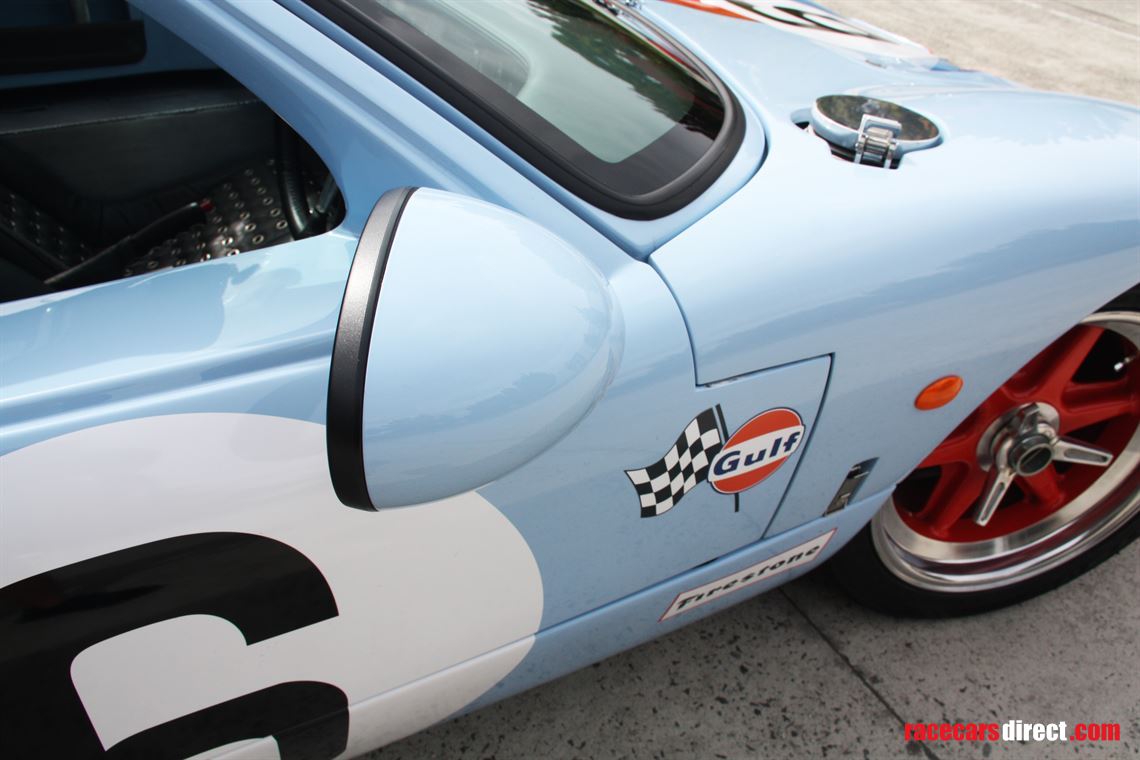

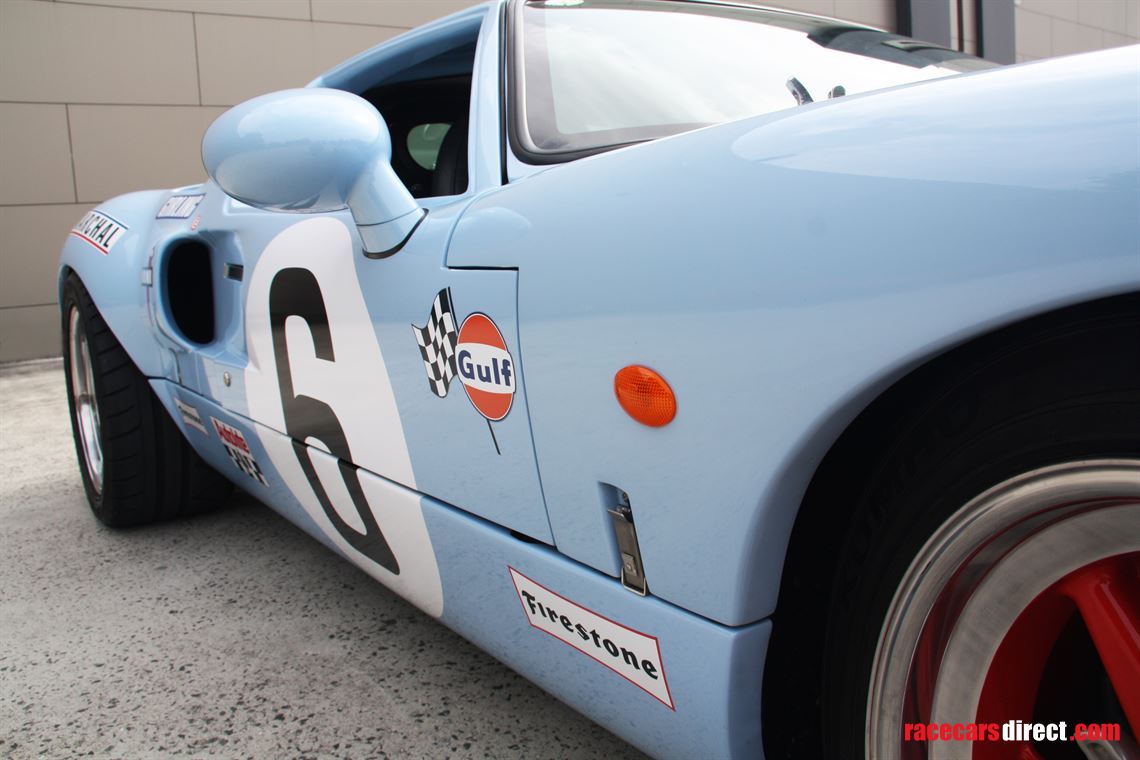

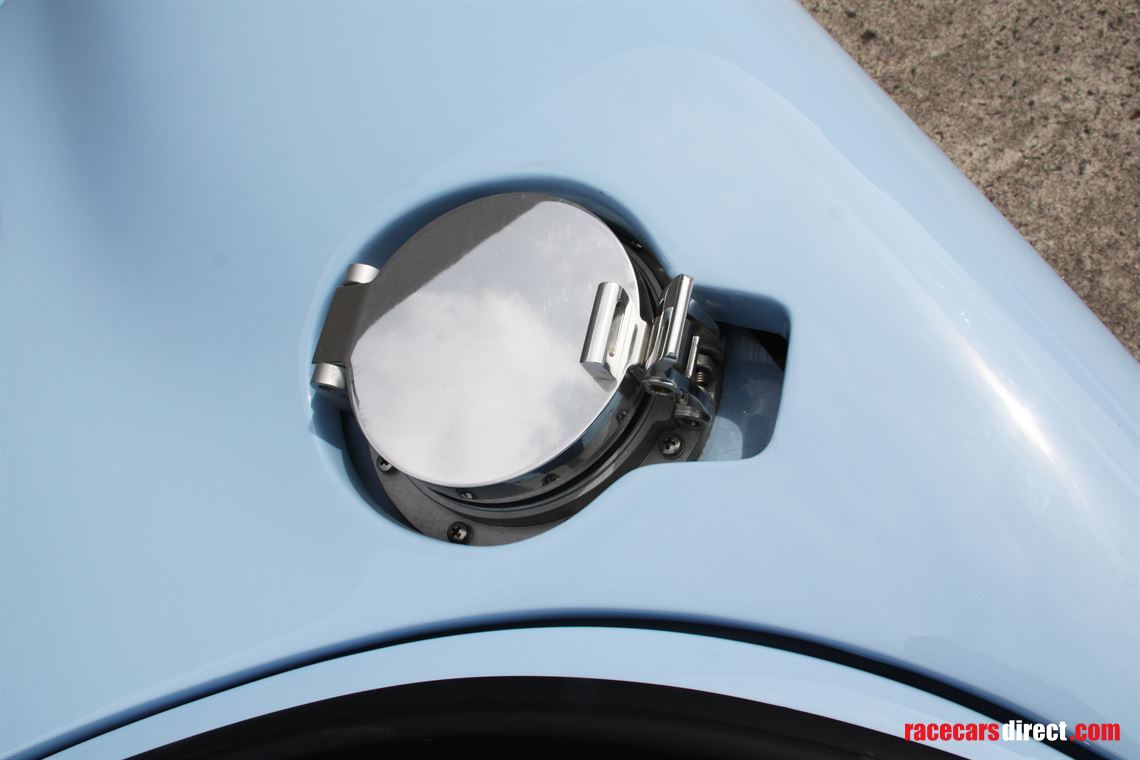

 Door handles and fuel filler caps are exact replicas of the original.

+ Plus, fully integrated Racing Fire suppression system.

For more photos or information

Private collection and just not been used a t
