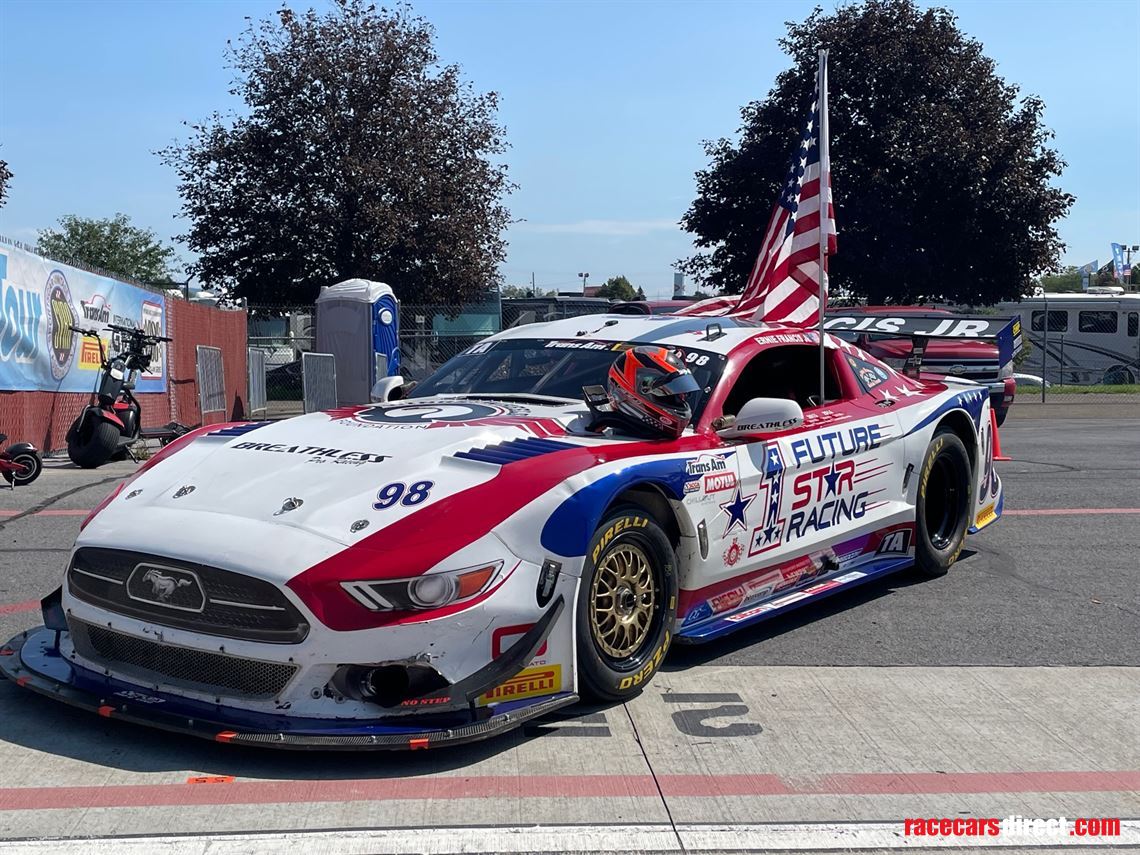

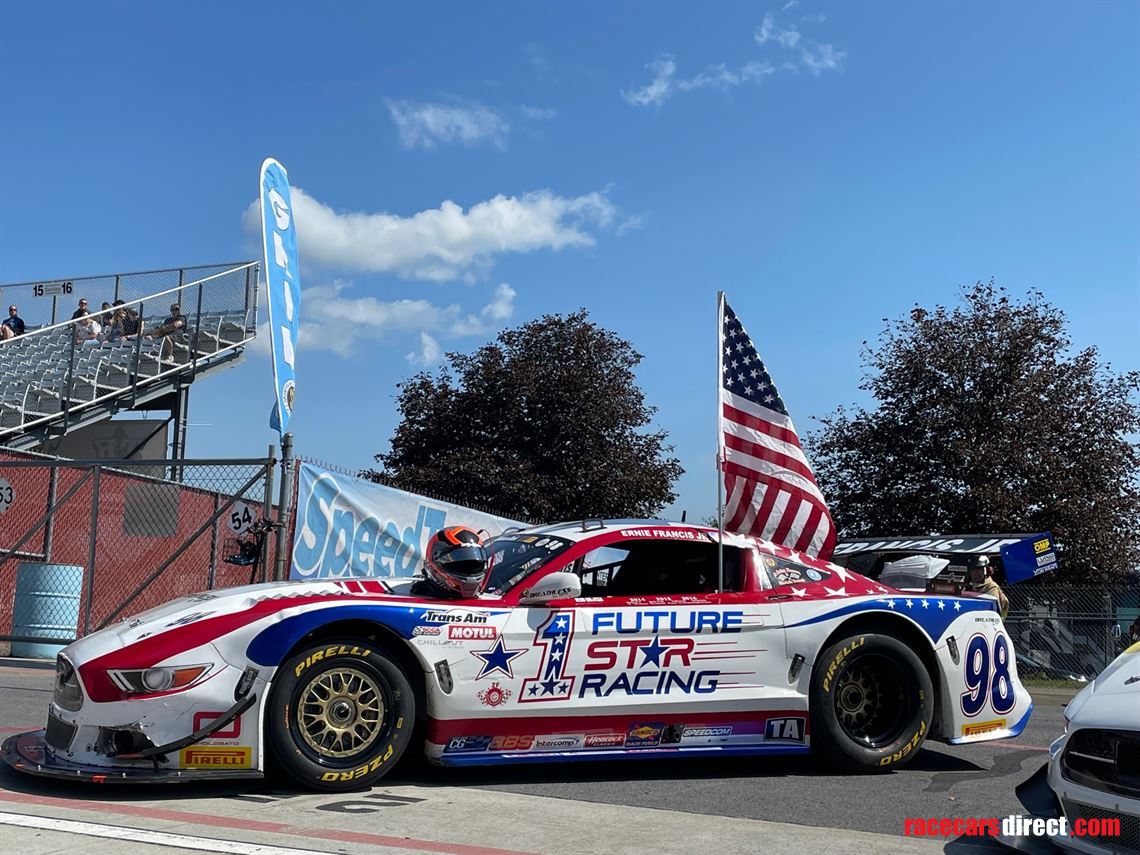

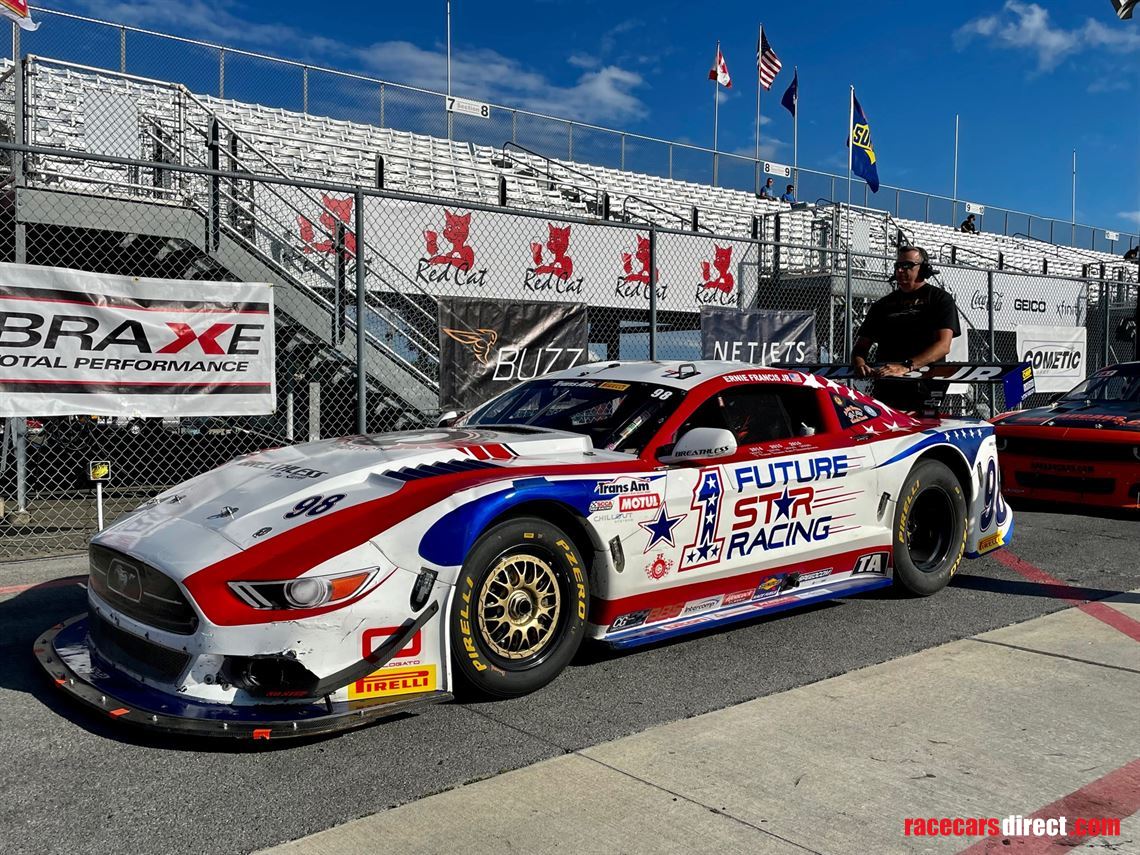

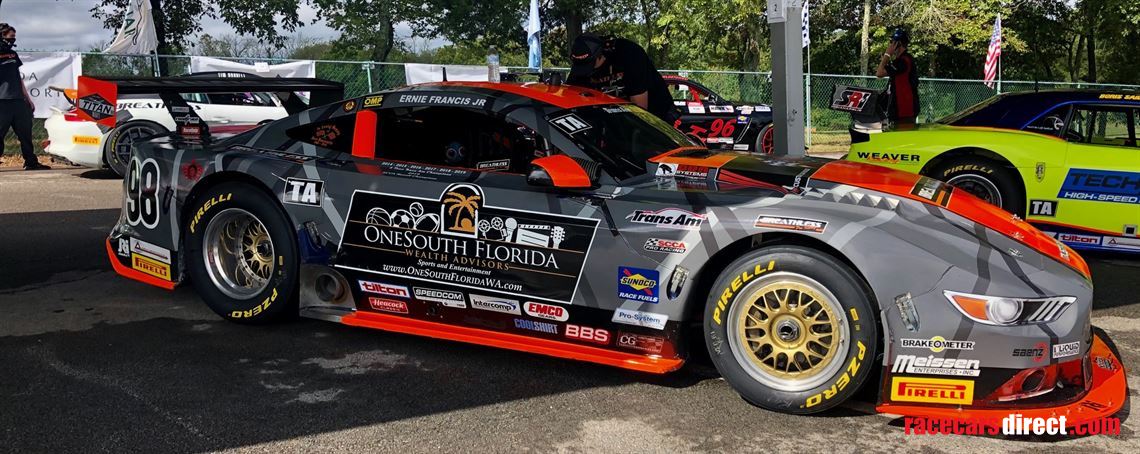

Description:

• Most winning TA1 Trans Am car in history.

• Featured in Forza Motorsport gaming

  2017 Meissen Enterprise Chassis #007
• Ford Carbon Fiber Body
• D3 Race Engine with over 800+ HP
• Saenz Sequential Gear Box with Full Electronics
• Extensive List of Spares Available
• Car has been Fully Maintained and Prepped
• Ready to race!



MEISSEN ENTERPRISES, INC. BUILD SHEET, CHASSIS TA-1 CAR

Chassis, 4130 and mild steel “Main .095 box mild steel”

Includes Bumpers and Body Mounts

CNC Aluminum Blow Through Uprights “Hard Coated”

Front 4140 hubs Center Lock

5 in. Brake ducting Orange Double Wall Neoprene Lower A-Arms

Upper A-Arms

Tie Rods

Lower Drag Links

Upper third Link

Sway Bar Links

Watts Link Tubes

Watts pivot W/bearing

Front Adjustable Sway Bar “Heim Mounted”

Rear Adjustable Sway Bar “W/Pillow Blocks

Dual 5 Position Sway Bar Controller

Teflon Lined Control Cables

Pro System Front Rotors 1.375 large annulus.

Pro System Rear Rotor

Pro System Brake Hats

Bobbin Hardware

PMU Brake Pads

Pro System Radial Caliper Mounting Bracket W/Studs

Tilton 3 pedal Brake Set W/Throttle “Under Foot”

Brembo TA 6 Piston Front Calipers

Brembo 4 Piston Rear Calipers

AP Masters

Tilton 3 Chamber Reservoir TIL- 72-577

BrakeOMeter Bias Adjuster

Option JRI 4-way Adjustable Shocks

Hyper Coil Springs

Woodward Custom Rack & Pinion

Woodward Reservoir Tank and Mount

Tilton Bellhousing, Starter and 3 Disk Clutch

Front Engine Plate

Rear Engine Plate

Pyrotech Custom 34 Gal. Fuel cell W/Fuel Mat and divider

Fill Plate with 2 ¼ Fill Cap INCLUDED

Holley12-1600 Duel Fuel Pump     “156 GPH”

Joes Inline 140-micron pre-filter  Joes-42408

Inline Fuel Filter ARO 13301

Billet Holly Bypass Regulator

Saldana Custom Tall Oil Tank

Air Oil Separator Tank

Overflow Tank W/breather Tube bottom vent

Colman Camlock Scavenge Filter Housing W/180 element

Saldana Radiator W/Heat Exchanger 1.25 core

Fabricated Ford 9 In. 4.5 Steel Housing

Rear Hub Center Lock

Aluminum Carrier with 3.89 Gear and Pump “TRU TRACK”

Solid Axles (Crowned)

Fluidyne Trans and Rear End Cooler W/fan

Stainless Headers and Exhaust System



Steel Drive Shaft 1350 U-joints

Aurora Heim and Mono Balls complete car

Longacre Shifter Boot Nomax “Flat Mount” LA226115

Fuel Rail

MSD 6 HVC Ignition W/Rev Limiter MSD6632

MSD HVC Coil MSD 8250

Safety Quip Window Net Adjustable 15 X 18

Joe’s Window Net Mount Kit Joes 12095

Simpson center Net

Steering Shaft U-Joints and Bearings

Steering Quick Release 6 bolt

OMP Steering Wheel

Longacre Rear View Mirror

SPA 10 Lbs. Fire System   SPA-01-MPN400

Carbon Trans and Third Link Cover

K & N 14 X 4 and X-Stream top

.35 Titanium Heat Barrier Fire Walls.  Material Only

Aluminum for car.   Material Only

Pluming – Oil, Water, Fuel

Wire Harness

Hardware

Nickel Plating

Anodizing

Powder Coating

BBS 16-Inch Wheels fronts

BBS 16-inch Wheels Rear

Laser cut Steel Floor and .5 Thick Stackable Weights Powder coated.

Door Release Pull Cable

Roll Bar Padding





Defogging Blowers

Wiper W/Arm

Fuel Pressure Gauge

Oil Pressure Gauge

Rub Blocks

Throttle Linkage Kit

.125 Laser Cut dash. Three Different Versions to Choose From

Remote Oil Filter (Engine Dress)

Wilson 1 in. Carb Spacer

Power Steering Pump W/HTD pully

Engine Mandrel, HTD Pulleys and Belts

Bosch NASCAR Alternator

Jones 24T Alternator Pulleys



Extras



Front Nose Screen

Moroso Oil Heater

Rear Lexan Clear “Not Molded”

Optic Armor 3/16 Smoked Front Wind Shield

 12 X 24 Gold Heat Shield

Sabelt Pull Down Seat Belts Eye Bolt Mount

Dei Floor and Tunnel Shield

Staboli Fuel Pump Out Dry Break

Ford Mustang Tail Lights and Hardware

ARP Stainless Header Bolts

Front Caliper Studs

Holley TPS

Brown and Miller Hose and fitting to Plumb Engine Dress

Castrol Brake Fluid

Wheel Sockets

.00



4140 large bearing spindles front and rear complete with bearings,

 Seals, Spieth nuts, center Lok nut, seal washers and spacers.



All Carbon Body work – Wheel Tubs – Wing – Front Brake Ducts – Spindle Ducts – Radiator Air Box – Cold Air Box –



Sanze Sequential 5 speed

Trans Spaces

358 D3 roush yates race engine, current 600 miles on rebuild

OPTIONS.

Air Jacks Mounted with Pluming and Air Wand.

Upgrade to JRI 4 way shocks.

Data System “Motec Dash w/Oil Pres – Oil Temp – Fuel Press – Water Temp –

Throttle position – EGT.

Cool Suit System

Carbon Seat

Upgrade Brake-O-Meter Brake Bias Adjuster

Rear View Camera Screen Mounting Bracket Adjustable
