£ 225

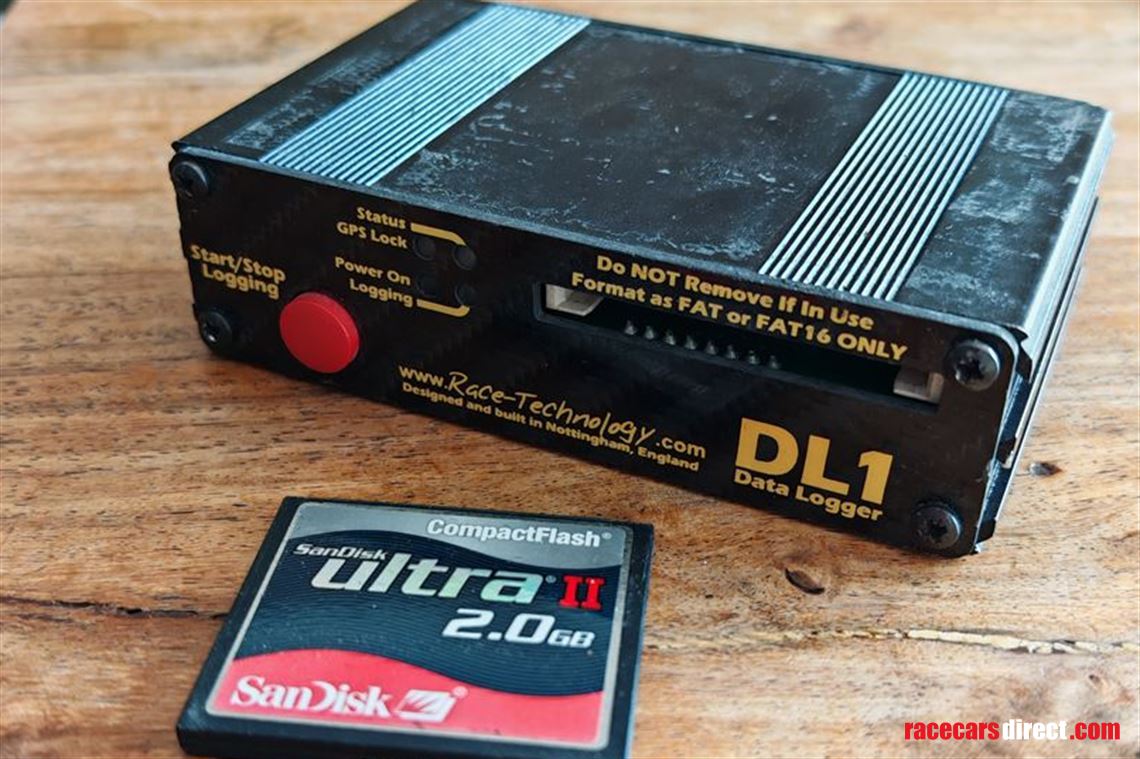

Race Technology DL1 Sport Data Logger + GPS Antenna
![F1 Authentics 11 F1 Authentics 11](/Content/BannerImages/494.jpg)
Description:
Race Technology DL1 Sport with GPS Antenna and RS232 ECU Serial Interface
In perfect working condition, no longer used in my race car.
DL1 Mk2 Features include:
Built in GPS. The new GPS unit is based on our own high accuracy GPS3 technology and calculates position and speed 5 times or 20 times every second (depending on model). This is easily the fastest, most accurate GPS system available in its price range. The measurements from the GPS and accelerometers are combined to calculate very high accuracy positions and speeds at 100 times a second.
Built in accelerometers. Built in 3-axis accelerometer with 2g full scale .
Logging to Compact Flash memory card. This format is robust, economical and ideal for use in data logging products. The advantages of using Compact Flash memory include incredibly fast download times and huge storage capacities.
8 analogue inputs. The DL1 has 8 very high accuracy analogue inputs. All the inputs are 12-bit accuracy (4096 different levels) and rated at 0-12V
2 RPM inputs. The DL1 has 2 alternative RPM inputs. One input is designed to be connected to "high level" sources, such as an HT lead pickup or the ignition coil. The other input is designed for low level signals such as a tacho feed from the ECU.
4 wheel/shaft speed inputs. The DL1 features 4 totally independent wheel/shaft speed inputs. These can be used to measure the speed of all four wheels, or slip ratios across a torque converter for example.
Serial data (RS232) input. The serial port can be configured to accept data from an external source - possible examples are data from the engine management system, OBDII or CAN data (with a suitable adapter).
Serial data (RS232) output. As well as logging the data to compact flash it is also available from the serial port for display on a Race Technology dash or video unit.
£580+ brand new.
DL1 Mk2 Features include:
Built in GPS. The new GPS unit is based on our own high accuracy GPS3 technology and calculates position and speed 5 times or 20 times every second (depending on model). This is easily the fastest, most accurate GPS system available in its price range. The measurements from the GPS and accelerometers are combined to calculate very high accuracy positions and speeds at 100 times a second.
Built in accelerometers. Built in 3-axis accelerometer with 2g full scale .
Logging to Compact Flash memory card. This format is robust, economical and ideal for use in data logging products. The advantages of using Compact Flash memory include incredibly fast download times and huge storage capacities.
8 analogue inputs. The DL1 has 8 very high accuracy analogue inputs. All the inputs are 12-bit accuracy (4096 different levels) and rated at 0-12V
2 RPM inputs. The DL1 has 2 alternative RPM inputs. One input is designed to be connected to "high level" sources, such as an HT lead pickup or the ignition coil. The other input is designed for low level signals such as a tacho feed from the ECU.
4 wheel/shaft speed inputs. The DL1 features 4 totally independent wheel/shaft speed inputs. These can be used to measure the speed of all four wheels, or slip ratios across a torque converter for example.
Serial data (RS232) input. The serial port can be configured to accept data from an external source - possible examples are data from the engine management system, OBDII or CAN data (with a suitable adapter).
Serial data (RS232) output. As well as logging the data to compact flash it is also available from the serial port for display on a Race Technology dash or video unit.
Further product information here
https://www.race-technology.com/…/index.…/LegacyProducts/DL1
Happy to post if required.
Keyword Search Terms:
Race technology, data logger, dl1 sport, race technology Dl1, dl1 data logger, GPS, antenna, RS232Details:
Item Location: | Warwickshire |
---|---|
Seller: |
Mikesmithracing Joined September 2024 |
Michael Smith Seller's other ads |
|
Country: | United Kingdom |
City: | Rugby |
Phone: |
07722295697 07722295697 |
Condition | Used |
Trade or Private: | Private |
Currency: | |
Price: |
£225
Make an Offer |
Added: | 01/09/2024 |
Views: | 30 |
