Description:

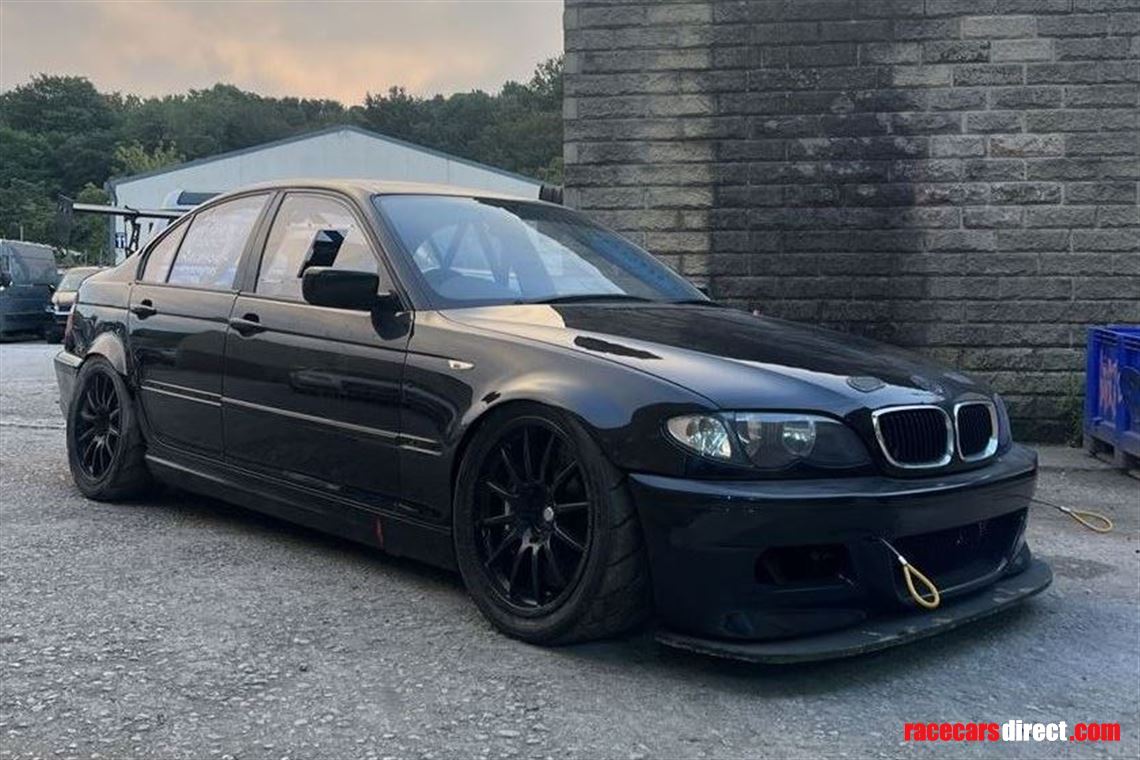

BMW E46 M3 Saloon Track / Racer

Body

• E46 4 door 320D 2004
• Previously diesel endurance race car

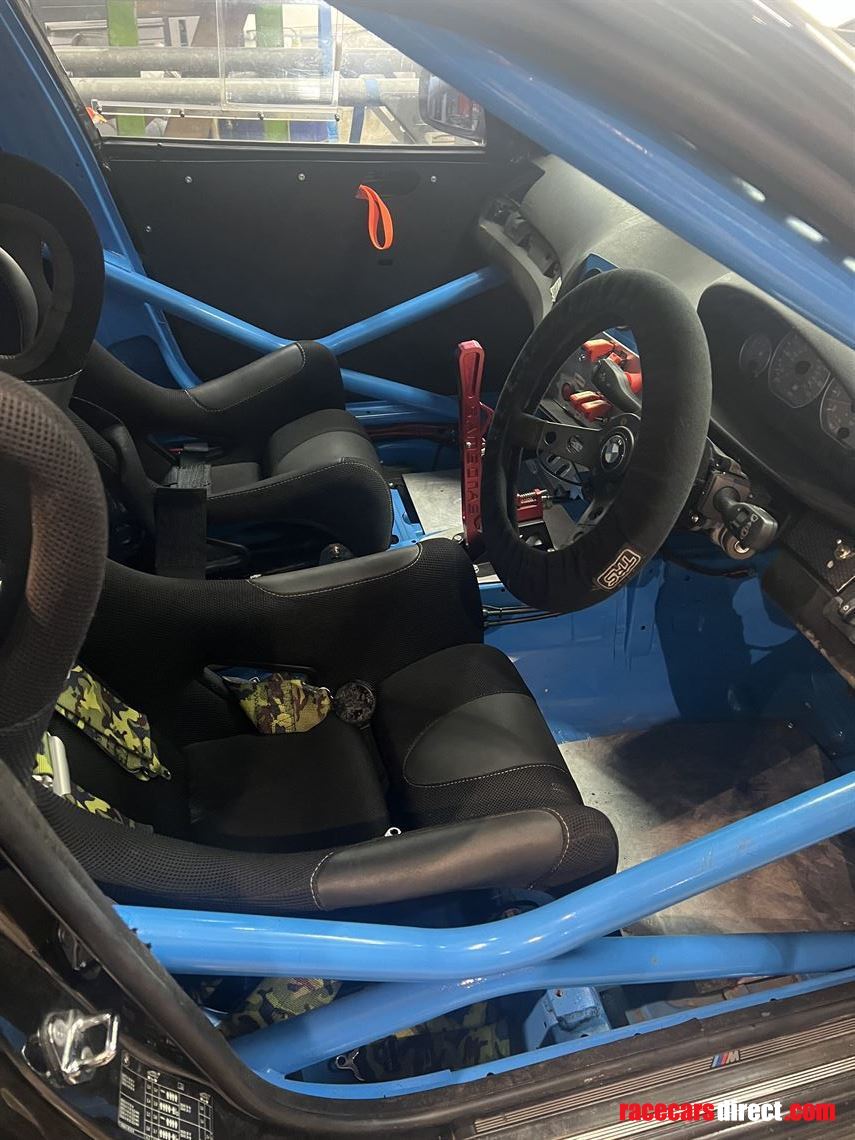

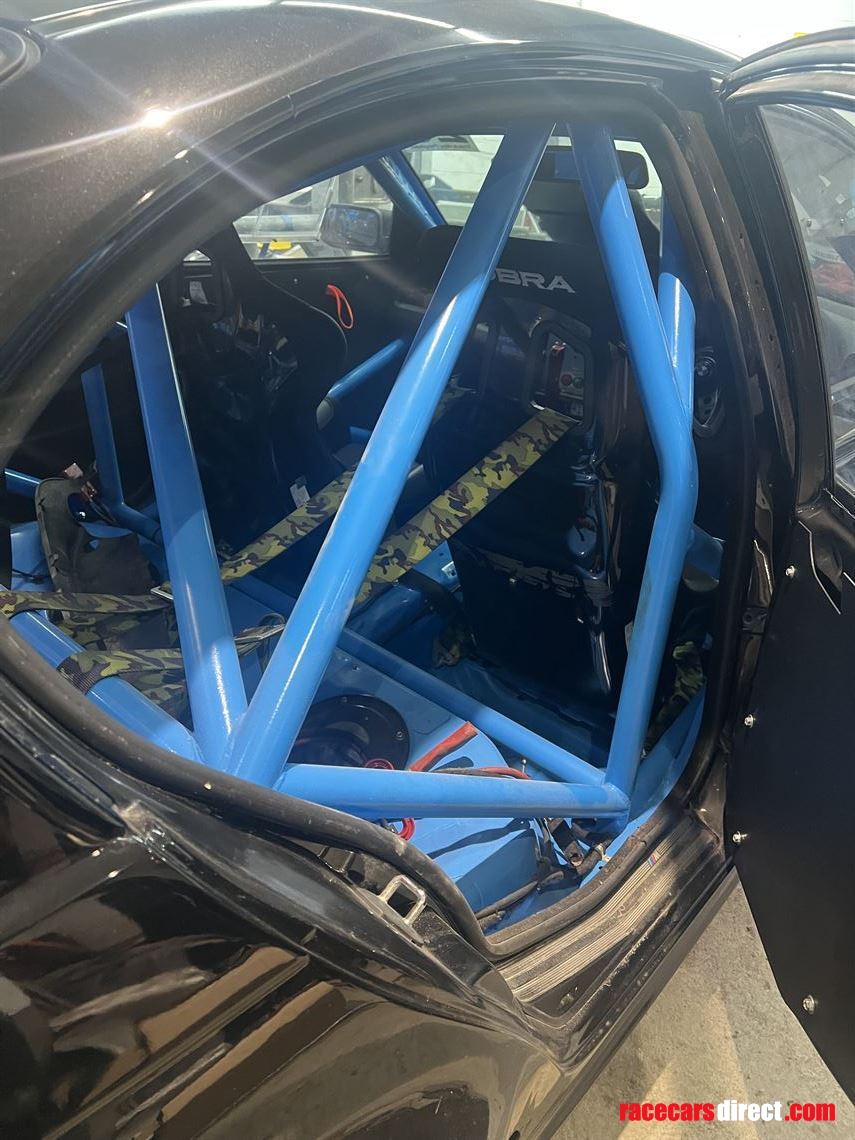

• Welded in 6 point cage
• Interior sound insulation / seam sealer removed
• Unwanted tin work / brackets removed
• Interior resprayed - Hellblau
• Plastic windows in all four doors and rear screen (hatch in driver door window only)
• Front arches rolled and painted
• Rear arches rolled and painted & inner arches modified
• Underbody rust treated and resealed
• M3 front bumper
• Custom front splitter

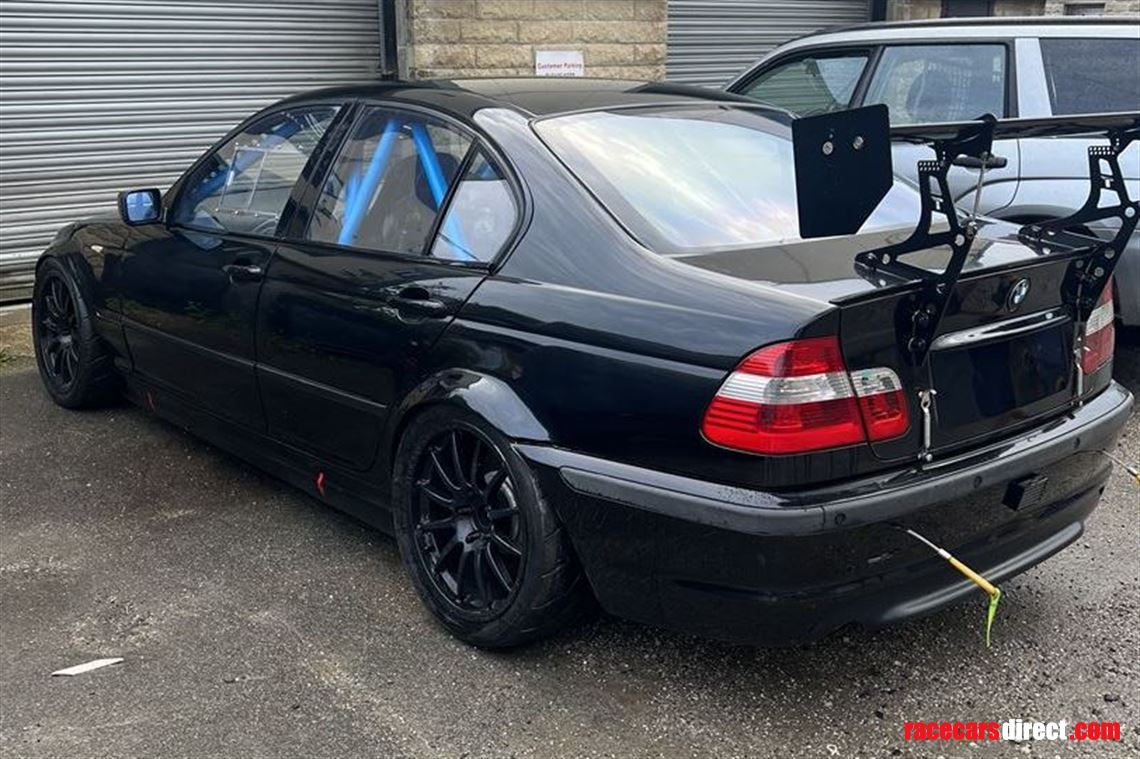

• Tegiwa rear wing
• Rain light
• Four FIA tow straps
• Anderson Jack plug
• Gel battery - relocated
• Wiring loom condensed
• Custom ignition switch board
• Electronic kill switch
• Electronically operated fire extinguisher
• M3 Clocks
• Porsche racing steering wheel
• Oil pressure / battery / diff temperature gauges
• Electric heater / blower

Chassis - Front

• AST 5300 3 way adjustable coilovers & Adjustable top mounts
• New M3 lower arms
• Adjustable droplinks
• Powder coated M3 front hubs
• New M3 wheel bearings
• New tie rods / track rod ends
• Purple tag rack
• Mercedes electronic power steering pump conversion
• H&R Roll Bar
• Polybushed lower arm / roll bar
• Front subframe powder coated

Chassis - Rear

• Powder M3 Rear subframe / trailing arms
• Polybushed subframe, trailing arms, roll bar
• New upper and lower rose joints
• New M3 wheel bearings
• M3 drive shafts
• Powerflex adjustable lower arms
• A ST 5300 3 way adjustable coilovers & Adjustable top mounts
• H&R Roll Bar
• JC Racing E46 M3 4:1 Motorsport Diff with E36 four plate barrel

Brakes

• Front - AP Racing Pro 5000R Calipers, BTCC Discs /
  Pads
• Rear - E46 M3 Calipers / Discs (BMW) - Pagid RS29
  Pads
• Stainless braided pipes front and rear
• All hard line pipes re done with new fittings
• E46 master cylinder / booster

Fuel

• M3 fuel tank / lift pump
• High pressure fuel pump / swirl pot in boot
• Fuel redone front to rear in hard line

Engine / Box

• Fully rebuilt standard engine & Peterson external oil relief valve modification (12 hours)
• AAS tubular exhaust manifold
• AAS centre section
• Top Gear Performance rear section
• Carbon fibre air box
• Tegiwa radiator and cooling fan
• Mocal power steering radiator
• Setrab oil cooler
• 6-speed M3 Gearbox
• Short shifter / linkage
• New clutch / light weight flywheel
• Vibratechnic engine mounts
• Alive tuning map / printout for 750 Motor Club

2 x Wheels with tires
