Description:

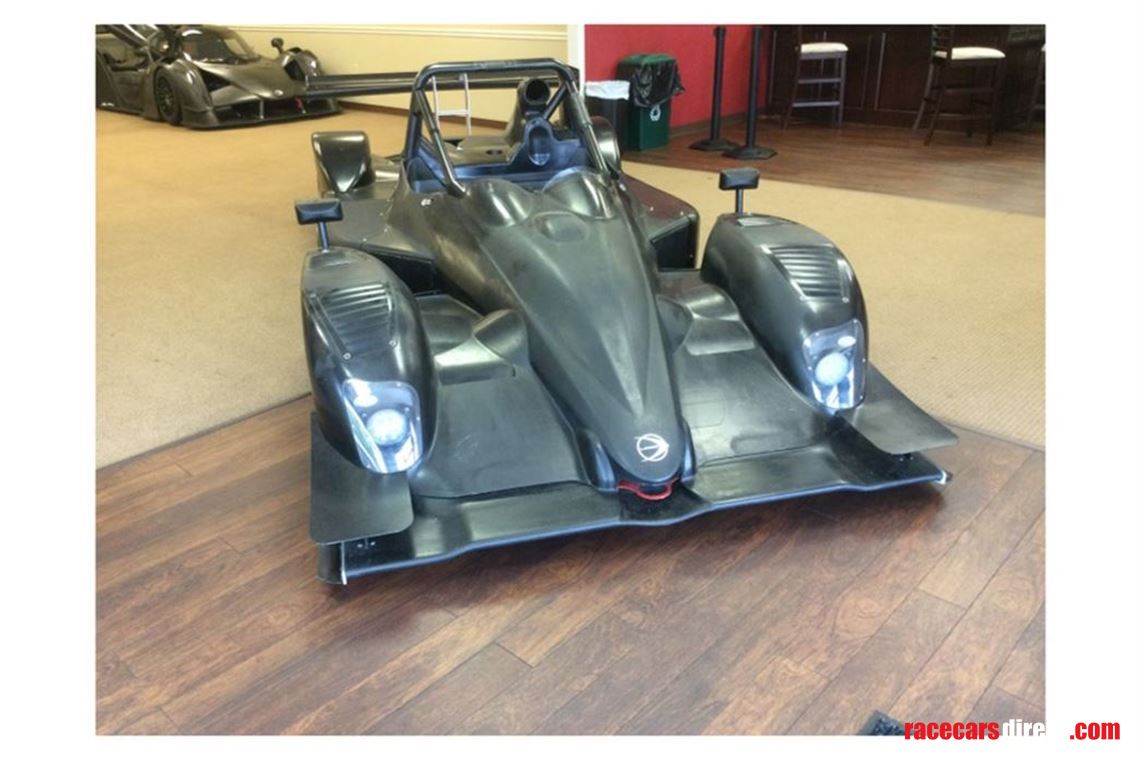

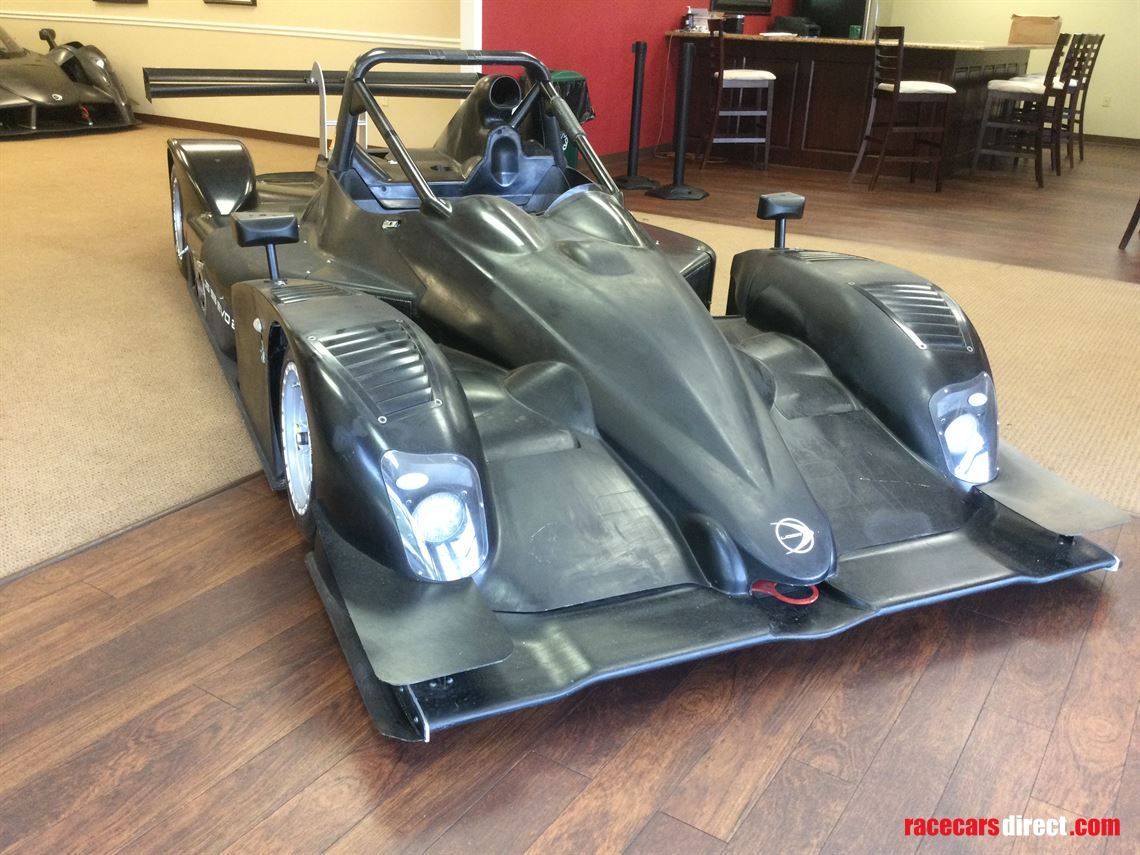

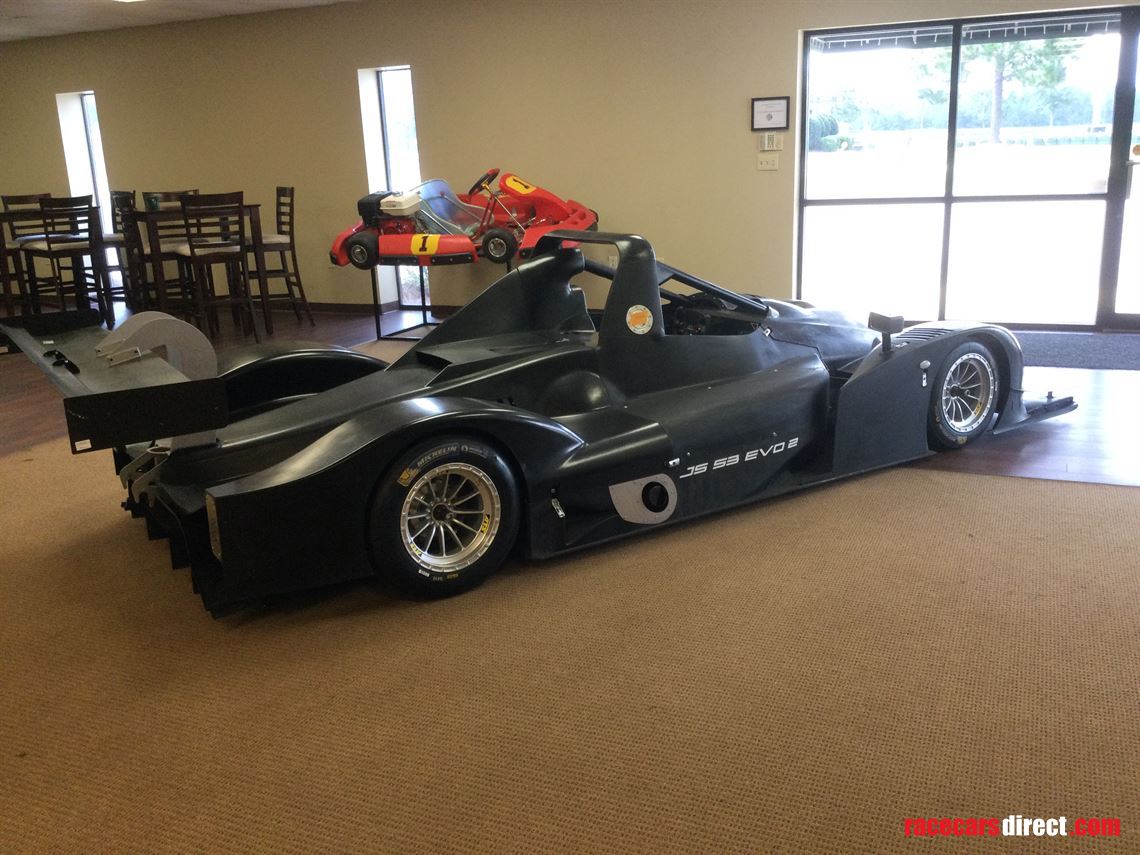

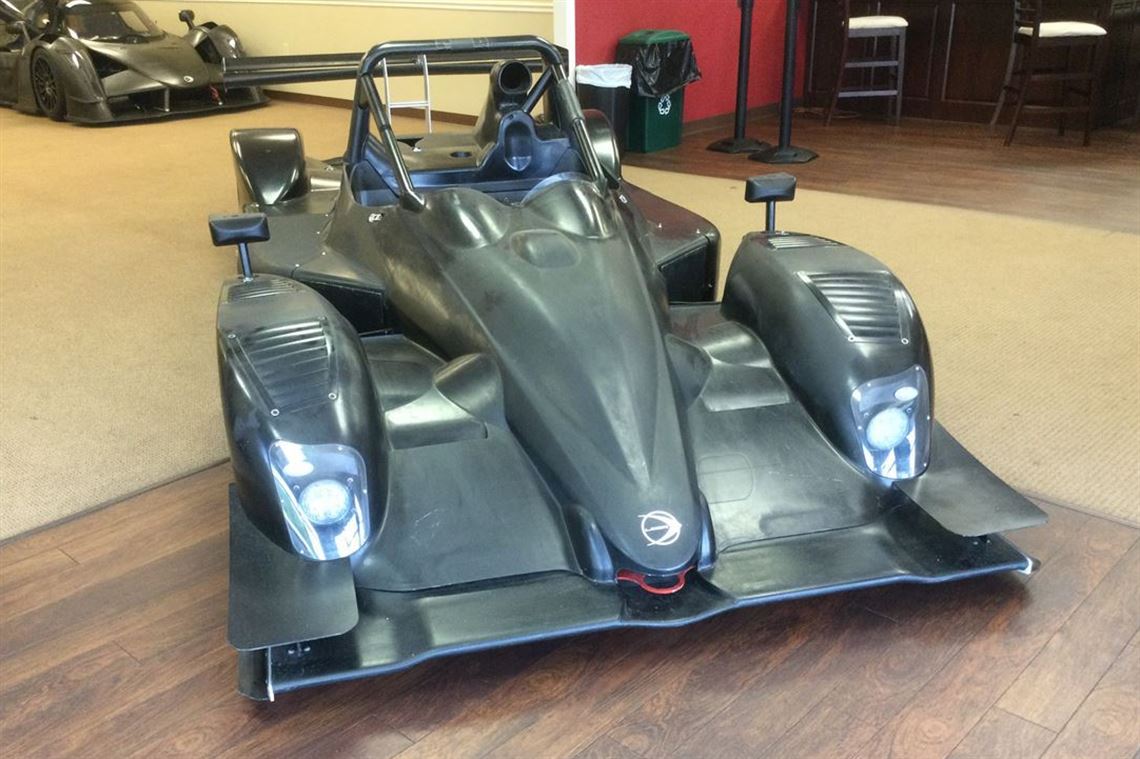

The Ligier JS 53 EVO 2 is ideal to discover what it feels like to drive an endurance sports prototype.

This sports prototype eligible for the CN category has a 6-speed sequential Sadev gearbox and with a 2-litre Honda engine putting out 255 bhp.

The chassis is located at Ligier Automotive North America, in Denver, North Carolina.

Chassis JS53 EVO 2 #08:

Car Mileage: 20,000km

Engine and gear box: 0km Post Rebuild

Body work: New

The car was completely rebuild by Ligier Automotive.

TECHNICAL DATA

CHASSIS

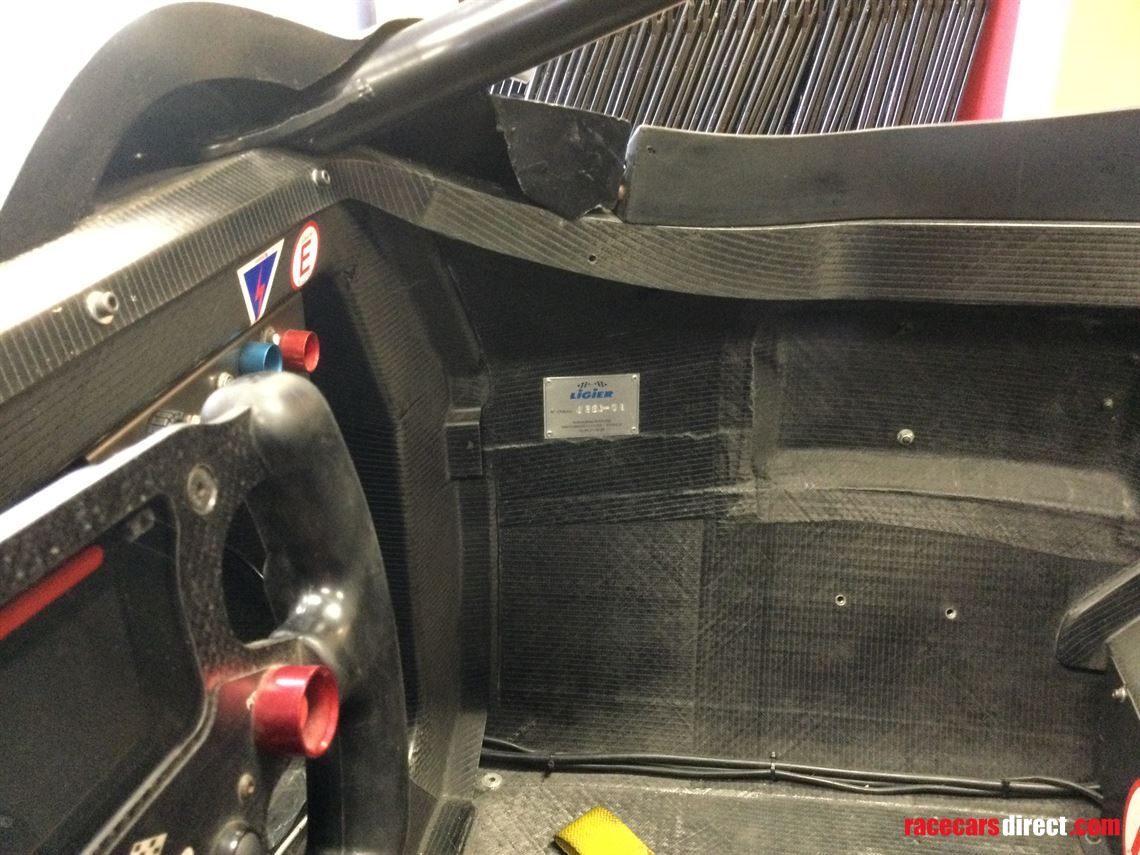

• carbon monocoque HP Composites
• bodywork prepreg fiberglass HP Composites
• weight: 570 Kg
• length: 4620 mm - width: 1800 mm - wheelbase: 2650 mm

SUSPENSIONS

• double wishbone
• pushrod and spring-damper combination
• horizontal dampers 2 or 3 adjustable ways
• adjustable anti-roll bar system
• 3rd element front

GEARBOX

• 6-speed sequential gearbox Sadev SLR82/14 with aluminium casing
• semi-automatic hydraulic steering wheel paddle system Sadev
• oil radiator cooling

STEERING

• mechanical - without assistance

ENGINE & ELECTRONICS

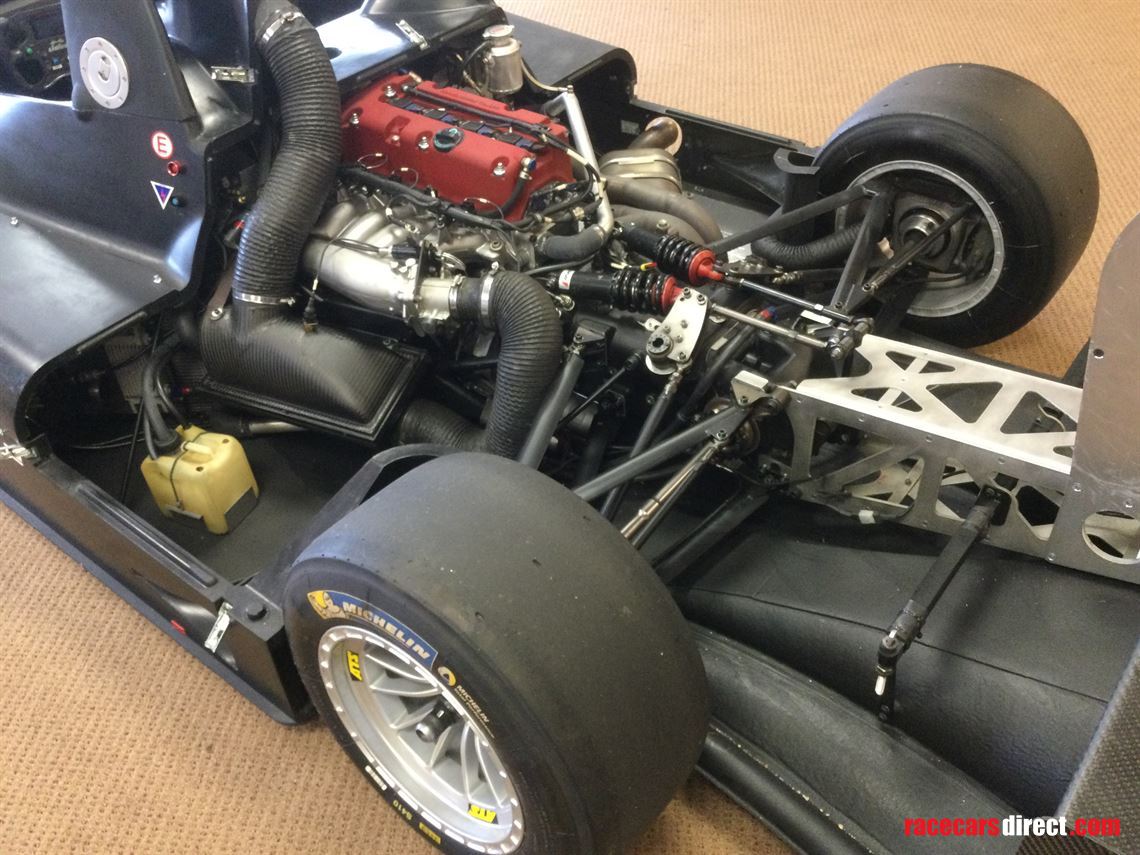

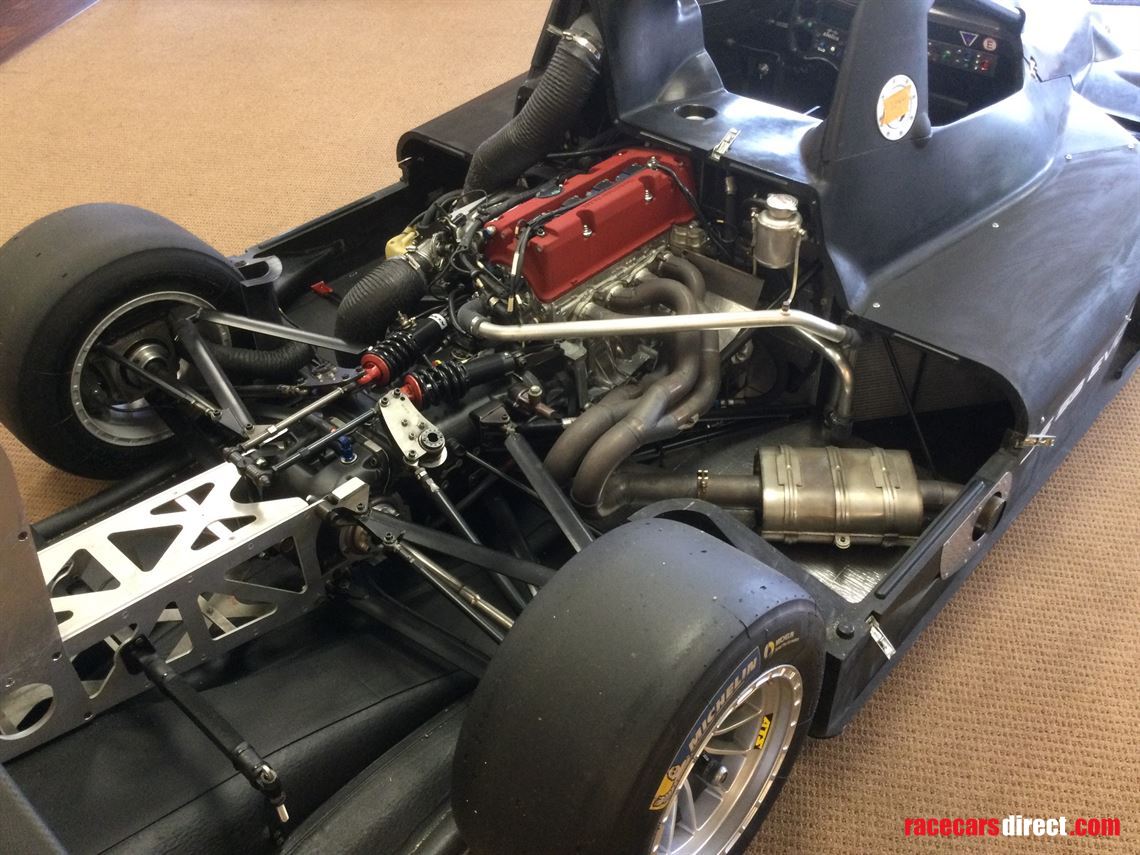

• Honda K20A - 2 litres - 4 cylinders inline – 255 hp
• Peugeot - 1,6 litre – Turbo - 255 hp
• gearbox and engine control units Magneti Marelli SRAE

RIMS

• Ø13'' aluminium ATS - front width: 9'' - rear width: 10,5''

BRAKES

• master-cylinder AP Racing
• 4-piston monobloc calipers Brembo
• 11'' front and rear steel discs Brembo

SAFETY

• CN - FIA rules



Website:

http://www.ligierautomotive.com
