Description:

Engine:

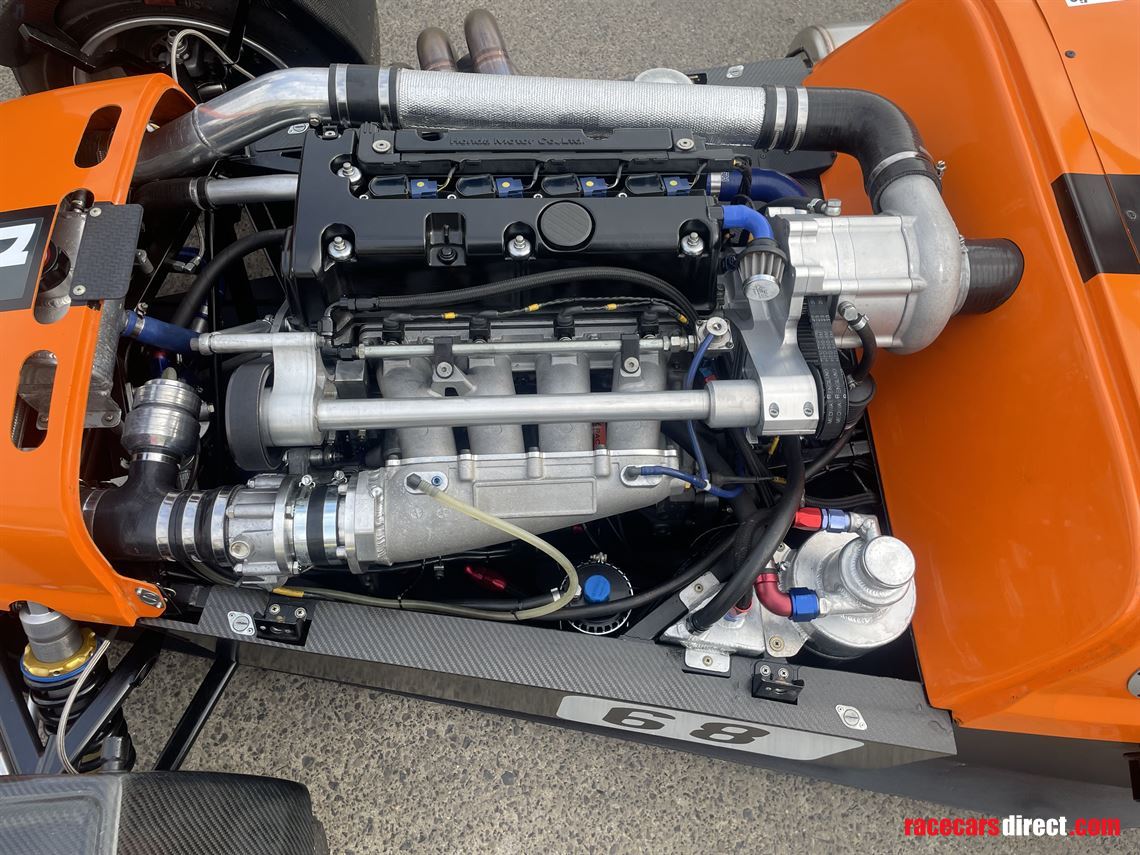

Honda K20 2.2L Supercharged 420BHP & 280ft/lb@7900rpm K20A2 Block Fitted With Darton MID Sleeves

Clockwise Motion 2.2L Stroker Billet Crank & Rods

Omega Forged Stroker Pistons 10:1

Aiviad 4 Stage Dry Sump Oil Pump

Clockwise Billet Dry Sump Pan

Ported Honda K20Z4 Head With Double Valve Springs & Crower Titanium Seats

Rotrex C38-81 Supercharger - TTS Rear Mount & Drive Shaft to Custom Belt Assy

Skunk2 Ultra Intake Manifold & Bosch Drive By Wire Throttle Body

Custom Simpson Exhaust Manifold 4-2-1 Stainless Steel

Simpson 8” x 30” Repackable Silencer - Repacked with Acousta-Fill

Transmission

Quaife G60 6 Speed Sequential Gearbox - Pneumatic Paddle Shift

1st: 2.240, 2nd: 1.840, 3rd: 1.482, 4th: 1.260, 5th: 1.104, 6th: 1.000

Billet Aluminium Bellhousing

Tilton 5.5” Twin Plate Cintered Clutch

Ark Racing Lightweight Flywheel & Hi Torque Starter Motor

Life Racing TP0138 Valve Block

Modified SMC Gear Change Actuator 50mm Stroke

Ford Sierra 7” Differential Fitted with Gripper Plate LSD & 4.1:1 CWP

Fuel & Cooling

Bosch 044 High Pressure Fuel Pump—Pre & Post Filtered

Custom Foam Filled ‘Sprint Spec’ Fuel Tank with Dry Break Connector

Holley 12-428 Lift Pump & 1 Litre Swirl Pot

Radtec ‘Polo’ Spec Fabricated Aluminium Radiator with Electric Fan

Davis Craig Electric Water Pump

Custom ITEC Core Intercooler

Electronics

Life Racing F88 ECU Includes:

Full Multiple Launch, Traction and Throttle Strategies

Adaptive Knock Control, Gearbox Control, Low Oil & Oil Pressure Protection

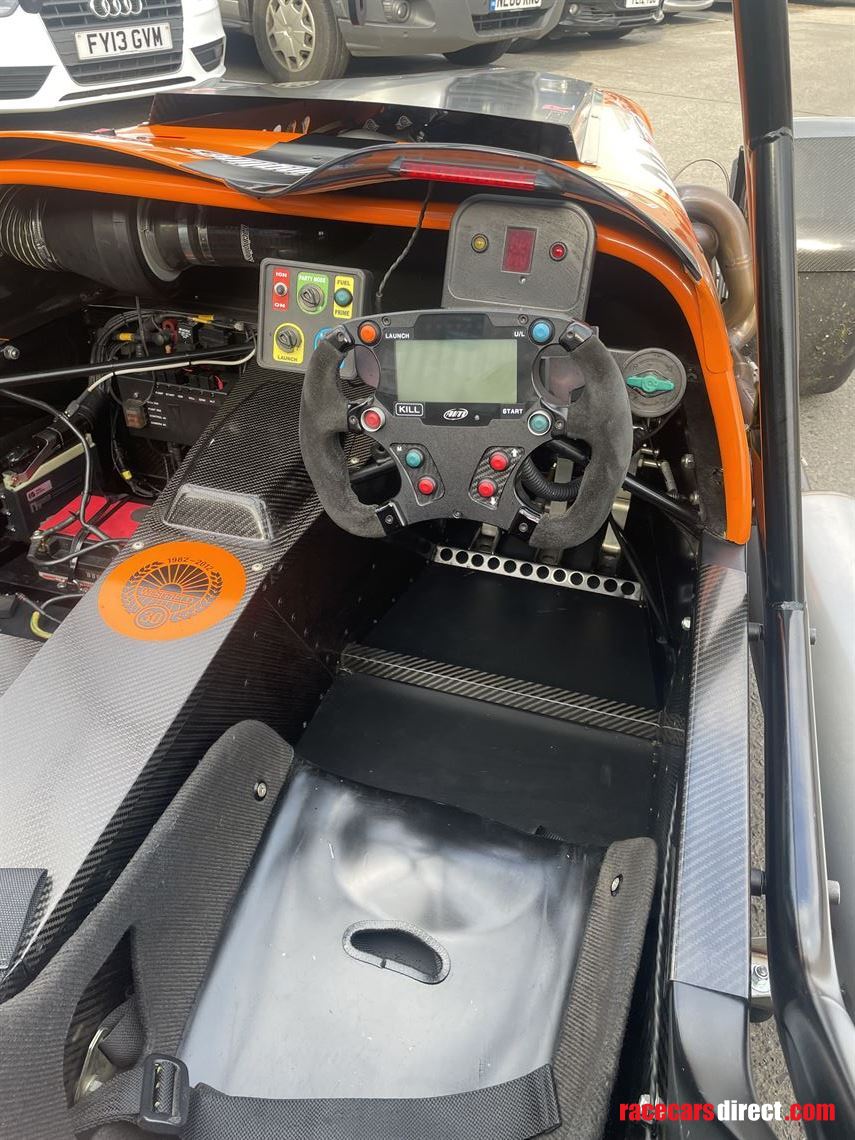

Aim Formula Steering Wheel 3 - Including Paddles

Aim EVO4S Data Logger with GPS

Motorsport Specification Wiring Loom Featuring Raychem Spec 55 wires & DR-25 Sleeving Lightweight Denso Alternator & Lithium Ion 12v Battery

Chassis

Modified Westfield 18 gauge Chassis With Bonded and Riveted Carbon Panels

Lightweight Removeable Honeycomb Composite Floor and GRP Body Panels

FIA/MSA Approved Caged Laser Full Roll Cage

Fully NMB Rose Jointed Custom Light Weight Front Wishbones

Nylon Bushed & Rose Jointed Custom Light Weight Rear Wishbones

Full Use of NAS Bolts & K Nuts, Typically 5/16” Diameter

Relocated Nitron S/A Dampers

Custom Front and Rear Adjustable Anti-Roll Bars

Titan Race Spec Steering Rack 1.9:1 Ratio, Lightweight Aluminium Steering Arms

Westfield Front and Rear Aluminium Uprights, Billet Aluminium Front Hubs.

Brakes, Wheels and Tyres

Front: 260mm x 9mm Thick Non Vented Discs on Aluminium Bells

Wilwood Midilite 4 Pot Calipers, 38mm Diameter Pistons - Mintex M1144 Pads

Image 3 Piece Billet Aluminium Wheels with Pirelli Ultrasoft Slicks 250/575-13

Rear: Lightened 6mm Thick Escort III discs

Brembo 2 Pot Calipers - EBC FA110 Pads

Image 3 Piece Billet Aluminium Wheels with Pirelli Ultrasoft Slicks 300/590-13

Driver Adjustable Brake Bias Bar

This car can be sold with the trailer included at £34,000
