£ 8,000

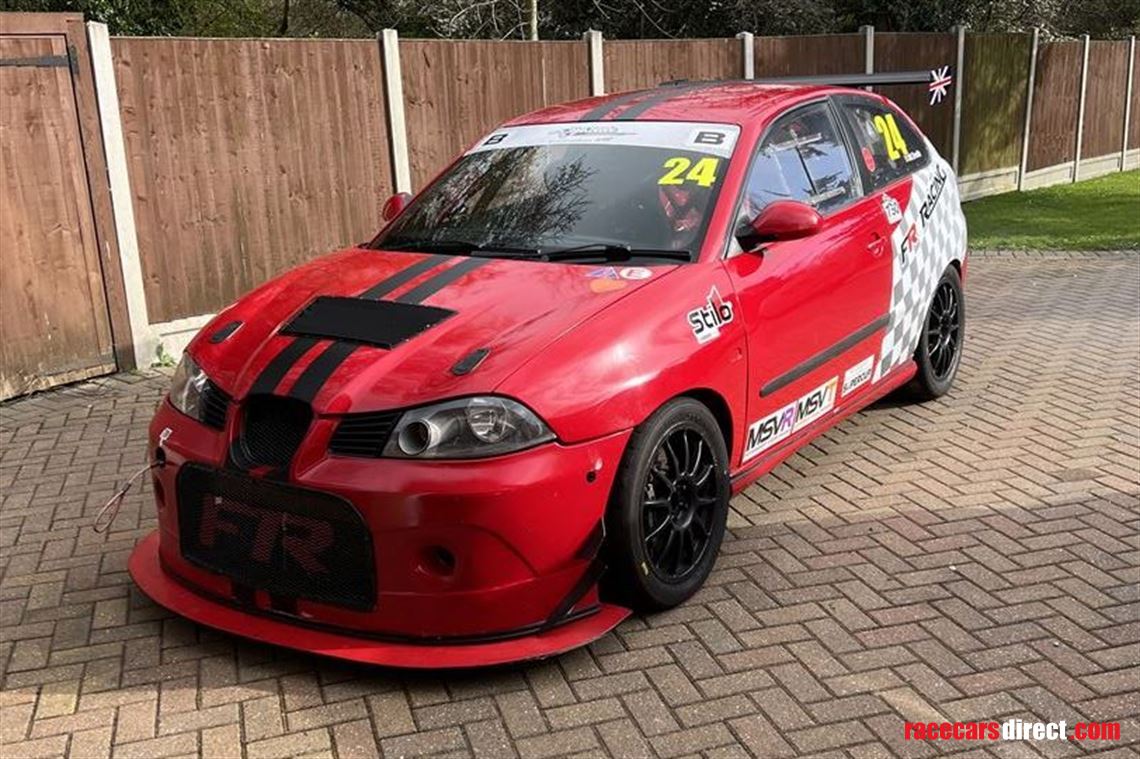

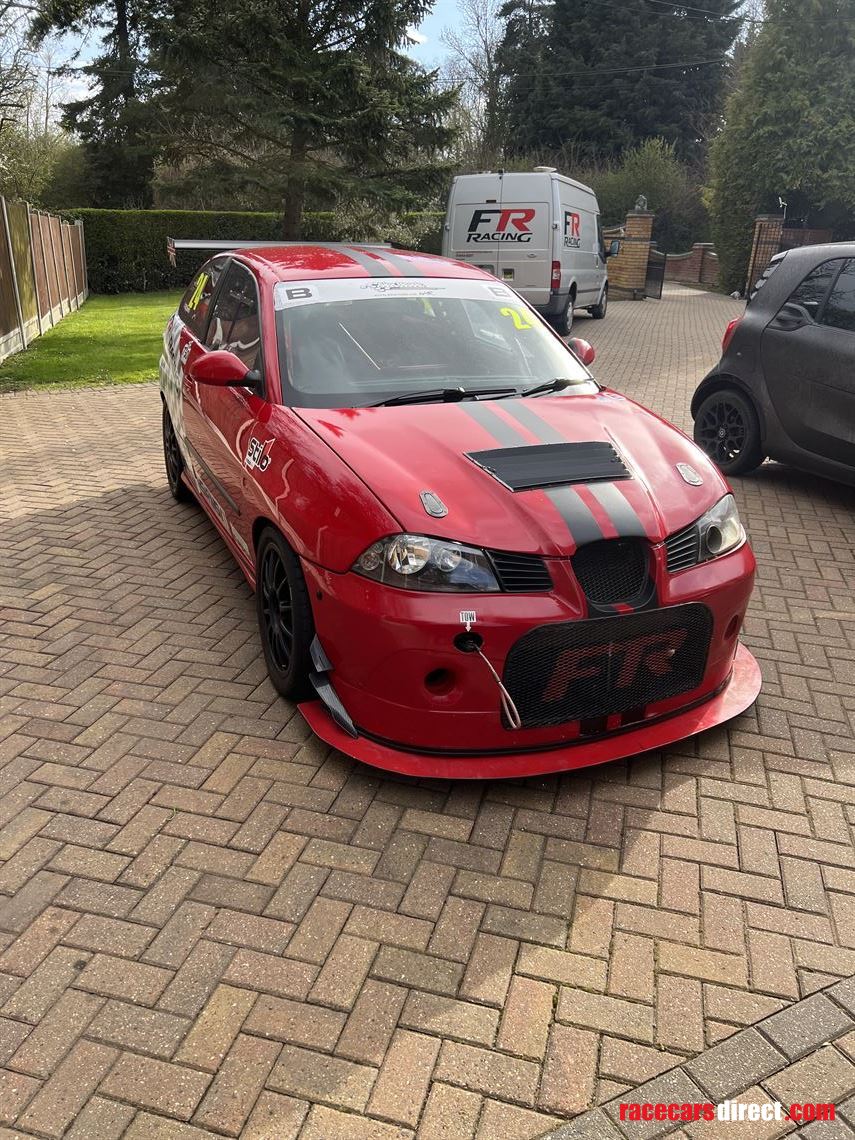

Seat Ibiza 2006 FR 1.9 TDI Race Car - SOLD

The GP Box

This is now SOLD. Search for similar items.

Description:

We have owned this car for two years, in which time we won the Class B MSVR SuperCup (now Turismo X) Championship in 2020, with many race wins and podiums in 2021 (where we did a part season). It also won the MSV Trackday Championship in 2019 when Darkside owned it.
The car has been built and maintained by Darkside Developments, check out spec below.

With 225bhp (168kW) & 350Ft/lbs (475Nm) of torque, it really punches above its power/weight and was always fighting for podiums and race wins.

The car has had a new Garrett turbo and Sachs Race Clutch just two races ago, plus a Cambelt at the start of the 2021 season. The engine was serviced before every race and it has all been done again for the new owner.

It has lightweight battery and comes with a trickle charger, car also comes with additional bolt on exhaust silencer should you go to a track that runs very low DB rating.

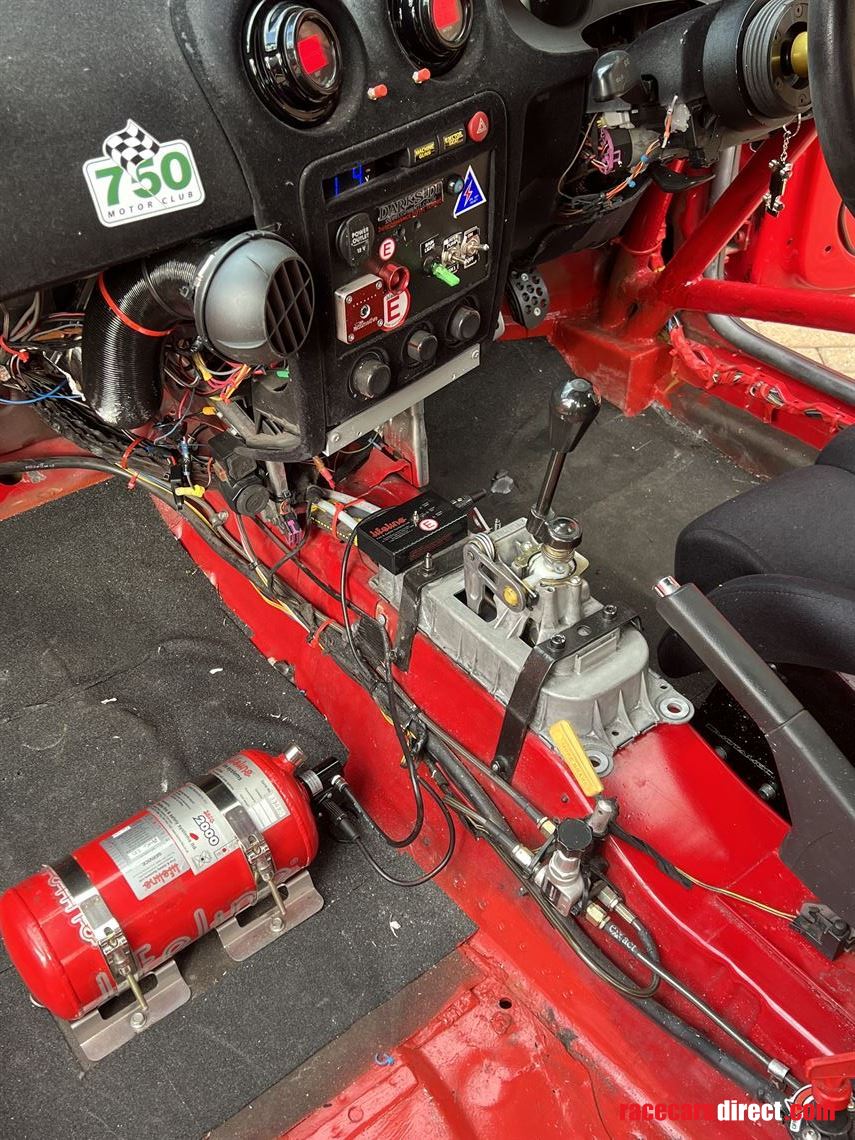

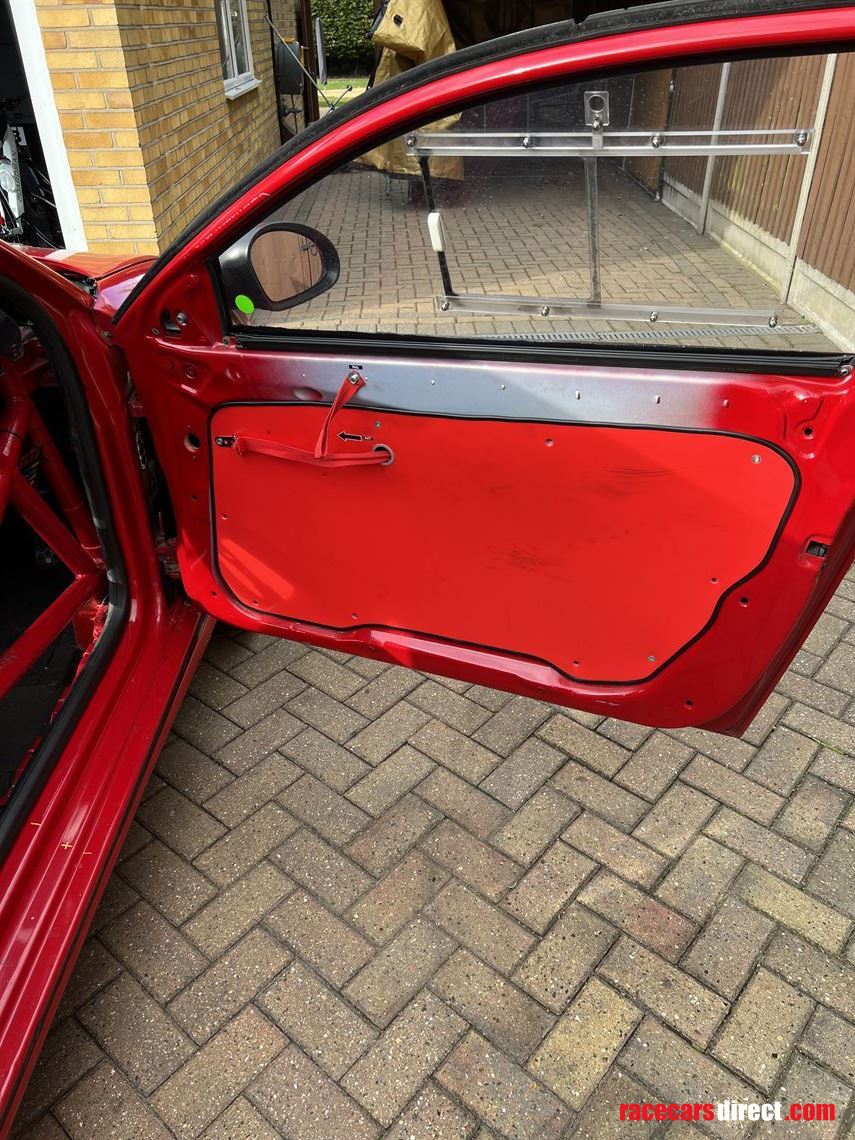

Seat is FIA approved up to and including 2025 and the harness 2024.  Doors have fitted door cards with correct handles and door release for racing. It has a Lifeline electronic activated plumbed in fire extinguisher with internal and external activation, also has internal and external battery kill switch.

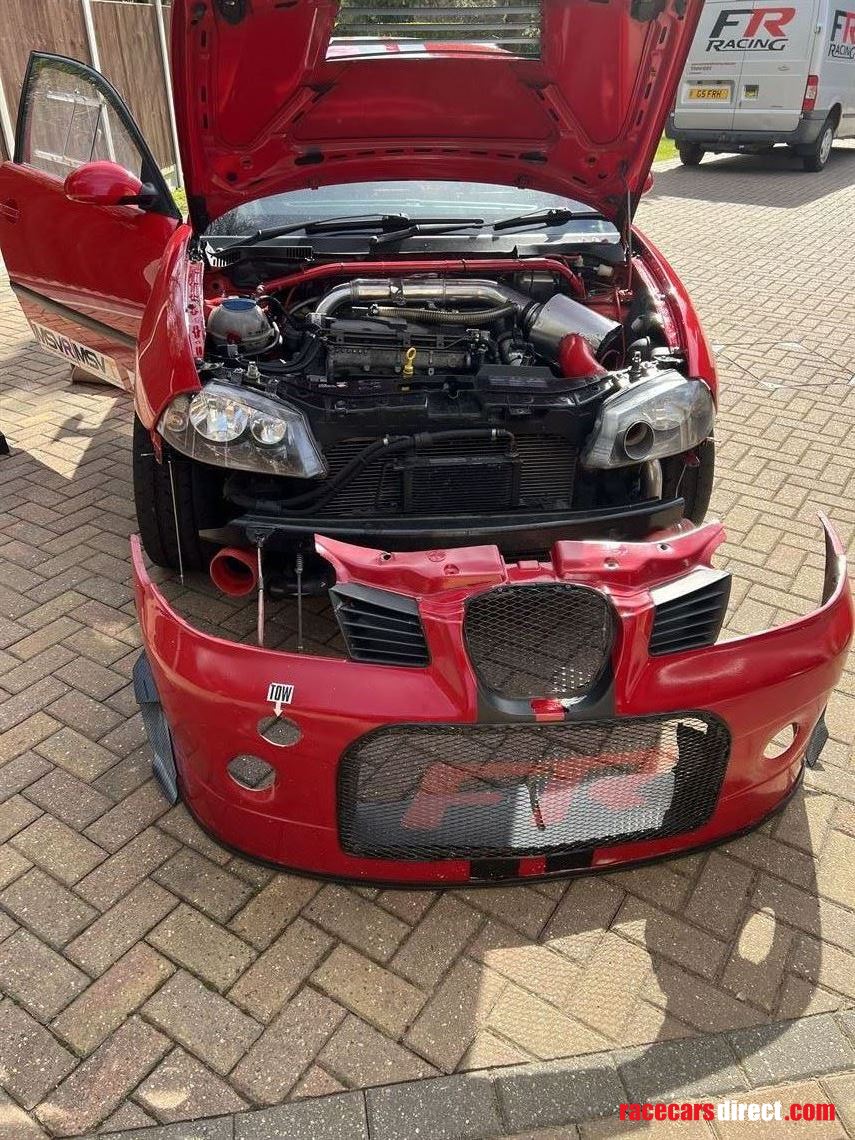

It has lightweight fibreglass wide front wings and bumper, plus plastic side and boot windows. The moulds for both are still in the possession of Darkside and either spares purchased or the moulds can be bought.

Please checkout the spec below or please come and see the car for yourself. The car is really great and still many more wins still in her, or it will make a great track car beating most expensive road cars around the tracks, with its great high torque amazing handling and large brakes.

Condition is used, but considering this car has done three championships, its in very good condition,

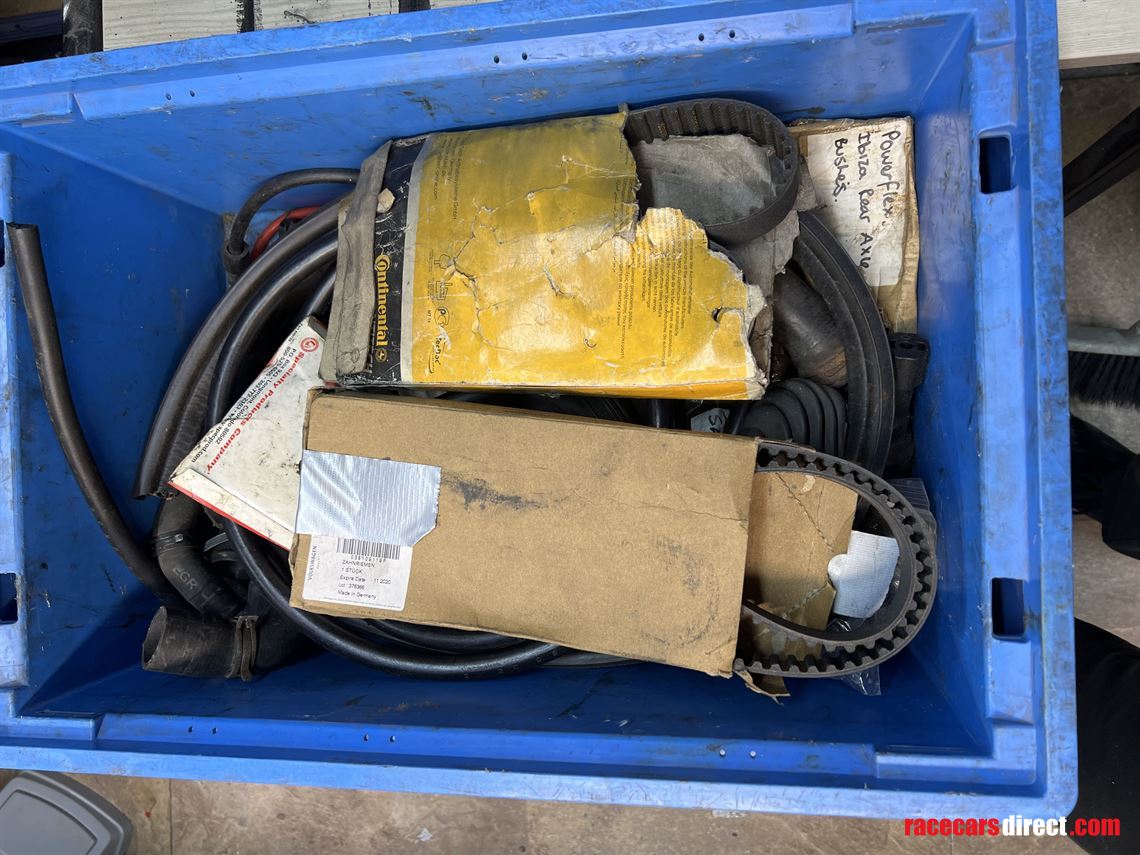

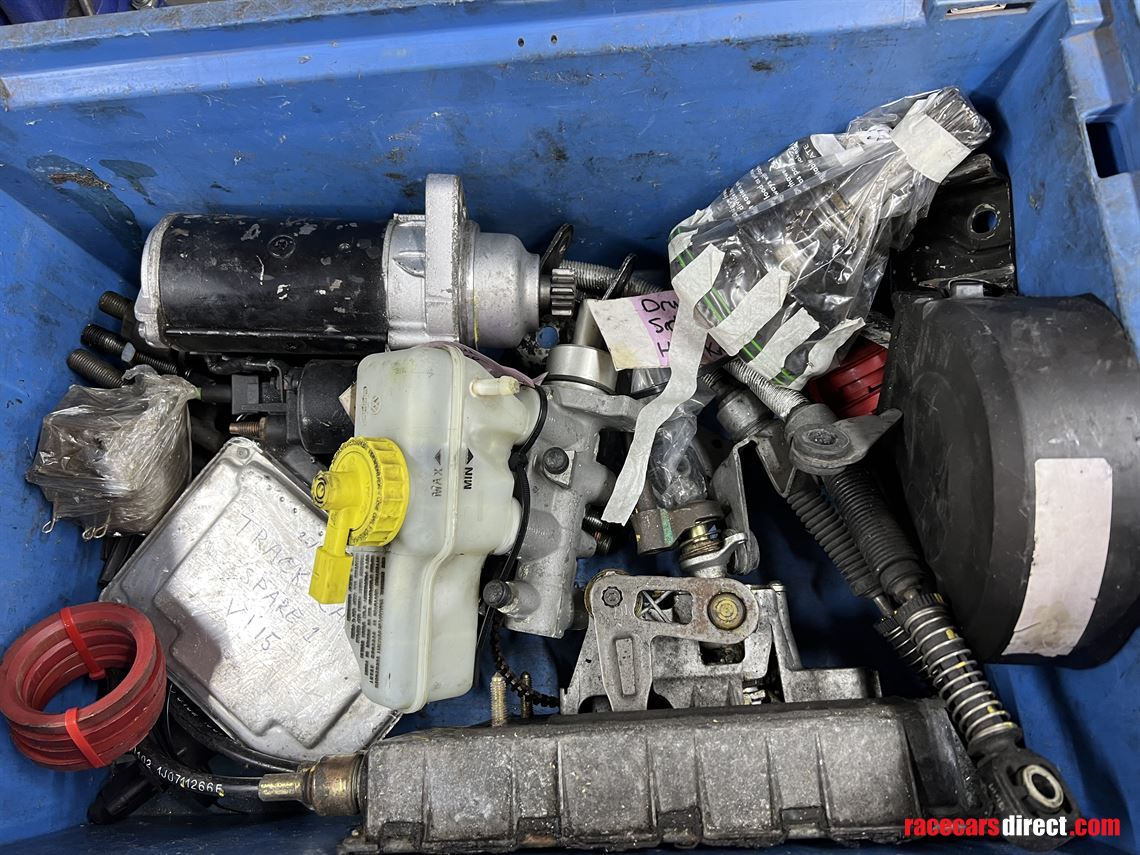

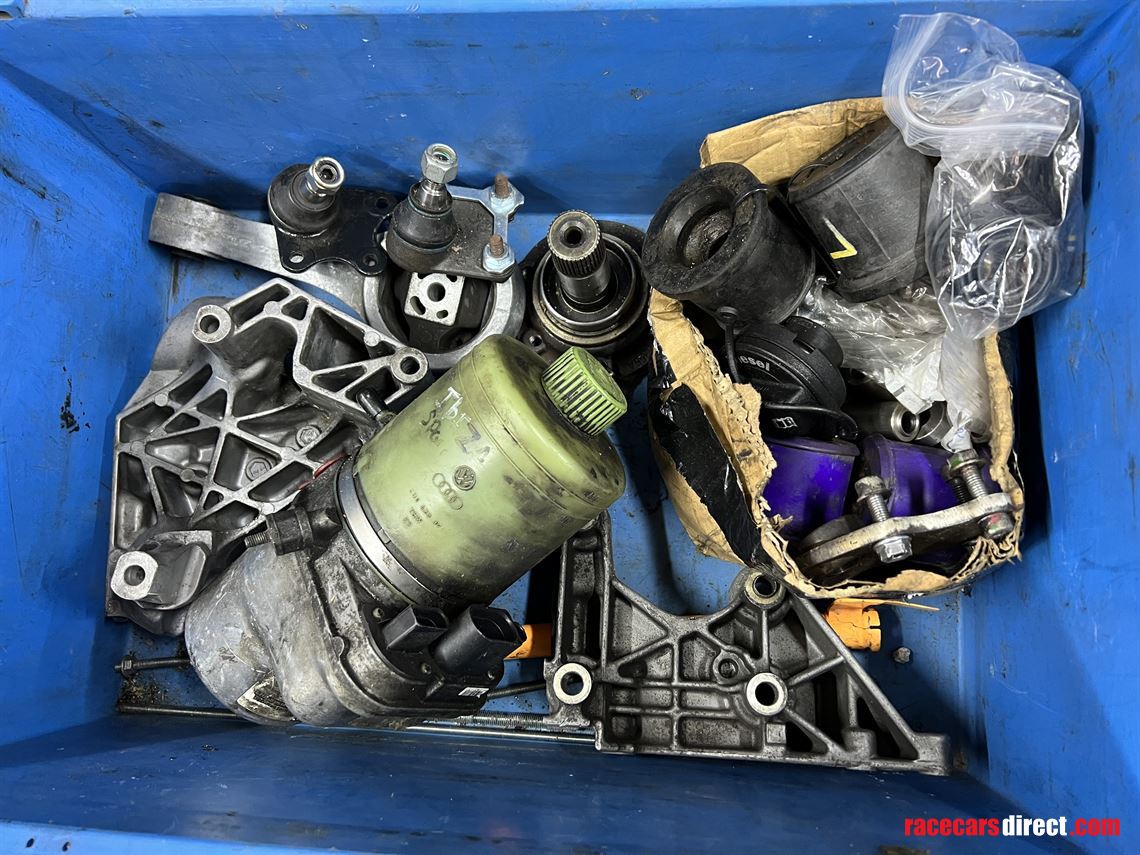

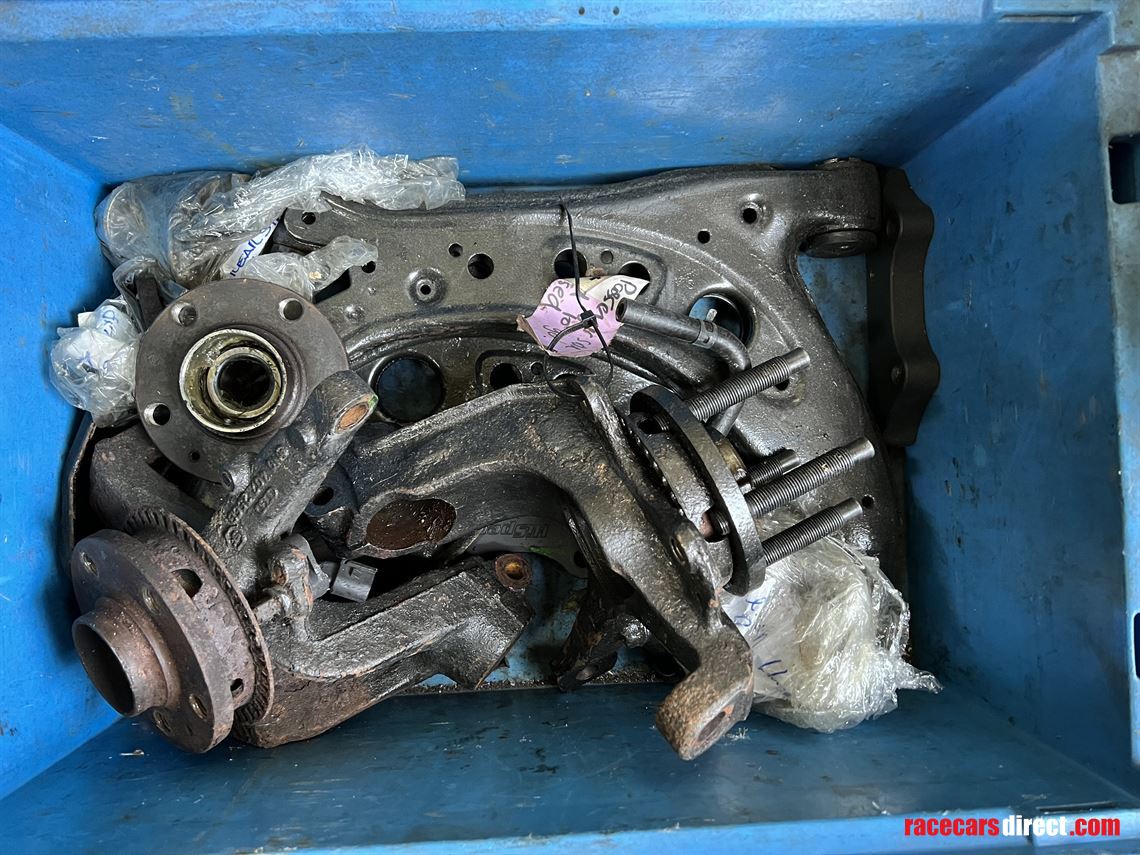

The car comes with some spares as per pictures, but we have a lot more that can be included for the right price.

This car would be immediately competitive in the MSV Trackday Championship, Trackday Trophy, Turismo X or other similar series that are based on Power to Weight.



Engine - 1.9 8v PD - ASZ
Gearbox - GUC - 02M 6 Speed Manual

Power Figures - 225bhp (168kW) & 350Ft/lbs (475Nm)

Weight - 1180Kg

Best Times
Brands Hatch GP - 1:47.81
Brands Hatch Indy - 55.51
Donington National - 1:21.578 - VBOX Ideal - 1:21:104
Oulton Park - 1:59.76 - VBOX Ideal 1:59.16
Silverstone National - 1:08.55
Silverstone GP - 2:32.765
Snetterton 300 - 2:18.14

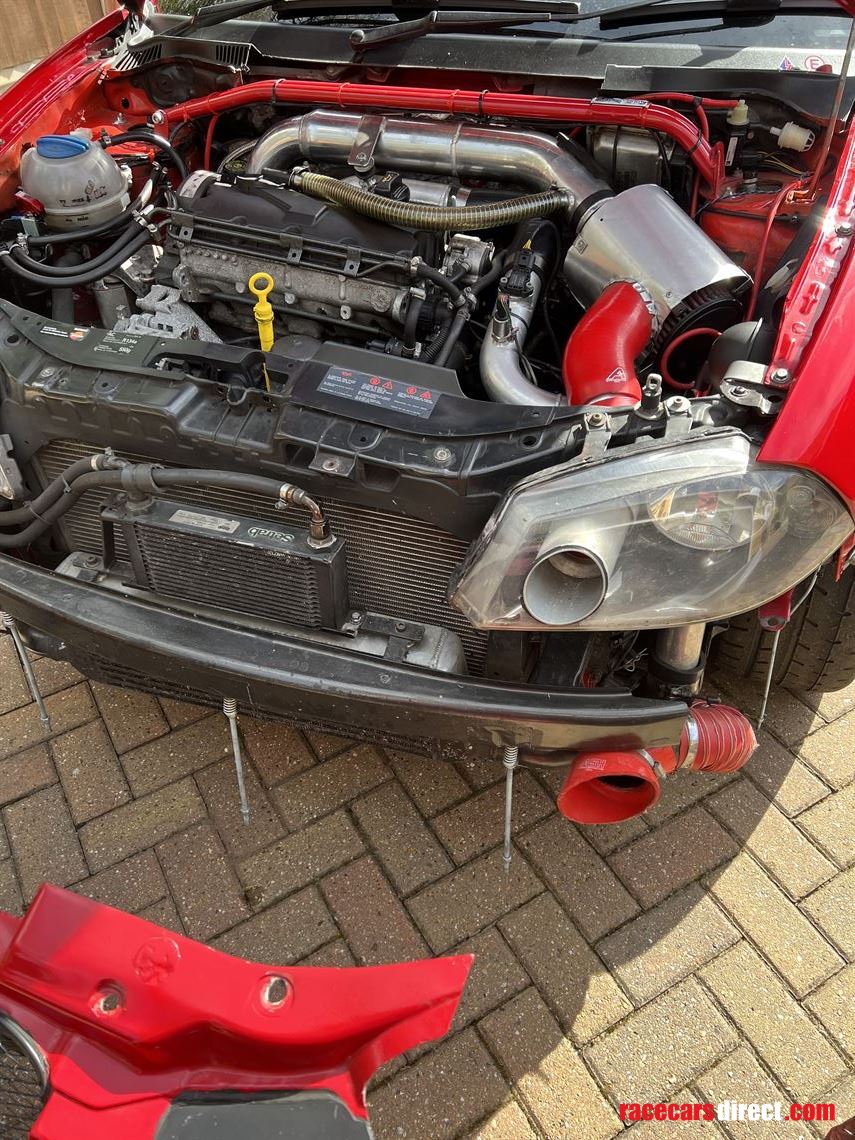

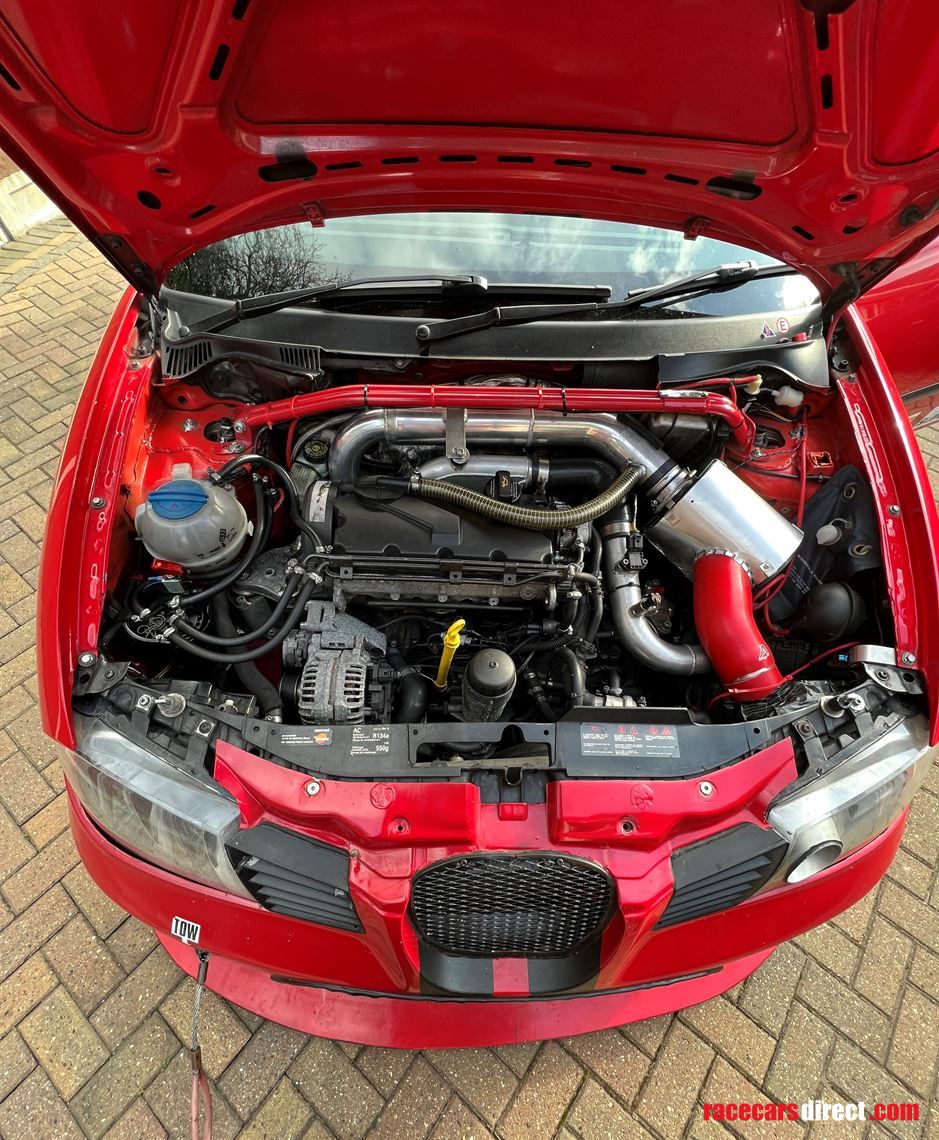

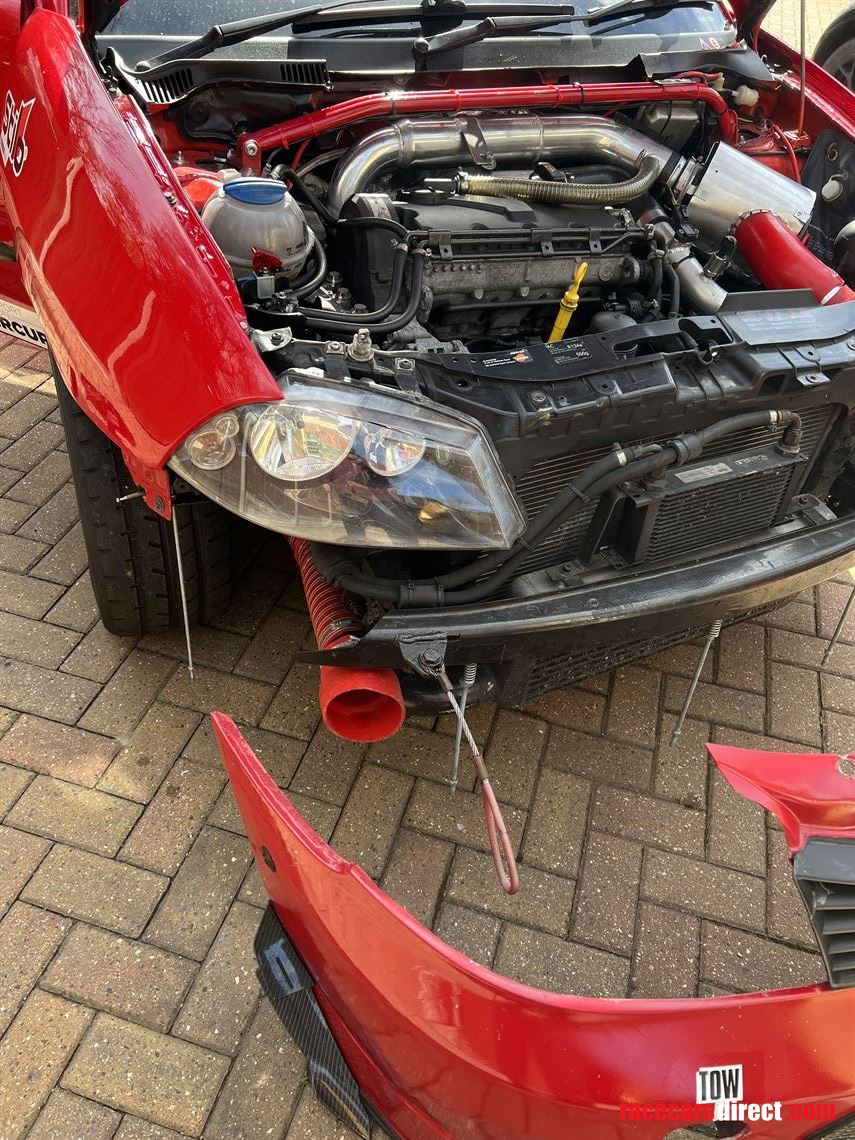

Engine Mods
Darkside GTB2260VK Turbo Kit for 1.9 8v TDI
PD150 ARL Head Bolt Set
Darkside Race Camshaft Kit
Billet Inline Thermostat Housing
Genuine VW 80°C - 102°C Coolant Thermostat
Performance Aluminium Radiator
Pierburg CWA400 Electric Waterpump
TinyCWA Controller
Water Pump Blank Kit for 1.9 & 2.0 TDI Engines
Reverse Osmosis Water with HyperKuhl Additive
Castrol Radicool Coolant for Water Pump Lubrication
Darkside Universal Front Mounted Oil Cooler Kit - (13 Row - Thermostatic)
Gearbox Side Inlet Manifold
Darkside 1.9 8v 57mm EGR Delete / Race Pipe
AEM DryFlow Air Filter
1.9 TDi 8v ASZ / BLT and BPX PD160 Airbox to TIP Pipe Silicone Hose
Custom 80mm Alloy TIP Pipe
4 BAR MAP Sensor
Darkside Hybrid Shallow Sump
230mm Universal Front Mount Intercooler
Custom 57mm Hard Pipe Kit
Custom 2.5" Exhaust System with Single Silencer
Darkside Custom Remap
Quantum Platinum Engine Oil 5W-40 5L

Transmission Mods
Cupra GUC Short Ratio Gearbox
Darkside Single Mass Flywheel (SMF) & Clutch Kit for VW 02M 6 Speed (Sintered Paddle Disc)
SQS 02M 2WD Plated Limited Slip Differential / LSD
02M Diff Bearings, Shims and Seals
02M / 02Q Gearbox 4th Gear Input Shaft Support
02M Gearbox Reinforcement Plate
1st - 2nd Shifter Fork Reinforcement Kit
3rd - 4th Shifter Fork Reinforcement Kit
3rd - 4th CNC Machined Aluminium Selector Fork for 02M and 02Q
5th - 6th Shifter Fork Reinforcement Kit
Short Shift Kit
Solid Aluminium Bush Kit for VW 02M & 02Q Linkage Ends
Solid Aluminium Shifter Bracket Bushings for VW 02A, 02J, 02M, & 02Q Gearboxes
Castrol Syntrax Limited Slip Differential Oil - 75W-140

Chassis
Vibra Technics Engine, Gearbox and Dog Bone Mount
BC Dampening Adjustable Coilover Suspension
Eibach 11.6kg Front & 6kg Rear Springs
Dampening Rates Modified by Black Art Designs
BC Mk5 Golf Camber Top Mounts - Chassis modified for more Castor
Genuine Cupra 20mm Front Anti-Roll Bar
Powerflex Black Series Bushes
Front Wishbone Front Bush Camber Adjustable - Black
Front Wishbone Rear Bush Caster Offset - Black
Powerflex Rear Beam Mounting Bush - 72.5mm - Black
Whiteline 20mm Rear Anti-Roll Bar - 3 Point Adjustable
Audi TT Mk1 Hubs
Custom Extended Balljoints
M14 Rose Jointed Track Rod Ends
12mm Rear Stub Axle Spacer Kit - Modded for Camber and Toe

Brakes
HiSpec 6 Pot Calipers
HiSpec 343mm x 32mm AP Type Floating Rotors
HiSpec Custom Bells and Brackets
Pagid RS29 Front Pads
Stock Rear Brake Calipers
Brembo 232mm Rear Discs
Pagid RS42 Rear Pads
Genuine Rear Brake Caliper Return Springs
Tilton Lever Type Bias Valve - ABS Pump Removed
Braided Hoses Throughout
Custom Brake Cooling Air Ducts
Motul RBF660 Brake Fluid
Audi TT 23mm Master Cylinder with Brake Pressure Sensor

Wheels and Tyres - Spares and tyres by separate negotiation
Team Dynamics Pro Race 1.2 17x8" Front & 17x7.5" Rear
TDC Race - Toyo R888R GG - 235/40R17 Front & 215/40R17 Rear
TDT Dry / SuperCup - Yokohama A052 215/40R17
TDT Wet - Uniroyal Rainsport 2 - 215/45R17

Exterior

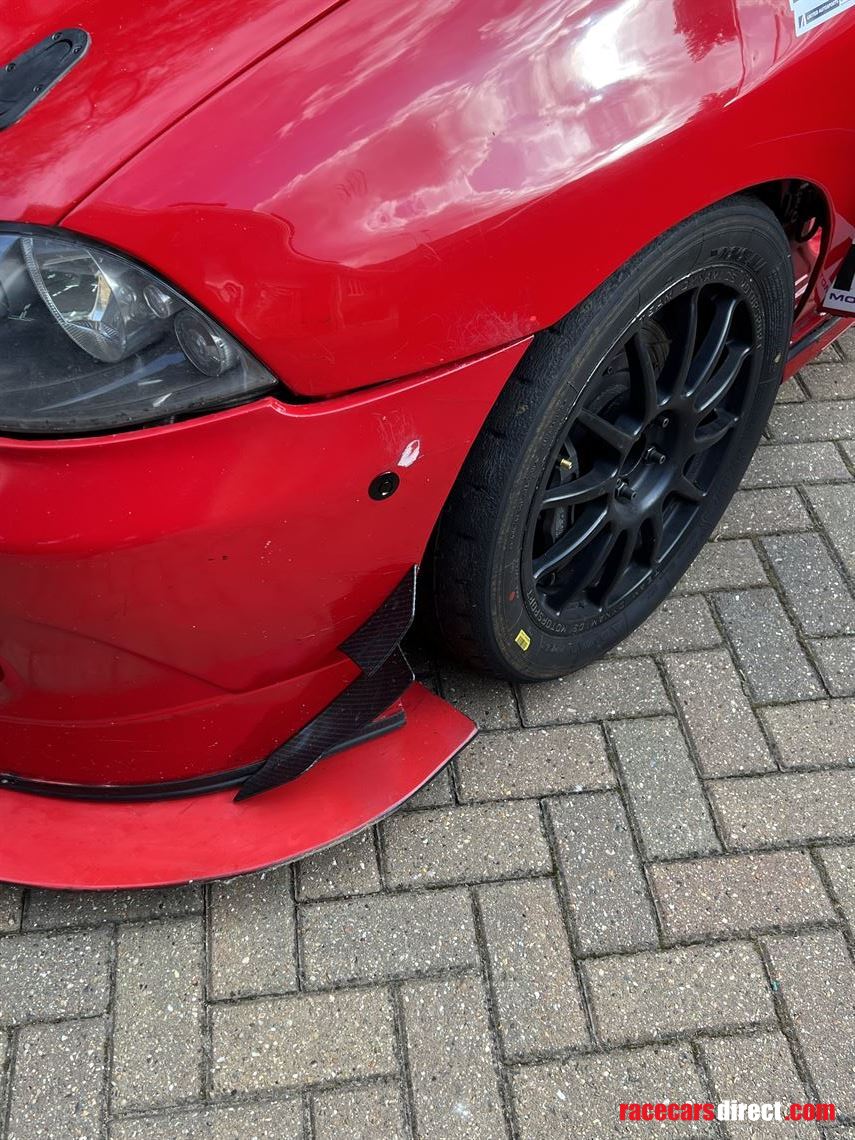

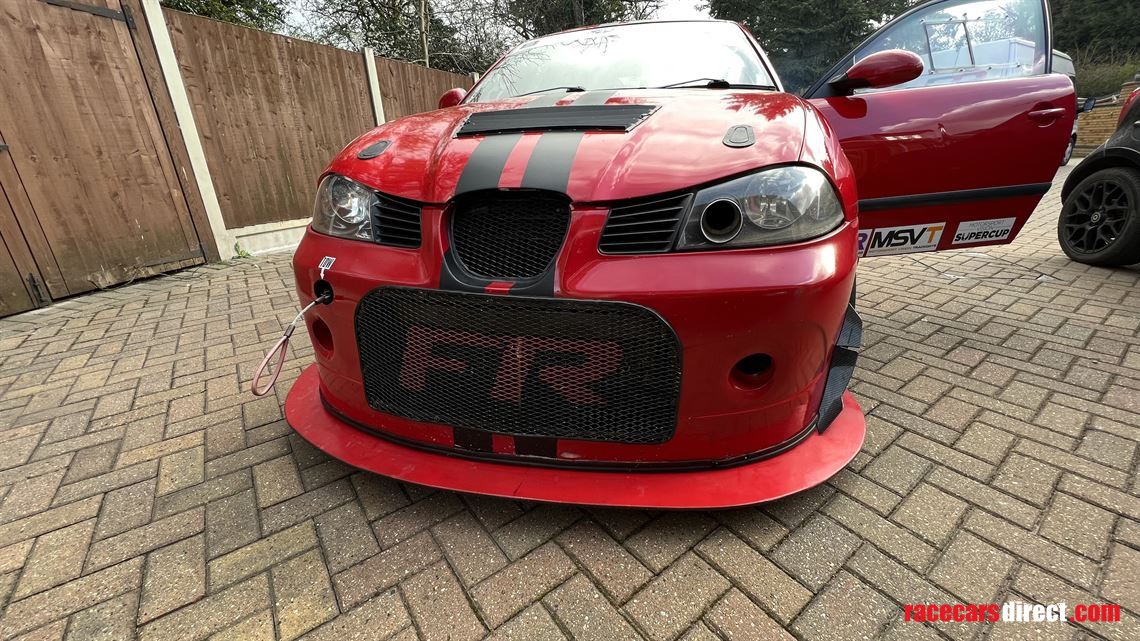

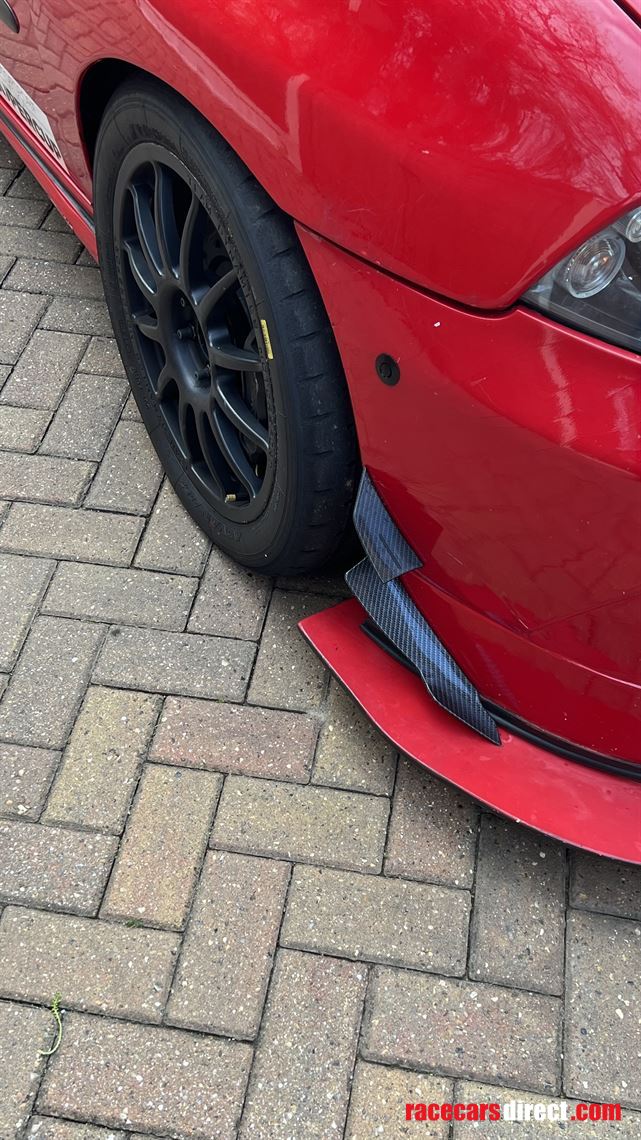

Custom Fibreglass Front Bumper with Splitter and Brake Ducts
Custom Fibreglass Front Wings
Push Button Quick Release Clips for Bumper

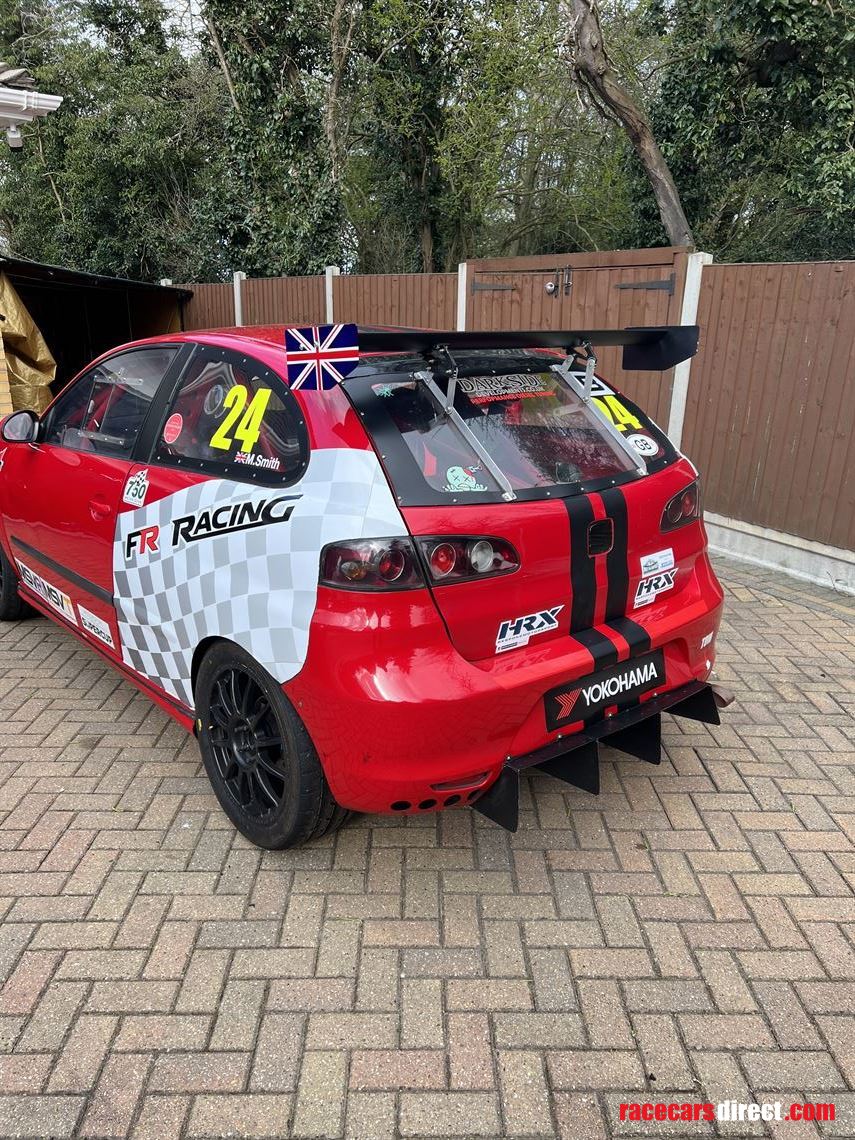

Custom Aluminium Rear Diffuser
120mm Rear Spoiler with Custom Brackets
Custom Polycarbonate Windows
Pit King Tow Straps Front & Rear
AEROCATCH Performance Panel Fastener 120 Series
Darkside Matt Black Vinyl Sun Strip

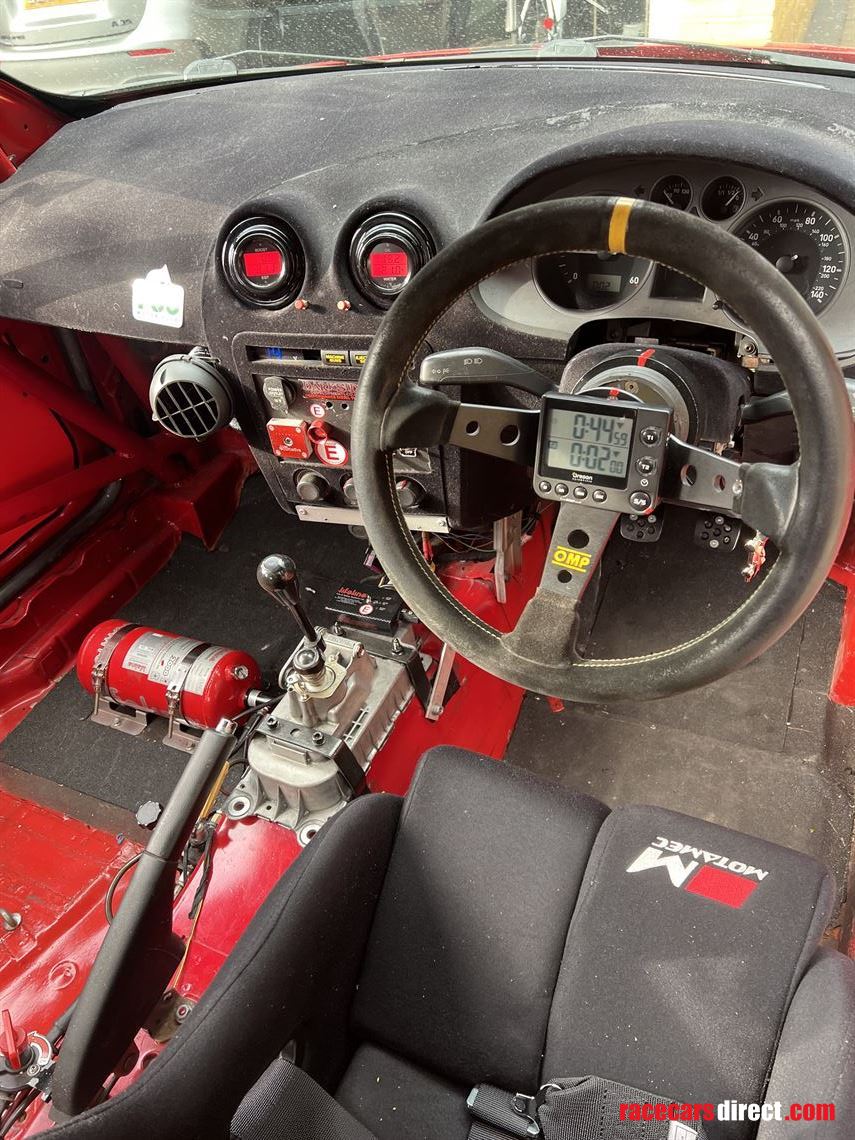

Interior

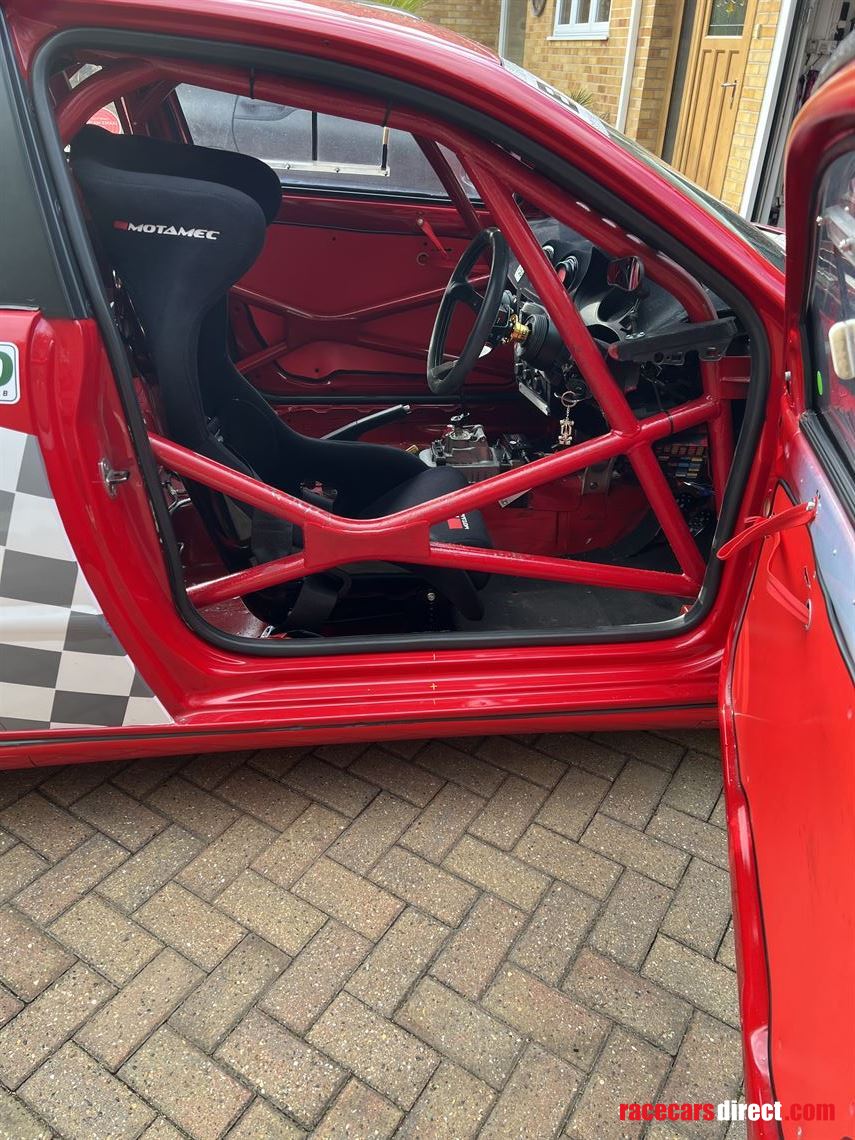

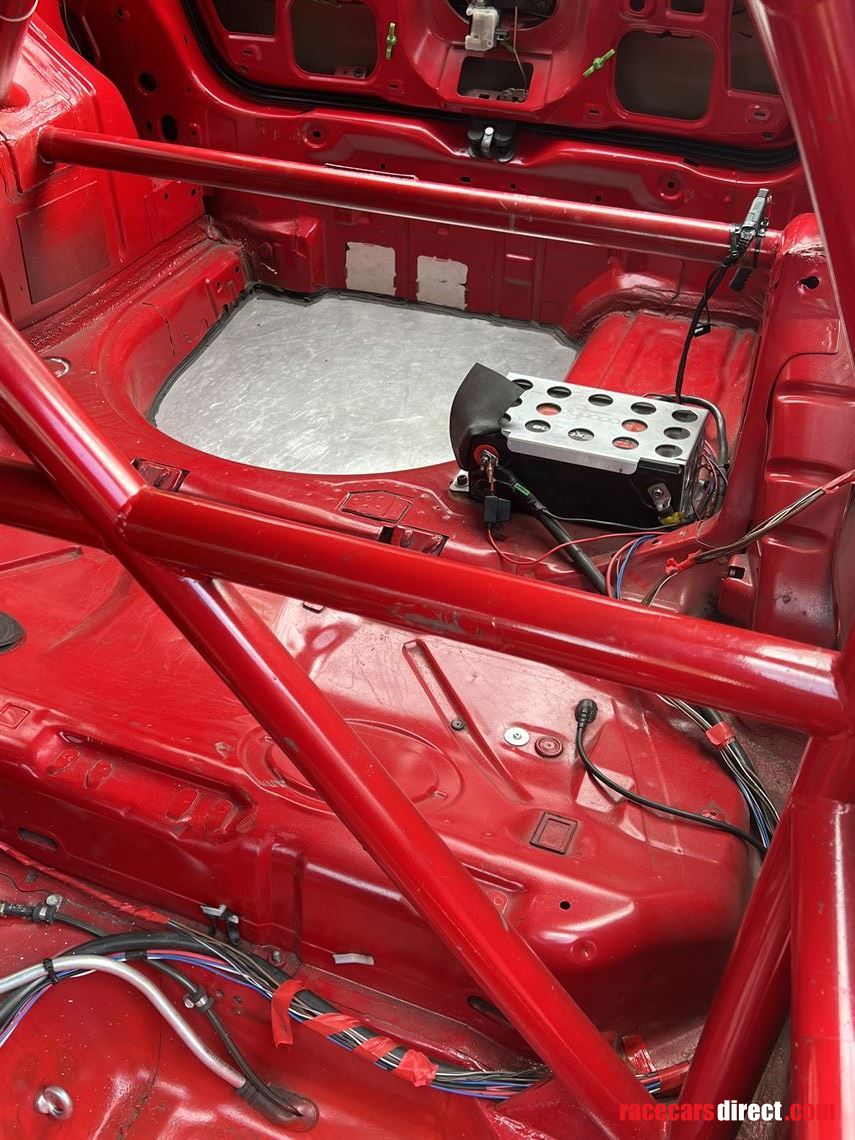

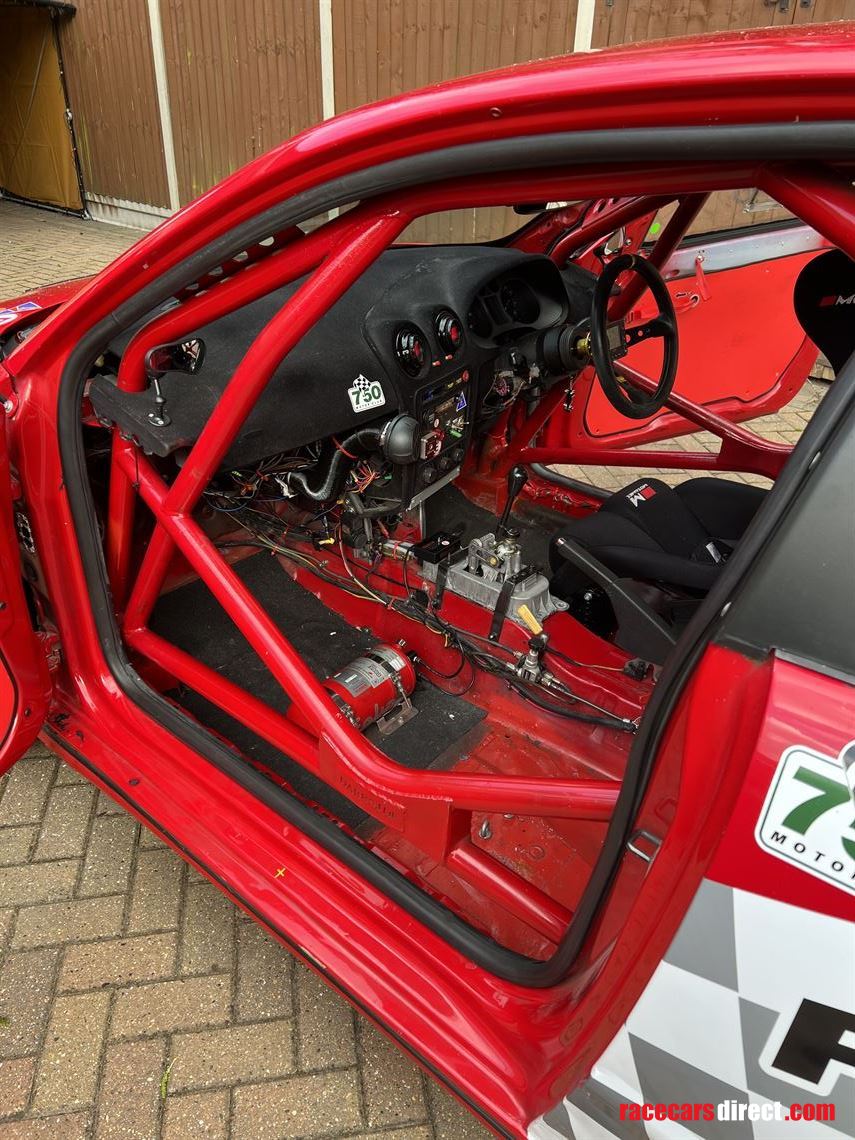

Custom 8 Point Roll Cage
FIA Approved Seats
6 Point Harnesses
Flocked Dash

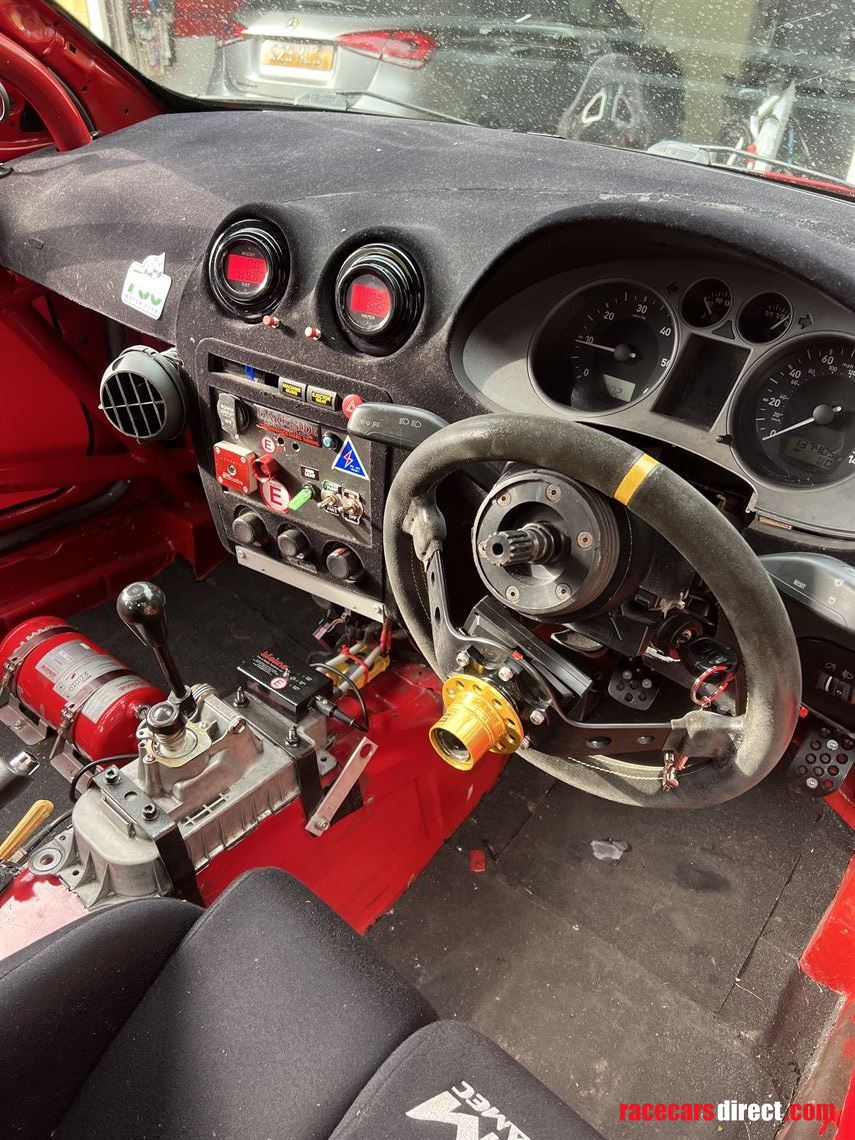

OMP Corsica Steering Wheel - 330mm Black Suede
D-Teq Steering Wheel Quick Release DT1 (Bolt On)
Clear Makrolon Polycarbonate Windows
4mm Clear Track Day Window Slider Kit
Plastic Door Cards
TRS Door Handle Straps
Audi TT Shifter Tower - Mounted above Tunnel
Black Nylon Gearknob

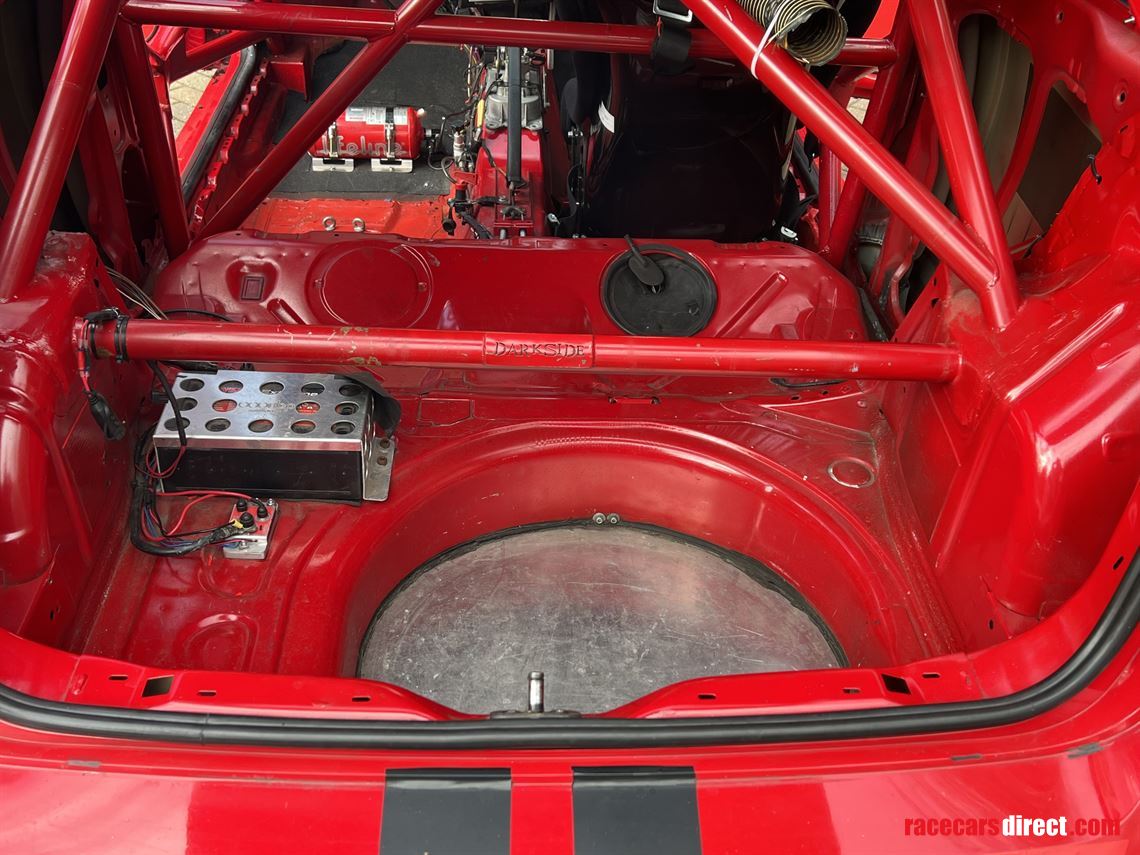

Odyssey ER30 PC950 Racing Battery with Custom Bracket

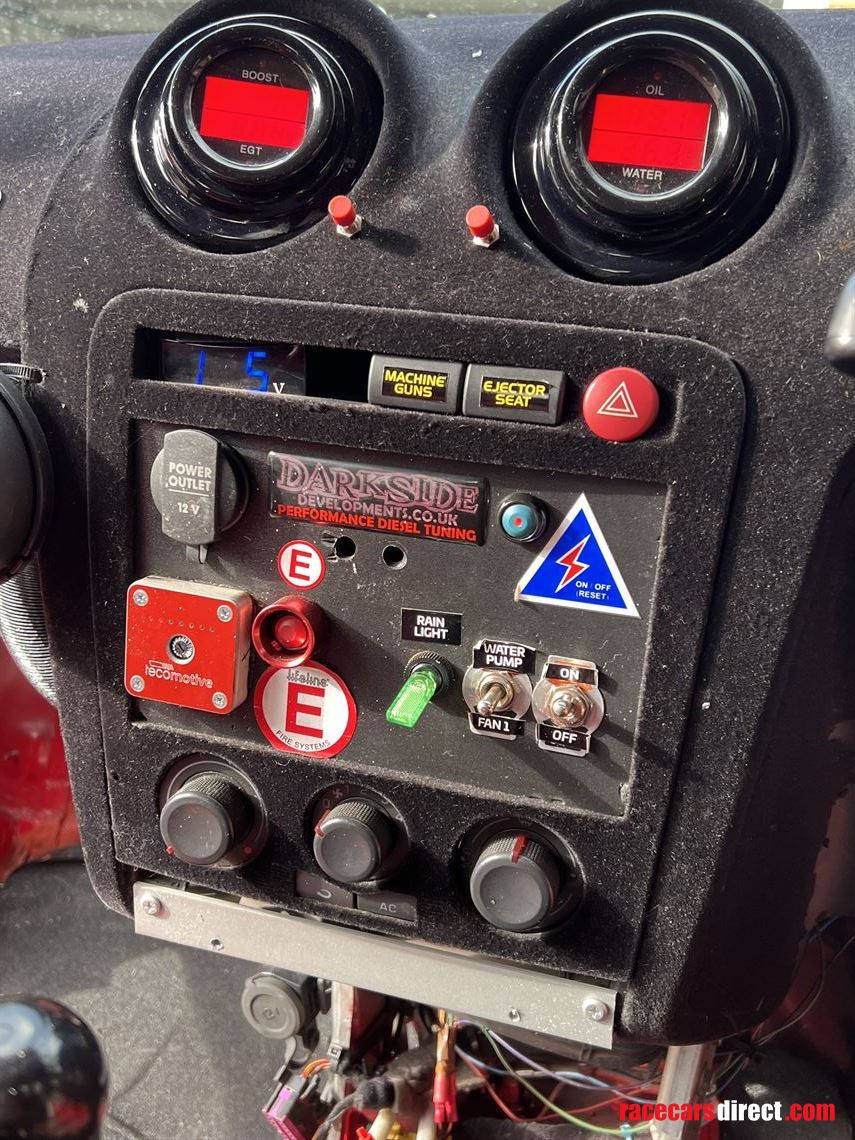

Cartek Solid State Battery Isolator GT 450A
Aluminium Passenger Foot Rest
Fully Grip Taped Floorpan
Longacre 15" Wide Angle Rear View Mirror
Cartek FiA Vertical Rain Light
Lifeline Zero 2000 FIA 4.0 ltr Electric Fire Suppression System




Website:

https://www.darksidedevelopments.co.uk/ibiza-fr-mk4-6l-1-9-8v-asz-track-race-car/
