£ 9,750
MK Indy RR BEC - Race / Track Car. Suzuki Powered - SOLD
This is now SOLD. Search for similar items.
Description:
MK Indy RR Suzuki BEC
More photos available to view on the website link.
Completely rebuilt over winter 2020/21 and has run just 160KM since. Possibly the only Bandit powered MK out there and it has a great history, originally built for a member of the Keenan family who founded MK as an S2000 powered road car in Honda F1 livery it was then converted for race use and after a successful racing career where it won several races in the CNC Heads Championship was converted to BEC power by Steve Keenan. The car is pictured several times on the MK Website in Brawn GP and BAR/Honda F1 livery.
Incredibly high spec all round with over £3500 of electronics and data logging - ideal driver training car as the data system is the same as that found in many six figure race cars!
During the rebuild all bearings were checked and replaced as required, frame and wishbones crack tested and touched up if required, diff rebuilt, new chassis and engine looms (professionally built with Deutsch connectors), new steering column and bearings, rack serviced, new air filter and induction system, new exhaust manifold and collector, new belts, fire systems etc. etc.
Two sets of wheels included, one set of Revolution 13" wheels with Michelin Wets in used condition. One Set of Compomotive CXR 13" wheels with brand new Pirelli Slicks in as new condition.
Also included is a spares package which includes various nuts, bolts, fittings etc. as well as discs, pads, manuals, spare side bodywork etc. etc.
There are many 3D printed and bespoke designed parts on the car and CAD is included along with full wiring harness schedules etc.
The Bandit 1250 engine was mapped by RLM and the ECU is unlocked via Woolich Racing Software/Cable (which his included). It is fantastic, producing 125bhp/90ftlbs at the wheels on RLMs dyno and 151bhp calculated fly wheel power on a Superflow dyno. If required performance can be increased further with a set of drop in Yoshi cams or reprofiling the standard cams which RLM are happy to arrange and expect to add 10 – 12bhp. RLM were very impressed with the engine and car in general during mapping. It makes an excellent track car power unit as it is widely available at very reasonable cost, is reliable and light weight. Performance is very similar to an R1 powered car with the tuned Bandit motor producing similar figures to a 2000 – 2003 R1 engine but at a lower RPM and with more torque available across the rev range due to the large capacity.
Standard ratios are fitted but with a 3.3 CWP in the rear which gears the car for 127mph at 10K RPM. This is pretty perfect for most UK circuits. A 4.1 CWP is included too, in case someone wishes to sprint or hill climb the car.
Complete spec is:
- Believed the first RR Chassis
- Weld in multi point roll cage
- Side impact protection
- Single seater conversion.
- Aluminium Front floor.
- Rear Anti Roll Bar
Engine / Transmission / Diff

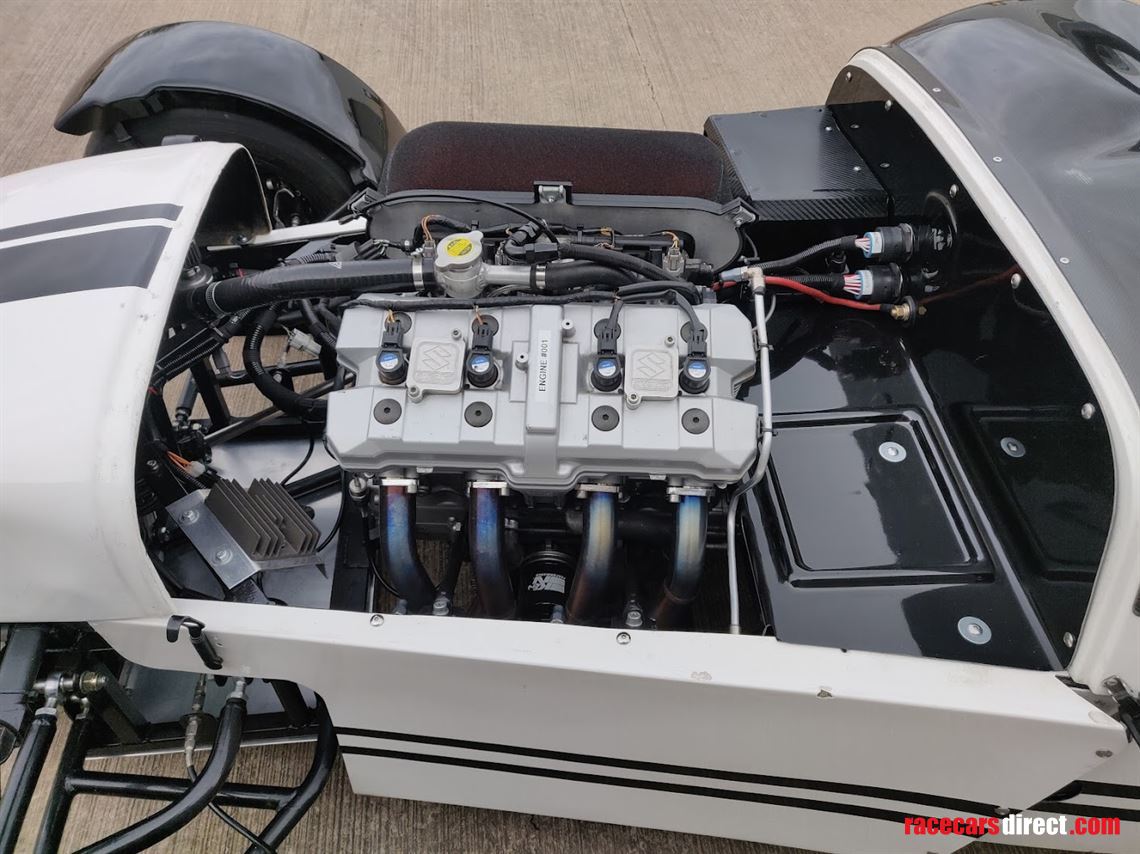

- Suzuki GSF1250 "Bandit", 1255CC / 10,100RPM Limiter
- 42mm optimised length trumpets on 42mm throttle bodies.
- Piper X Air Filter.
- Bespoke 4-2-1 Long Runner Exhaust Manifold
- Standard Suzuki Bandit Gear Ratios
- Heavy Duty Clutch Springs
- Bespoke engine wiring harness with Deutsch connectors.
- PAIR System removed.
- Delphi/Suzuki ECU Calibrated By RLM with WRT Software.
- HM Quickshifter Plus
- Solid/Rose Jointed gear linkage.
- Bespoke gearbox output flange.
- Bespoke prop shaft.
- Bespoke drive shafts.
- Honda S2000 rear diff with LSD and M Factory 3.3 CWP
- Circa 150bhp Fly / 125bhp Wheel.
Fuel System
- Honda S2000 fuel pump cartridge.
- Custom large capacity fuel tank.
- Earls fuel hose, seamless hose front to rear.
- Push on to Dash 6 adaptors on fuel rail and pump cartridge.
- AN Fittings throughout.
Suspension / Steering
- Double Wishbone front suspension with push rod actuated inboard coilover dampers.
- Rose jointed wishbones, push rods and dampers.
- Double wishbone rear suspension with Mcpherson strut.
- Combination bush/bearing rear suspension.
- Protech Dampers.
- Rear Anti Roll Bar
- Sierra Steering rack with quick rack bar.
- Bespoke steering column and mounts with upper and lower bearings.
- Racetech Quick Release boss.
- Sparco steering wheel.
Brakes / Pedal Box.
- Top mount Wilwood pedal box with Wilwood masters and 100bar brake pressure sensor.
- Wilwood brake bias adjuster
- Wilwood Powerlite 4 piston front calipers
- Sierra rear calipers.
- Wilwood discs.
- Mintex 1144 Pads.
- Earls braided lines where required.
- AN Fittings throughout.
Wheels / Tyres.
- Revolution 13" Wheels with Michelin Wets
- Compomotive CXR13" Wheels with Pirelli Slicks
Electronics
- AIM Evo 5 Data Logger / Chassis Controller.
- Cartek Power Distribution Module X 2
- Cartek Switch Panel
- AIM G-Dash Dash Display mounted on Sparco steering wheel.
- AIM Wideband Lambda Controller
- KA Sensors Oil Pressure Sensor
- Eurosensor 100bar brake pressure sensor.
- SDS Data Link between Delphi ECU and Evo 5.
- Race Systems CANBus TPMS System.
- Bespoke engine and chassis loom with Deutsch Bulkhead Connectors.
Safety
- Sparco large capacity fire extinguisher with driver and engine bay nozzles (in date to 10/22).
- Sparco HANS Compatible harness (in date to 12/26)
The car is built for track use, it could be converted to road legal but would need IVA'ing with associated lights, belts, nut covers etc. etc. which would rather spoil it! It is not road legal.
It is currently configured as a single seater with a tonneau cover and padded safety bar, an additional passenger seat (same design and trim as the drivers seat) and additional harness is included which is a straight bolt in in place of the fire bottle should you wish to make it a two seater for track day passenger rides etc.
For sale as I have only managed 160KM in it since it was rebuild and it has spent the majority of its time in my garage. There are a few marks on the bodywork from its racing career but no more than would be expected and it presents extremely nicely.
Also included is a single axle tilt trailer manufactured by Amca Noval and plated at 1300KG which suits the car perfectly. The trailer has a battery box, remote control winch and full lighting. It was serviced in Feb 2021 which included new wheels nuts, new commercial grade tyres, brake service and lubrication service.
£9,750 ONO Including both sets of wheels, all electronics, spares and trailer.
£8,250 ONO without the AIM data system (G-Dash, Evo 5 Logger, Wideband controller)
