Heusinkveld Engineering Sim 2 Pedal set Ultimate - SOLD

AGS

This is now SOLD. Search for similar items.

Description:

Used but in excellent condition, fitted wit uprated brake spring but supplied with original parts, no box or packaging

collection from silverstone circuit by appointment

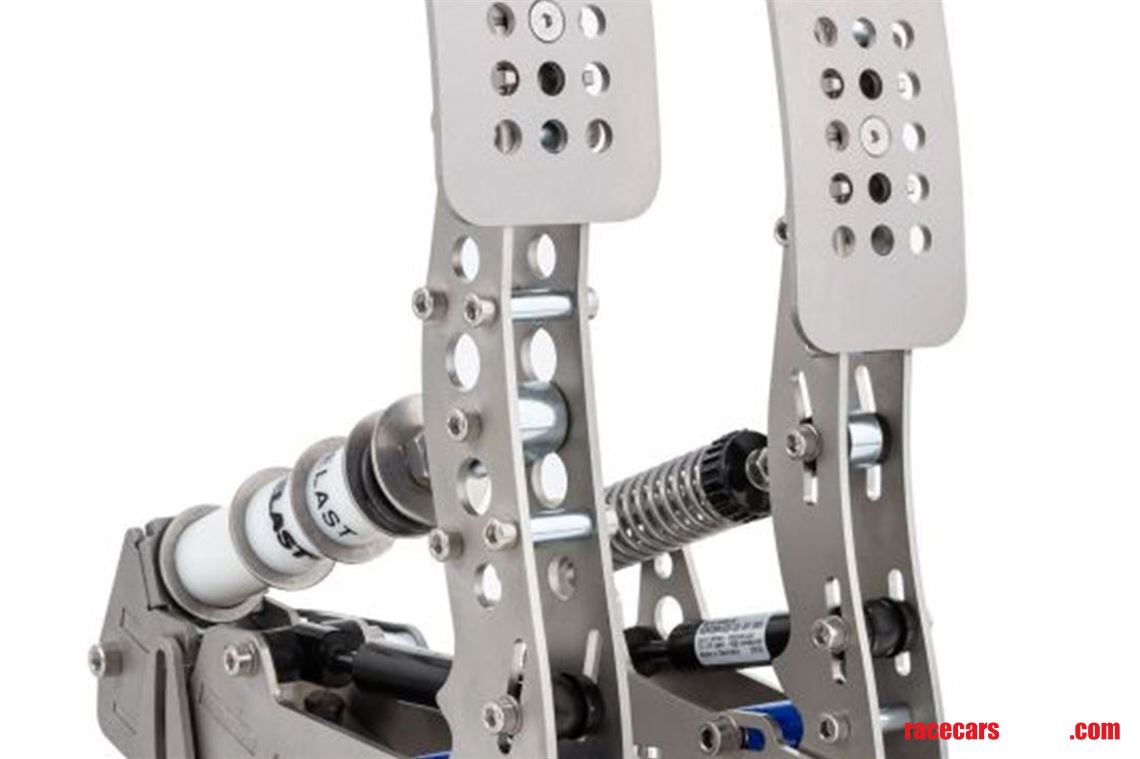

If you are serious about sim racing, you will know that a good set of pedals make all the difference. But if you are looking for the very best in simulator pedal technology then look no further than the Heusinkveld Engineering Sim Pedals Ultimate.

Constructed from strong and durable materials using advanced design and manufacturing techniques such as CAD, FEA (Finite Element Analysis) and CNC precision laser cutting, the pedals are beautifully engineered to create the most authentic look and feel.

Each pedal features a load cell to provide a true linear output in relation to the pedal input. This provides unrivaled accuracy and durability as, unlike regular rotary potentiometers, they do not wear out over time. On the throttle and clutch pedals, the load cells work as positional sensors whereas the load cell on the brake pedal measures the pressure put on the pedal.

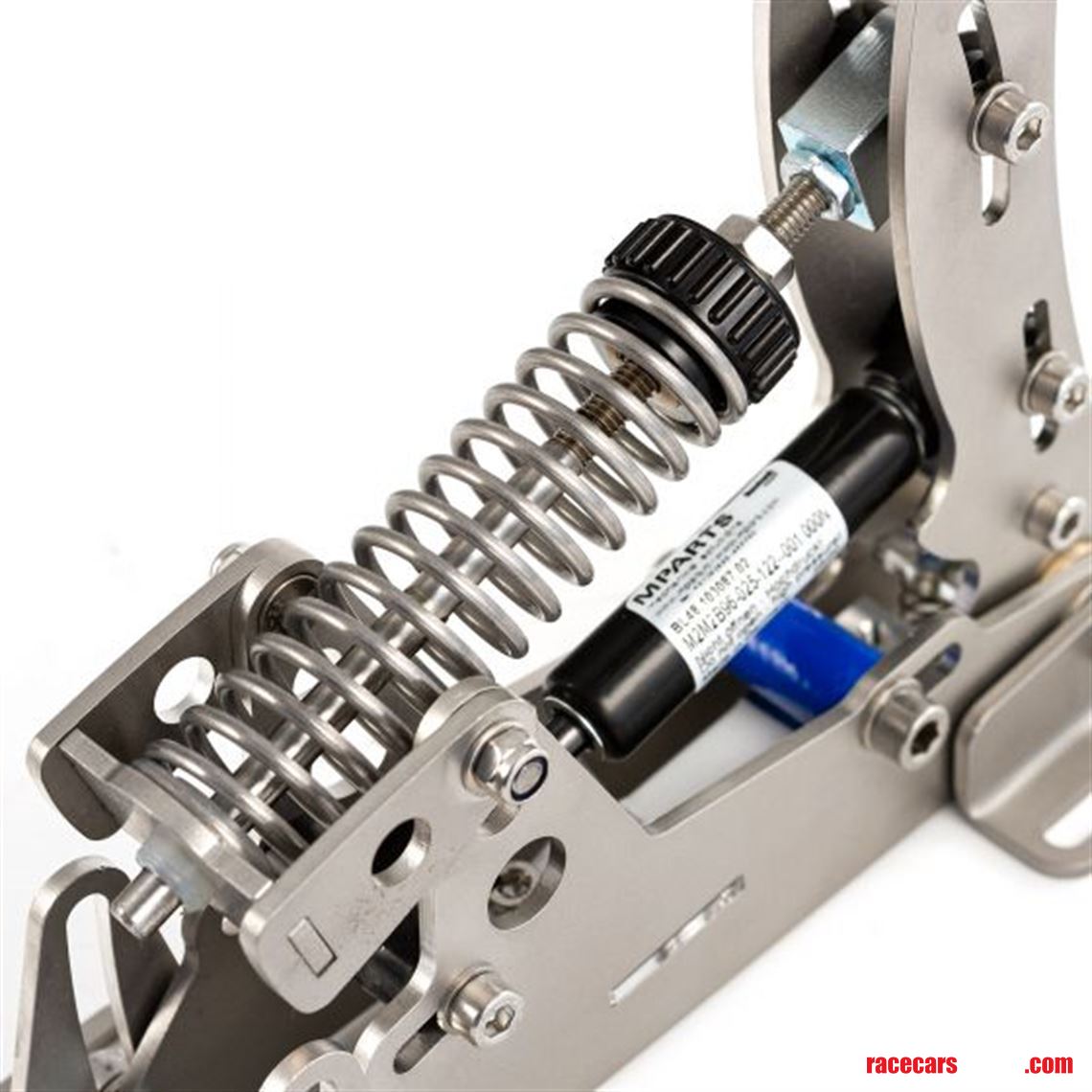

However, unlike the Sim Pedals Pro, each of the pedals in this set feature adjustable hydraulic damping. Using an all-enclosed hydraulic damper, the Ultimate version is able to accurately simulate the feel of real race car pedals without the need for hoses and master cylinders. For both the brake and clutch pedal, the damper adds resistance depending on the speed that the pedal is pressed or released, whereas the damper on the throttle pedal resists speed at the ingoing stroke. The advantage of this lies in smoothing the throttle application as is used on some real race cars.

Featuring custom developed 12bit USB electronics, each pedal is able to deliver an instant and accurate response to the drivers inputs to allow for a greater amount of control over the car.

Both the throttle and clutch pedals feature adjustable pedal travel from 10° to 20° on the throttle and 14° to 24° on the clutch to allow the user to customise the pedal to their specific requirements. Also featured is "soft" pedal end stops to provide a quality feel without being too noisy when in use.

Throttle: The throttle pedal is highly adjustable for travel, pre-load and spring stiffness. The hydraulic damping also improves the smoothness and accuracy.

Brake: The brake pedal features a dual stage braking system which includes a coil spring to simulate the gap between the pad and the disc before progressive rubber springs take over to provide the firmness that you would expect from a race car pedal. This firmness can be adjusted by selecting from 10 different rubber stack heights. The dual stage combination is capable of providing a maximum pedal force of 136kg which requires around 36x more effort compared with consumer grade pedals. This amount of braking force allows the driver to improve their braking ability through the use of muscle memory which improves accuracy and consistency. Alongside the pedals themselves, also included is a USB controller / load cell amplifier for connection to a PC, to which each of the pedals are connected
