Description:

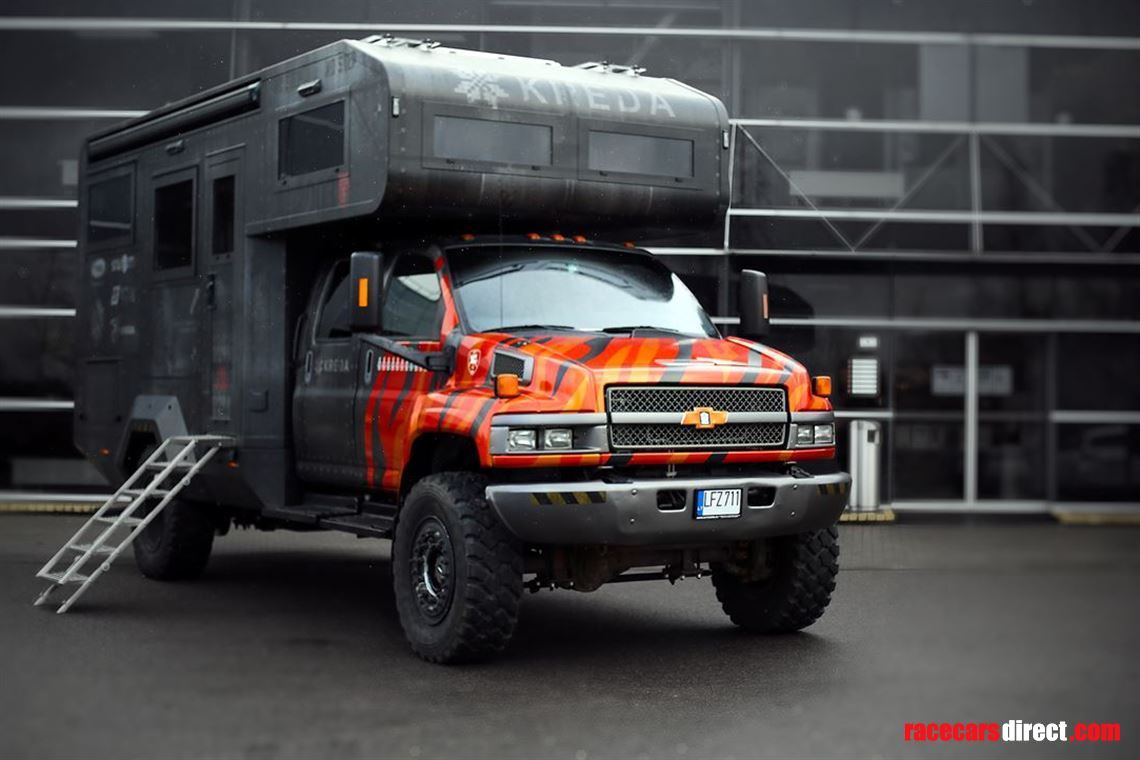

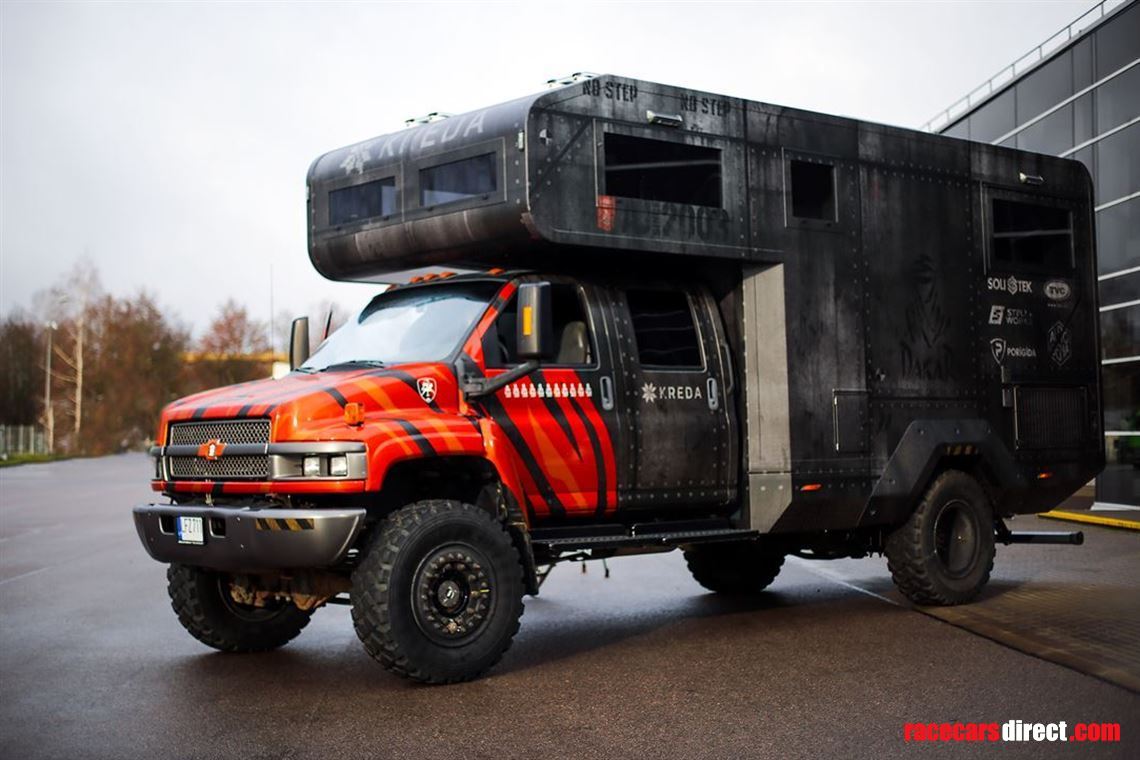

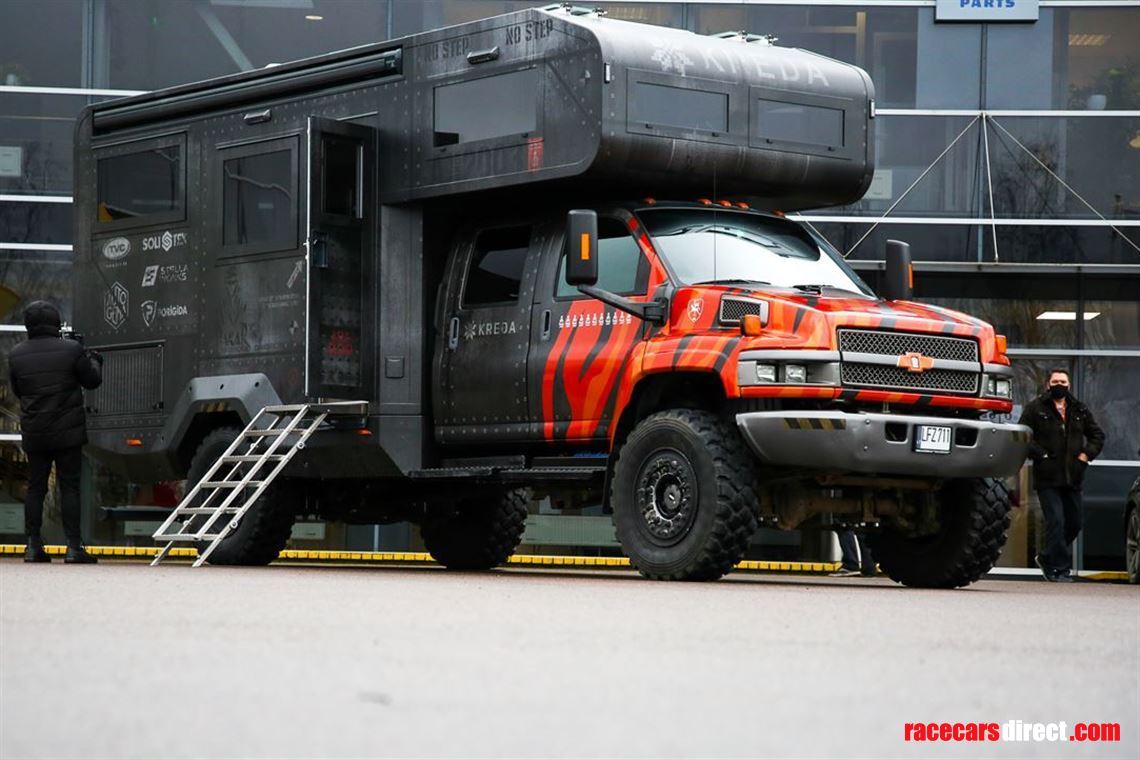

A professionally built and unique motorhome based on Chevrolet Kodiak C5500 truck chassis with reliable Duramax V8 diesel engine and Allison 1000 automatic transmission. It was used and tested by Dakar racing team during 2021-2023 races in Saudi Arabia and little used for personal travelling afterwards.

This expedition motorhome stands out and delivers an incredible autonomy based entirely on electric energy with 1.5 kW solar panels and 4kW of alternator power feeding into 10kWh of Li-Ohn batteries, with external power inputs from both 230VAC and 120VAC. The truck is equipped with 350L fresh water, 150L grey water and 400L diesel fuel tanks.
It will carry and sleep up to 5 people! Seating area converts into a king bed and a separate master bedroom is located above the cabin. Cabin and living box are connected with an open passthrough. Living box is equipped with diesel Webesto air heater and Dometic air conditioner for year round comfort.

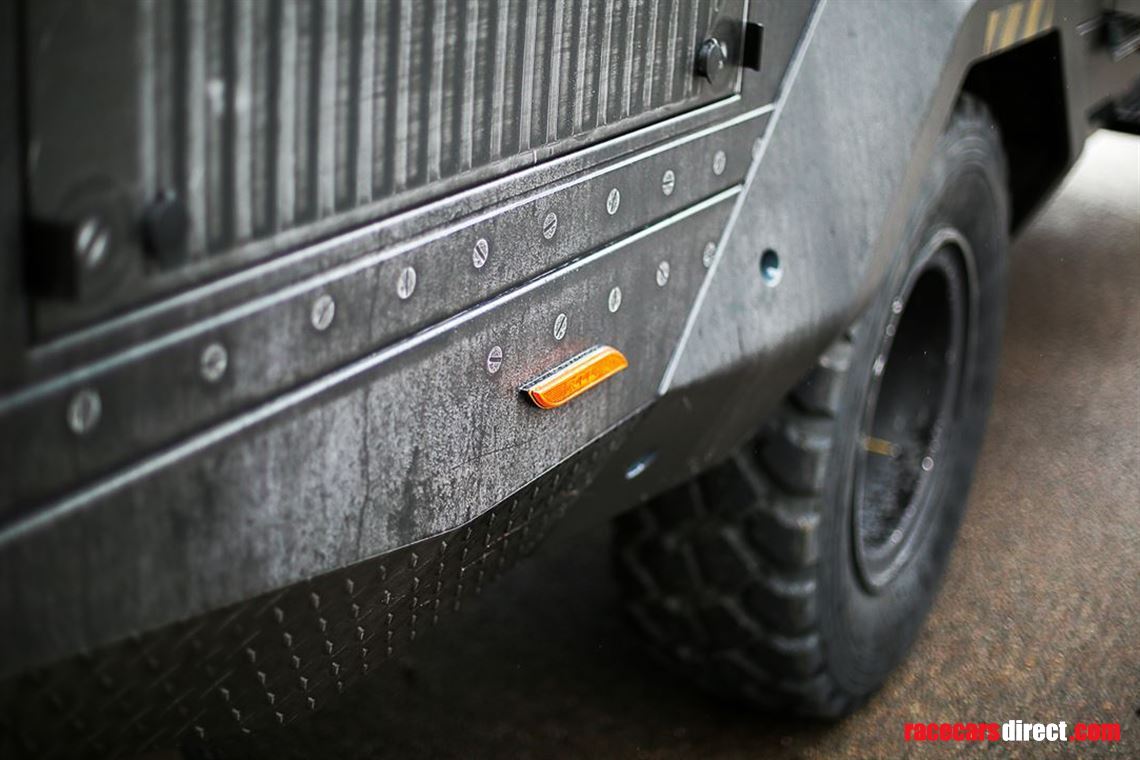

The box is professionally constructed and built using 45mm aluminum sandwitch panels and equipped with aluminum windows and door with double-glazed glass for extra insulation.

It is currently wrapped with marketing livery, original box color is RAL7016.

Year: 2007
Make: CHEVROLET
Model: KODIAK C5500 (4x4)
VIN: 1GBE5E3207F403621
GVWR: 8845 kg
Engine: 6600 cc (Duramax V8 Turbo Diesel)
Euro norm: Euro 3
Fuel: Diesel
Diesel Tank: 400L
Seats: Double cab / 5 seats
Drive: All Wheel Drive
Wheel Rims: Hutchinson Aluminum 20"X10"; 335MM 10-Lug MRAP 4X4 6X6 CTIS
Tyres: Michelin XZL 365/80 R20
Suspension: Kelderman Air Suspension
Gearbox: Allison 1000 / automatic
Speed limiter: No speed limiter
Misc: Rear view camera
Overall Dimensions (LxHxW, mm): 8610 x 3720 x 2550

On-board systems:
Battery bank: Li-Ohn, 400Ah/24VDC/9.6kWh

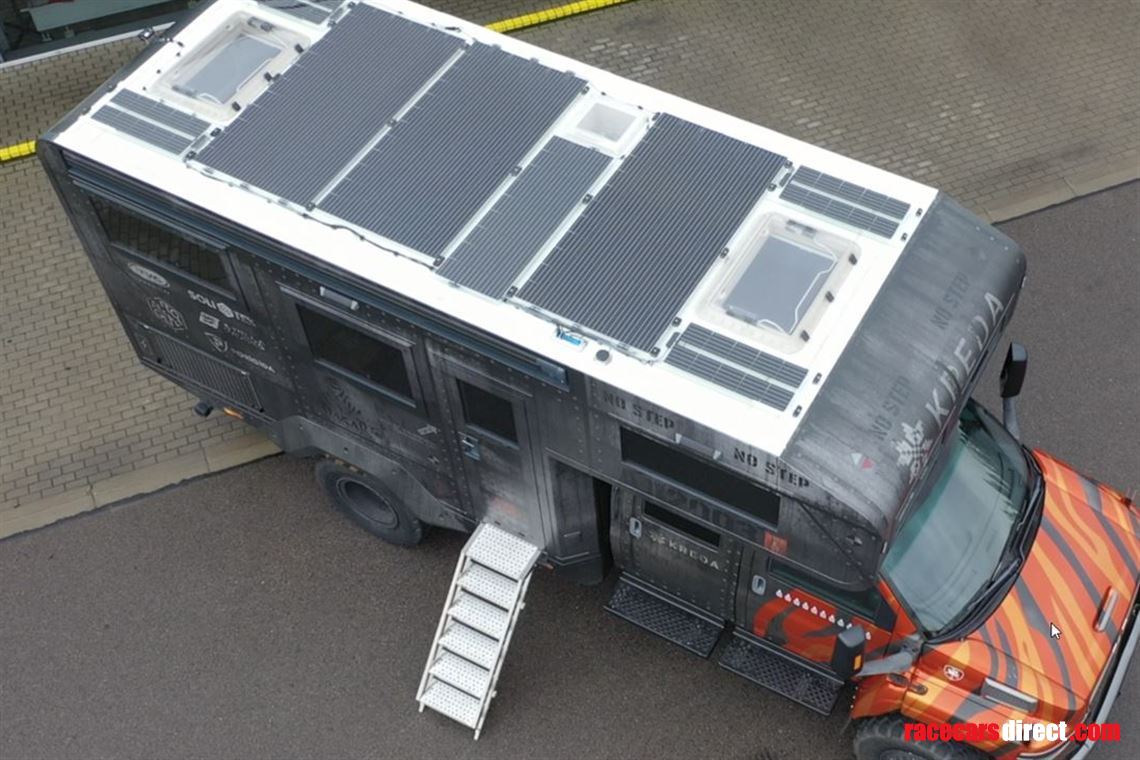

Solar panels: Solitek Bifacial, 1500W
Inverter: Victron Energy Quattro 24/5000/120-100/100
Isolation transformer: Victron Energy 3600W Auto 115/230V
Fresh water tank: 350L with 24V heating and automatic anti-freeze valves
Grey water tank: 150L with 24V heating and automatic anti-freeze valves
Air conditioning: Dometic FreshWell 3000 (230V)
Heating: Webasto Air Top 4kW diesel/petrol, distributed to all areas
Water heater: 30L 230VAC/660W
WC: Dometic CTW4110 casette toilet with ventilation

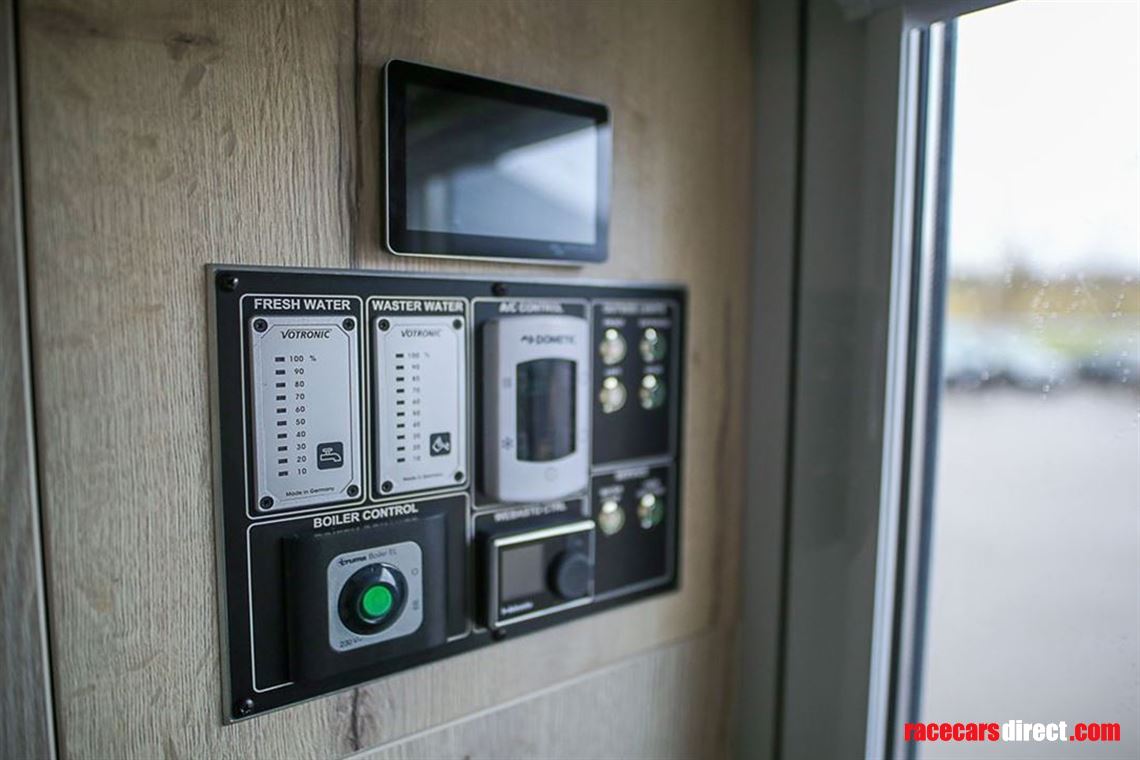

Control panel: Control panel for electric monitoring, water levels, etc.
Lighting: LED lights, spot lights
Power sockets: Schuko sockets with USB
Awning: Fiamma, electric drive
Infotainment:
JBL Bar 5.1 510W audio system
Smart TV 28"
Mobile router (2x sim cards) with GPS tracking and Wi-Fi
Kitchen equipment:
175L fridge Thetford N4175 (31L freezer/12V/230V/GAS)
Thetford sink with glass cover
Induction cooktop 230V/1200W/1700W
Kitchen hood Dometic CK400
Microwave oven Samsung FW87SUB
Storage:
Large full height cabinet
Underseat cabinets
Wall cabinets
Cabinets in the master bedroom
Large exterior storage compartment accessible from both sides
Overall Dimensions (LxHxW, mm): 8610 x 3720 x 2550
Living Box Features:
Overall Dimensions (LxHxW, mm): 6460 x 3720 x 2550
Subframe connection: 4-point mounting with spring buffer
Sandwich:
Box with Polyurethane Foam and Aluminum skin sandwich panel
Walls Thickness: 45mm; Floor Thickness: 80mm; Roof Thickness: 45mm
Windows/doors:
Aluminum with double glazed-glass; with blinds and mosquite net
Painted frame
Excellent ventilation, easily cleanable
Roof windows in living area and master bedroom

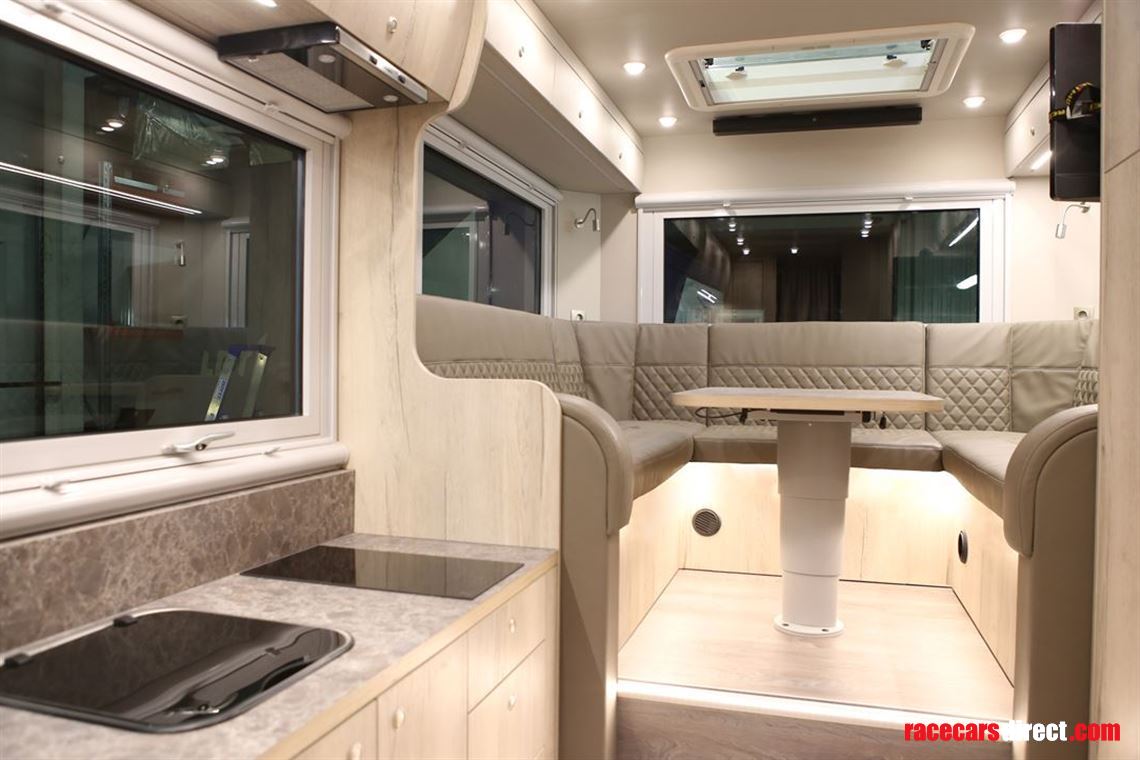

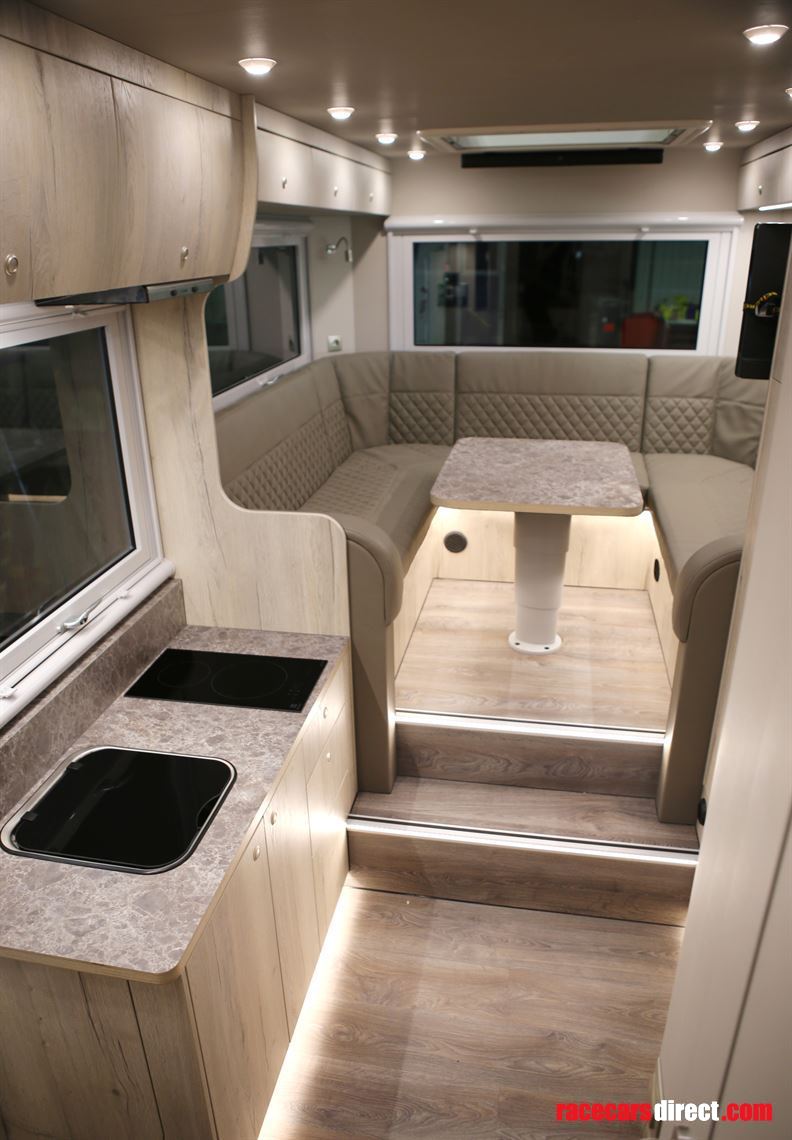

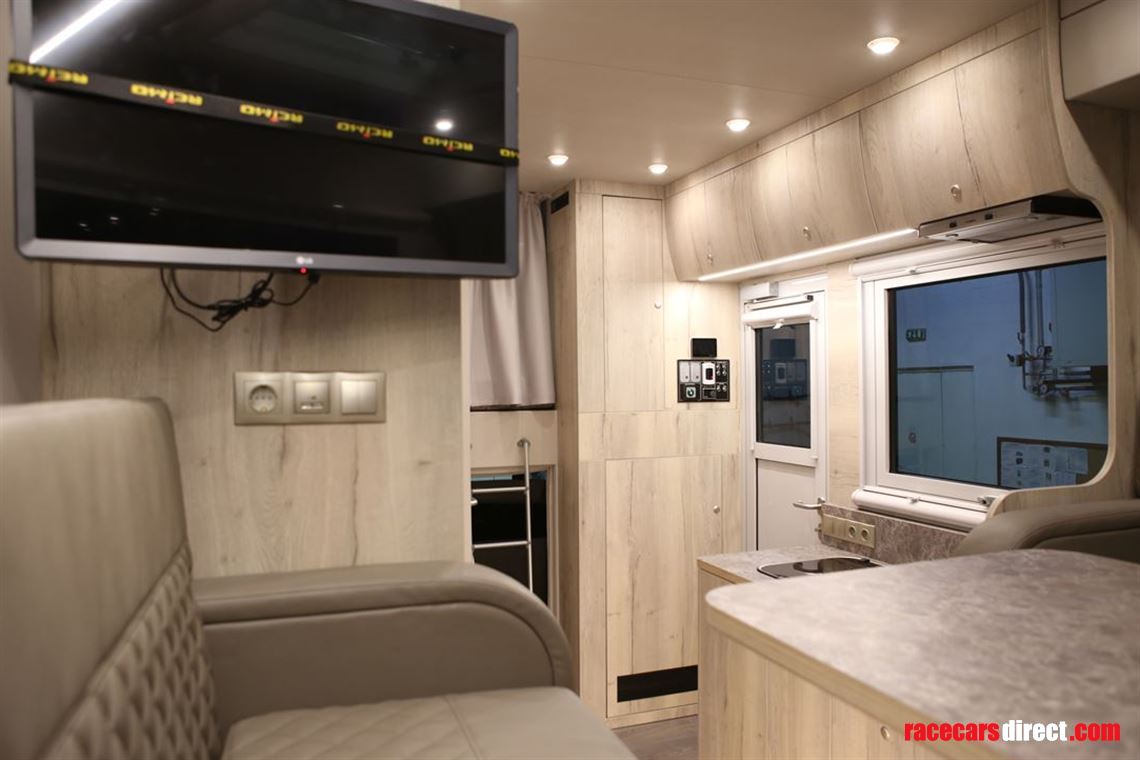

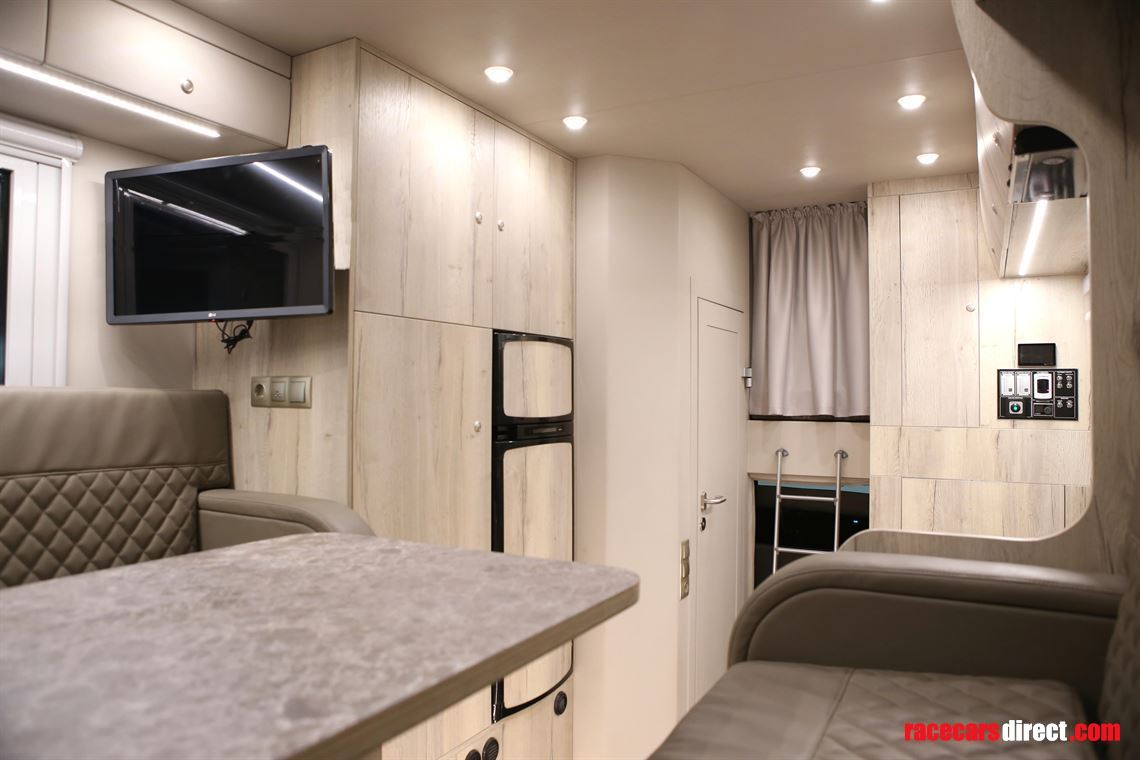

Interior Configuration:
Seating area with height adjustable table
Kitchen area with countertop extension
Shower/WC room with sink, cabinet, window and electric roof vent
Master bedroom

For details please contact:

Andrius G. | General manager | ag@stellaworks.eu | +370 686 515 69
