Stella Works designs and builds race transport solutions.

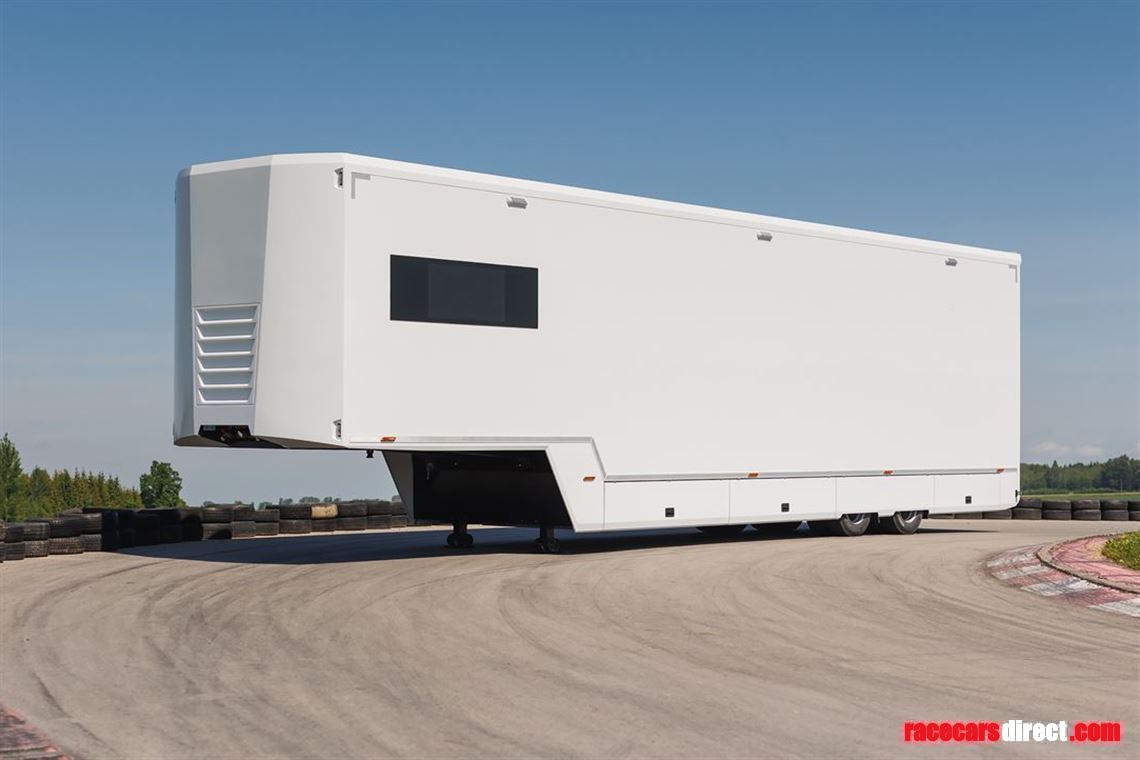

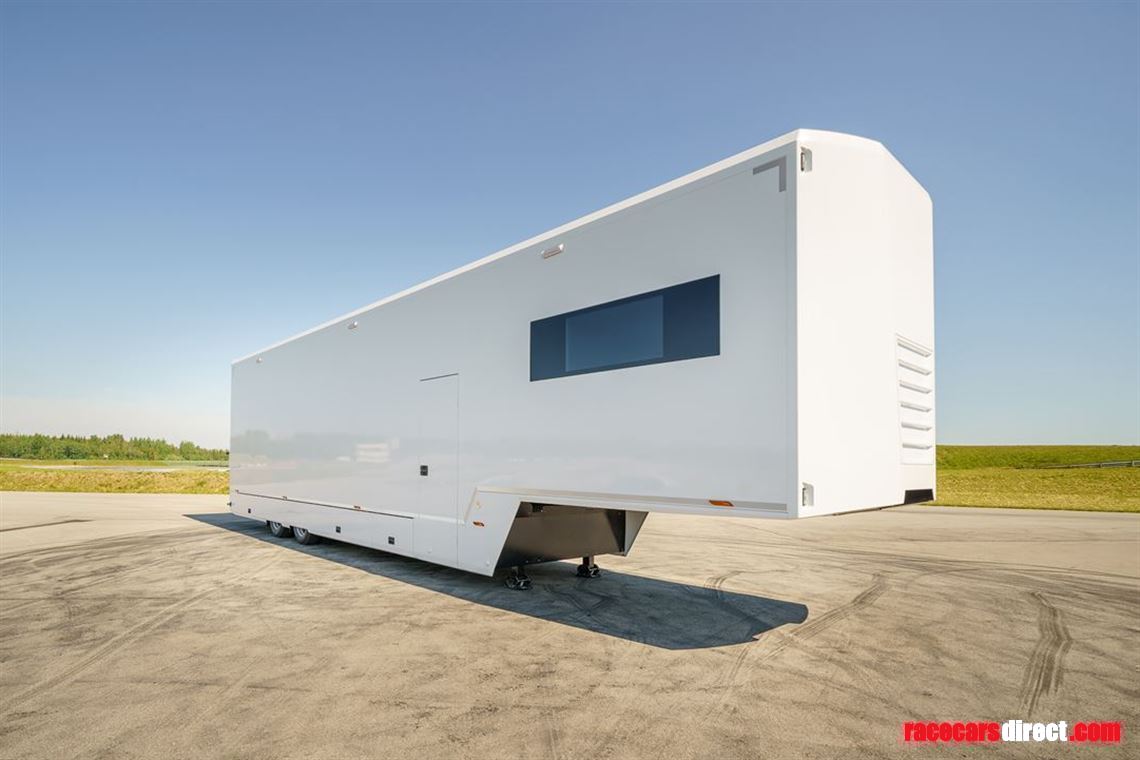

This is an example of PRO:H2:CARRIER trailer delivered to a customer in custom configuration. The trailer has full floor adjustable deck across full trailer length. The gooseneck area is equipped with windows and can be used as a rest or dressing area during the race events.

Please contact us if you are interested to replicate this project or to have your unique requirements designed and implemented.

PRO:H2 COACHBUILDING

• Step frame chassis with dual tire SAF axles, air suspension, disc brakes
• Wabco brake system with ABS
• Michelin, Goodyear or similar premium tires, 8x 265/70 R19.5  (spare wheel optional)
• Body fabricated from 60 mm GRP sandwich panels with polyurethane filling
• External dimensions (LxWxH): 14000 x 4000 x 2550
• Internal height: 3000 mm
• Internal width: 2440 mm
• Loading height: 960 mm
• King pin height: 1140 mm
• Stella Shapeline design with rounded front wall

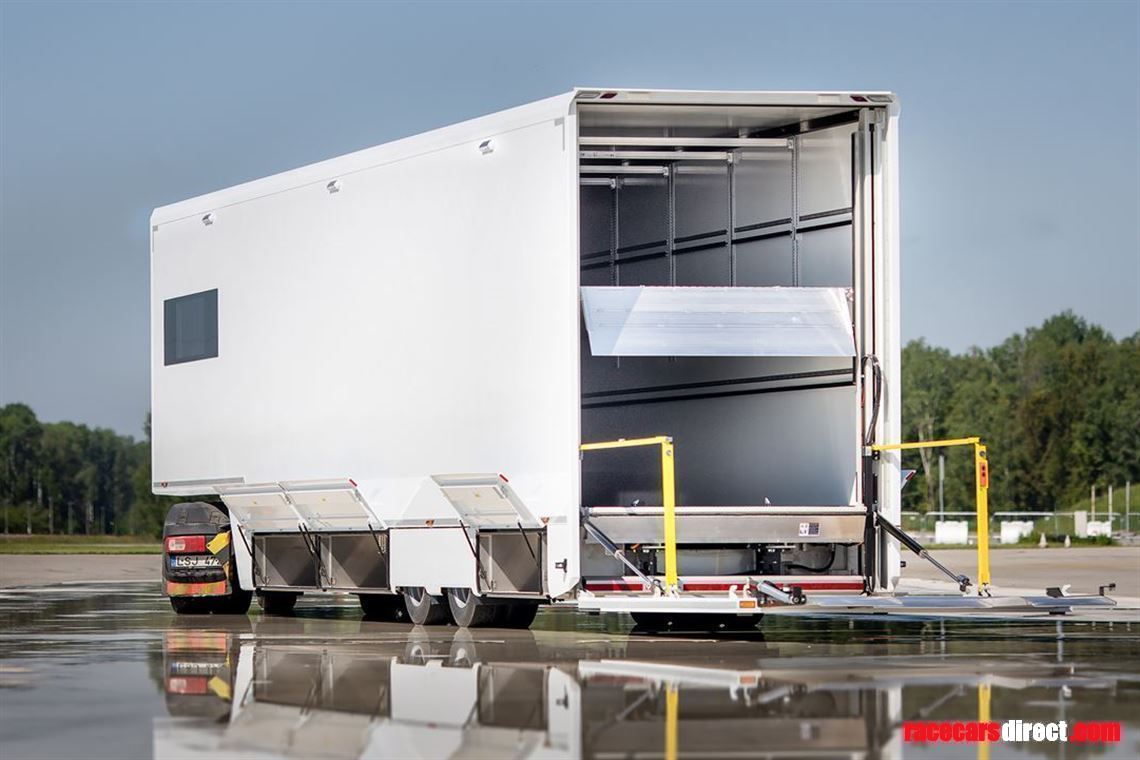

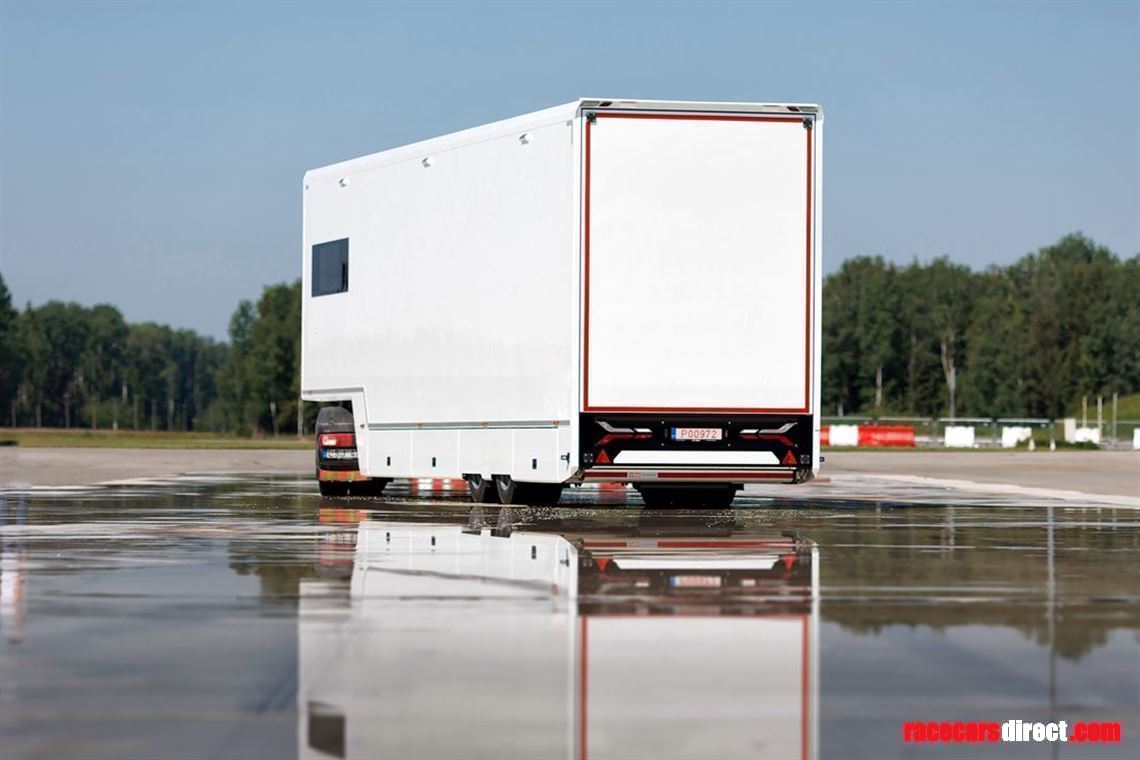

• Dhollandia 2500 kg tail lift with integrated tail lights and self-folding safety delimitations
• Length: 3500 mm plus 1100 mm folding extension
• Lift entry width: 2160 mm
• Hella Shapeline lights per EU regulations
• Color White RAL 9016

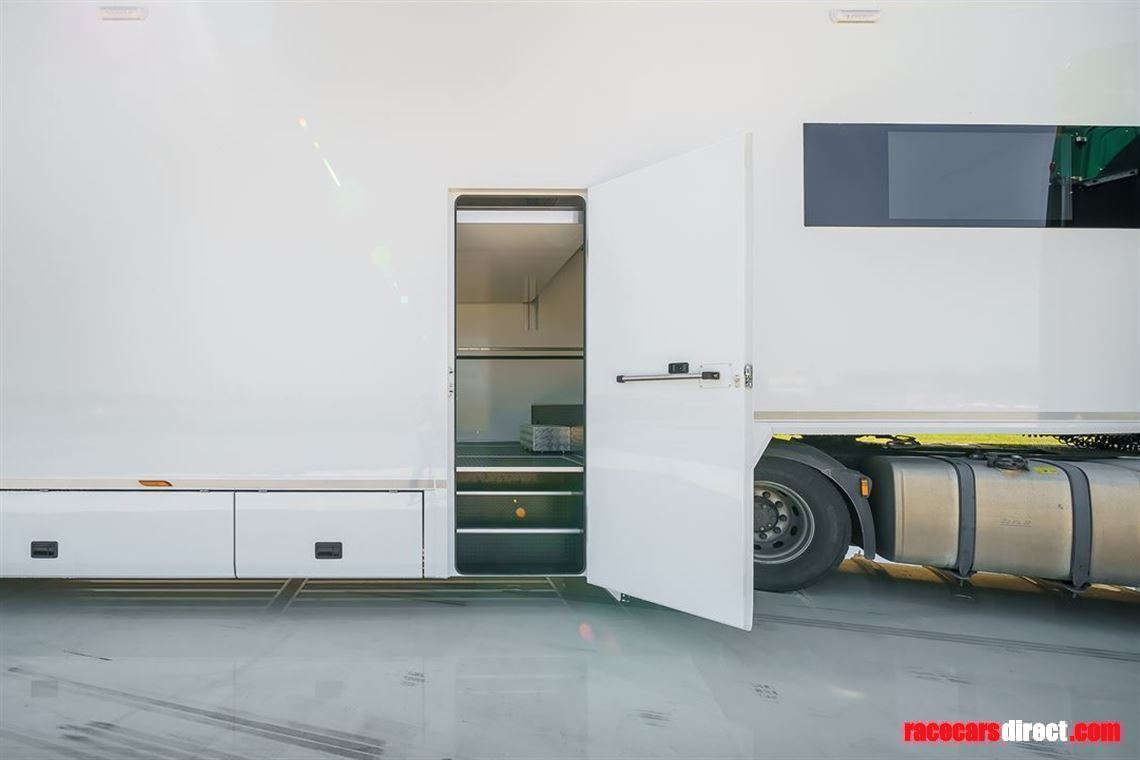

• Exterior doors, lowered, entrance width ~800 mm

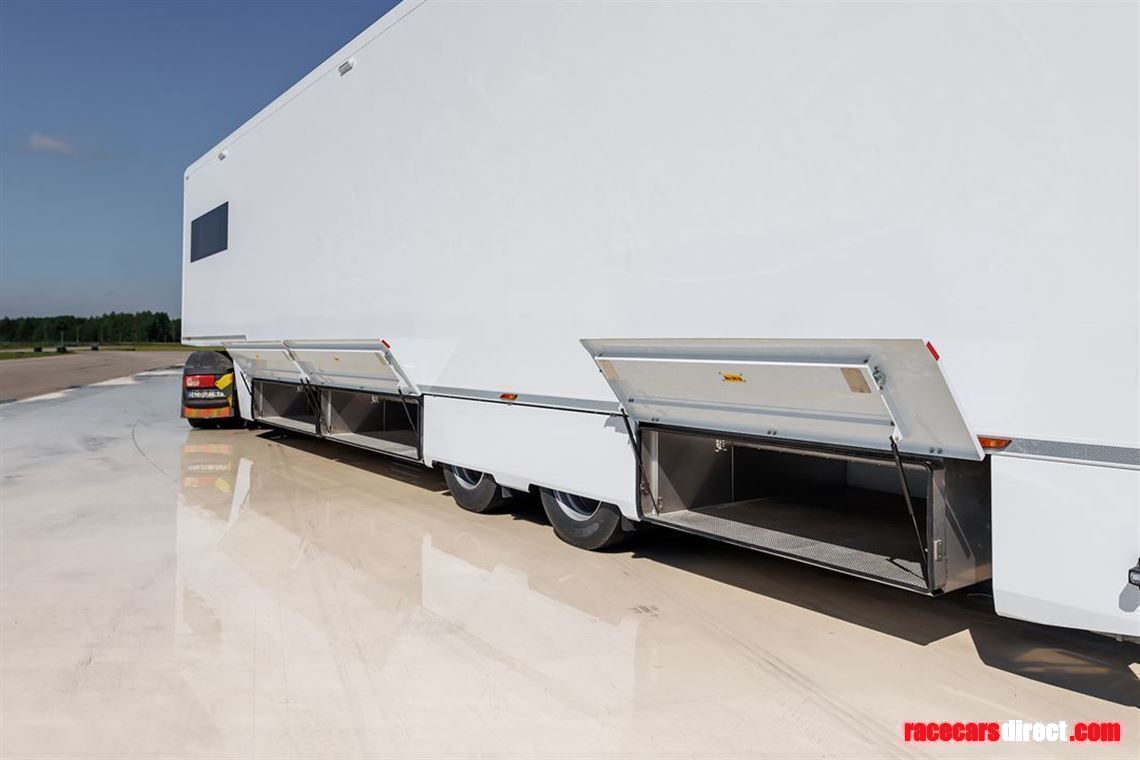

• Underbody compartments made of diamond plated stainless steel sheets, with gas strut supported aluminum covers with key locks, dust and waterproof seals

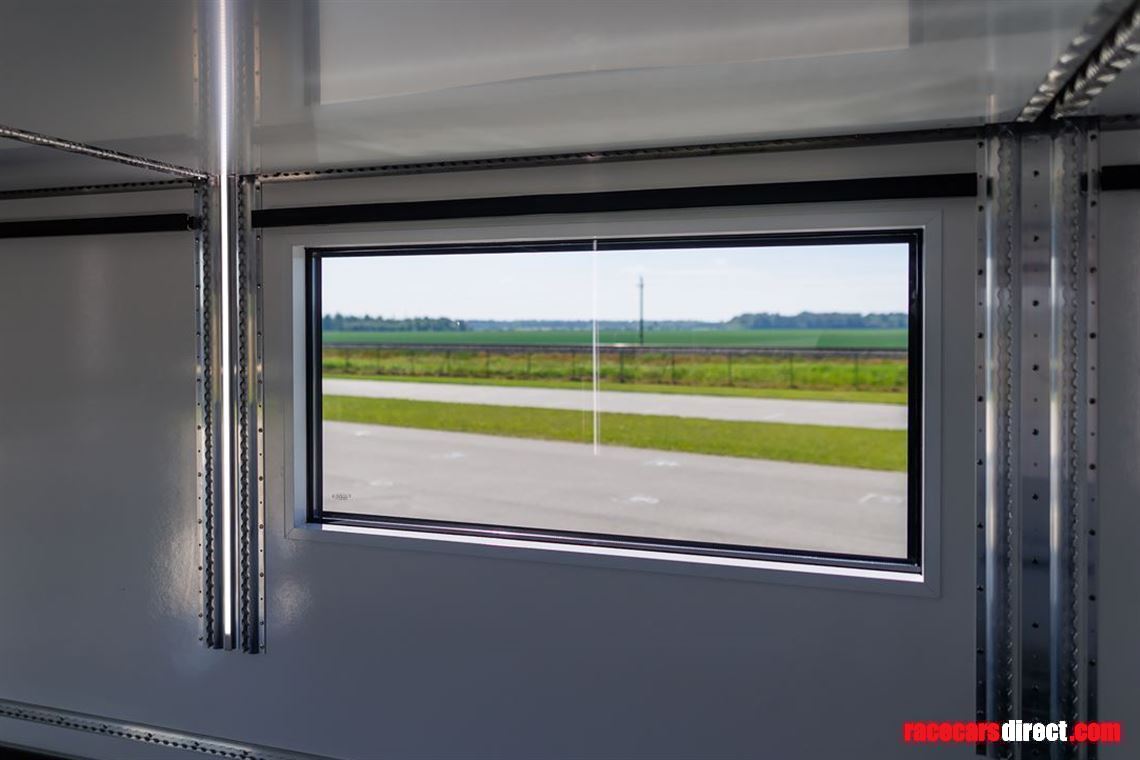

• Window (automotive glass R43), fixed, double glass, decorative glass finishing outside
• Internal gooseneck access step
• Cover for staircase
• Exterior ambient lights (3+3+2), Labcraft Led Scenelite
• Interior front wall finishing with decorative aluminium composite panels

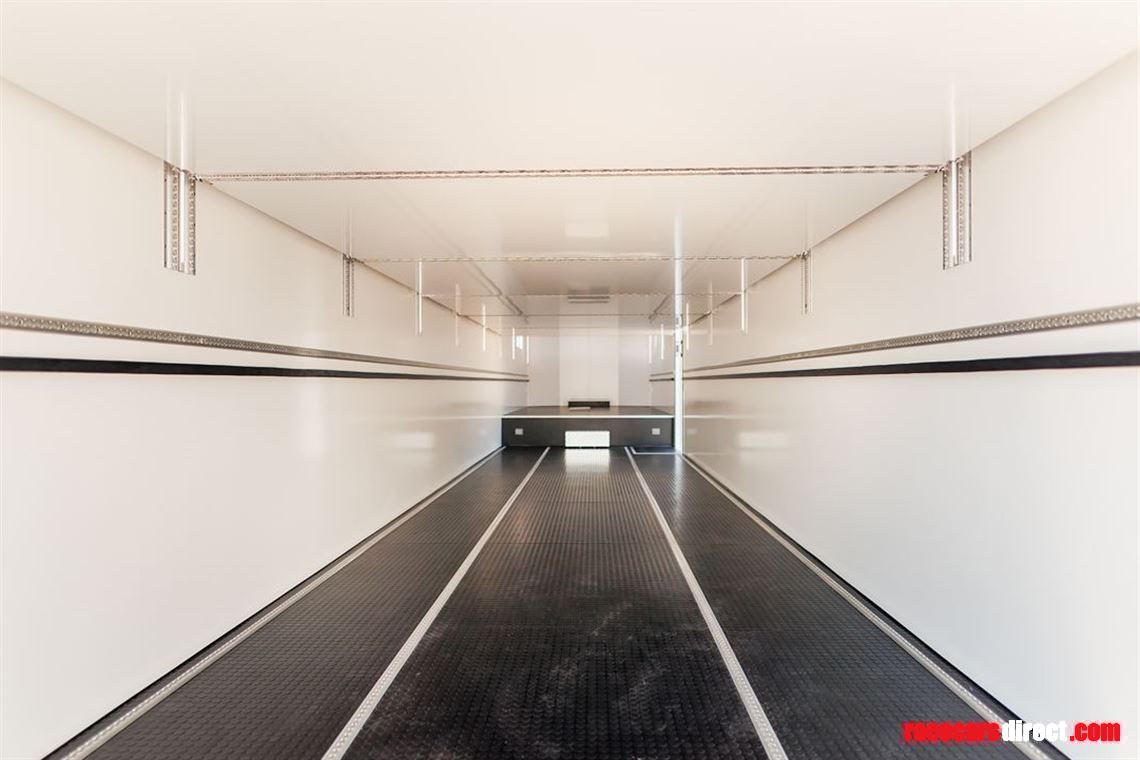

Garage area

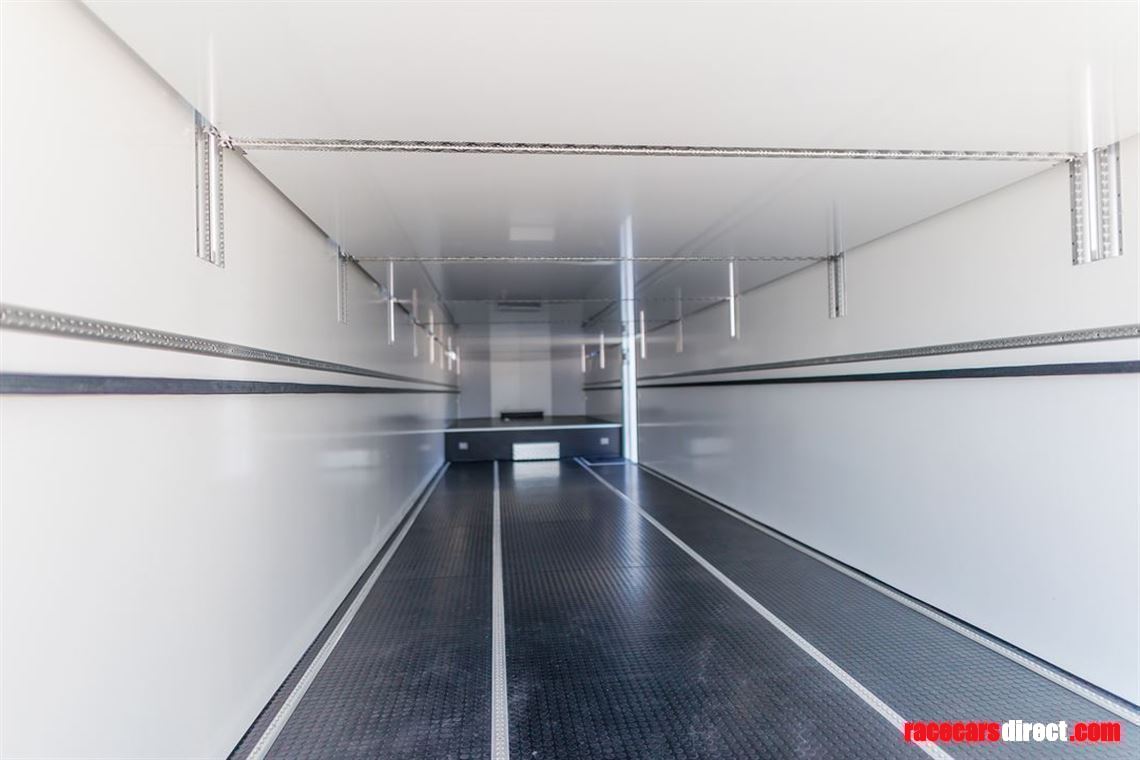

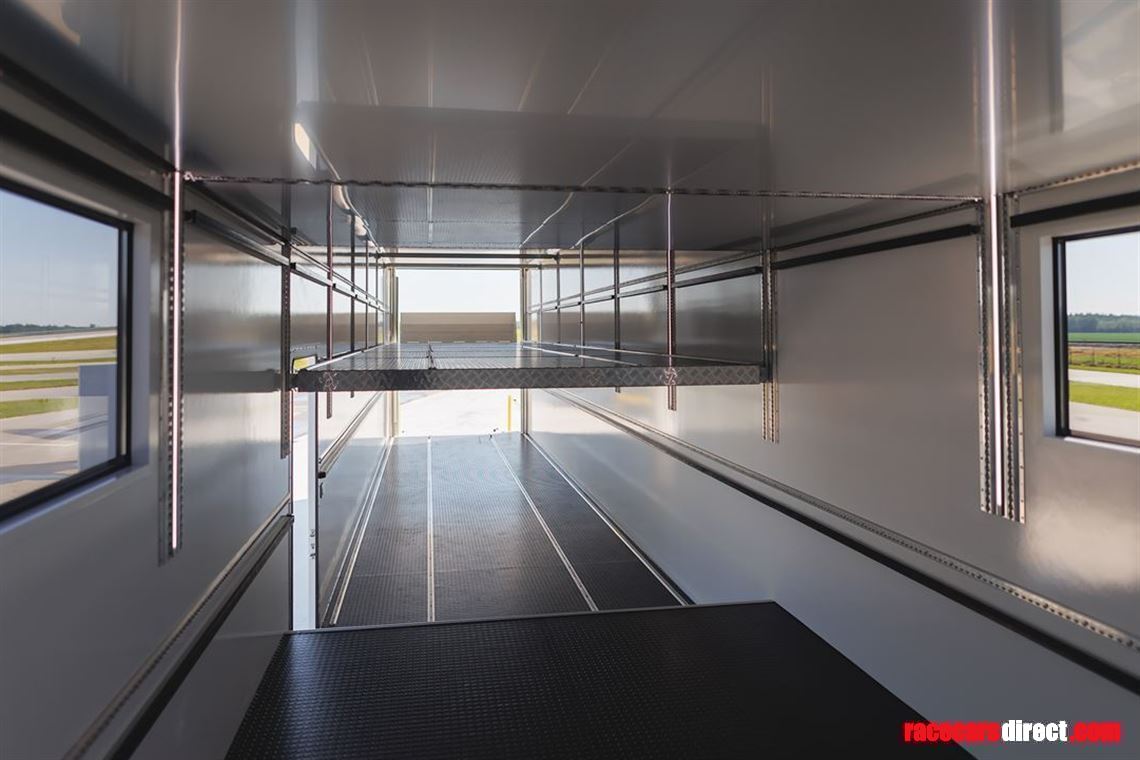

• Manually adjustable 2nd car deck, 8 individually adjustable sections across garage length, full floor configuration with PVC surface, four rows of captive track load locks
• Main floor covered with non-slippery PVC surface
• Captive track load locks, floor integrated, 2 lines per garage length, total 2 sets
• Protective rubber lines on walls, two sides, two decks
• LED lighting integrated into the deck wall rails
• Power sockets, 8 units (Schuko type)

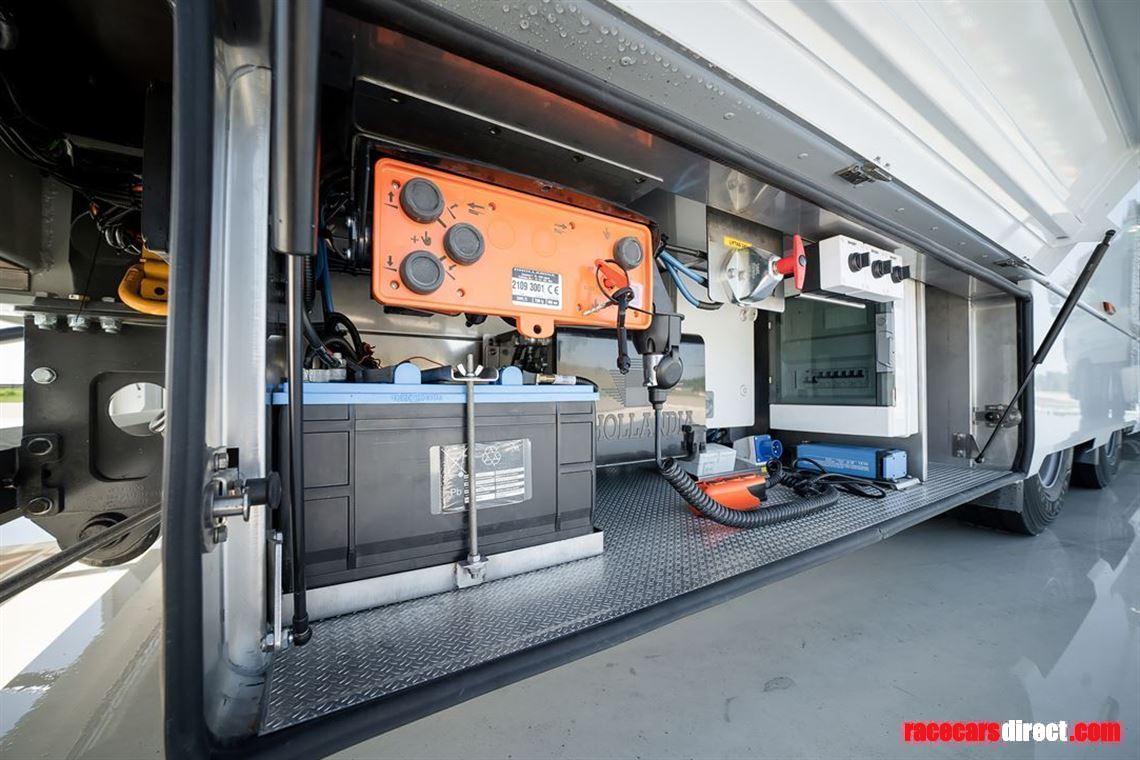

Electrical system

• CEE 3 pole 32A 230V and 400V power input with switch
• Power distribution, fuse box
• 2x 170Ah AGM batteries
• 220VAC, 80Amp smart battery charger
• Battery monitor
