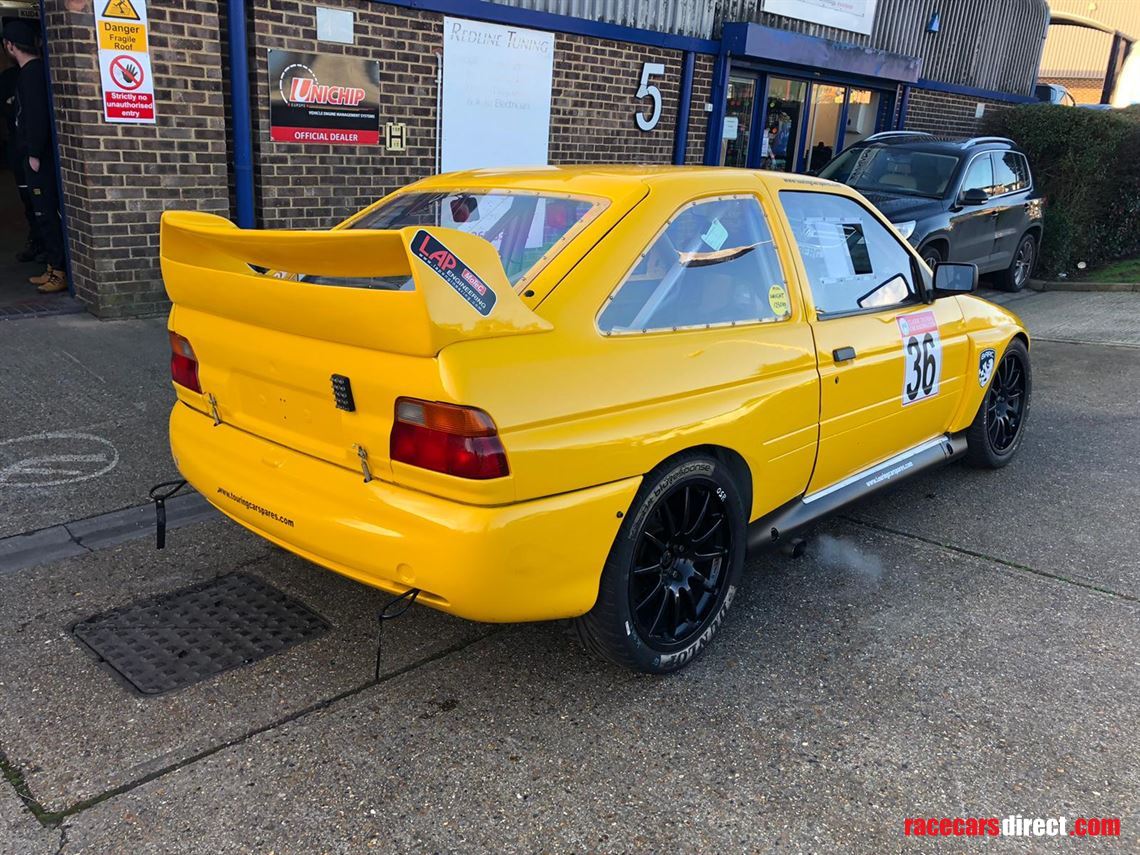

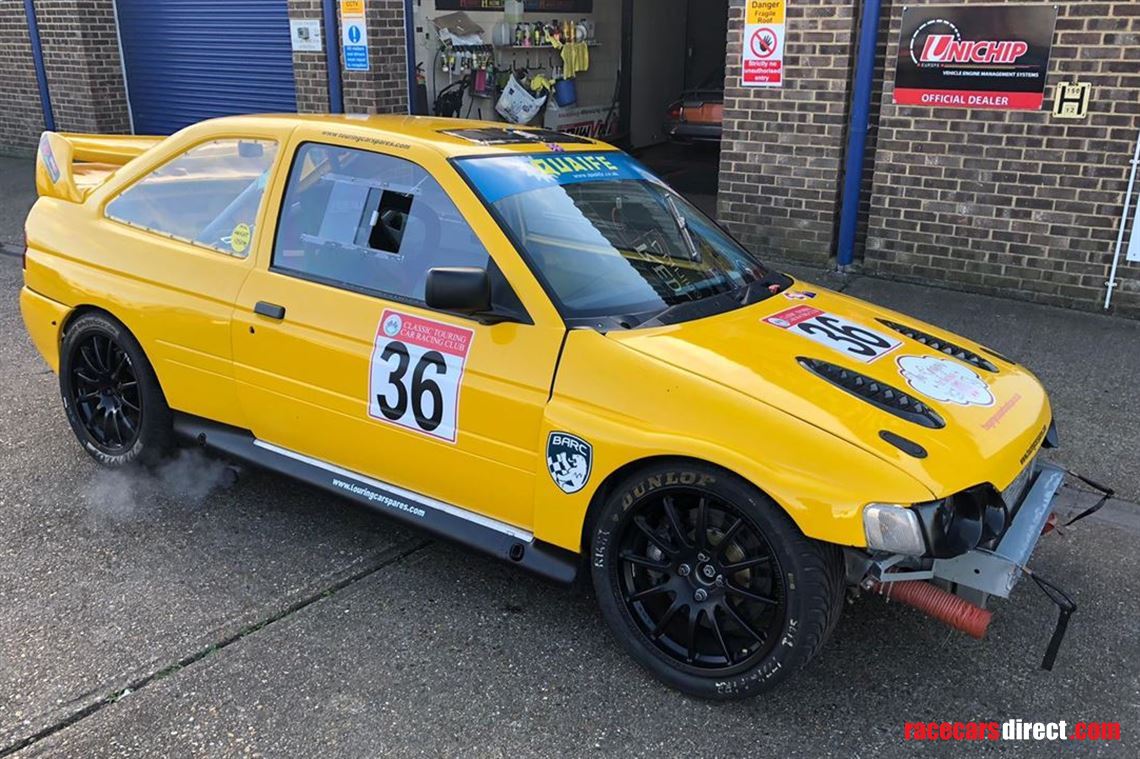

WRC Escort Cosworth - Full Track Spec
Ex Time Attack WRC Motorsport Escort Cosworth Shell fully Rebuilt by Steve Stripe (Ex Works) / Redline Tuning (Rich Berg)
Huge spec with brief outline as follows, please call for more detail as too much to list:-

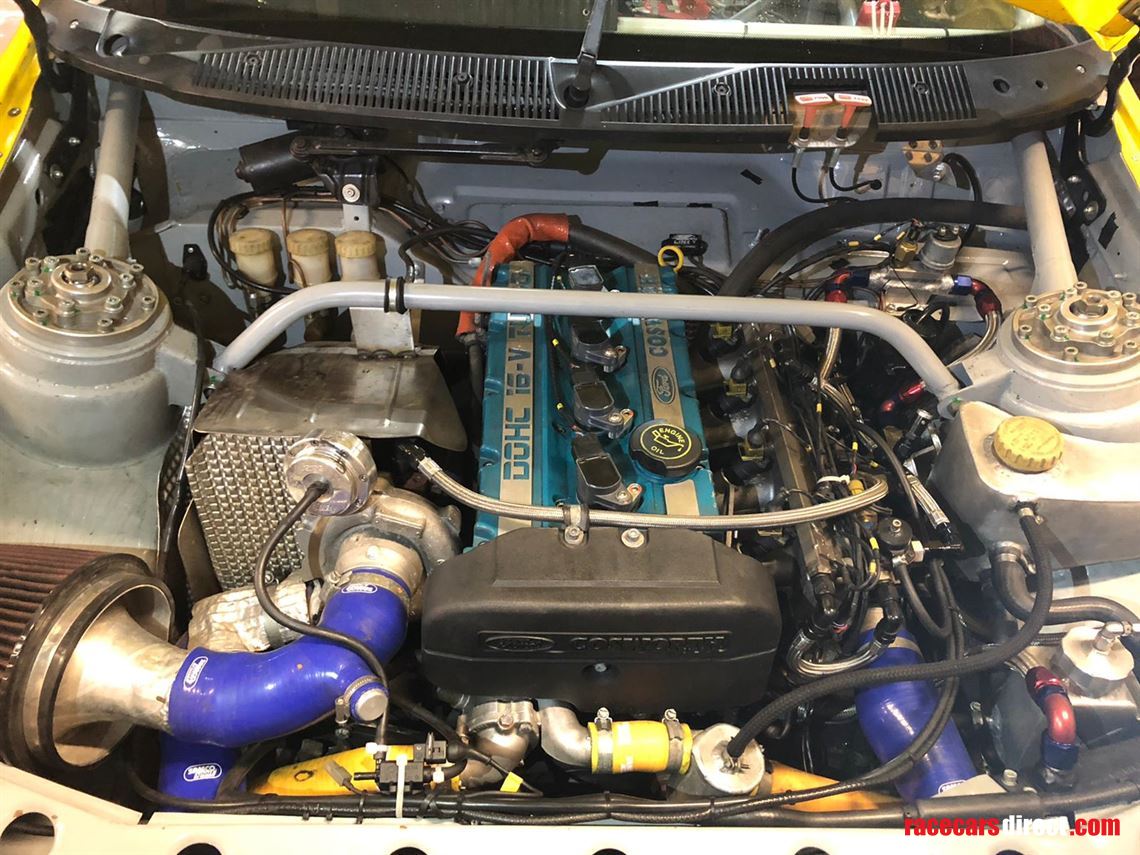

Field Motorsport built YB with Group A lube system, remote filter with oil cooler. Running Monsoon Link ECU with Datalog and 3x boost settings (2x dry,1x wet progressive to 1.8bar), running 353bhp / 350 lb ft, Coil on plug system, Hand made specific race loom built by "spotter" of A+R. Bernies Blowers T34 on 2wd manifold.
6spd Pete Doughty individual built Straight Cut Big Tooth MT75, strengthened throughout including thicker main casing and bellhousing, conversion to hydraulic AP 6 paddle single plate clutch.

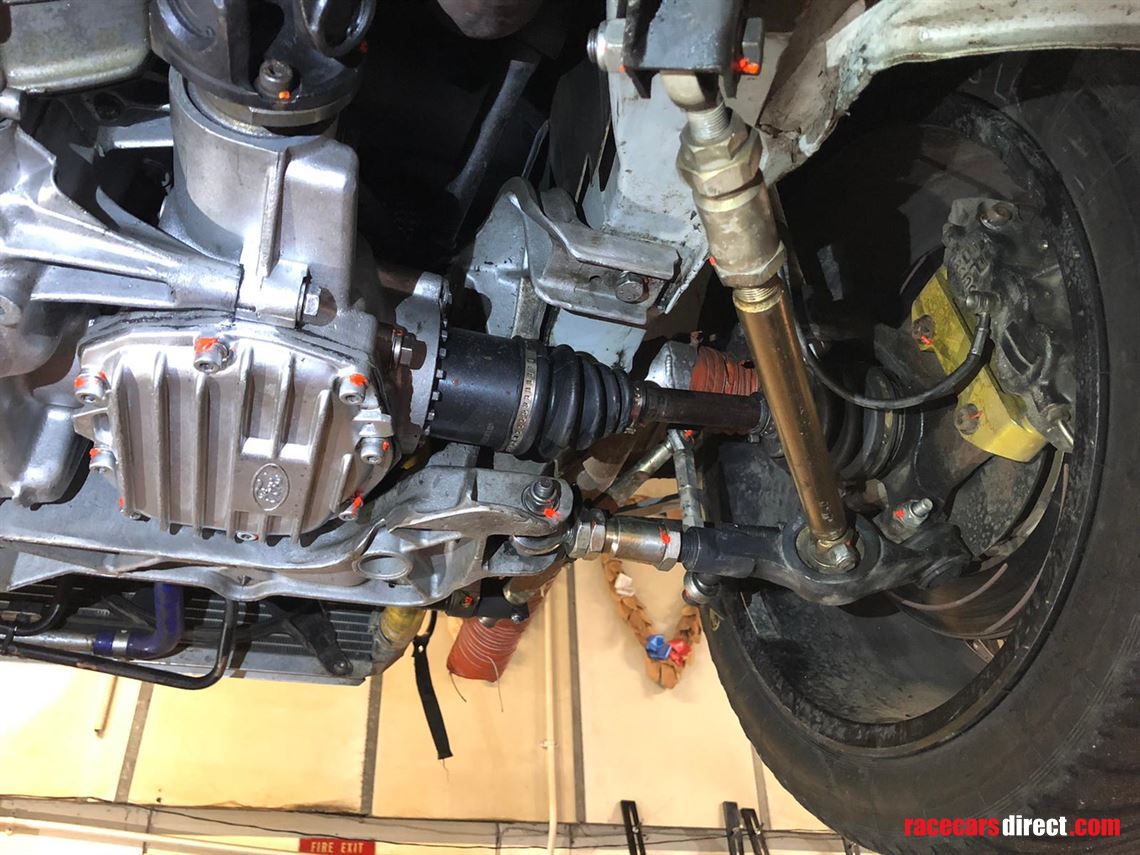

Harvey Gibbs fully adjustable 6 degree rear axle with bladed fully adjustable front and rear roll bars, proflex fully adjustable suspension all round. 3.6 Rear diff / Quaife torque bias front diff at standard ratio with plated housing.
Standard rear shafts/CV's, Standard front shafts with handbuilt CVJ's incorporating ceramix ball bearings, inner cups strenthen welded.
RS500 Radiator + fans, RS500 Intercooler, rebuilt rack.
AP 6pot front brakes on Questmead pads, 4x4 rear callipers on Ferodo DS3000 pads, AP 330mm front discs, performance rear discs with line bias in drivers reach, braded lines throughout.
Shell ReBuild - Fully sandblasted, full inside out repaint, fully welded multi point roll bar, XWorks turret brace. Carbon/fibreglass bonnet/doors/wings. All windows perspex apart from glass windscreen.
Fuel - Individual handmade enclosed 40lt tank under rrar floor, swirl pot, 2x pumps, all lines braded throughout. Running pump Shell optimax.
Raced periodically since completed build end of 2017.
Prepped miticulously by Redline Tuning (Essex), Geo checked and adjusted each meeting including full nut/bolt check.
Comes with a package of spares including 3x sets of wheels and some spare used tyres, all Dunlop and Ex BTCC.
Delivery can be arranged and overseas shipping also available at additional cost.
Serious buyers only please as no time for dreamers and thanks for your interest.
