Description:

For sale on behalf of our client this car has been in build, by ourselves at Geoff Steel Racing, for the past three years but  unfortunately has to go up for sale due to personal, medical reasons of the owner which means he will be unable to use it.

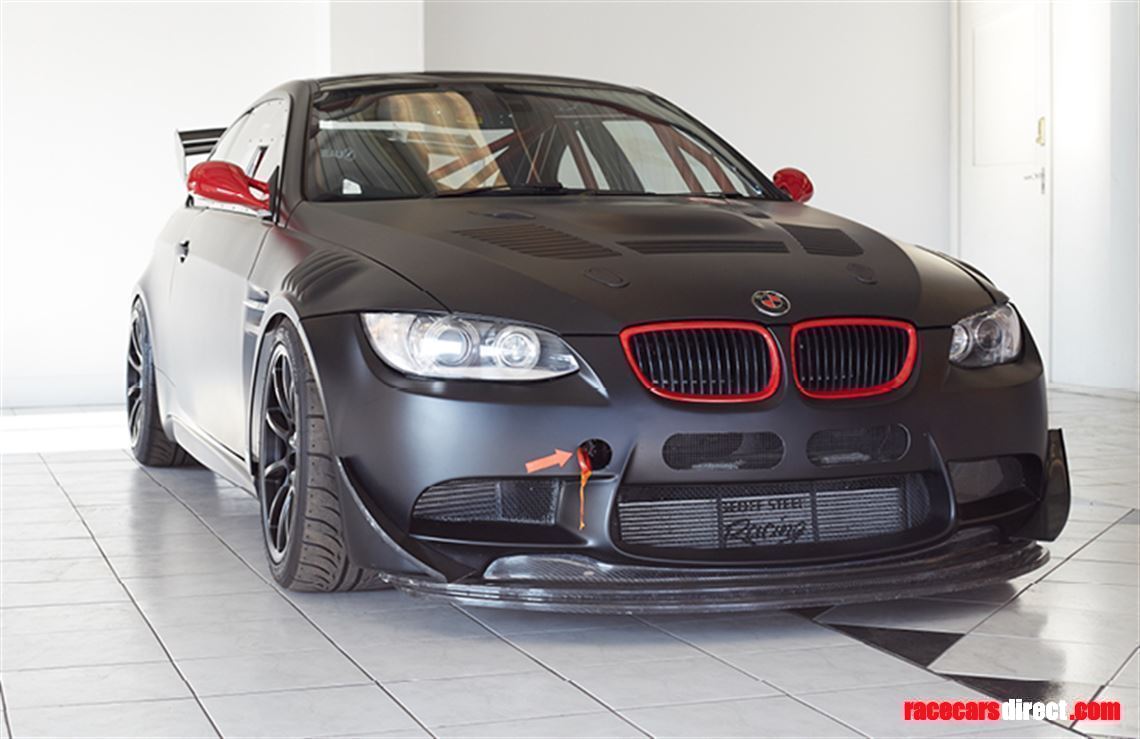

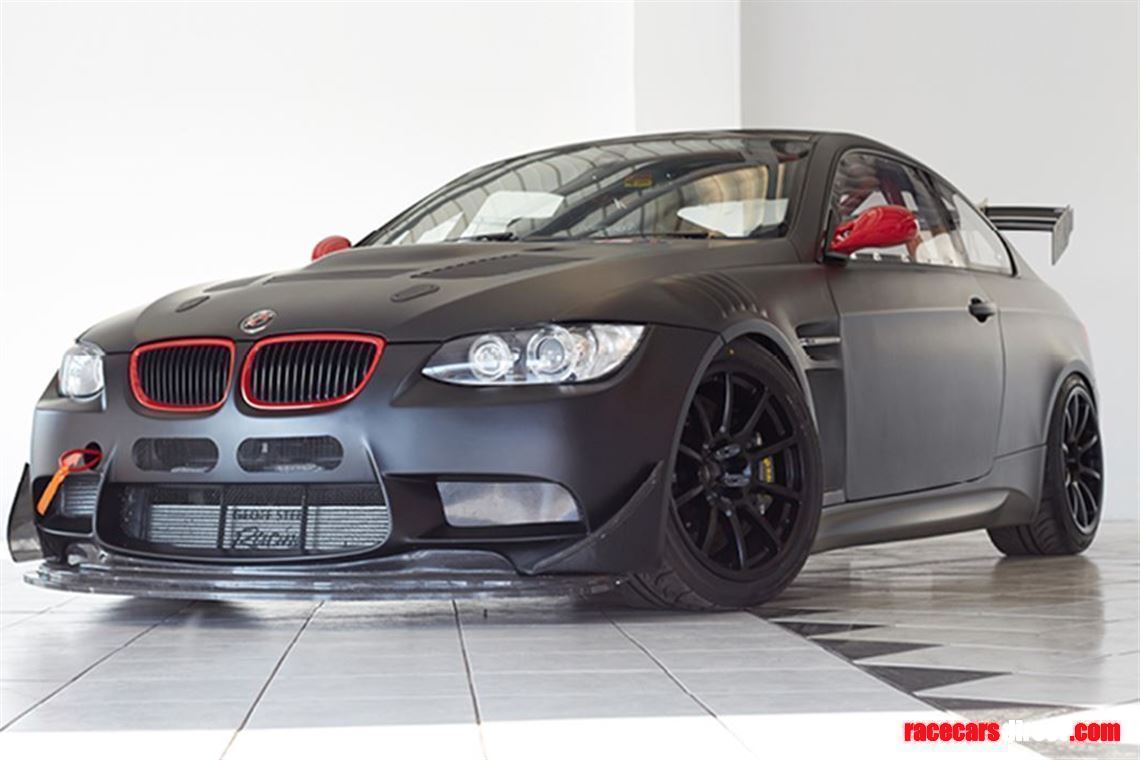

Built from an 11 plate, low mileage BMW E92 M3 road car this car has wanted for nothing. A very high specification as listed below:

Engine

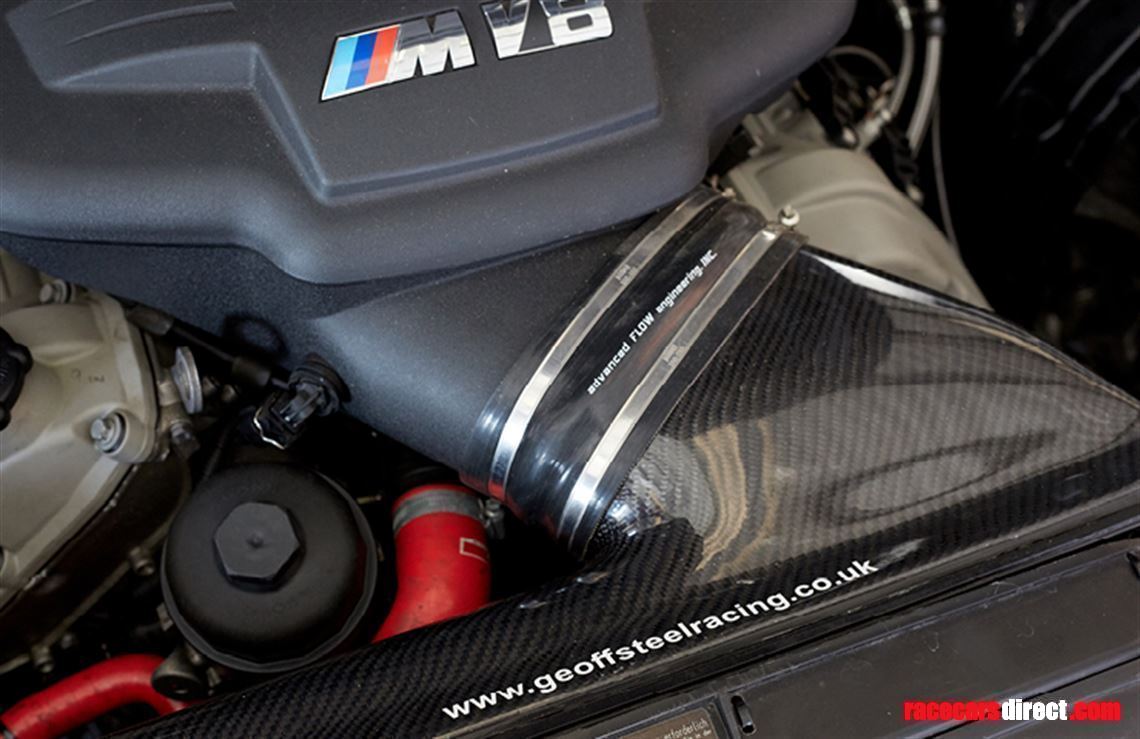

•Geoff steel racing carbon fibre intake

•Schrick medium lift cams 284 intake/exhaust

•VAC Motorsports oil pan baffle kit

•ARP rod bolts

•BE rod shell bearings

•A/C Compressor and EGR delete

•American Racing Headers long tube manifolds heat wrapped with custom centre and end section

Drivetrain

•MFactory (YCW) dry carbon fibre drive shaft

•Geoff steel racing lightweight drexler style 4.1 no preload 6 plated diff

Brakes

•AP Racing cp6080 quick pad change front Calipers

•Pagid rs29 pads front rs19 rear (cp6210D54 (pagid 2557) front)

•BMW M3 GT4 front calipers brackets and bells

•Brake Disks, AP racing 378x36mm cp5772-206 (8/9) RA front

•AP racing disc bobbin kit

•Standard rear brake discs and calipers

•Goodridge front and rear red brake lines

Body

•AP Racing air jacks all plumbed in to rear window lance point

•Templar Racing Lexan rear window & 1/4 Windows 4mm with hard coating and driver side sliding opening

•Cartek rear Rain light

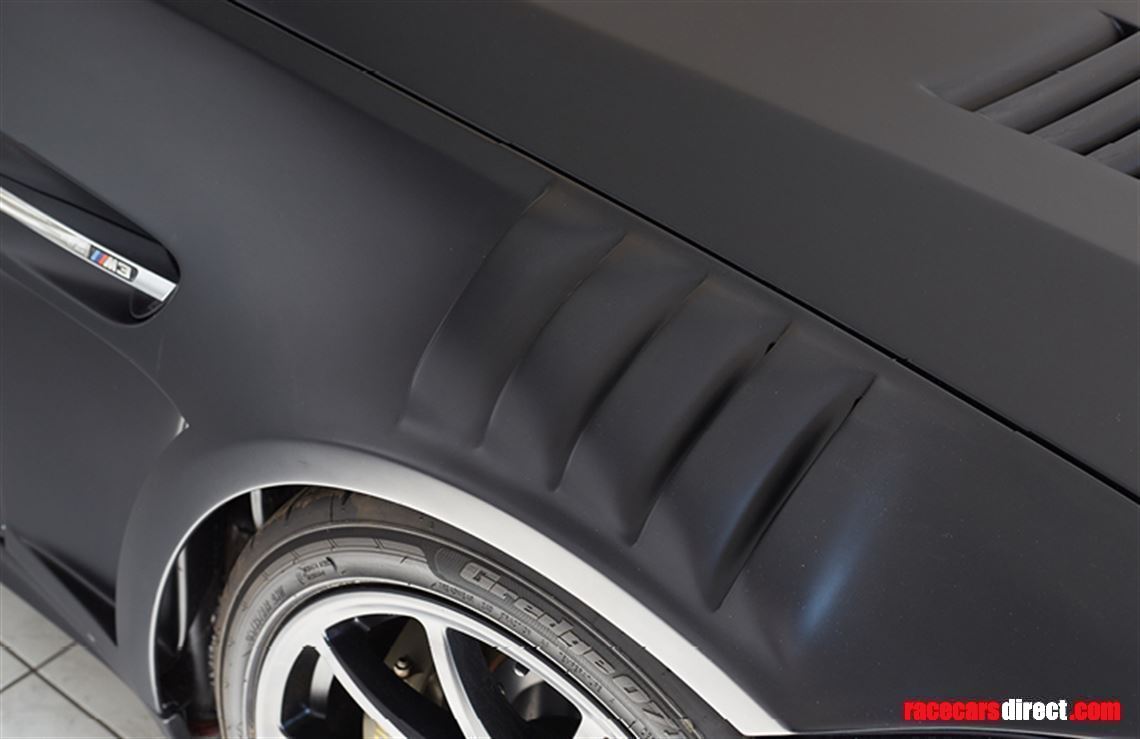

•Flossman racing vented front wings

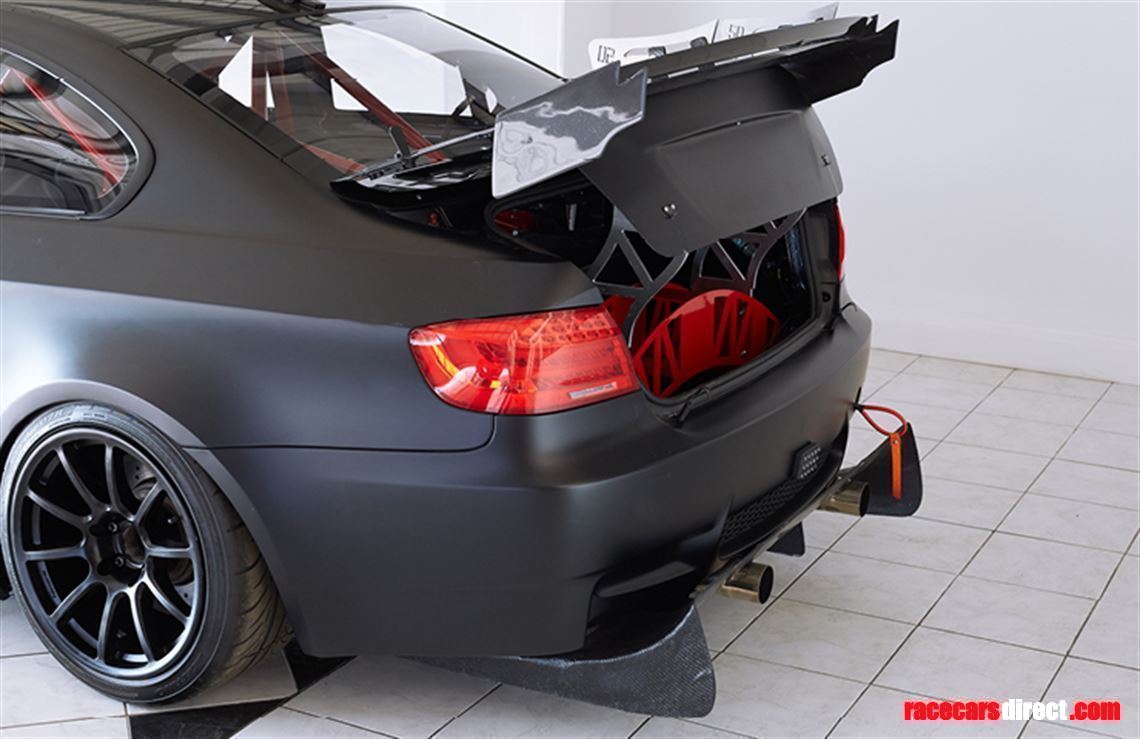

•Geoff Steel Racing carbon fibre single skin boot

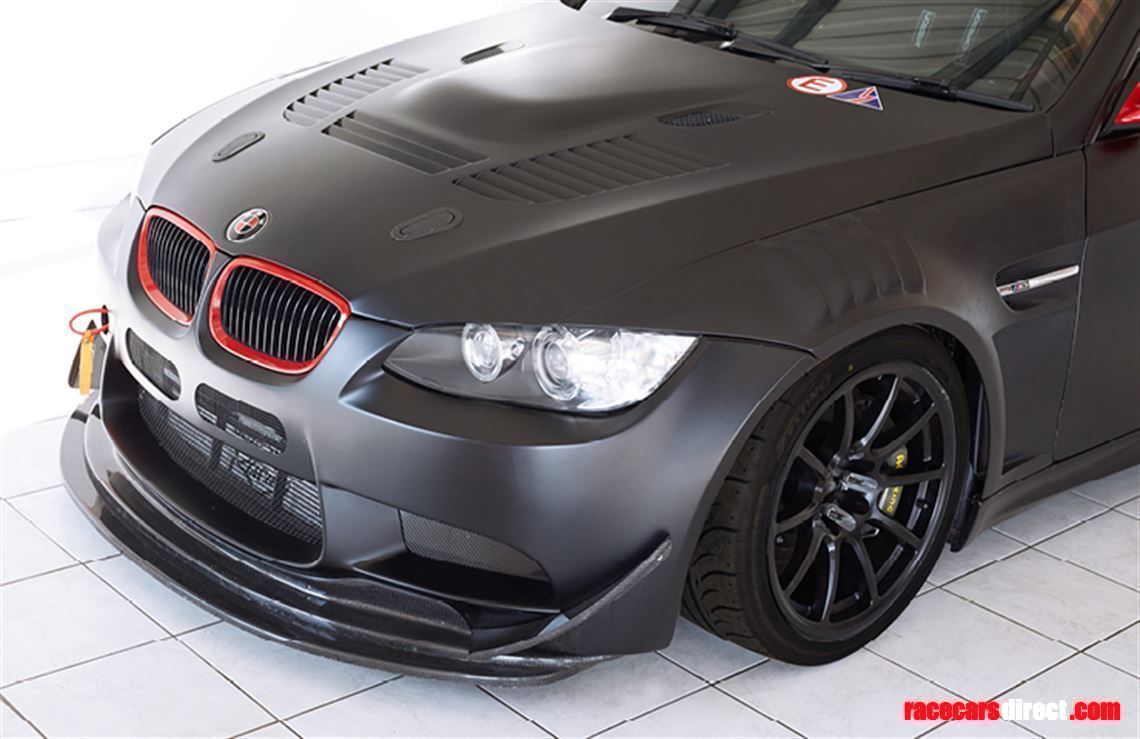

•Geoff Steel Racing carbon fibre adjustable front splitter

•Geoff Steel Racing carbon fibre canards

•GRP lightweight doors

•Motorsport 24 vented carbon fibre bonnet

•Ricky Evans Motorsport heated windscreen

•Aeromotions plus flush catches bonnet and boot

•Frozen black (satin) body colour

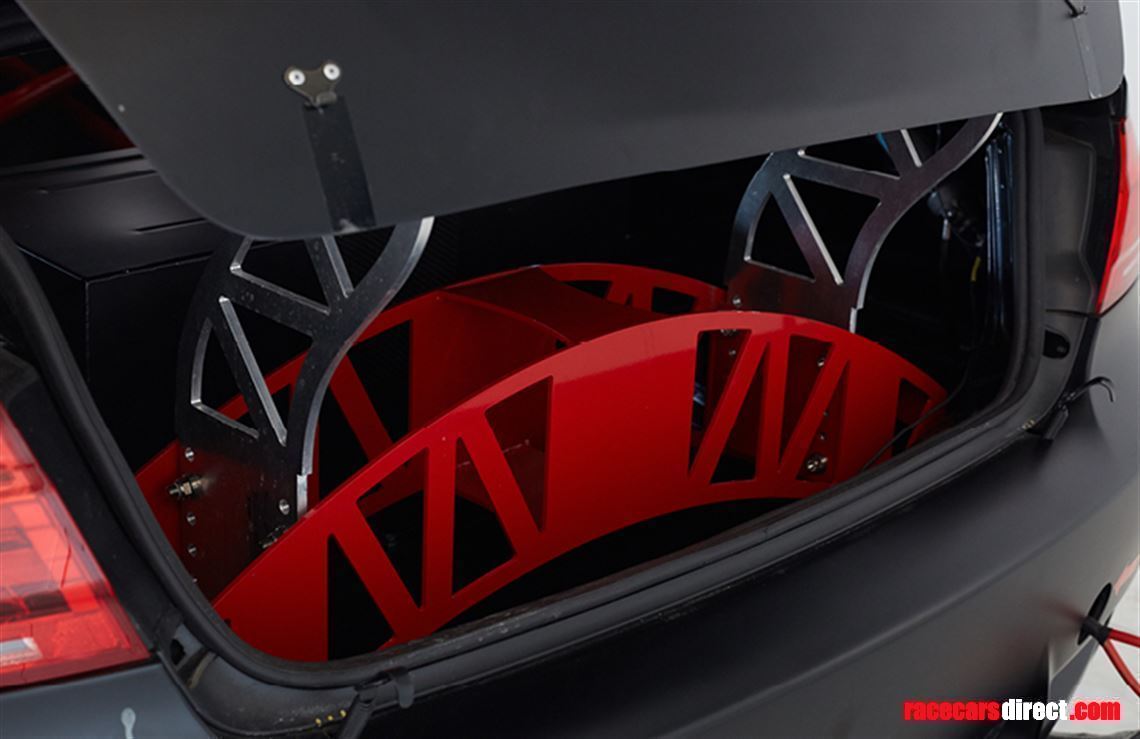

•Ps designs in boot chassis wing mount in red

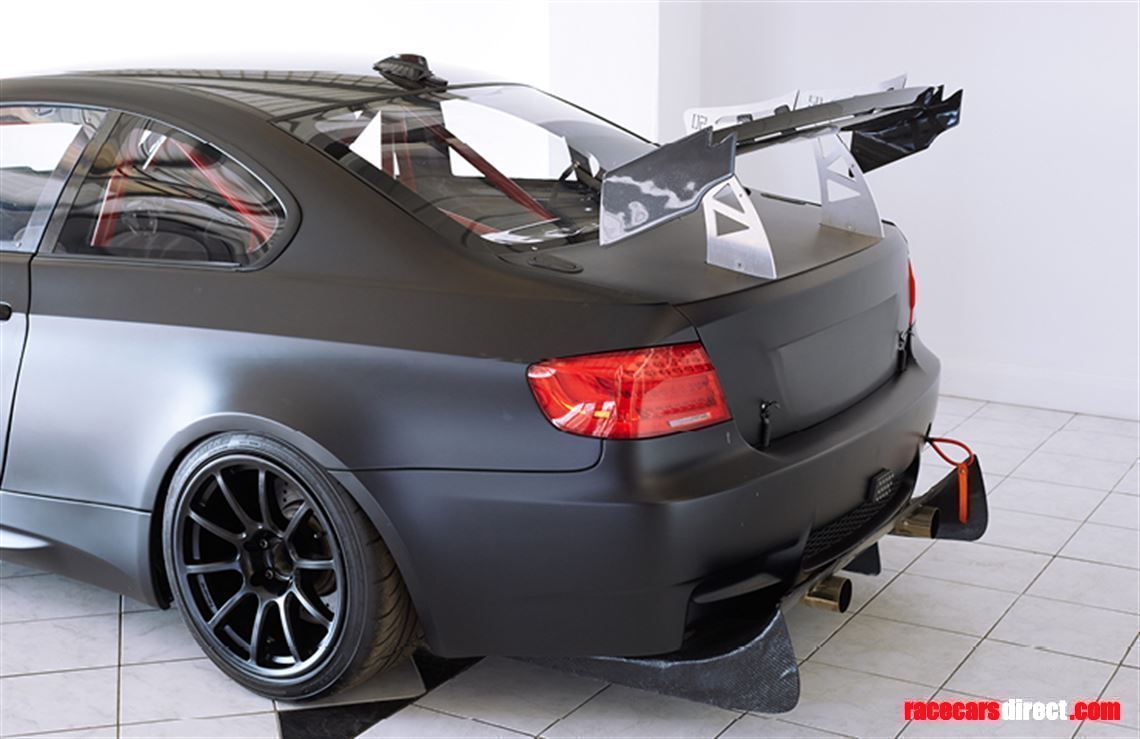

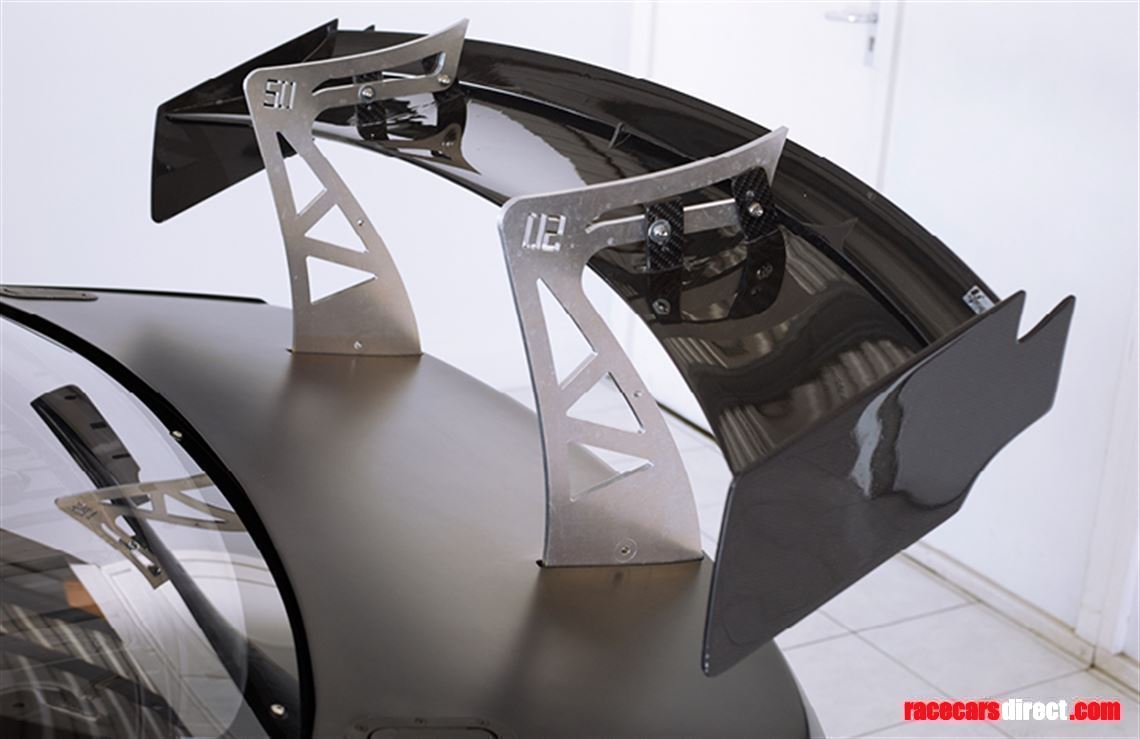

•Karbonius carbon dual plane rear wing with gurney flap

•Denibbed chassis

Wheels

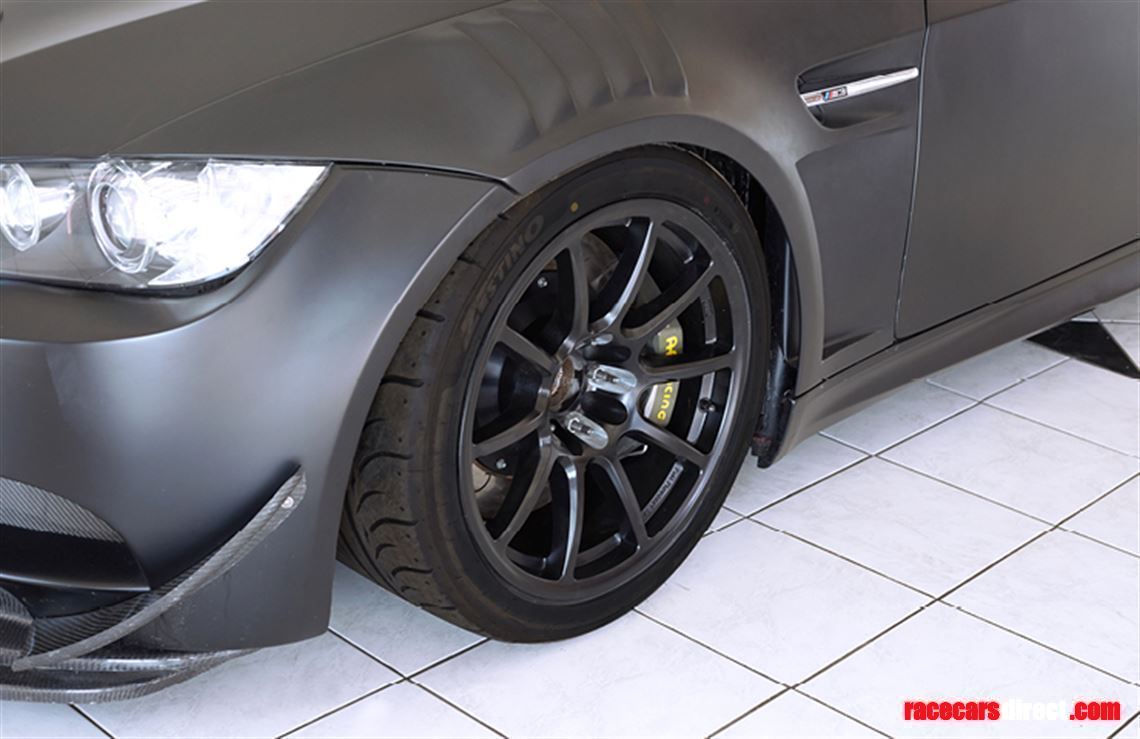

•Braid fullrace AC wheels 10x18 et20 front 11x18 et13 rear painted satin black

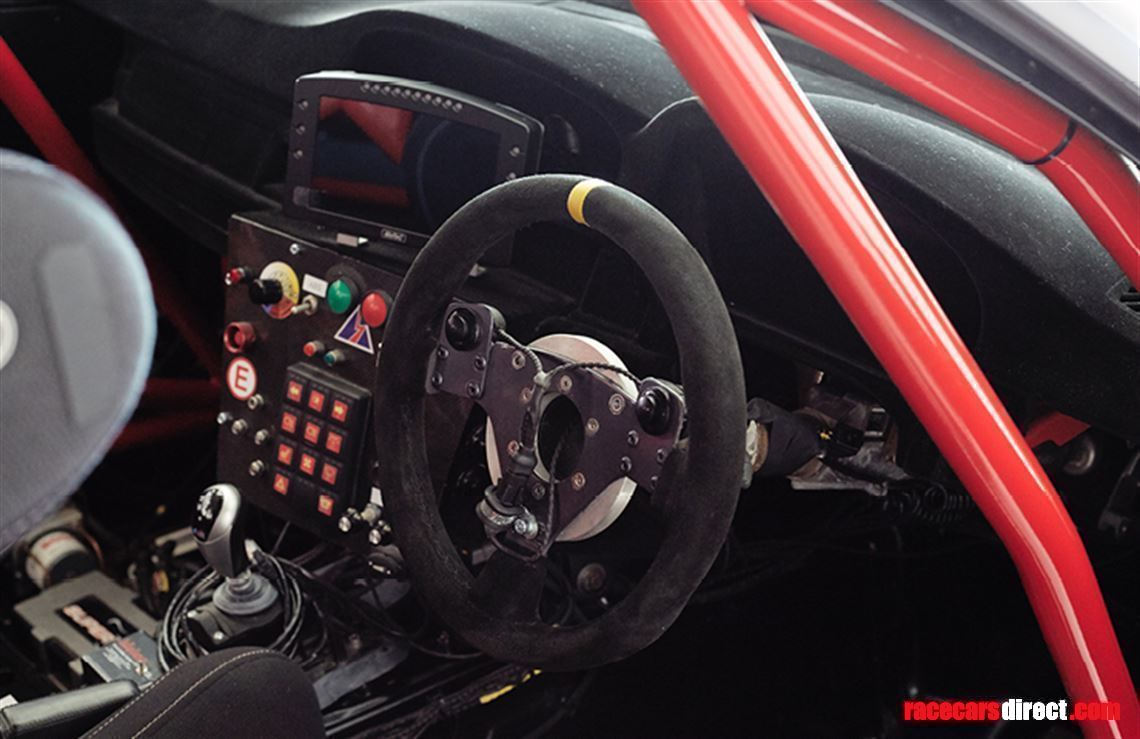

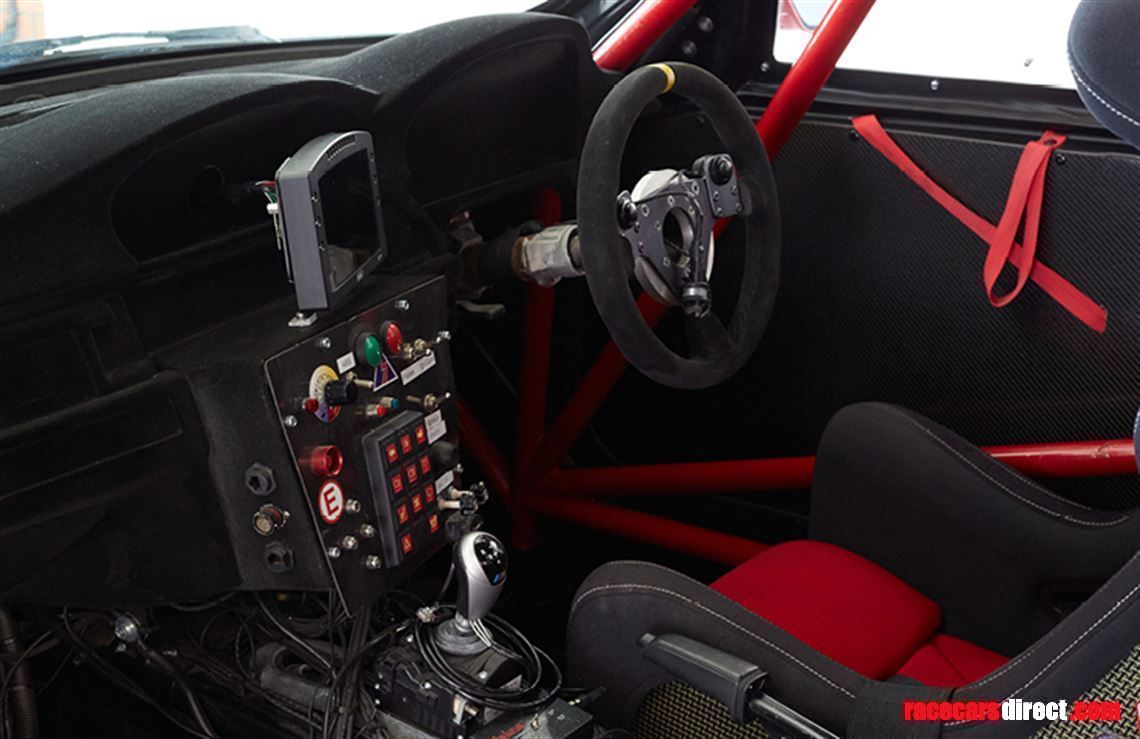

Interior

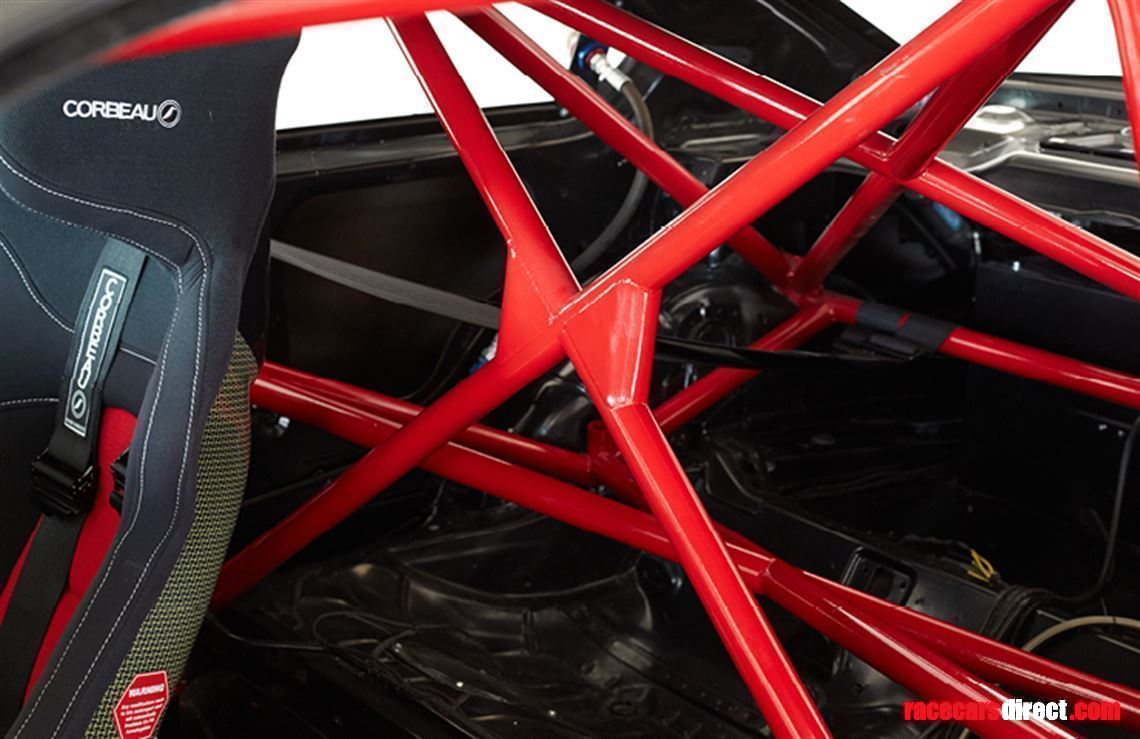

•Full custom FIA roll cage with blue book painted red

•Drivers seat on FIA runner kit

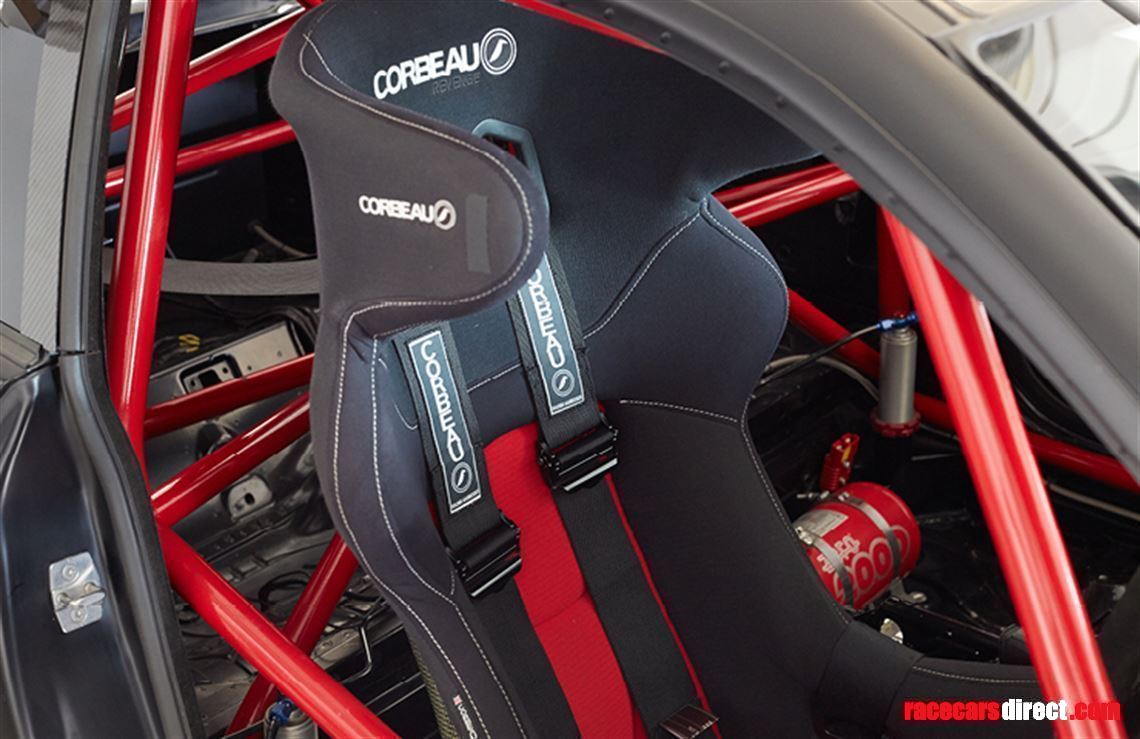

•Corbeau Revenge 3 excel seat, red version

•Corbeau Ultima 2006 black edition 6 point harness

•Lifeline steering boss quick release, touring mount welded in version

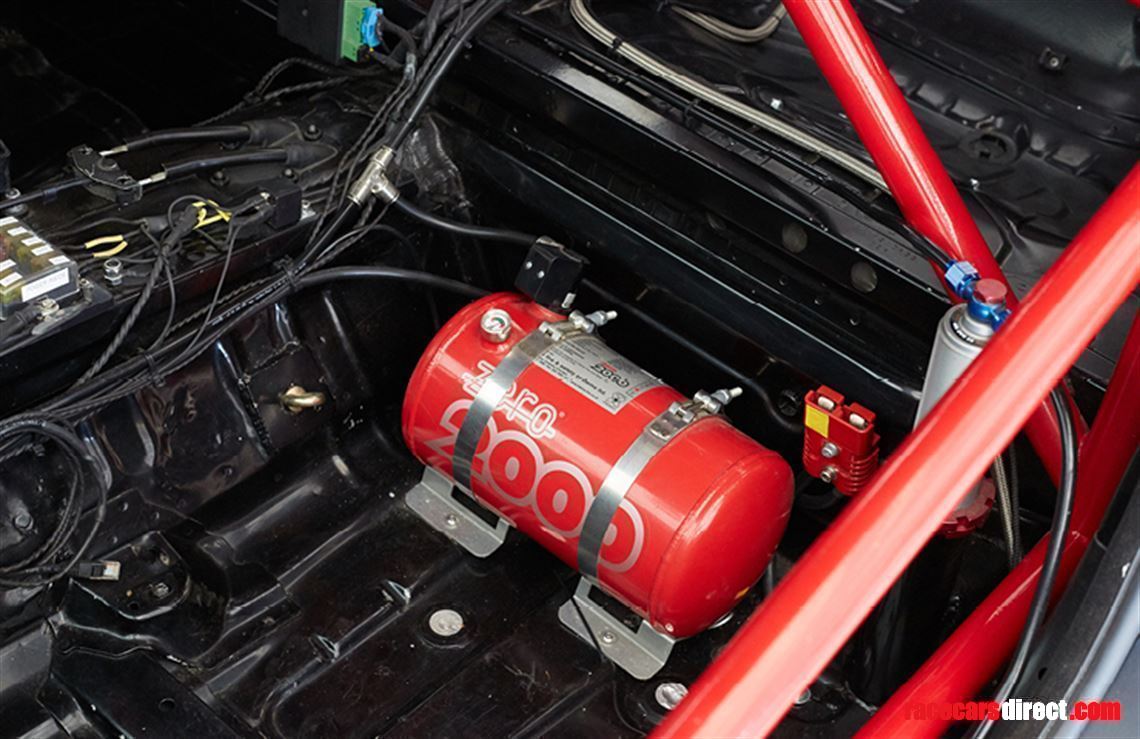

•Lifeline zero 2000 alloy, electrically operated fire extinguisher system

•Flocked dash with carbon inserts

•Demon tweeks lightweight heater

•Longacre 14 inch convex mirror and short brackets

•OMP Trecento steering wheel in suede 300mm

Fuelling

•Radium Engineering swirl pot

•Radium Engineering pressure regulator

•Radium Engineering twin filters

•Radium Engineering fuel pressure gauge

•Radium Engineering heat exchanger and fittings

•Dual Bosch 044 fuel pumps with filter

•Staubli SPH-05 fuel sampling

•Custom Geoff steel racing fire wall

Cooling

•DO88 race radiator

•DO88 race engine oil cooler

•DO88 DCT cooler

•DO88 red hose kit

•A/C delete

•Mishimoto 10 inch race high flowfan

•Mocal diff cooler pump

•Setrab 13 row diff cooler

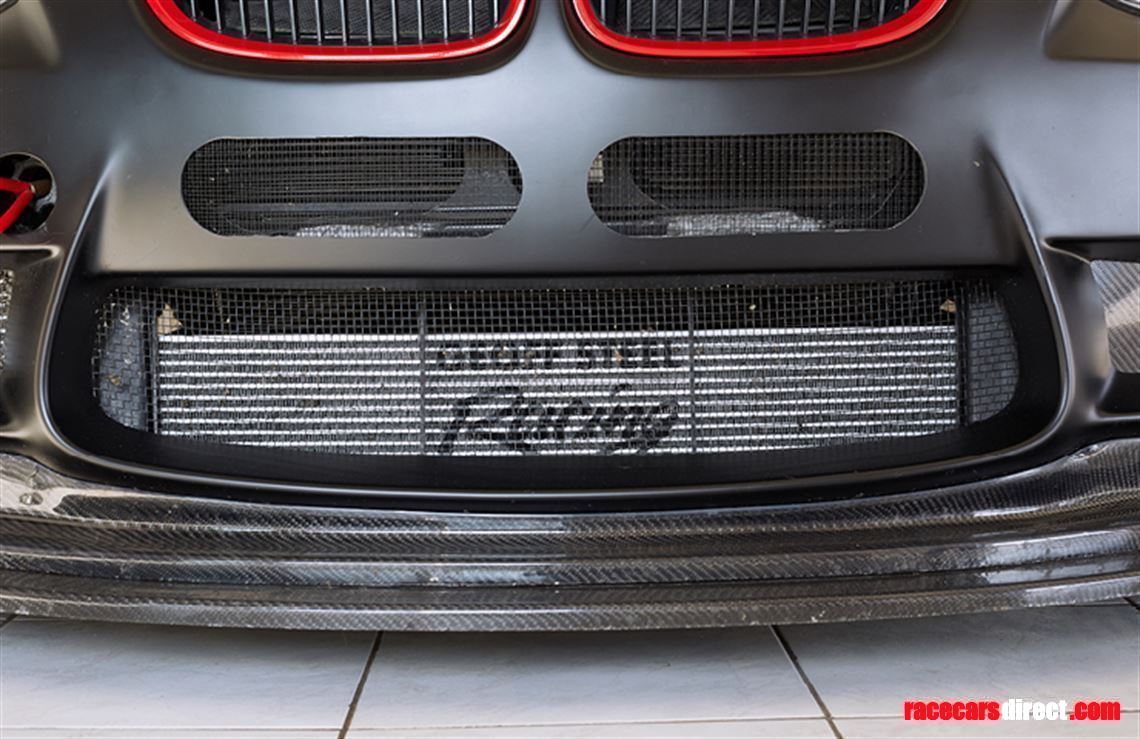

•Geoff steel racing slanted radiator setup for better cooling

Electrical

•Super B 20p Lightweight Race battery and battery box

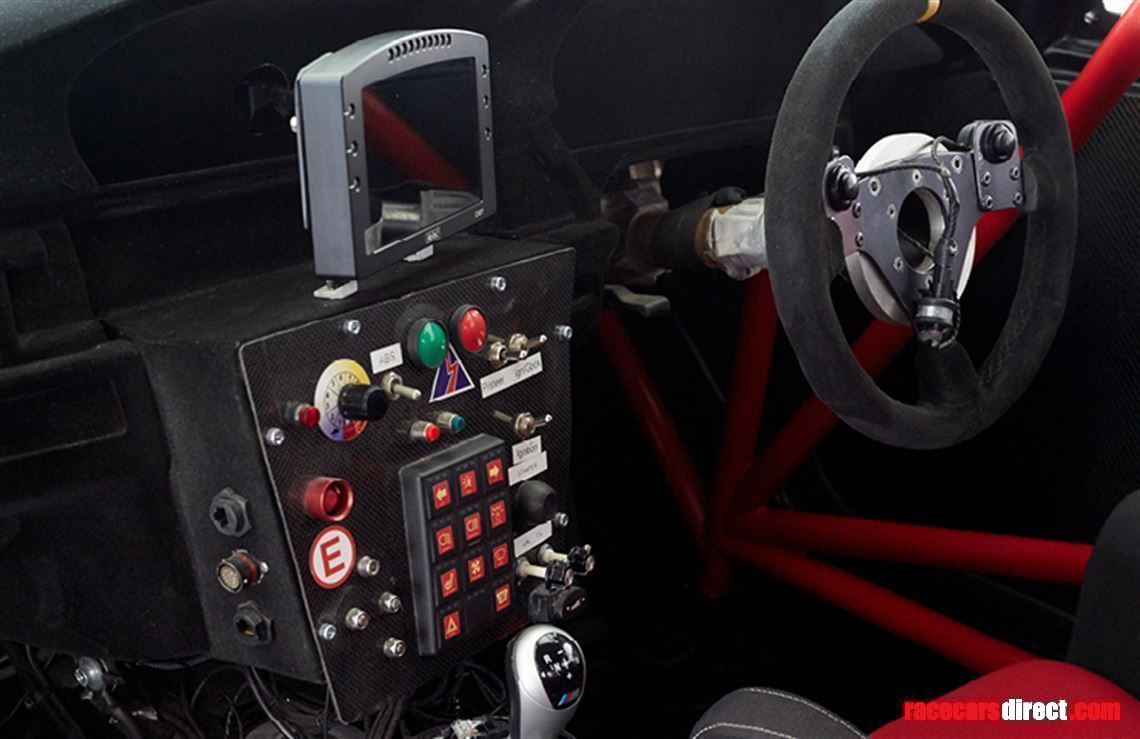

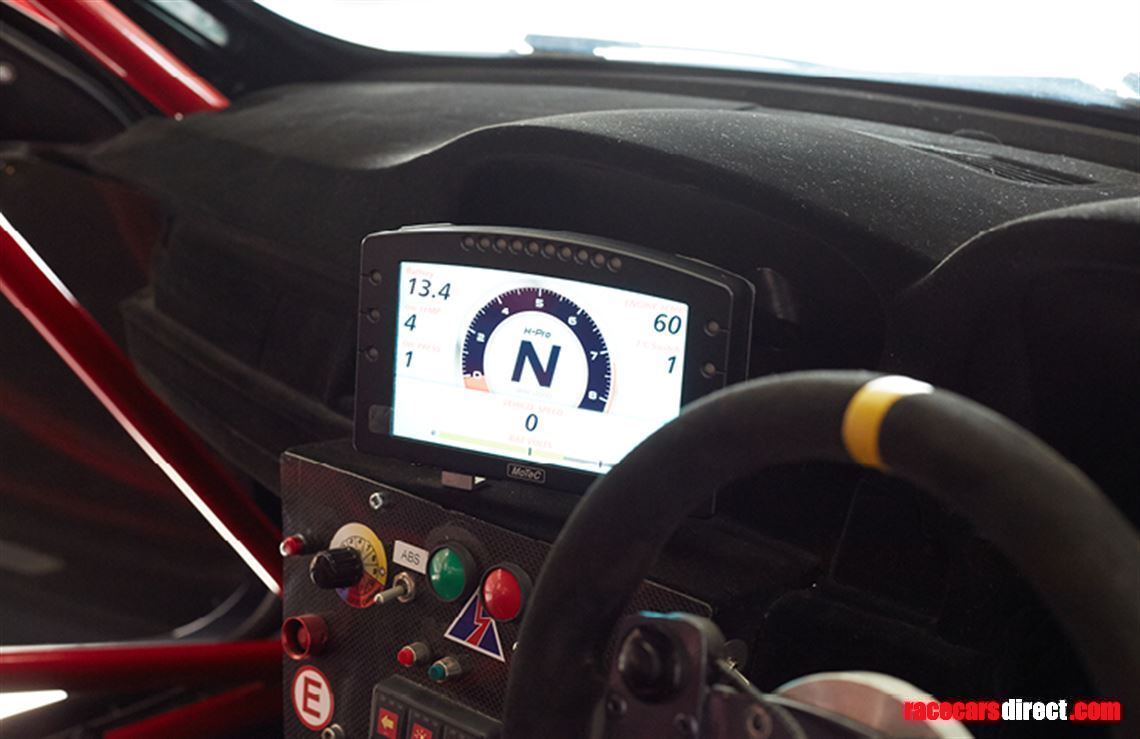

•Motec C127 dash

•Syvec 6+  Bmw e92 ECU

•Elise racing DCT and syvecs control h-pro dct

Firmware upgrade for standalone system

•Cal switch, knock sensors, 5v oil and fuel pressure sensors, oil temp sensor

•Bosch M4 club sport abs

•Modified light weight engine loom

•Custom lightweight main wiring loom

•Mercedes electric power steering system

•PDU10 unit fuse box

•Loom for interface to ecu and gearbox, paddles, gear lever

Suspension

•Nitron R3 3 way dampers with remote reservoir and quick release

•160nm front springs, 130nm rear springs

•Bimmerworld Rear adjustable wishbones

•Bimmerworld Rear toe arm

•Bimmerworld Rear upper camber arm

•Bimmerworld Rear guiding link

•Bimmerworld Rear trailing link bearings

•Bimmerworld Rear lower camber arm bearings

•Bimmerworld Rear clevis set

•Bimmerworld Aluminum solid subframe mounts

•Bimmerworld Aluminium differential mounts

•Bimmerworld 82mm premium wheel studs

•Bimmerworld Solid engine and gearbox mount

•GSR front blade adjustable sway bar

For more information and pictures please contact me.

Worldwide shipping available.
