Description:

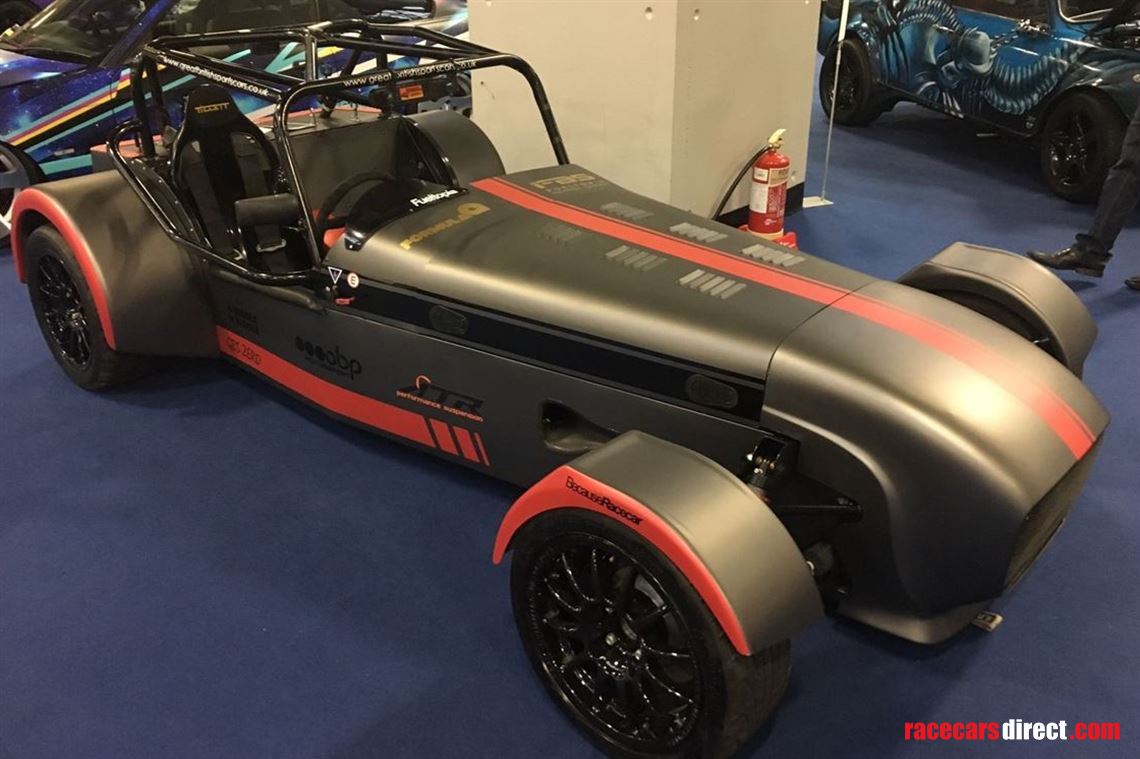

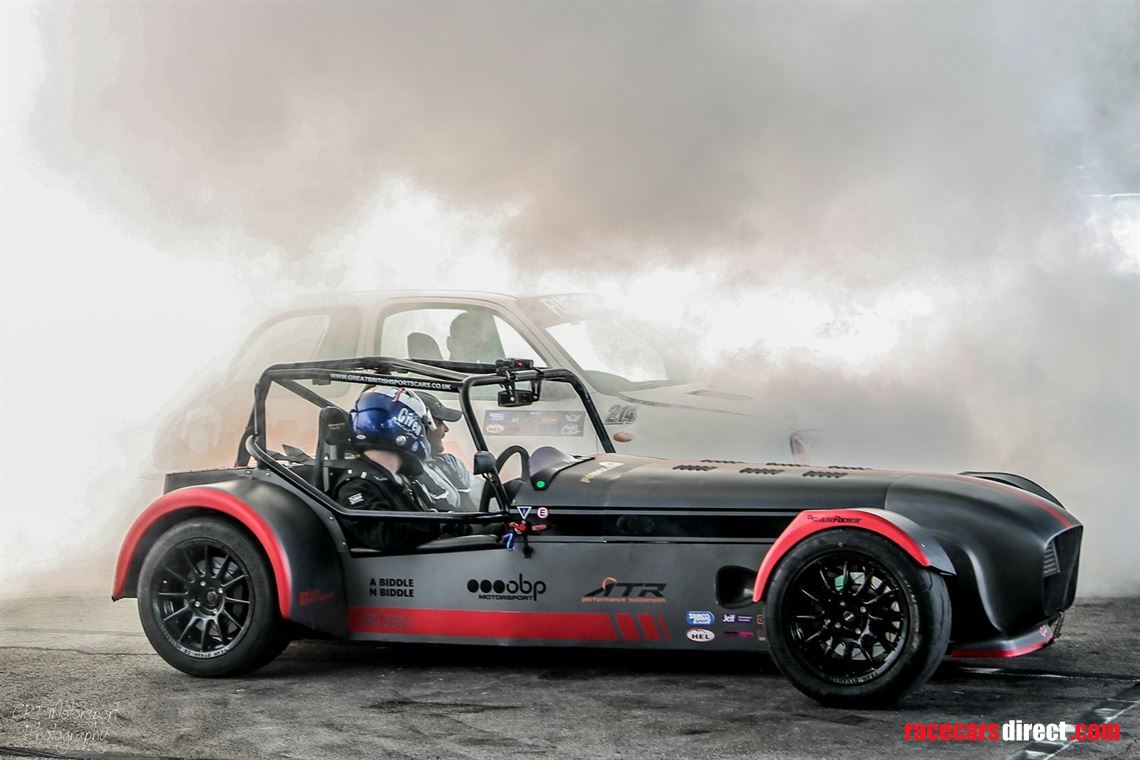

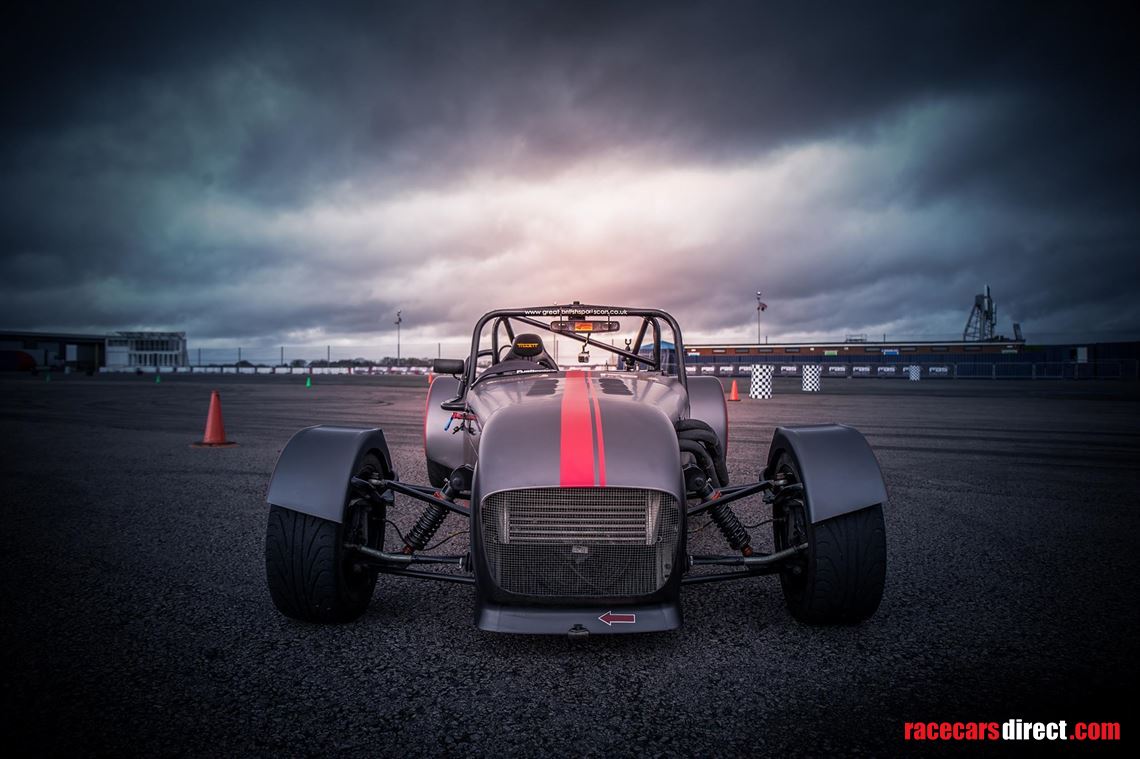

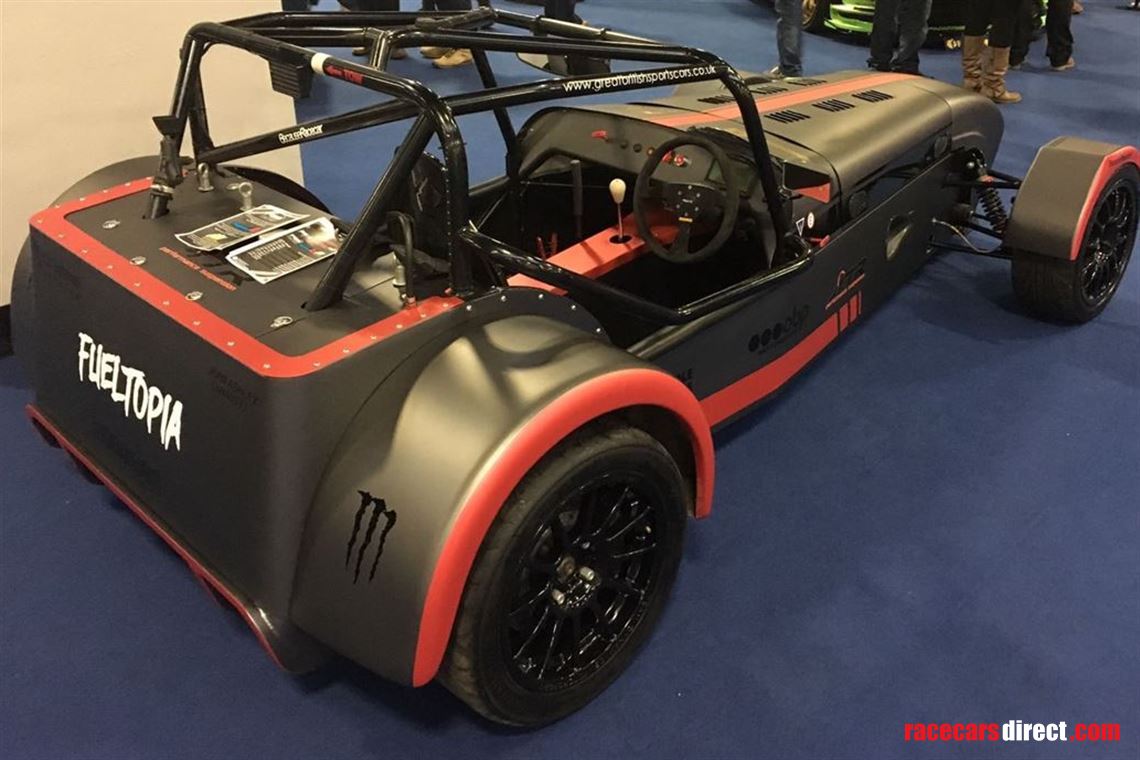

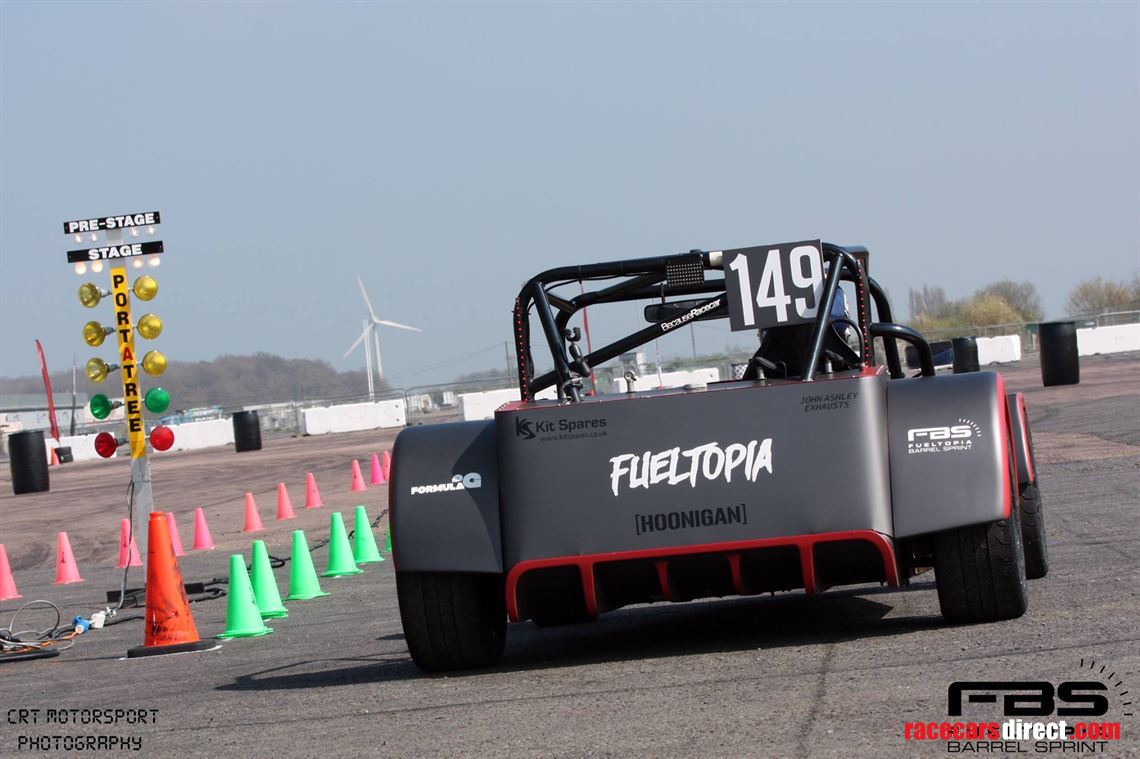

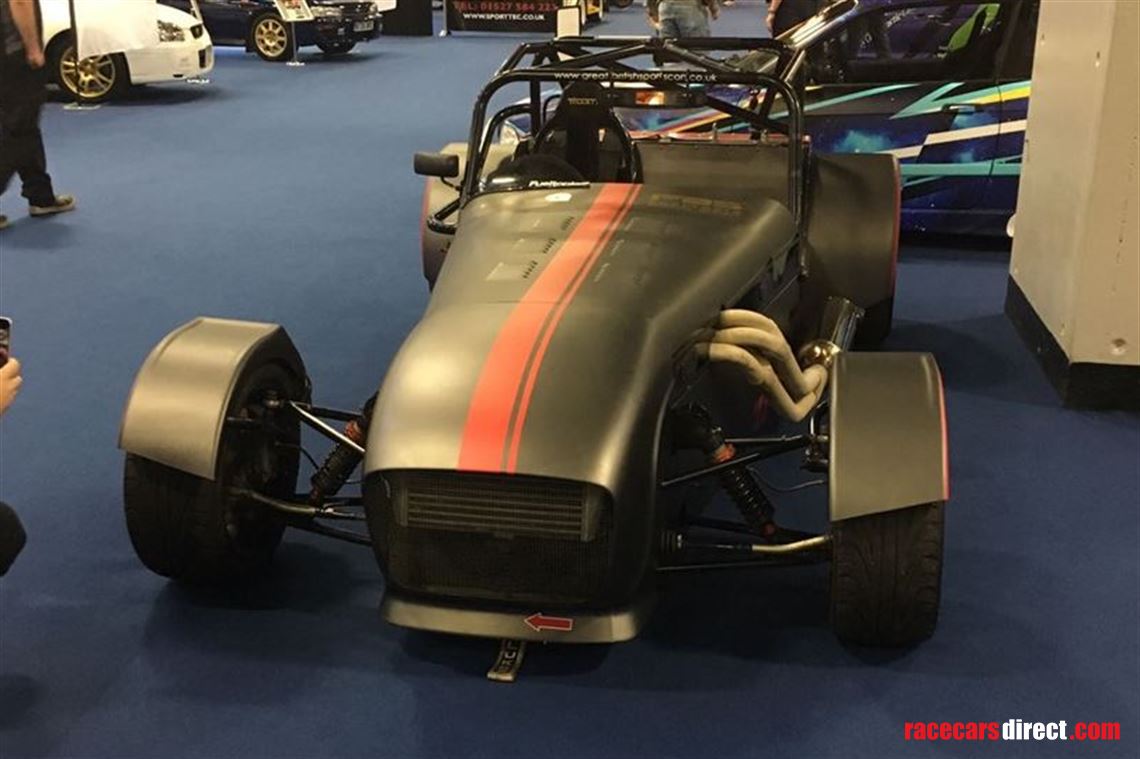

This Great British Sports Cars (GBS) model has a Bespoke Zero Race Chassis that has been custom built from new. The full build was documented and posted on our Given Motorsport Youtube channel. This GBS Zero has been featured in Ctrl Sport’s TV show for Formula G, aired in 2018, and made a number of public appearances over the last four years including Coventry MotoFest and Autosport International. See http://www.givenmotorsport.com for further details.

This race car is in excellent mechanical condition and the body work is in good condition but could do with a new Wrap in places.

SPECIFICATIONS

260BHP

580KG

ENGINE & TRANSMISSION

Supercharged 2.0l Ford Zetec, Fully Forged with PEC Rods and Wossner forged pistons.

C38 Rotrex Supercharger with custom intercooler and pipework by TTS Motorsport Silverstone.

Raceline Baffled Sump and Water rail kit

Custom built Coolex 70mm Race Aluminium water Radiator

Mocoil 13 row remote oil cooler & Filter

Running on Millers Nanodrive Oil

Craig Davies EW130 Electronic Water pump & digital controller

Currently Running on Evans Waterless coolant

Turbo Sport lightened Flywheel

Custom GBS Turbo Intake plenum and 80mm Jenvey Turbo throttle body

Penny & Jiles Throttle position Sensor

Push button start

Omex 600 ECU

Rolling road set up by TTS Motorsport

Custom Exhaust Manifold 4-2-1 matched length with Zircotec coating built by John Ashley

Plated LSD Differential Tran X 7" Ford Sierra

Quaife QBE15Z Gearbox & alloy bellhousing

1st – 2.39

2nd – 1.54

3rd – 1.21

4th – 1

5th – 0.93

Final Drive - 3.92

AP Racing Clutch

Odyssey 12v 18Ah Gel Battery

FUEL SYSTEM

Bosch O44 high pressure Fuel Pump & Faucet Low pressure Pump

1 Ltr Custom swirl

40ltr Custom built Fuel tank by GBS

Bosch Green Injectors

Goodrich Alloy -6 Hard lines

200 series -6 & -8 braided lines used for all fuel system

Sytec Fuel filter

EXTERIOR

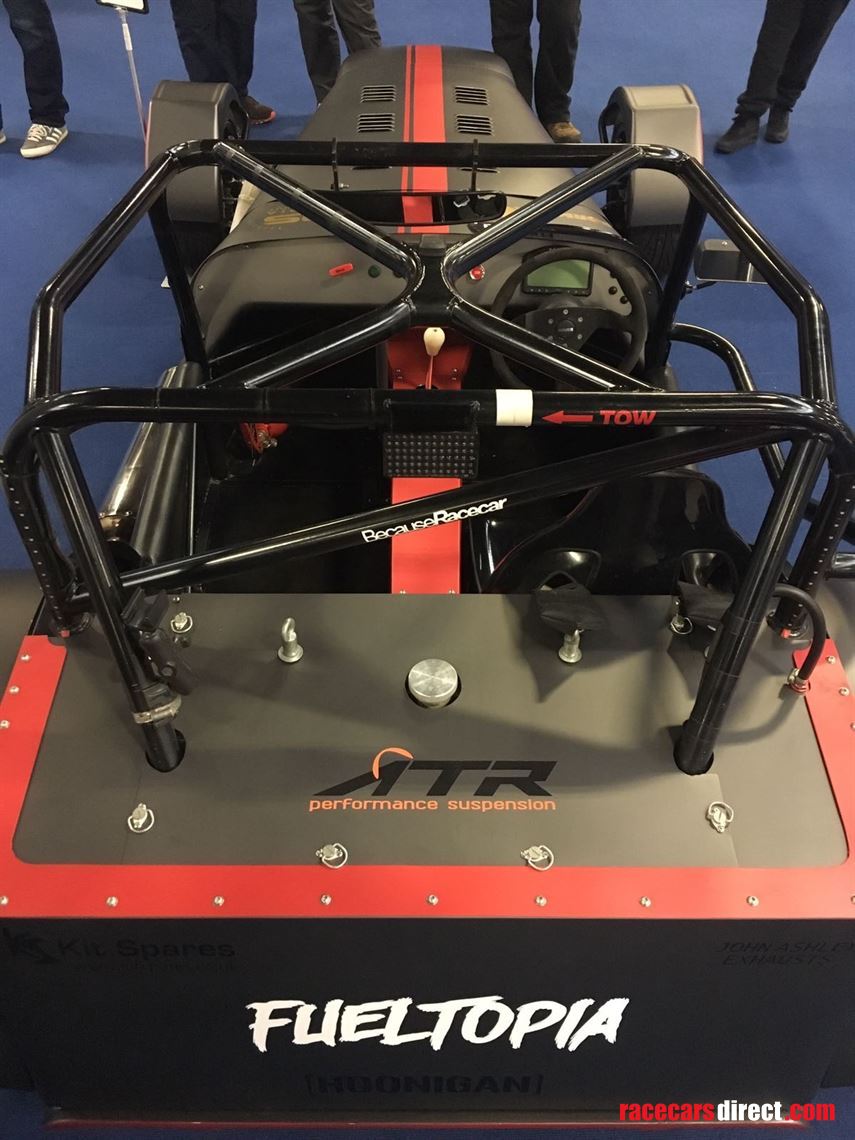

Integral MSA Approved Race Roll cage & drivers side intrusion bar

FIA approved Rain light

Grey & red wrap with white bodywork underneath

MSA compliant tow straps

Waterproof detachable roof

Battery master switch

Aero Catch Bonnet Pins

INTERIOR

MSA 6 point harness

Tillet B6 Seat GRP

Longacre Wide Rear mirror

Race Technologies Dash2 Digi Dash and DL1 Data Logger

Lifeline Fire extinguisher System

OBP Hydraulic 600mm Handbrake

330 mm Black Suede Momo Steering Wheel

WHEELS & TYRES

4 x 15" 8" Alloys                Team Dynamics                Pro Race 1.2 8x15 ET28 4x108 73.1 Gloss Black (Rear)

4 x 15" 7" Alloys                Team Dynamics                Pro Race 1.2 7x15 ET - 15 4x108 Gloss Black (Rear)

2 x 15" 7" Alloys                Team Dynamics                Pro Race 1.2 7x15 ET - 15 4x100 Gloss Black (Front)

Front of the car Runs Mazda MX5 hubs and Ford on the Rear of the Car hence the different PCD Wheels

All the wheels have been fitted with Kumho V700 Tyres but only the fronts have any usable tread remaining

SUSPENSION & BRAKES

Caparo 4 pot lightweight Callipers all round

Custom Alloy Mounting Brackets

Full floating Disks, Ferodo Pads

Braided Steel Lines to Chassis

Brake bias Bar

ATR Coil overs built by GBS

Full build cost was £35,000 (not including labour), full invoice & receipts available including an Excel spreadsheet listing all the parts and part numbers.

The car is located in Fenstanton Cambridgeshire and viewings can be arranged for evenings and weekends.

Contact and further details can be found at http://www.givenmotorsport.com
