Description:

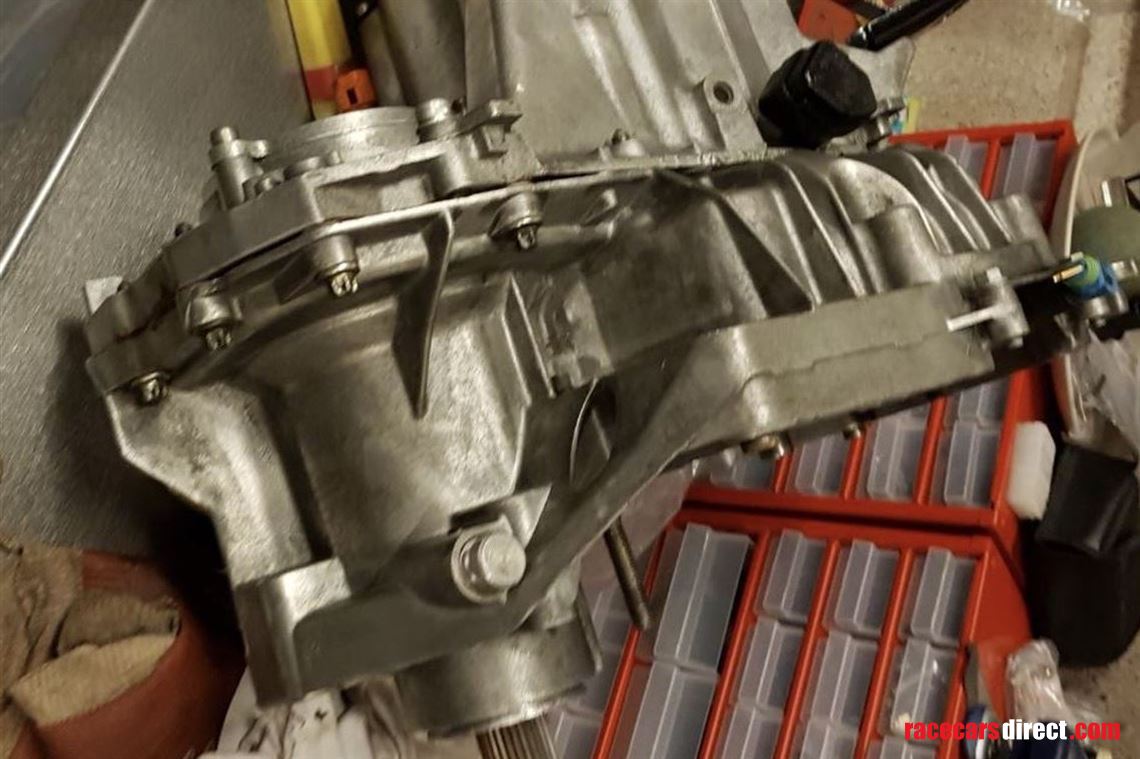

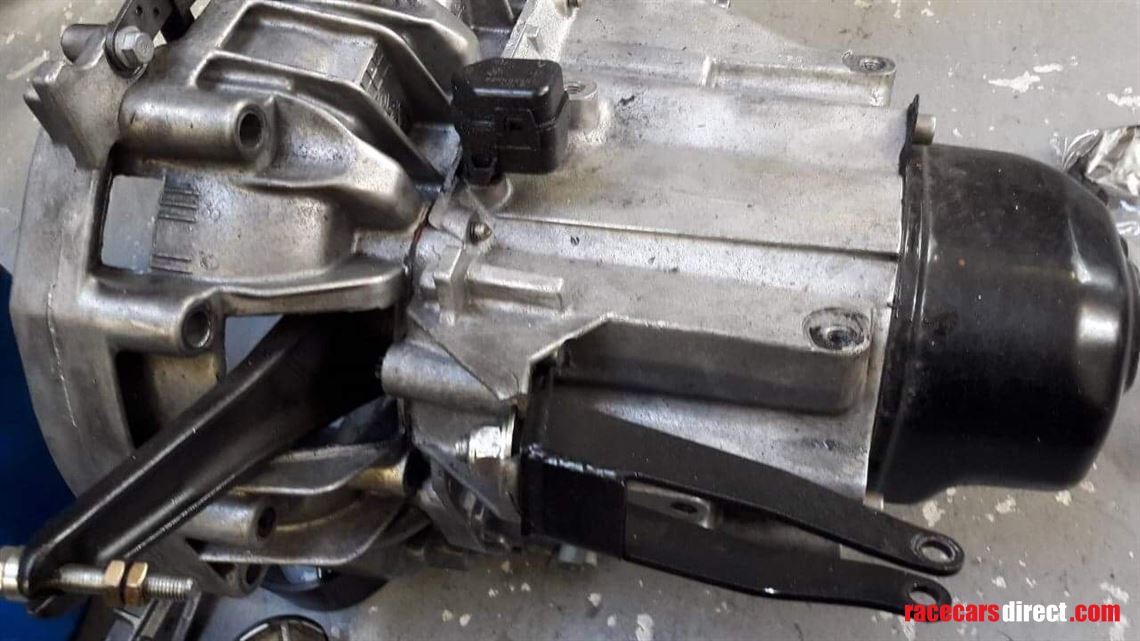

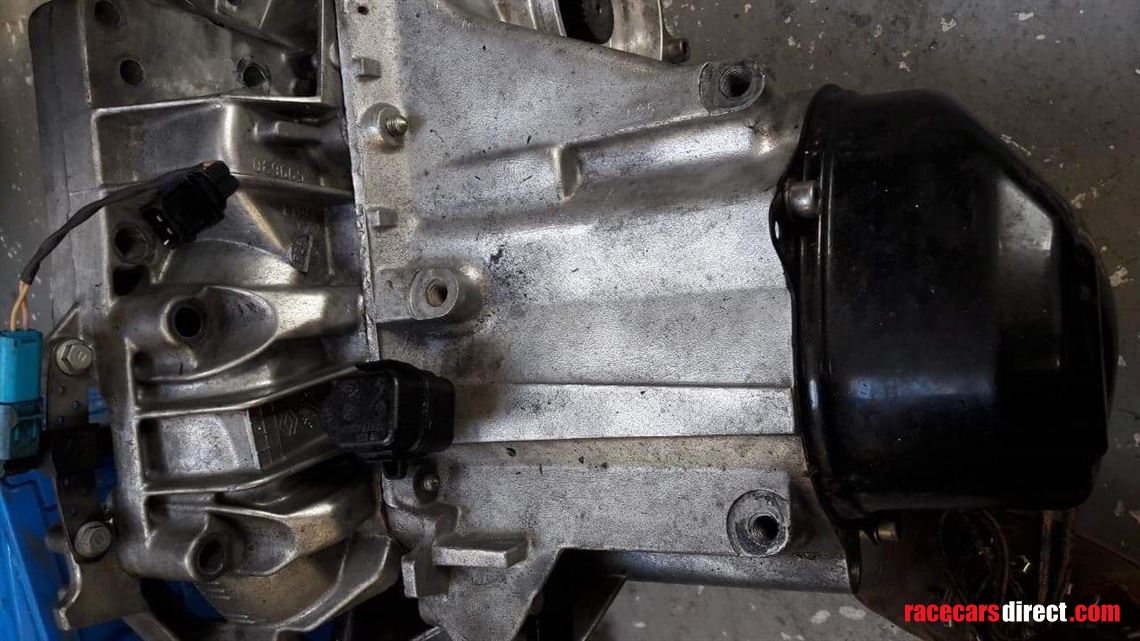

RENAULT CLIO - SADEV 5 speed Competition Dog type Gearbox

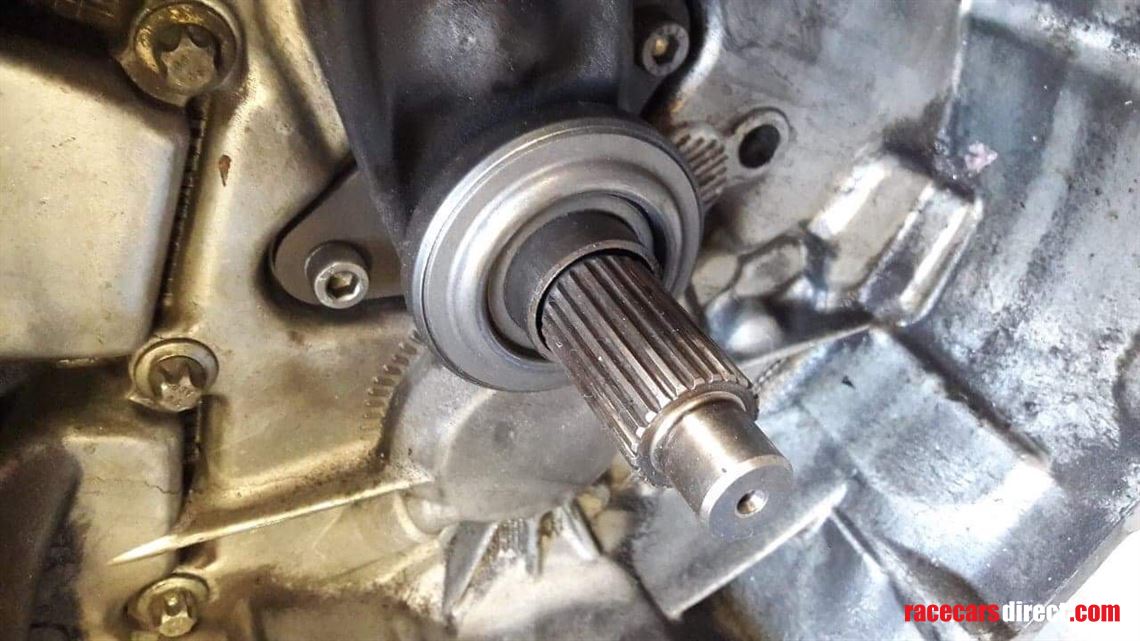

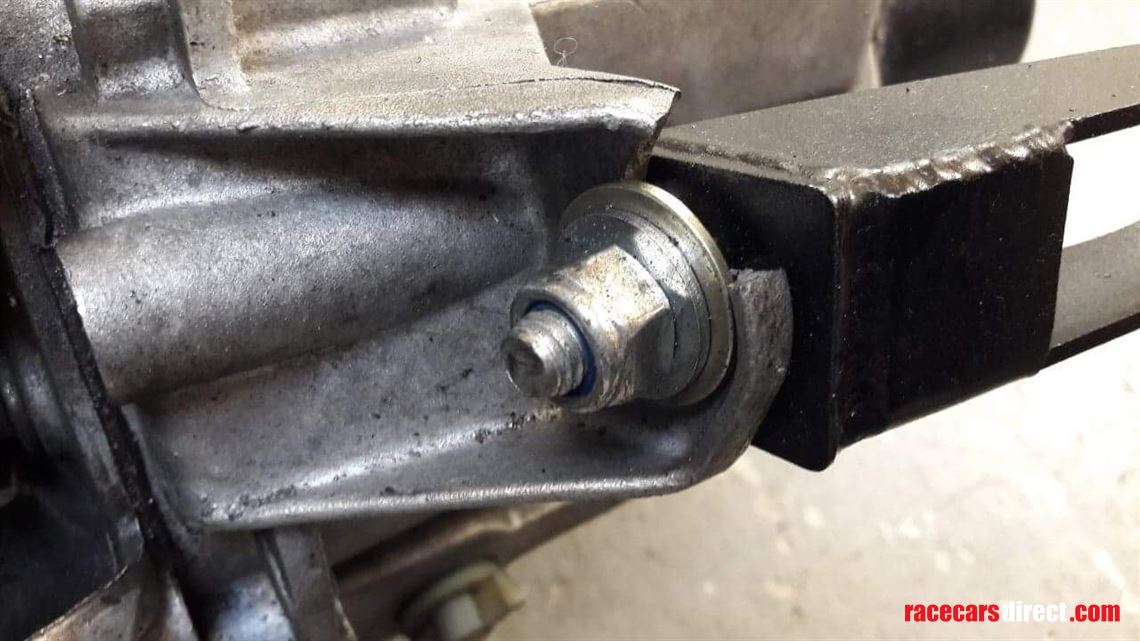

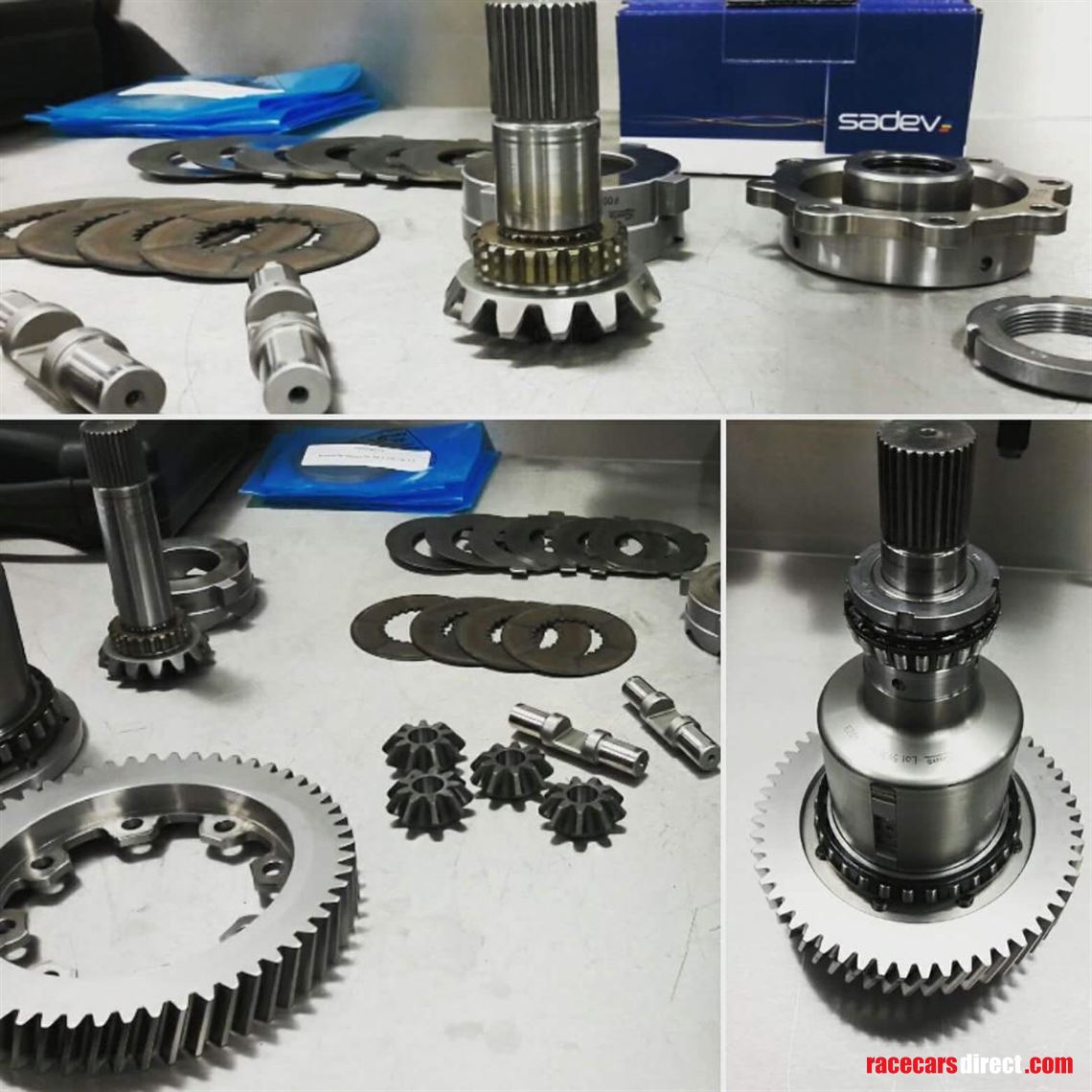

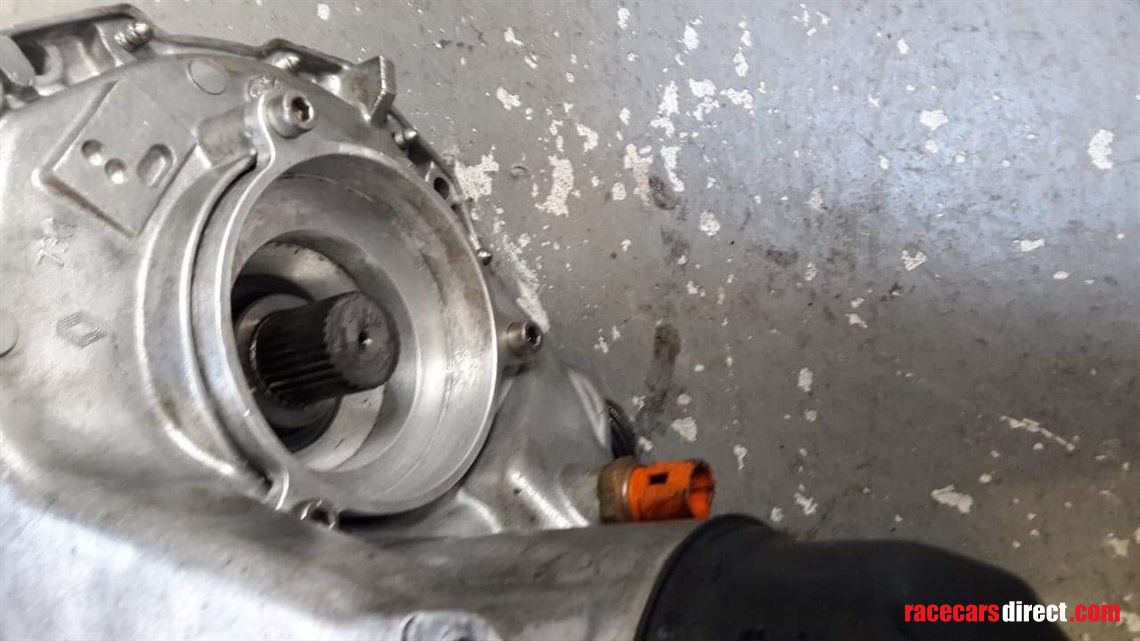

H pattern dog box in JC5 casing. Semi helical gears. Plate type Sadev diff same as fitted to ST75 sequential boxes. Similar to the group N boxes of the era but this one actually built for Rob Collards BTCC Clio. Strengthened outer casing with bearing support. Input shaft spline is the much stronger Ford 1" 23 teeth. Final Drive 4.750. Gearing 1st 1.833; 2nd 1.429; 3rd 1.208; 4th 1.043; 5th 0.917.

RPM and MPH data available on request.

Sold with steel lightweight billet flywheel, paddle clutch assembly and matching H/D race driveshaft’s to fit 182 or 172 set up.

Has been maintained and run by Pure Motorsport. Rebuild at end of 2017 and only 5 short hill climbs since.  Will ship internationally for as long as buyer pays freight and full insurance.
