BMW E46 M3 racecar - SOLD

Wyles Hardy

This is now SOLD. Search for similar items.

Description:

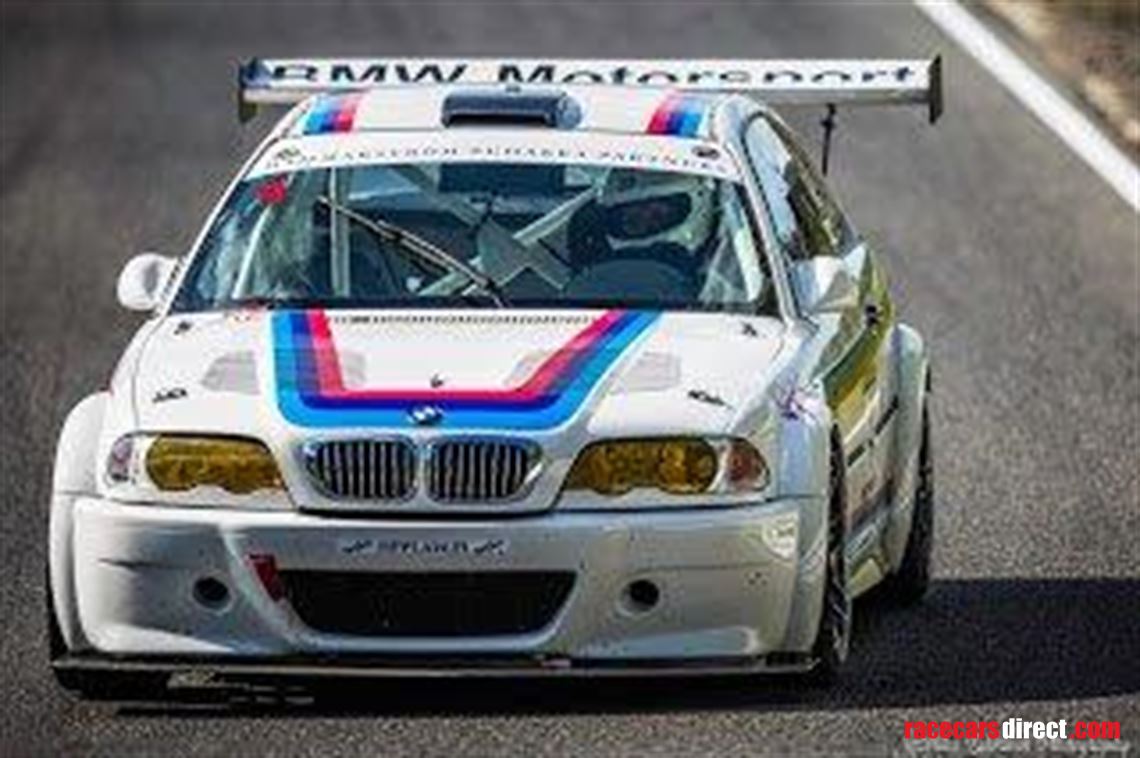

BMW E46 M3 racecar

Base is a BMW E46 330i shell (2000) which is converted to use E46 M3 (S54) powertrain. Built by a professional racecar builder specialized into BMW (Edva Motorsport, http://www.edva-motorsport.eu/, https://www.facebook.com/edvamotorsport/).



The car is fully race prepped and has gone through full suspension rebuild on 2016 (all parts changed) and full engine rebuild on 2017. Due to time restrictions the car has not been raced on 2018 and 2019. Only 2hrs on engine, dyno time included. Winning car in Finnish BMW Racing Club series. For reference the car has been lapping Finnish Alastaro race circuit in 1:22.8 (official timing in competition) with E-registered Kumho V70A 245/35 semi-slick tires (pre recent engine rebuild with ca. 25 hp less and weighing ca. 30kg more than currently).



Car was originally build for slicks but suspension set up was converted for semislicks due to the race series regulations. Can be easily converted to slicks again (includes required springs).



Car is extremely easy to drive, well set up with exceptionally good balance.



For the interested, there is much more to tell about the car.



Body:

  • Weight under 1.200 kg (dry) – can easily be reduced further

  • E46 body totally stripped down (all insulation material etc. removed) and additional welding for strength, modified wheelarches

  • Recently resprayed in white (Porsche Carrara white)

  • BMW Motorsport theme livery

  • Custom made widening bodykit (fiberglass front fenders, front bumper, bonnet and rear arch extensions)

  • Lexan glasses all around (except windscreen), door windows from Plastics4Performance with aluminum supports, driver window with slider, color clear

  • Original doors (passenger side totally gutted, crash bar still in drivers door) with carbon door cards

  • Original steel rear bootlid (inner cover removed, weight 8kg)

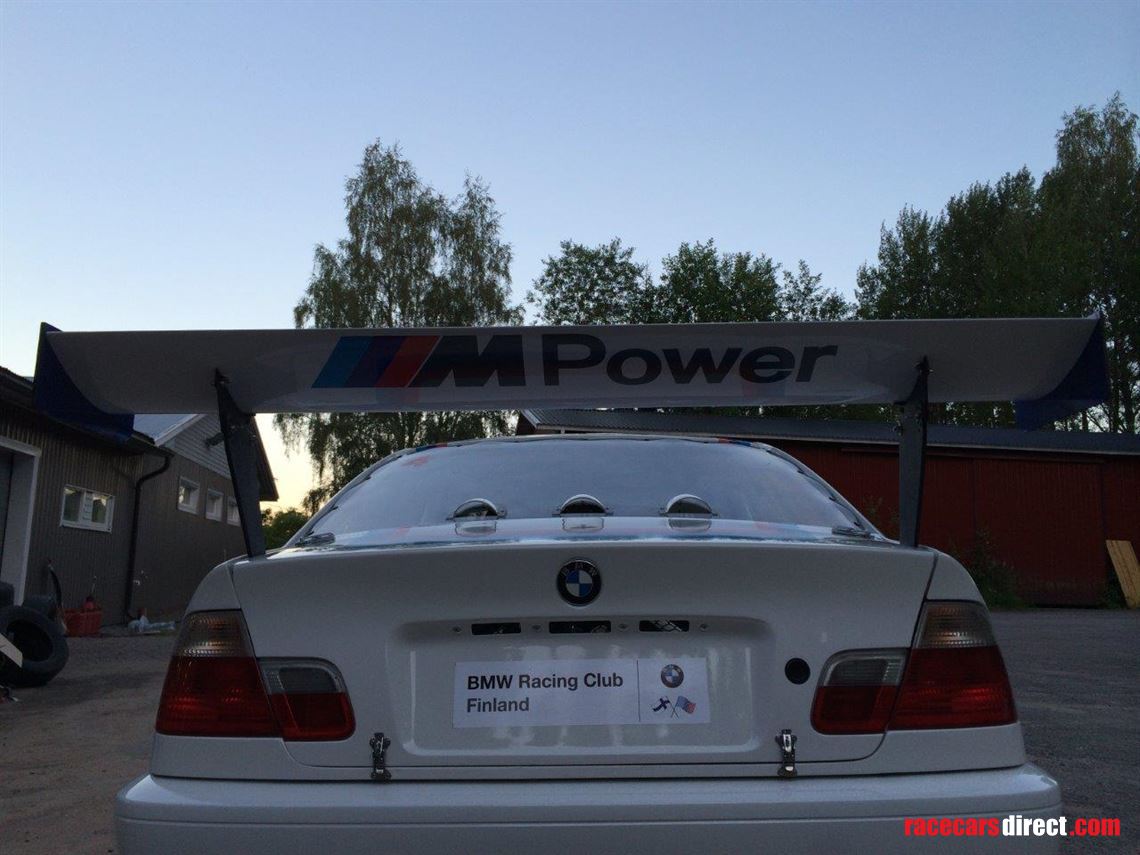

  • Maximum width adjustable rear wing with aluminum support bars

  • Big front splitter extending under engine, carbon strengthened

  • Extremely light weight flocked custom full carbon dashboard (ca. 2 kg with ventilation channels)

  • Carbon roof scoop for ventilation

  • Race mirrors



Suspension:

  • Sachs racing group N dampers with remote reservoirs (adjustable bump and rebound) – serviced regularly

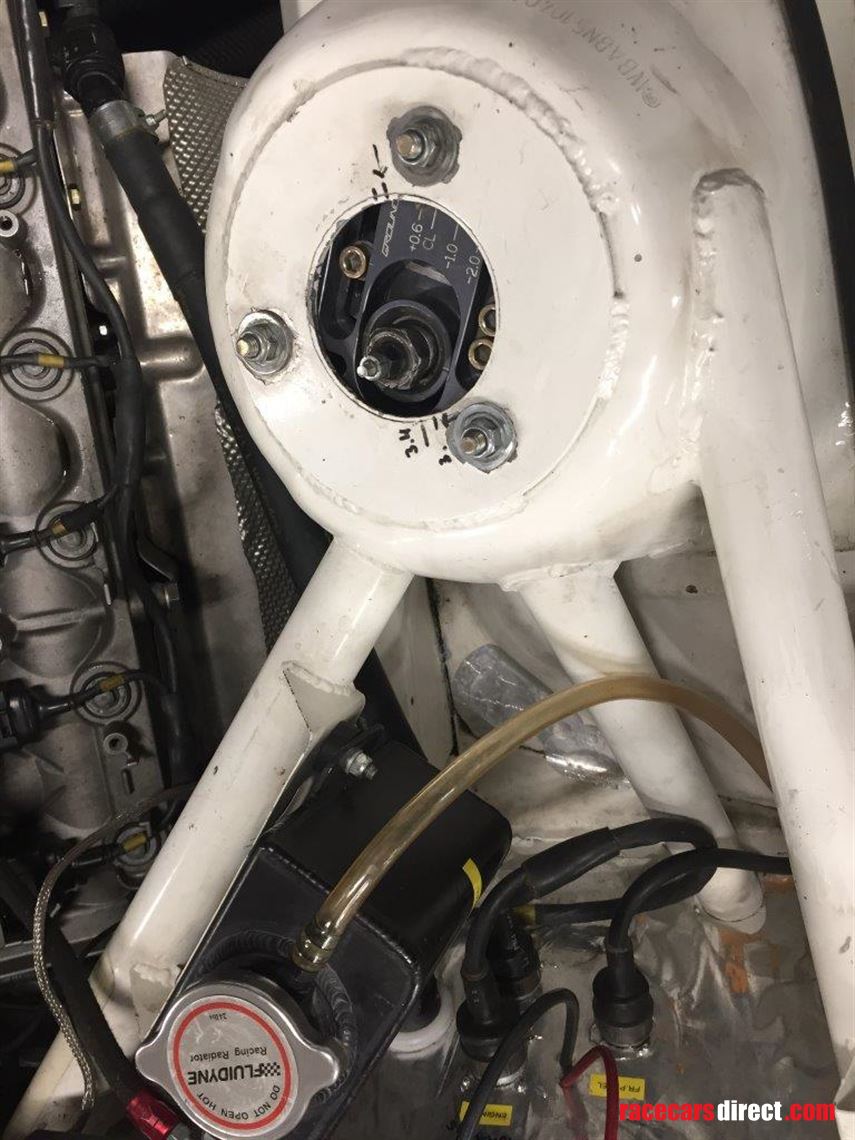

  • Adjustable GroundControl front strut top mounts

  • H&R Spring kit for semi-slicks (1set front, two sets rear) and TC Kline spring kit for slicks

  • Wider SLR Speed front CroMoly tubular steel control arms (specially strengthened)

  • Adjustable front control arm lollipops

  • Bump steer correction, roll center correction and quick ratio steering

  • Turner adjustable rear control arms

  • H&R adjustable sway bars front and rear

  • Solid bushings and fully rose-jointed

  • Wheel bearings, bushings and joints recently renewed



Steering:

  • Quick release steering wheel, moved backwards, tilt and rake adjustable

  • Hydraulic power steering with additional oil cooling radiator

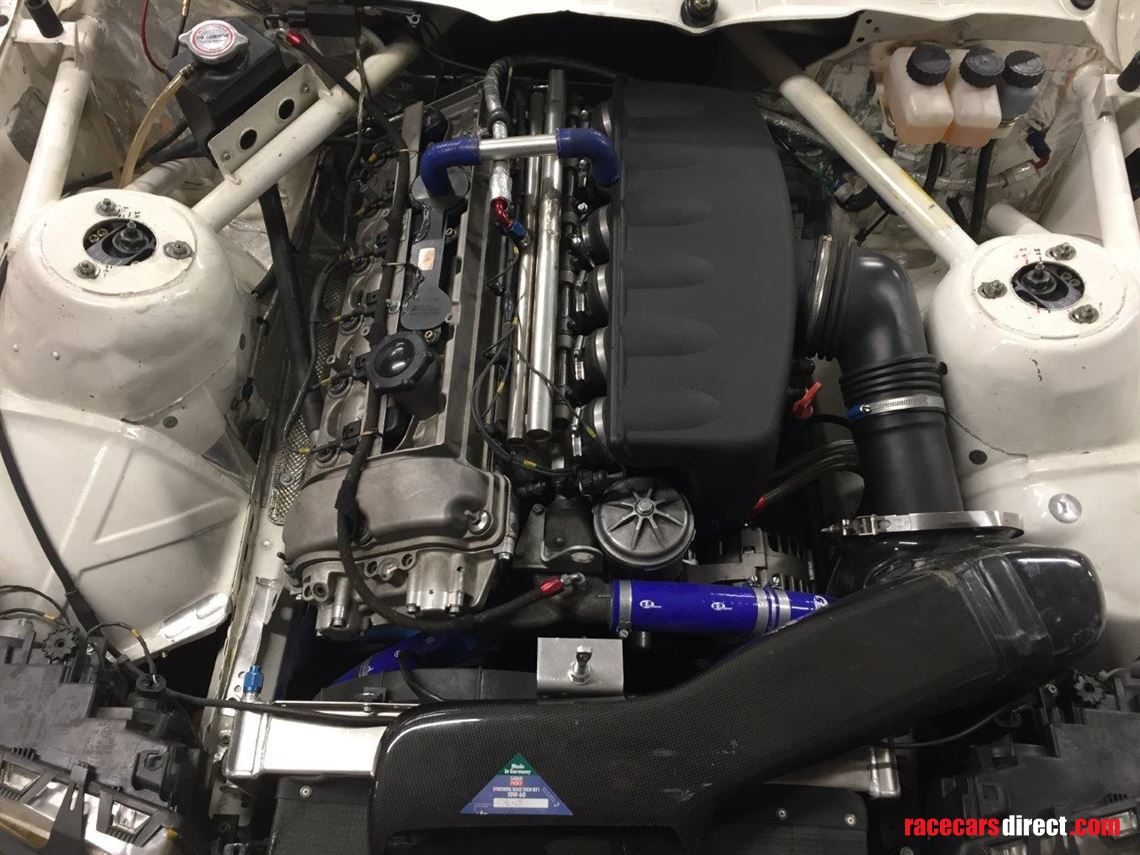

Engine:

  • S54B32 engine, totally rebuilt (2 hours running time), ca. 380-390 bhp

  • New Leutheuser Motorsport Crankshaft with wider crankshaft bearings, stroke 84,00 mm (de-stroked to under 3.000 cc), can be reliably run with higher rpm limiter

  • New forged Wössner pistons, compression ratio 12,5:1

  • New forged Eagle H-profile connecting rods

  • New CatCams 1301806 camshafts with increased duration and lift

  • New valve guides, slightly reprofiled valve seats, planed cylinder head

  • New bigger Bosch EV14 485cc injectors

  • New Bosch coils (VAG type from Audi TT)

  • New timing chain guides

  • New water pump

  • New alternator

  • New VAC Motorsports throttle cable linkage (adjustable for pedal travel and throttle bodies opening linearity)

  • Turner pulleys

  • De-Vanos (parts for Vanos included in sale)

  • Custom large size aluminium radiator with electric thermostat guided big fan (new)

  • Additional Setrab engine oil cooling radiator (new)

  • Solid aluminum engine mounts

  • Supersprint manifolds with long dual to Y-center pipe, new custom Martelius Exhaust rear silencer (ca. 95 db), no catalysators

  • Gruppe M air intake

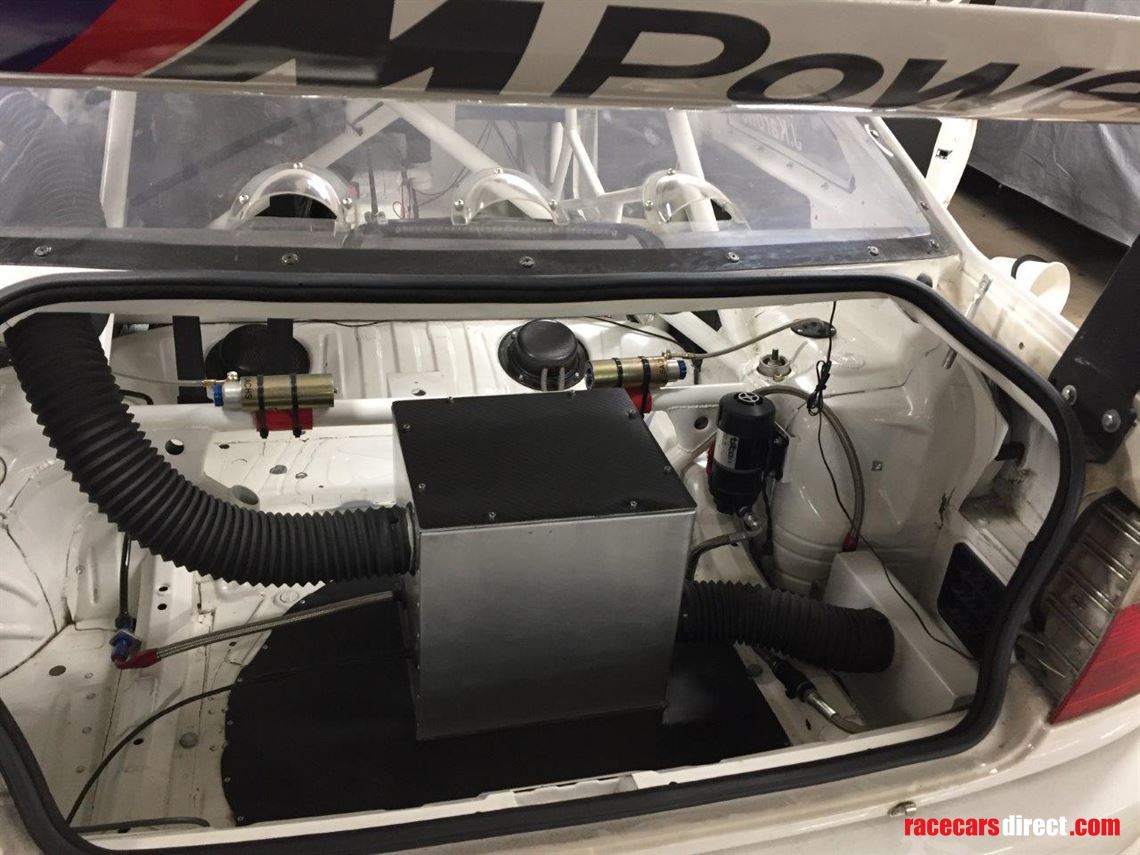

  • Separate Swirl pot and Bosch Motorsport 044 fuel pump (renewed, couple hours running time) located in ventilated box in the trunk

  • All fuel and oil lines with AN connectors



Drivetrain:

  • Gearbox Getrag 540 (M3 Getrag, original gear ratios, in good condition)

  • Custom made rigid short shift mechanism (BMW Motorsport style), moved backwards

  • Solid aluminum gearbox mounts

  • Sachs race clutch

  • Type 210 differential with 4.10 ratio

  • Solid aluminum differential mounts

  • Cooling for differential – Tilton Model40 differential cooling pump with radiator



Brakes:

  • Tilton 900 series pedal box with brake balance bar

  • Brembo Nascar four pot front brakes with Stoptech 328x28 discs and bell housings

  • Cooling ducts for front brakes

  • Brembo four pot racing brakes with Performance Friction discs and bell housings

  • Performance Friction 01 brake pads front and rear



Electrics:

Full custom made wiring loom

  • Built by MotorTech for EDVA racing

  • Raychem wiring

  • military spec connectors

  • engine bay wiring separated with quick connectors

  • custom made fuse box by MotorTech with all necessary relays for easy maintenance

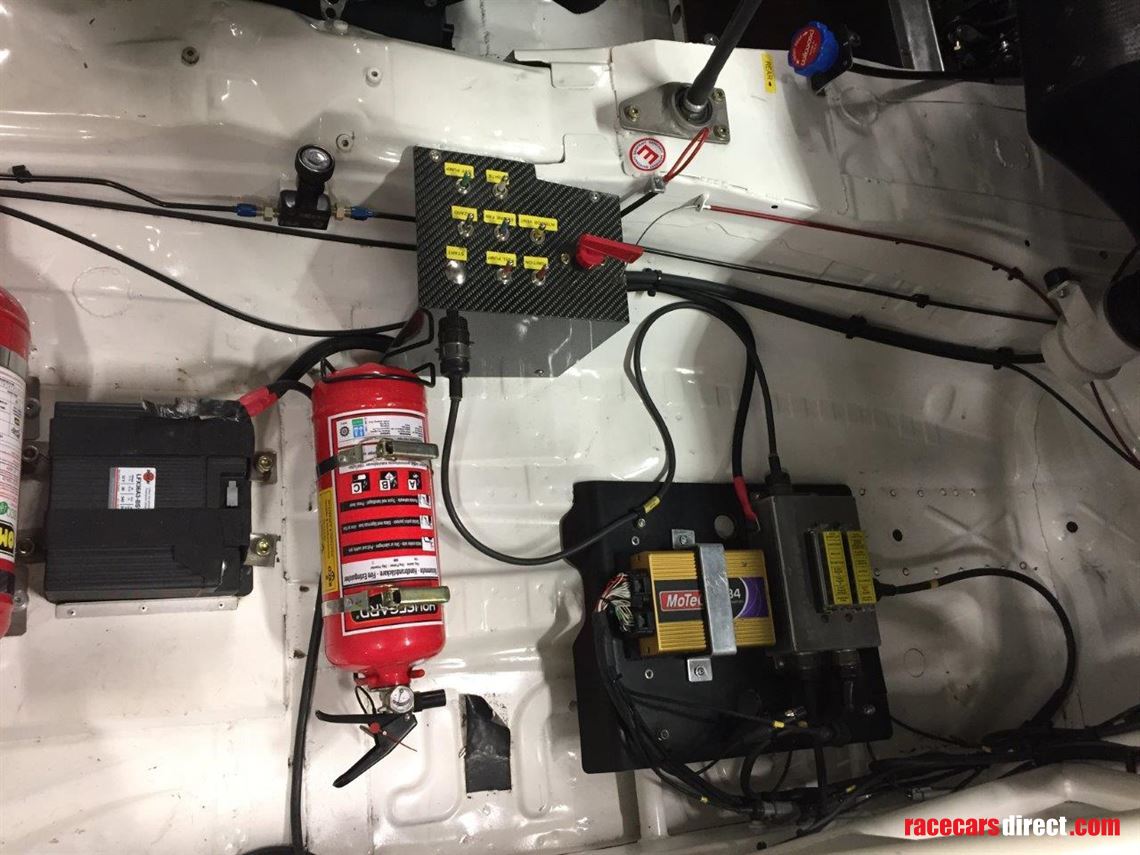

  • custom made carbon fiber switch panel (including main power switch, lights, pumps, fans etc.)

  • extra power connector for supplementary power

  • wiring loom includes connectors for additional fuel tank

Motec M84 engine management

  • with Bosch lambda sensor (new)

  • including Motec UTC (USB to CAN adaptor) for laptop (new)

  • custom tuned by Lauri Eho Engineering – renowed Motec specialist

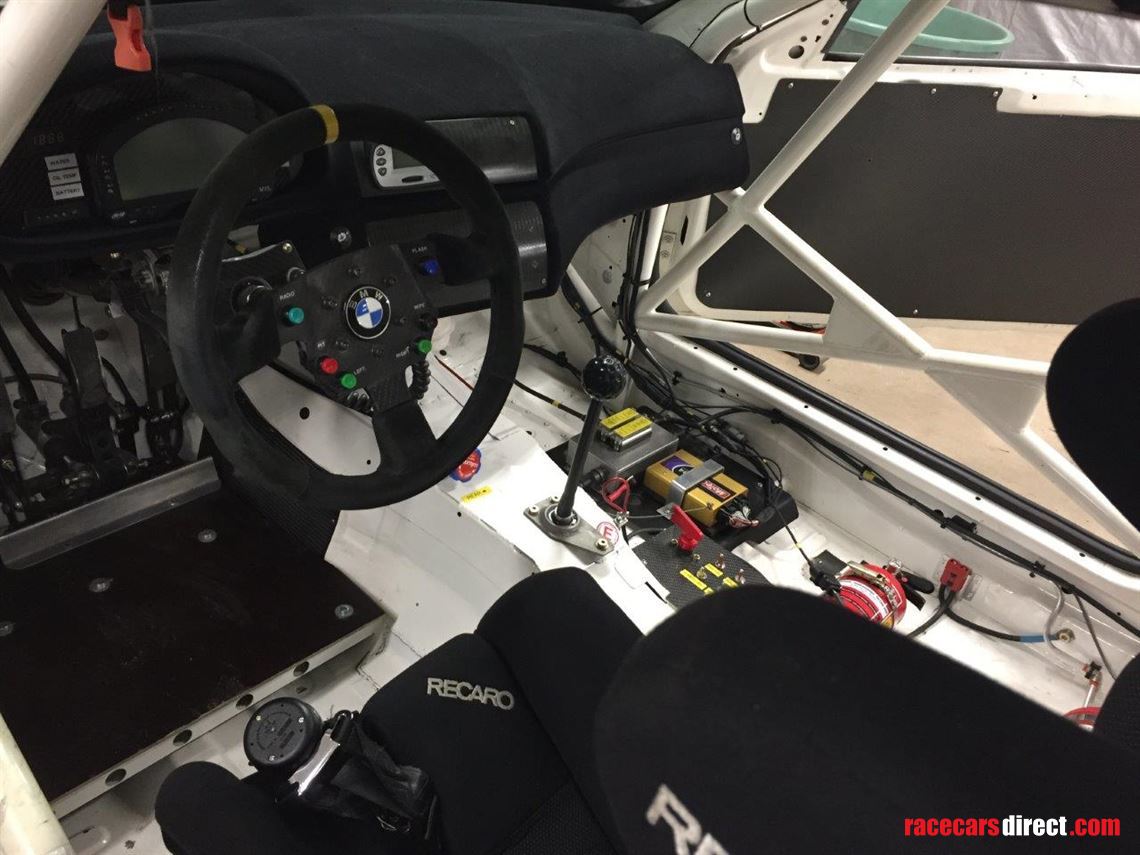

Dashboard

  • AIM MXL Pista race display

  • knock sensor display

  • clock

Electric fan for ventilation (window)

Steering wheel with in wheel

  • turn signals

  • lights, including flash function

  • wiper

  • button for radio connection

  • pit speed limiter (currently not in use)

Battery

  • Shorai LFX36A3-BS12 Lithium-Ion battery (2,06 kg) with Shorai quick charger

  • additional Enersys GenesisEP purelead 12V26EP battery for supplementary power

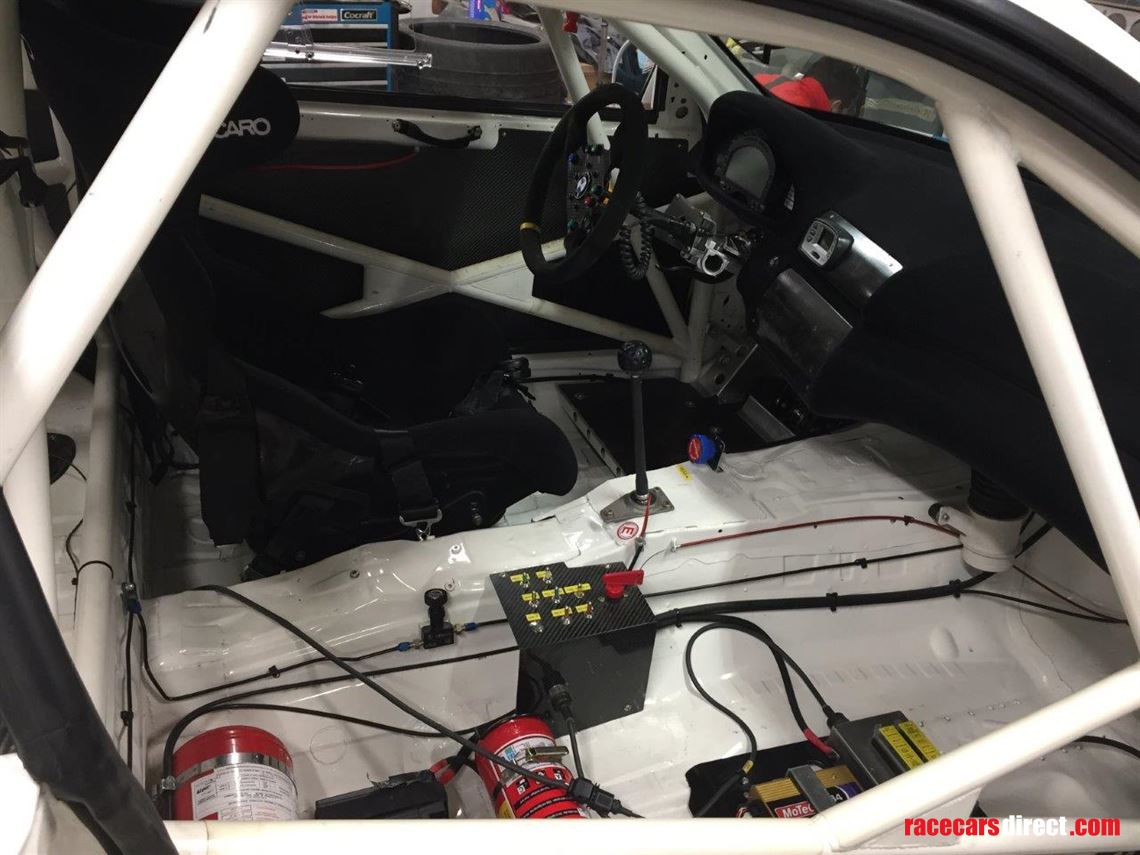

Safety

  • MSA approverd roll-cage with certificate 06.11.139. – rigid with three pickup-points to front towers etc.

  • Recaro ProRacer SPG Vario Hans seat with Sparco heavy duty sliders – year 9/2009

  • Scroth Racing Hans 6-point seatbelts

  • OMP “Nascar” safetynet for driver window

  • built in fire extinguisher system with nozzles in cabin and engine bay

  • additional portable fire extinguisher



Wheels:

8 x APEX ARC8 Hyper Black 18 x 9,5J ET22 – little use, on very good condition

4 x BBS RC300 18 x 8,5J ET13 – used, spare set, condition average



Tires:

Toyo Proxes R888R 245/40ZR 18 GG – full set, nearly new, only broken in

Pirelli PZero Trofeo R 245/40ZR 18 TW60 – full set, unused

Pirelli PZero Trofeo R 245/40ZR 18 TW60 – full set, used (1,6-3mm thread)



Spare parts package included in the sale:

Used Getrag 540 gearbox (for SMG car, can be converted for use as a spare)

Used Type 210 differential with stock ratio

Used prop-shaft, needs servicing

Used drive shafts

New Performance Friction rear brake discs

Several pairs of used brake pads (usable)

New bearings for front control arms

Molds for front fenders, front bumper and rear arch extensions

Several other new and used parts (several sets of spacers, fluids, ignition coils, rear spring mounts, waterpump, motorsport 55c thermostat etc.)
