Description:

This is a new car set of Sachs ZF Racing 4 way adjustment dampers. They were made for a Honda LMP2 sports car but were never used.

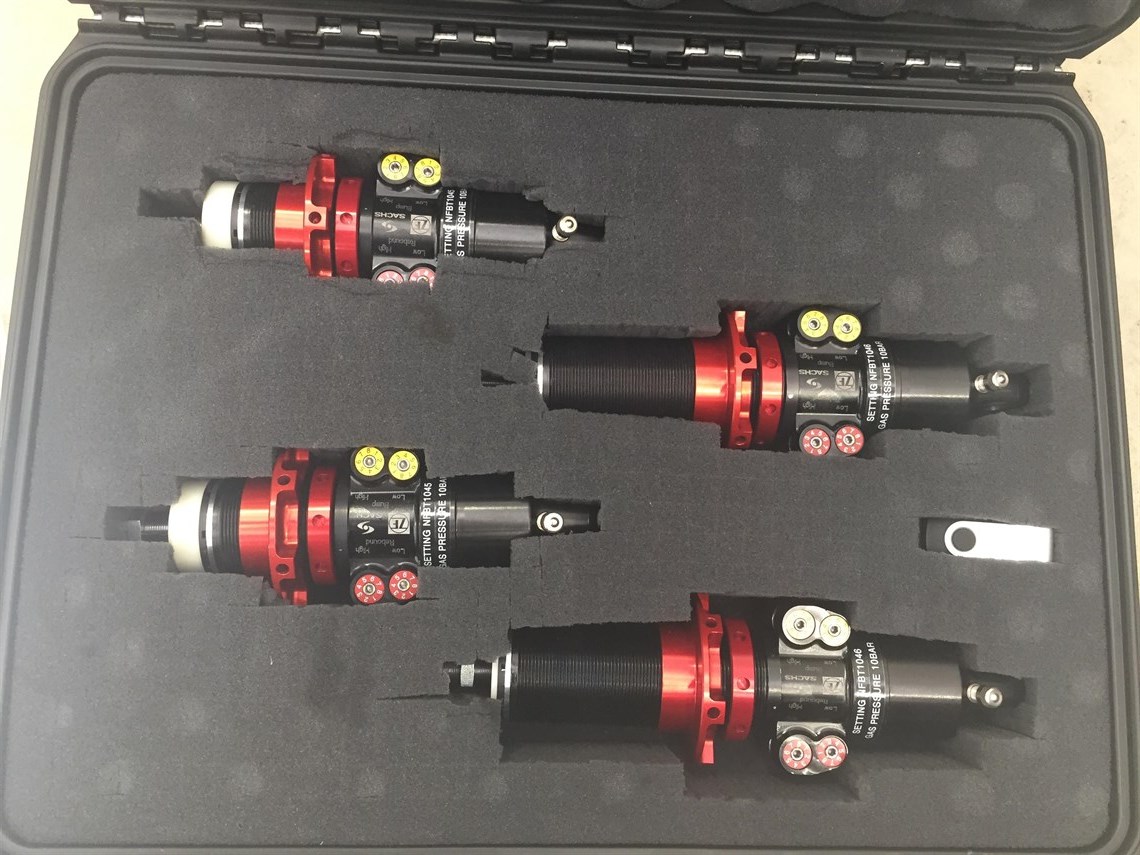

Can be used in other series, they come in the original ZF pelican case.

They also come with a USB stick with the damper dyno data and lifeing sheet, plus paper copies of the Force V Absolute Velocity curve and Damper date sheets.

4 way damping, bump - high and low (yellow) and rebound - high and low (Red)

They have 13mm shafts and 7/16" spherical ball joints, spring abutments with lock rings and plastic bump stops with shaft locknut.

Pressurised to 10 bar, valve at the bottom.

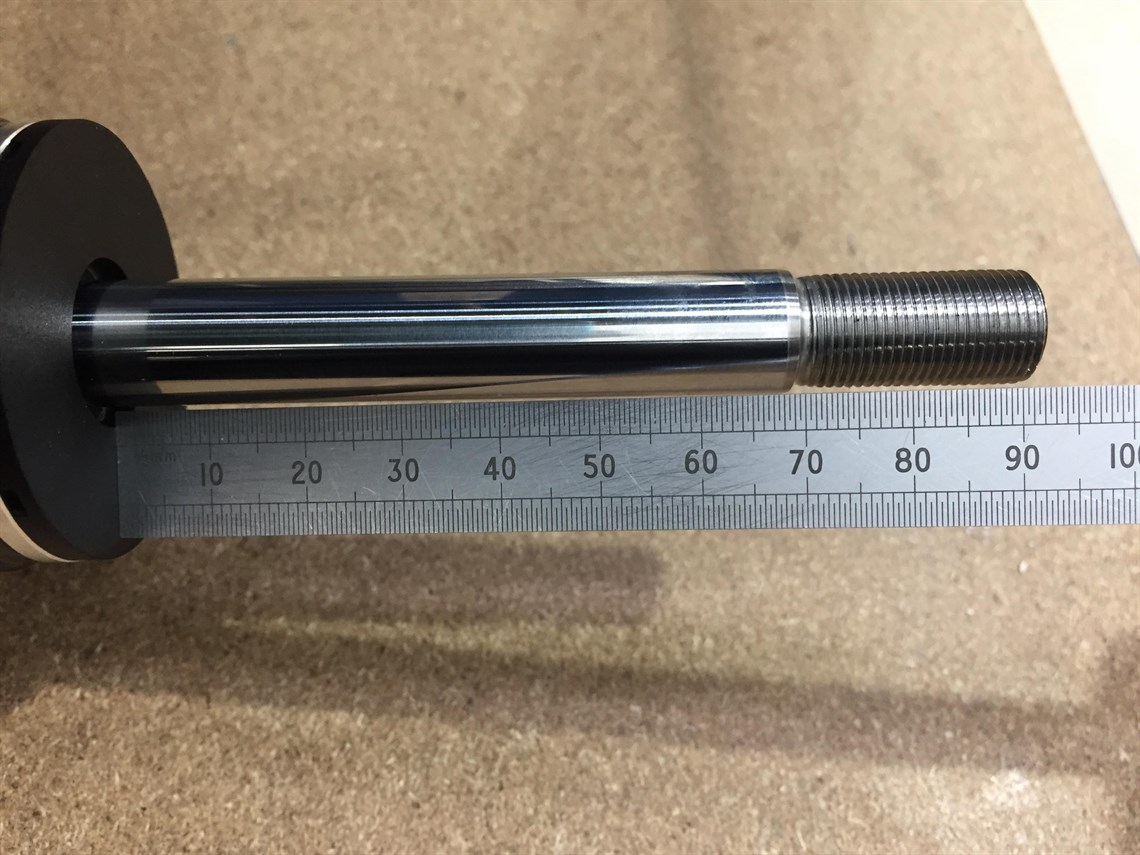

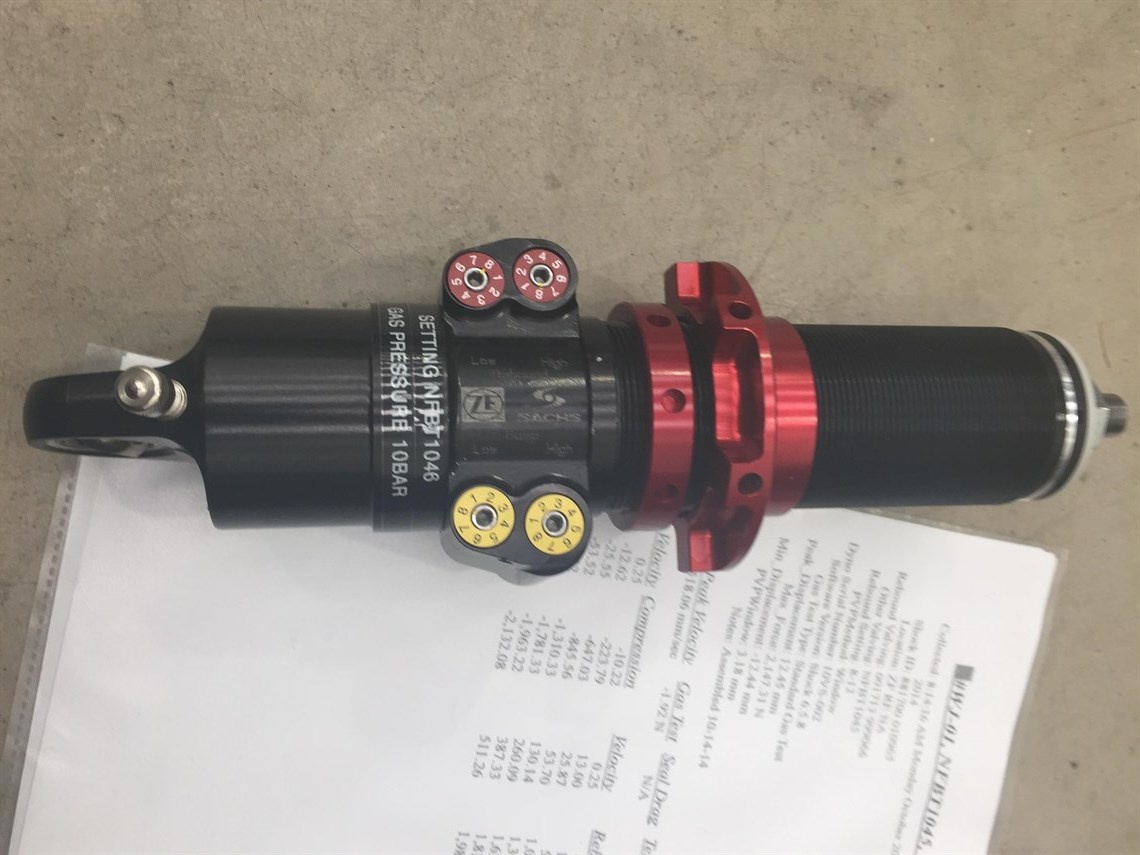

Photo's 4 and 5 show the longer damper, with dimensions of the shaft and stroke, 94mm total shaft length fully extended, 70mm of unthreaded shaft with 2mm of this left showing when fully compressed.

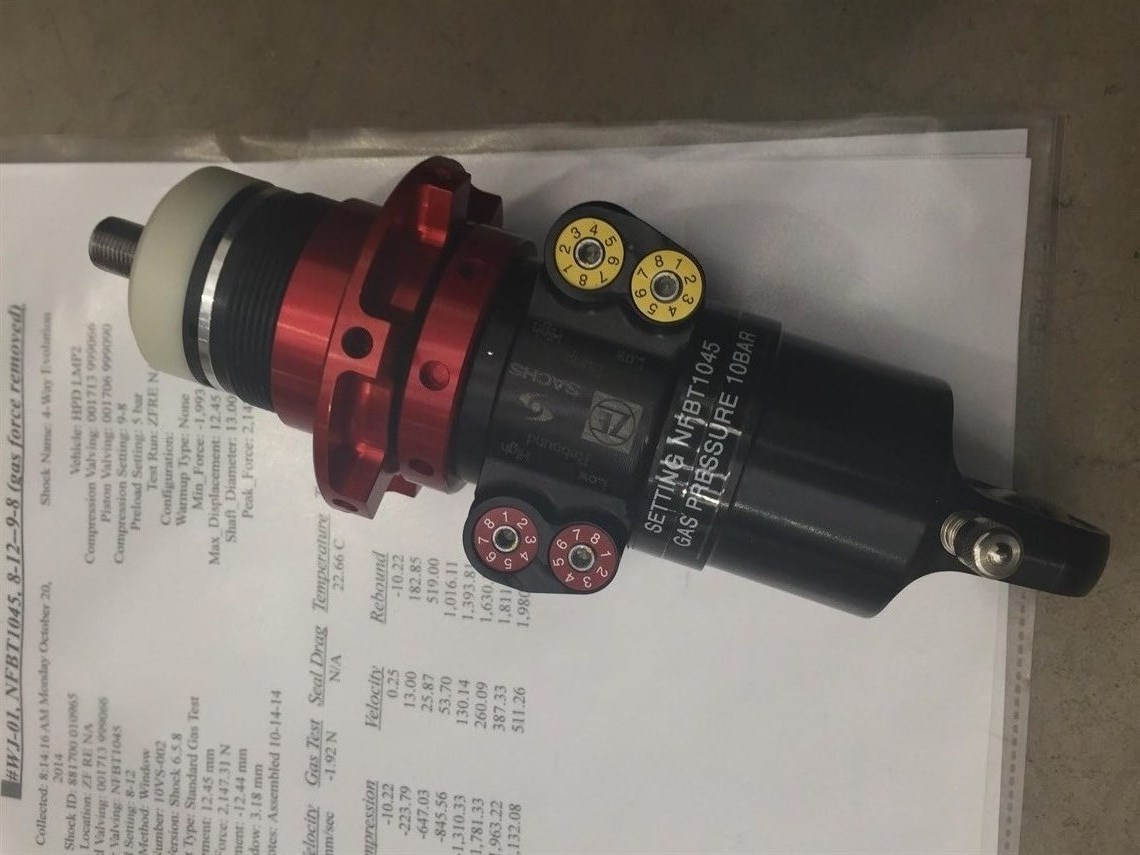

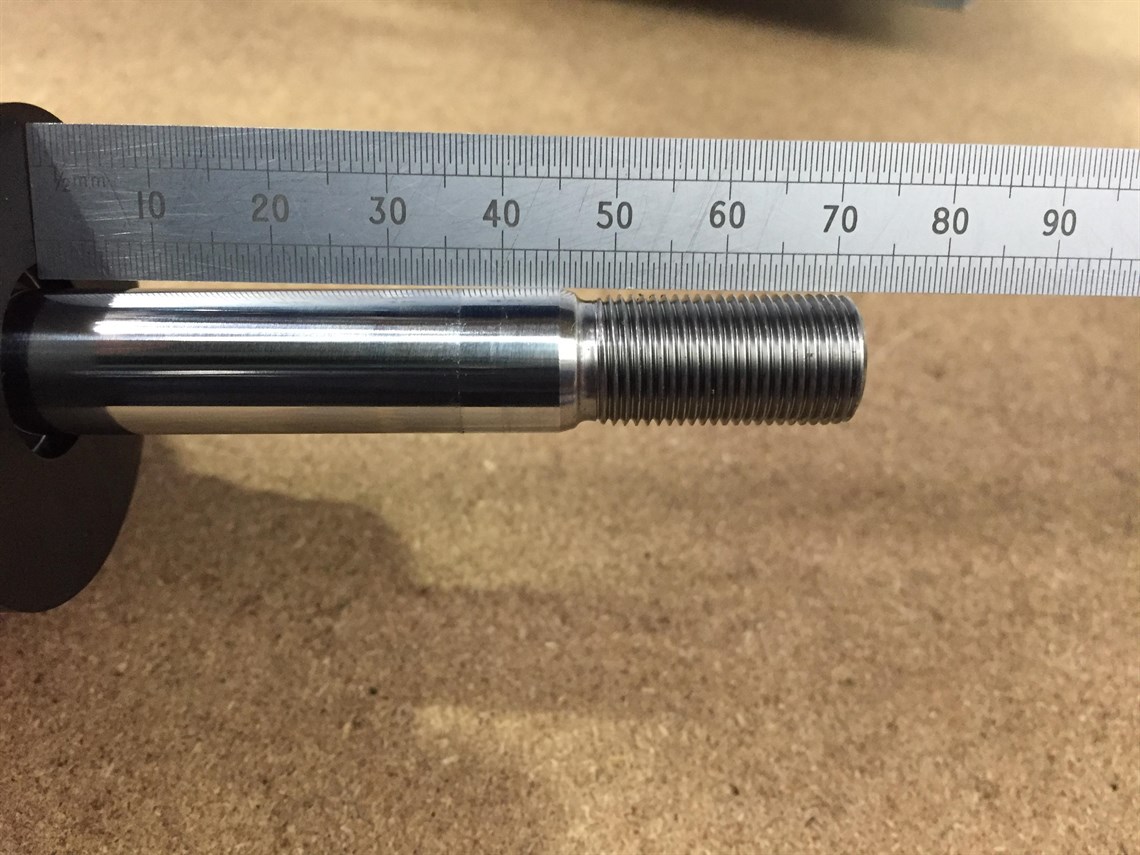

Photo's 3 and 4 show the shorter damper, with 72mm total shaft length when fully extended, 45mm of unthreaded shaft with 6mm left when fully compressed.

All 4 have 25mm of thread.

I am happy to answer any questions with regards to size etc but I might struggle with any technical info.

Viewing welcome.
