Bump Steer Gauge - Twin Analogue or Digital Dial Gauge

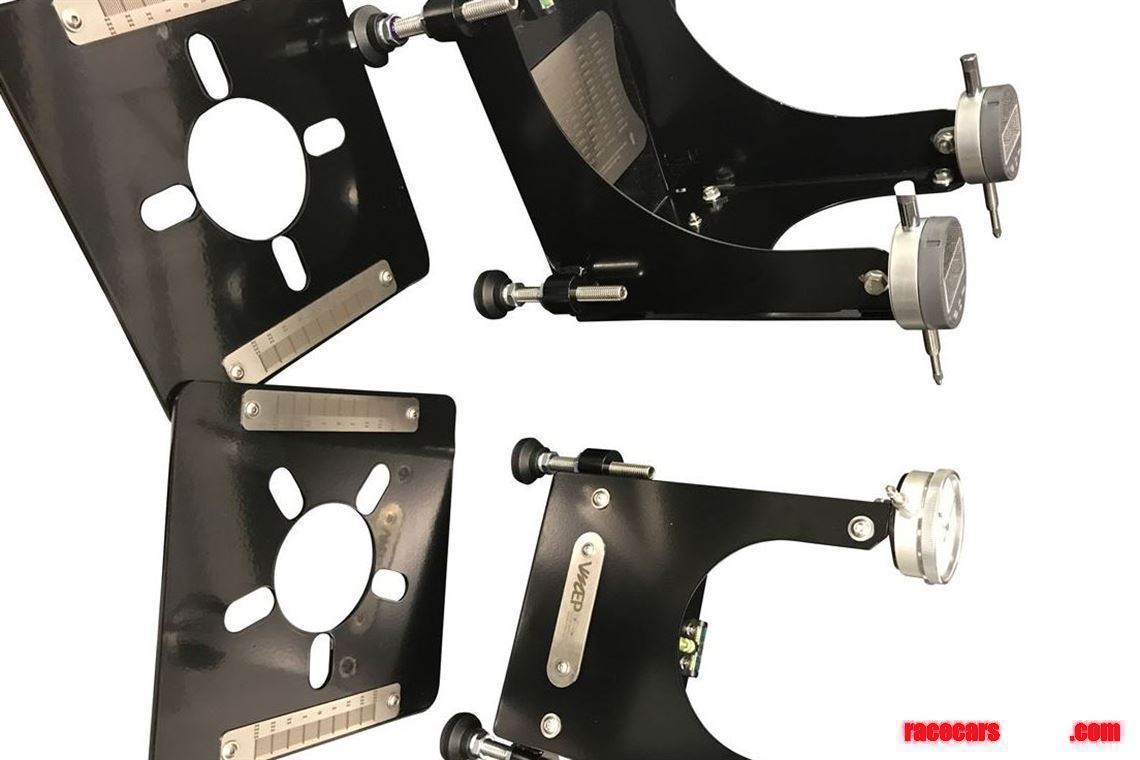

VMEP bump steer gauges use twin dial gauges (analogue or digital) to measure wheel steer during suspension movement.
Each gauge is height adjustable to suite a range of wheel and tyre diameters with four studs, and features an etched plaque to relate the dial gauge spacing to the wheel diameter of the car. This allows for bump steer to be read in relation to the wheel diameter, as typically done with tracking.

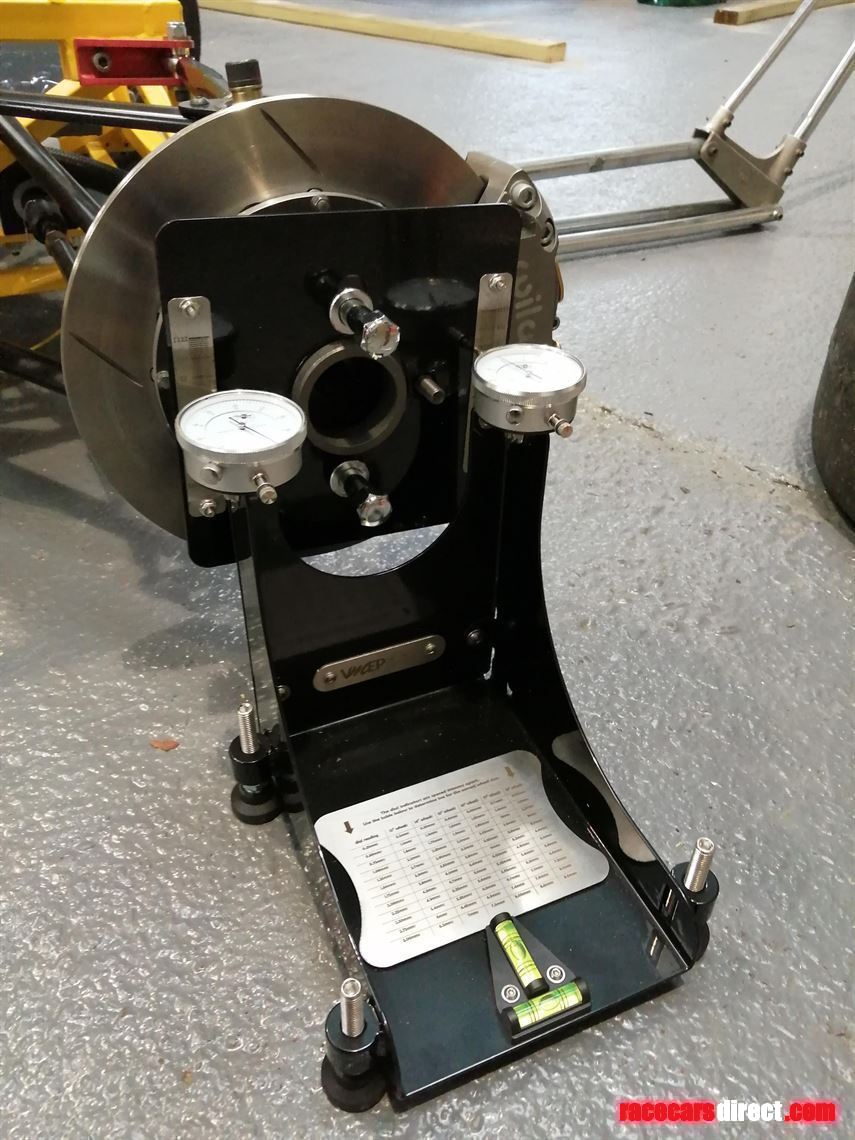

A four or five hole hub plate is supplied (with a scale attached) that can be locked in place with a wheel nut or bolt, and the two dial gauges then positioned in contact with the plate. Bump steer can then be read off each dial gauge (the twin gauge design allows the user to eliminate reading errors caused by the changes in track width) over a range of suspension travel.
Please view: https://www.vmep-ltd.co.uk/bump-steer-gauges for further information.
Supplied with analogue dial gauges = £140
Supplied with digitial dial gauges = £160 + delivery to the UK and VAT
Bespoke gauges and hub plates can be made to order.
Please see our website for a range of other set up, pit equipment and flight cases.
Finance options are available on our equipment via the website.
