Description:

*** SOLD ***

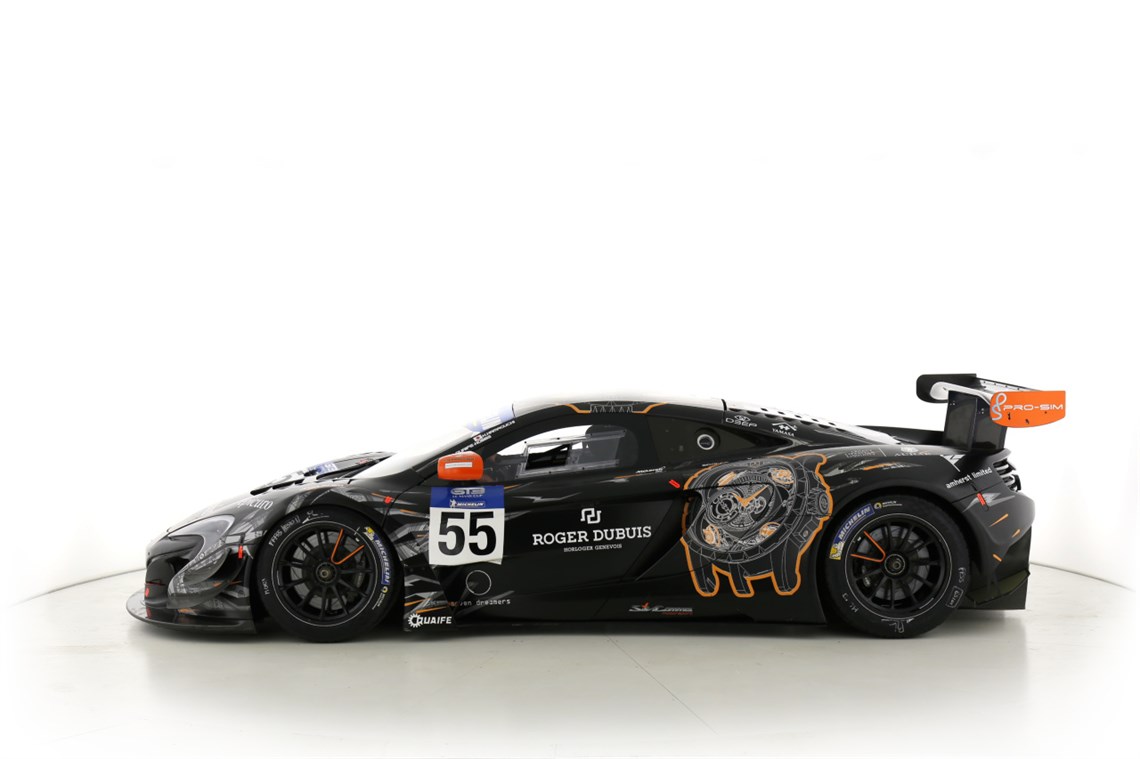

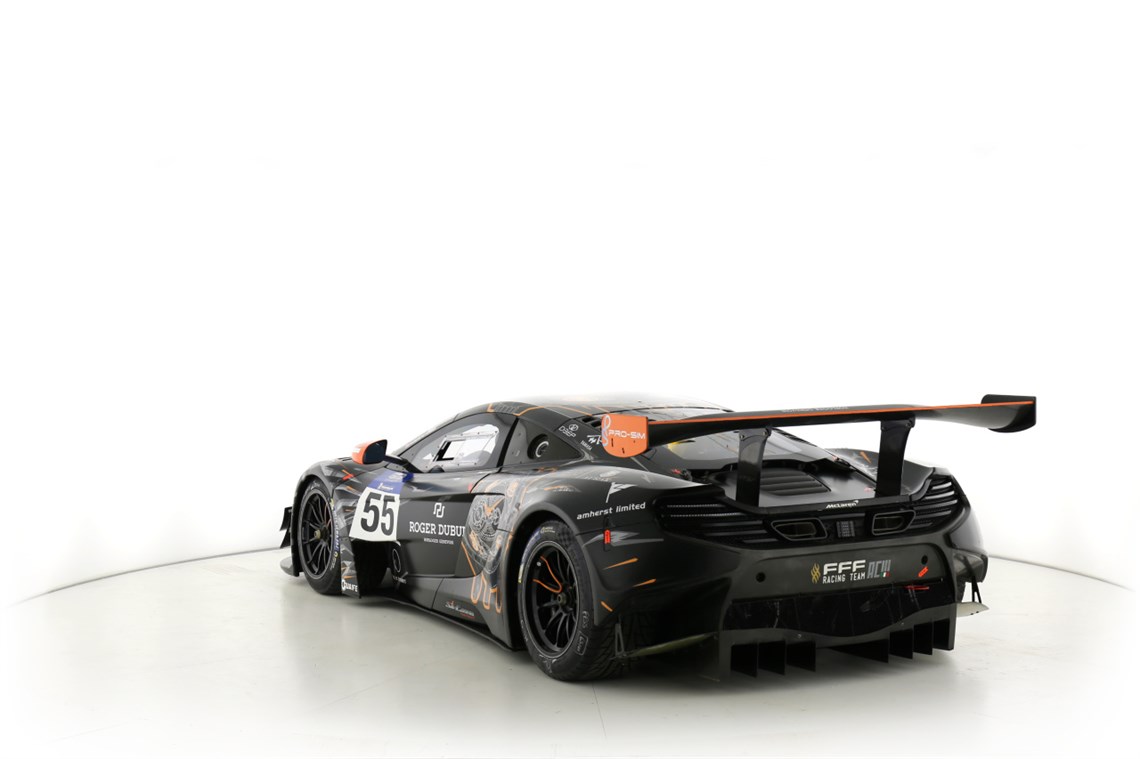

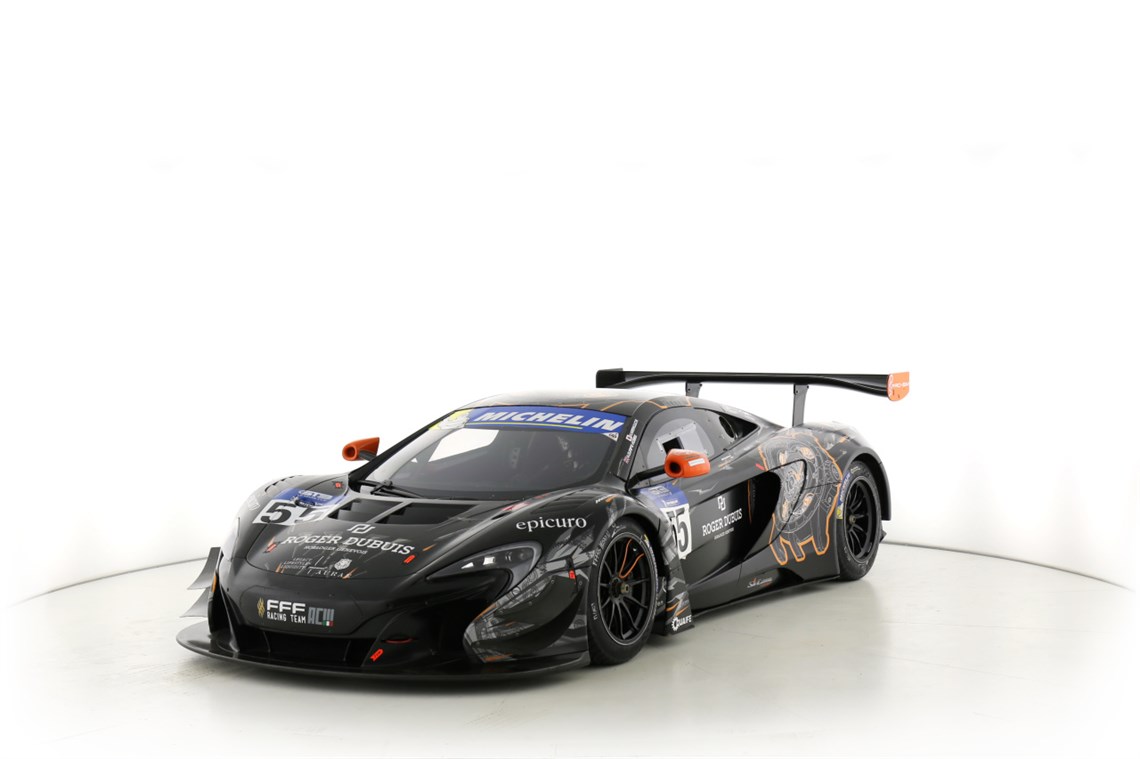

McLaren 650S GT3 Technical Specification

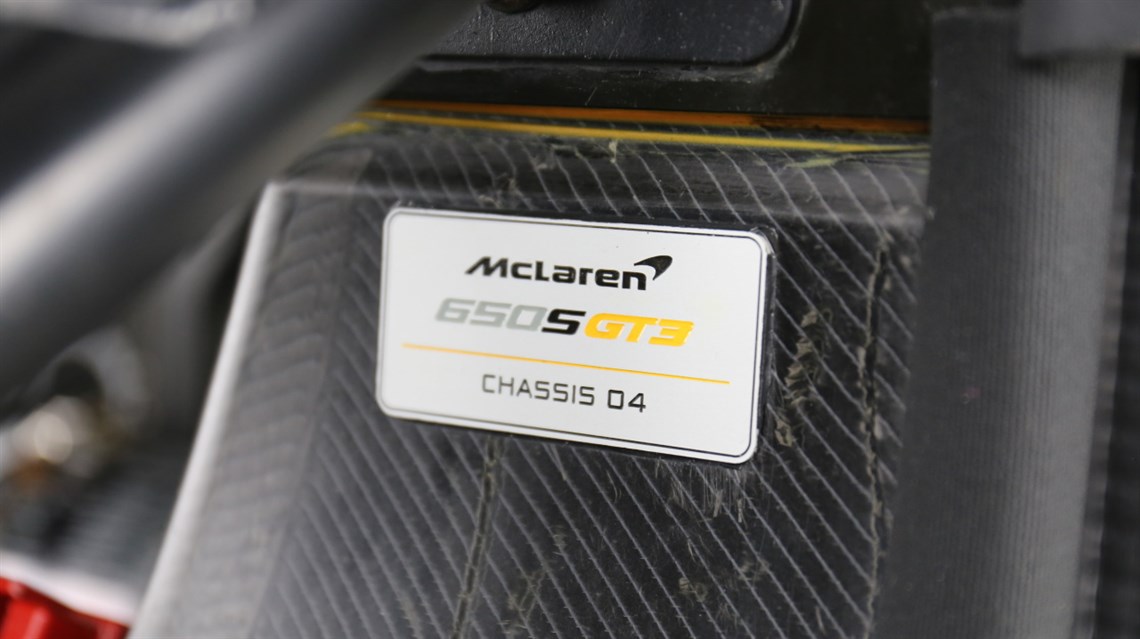

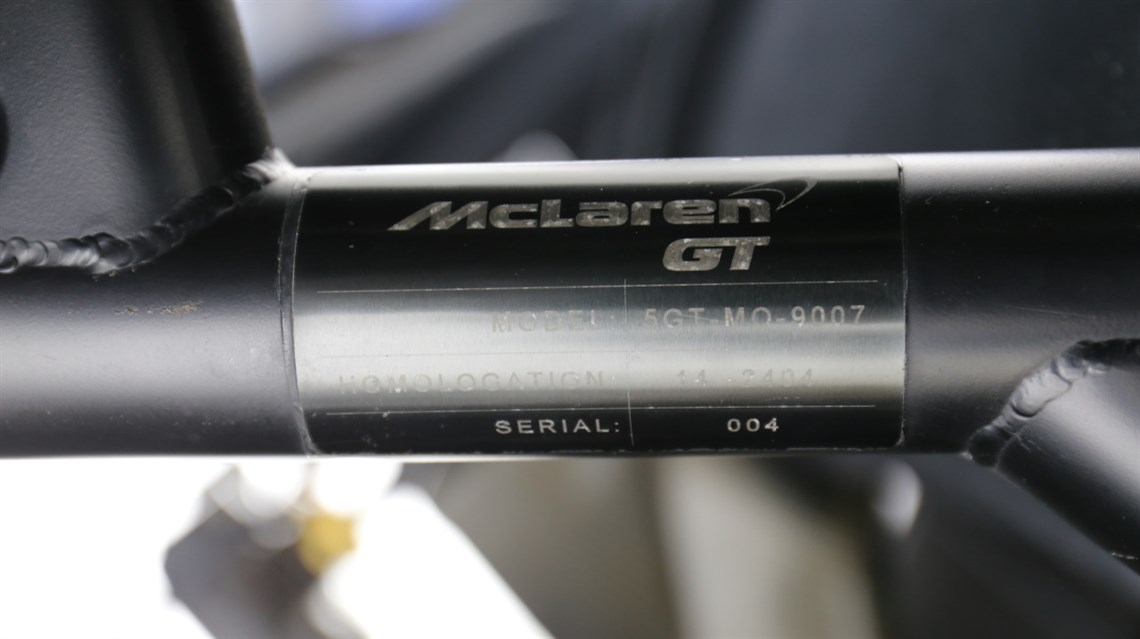

Chassis Number 004

Chassis/Body

• McLaren carbon fibre MonoCell with aluminium front and rear sub frames

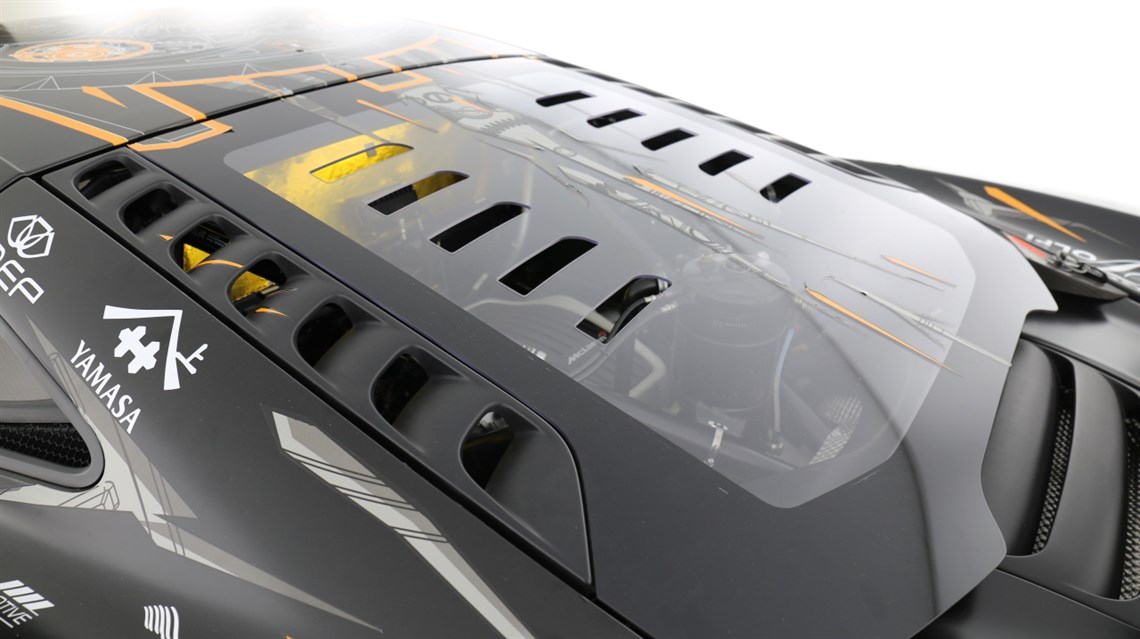

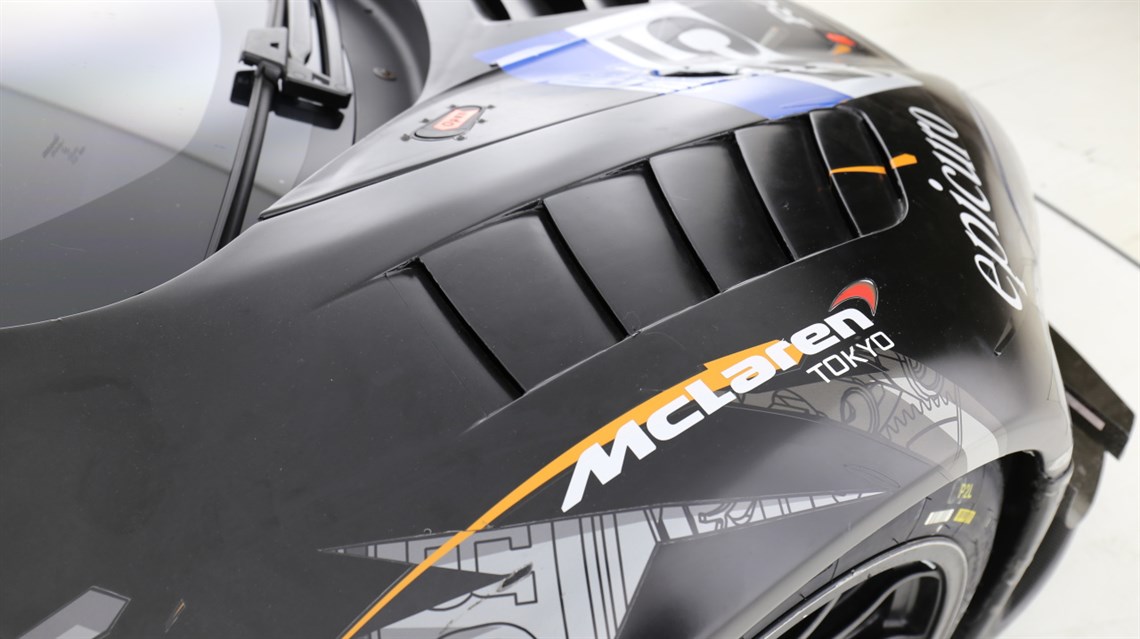

• Bespoke lightweight carbon fibre/composite body panels
• Left hand drive

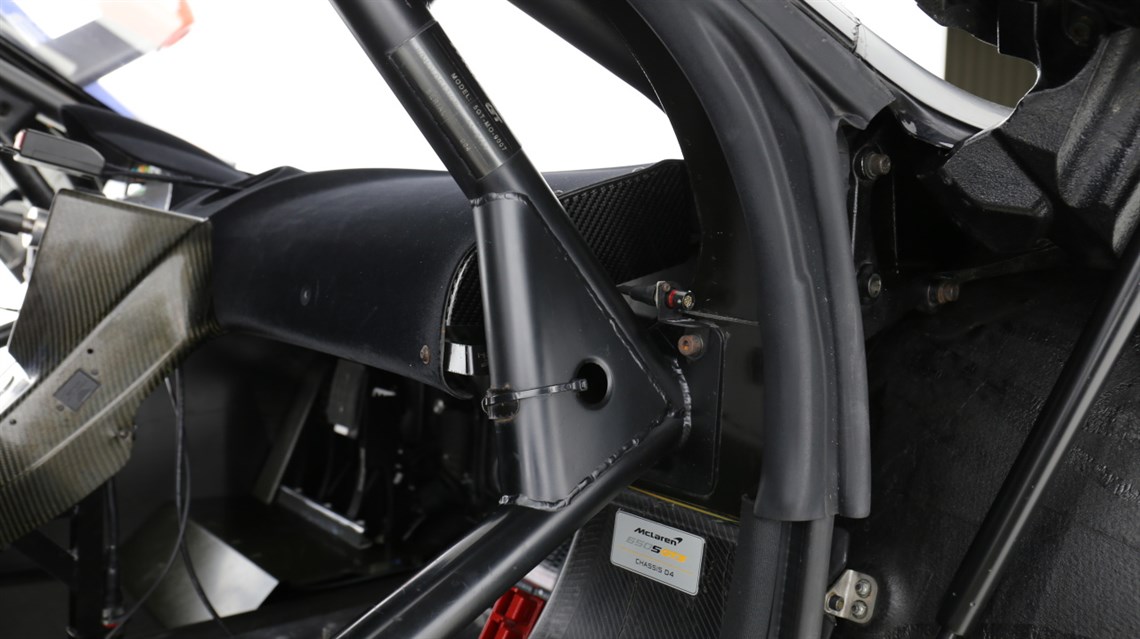

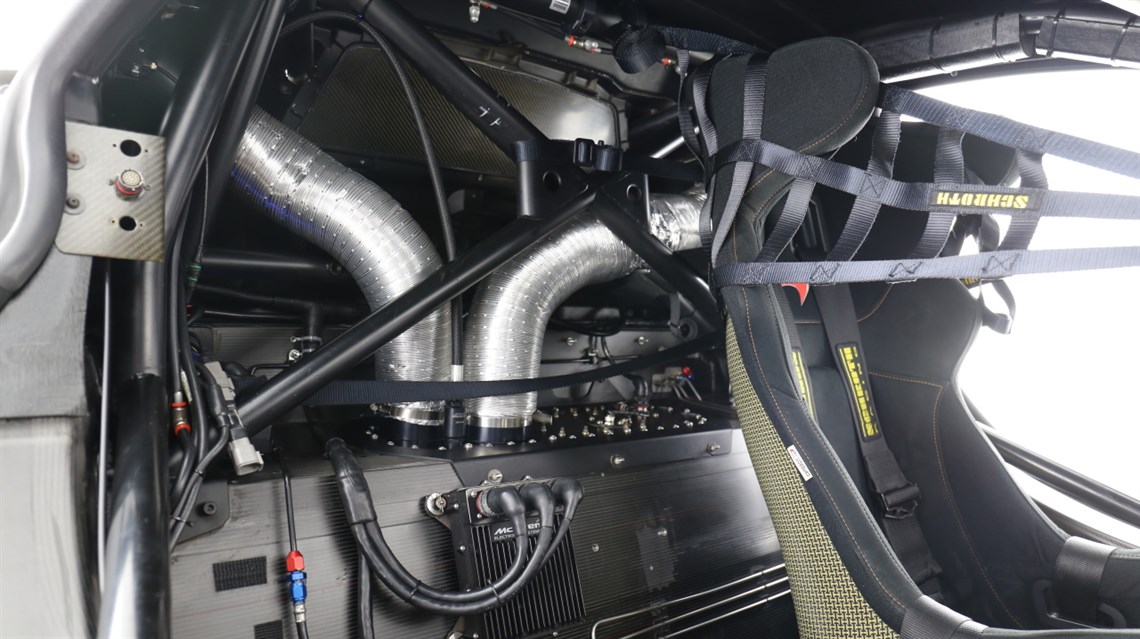

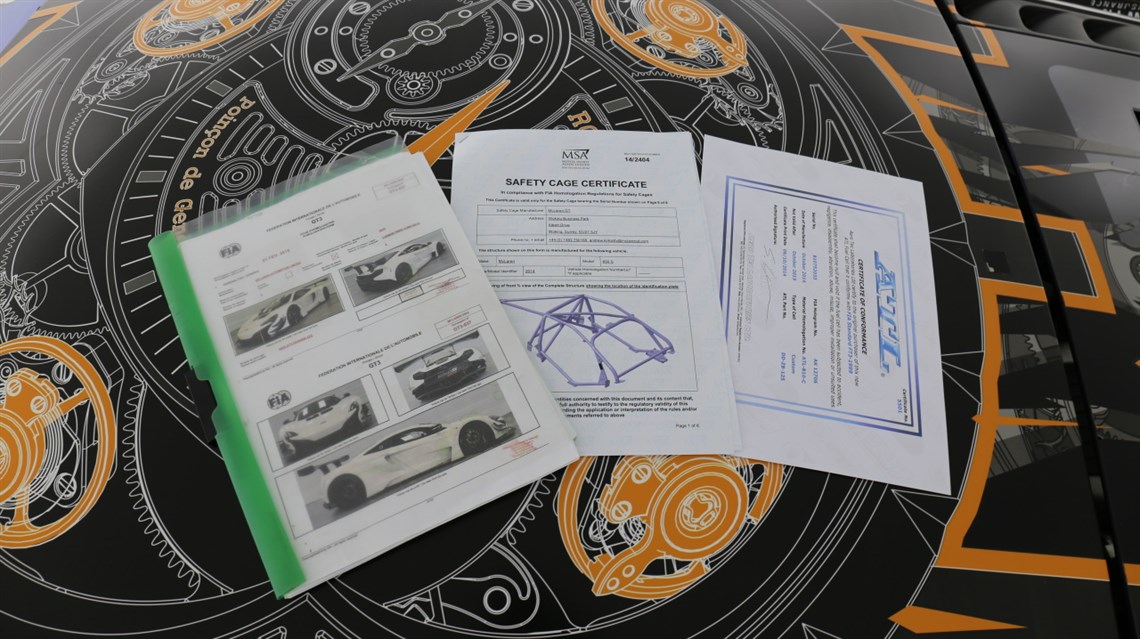

• FIA approved safety roll cage

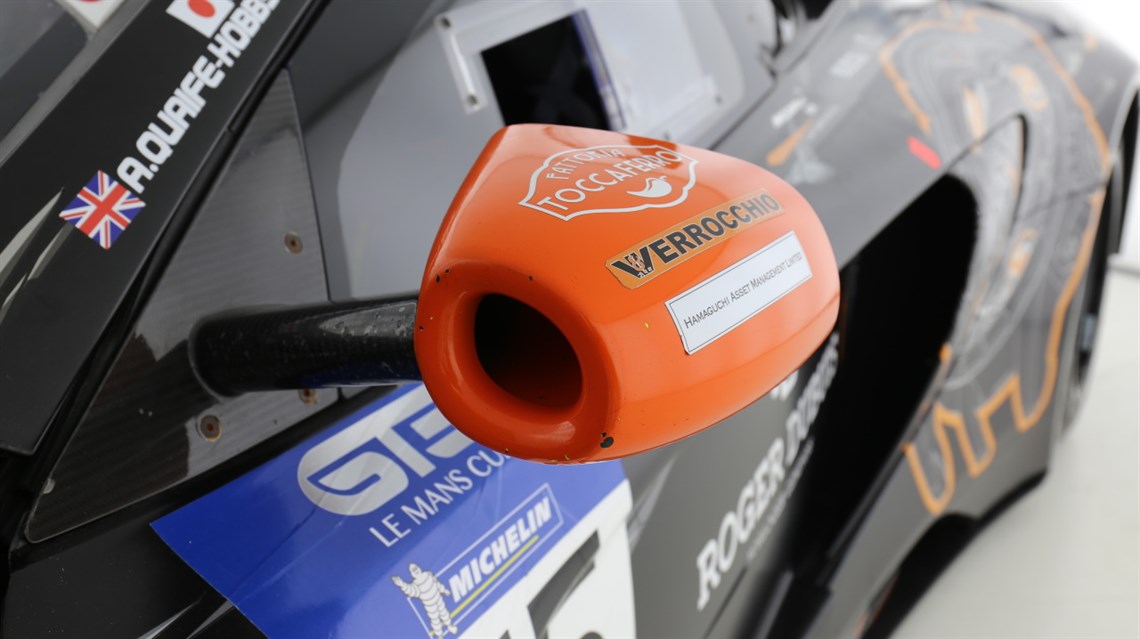

• Air-jacking system

Aerodynamics

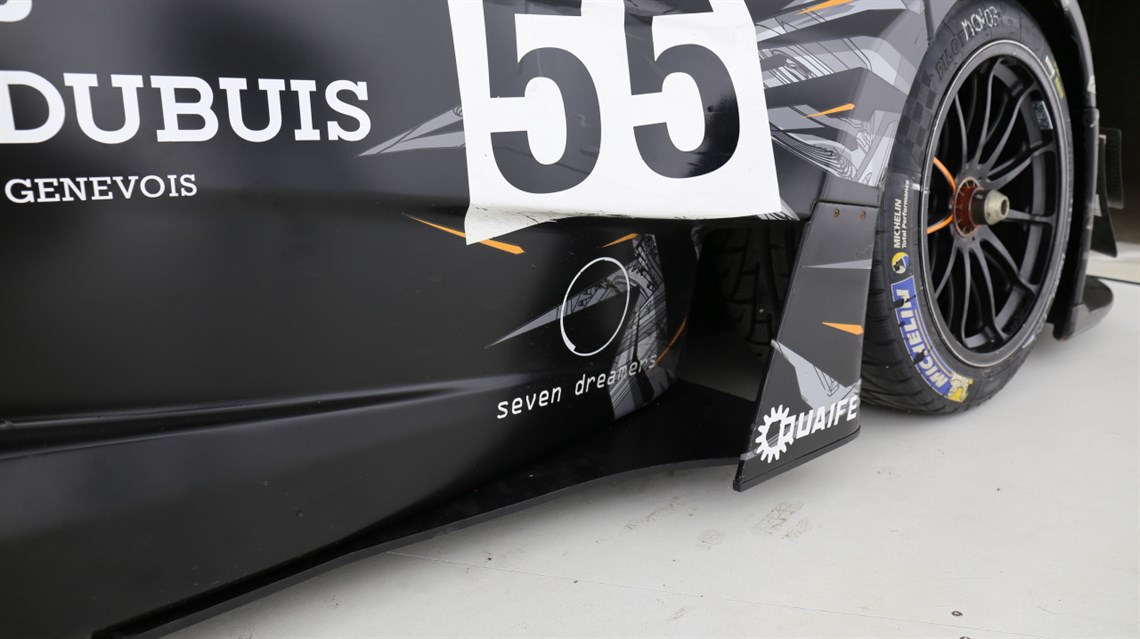

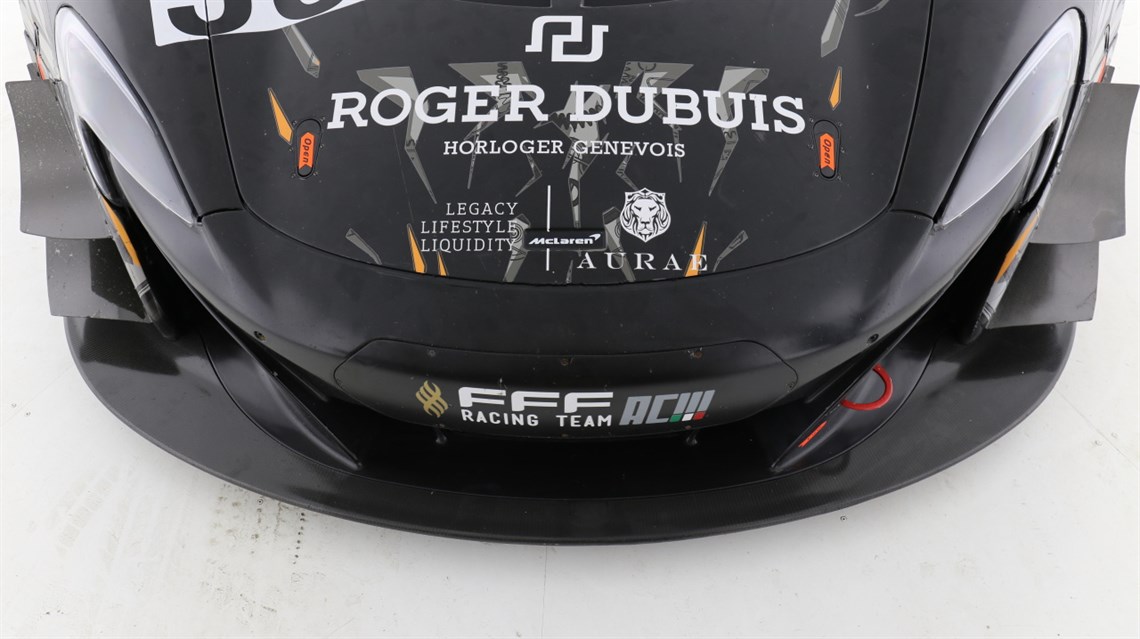

• Front splitter and dive planes

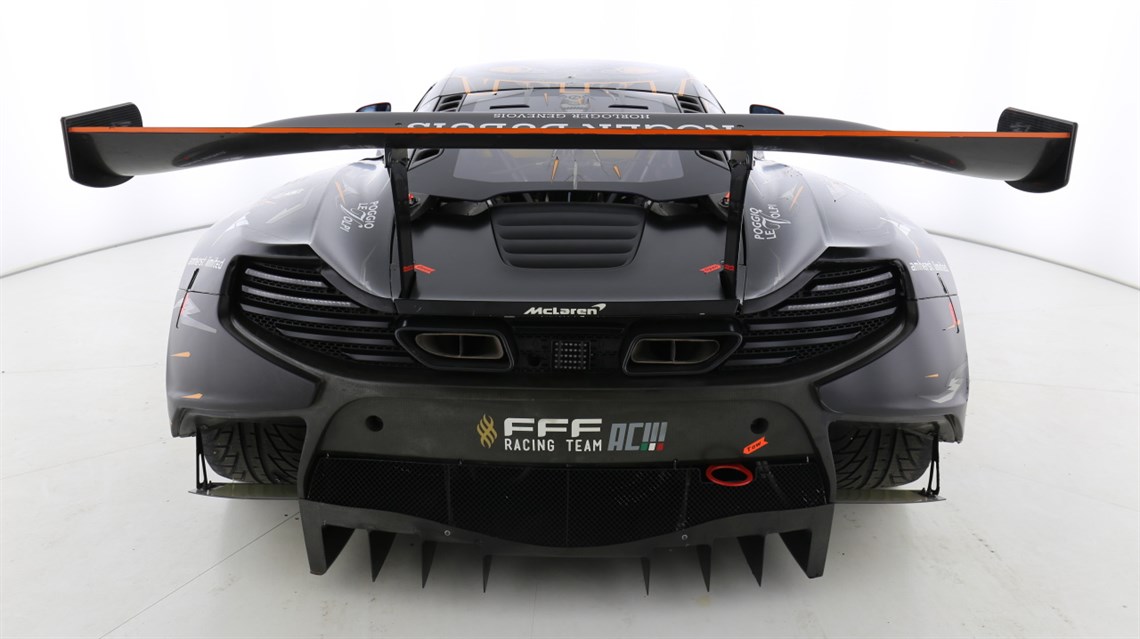

• Rear wing - fully adjustable with gurney
• Front and rear diffusers

Engine/Management

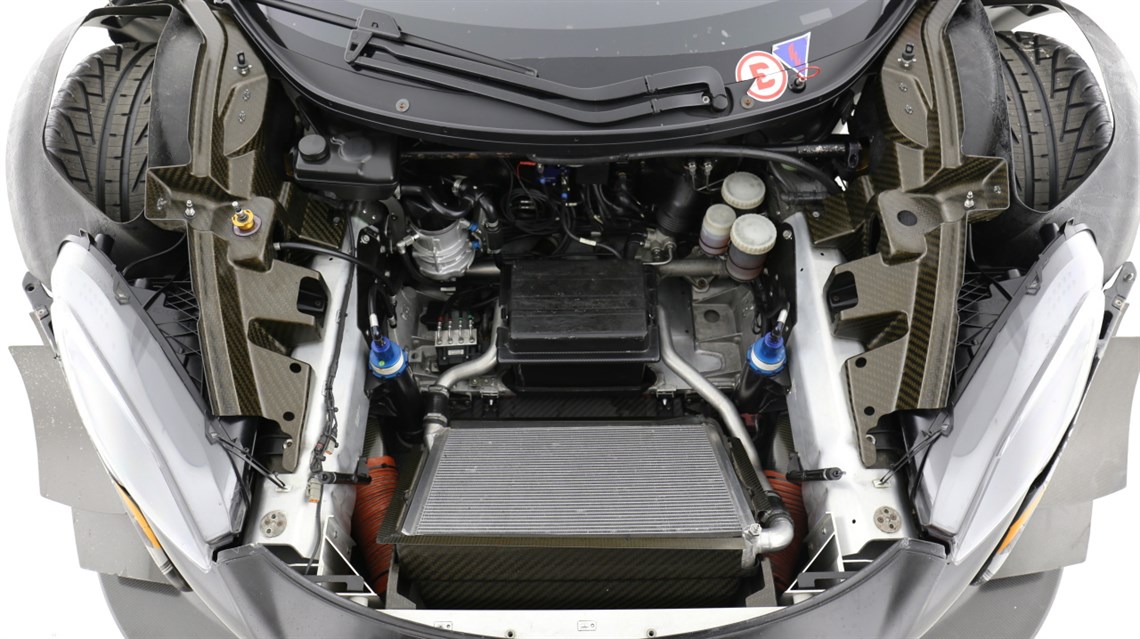

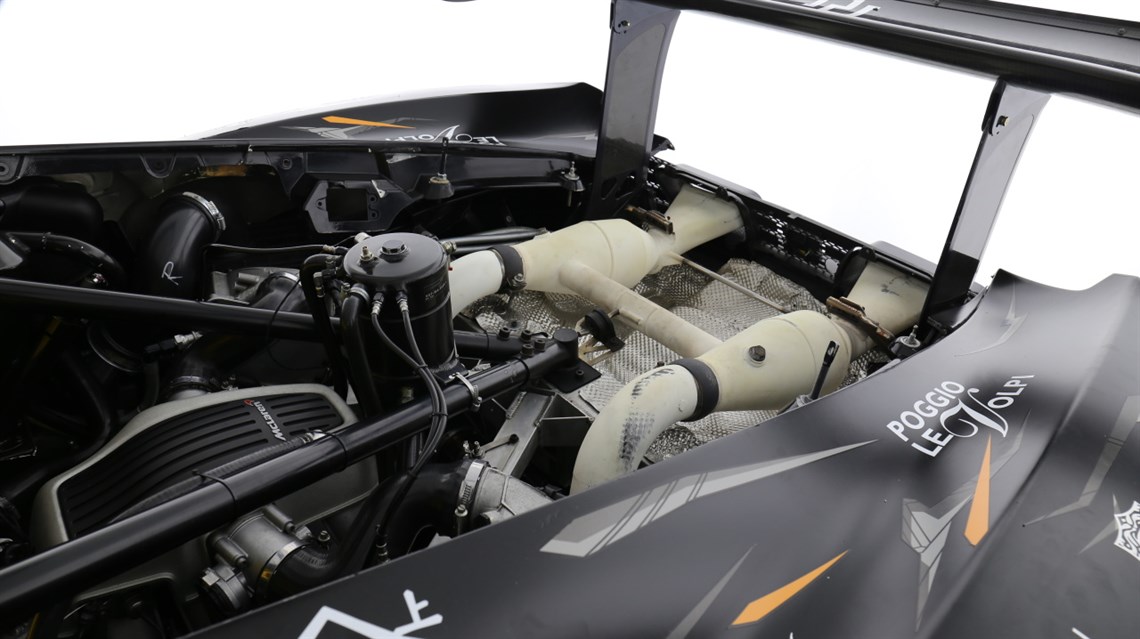

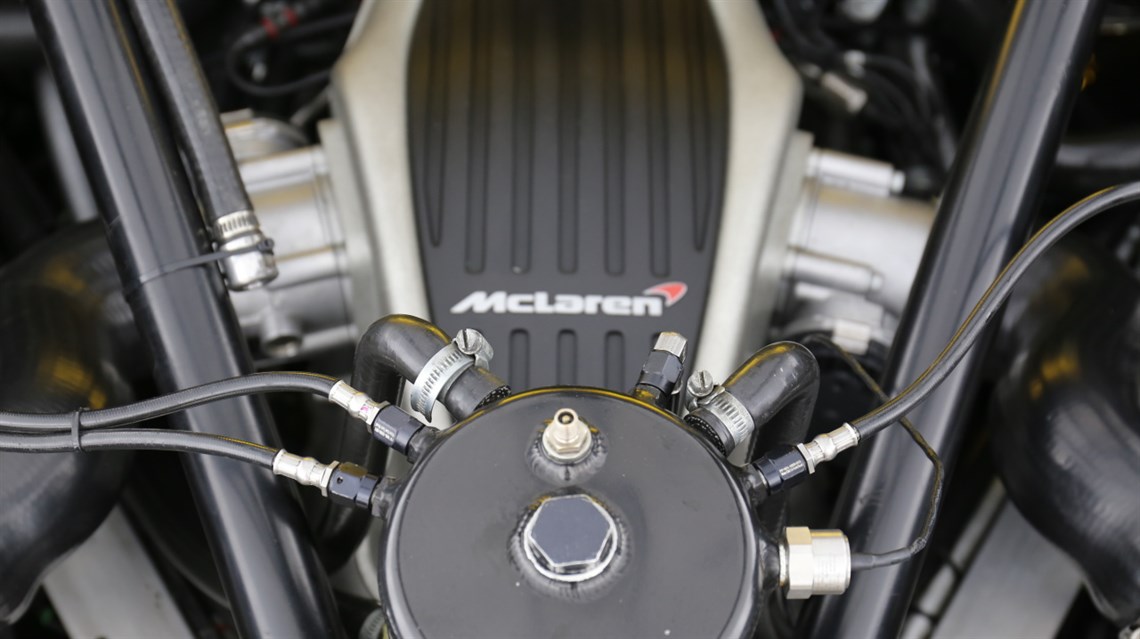

• Race prepared 3.8L V8 twin turbo McLaren M838T
• McLaren Electronics ECU incorporating turbo boost and transmission shift control

Transmission

• Six-speed sequential motorsport transmission pneumatically actuated via steering wheel mounted paddles

Electrical System

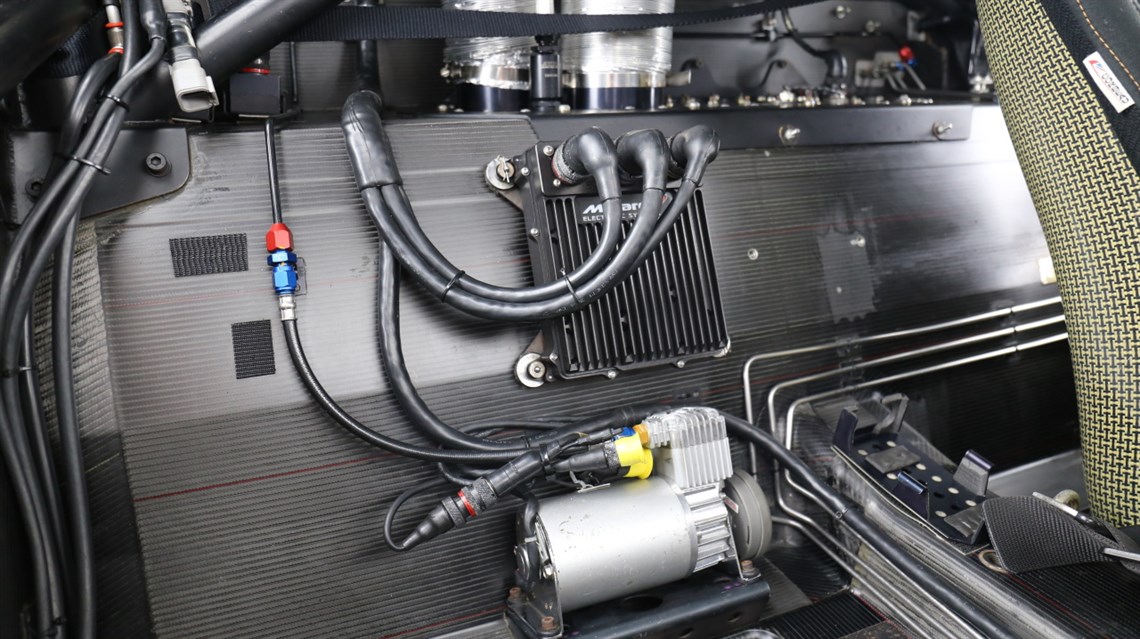

• Lightweight motorsport specification wiring and connectors
• Electronic power management system

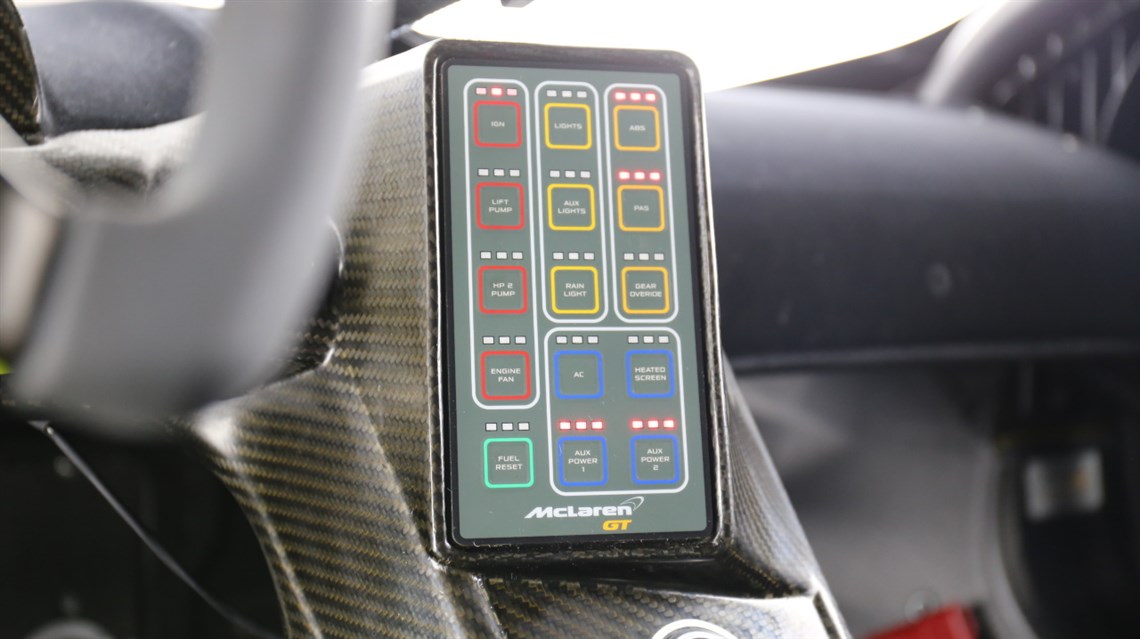

• Membrane type switch panel
  Auxiliary power supplies for fitment of team equipment (radio etc)

Data System

• McLaren Electronics ‘ATLAS’ data system
• Motorsport digital dash display

Front/Rear Suspension

• Double wishbone adjustable for ride height, camber and toe
• 4-way adjustable dampers with coil over springs
• Motorsport axles with single wheel retaining nut
• Adjustable anti-roll bars

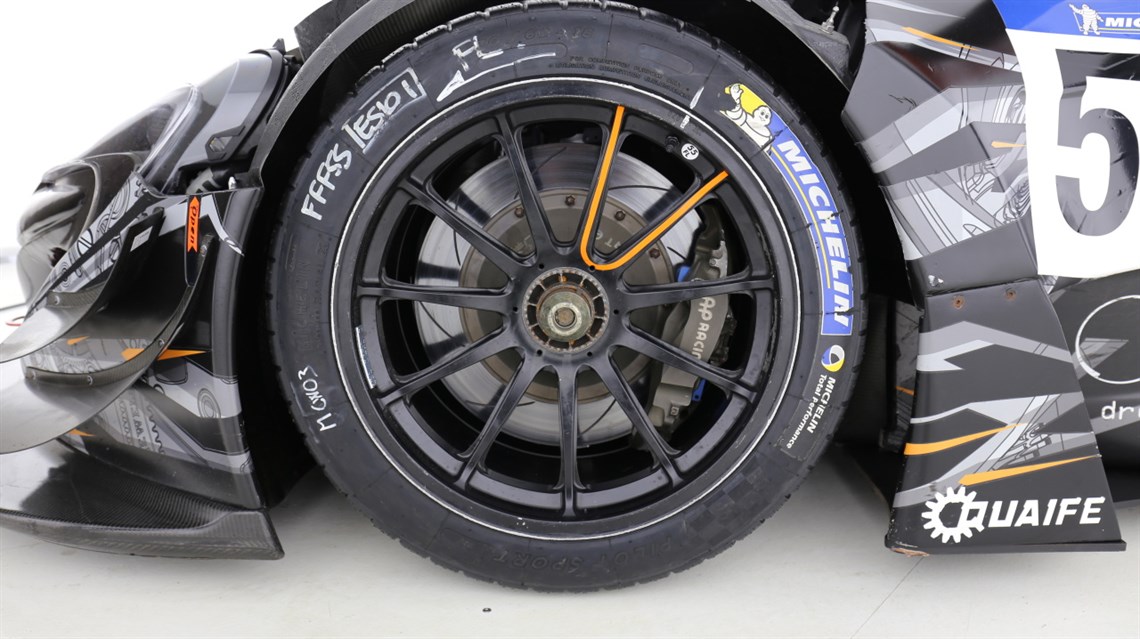

• Forged aluminium wheels: Front 12.5” x 18”, Rear 13” x 18”

Steering

• Electro-hydraulic power assisted steering
• Unique McLaren GT composite steering wheel incorporating key driver switch controls and map settings

Fuel System

• Motorsport ‘bag tank’ system with 125L capacity
• Motorsport ‘quick-fill’ system

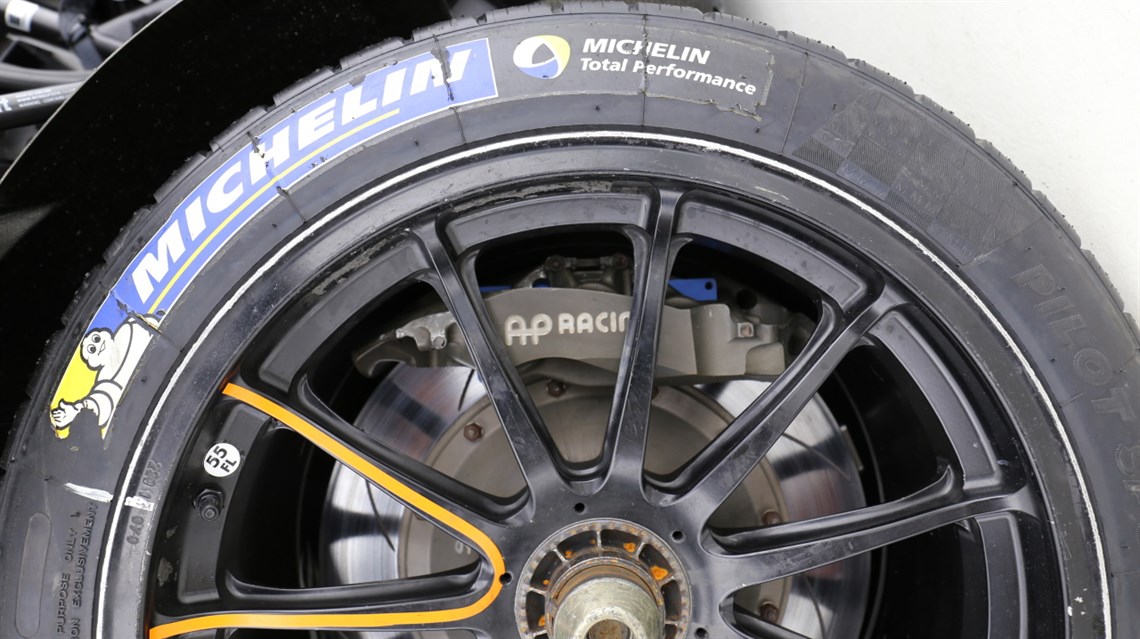

Brake System

• Monoblock calipers with ventilated discs:
• Front – 6 piston caliper, 380Ø x 35mm disc
• Rear – 4 piston caliper, 355Ø x 32mm disc
• Bosch motorsport ABS
• Adjustable brake bias

Cockpit

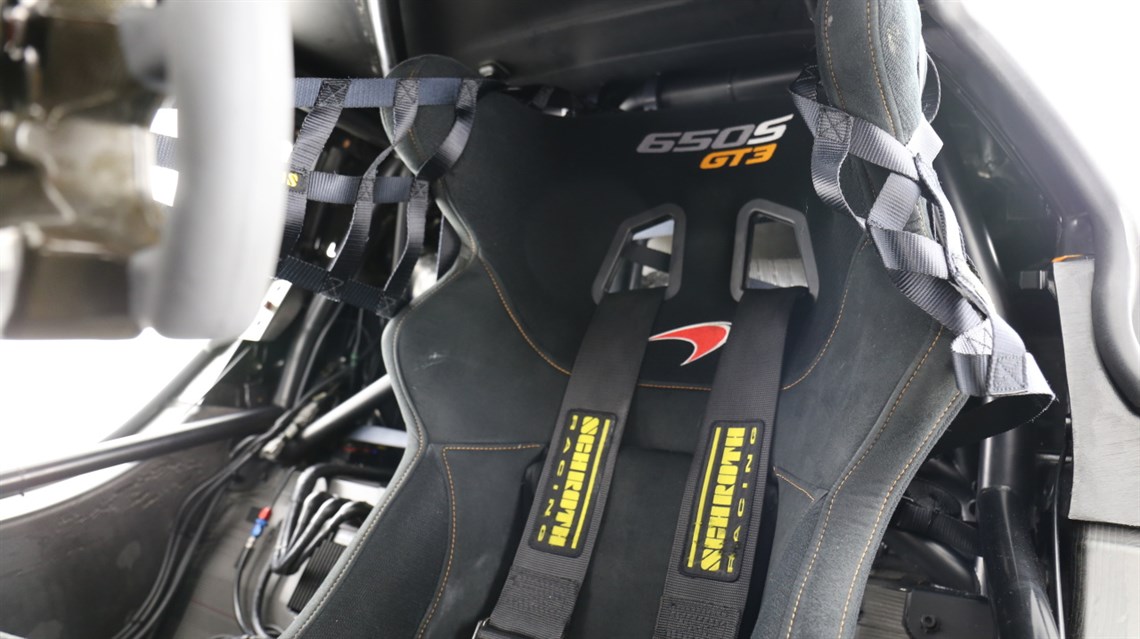

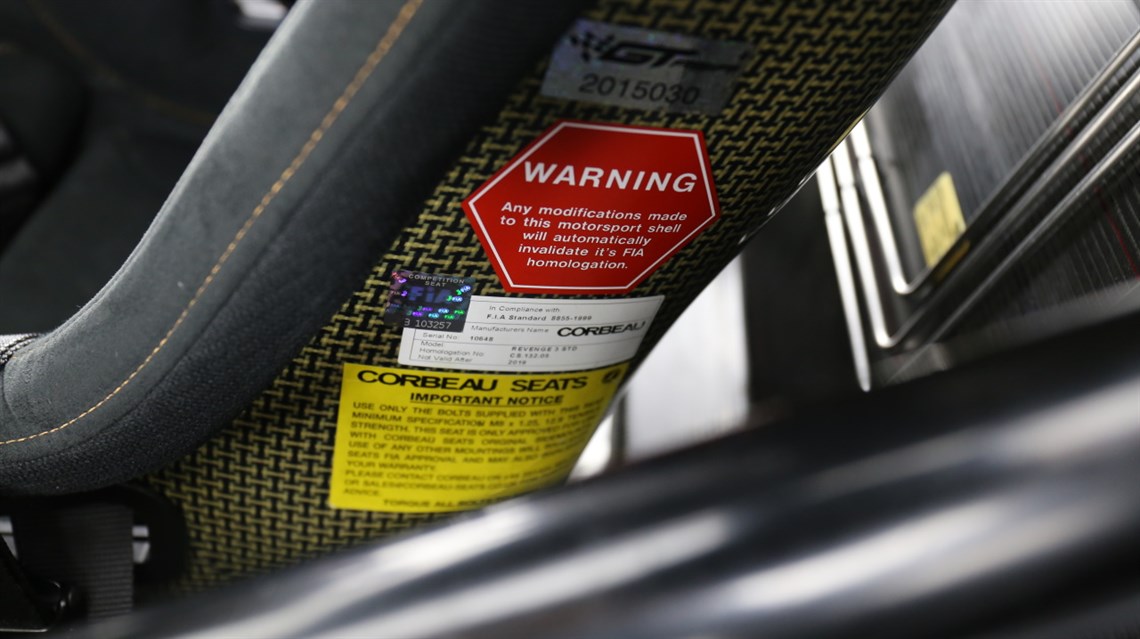

• McLaren GT bespoke composite seat shell
• Six-point racing harness

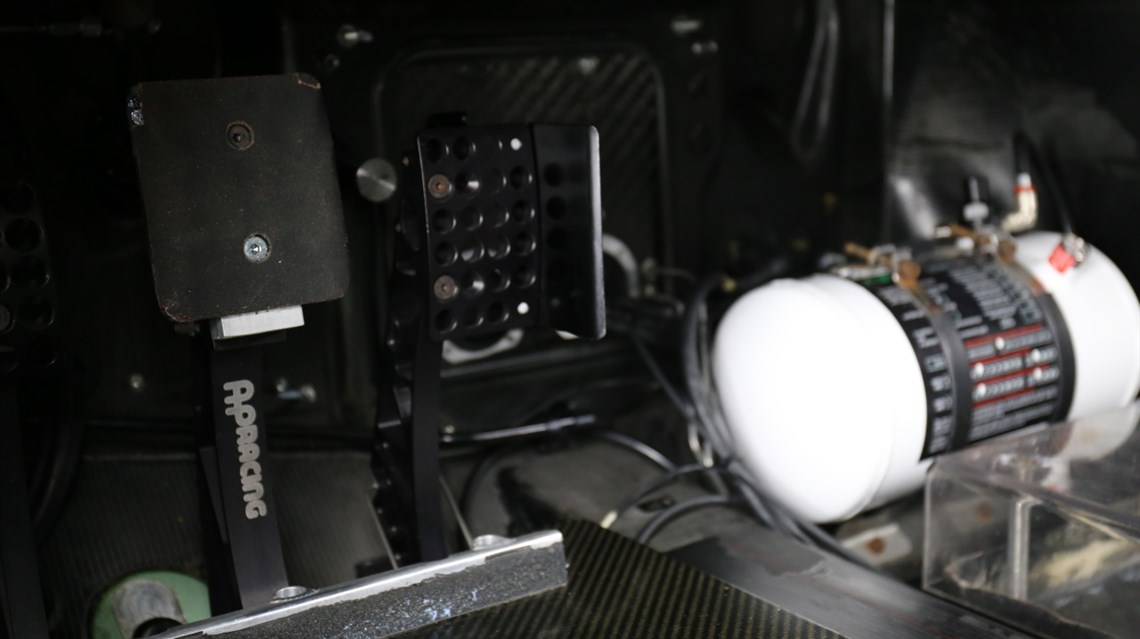

• Motorsport pedal box – adjustable position

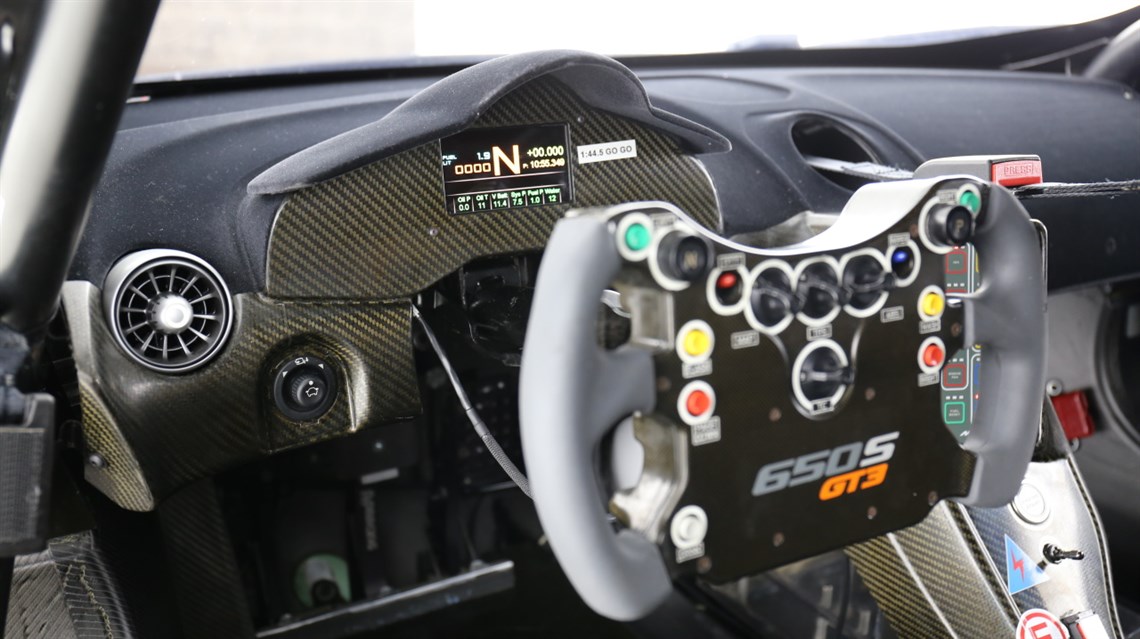

• Lightweight carbon fibre dash with integrated driver display and switch panel

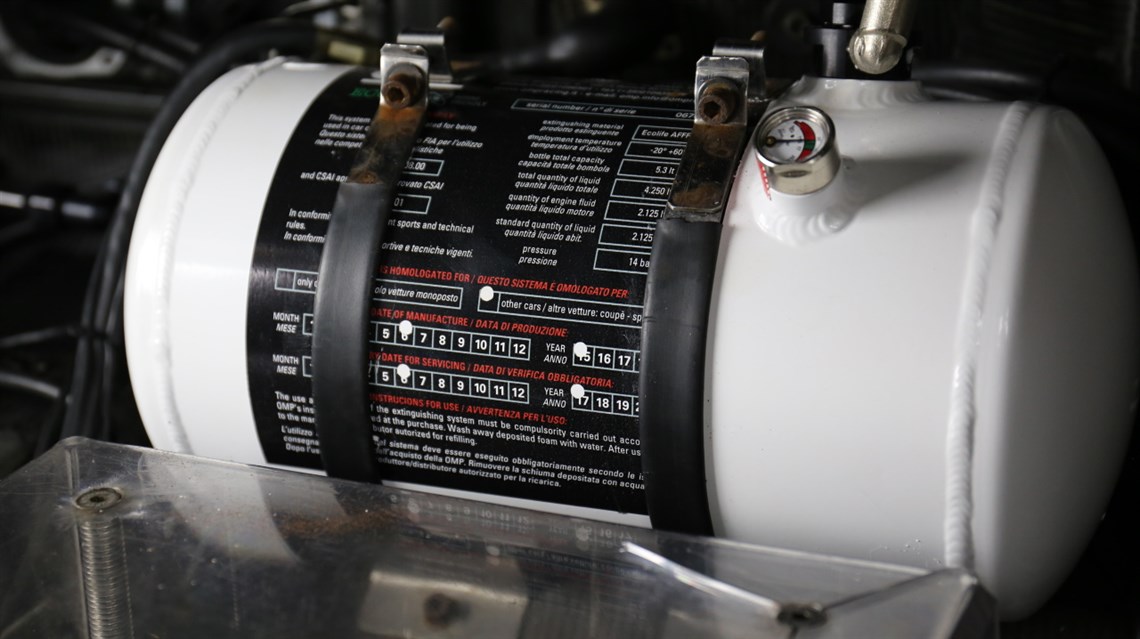

• Motorsport fire extinguisher system


This car has been run and maintained to the very highest standard and is in tip top condition.

Engine mileage:2070km of the 10000km
Gearbox mileage:6370km of the 8000km
Dampers mileage:4915km of the 10000km

Car is eligible for GT Asia Series, Blancpain, Michelin GT3 Le Mans Cup,…

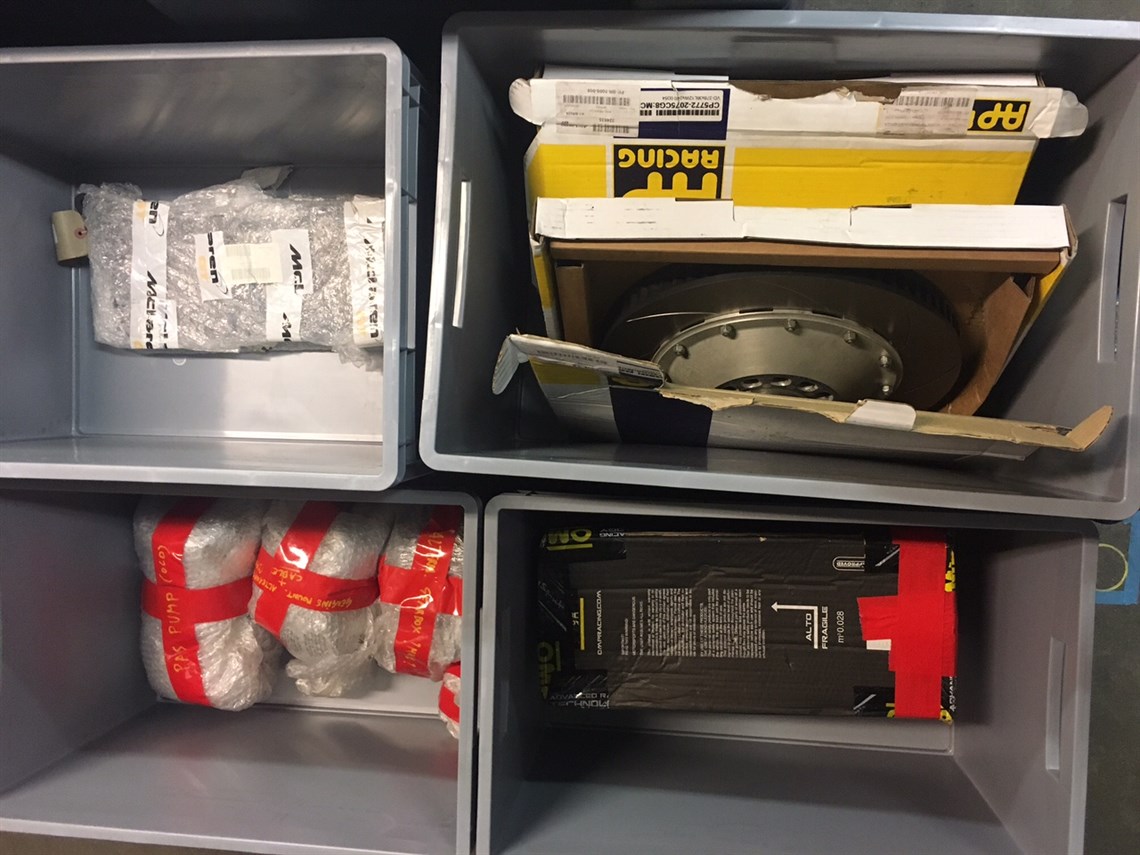

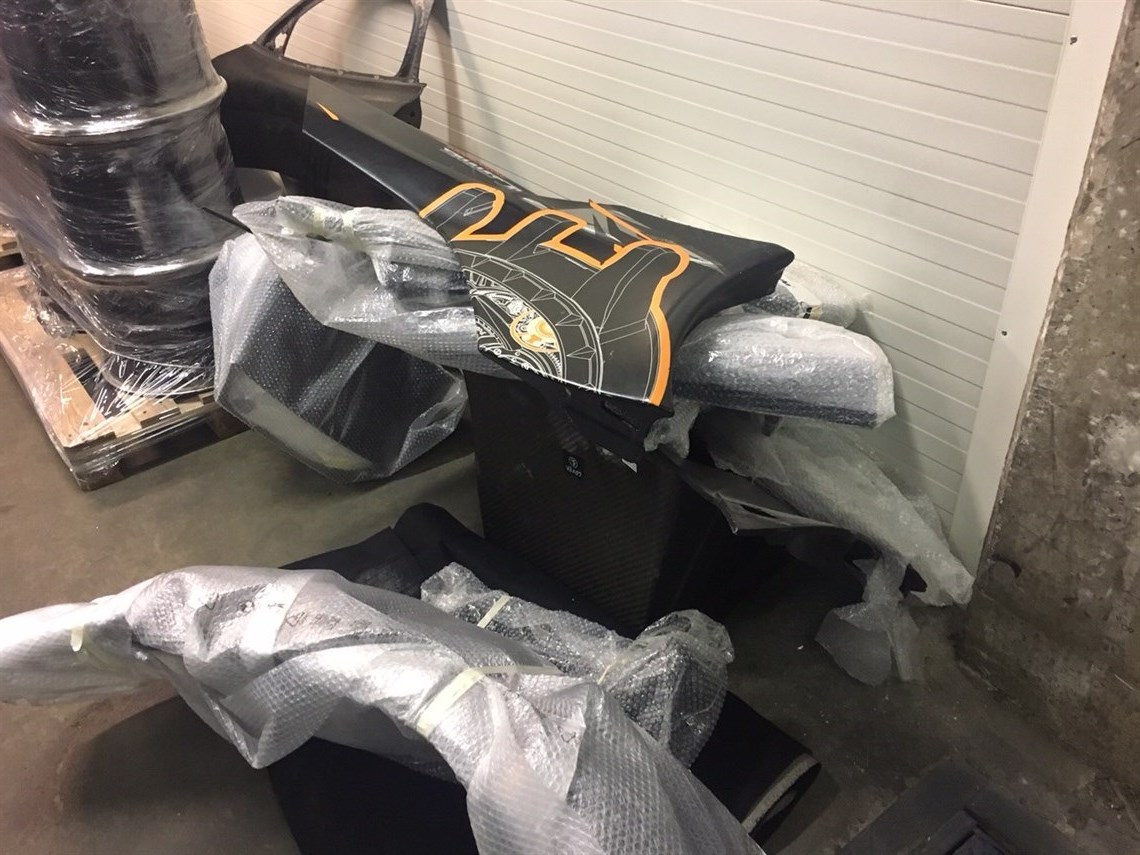

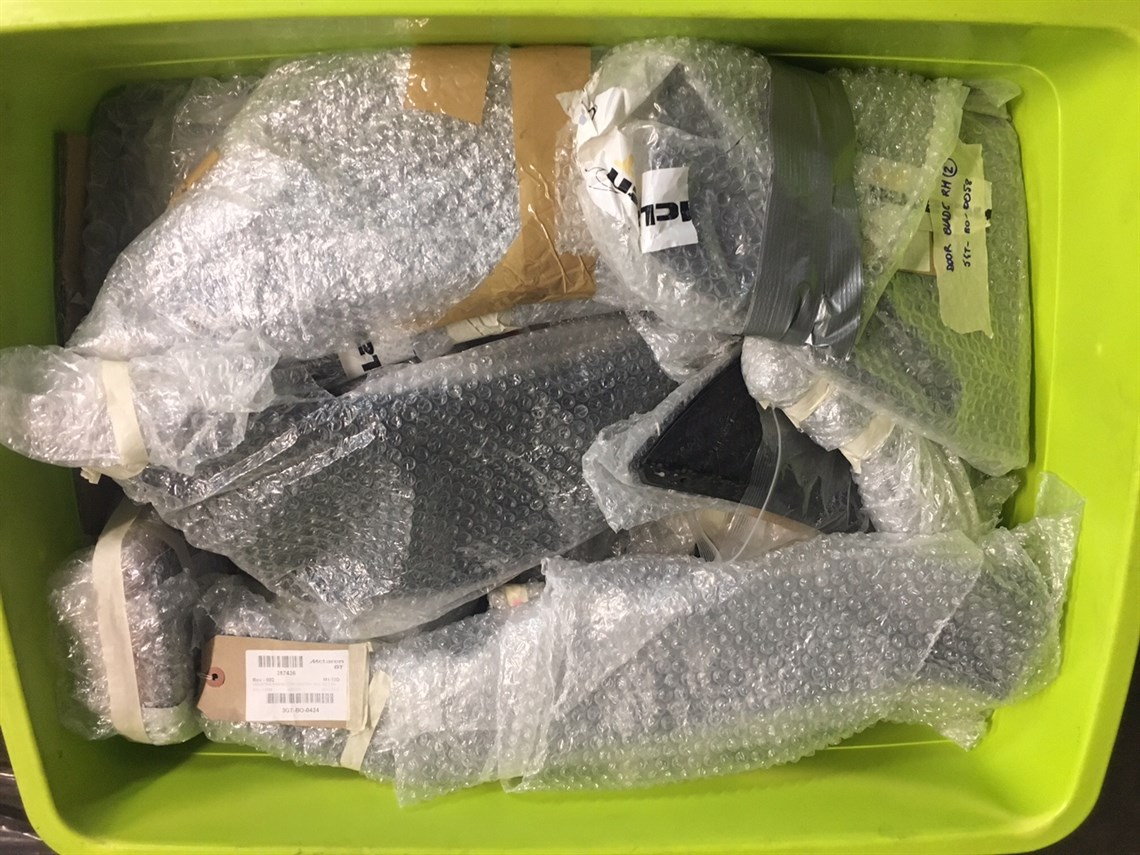

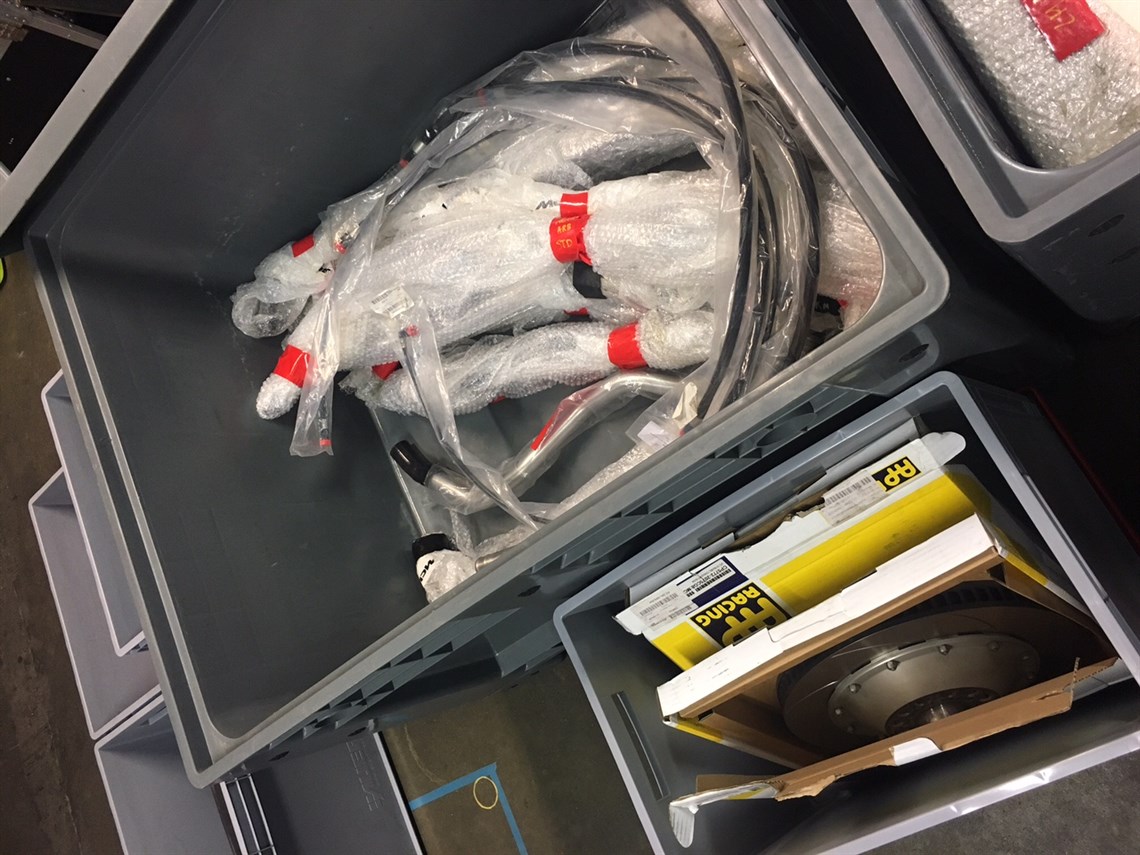

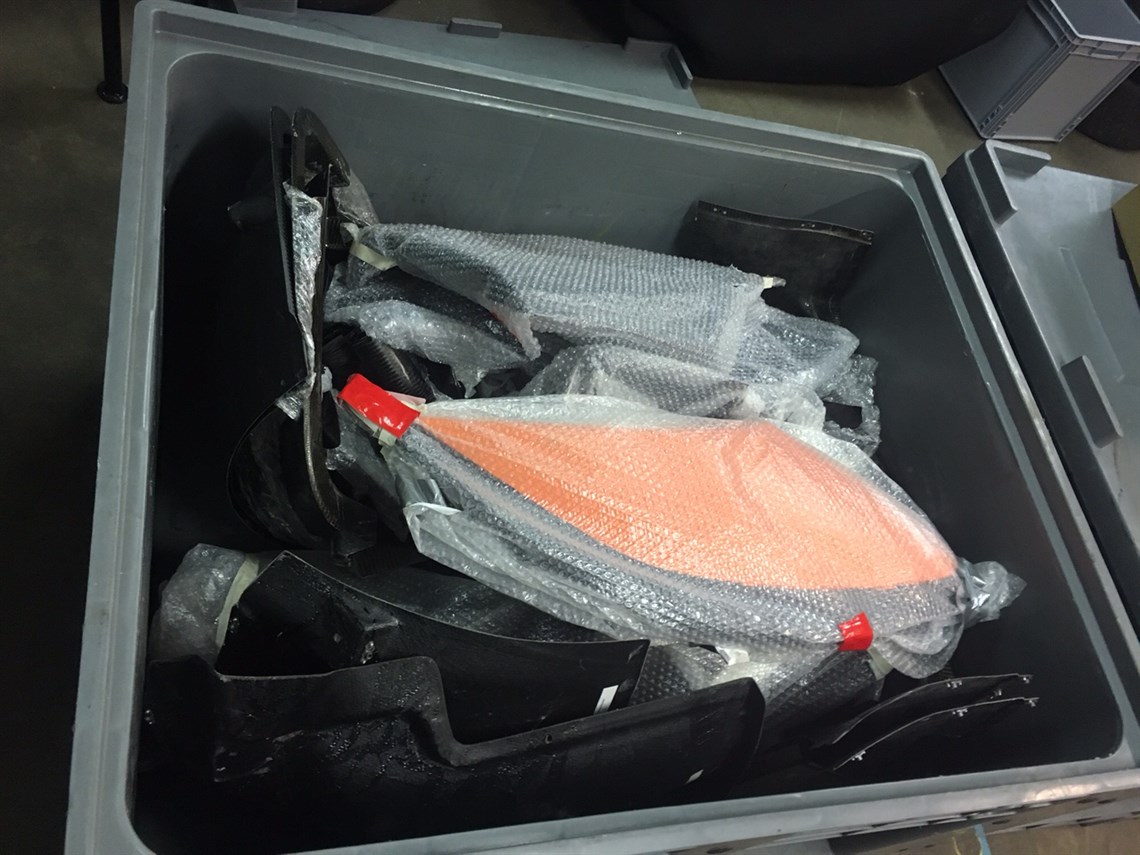

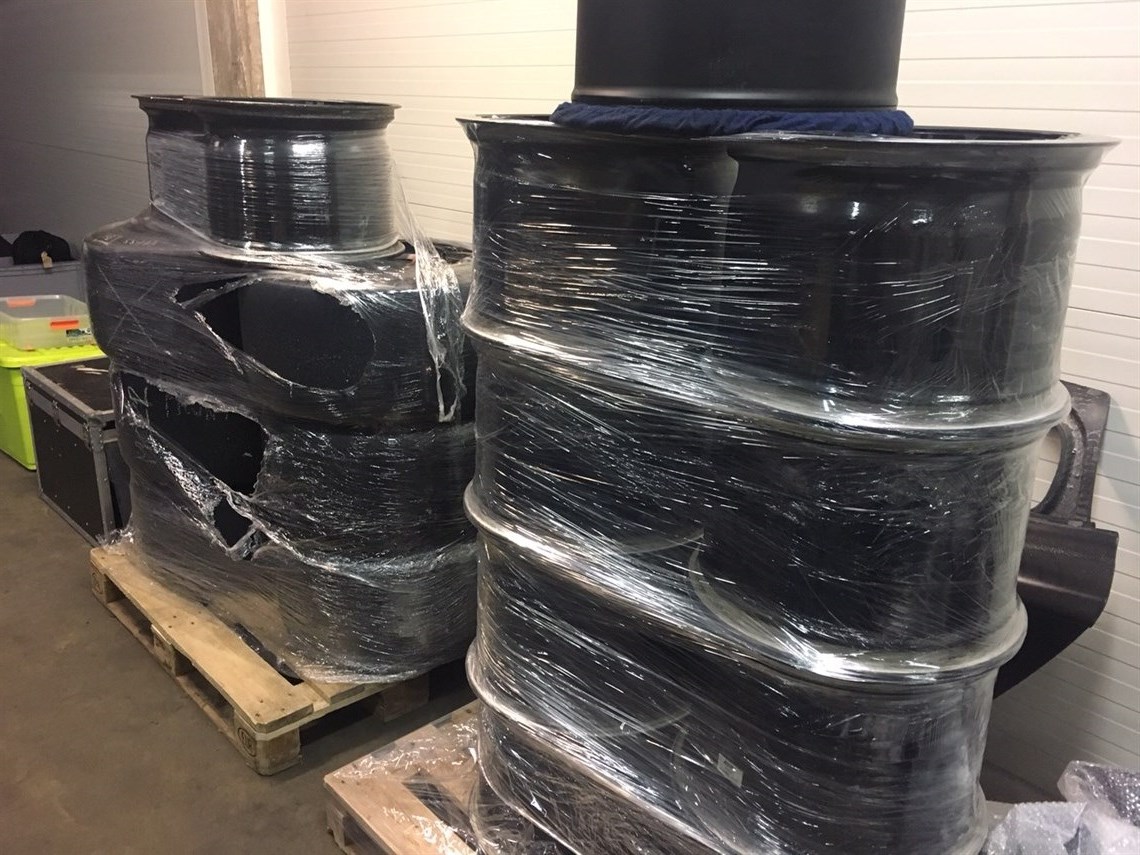

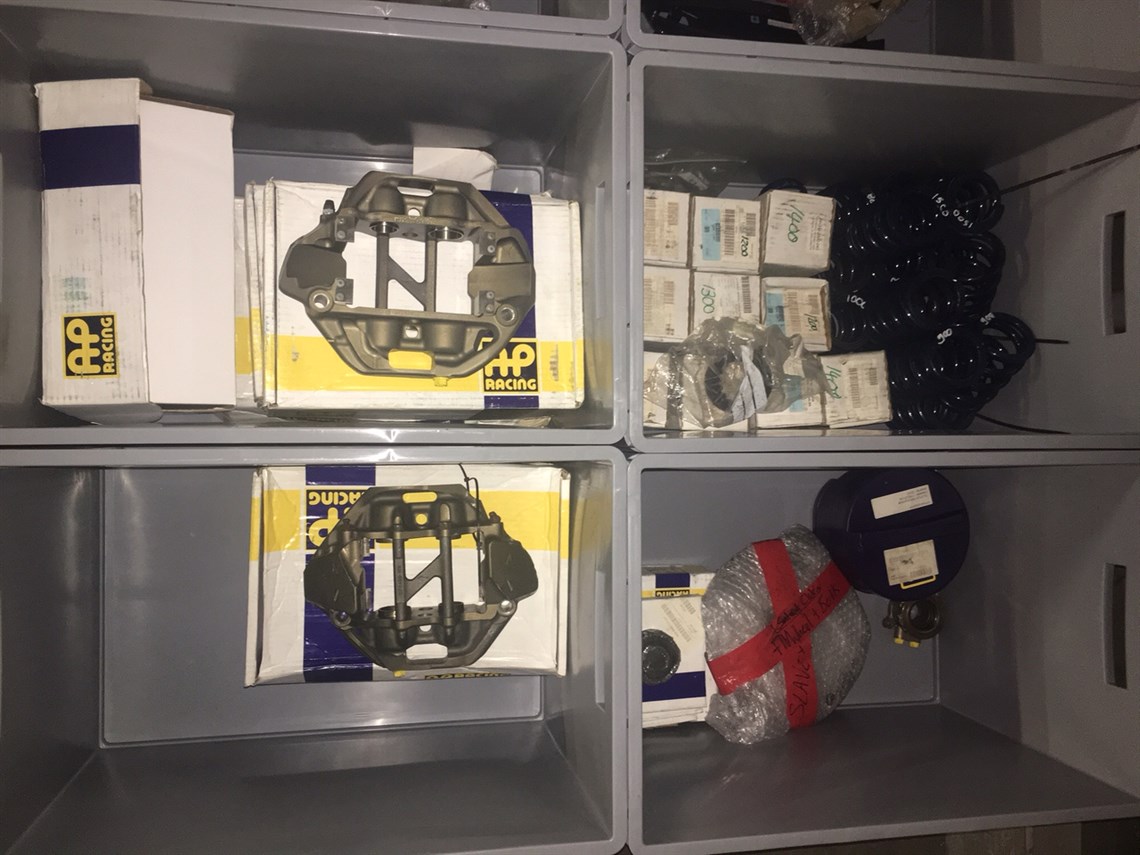

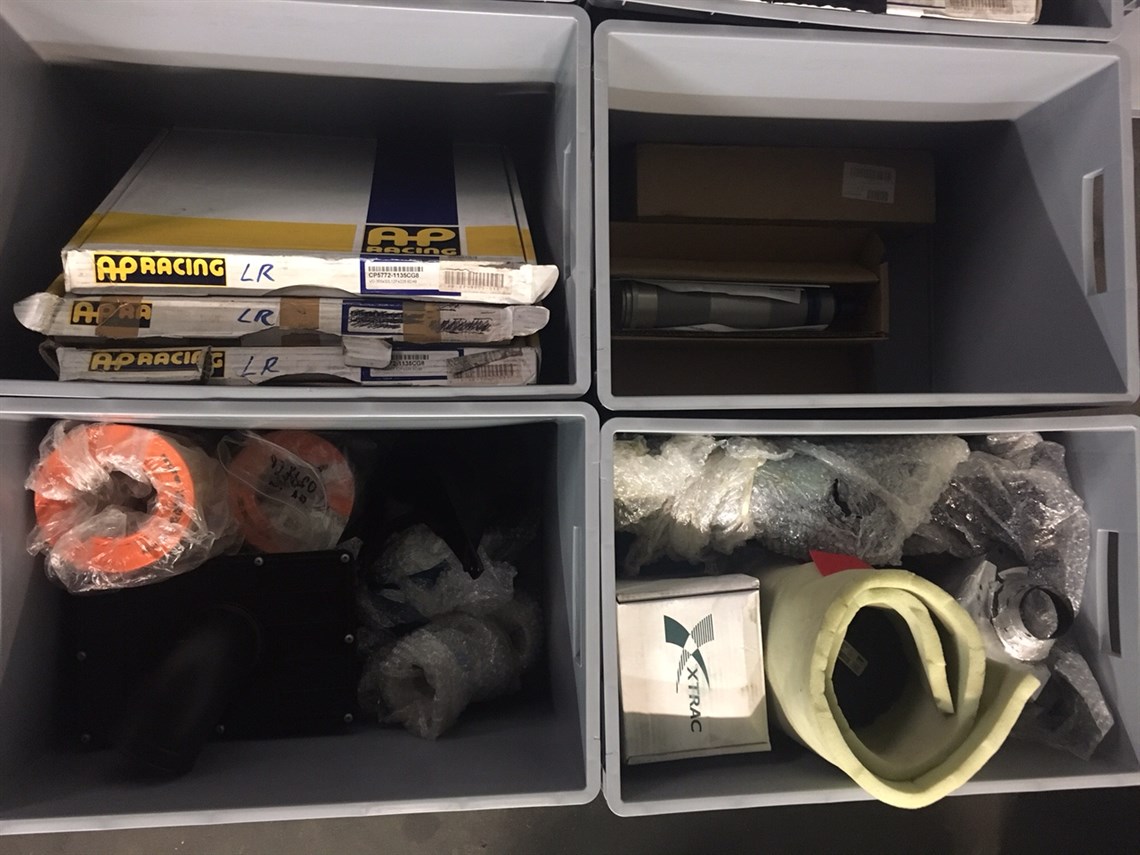

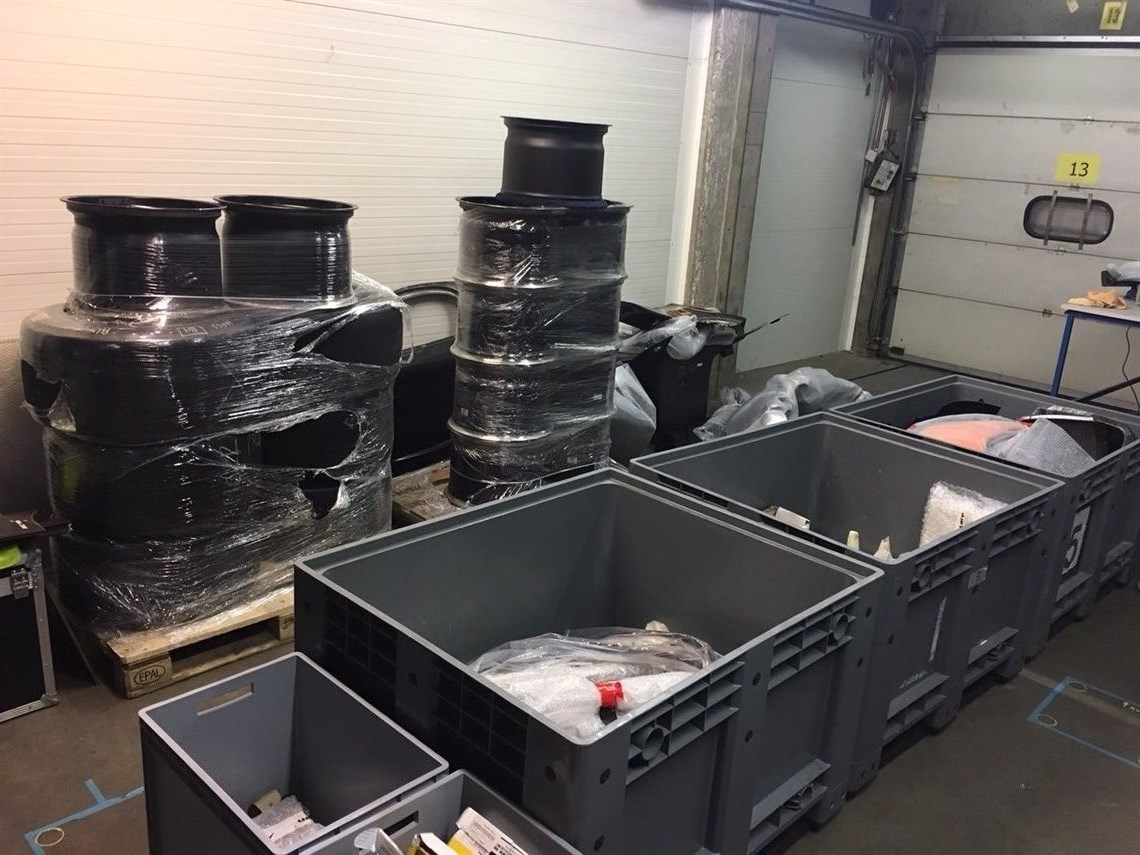

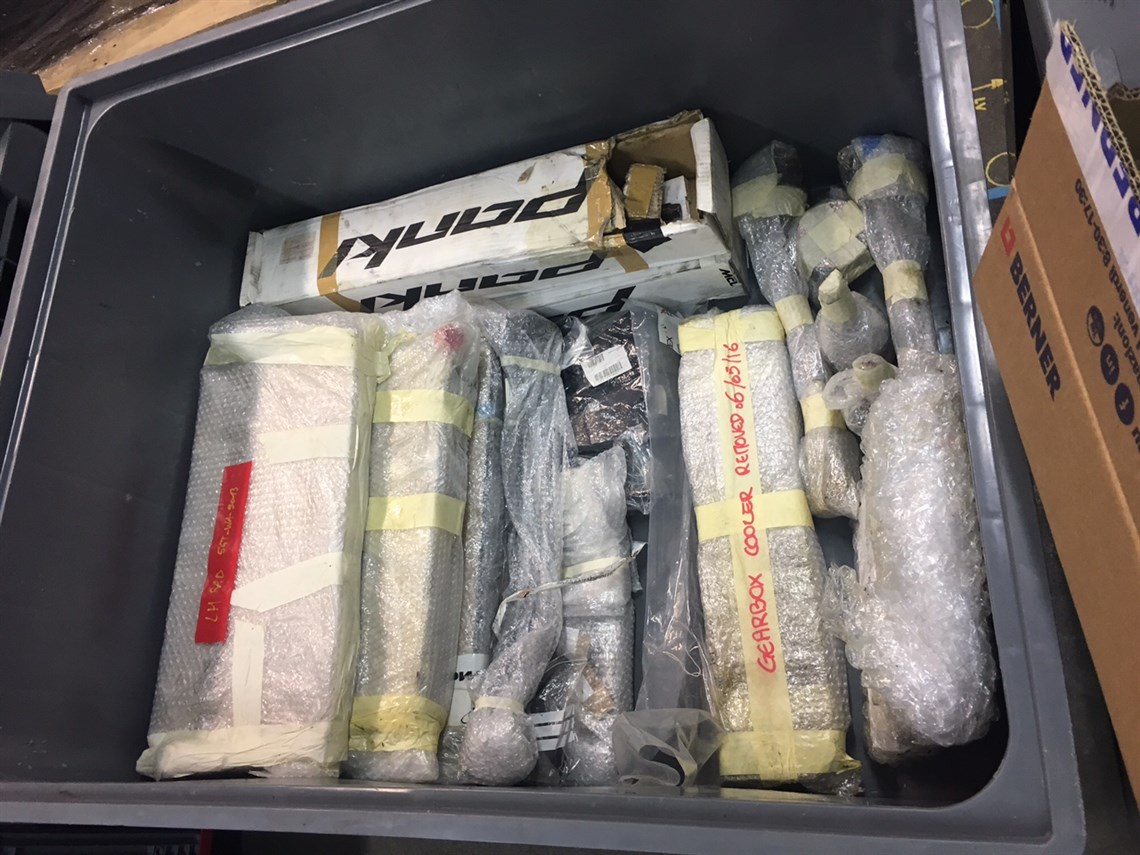

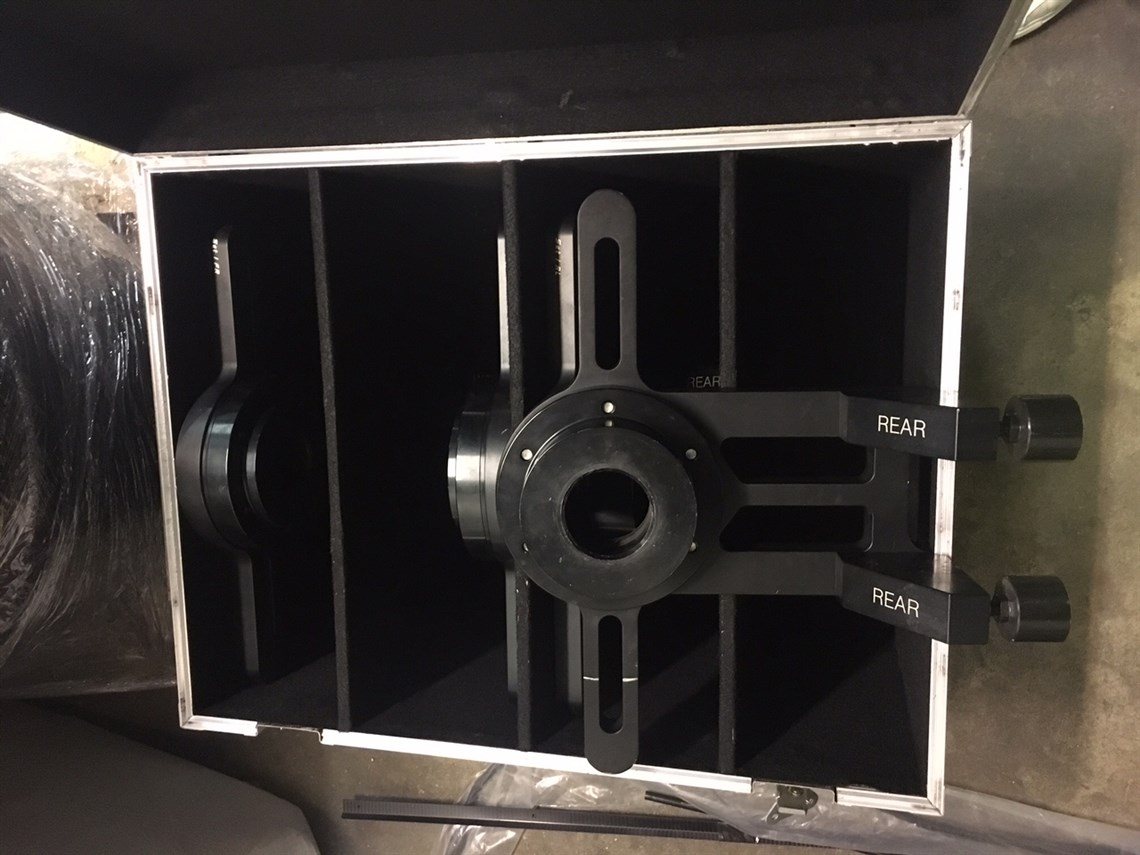

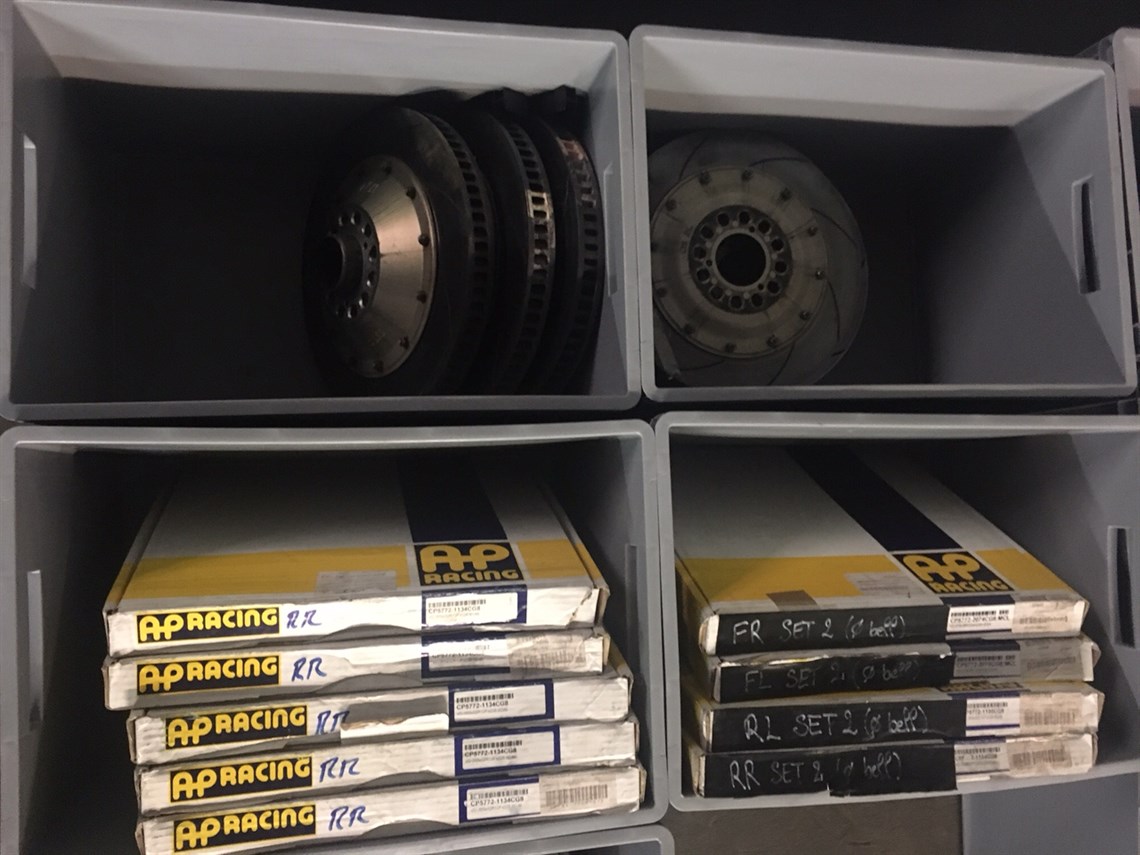

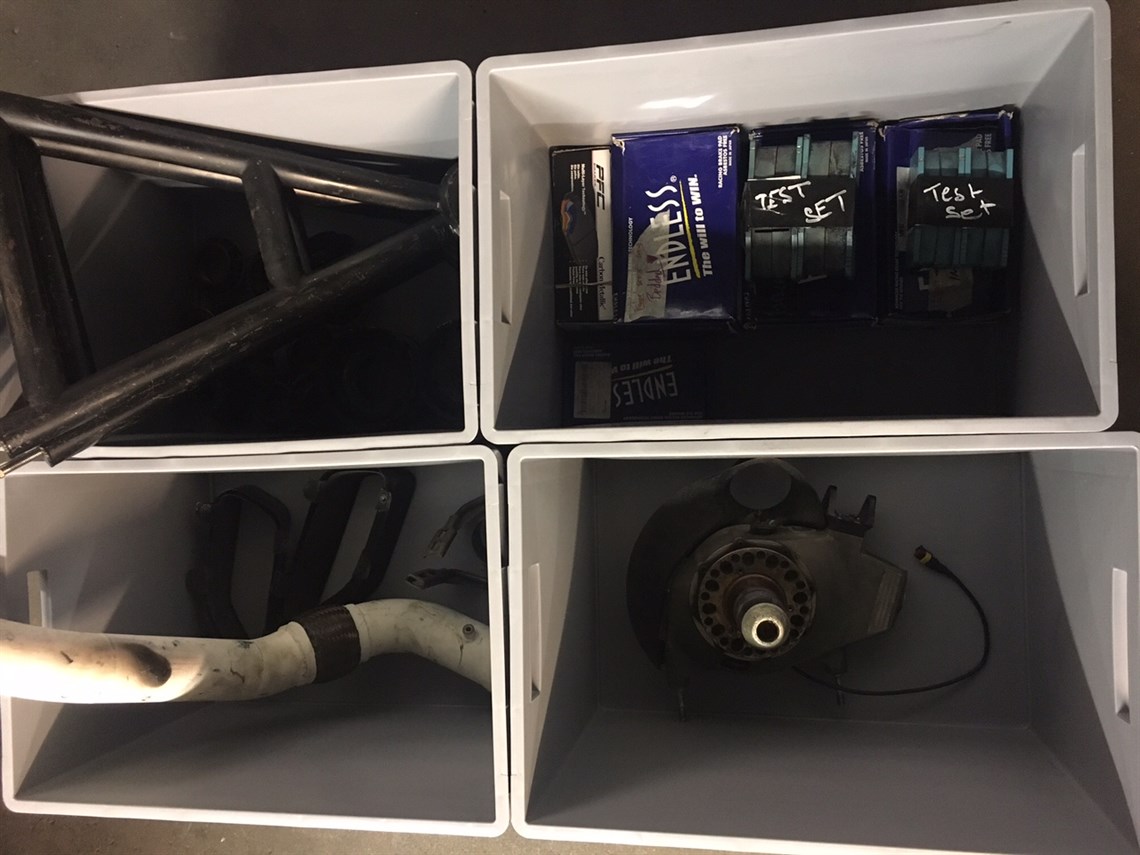

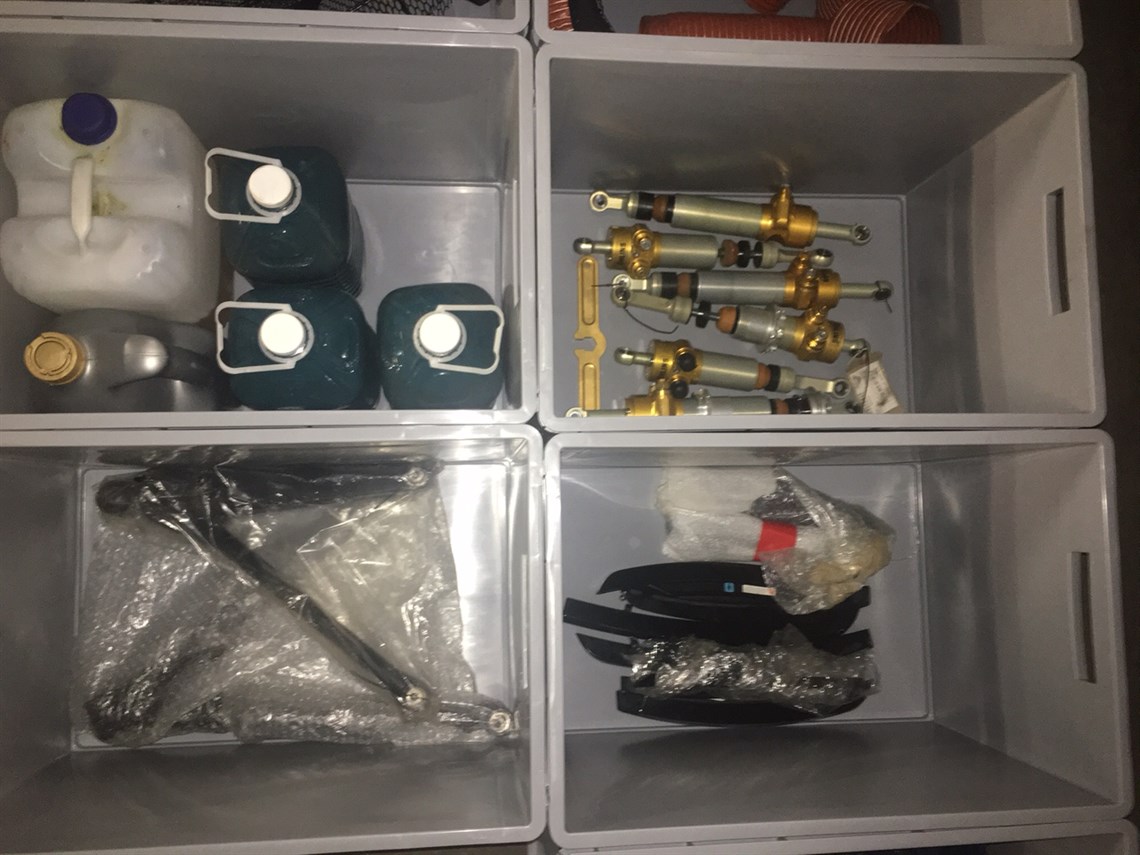

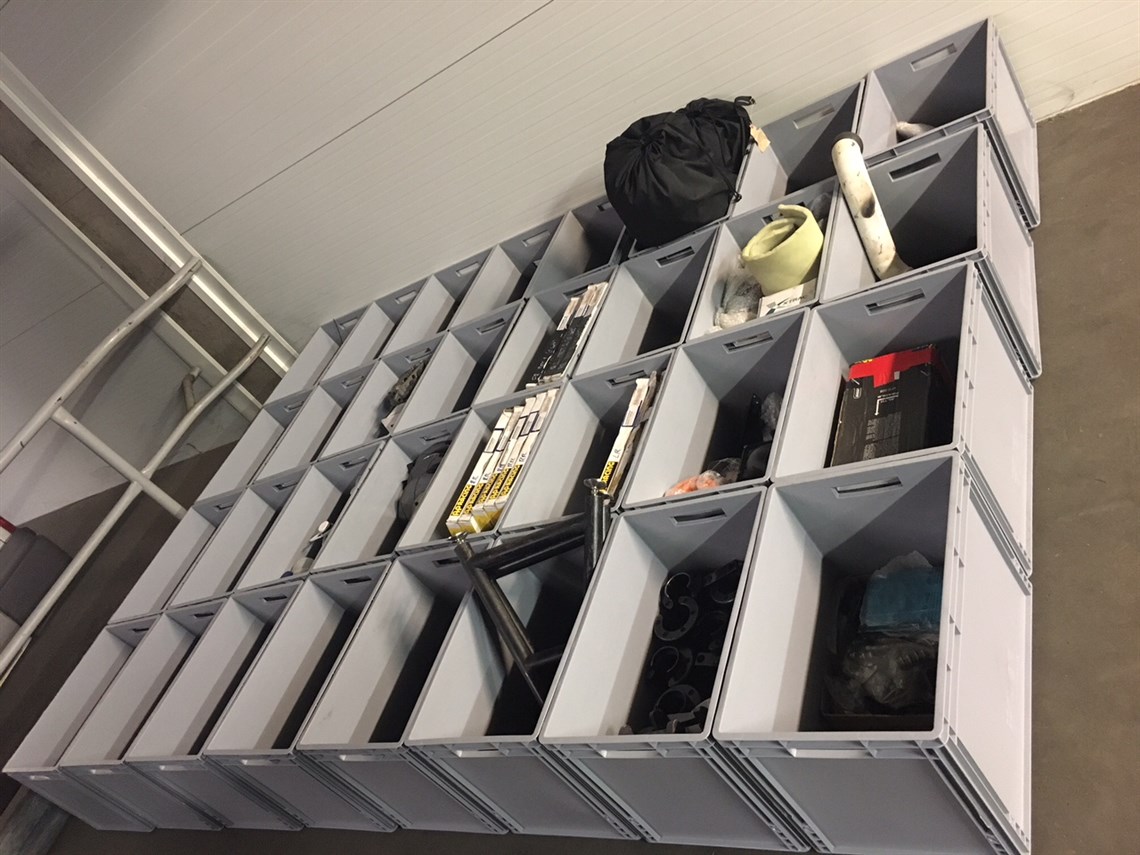

Comprehensive list of new and used spares: brake disks, -calipers and -pads, dampers, air jacks, carbon doors and many other carbon body parts, wheels, setup tools, gears, and much more.

Cars and spares only sold as a package.
