£ 35,000

1971 Ford Mustang Mach 1 iconic race car 7.5L Boss - SOLD

This is now SOLD. Search for similar items.

Description:

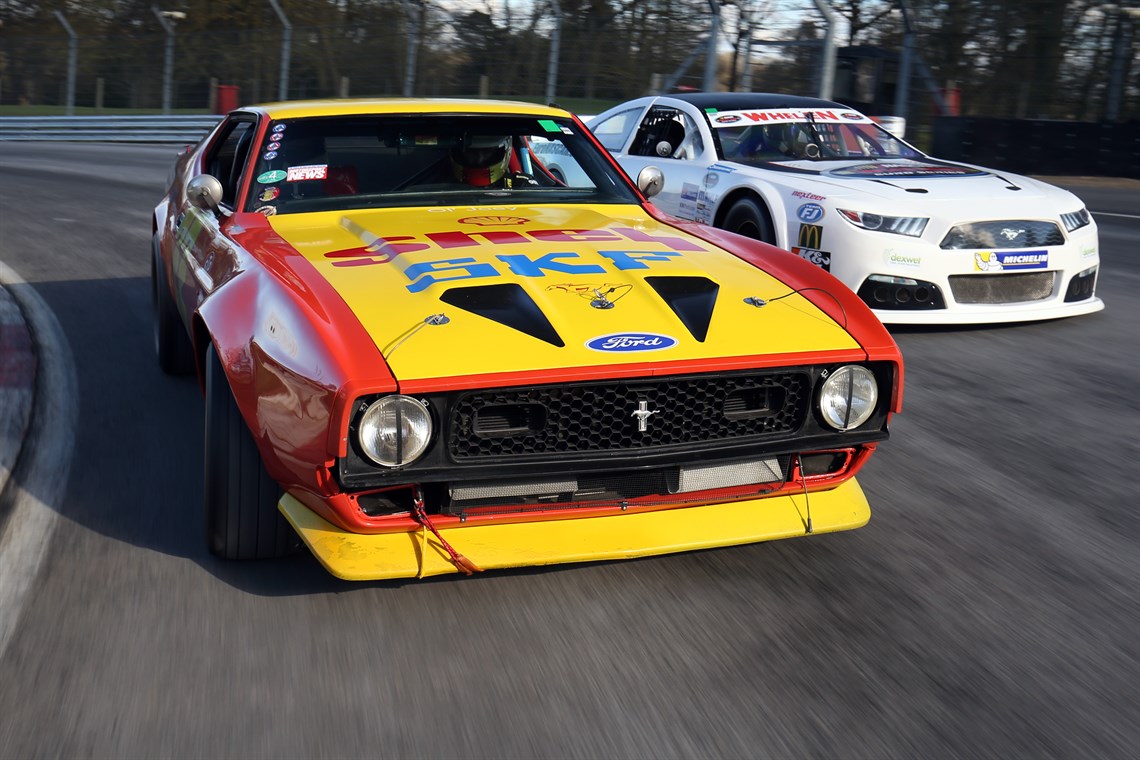

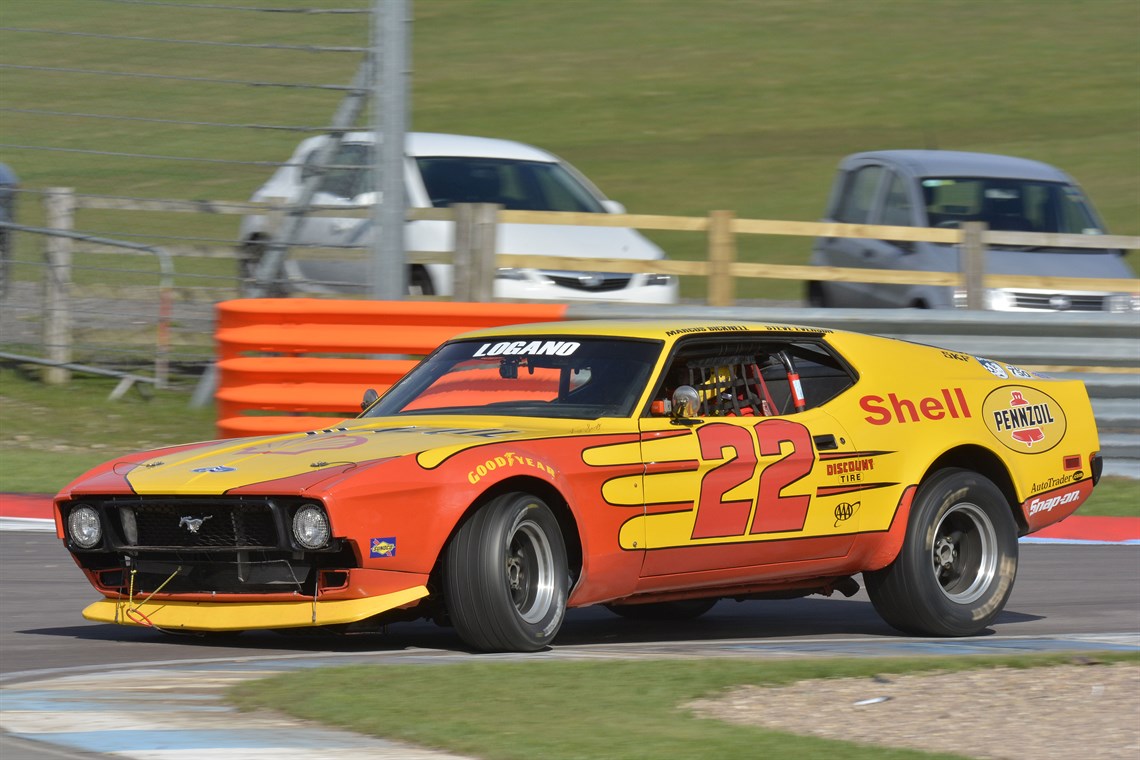

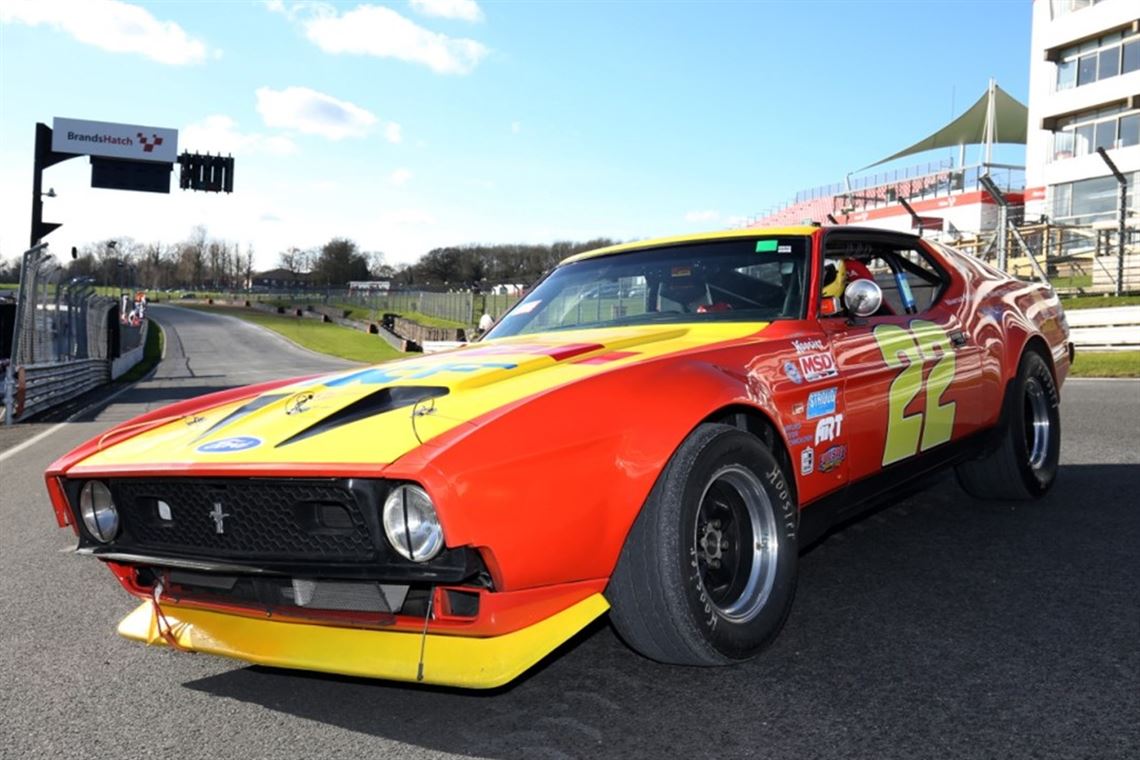

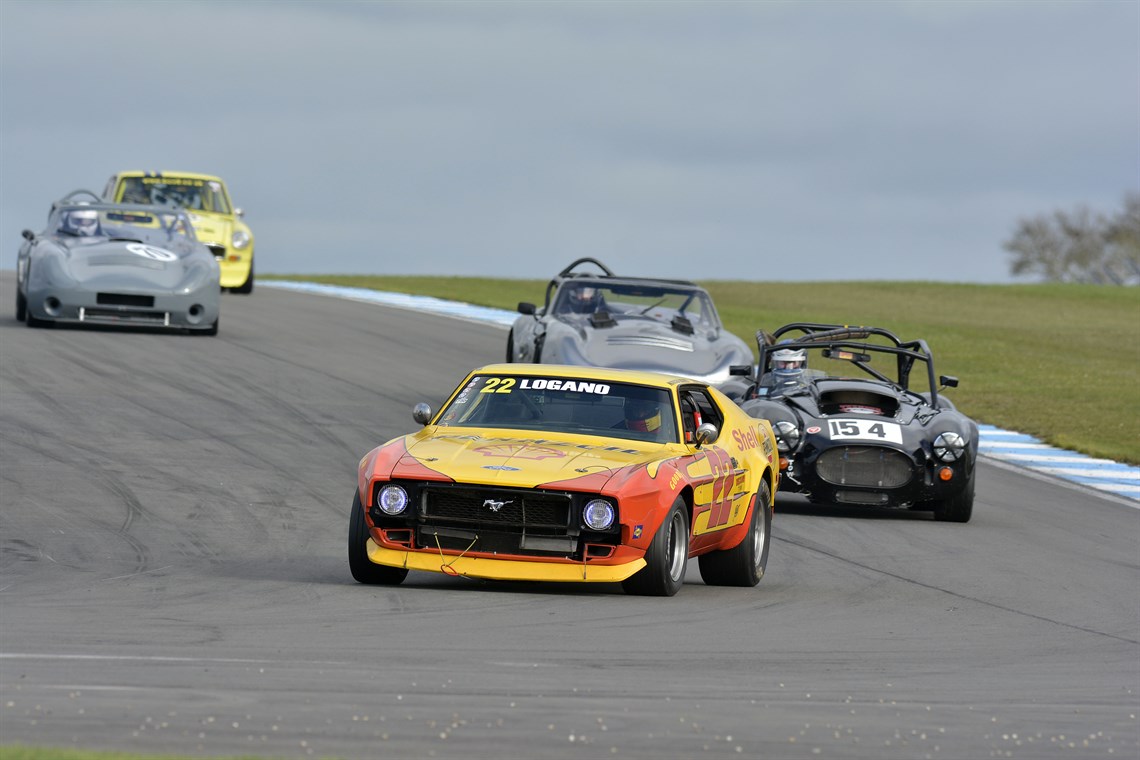

1971 Ford Mustang Mach 1 No.22 Joey Logano livery

Under offer as of 2 August 2018.

Sold as at 7 August 2018

This iconic monster is for a driver with big balls and an intense desire to be seen on track and in the paddock. Light up the rear wheels? You bet. Slip it up the inside on the approach to Paddock Hill Bend? Try it. Woaw, the queues of people to see it over the last 2 years at Brands, Castle Combe, Donington, Snetterton and Silverstone. If you pilot a small helicopter you would probably be able to fit it on the roof or on the bonnet (sorry, the hood).

I would consider an exchange for a race Mustang with HTP.

This car's 302 Windsor small-block V8 engine by Peter Knight stroked to 347 cubic inches (5686 cc) giving 505 hp and 425 pounds of torque is for sale separately on this site.

In May 2018 a brand new Ford Performance Z460 was fitted. This is Ford’s biggest ever small block Windsor (Boss Block) engine… 7.5 litres, 575 HP @ 5,500 rpm and 575 lb.-ft. torque.

Engine type: Ford Performance Z460 based on 351 Windsor small block. New May 2018
Displacement: 460 (cu in) (7.5 litres), 4.150" bore x 4.250" stroke
Crankshaft and con rods: SCAT® Forged Steel. Pistons: Forged Mahle® w/ floating wrist pin
Camshaft type: Hydraulic Roller. Cylinder Heads: Ford Performance M-6049-Z304DA Aluminum
Valve size (in): 2.02 intake 1.60 exhaust. Compression ratio: 10.0:1 (nominal). Rocker arm ratio: 1.65:1
Vibration Damper: Ford Performance M-6316-D302 SFI Approved
Distributor: MSD Pro-Billet. Ignition timing: 32° at 4,000 RPM
Recommended driving position: sitting down and strapped in.
Edelbrock® Super Victor intake, Holley® 850 CFM carburettor, fuel pressure regulated to 6psi. Heavy breathe 14 inch air cleaner.
Uses Shell Optimax 97 pump fuel.
Ron Davis radiator and 2 oil radiators. Exhaust headers 3” crossover and twin mufflers to the rear
Clutch: New 2018 Centre Force with new McLeod hydraulic thrust bearing
Top loader 4 speed gearbox with Hirst shifter, H-pattern
Detroit 9 inch 4.1 and 3.7 ratio diffs, 31 spline axles, not limited slip.
The tyres are Hoosier or Avon depending on the event regulations and the wheels are American Racing Wheels Torq Thrust II Classic Black. The Hoosier tyres are huge…
Front: rim 8½ inch 25.5 x 10 x 15 outside diameter 25½ inches
Rear: rim 10 inch 27.5 x 11 x 15 outside diameter 27¾ inches
Fibre-glass front wings (fenders) and bonnet (trunk).

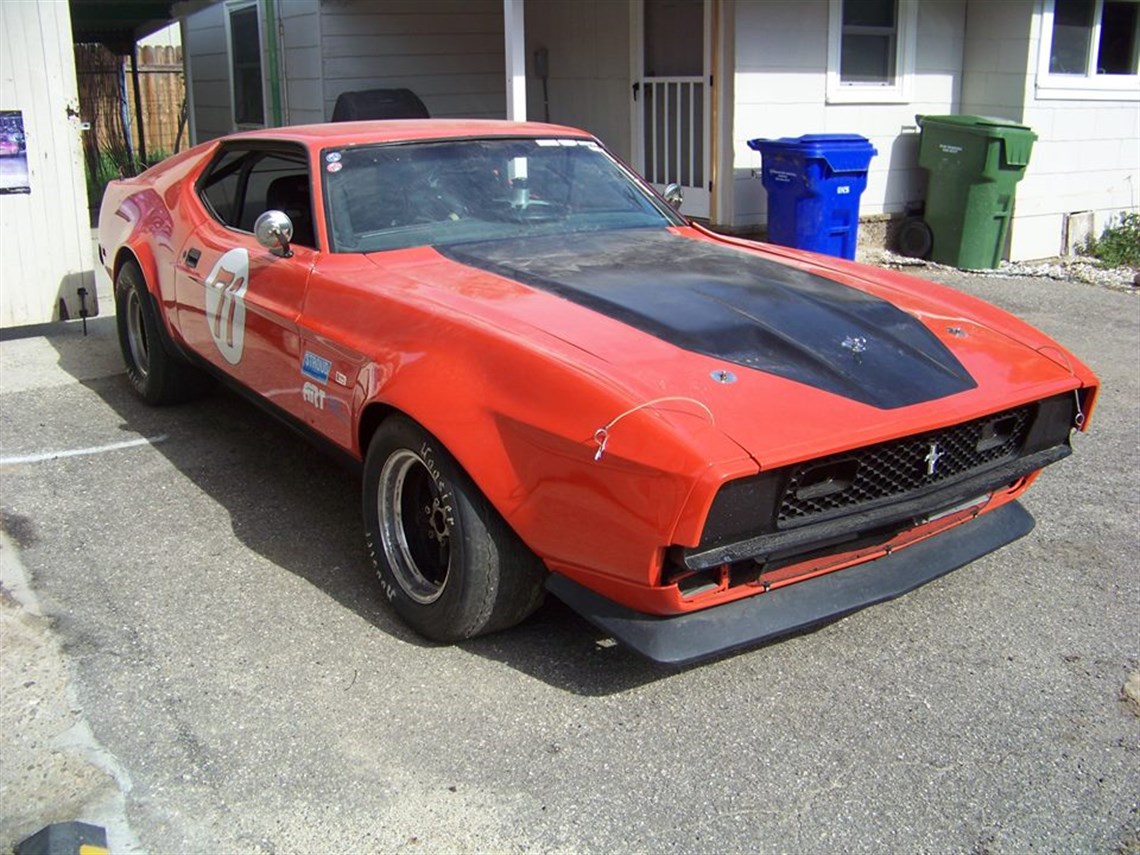

The new-for-2017 Joey Logano tribute livery is vinyl wrap only, so you can restore it to its original Ford Competition Orange paint and historic numbers if you wish (see photos). To my knowledge this car is not yet eligible for HSCC and other historic racing requiring an HTP but I have not tried very hard and it's the same period as the Camaros winning at Goodwood. The car is currently and correctly registered in California and wearing the appropriate registration plate.

Race modifications in the last two years include 1½ inch lowered front, new wishbones, high rate competition springs, thicker 1⅛ inch front roll bar, fabricated roll bar links, new rear leafs, new extreme-anti-roll at the rear, new rear roll-bar, new Koni shocks all round, new suspension bushes all round, new wheels, new brake master cylinder and non-servo set-up. This is a car which does 140mph at Spa, Thruxton and Silverstone GP on a Race Technologies data-logger.

Huge spares package including long diff for Spa, suspension parts, headers for 302/347 engine with TFS heads, fibre glass fenders (wings), hood, starter, alternator, etc., included.

More details and pictures at http://www.newmediafoundry.co.uk/marcus/1971_ford_mustang.pdf

The 71 Mustang at Thruxton in 2016, CSCC's official video... https://www.youtube.com/watch?v=4aHpLmJZ1b0

https://www.youtube.com/watch?v=SvHQheTEWWU&t=1s watch from minute 1'00
