Description:

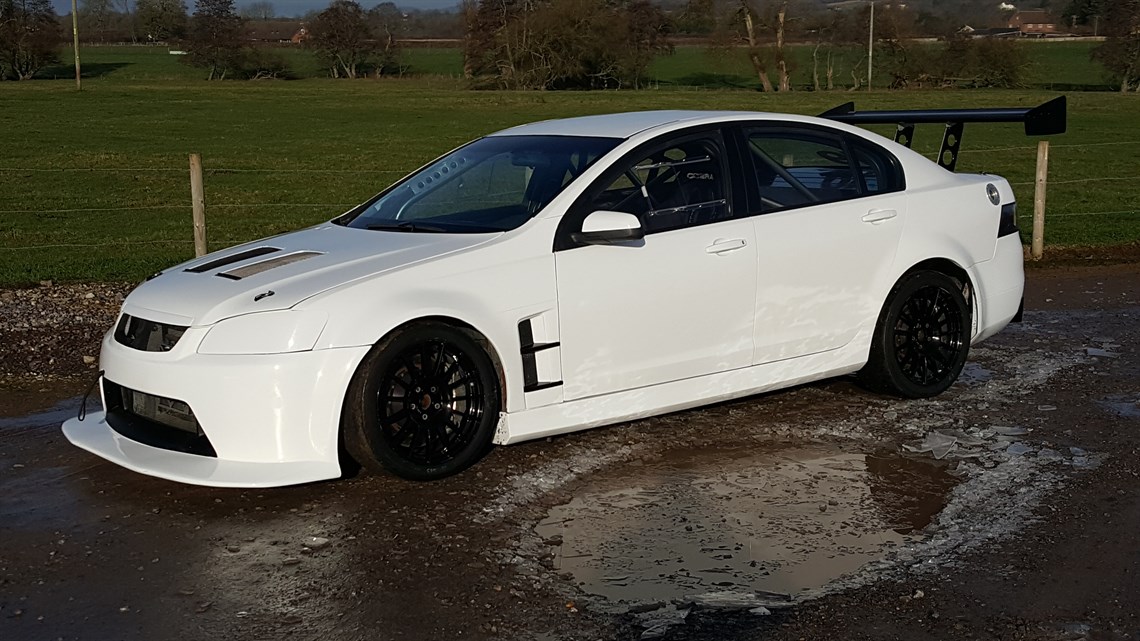

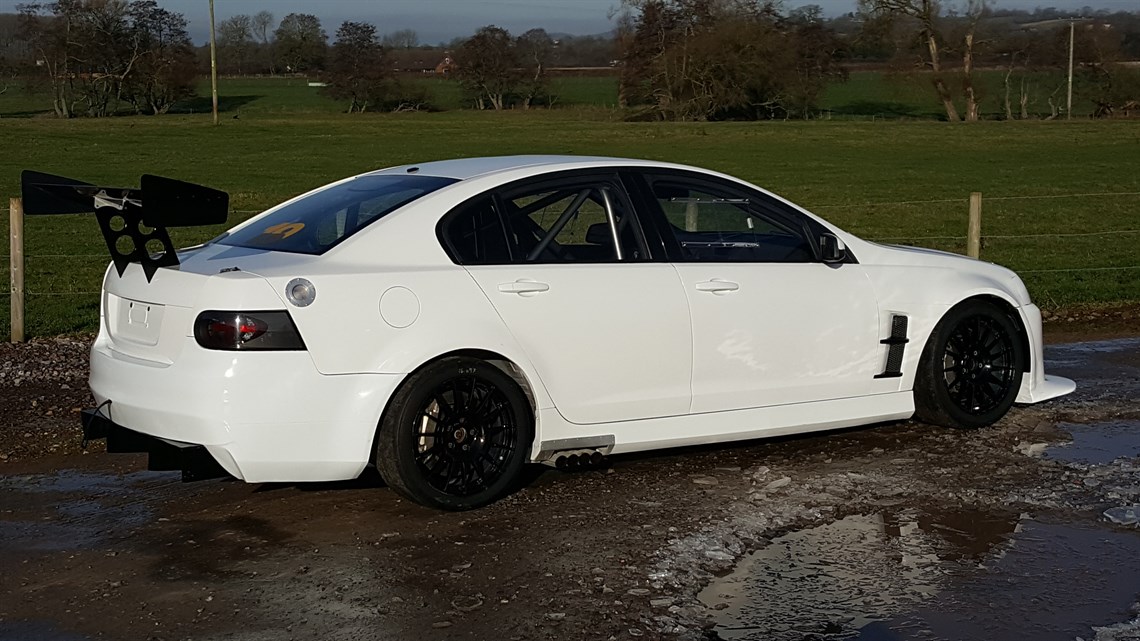

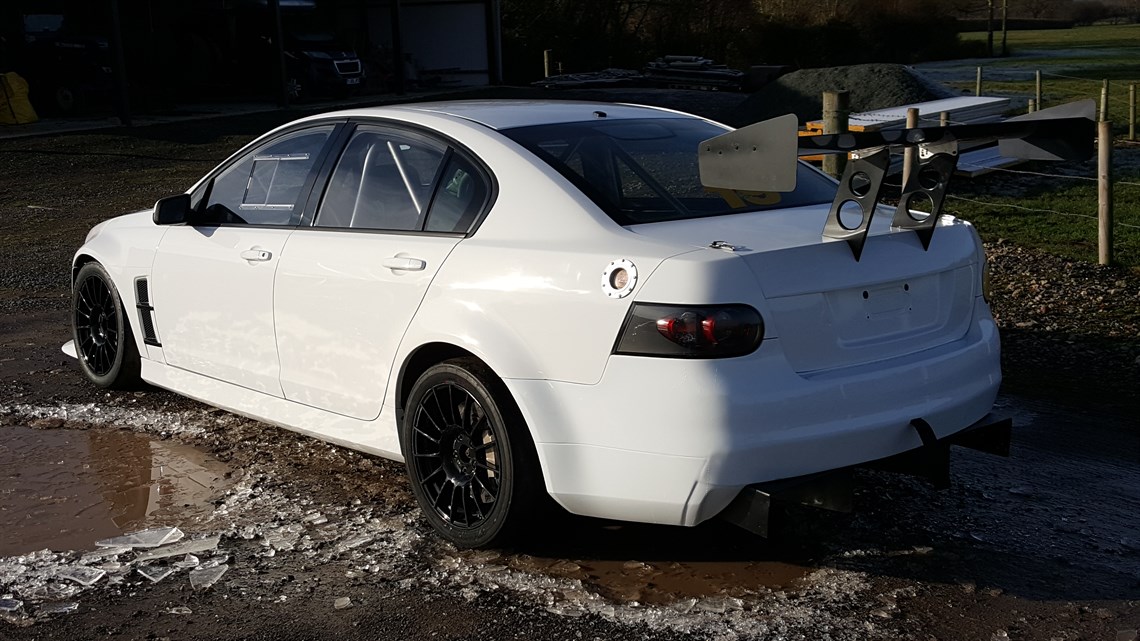

Up for sale is a 2009 Chevrolet CSV Lumina V8 super touring car in white./.

The race car is based on a Holden Commodore VE chassis (essentially re badged as a Chevrolet Lumina), as you may know there are many variants of this same chassis in different countries for example here in the UK they are called Vauxhall VXR8’s. The car was originally built for a single make championship in Bahrain, where it ran for a few seasons then put into dry storage in the UK.

It would make for a very competitive race car with a bit of fettling, i.e. fit a supercharger to the boost ready engine.

Vehicle Specification

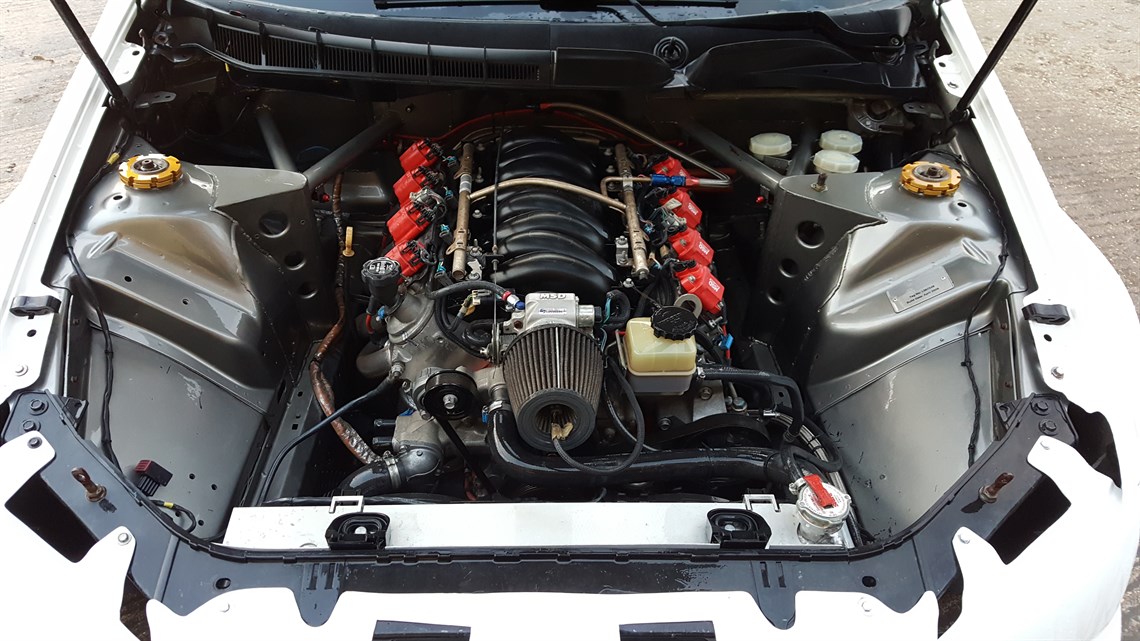

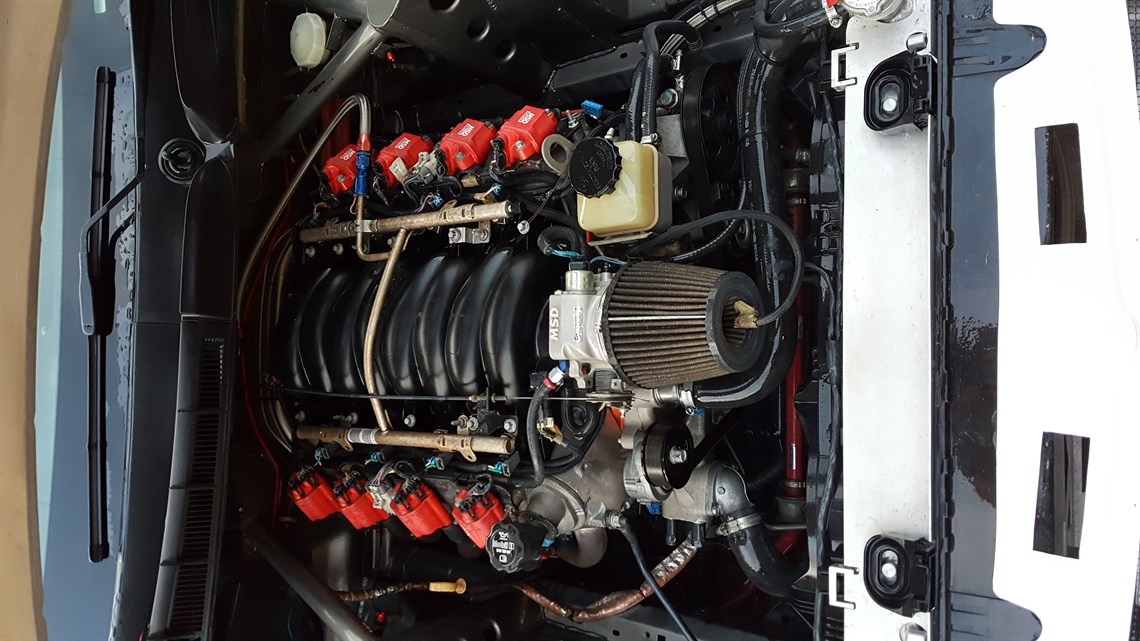

ENGINE - LSX 376 B8

· Normally aspirated water-cooled V8 with two valves per cylinder.

· 6,200cc stroke 92mm bore 103.25mm diameter

· Max power 450BHP 5,900RPM Max RPM 6000

· LSX 376 B8 - Engine is designed for forced induction.

· Required fuel quality 95 octane unleaded

· Wet sump lubrication

· Sequential multi-point injection

· Electronic engine management MEFI 4b by Painless

· Single throttle body intake

· Single front mounted Setrab oil cooler

POWER TRAIN

· Jerico four speed gearbox with sequential dog engagement

· ZF LSD differential unit in 2.92 ratio

· Aluminium race flywheel

· Dual plate clutch rated at 1100BHP

· Hydraulic clutch release system

BODYWORK

· Weight optimised body shell

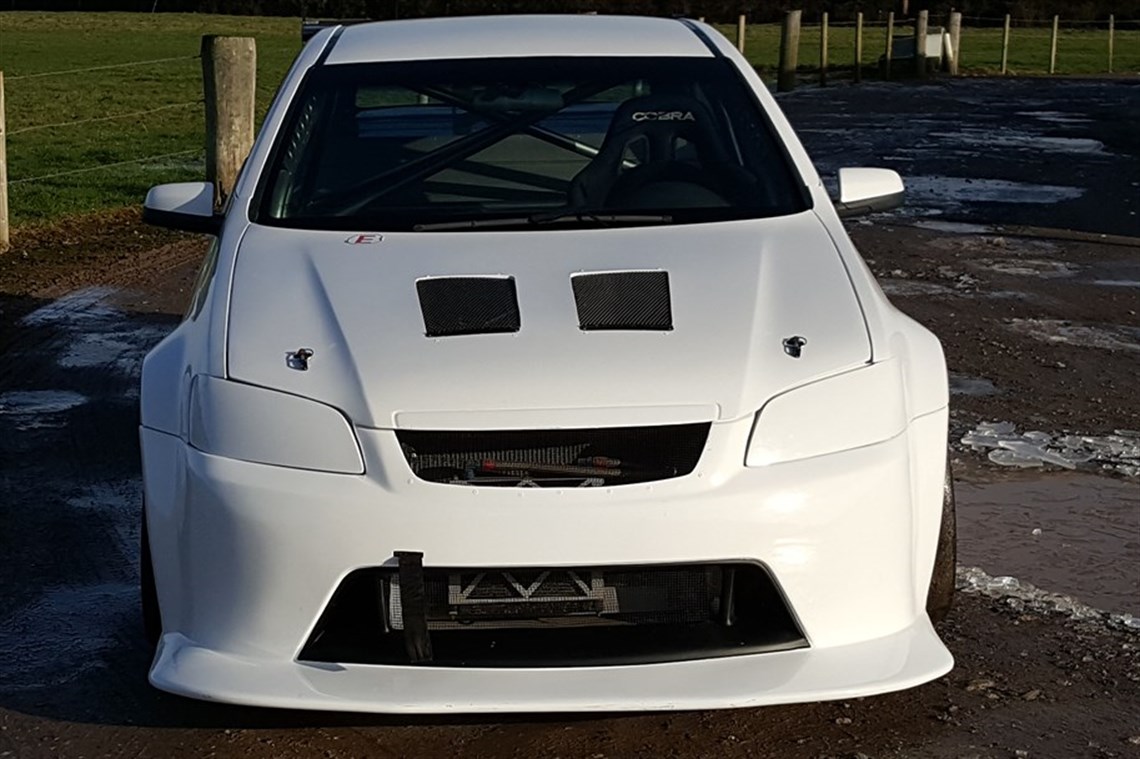

· Aerodynamic front splitter

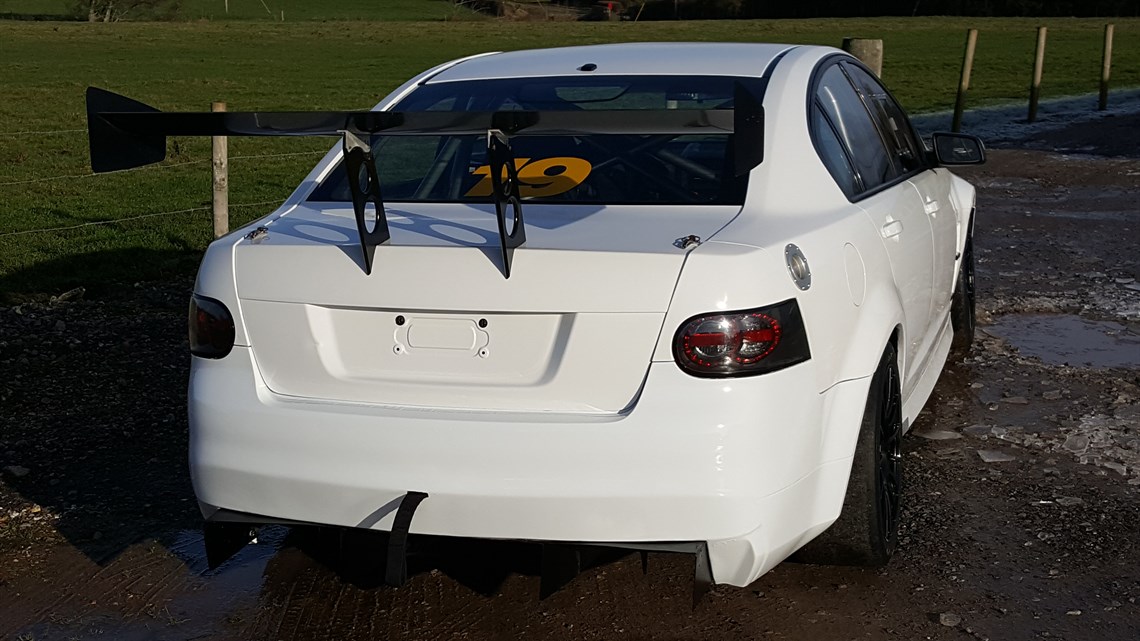

· Adjustable carbon fibre rear wing

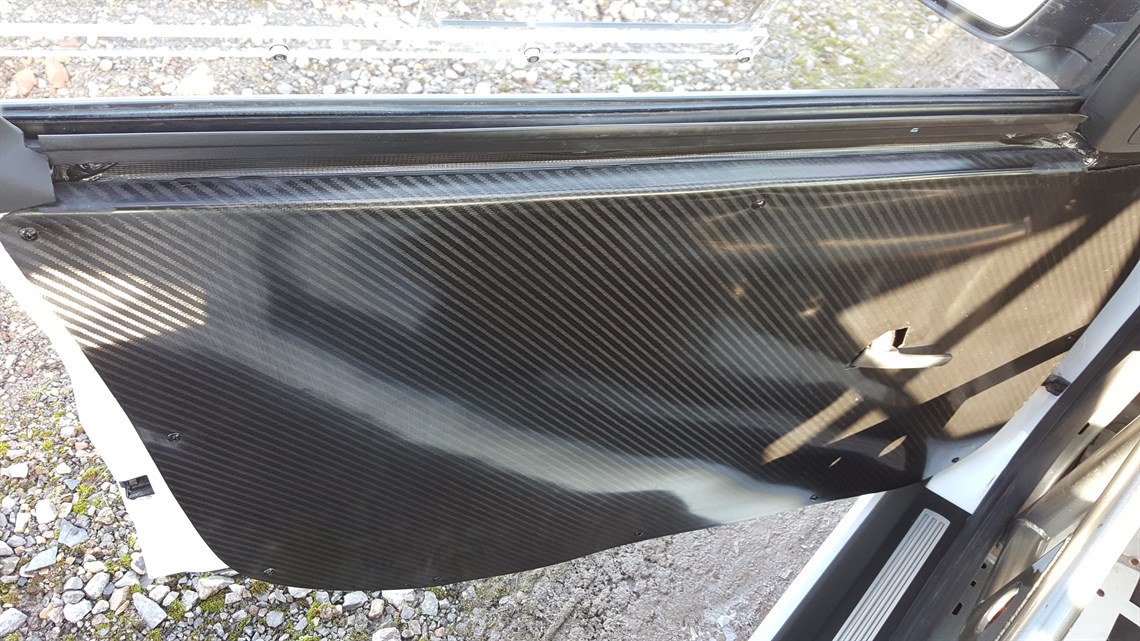

· Carbon fibre interior panels

· Steel boot lid with strengthening for rear wing

· Modified synthetic rear body panels with diffuser

· Poly carbonate side and rear windows

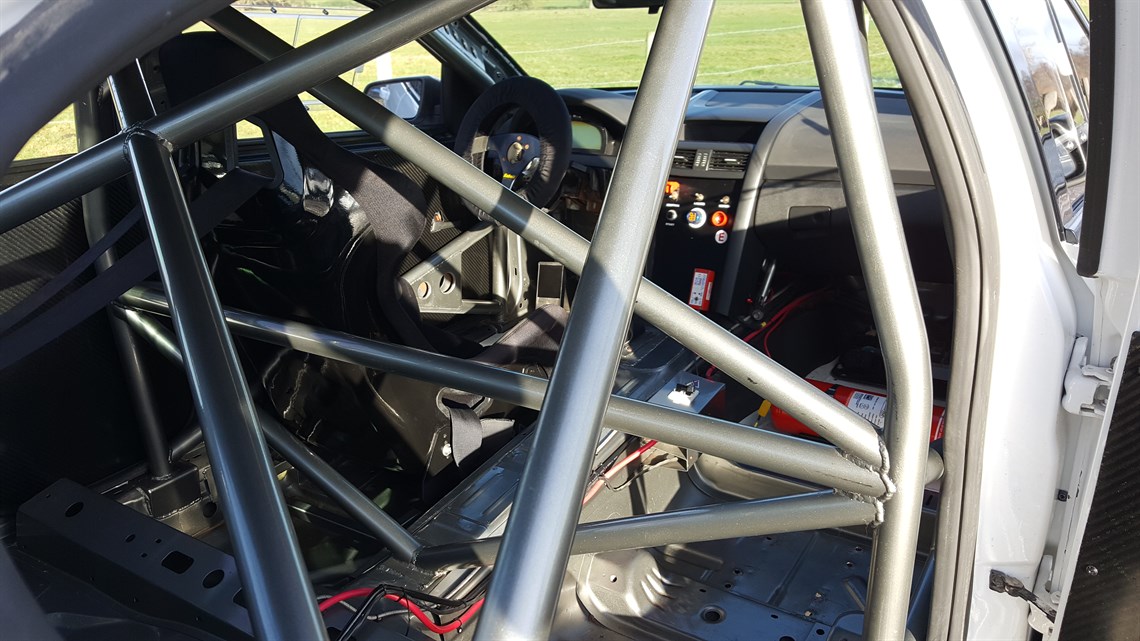

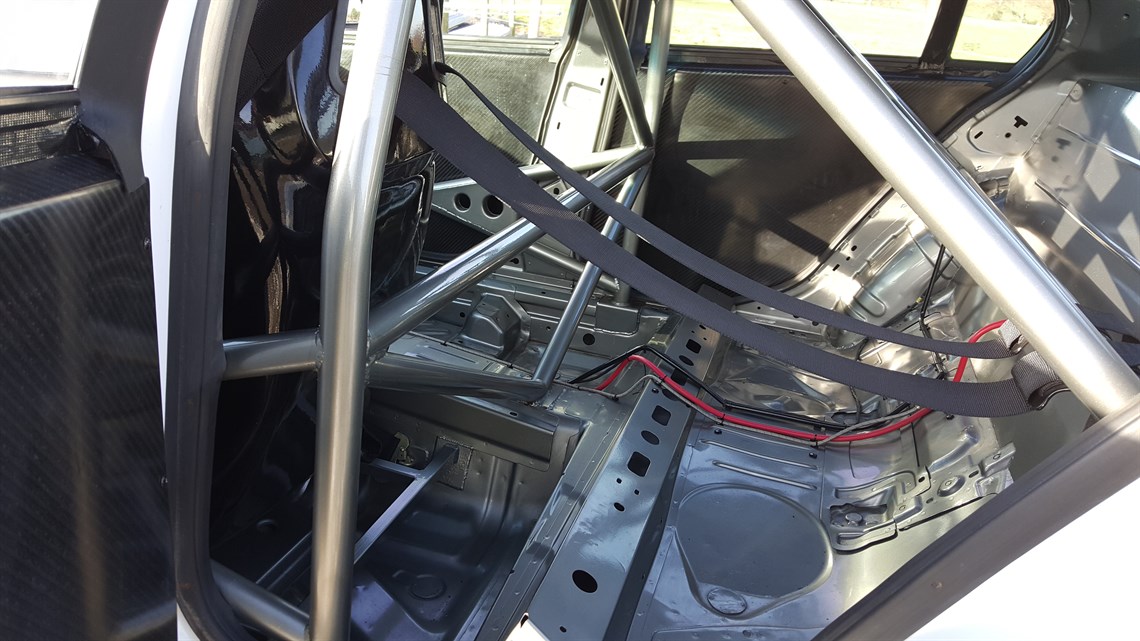

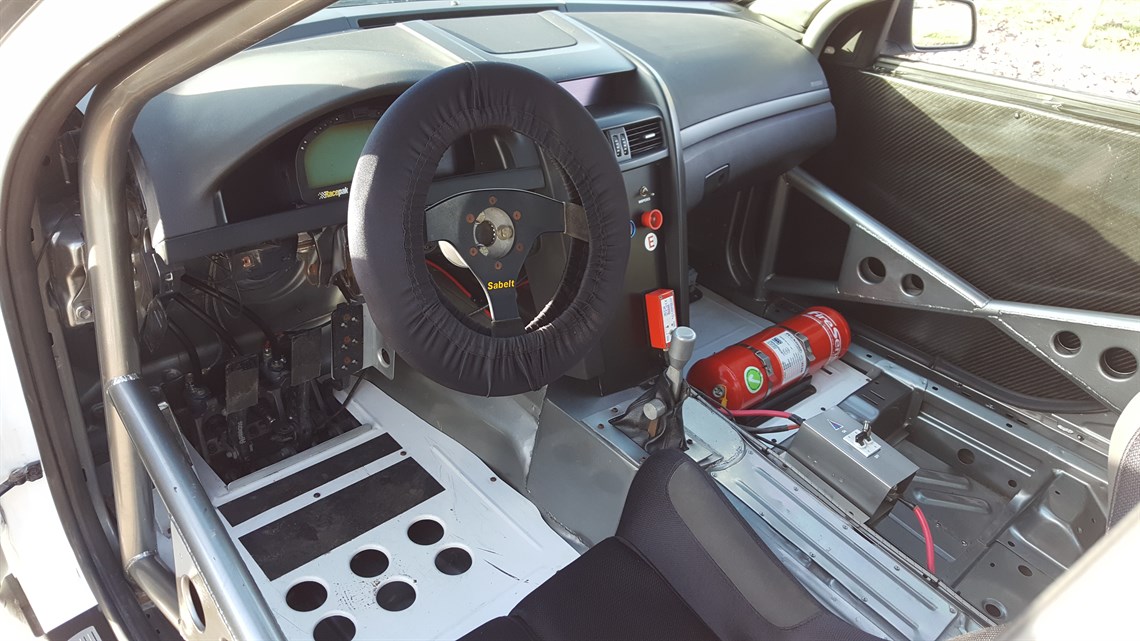

· Welded in roll cage

· Quick release steering wheel

· Electric fire extinguisher system

· 80 litre ATL fuel tank

· 2.5″ ATL dry break system

SUSPENSION

Front axle

· MacPherson strut, height adjustable

· Double coil spring race set-up

· Bilstein dampers

· Dual lower control arms with spherical bearing joints

· Adjustable front anti roll bar

· Power steering

· Continually variable track rods

· Modified steering Column (height and rake adjustable)

Rear axle

· Multilink rear suspension on sub frame with rose joint inserts

· Suspension struts, height adjustable

· Single coil spring race set-up

· Bilstein dampers

· Reinforced adjustable track rods

· Adjustable anti roll bar

BRAKE SYSTEM

· Dual circuit brake system adjustable via AP balance system and two master cylinders.

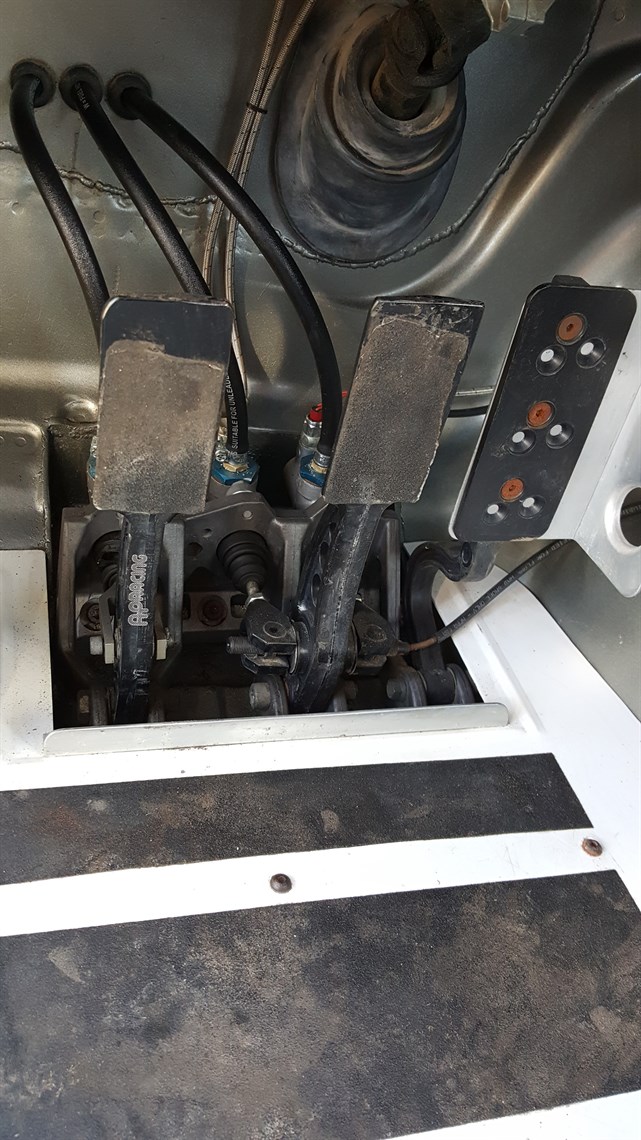

· AP Racing pedal box

· AP Racing master cylinders

Front axle

· PFC ZR27 billet monobloc 4 piston calipers

· PFC 380mm discs

· PFC endurance pads

Rear axle

· PFC ZR33 two-piece billet 4 piston calipers

· PFC 355mm discs

· PFC endurance pads

RIMS

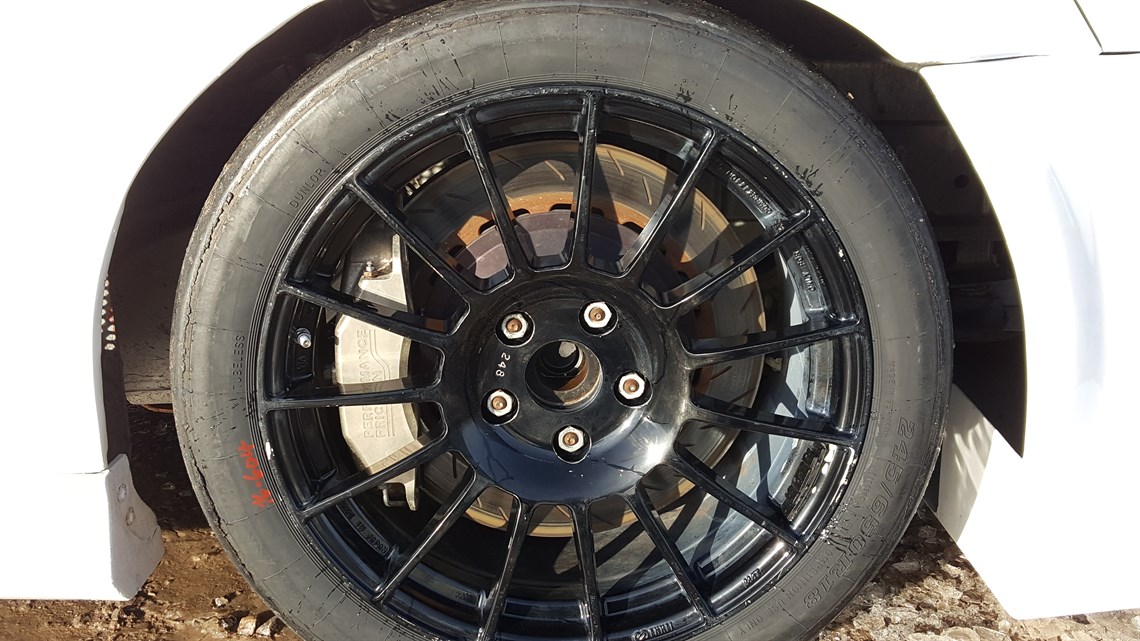

· Single piece Enkei RCT4 race rims 18 x 9″

Car comes with spares package which includes

- Another set of wheels with  good dunlop slick tyres

- Front bumper

- Front slam panel

- Headlamp blanks
