Description:

It is time to sell my 2015 Westfield SEIW race car. The car has been the subject of much development and money over the past 12 months as we prepped it for racing, and has wanted for nothing on the time that I have owned it.

We raced the car in 2015 with Classic Sports Car Club in their Magnificent 7s series and Open Races. It fits into Group 2 for Mag 7s. This car would be equally at home in either 750mc Sports Specials, Northern Saloon & Sports car championship or CNC Heads Sports/Saloon championship to name a few.

The car has been looked after by Solutions Racing in Brighthampton, Oxfordshire for all preparation and race support. They are available to talk about the car if needed. We are racing a Porsche Boxster in 2016, so genuine reason for sale.

So, the details are as follows -

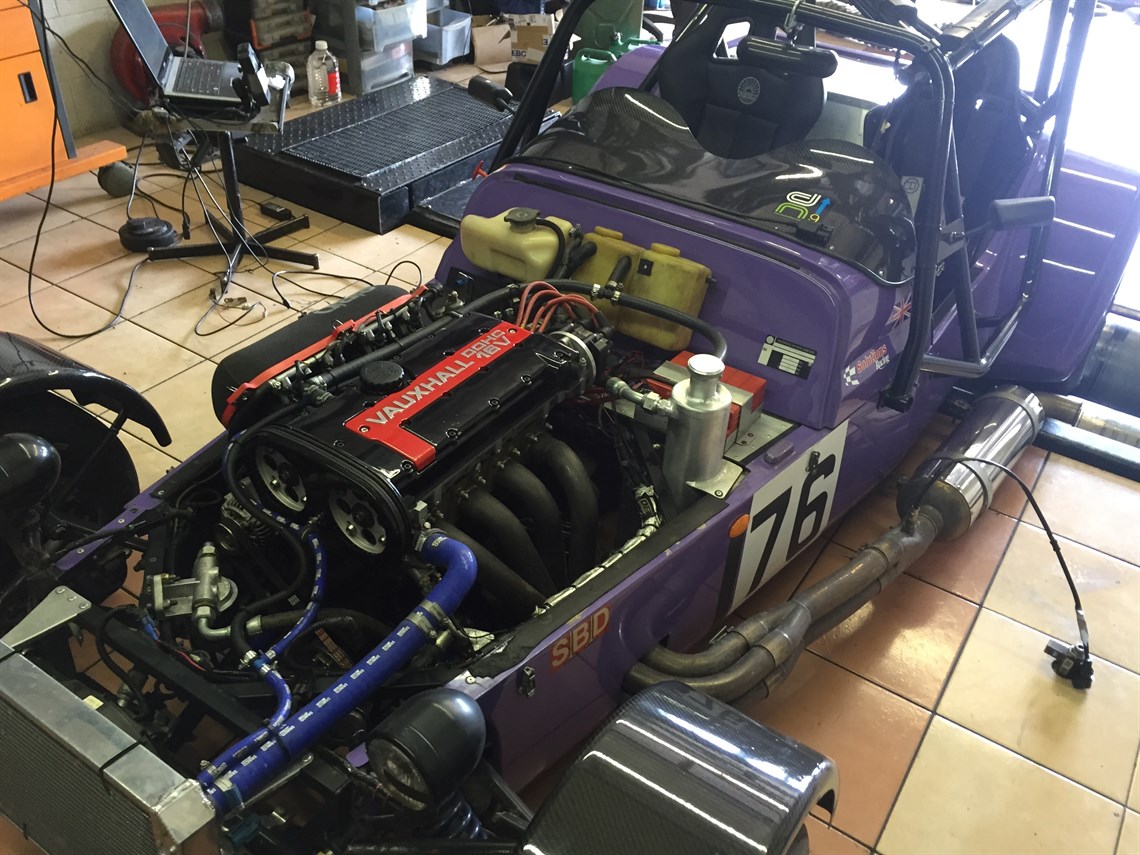

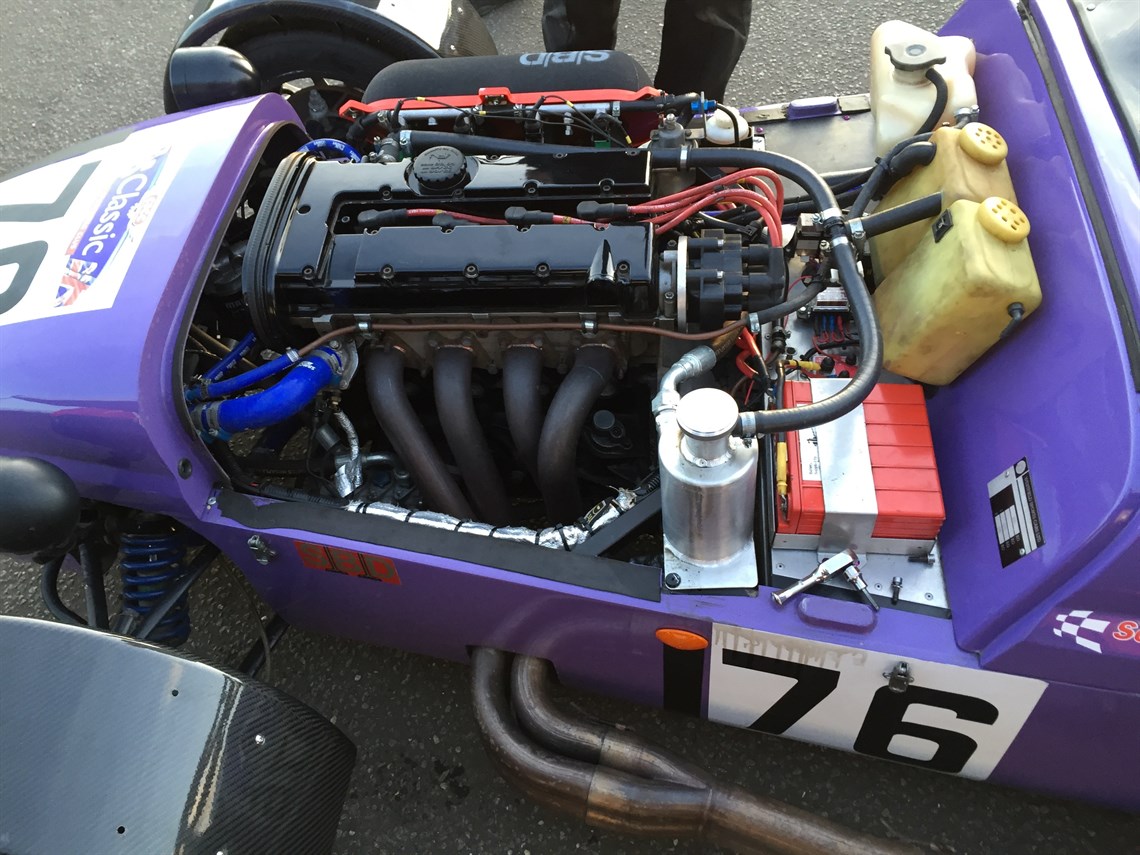

Q plated 2005 with 2 litre Vauxhall XE red top with Coscast head.
Rebuilt in May 2015 using SBD components for 235bhp - at a cost of £7,500 (parts & labour).

Mapped to a conservative 210bhp at present

Engine has <six hours running since rebuild

SBD parts used listed at bottom of advert

DTA S40 ECU
QED dry sump
SBD bellhousing and stainless steel exhaust manifold
SBD paddle clutch
Wunoff repackable silencer
Quaife 5 speed straight cut type 9 pro box with long first gear and quickshift lever
Remote oil filter, samco hoses, oil catch tank

Oil cooler

Brise motorsport alternator

Playskool full roll cage with FIA roll cage padding

FIA rain light (not presently fitted – fog light added back on for MoT) & rain light switch

Radtec race radiator

Radtec 43l endurance fuel tank

Fuel pump

New fuel filler neck & cap

Front and rear tow straps

Red top battery

3.92 Sierra LSD
Siltech oval tube widetrack and camber adjuster plus front arb
Siltech rear arb
Westfield Gaz shocks
CAT motorsport solid grooved discs front and rear with Bremsport 4 pot calipers on front
Playskool carbon aero screen and dash
VDO gauges, including dial oil / water pressure gauge

Small M&P headlamps

2015 Westfield Cobra race seat (adjustable) for driver
Westfield unpadded race seat for passenger, spare unpadded driver seat also included

Schroth Hybrid-II H (HANS compatible) six point harness for driver

PlaySkool - five point harness for passenger
BG Developments twin bias brakes with dash adjuster
Push button starter
Momo removable steering wheel
CAT motorsport quick rack with alloy mounts
Purple body with fixed arches and black cycle wings
Extended steering column
Shortened gear lever
New FIA master switch & cut out

Plumbed in fire extinguisher

Compomotive CXR alloys 6x13 front and 8x13 rear shod with Avon ZZR tyres. These are this years main race tyres so have had five plus hours running, but will need replacing soon.

Car is currently SORN and had a fresh MoT on 30th November after the race season finished. All it needs to be used on the road is number plates. The V5 is here and in my name.

There is some cracking on the gel coat on the rear right hand side they are only superficial and we think caused by petrol being spilled when refuelling. There is a small piece of the gel coat missing from the driver’s rear wheel arch, likely caused by a stone from a gravel trap. This is a race / track car and not a garage queen.

SBD Engine components used in 2015 rebuild -

PIST-OM87.00XS 87.00mm Omega/SBD H.T. Piston set(4) 2.0L XE(2046cc) 1.00 434.00

ROD-VX-2.0XE-143S Steel Rod VX 2.0L XE 16V (Set of 4) 143mm (55lbs torq) 1.00 754.00

HEAD-CYL-1 Head 2.0L XE/LN/Turbo (Coscast)16v GM 1.00 695.00

VLV-VX2-00-IN 2.0L 16V XE Valve Inlet 33mm H. x 7mm Stem (STD Race) 8.00 120.00

VLV-VX2-00-EX 2.0L 16V XE Valve Exhaust 29mm H. x 7mm Stem (STD Race) 8.00 120.00

VLS-05K Double Valve Springs set 16 off 1.00 179.00

VLC-7K Titanium Valve cap 2.0L XE 16v +3mm Set Solid TYPE ONLY 1.00 229.00

VLP-9K 2.0L XE 16v V-S.Platform 1mm Set 16 1.00 78.40

VLV-SS1 Valve Stem Seal 7mm STD 16.00 20.00

CMFL-2S SET-16 Cam followers Ultra Light Weight +2mm Skirt(28.10mm) 1.00 310.08

SHM-7-UGD 7mmTop Hat Unground 0.200"+ set 16 1.00 78.95

HEAD-SHIM Assemble & Shim head for solid followers 1.4-2.0L 16v 1.00 650.00

CM16V2-M278-11.78 16V XE 2.0L 278 Degrees 11.78mm 105/3.46mm 1.00 240.25

CM16V2-M269-11.42-S 16V XE 2.0L 269 Degrees 11.42mm 105/2.59mm (SHORT EXH) 1.00 240.25

GSK-VX2-C88.00-01 SBD Spec Cometic 2.0L XE H/GSK 5 Layer/.050"/88.00mm 1.00 120.50

BLT-H1 Head BLT 2.0l 16v Pre93 REQ10 (Torx Socket) 10.00 20.00

GSK7 Head Gasket Set 2.0L 16V - GM complete 1.00 80.95

BRG2 Bigend Bearing SET Narrow (19.20) L/C 2.0L STD 0.00 1.00 35.01

BRG-M1 Main Bearing 0.00 2.0L XE 16v & 8v H/Duty L/C 1.00 43.20

CRK-SF1 Oil Seal Front Crank / Oil Pump 2.0L 16V XE 1.00 14.60

CRK-SR1 Crank Rear Seal 2.0L 16V 1.00 13.40

CMB1 Cam Belt 2.0L XE Pre 93 with Round tooth (141T) 1.00 27.75

FLY-B4 Flywheel Bolt ARP H/D 2.0LXE 16v Small Head 16mm 8.00 52.16

WT-PM1 Pattern XE water pump early type round tooth 1.00 36.95

BLT-MK1 Main Cap Bolt Set Early 2.0L Heavy Duty (75mm) 1.00 10.00

VLV-COL-1 Valve collets 2.0L 16v XE 32.00 21.12

HEAD-SKIM Skim cylinder head - Up tp .010" 1.00 85.00
