Description:

Offered for sale is a comprehensively prepared Fiat 124 CSA Abarth Rally, featuring numerous components built to Group 4 specification. The car combines a purposeful historic rally setup with German road registration, historic H-registration and a DMSB competition vehicle passport (KFP).

The car was previously owned by Cătălin-Cedric Ghigea of Oldtimer Studio (oldtimer.ro) and has a history of numerous successful appearances in historic rallying and motorsport.

The engine, drivetrain, suspension, axles and electrical system have all been developed and prepared with competition use in mind. High-quality motorsport components, together with extensive documentation, make this 124 Abarth an interesting proposition for historic competition as well as for collectors and enthusiasts.

Highlights

• Fiat 124 CSA Abarth Rally
• Built 1974, first registered 28 July 1975
• Numerous successful historic rally and motorsport appearances
• Previously owned by Cătălin-Cedric Ghigea / Oldtimer Studio
• Engine built/prepared by Domenico Fasano
• Twin Weber 44 IDF carburettors
• Bacci Romano dog-engagement racing gearbox
• Bacci Romano plate-type limited-slip differential
• Axles converted to Group 4 specification
• Group 4 wishbones/control arms and further competition suspension components
• Bilstein suspension
• EZ Electric Power Steering
• Group 4 exhaust manifold/header and exhaust system
• OMP roll cage
• FIA-specification seats and harnesses
• Sparco QRT seat side mounts
• LiteBLOX lightweight battery
• Completely new custom wiring harness installed in 2023
• Wiring harness disconnect at the firewall for easier engine removal
• Philippi circuit breaker
• Completely new dashboard fabricated in 2023
• Original Fiat wheels
• Additional set of Campagnolo magnesium wheels
• DMSB KFP competition vehicle passport
• German road registration with historic H-registration
• German §21 and §70 StVZO documentation
• Extensive documentation and invoices

Engine

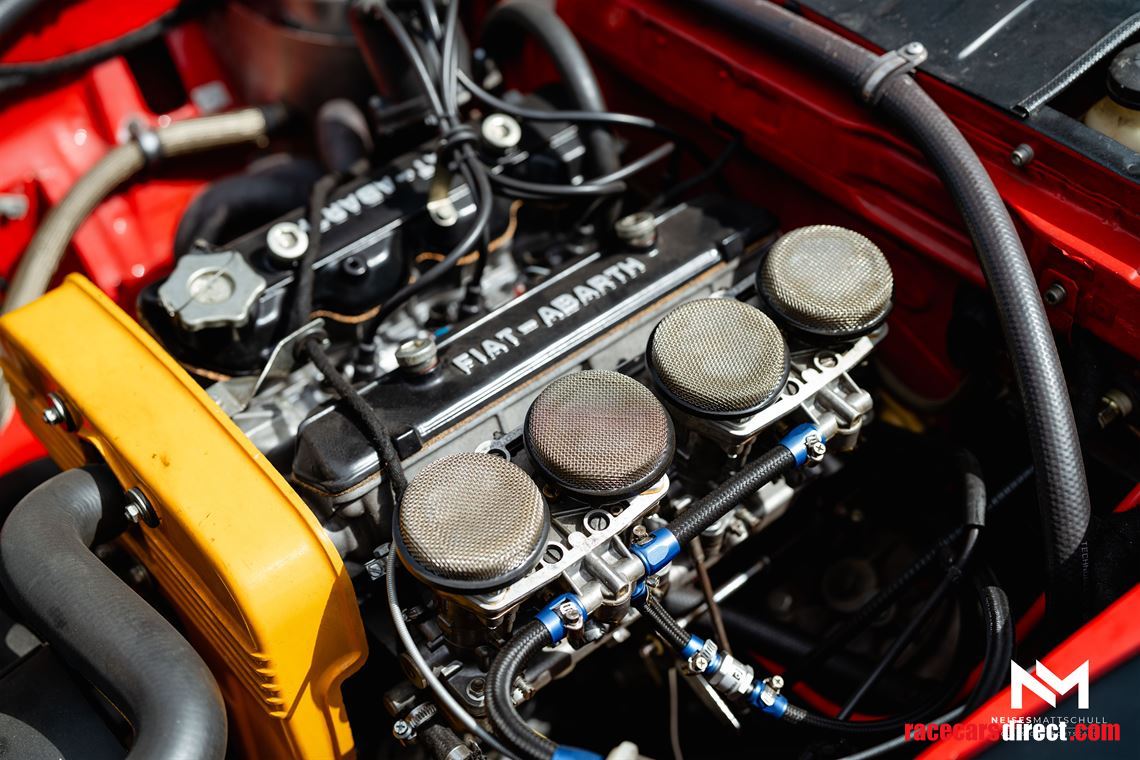

The DOHC four-cylinder engine was built/prepared by Domenico Fasano and has been set up with competition use in mind.

Fuel is supplied through two Weber 44 IDF twin-choke carburettors. The available technical documentation for the engine specification lists engine type 132.AC4000 and a compression ratio of 9.8:1.

Various technical documents relating to the specification and build of the car are included.

Gearbox & Differential

Power is transmitted through a Bacci Romano dog-engagement racing gearbox, providing the fast and direct gear changes expected from a competition transmission.

The drivetrain is complemented by a Bacci Romano plate-type limited-slip differential, providing a motorsport-focused setup throughout the driveline.

Group 4 Axles, Suspension & Steering

The axles have been extensively converted to Group 4 specification, including Group 4 wishbones/control arms and further competition-specific axle and suspension components. Invoices and documentation for various Group 4 parts are available with the car.

The suspension is equipped with Bilstein components.

An EZ Electric Power Steering system from the Netherlands has also been installed, providing electric steering assistance without the additional hydraulic system required by conventional power steering.

Group 4 Exhaust System

The car is fitted with a Group 4 exhaust manifold/header and corresponding Group 4 exhaust system.

Supporting documentation is available, including an earlier invoice specifically identifying exhaust components supplied for a Fiat 124 Abarth Group 4 8V.

Electrical System & Dashboard

In 2023, the electrical system was comprehensively rebuilt with a completely new, custom-made wiring harness specifically designed for the car.

A particularly practical feature is the disconnect at the firewall. This allows the engine-side wiring harness to be disconnected from the vehicle wiring when removing the engine, simplifying maintenance and overhaul work.

A Philippi circuit breaker and LiteBLOX lightweight battery are also installed.

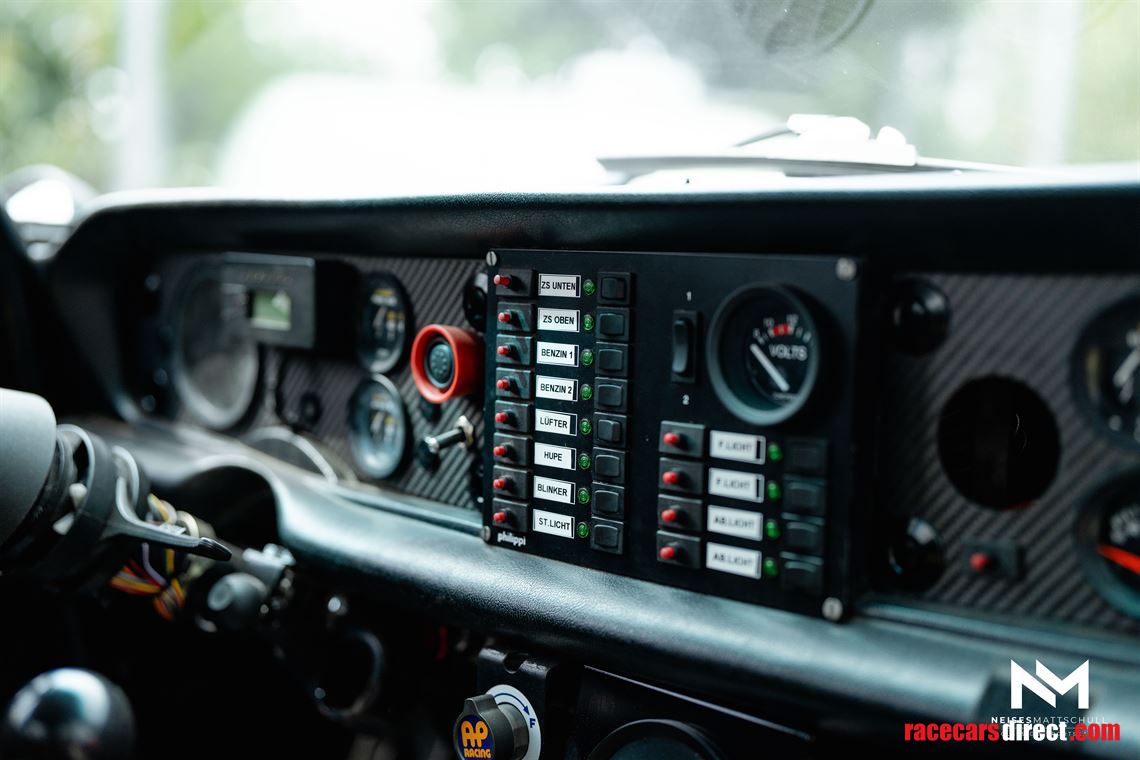

As part of the 2023 work, the dashboard was completely redesigned and newly fabricated.

Interior & Safety Equipment

The car is equipped with an OMP roll cage, FIA-specification driver and passenger seats, Sparco QRT side mounts and FIA-specification competition harnesses.

The relevant competition safety equipment is documented in the car's DMSB vehicle passport.

Wheels

The car comes with original Fiat wheels as well as an additional set of Campagnolo magnesium wheels.

The Campagnolo magnesium wheels are also documented in the DMSB KFP as a second wheel set.

DMSB KFP, Road Registration & Documentation

The Fiat comes with a DMSB competition vehicle passport for road-registered competition cars, KFP, documenting numerous components of its motorsport specification.

A particularly attractive feature is the combination of its historic rally preparation with German road registration and historic H-registration.

The documentation includes German TÜV paperwork relating to the §21 StVZO individual vehicle approval and §70 StVZO exemption approval.

In addition, the car comes with an extensive collection of invoices, technical documents and records relating to various Group 4 and motorsport components.

This is an interesting opportunity for anyone looking for a comprehensively prepared Fiat 124 CSA Abarth Rally suitable for historic rallying and motorsport, while retaining German road registration and extensive documentation.

Viewing by appointment. Further photographs, documentation and detailed information are available upon serious enquiry.
