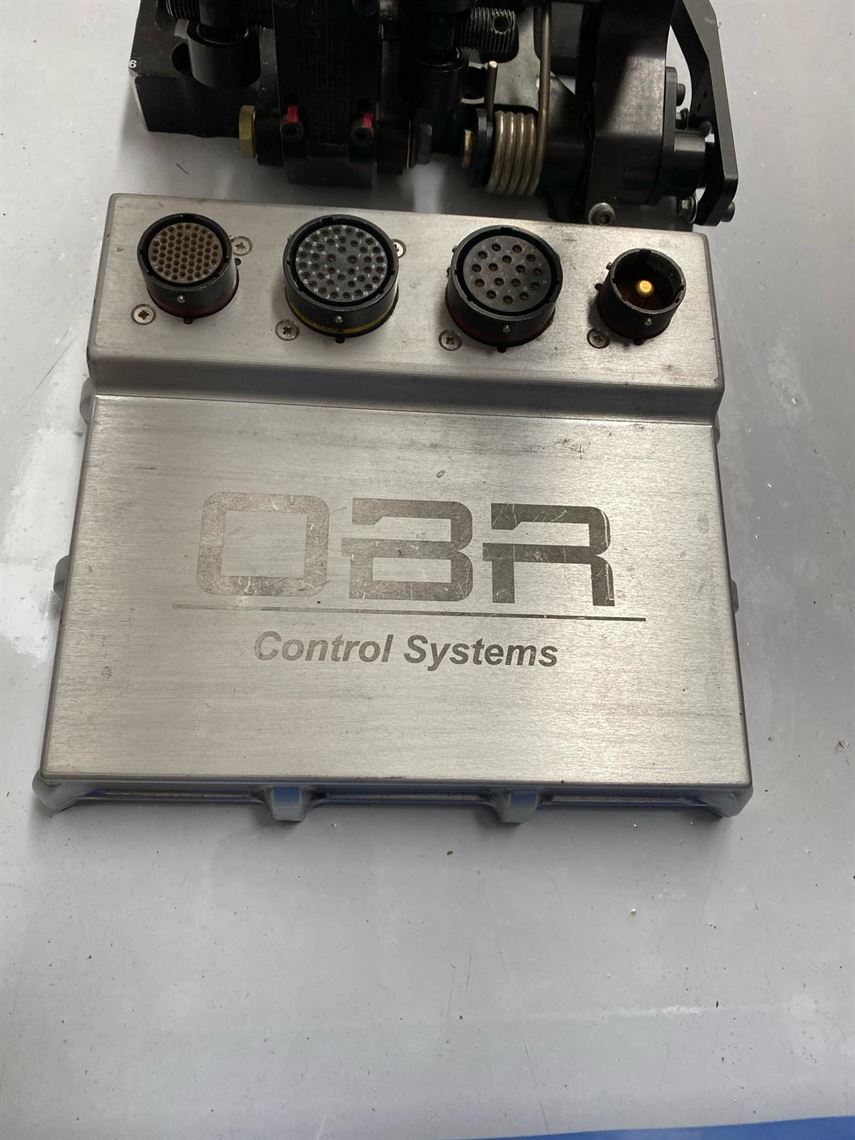

Description:

Data given for 48 channel version, the 34 channel version can be customized to suit your requirements.

• 16 x analog 0-5V inputs with selectable pull-up resistors (None / 3.6 kOhm / 47 kOhm).
• 14 x digital inputs triggering on low / open / high signal levels.
• 4 x CAN ports with 64 CAN channels with software selected CAN termination and routing between ports at baud rates between 10 kbps to 1Mbps.
• 1 x reset switch.
• 2 x internal temperatures are monitored and can be exported via CAN.

Outputs

Data given for 48 channel version, the 34 channel version can be customized to suit your requirements.

• 26 x high side power outputs (typically up to 10A continuous), max 300 Hz PWM.
• 12 x high side high power outputs (typically up to 26A continuous), max 300 Hz PWM.
• 2 x high side very high power outputs (typically up to 26A continuous, 200A peak), max 300 Hz PWM.
• 2 x high side wiper motor outputs (typically up to 10A continuous), max 300 Hz PWM.
• 2 x half bridge high power PWM outputs (typically up to 26A continuous, max 25 kHz PWM. Outputs can be configured as low side, high side and as full H-bridge.
• 6 x half bridge high power PWM outputs (typically up to 10A continuous), max 25 kHz PWM. Outputs can be configured as low side, high side and as full H-bridge.
• 4 x ECU trigger channels, 30mA Tri-States with user defined switch levels.
  • 0.0 volt
  • 2.5 volt
  • 5.0 volt
• In-rush current capability 150A.

Multiple outputs can be grouped for extreme high current applications.
Please note that the maximum recommended current draw per channel is limited by the
connector contacts - not by PCM2’s driver stages.  We have rated the individual channel’s
current draw in relation to the connector manufacturer’s specifications.

Communication

• 4 CAN ports with up to 64 user defined input and up to 64 user defined export channels.
• Baud rates from 10 kbps up to 1 Mbps.
• CAN routing between ports.
• Software selectable termination of each CAN port.
• RS232 diagnostic port.

Dimensions

• Dimensions
  • Weight 1,100g (38 oz.).
  • 197 x 183 x 37mm  (7 3/4" x 7 1/4" x 1 7/16").
  • All aluminum and high-end vibration stable SMD PCB.
• 4 motorsport connectors with high pin density (111 in total).
