Description:

Delivery Required:
08 January 2015

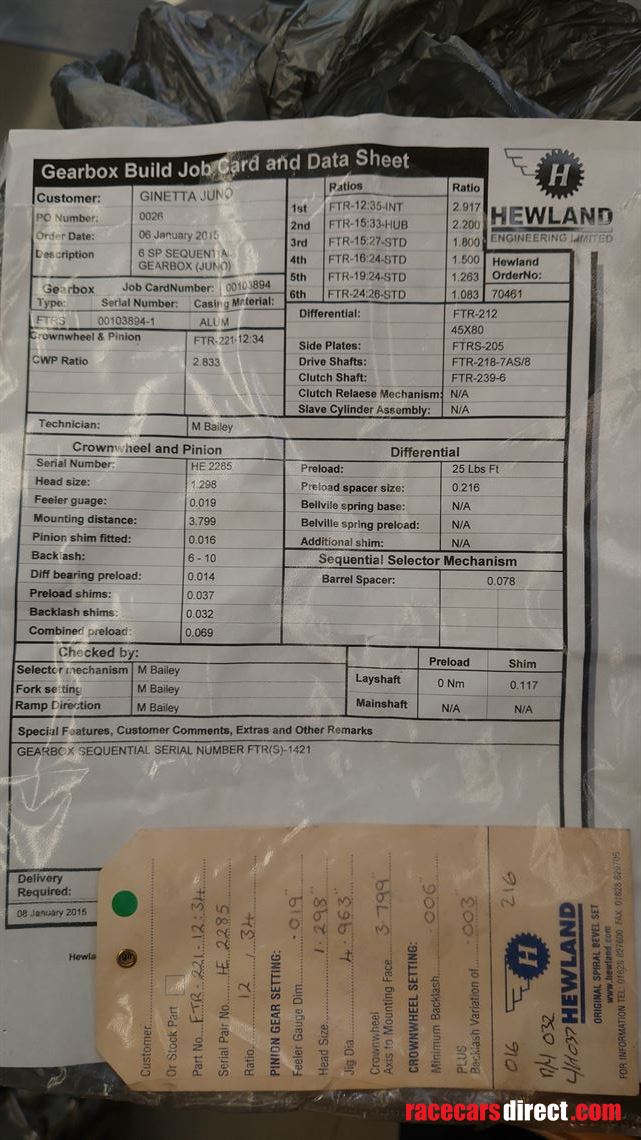

Gearbox Build Job Card and Data Sheet

Customer: GINETTA JUNO 6 SP SEQUENTIA GEARBOX (JUNO)
Patios:
Ratio
1st FTR-12:35-INT 2.917
2nd FTR-15:33-HUB2300
3rd FTR-16:27 8TD 1.800
4th FTR-16:24-STD 1.500
5thFTR-19:24-STD 1.263

Crownwheel & Pinion 6th FTR-24:26-STD 1.083
70461
Differential:
FTR-212 ALUM 45X80 FTR-221-12:34
Side Plates:
FTRS-205 CWP Ratio 2.833
Drive Shafts:
FTR-218-7A5/B
Clutch Shaft:
FTR-239-6
Clutch Relaese Mechanism
NIA
Slave Cylinder Assembly:
NIA

Crownwheel and Pinion
Differential Serial Number HE 2285
Preload:
25 Lbs Ft
Head size:
1.296
Preload spacer size:
0216
Feeler guage:
0010
Bellvile spring base:
NIA
Mounting distance:
3.799
Belville spring preload:
N/A
Pinice shim fitted:
0.016
Additional shim:
N/A
Back ash:
6-10
Sequential Selector Mechanism
Diff bearing preload:
0.014
Barrel Spacer:
0.078
Preload shims:
0.037
Backlash shime
0.032
Combined preload:
0,069


Preload
Shim
Layshaft
0 Nm
0.117
Mainshaft
NIA
NIA
Special Features, Customer Comments, Extras and Other Remarks
GEARBOX SEQUENTIAL SERIAL NUMBER FTRIS)-1421

Keyword Search Terms:

LMP3
