Description:

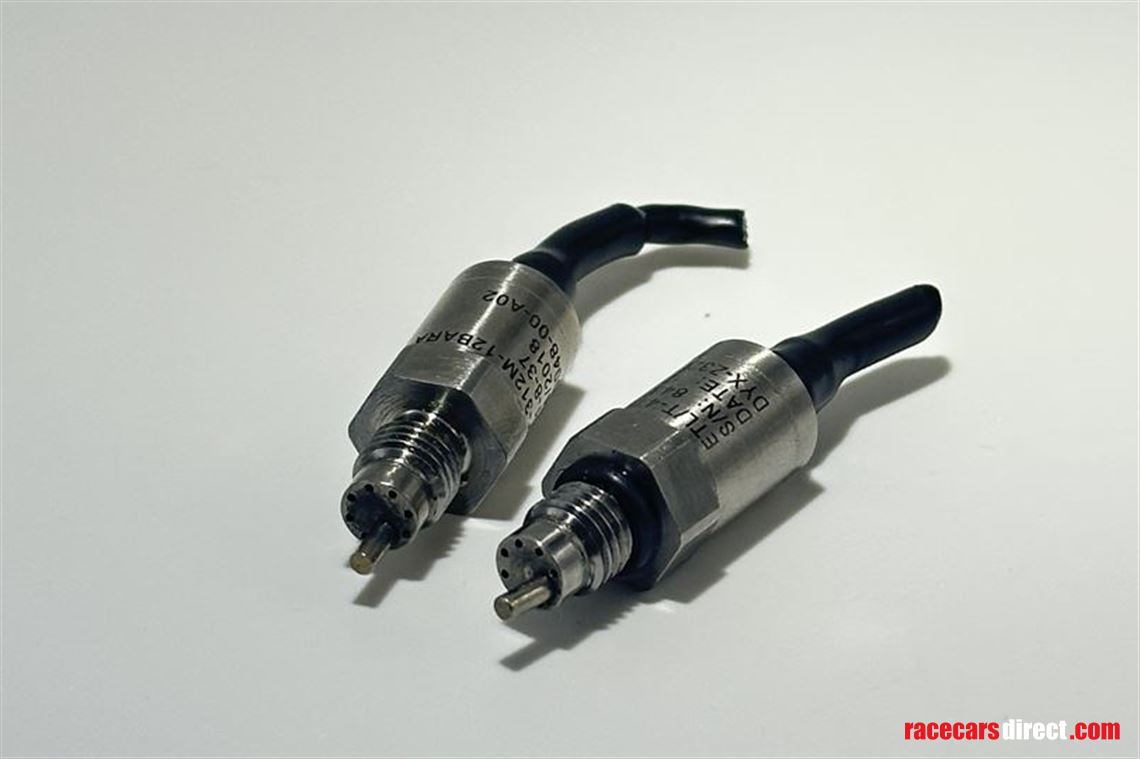

Pair of genuine Kulite ETL-4T-312M-12BARA absolute pressure transducers.

These are 12 bar absolute sensors removed from a professional motorsport data system. Both are in excellent overall condition with clean threads and housings. One sensor has a slightly bent probe tip, shown clearly in the photos. The other is in perfect shape.

Specifications:
• Model: ETL-4T-312M-12BARA
• Pressure range: 0–12 Bar (A)
• Output: millivolt (mV/V signal, requires amplifier or conditioner)
• Thread: ¼-28 UNF (standard Kulite fitting)
• Housing: titanium miniature body
• Used for: fuel, oil, manifold, hydraulic or test-rig pressure measurement
• Temperature range: −55 °C to +200 °C

Condition: Used - One probe is slightly bent but undamaged around the housing.

Note: These are millivolt-output sensors (not 0–5 V). They require a compatible Kulite amplifier or signal conditioner to operate.

Included: 2 × Kulite ETL-4T-312M-12BARA sensors (as shown).

New price: approx. €1 400 each
Offered as a pair for: €299 (or best offer)

Ships from the Netherlands. Worldwide shipping available.
