Description:

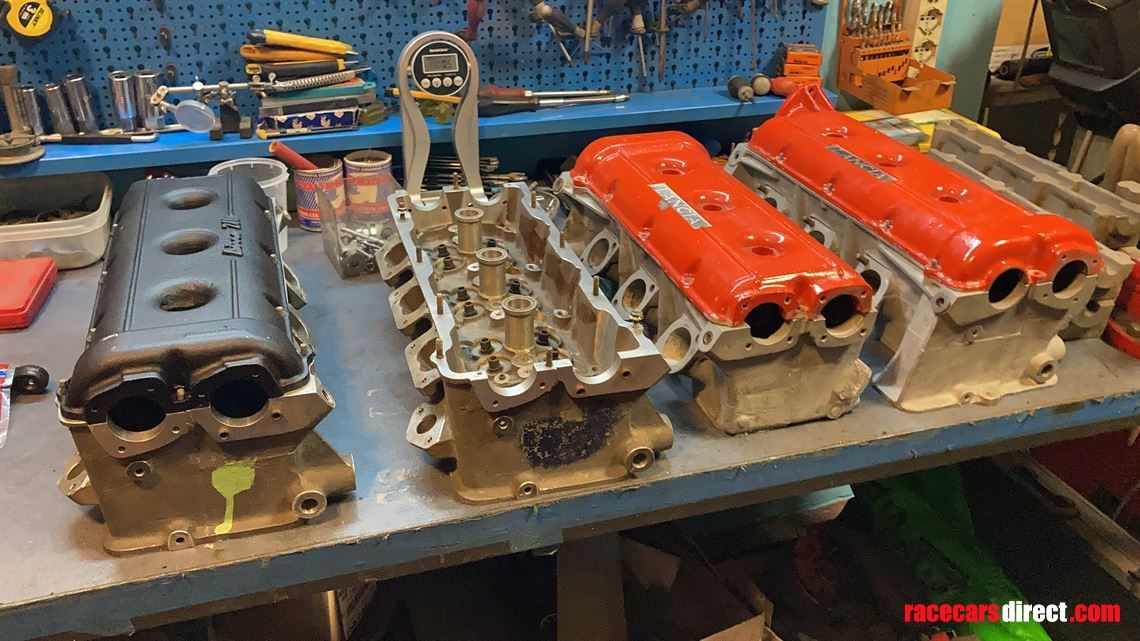

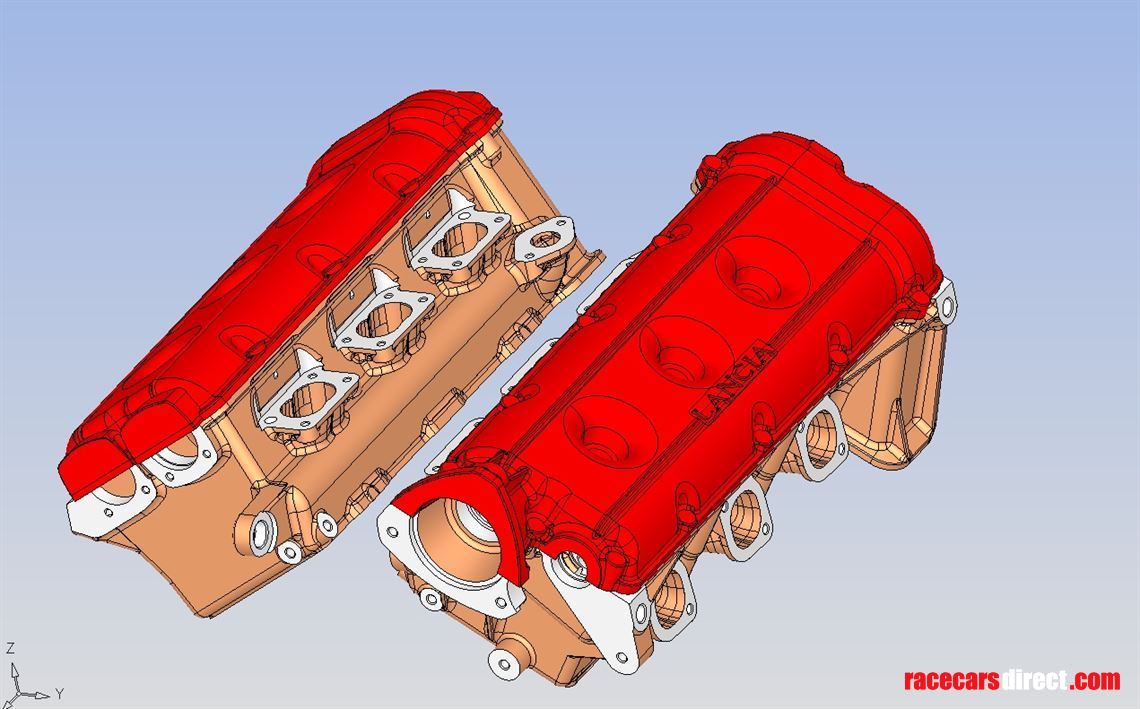

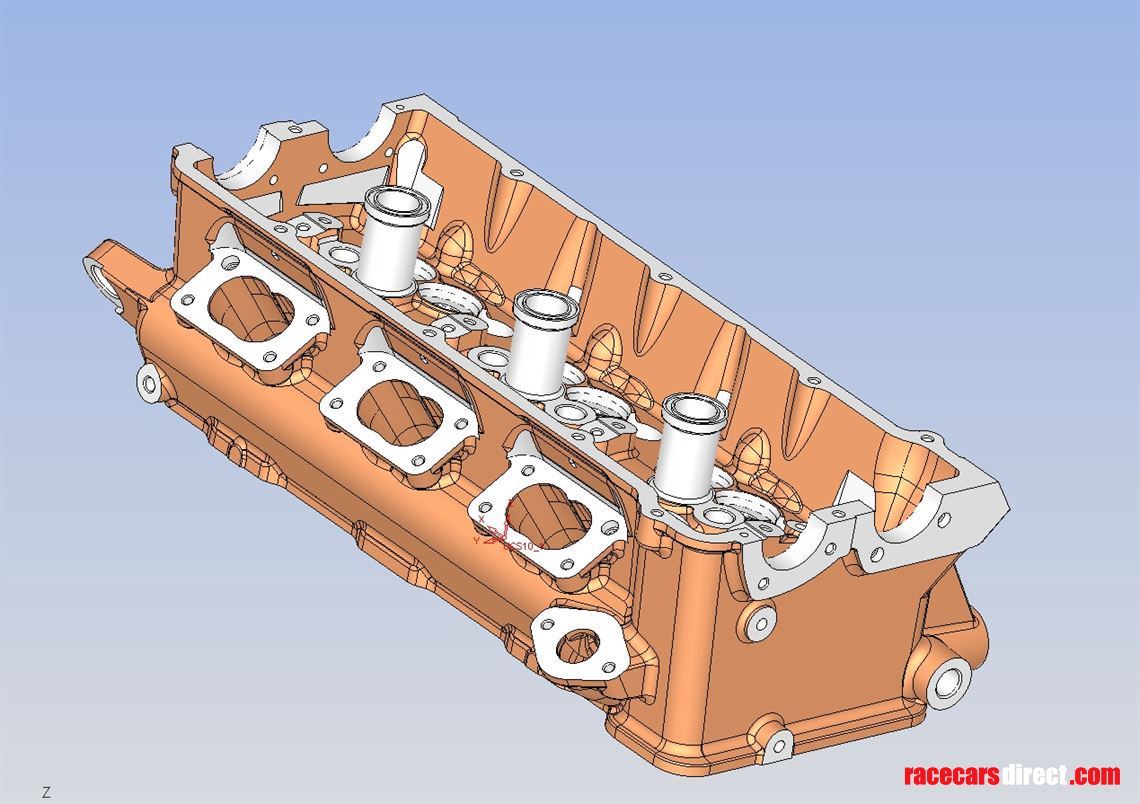

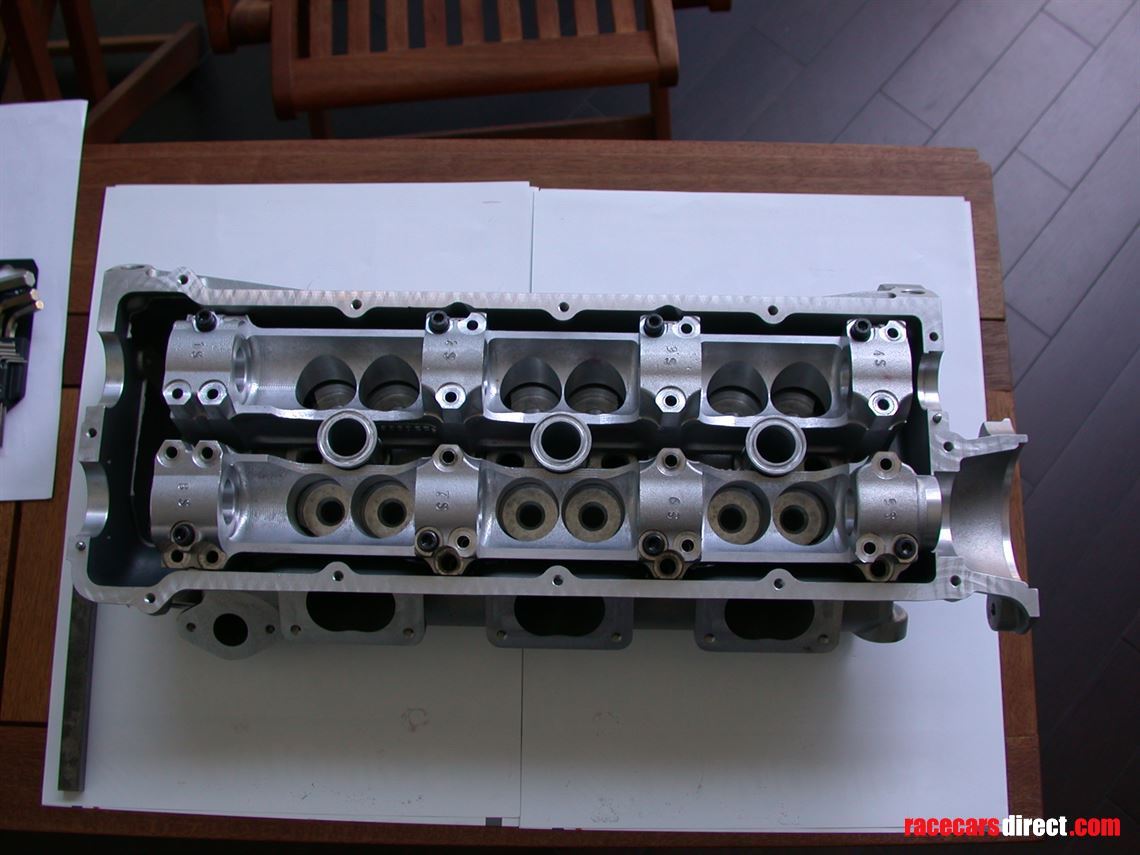

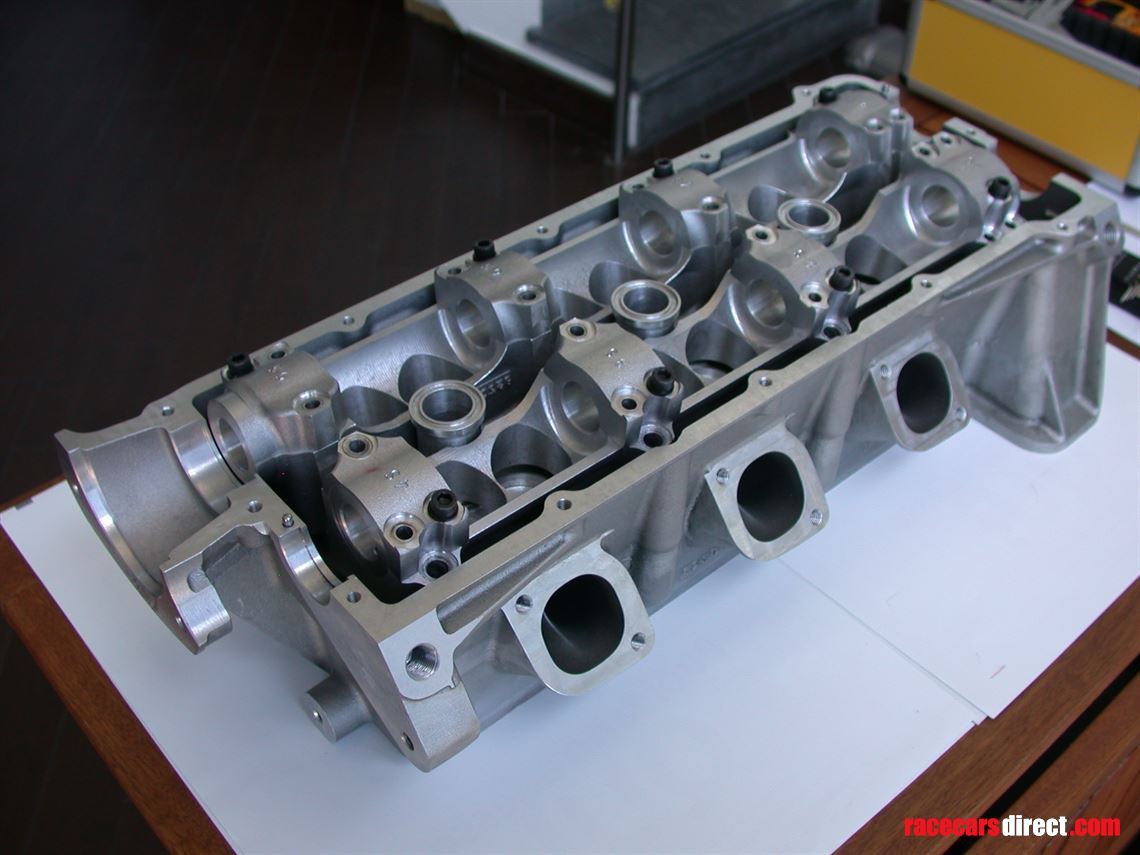

Cylinder Head RH. ALUMINIUM TYPE EN AC 42100 <> EN AC 43100

Cylinder Head LH. ALUMINIUM TYPE EN AC 42100 <> EN AC 43100

Magnesium Cam cover RH AZ91

Magnesium Cam cover LH AZ91

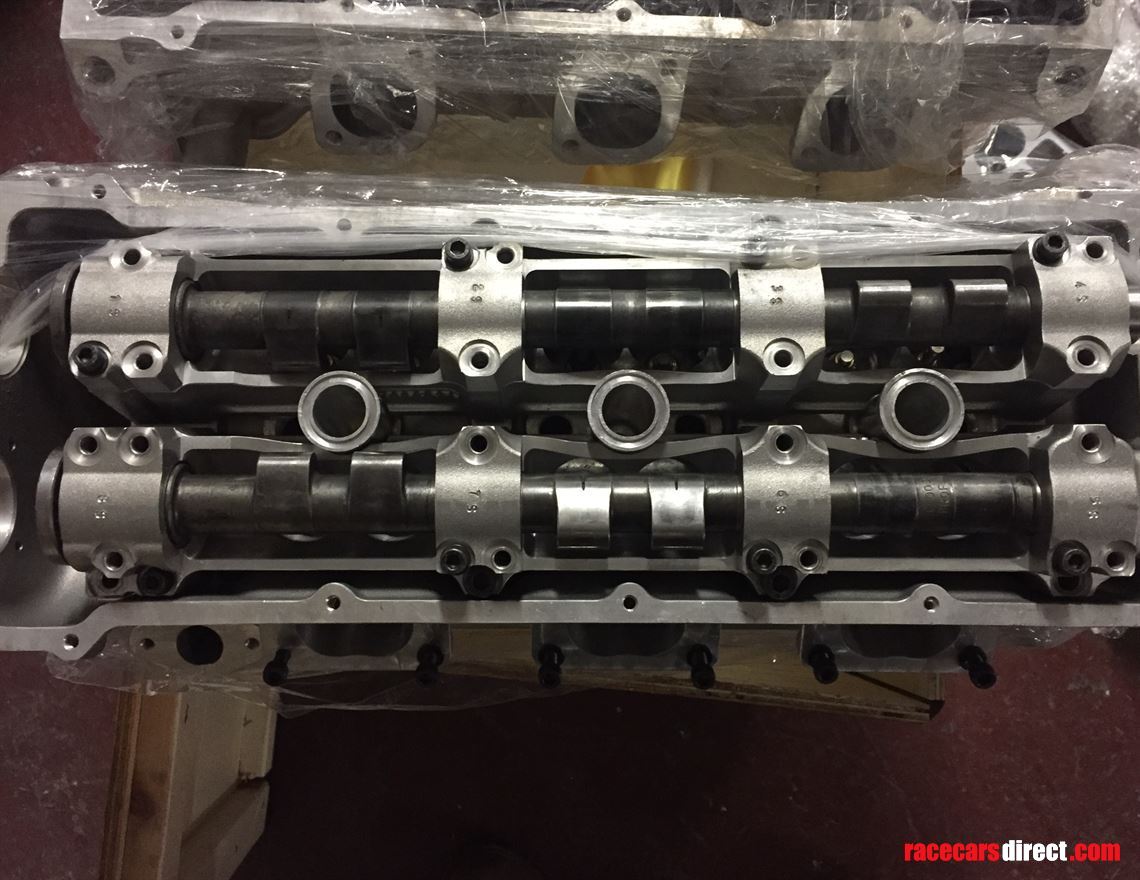

Re manufactured Camshaft carriers (4 individual)

Re manufactured Intake Manifold (N°3)

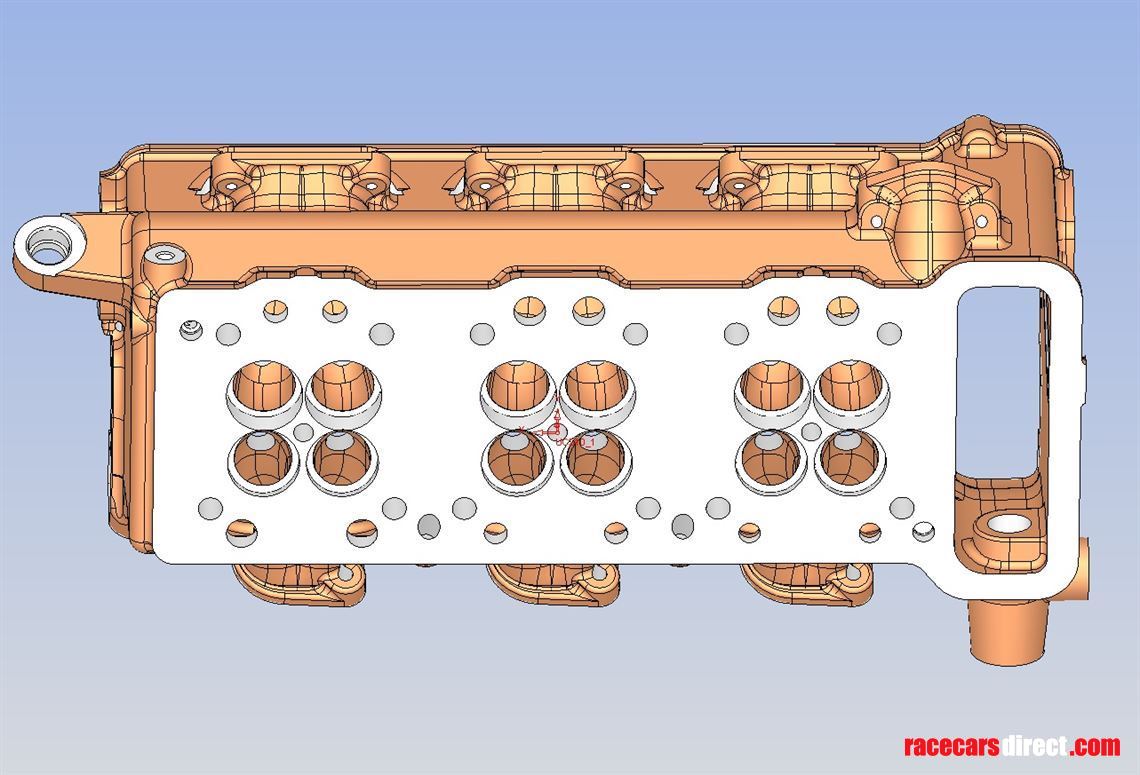

Complete machining of the combustion chambers, machining of camshafts carriers and caps,

Machining of the valve seats and guides, inlet and exhausted ports, followed by full pressure test.

 INCLUDED:

N° 01 Manifold water-cooled for cylinder heads (Alloy)

N° 01 Kit special cylinder head studs

N° 24 Valve caps valves “ARROW” Ø 35 mm

Newly made 24 valve, intake (Ø 34 mm) exhaust (Ø 32 mm)

Newly made 24 valve seats in Beryllium

Manufacturing and fitting valve seats and valve guides

Checking after machining

Finishing and polishing complete all ports.

OPTIONS AVAILABLE

N°  04 Camshaft

N° 6 Forged high compression piston Ø 93,00 mm

Full engine gasket sets

Complete exhaust manifold kits with megaphone tailpipes
