Description:

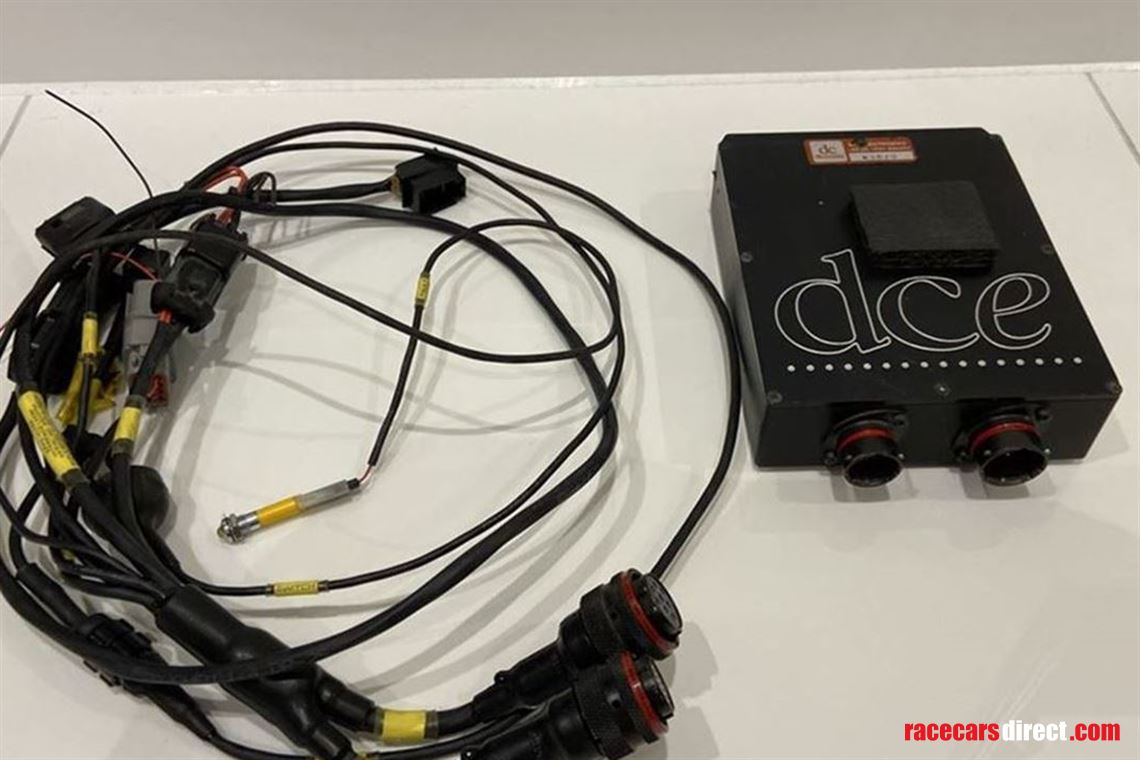

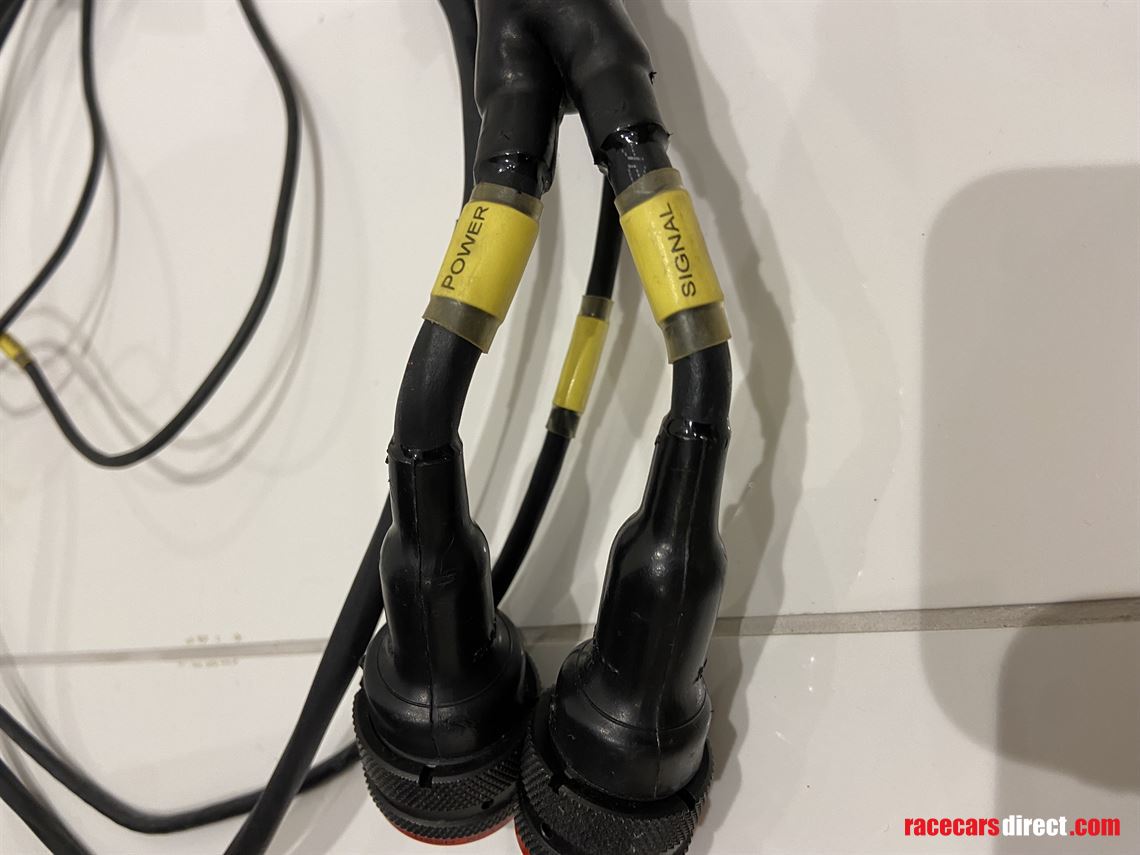

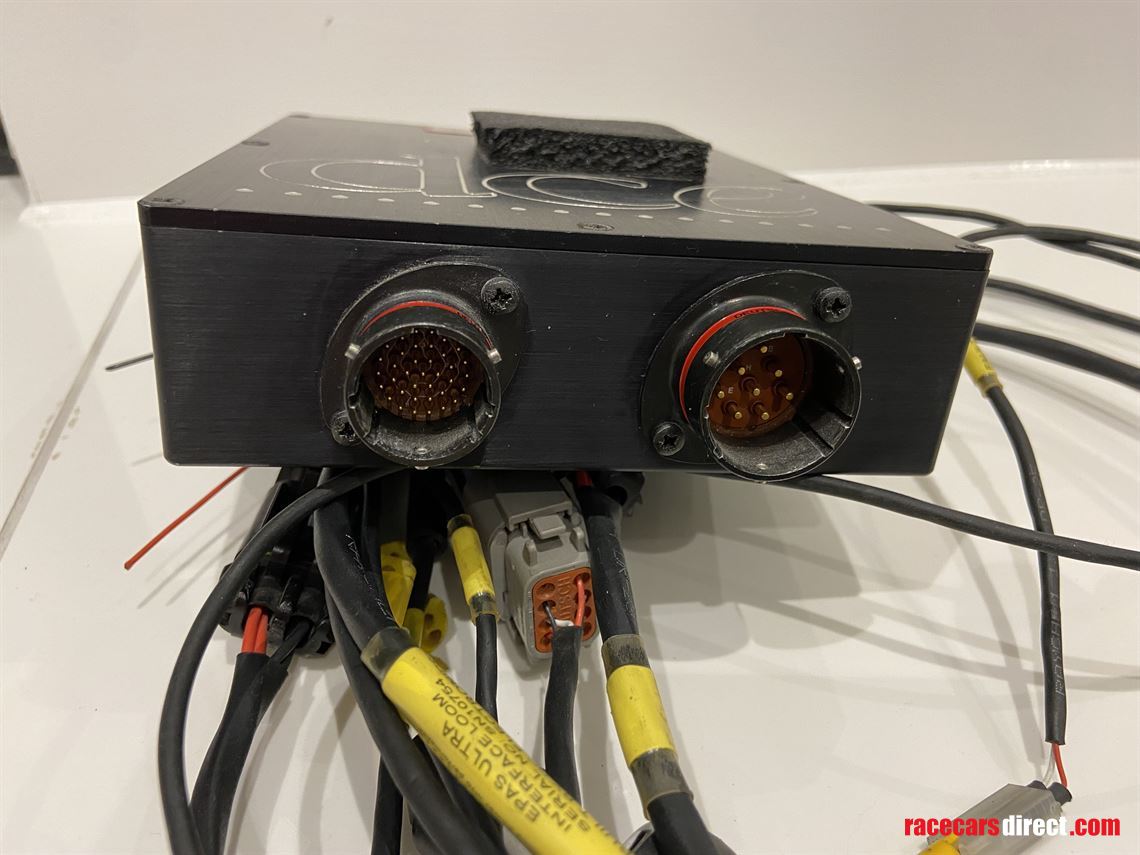

The Ultra Race ECU is suitable for use with the DC Electronics motorsport electronic power assisted steering system. Connection is via 2 aerospace connectors and a specific loom is available to connect the ECU to the power steering system.

The Ultra Race ECU has the following features -

• Fully programmable
• Performs system checks for tolerance on power up
• Full diagnostics and adjustments via included desktop software
• CAN 2.06 interface
• 4 x digital outputs
• 2 x speed inputs
• 2 x digital inputs
• 2 x analogue inputs
• Steering angle input
• Internal heat sink temperature monitoring
• Ability to create steering map with supplied software
• Internal temperature and peak current tell takes

The Can Bus can be used to control power levels or input ground speed to make the unit speed sensitive.
