Description:

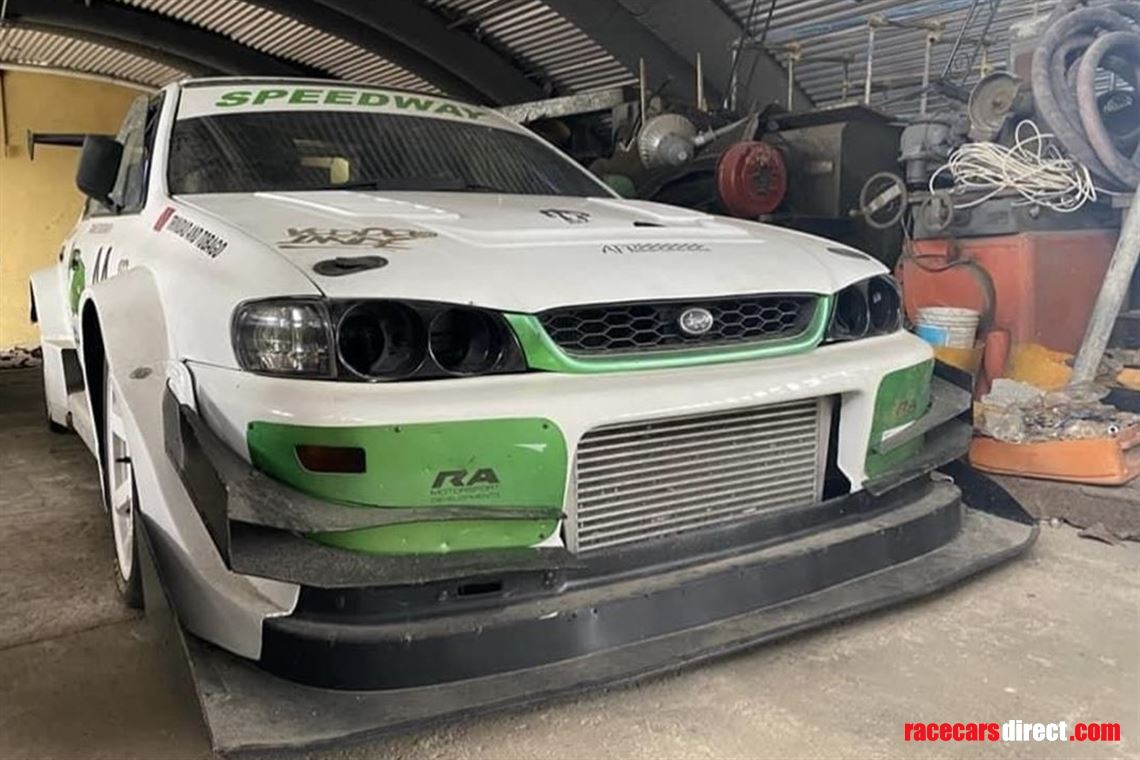

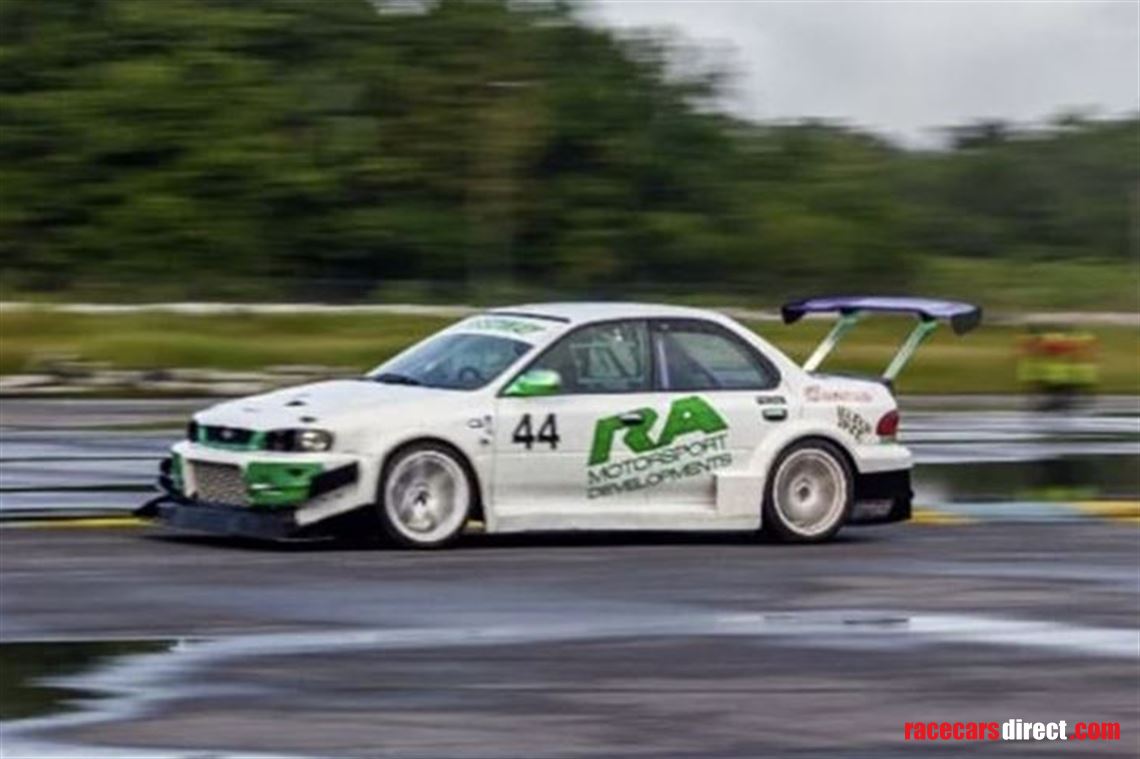

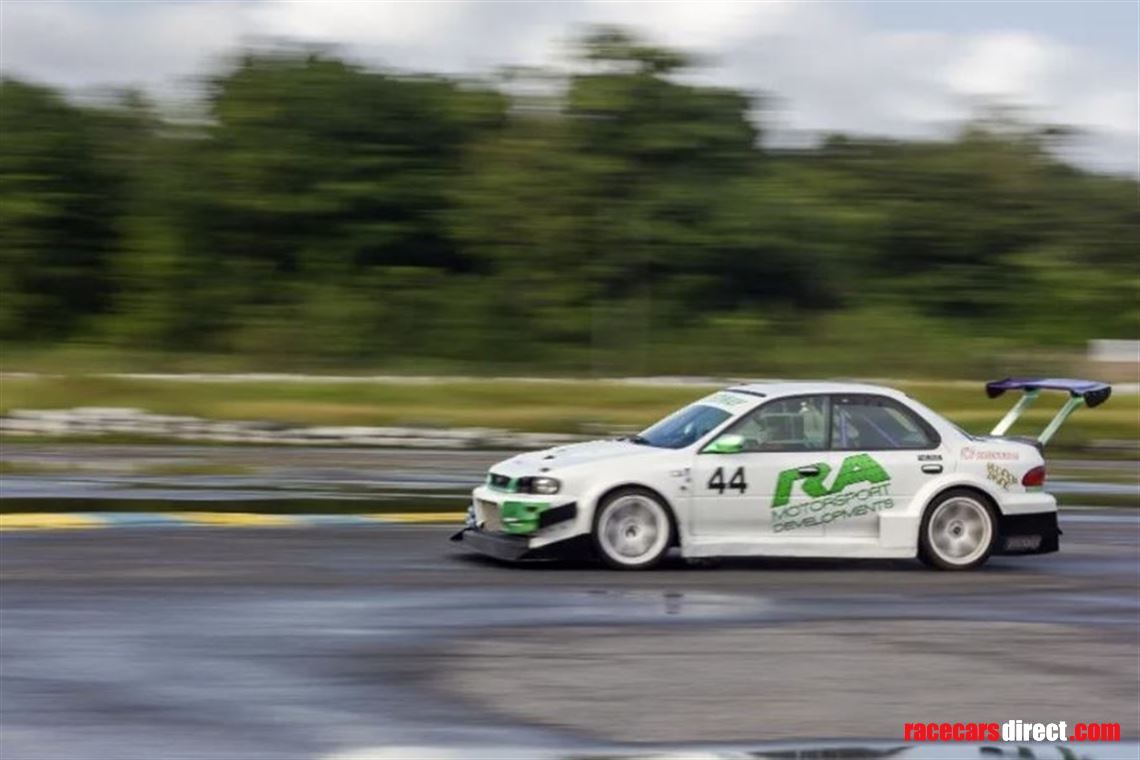

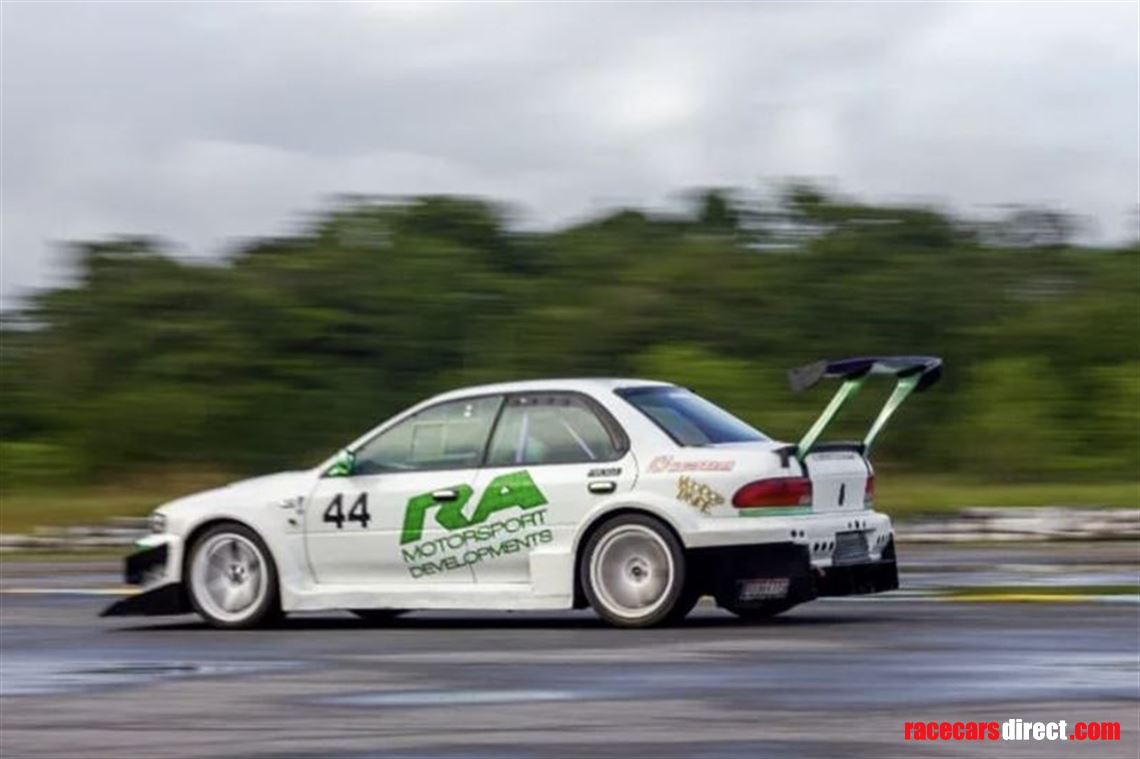

Subaru Impreza race car/ time attack
For sale
ML1200
- Manley Performance
"Turbo Tuff" 4340 Forged I-Beam Rods
- ARP AGE-625+ Rod Bolts
- Motion Lab spec King XPG Race rod bearing clearances
- Manley Performance
"Turbo Tuff" 2618 Forged Pistons
- 8.5:1 (or) 9.8:1 Compression Ratio
- Anti-friction skirt coating
- Off-set wrist pin
- "Formula-Won" strutted piston design
- Thicker skirt wall versus traditional "Platinum Series" piston
design
- 9310 alloy Upgraded Wrist Pins (2.500"x.210" wall)
- New Subaru OEM Factory Block
- Bored and honed to 100MM
- Drilled for 1/2" head stud kit (14mm head stud upgrade
available, 1/2" or 14mm studs will require cylinder head
modification, Head stud kit sold separately)
- L.A. Sleeves '
"ProCross ProCoo!" Sleeve set
- Line honed for consistent main bearing clearances
- Manufactured with MOLY 2000 iron alloy material
- L.A. Sleeve sleeve sets provide the strongest upper
cylinder deck strength for highly boosted applications
- New Subaru OEM Induction Hardened Crankshaft
- Motion Lab spec King XPG Race main bearing clearances
Parts
CP 101 mm 9:1 Compression ratio piston upgrade w/ .260" wall
Ultra Duty wrist pins and CT-3 anti-friction skirt coating
designed for +2mm long rod
Parts
Custom +2mm connecting rod length

Manley 190040B
Series Crankshaft
Manley Subaru EJ20/EJ25 4340 Billet 79mm Stroke Turbo Tuff
ARP 260-5401
ARP Subaru WRX EJ20 & EJ25 Block Bolts
ML EJ S2 CHP
- Subaru OEM Intake and exhaust valve stem seals
- Subaru OEM Valve locks
- High Performance 3 Angle valve job
- Manley Performance 37mm "RaceFlo" Stainless Steel +1 mm
oversized intake valve set
- Manley Performance 32mm "RaceFlo" Stainless Steel exhaust
valve set
- Manley Performance 92LB valve spring and titanium retainer
kit
- Designed for high lift Kelford, GSC, or Brian Crower camshaft
upgrade (Contact us for recommendations for your build)
- Camshaft lash set to manufacture specification
- Thoroughly cleaned and Pressure tested
- AVCS Oil Galley plugs dis-assembled and galleys
thoroughly cleaned
- Valve guide clearance checked
- Valve guide replacement may be necessary, not included
in base pricing
- Ferrea Bronze valve guide upgrade available
- Milled mating surface
- Fully assembled and ready to install onto your shortolock
Core Note: A good core is consider complete cylinder head
assembly without damage to the combustion chamber. Must
include matching cam caps, valve guides, spring seats, and
valve lifters. Cams must be supplied if new cams are not being
purchased. New core castings are available if needed.
Kelford R-199-D
Subaru 2.5 STI 05-07 - Mechanical - 282/276 - Subaru 2.5 STI
2005-2007 - 252/260 - KVS109 - Racing camshafts to suit 2.5
STi, USDM spec with AVCS. Suits serious engine modification
and large turbo. Requires cylinder head modification to fit
Parts
ExtremeDuty +1 mm Inconel Exhaust valve upgrade
Parts
Ferrea Bronze valve guide upgrade (incl. additional machine
work)
Parts
Subaru OEM B25 cylinder head core charge
Cometic C4587-032
Cometic 03-11 Subaru EJ255 / 04-10 EJ257 Turbo 101 mm
Bore MLX Head Gasket
Parts
ARP 1/2" cylinder head stud kit
Labor
Long block assembly

Cosworth Intake Manifold
Billet TV set with hardware
Roger Clark Motorsports Dry Sump Oiling System
Fit Timing and Valve Cover Package. Install dry sump oil
system. Set engine timing. Install intake manifold and
TGVs.
International shipping of dry sump system only

OEM Subaru Valve Cover Components:
Valve Cover Gasket 13270AA190 X1
Vavle Cover Gasket 13272AA 140 X1
Spark Tube Seal 13293AA051 x4
Valve Cover Bolt 800606720 x16
Valve Cover Left 13278AA320 xl
Valve Cover Right13267AA400 x1
Valve Cover Gasket Right 13270AA190 x1
Valve Cover Gasket Left 13272AA140 xl
OEM Subaru Timing Cover Components
Cover - Belt No.2 Left xl
Cover - Belt No.2 Right xl
Cover - Belt, Front x1
Cover - Belt No.1 RIght x1
Cover - Belt No.1 Left xl
TIming Belt Guide ×4
Timing Cover Hardware x13
Gates TCKWP328RB Racing Timing Belt with Water
Pump, Pulleys, and idlers

LIC adjustable idlers
STI 15+ new coil packs
Cam sensor
Crank Sensor
V8 STI throttle body with IACV
Throttle Position Sensor Plug with wiring
Idle control valve connector
Alternator
Plug connector for alternator
Injector Dynamics - ID1700 (1700cc injectors)
Throttle plate adaptor and gasket
