Description:

Max Power: 423 hp @ 8250 rpm

Max Torque: 407 Nm @ 5500 rpm

Weight: 1050 kg

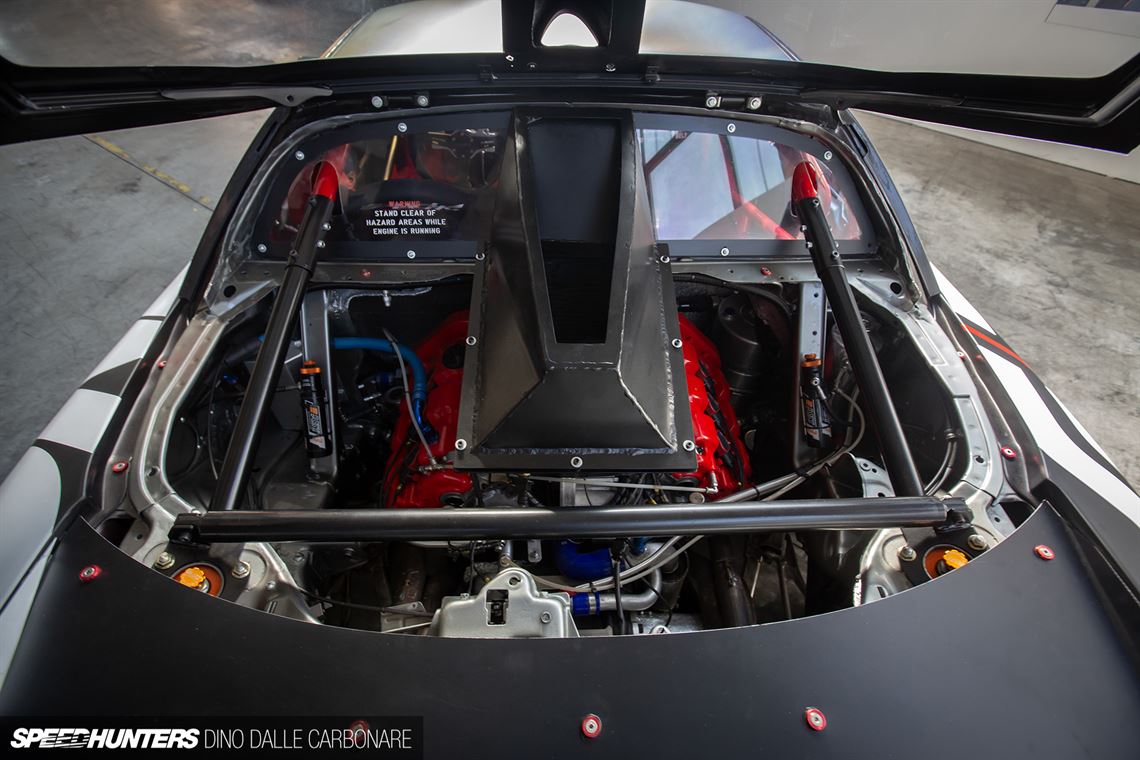

Engine: Honda C30A 3.0L DOHC VTEC V6 (rotated longitudinal)

Brian Crower Stroker Kit 3,5L

Dry Sump

CP Carrillo aluminium forged pistons

Titan connecting rods

Honda Racing bushings PINK

bigger titan intake valve and inconel exhaust valve by AS Motorsport

Toda Racing Cam shafts type B

Toda Racing Adjustable Cam shafts Pulley

Titan LMA Kit by Science of Speed

Aluminum custom Air Intake box with Six-Throttle 48mm Body system

Drive by Wire Throttle Control

ECU Life Racing F88RS

CTS Maranello custom exhaust system with 3-1 headers

Sport Silicone Radiator Hose kit

Front Oil Cooler kit with bigger Setrab radiator

Bigger custom Aluminium Radiator custom

750cc Injectors

Lightweight Lithium Battery

High Pressure Fuel Regulator

Twin Bosch 044 Fuel Pumps

Front Custom Fuel Tank 35L

NGK Racing Plugs (Audi R8)

Compact Ignition Coils BERU for Audi R8



Driveline
6-speed Gearbox Sadev SL-90 Transmission with steering paddle

AP Racing Clutch with Lightweight Flywheel



Suspension/Brakes

AST Suspension Coilovers 3-way

AST AirJacks

Science Of Speed Toe Links and Rear Beam Bushings

Cedar Ridge Front Pivot Clamps

Science Of Speed Adjustable Anti-sway Bars front/rear

Cedar Ridge Sway Bar End Links front and rear

Bushings Camber kit correction front and rear

AP Racing Pro 5000 R 4-pot front

Brembo Racing 4-pot rear Calipers

2 pieces Slotted Floating Discs 330x28mm front, 328x28mm rear



Wheels/Tyres
Volk Racing TE37V forged 17”x9.5J ET15 front / 18”x10J ET0 rear, Pirelli PZero slicks 240/65 R17 front, 250/65 R18 rear

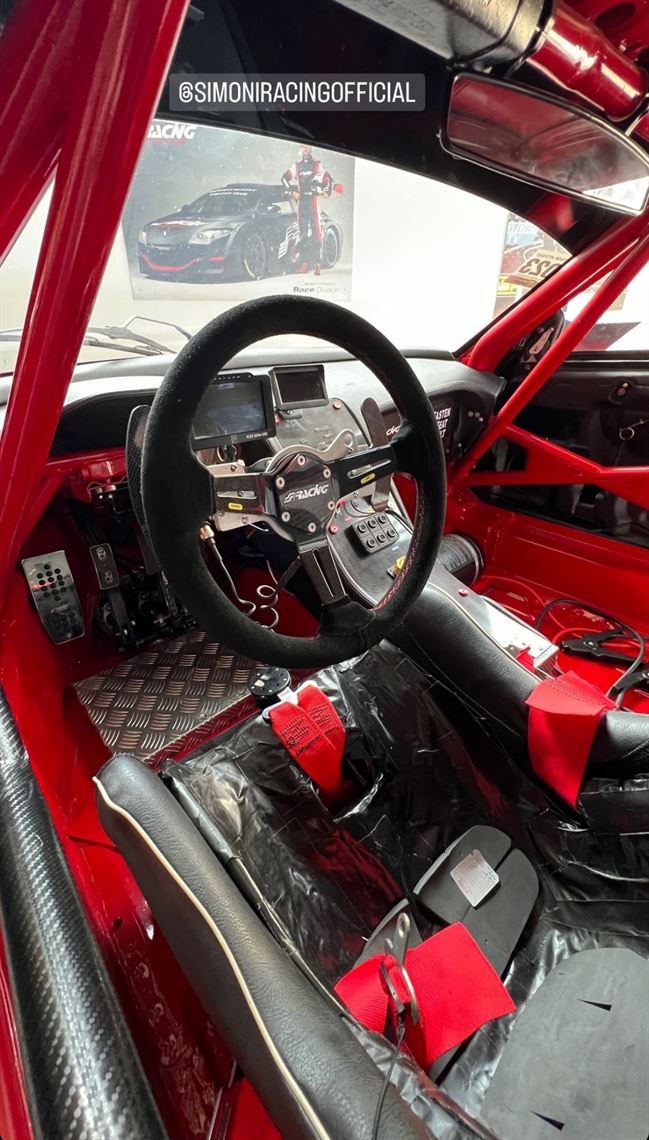

Interior
Full FIA Roll Bar Cage,

Simoni Racing FIA Bucket Seats with Brackets,

custom Carbon center Console

Simoni Racing Six-Point FIA Harnesses

Simoni Racing Carlos Shammy Leather 350mm Steering Wheel

Simoni Racing Quick Release

Simoni Racing Hub

Digital Dashboard Plex Tuning Display color Logger with GPS

OMP Steel Hand Held Fire Extinguisher

Tilton 3 Pedal Floor mount 600 series with manual Brake Bias Adjuster



Exterior
Full Rocket Bunny body conversion

Front Hood with fenders Conversion

Front Lip Spoiler with splitter

Twin Front Canards

Side Skirts

Side Canards

Rear Fenders

Rear Bumper

Simoni Racing carbon GT Wing

Simoni Racing Red Chrome Wrap Film

Route KS GT Air Intake Scoop

Kite Rear Fender Side Ducts

Simoni Racing front Tow Strap

Simoni Racing rear red ergal tow ring

Plastics 4 Performance full Lexan Window kit

Carbon fiber Side Mirrors

Simoni Racing LED Tail Lights

Seibon carbon fiber Doors

Website:

https://www.speedhunters.com/2024/04/90-degree-turn-the-simoni-racing-nsx/

Facebook:

https://www.facebook.com/SimoniRacingNSXProject/

Video:

Video:

Keyword Search Terms:

NSX, time attack, race car, vtec, widebody, sequential gear box, Honda
