Bmw e30 m3 grp A/ Dtm build - SOLD

This is now SOLD. Search for similar items.

Description:

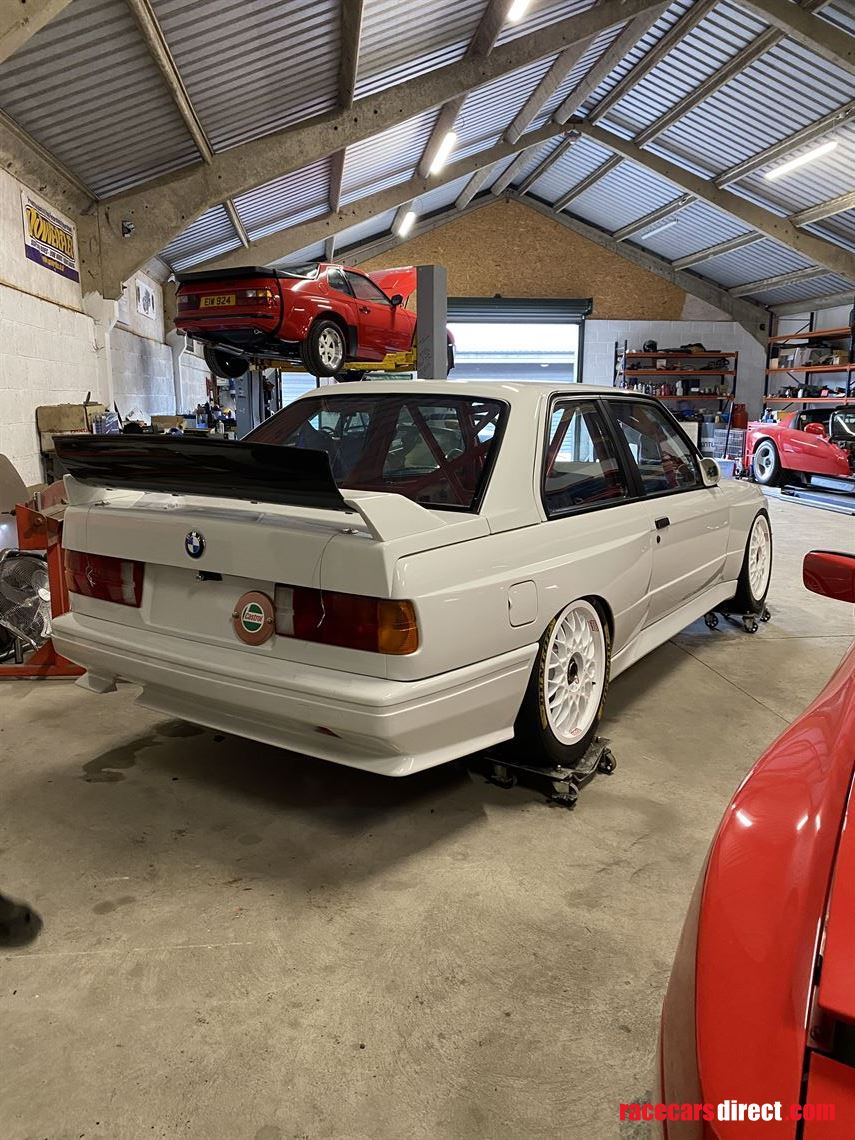

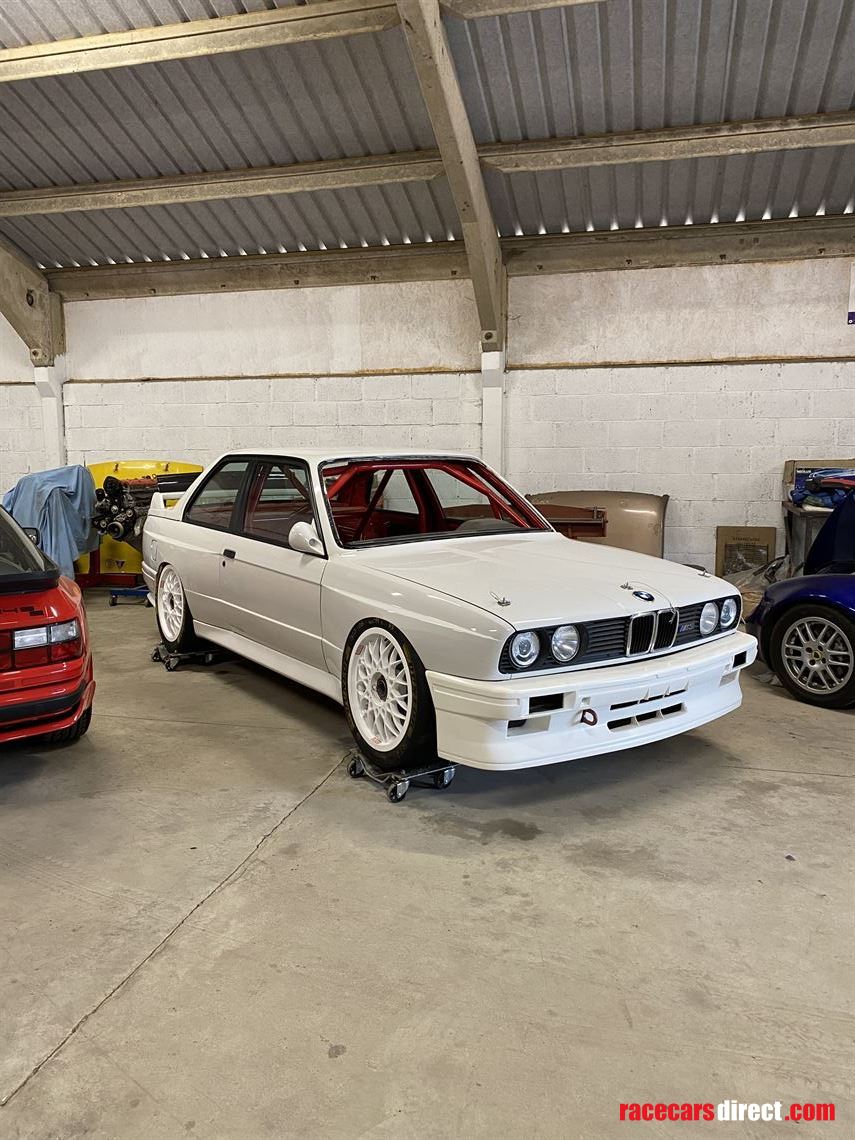

I’ve owned this 1987 Bmw e30 m3 for 8 years now and imported it myself from Japan. It had done 163,000 km and (currently the same).


The car has its original ID/vin and is uk registered and the V5 in my name.



Originally in metallic black. Body was in great shape with no rust and no previous damage (some panels still reading original paint). Idea was to build a grp A/ dtm car.



Car was completely stripped placed on a rotisserie and a full roll cage was build by Nickson motorsport including shell strengthening.



All panels are original to the car apart from the front wings, which were brand new sport evo wings.



Originally it was a sunroof car, now replaced with a non sunroof roof skin. It’s an original BMW roof skin which is rust free/ dent free & fitted to factory spot welds.

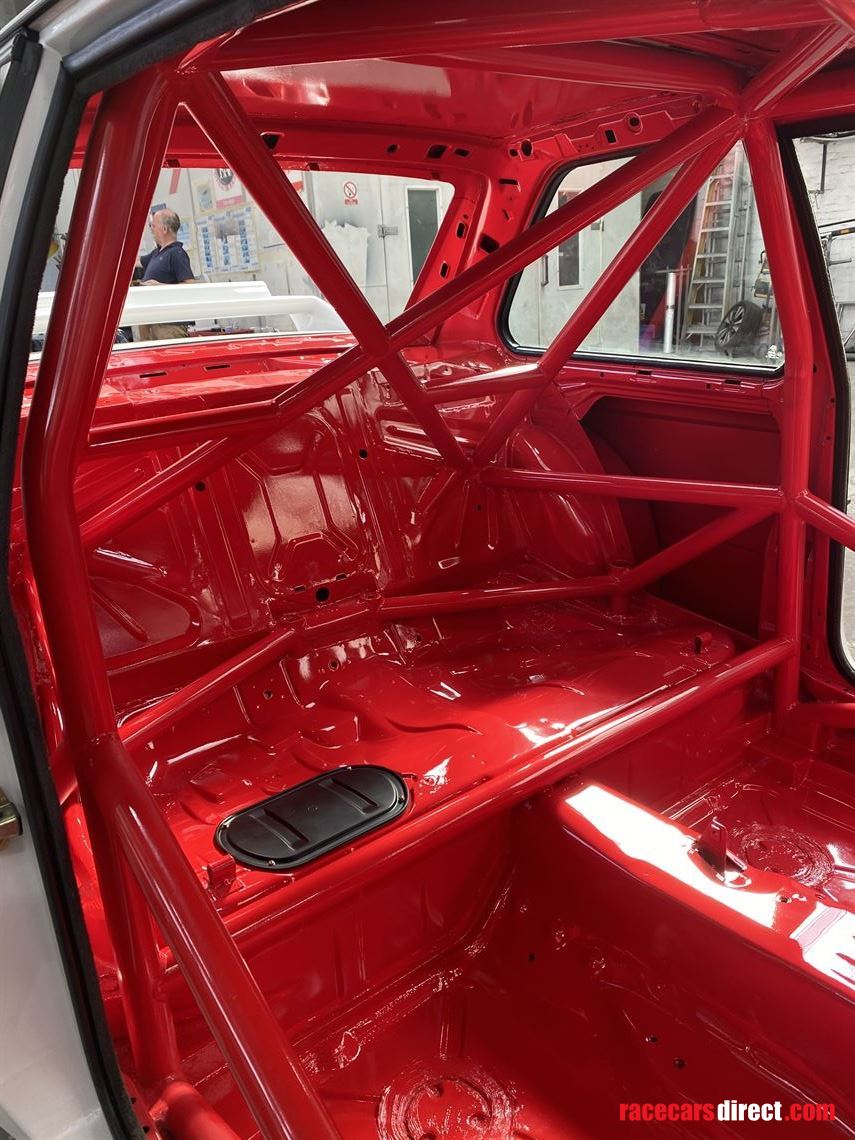

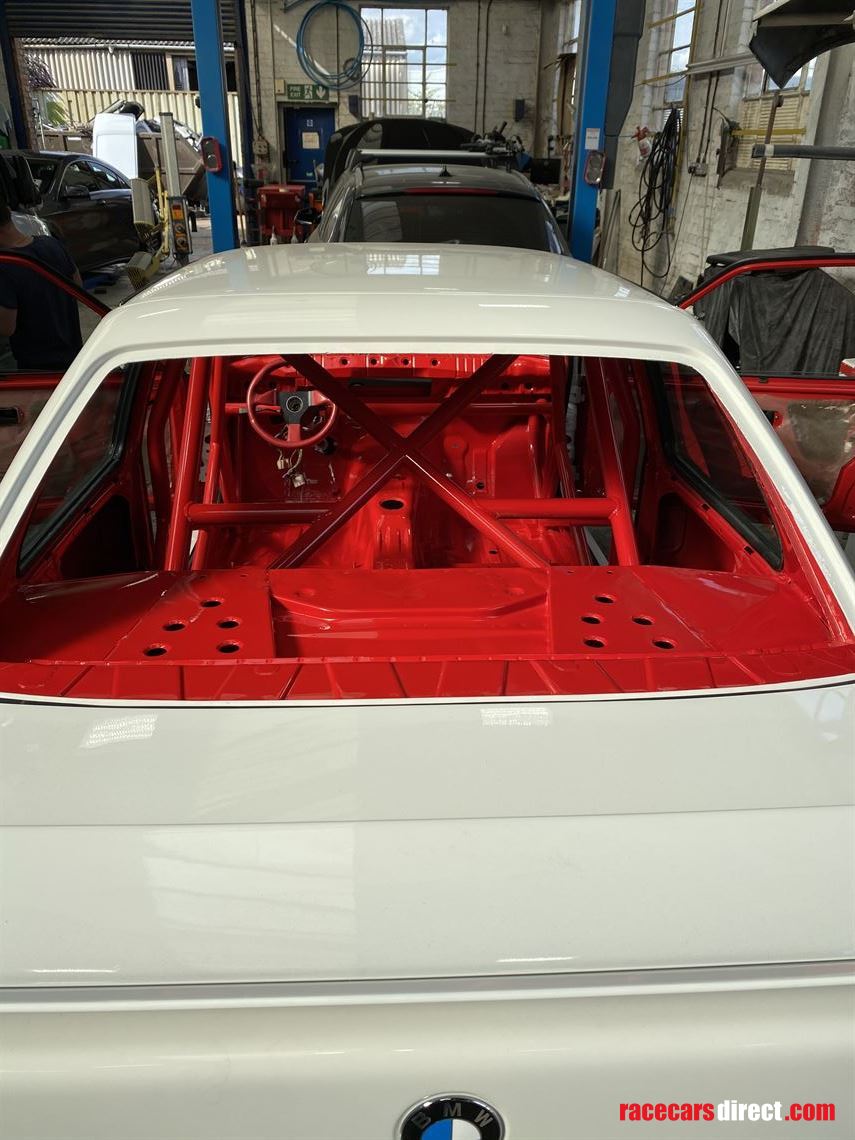

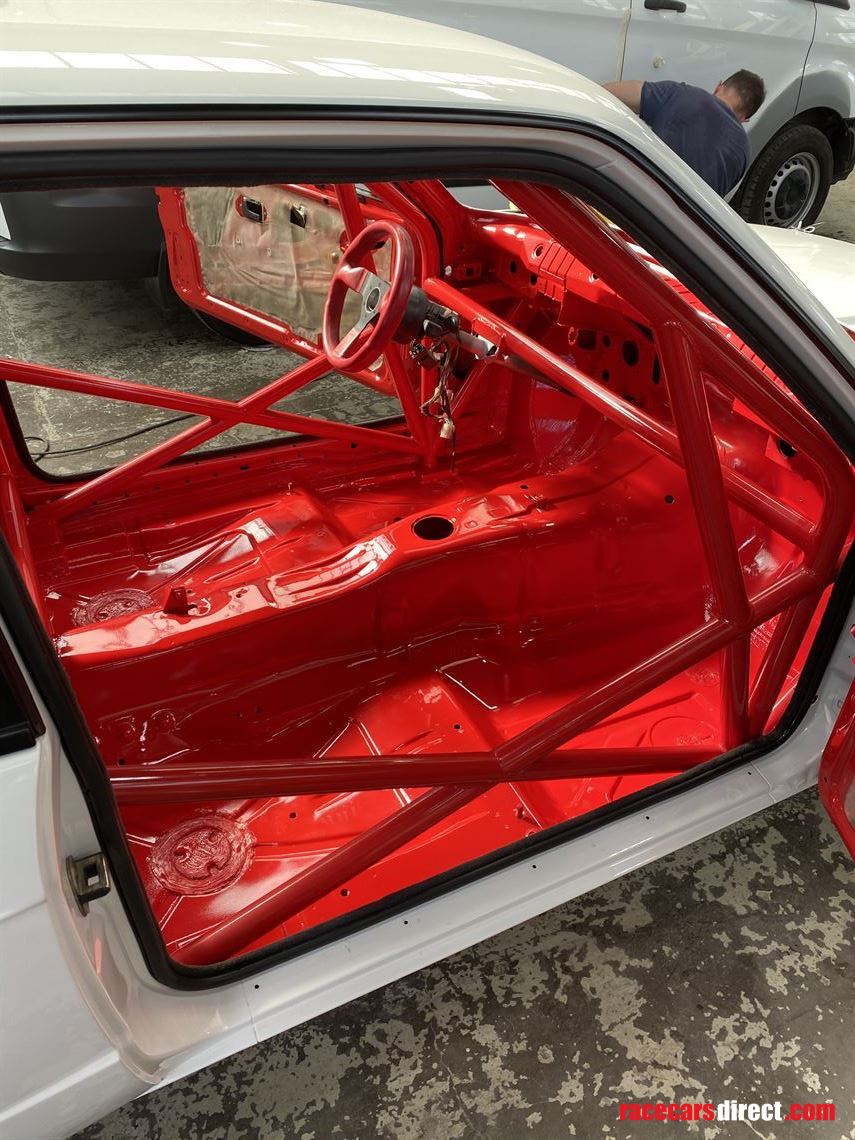

Cage Spec:



Nickson motorsport



14point multipoint weld in t45

Built to meet msuk blue book regulations

Front turret triangulation



Rear legs through bulkhead onto rear turrets



X diagonal (rear)

Split harness bars



A pillar reinforcement bars from roof to floor - through door bars



X type door bars



Dash bar

B pillar brace across tunnel

X6 pickup points into rear subframe/differential mounts



Screen bar support bars



X roof diagonal with wrap around gussets







Parts:



Muzzimotorsport dtm weld in seat belt mounting point. Welded on the rear parcel shelf and other brackets removed, as per grp A/ dtm cars.



Muzzimotorsport brand new dtm engine arm mounts like the original cars.



Muzzimotorsport brand new dtm solid engine mounts like the original cars.



Muzzimotorsport brand new dtm ally solid gearbox mounts with all fastenings like the original cars.



Muzzimotorsport carbon dtm front bumper (different to the original bumper, lower to the ground), not painted, that’s the only part on the car that isn’t painted. ( major weight reduction compared to original bumper)



Muzzimotorsport carbon rear inner bumper frame. ( saving 5kg)

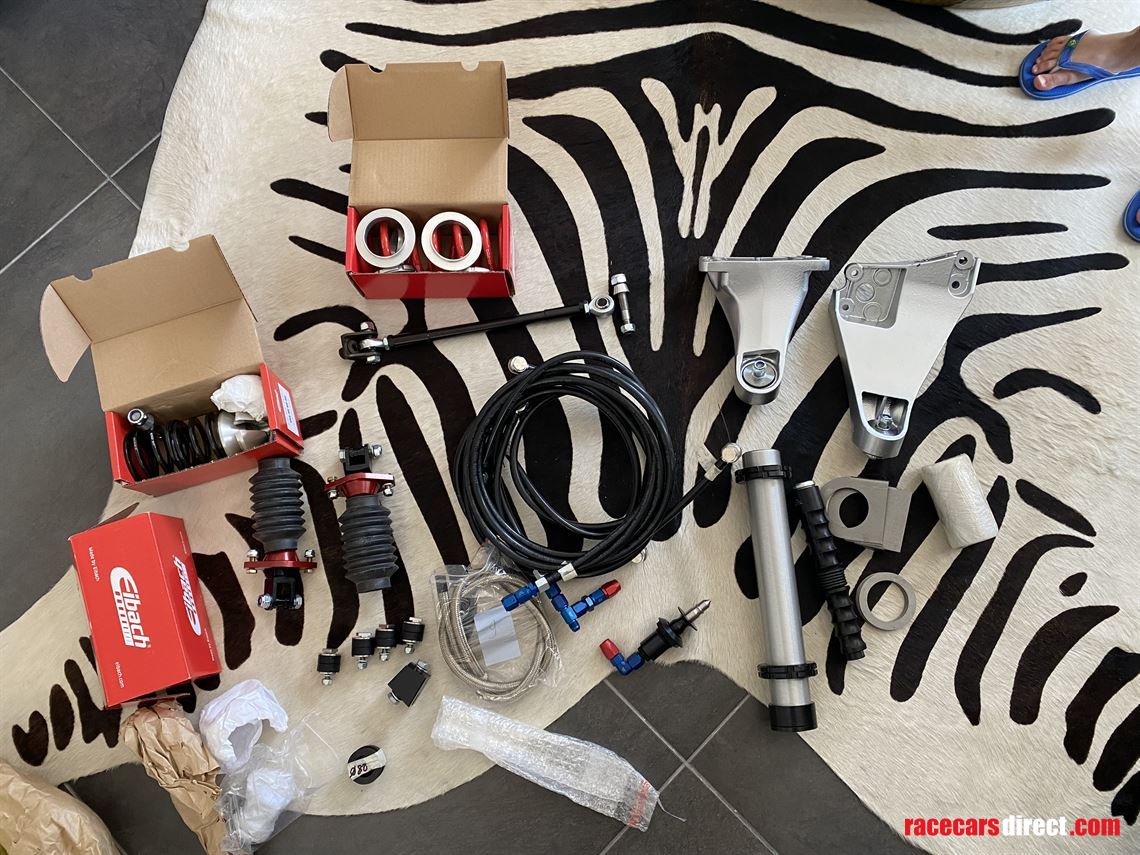

Muzzimotorsport brand new complete grpA dash 4 air jack set up, with all connections/ fittings/ grp A air-pipes and lance (not fitted).



Muzzimotorsport brand new dtm single wiper mechanism complete with wiper



Muzzimotorsport carbon dtm vented side mirrors



Muzzimotorsport large carbon rear gurney flap



Muzzimotorsport bonnet and boot pins



Muzzimotorsport shorter dtm solid ally rear subframe mounts



Muzzimotorsport quick removal bonnet, ( pull out pins in the bonnet hinge).



Muzzimotorsport dtm red anodised toe eyes front and rear, (rear not fitted).

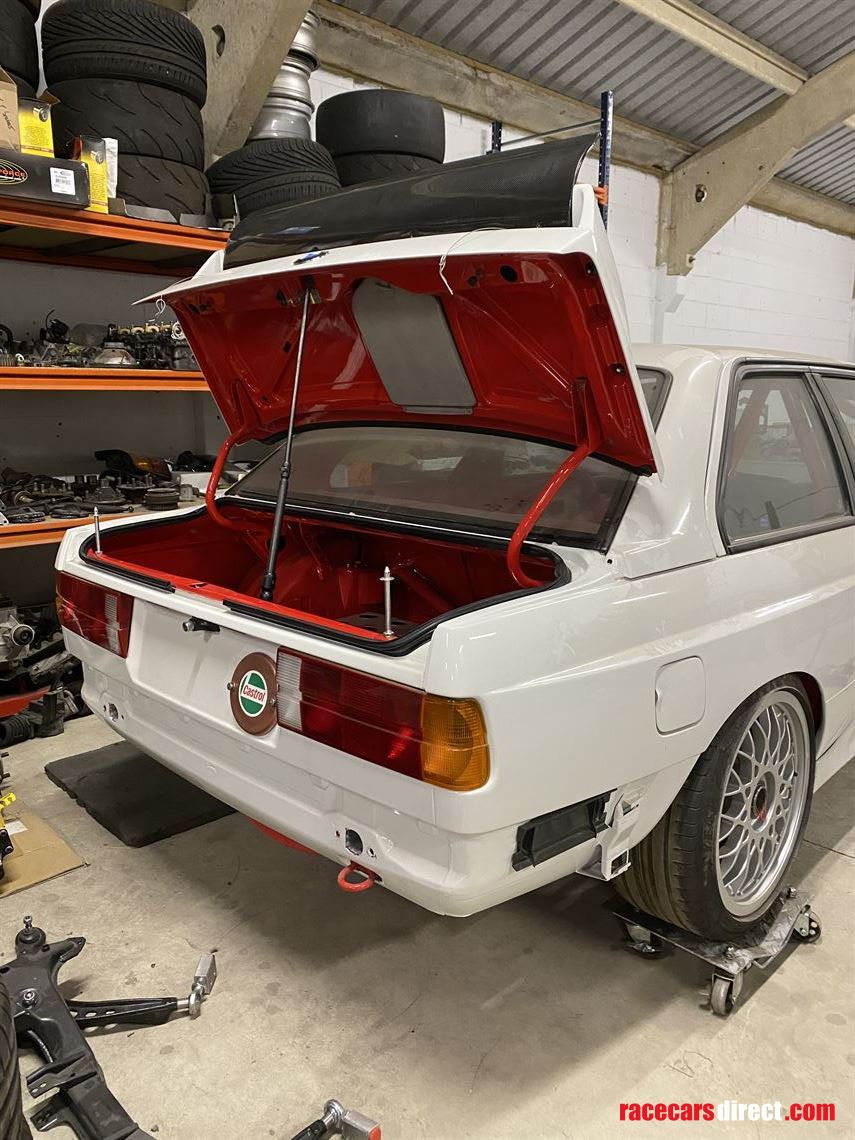

Genuine sport evo boot spoiler



H & R antiroll bars brand new in box.



Two recaro SPG seats with adjustable side mounts.



Original standard pedal box and steering column.



Rebuilt (like new) rear drive shafts



Brand new bmw gearbox mounting bracket.



Rebuilt LSD diff (looks like new) by “Gareth Purves” 3.25 ratio with 30° drive ramps and 45° coast ramps, running three clutches, which gives 60% drive lock and 40% coast lock. Clutches, pinion bearings, seals, gaskets, external bolts, Speedo sender etc are all new too. With an e36 backing plate and a double ear mounting to the body, solid ally diff mounts.



Rear trailing arm modified with weld in camber and toe adjustment tabs with derlin bushes fitted, Muzzimotorsport solid ally shorter dtm subframe bushes.



Complete car loom, untouched.

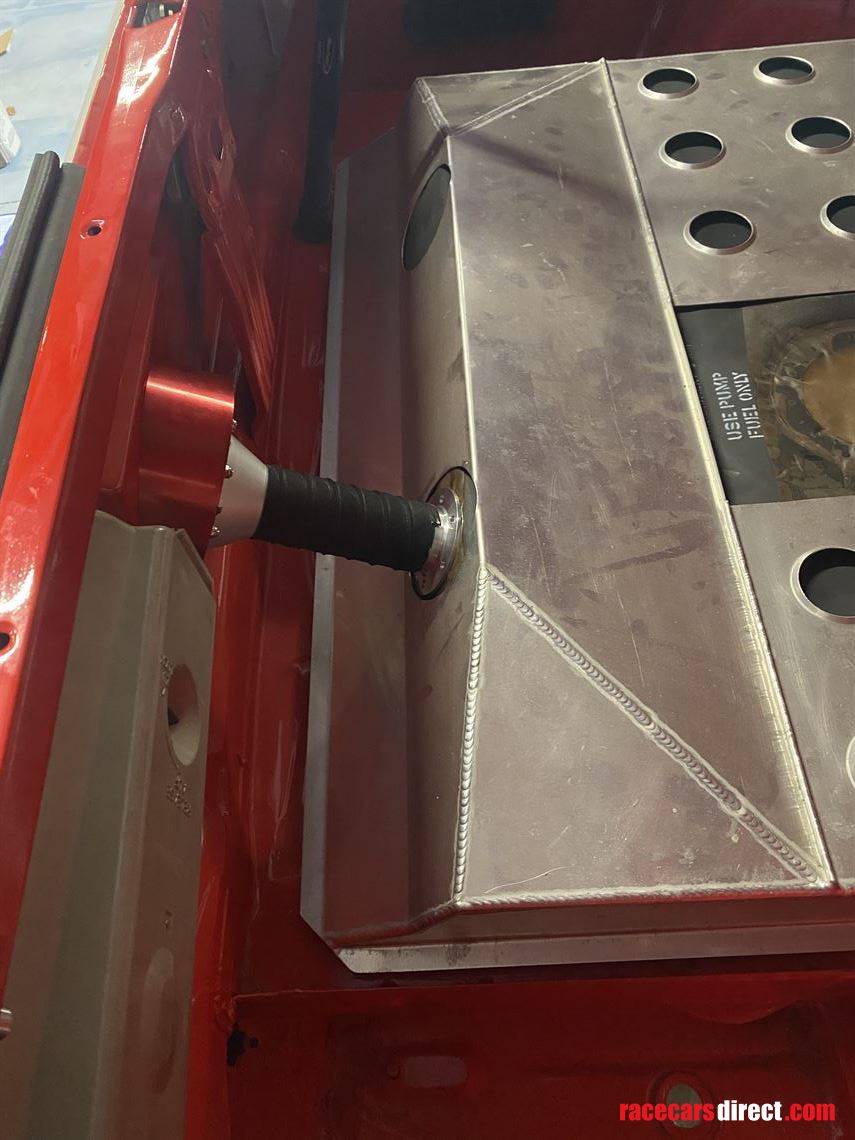

Continental brand new 110L fuel cell with metal cover. With period correct fuel insert in the back panel plus outer cover.



Brand new still in box electric heated front windscreen.



Coolerworx brand new gear shifter kit



All new bearings were used on the hubs.



New rear windscreen trim used with clips when fitted



6 pot front Ap brakes and 4 pot brembo rear callipers



Muzzimotorsport brand new dtm accelerate pedal



Muzzimotorsport brand new dash bracket



Muzzimotorsport carbon engine coil holder



Bmw purple tag quick steering rack



AmSpeed front dtm crossmember



New and original heat shields/ plastics/ covers/ dash board/ glove box and many other parts.



Original propshaft, which I haven’t refurbed, but it’s in great condition.



Brand new Sport evo bonnet rubbers



Brand new larger dtm spec oil cooler, csf’s new product.

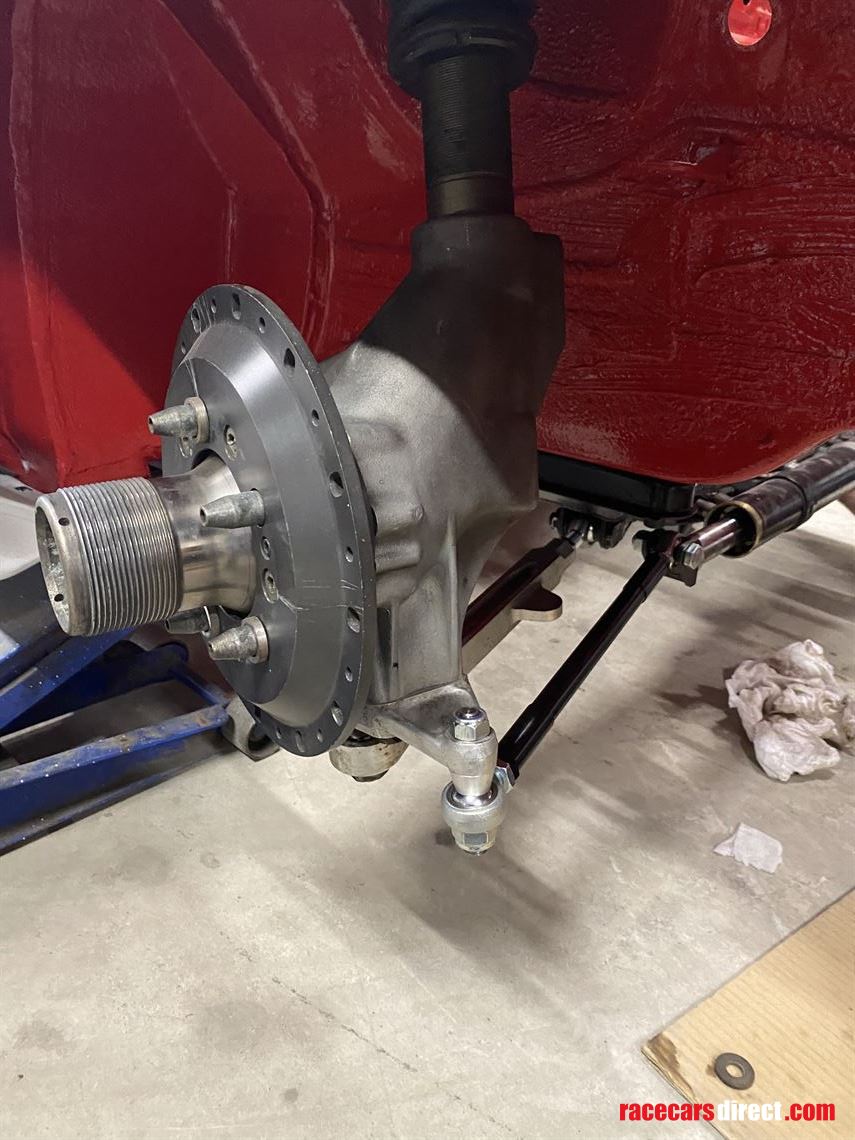

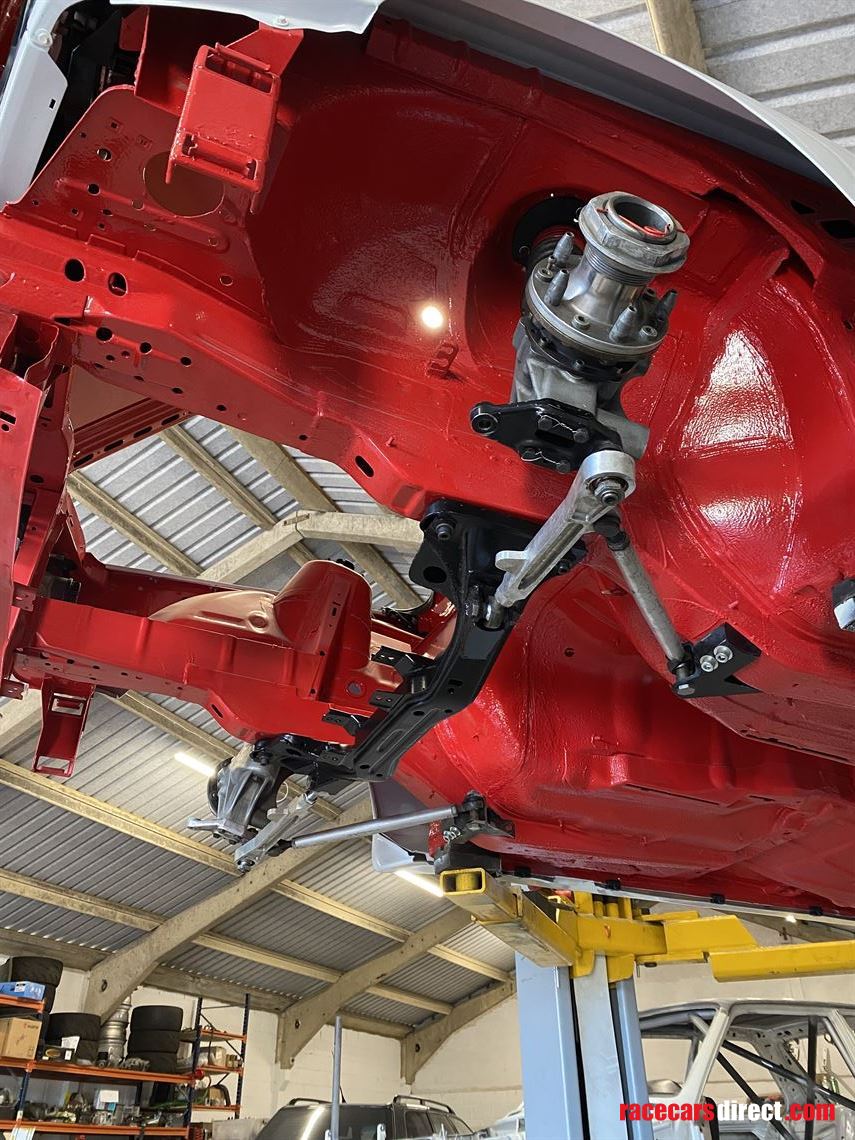

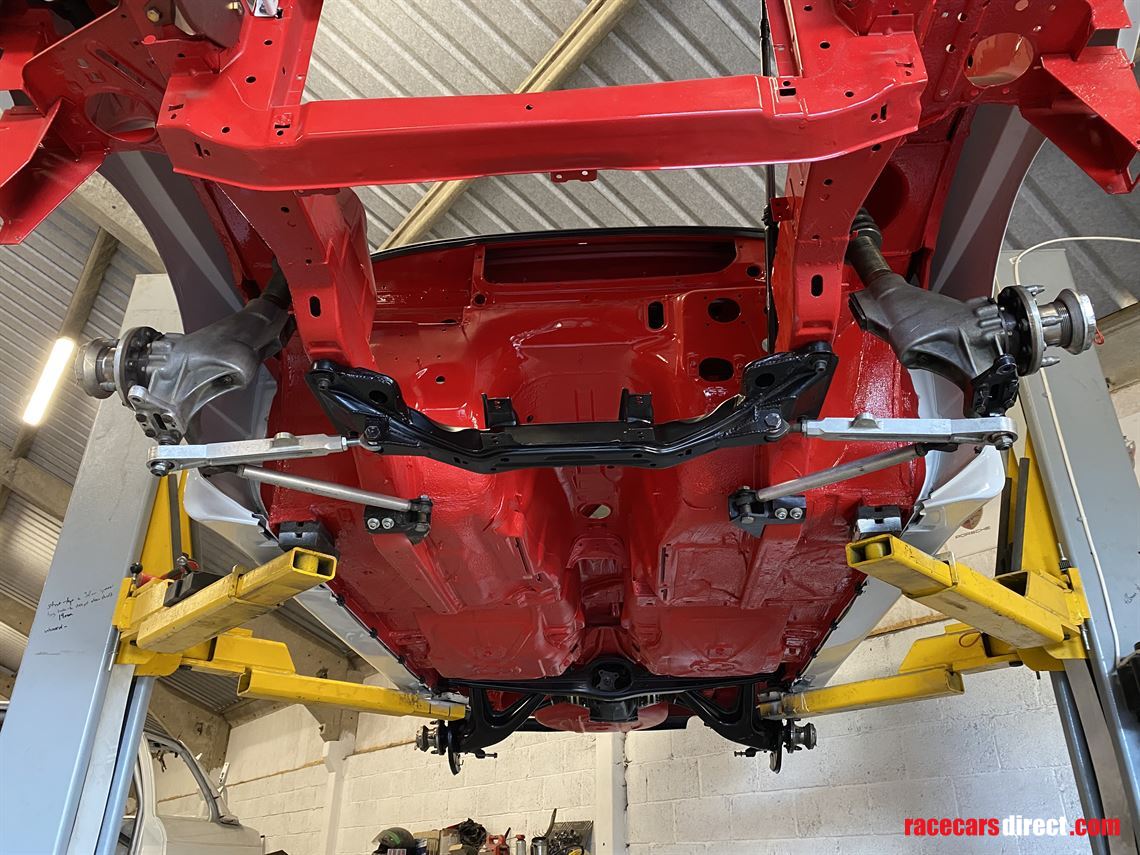

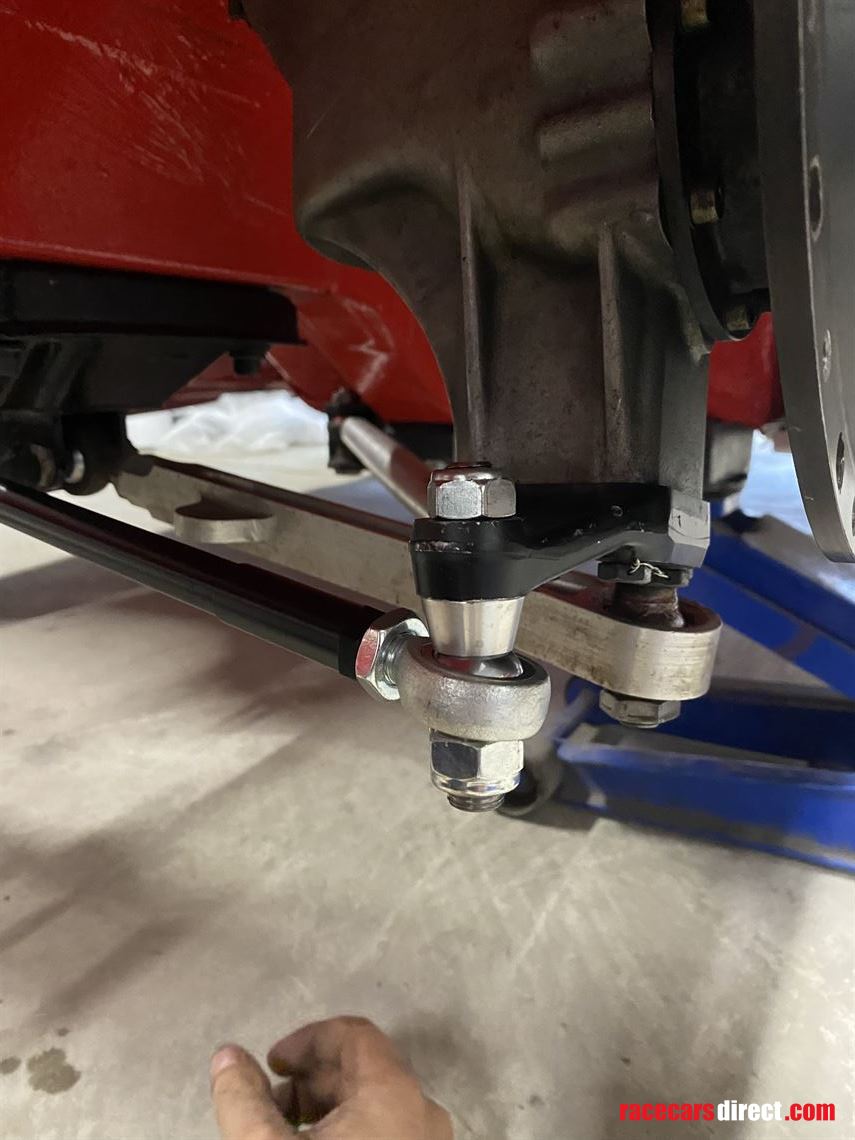

Period Original genuine Bmw motorsport grpA/dtm complete front suspension, uprights/ shocks/ knuckle/ hub/ spring/ height adjustable top mount/ with all original dtm wish bones and uni all/spherical arms and tie rods.  Rear suspension alone is also grp a/dtm.



Original bmw motorsport grp a/ dtm centre locks complete front and rear with drive pegs/ securing mounts, centre lock nuts, socket and safety pin.

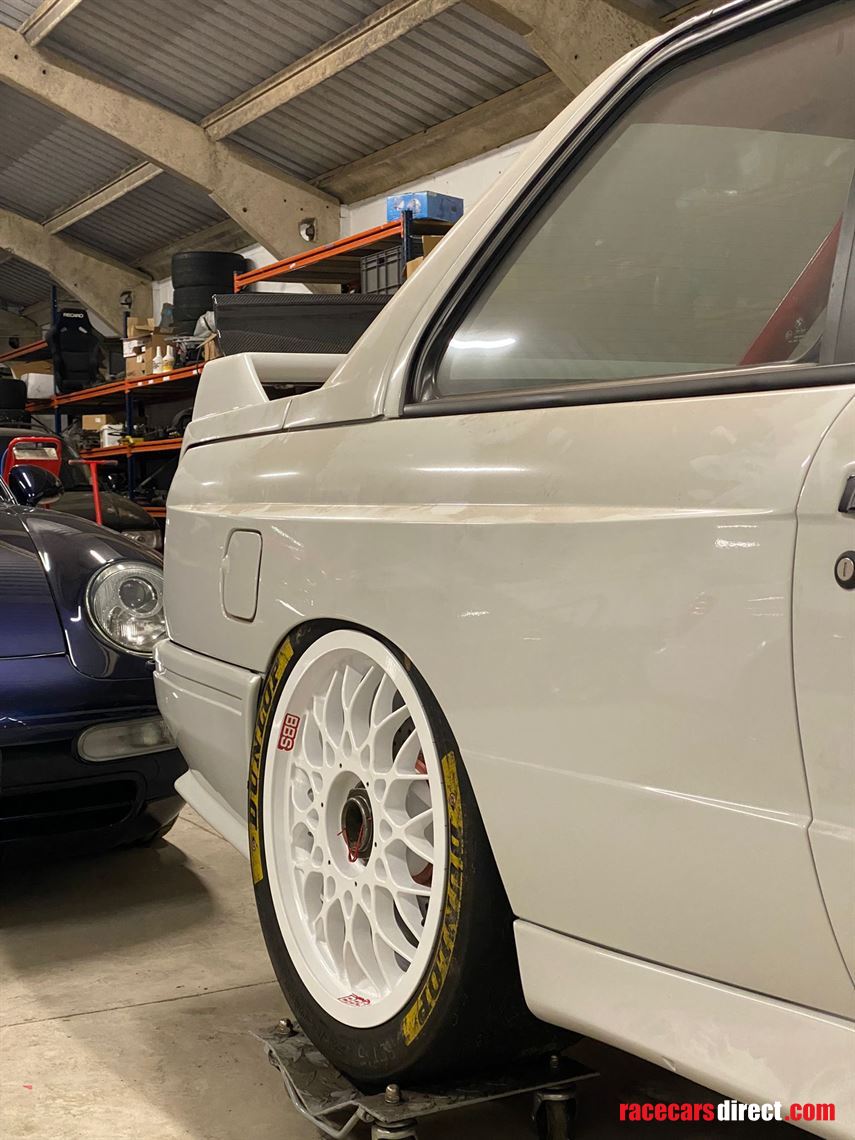

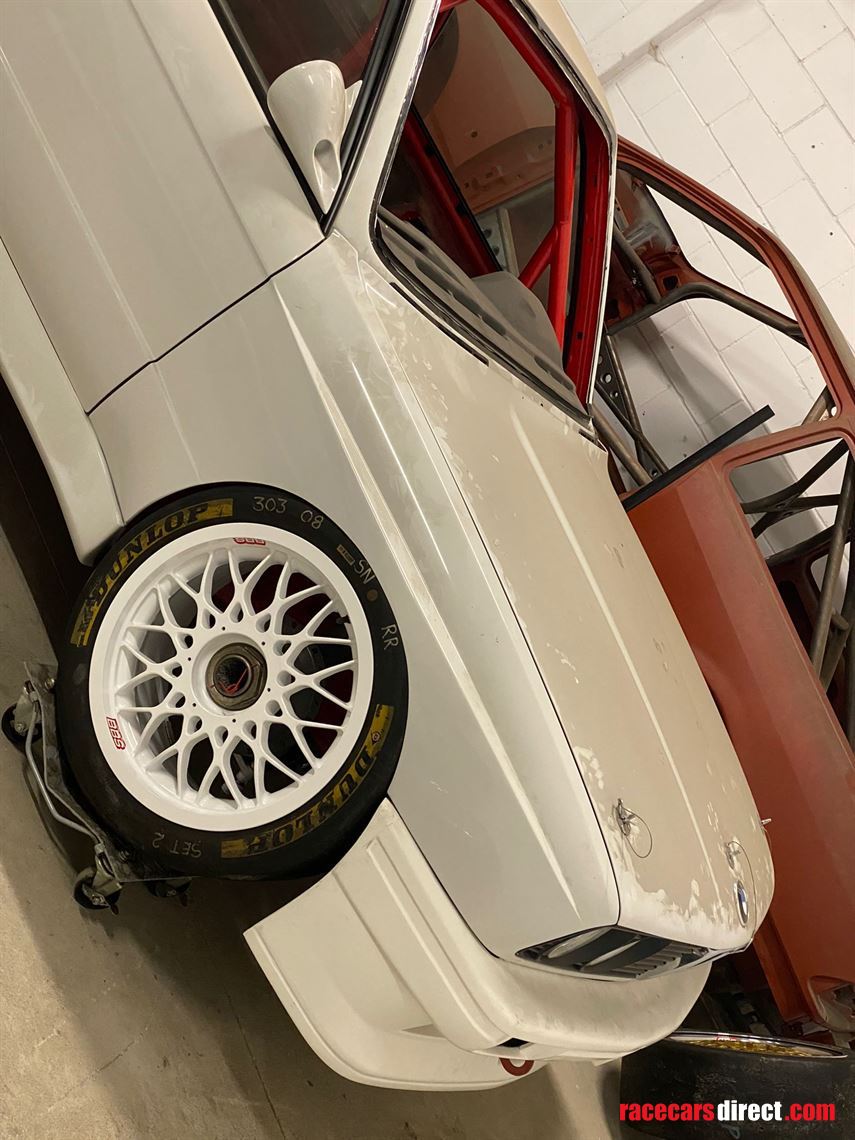

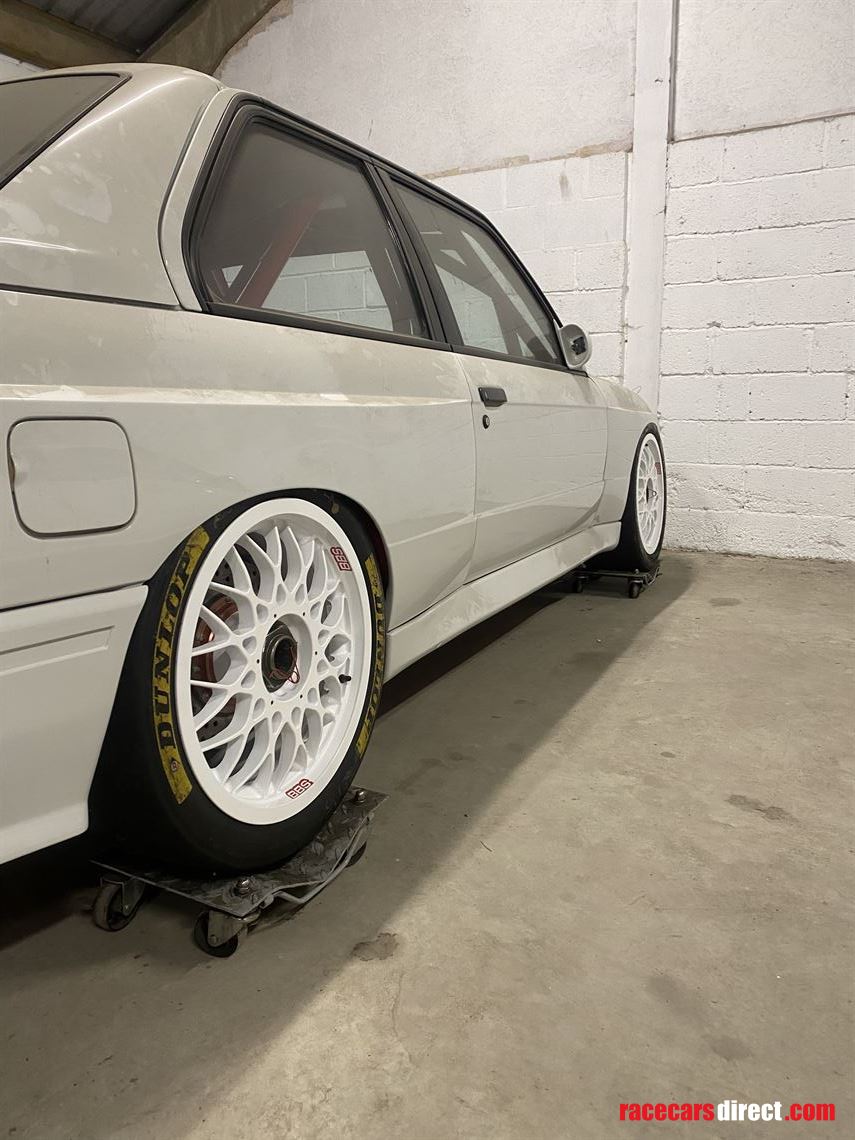

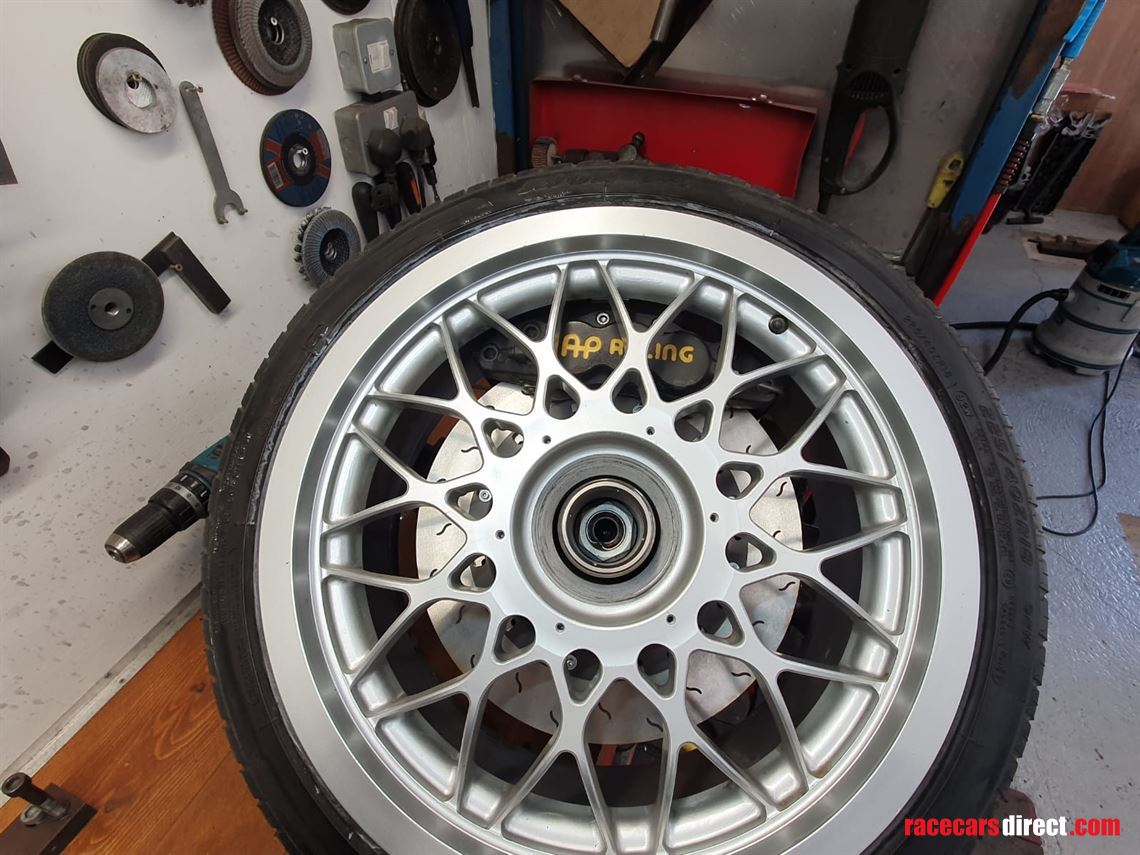

Two sets of centre lock wheels, both 18inch and both have been refurbed.



All original glass windows, not light weight.

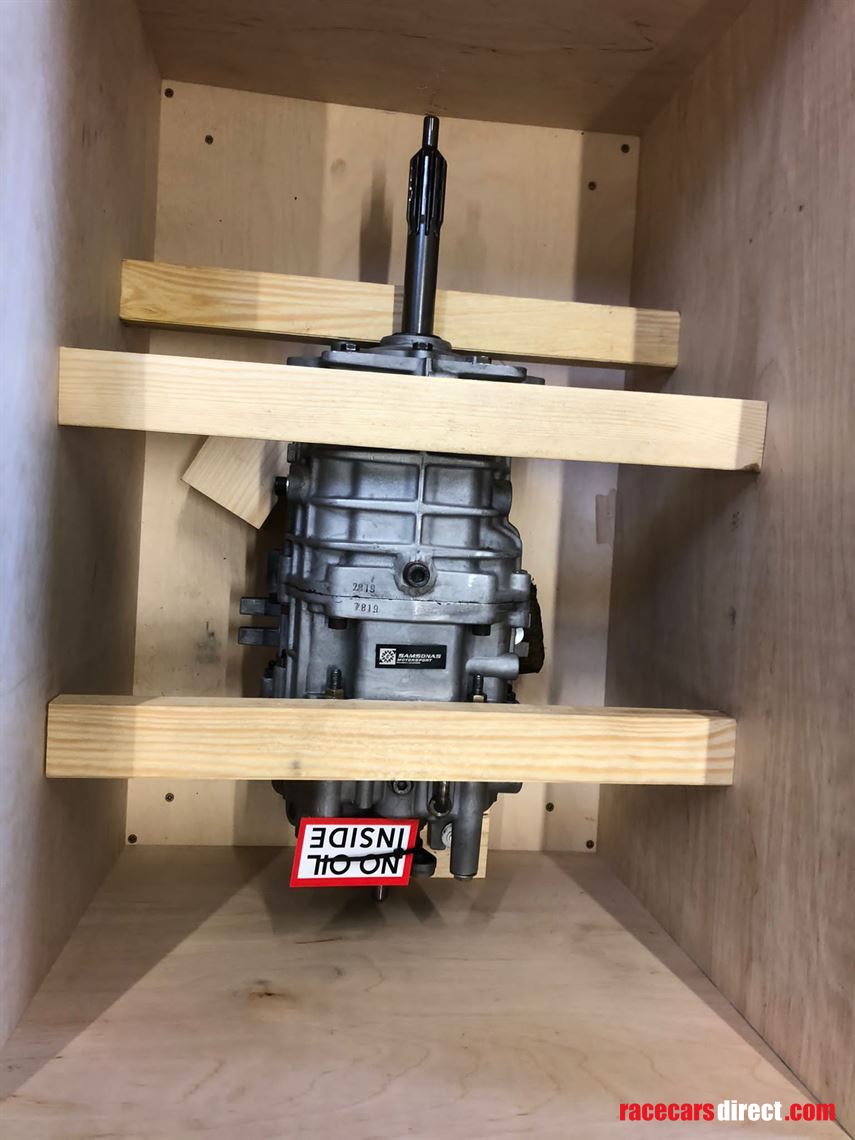

Rebuilt 6 speed samsonas dog box/ straight cut gearbox and bell housing with bolts, ratios:



1. 2,615

2. 1,938

3. 1,563

4. 1,316

5. 1,136

6. 1,000

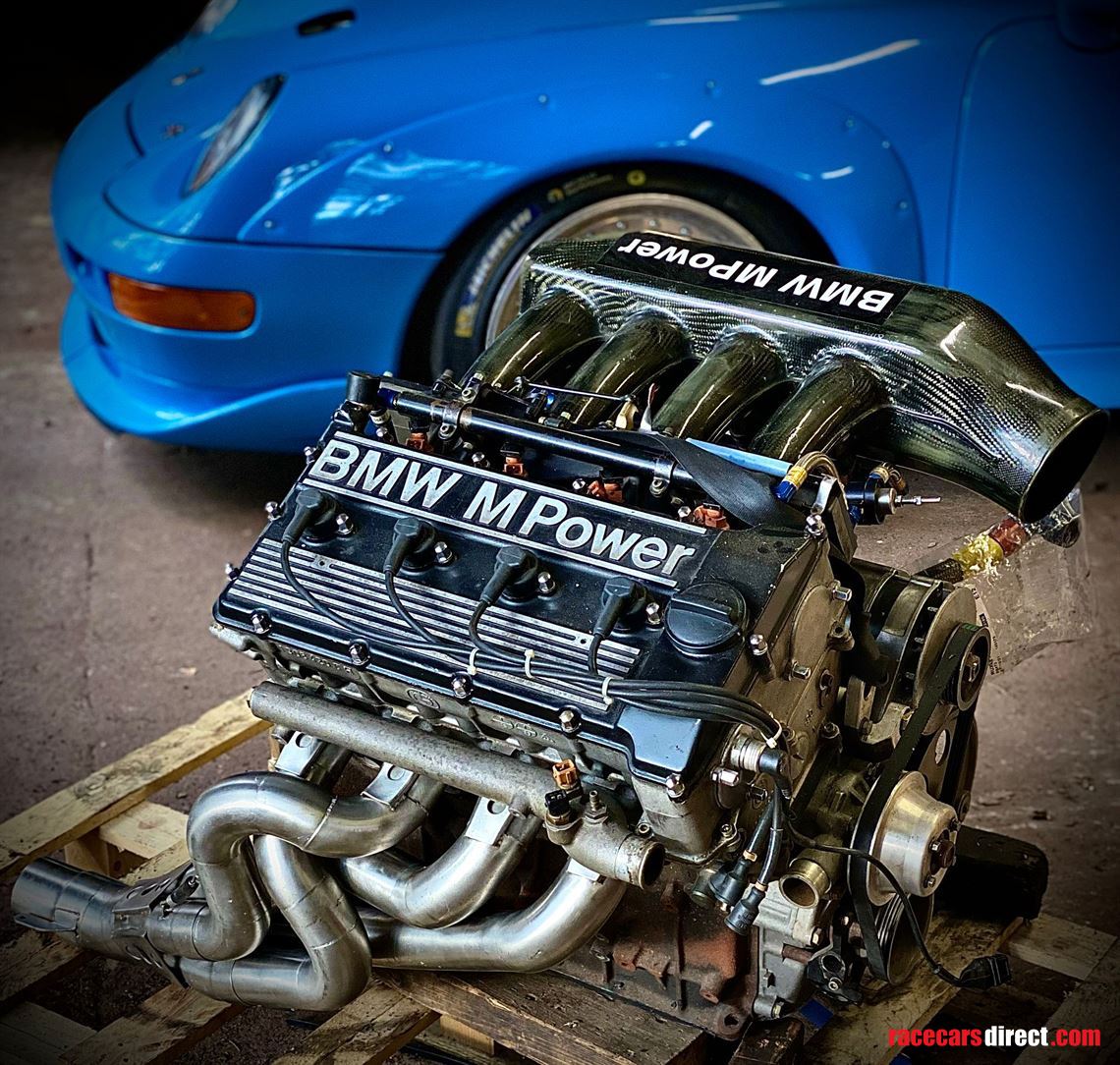

2.9L Köhler s14 engine which I recently bought locally, I’ve been in touch with Köhler and he has confirmed a new original 2.5L dtm competition block was used in the build. 48mm throttle bodies, fitted with slide throttle, 8 fuel injectors/ 4 of them into the carbon airbox and running a dry sump set up. There’s many factory motorsport parts on and in the engine.



I have many pics of the engine when it was inspected by a bmw specialist, they removed the sump and checked all main bearing/ bolts/ bore and rods etc etc, a compression test was done and readings were great. Engine was then run for a view test days but not in anger. It was also dyno’d and made 320bhp at 7rpm, Lennart Köhler said the engine is good for 8k rpm all day long making 360bhp. I understand these can produce 420bhp at 10k rpm. Just fitted an Italian 4 into 1 dtm spec manifold. I have videos of the engine running and in testing just before it was removed. I also have contact details of the previous owner and the Bmw specialist who inspected the engine which I’m happy to pass on.

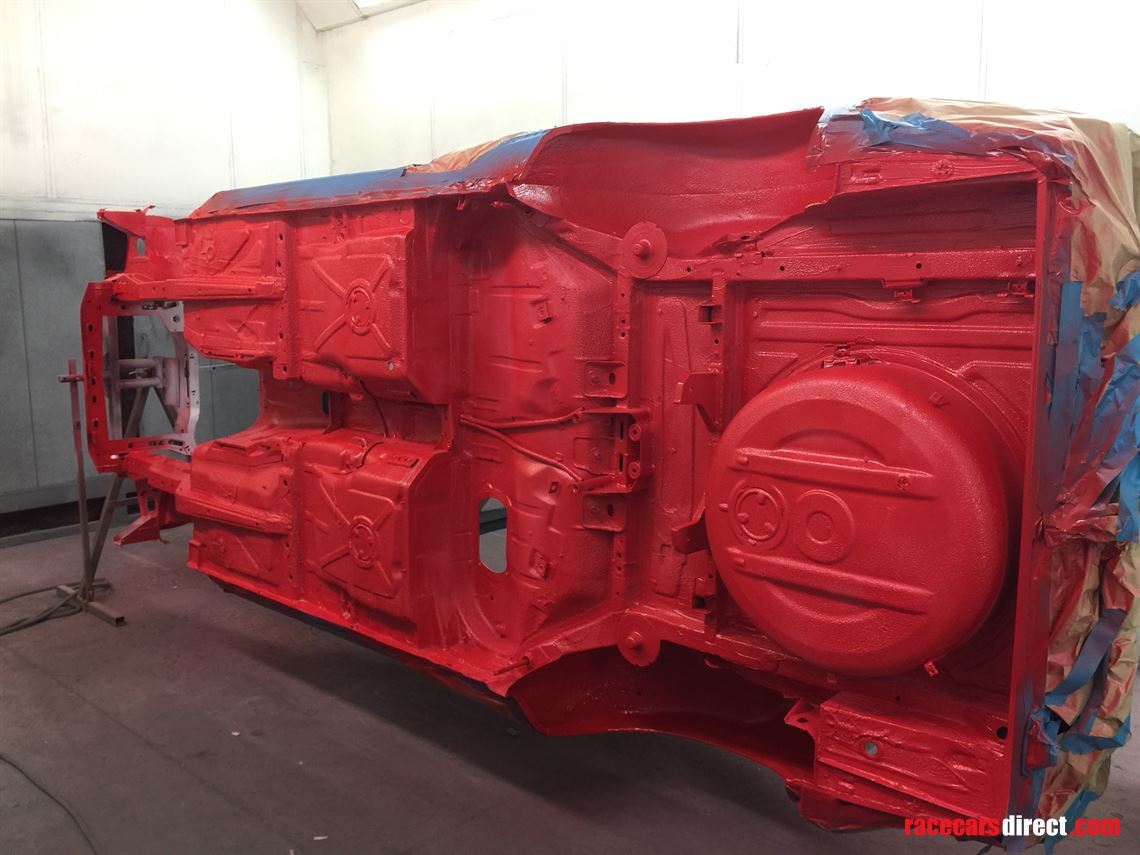

The car is like new, as it’s never been driven or had an engine fitted. It was painted and under sealed by a well established Bodyshop.



All new nuts and bolts were used and all parts were either refurbished / powder coated or replaced with new ones.



This build currently owes north of £120k plus without counting my hours & labour. it just needs engine/ box to be fitted and plumbed in, wired, brake lines, fuel lines, oil lines and few minor parts to be purchased like a radiator, fuel pumps etc.



The list goes on and on as I have been doing this project for years. I have over a thousand pictures of the build from start to finish so it is best to get in touch and view for yourself.



Only selling as I have been offered a factory race car from a friend.

please call me on 07702 702729




Keyword Search Terms:

Bmw e30 m3 grp A/ dtm, 2.9 s14 Köhler engine, samsonas 6 speed gearbox, grpA suspension, centre lock
