Description:

BMW E30 M3 S50B30

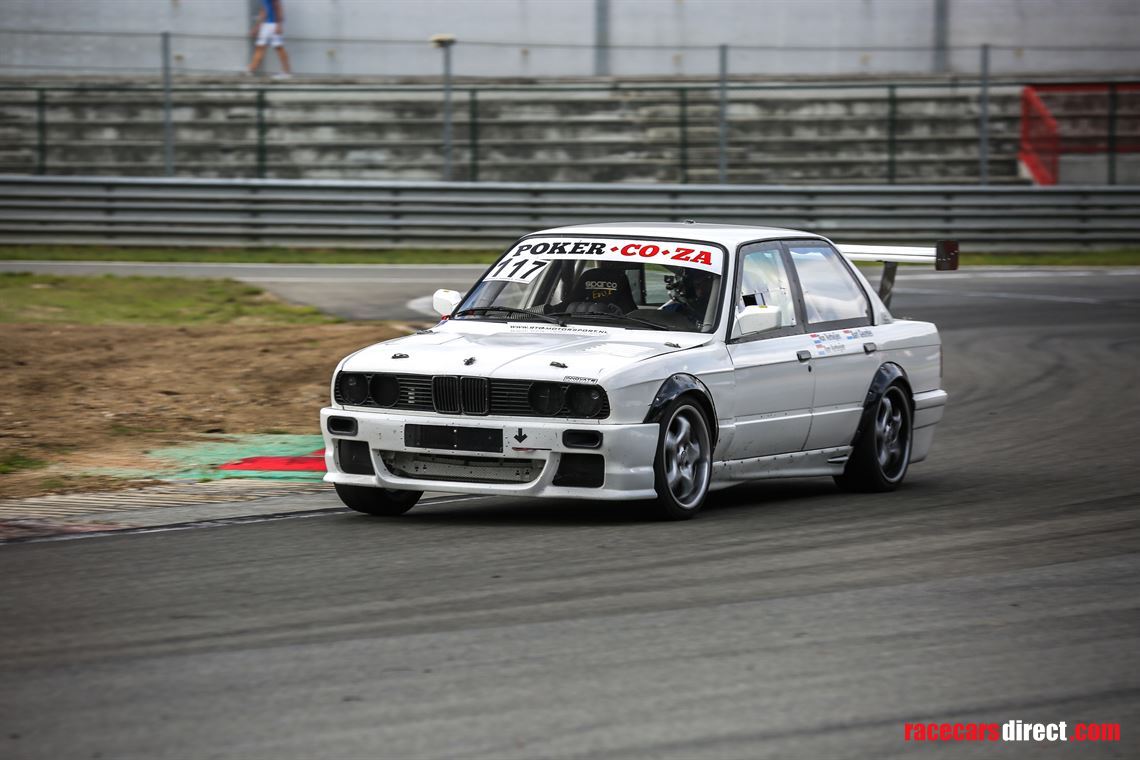

BMW E30 with S50B30 M3 engine. The car is capable of sub-2 minutestimes on Zandvoort (old layout), and 2:50 at Spa Francorchamps. If you think of a BMW E30 as a nice race car, then this is a *very* nice car which is quick, predictable and neutral in corners. At trackdays (including English ones), the car is usually one of the quickest, outpacing theoretically much more potent machinery.

The car has not been raced and has not been damaged.

Important – this is not a modified rusty streetcar, but rather a new car that was carefully and purposefully engineered for track use.

Priced at € 17,500 (including trailer and wheels).

No trailer? Then it is € 16,500.

The car has the following characteristics:

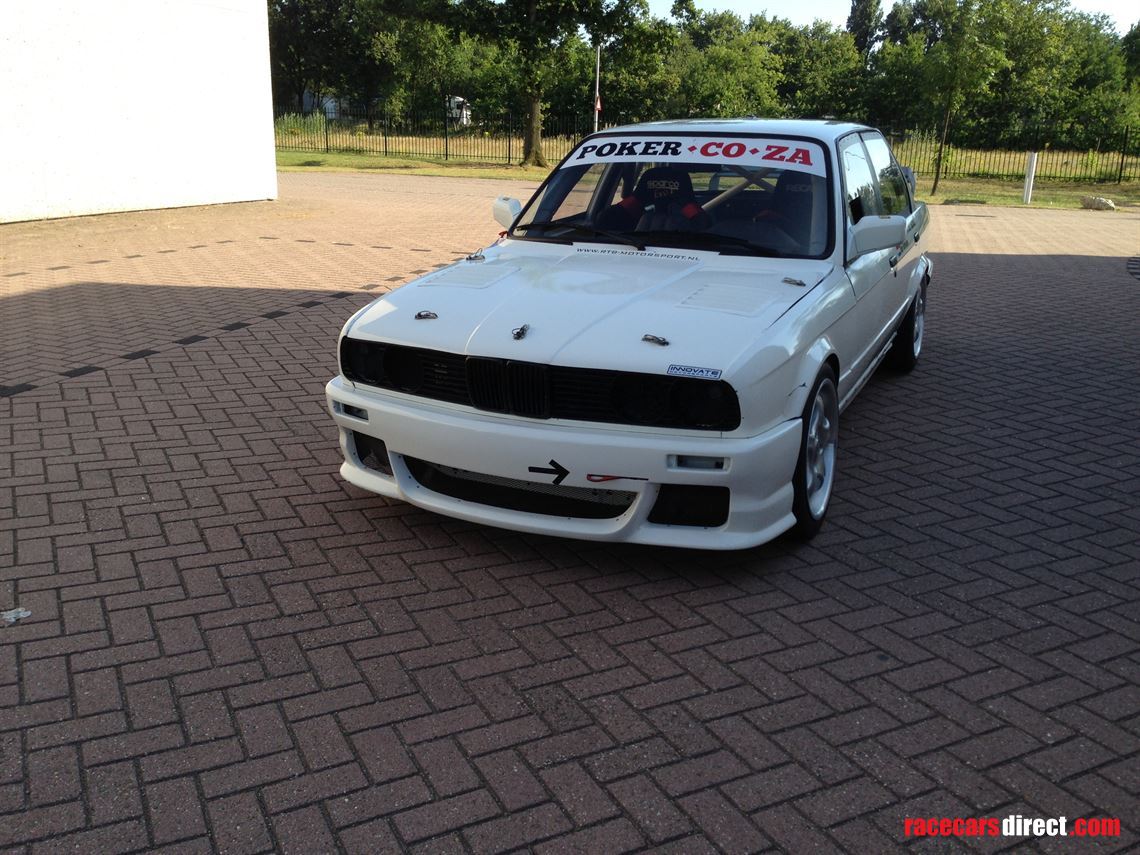

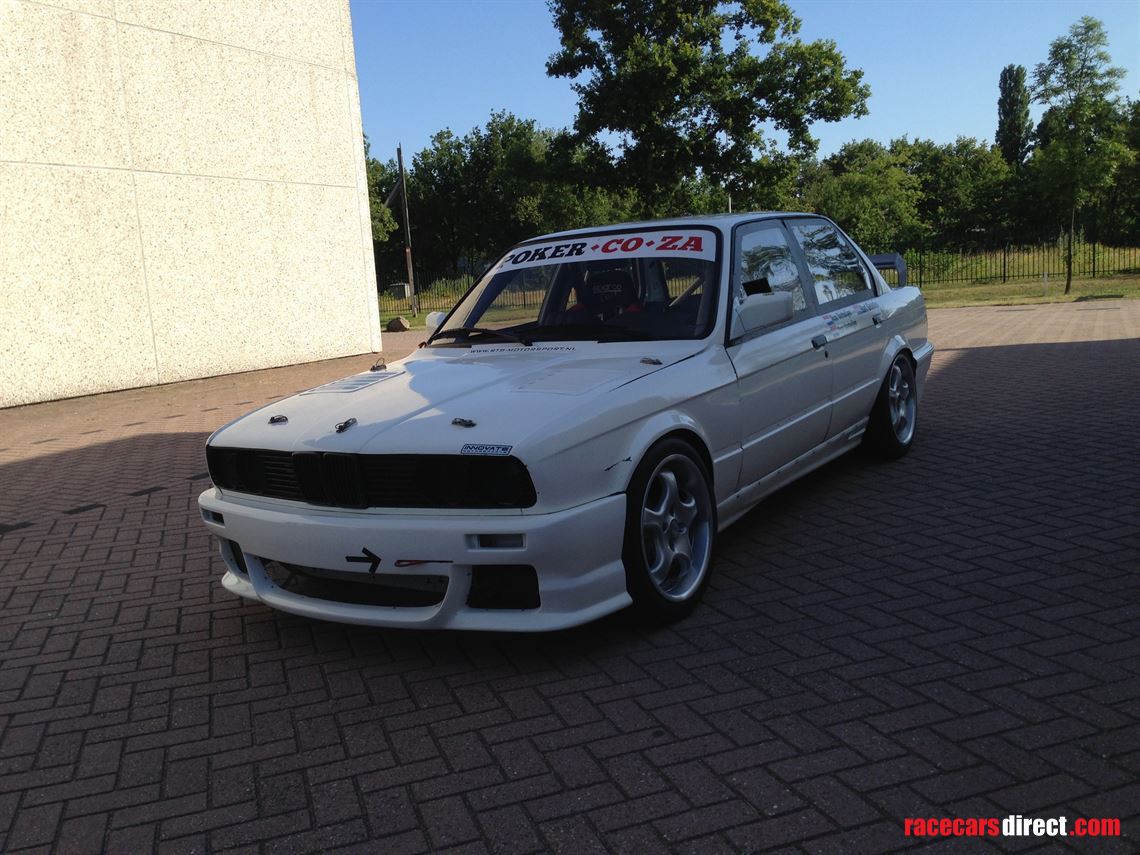

Shell:

• Newly-bought 4-door shell from BMW in 2004 (new old stock); never used on the road.
• All dampening removed
• Extensive roll cage
• Finished in white (RAL 9010)
• Glass fiber trunklid
• Carbon  fiber bonnet lid
• Carbon fiber front fenders
• Glass fiber front and rear bumpers
• Fenders extra wide
• Lexan side windows (left front opens)
• Glasfiber airscoops in front bumper

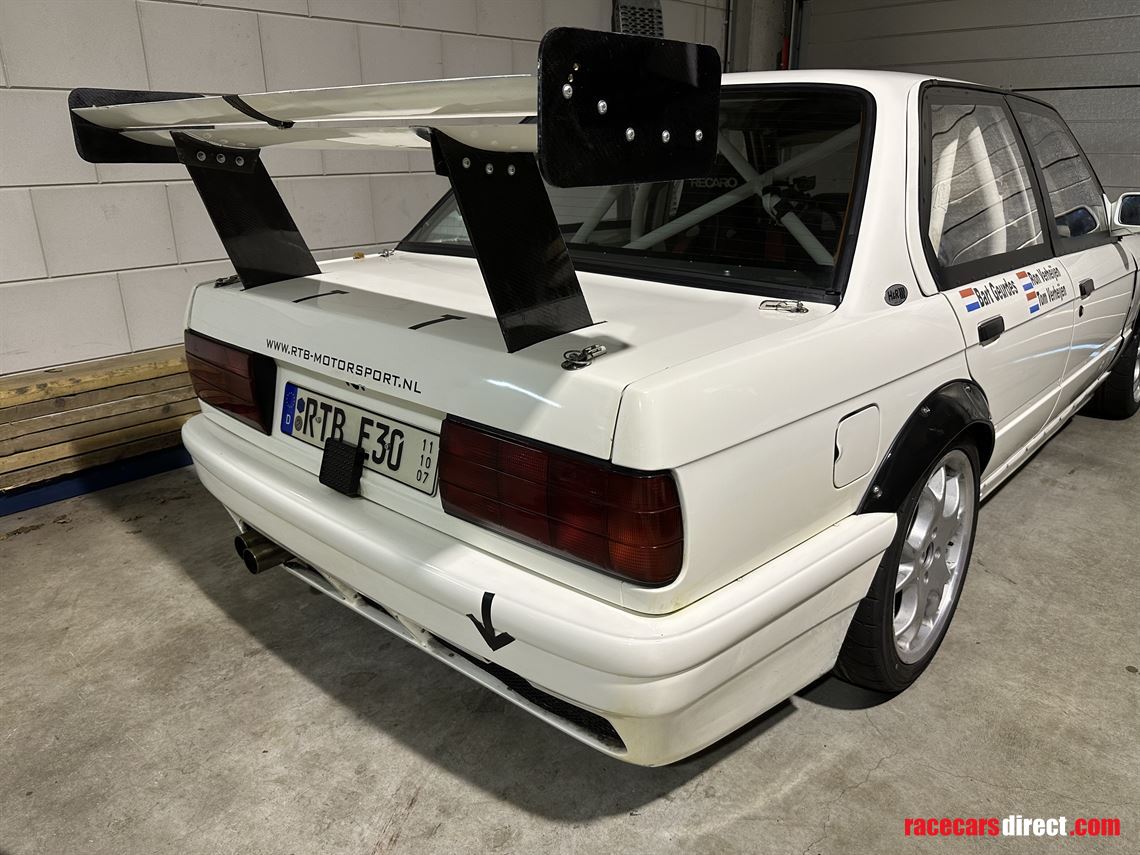

• Large glass fiber rear wing (adjustable), fastened on the shell
• Metal doors (lightened)
• LED lights in front bumper
• Dark red rear lights
• Rain light
• Antenna for comms set (not used currently)
• Standard petrol tank (between the wheels)
• Low-pressure fuel pump from tank to 1-liter catch tank;
• High-pressure fuel pump from
• Catch tank to engine – this setup prevents fuel starvation in fast corners with less than half-full petrol tank
• Total weight – depending on fluids – is around 1150 kg, weight distribution is 53% front, 47% rear

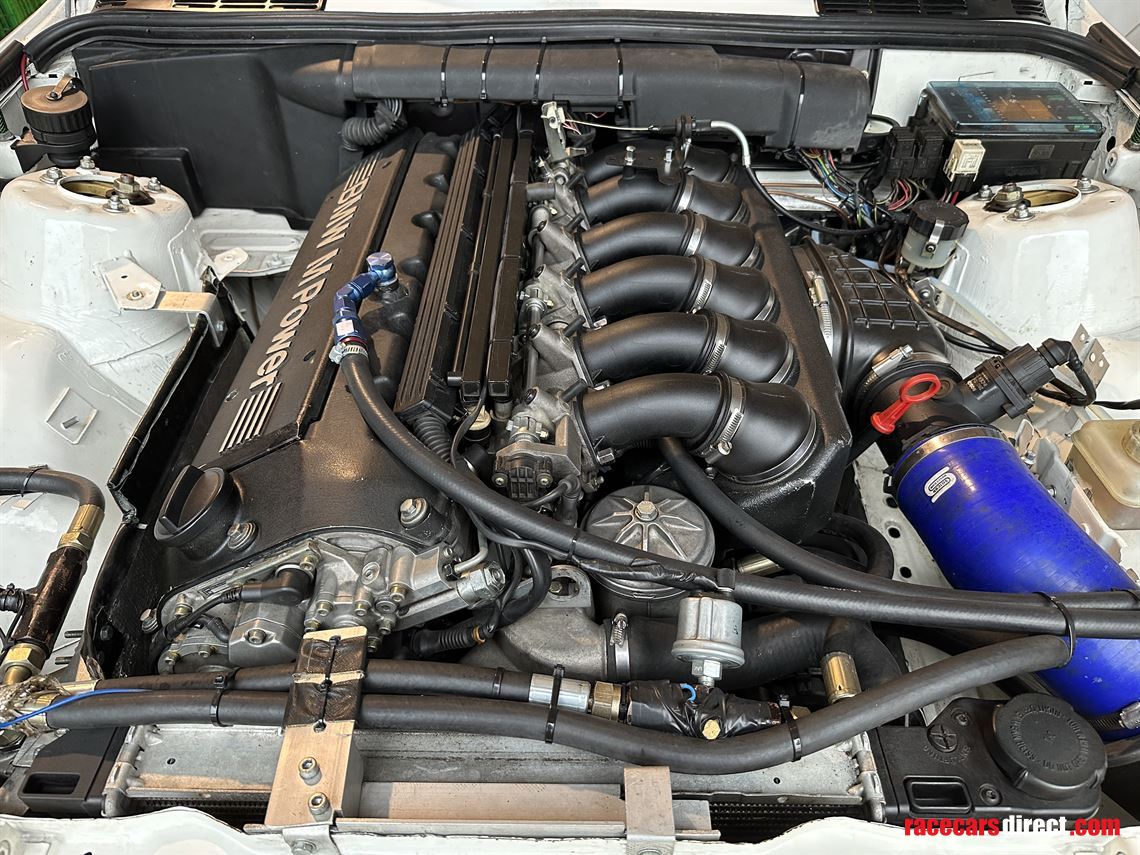

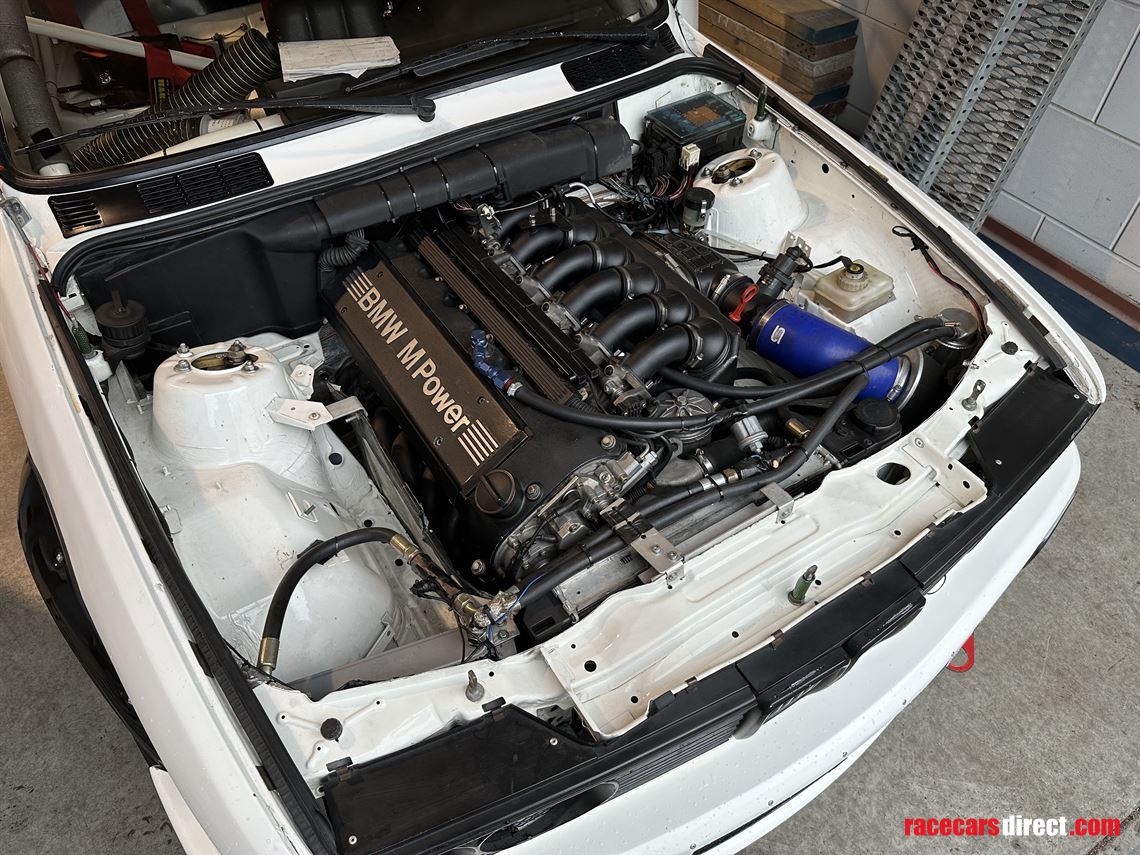

Engine:

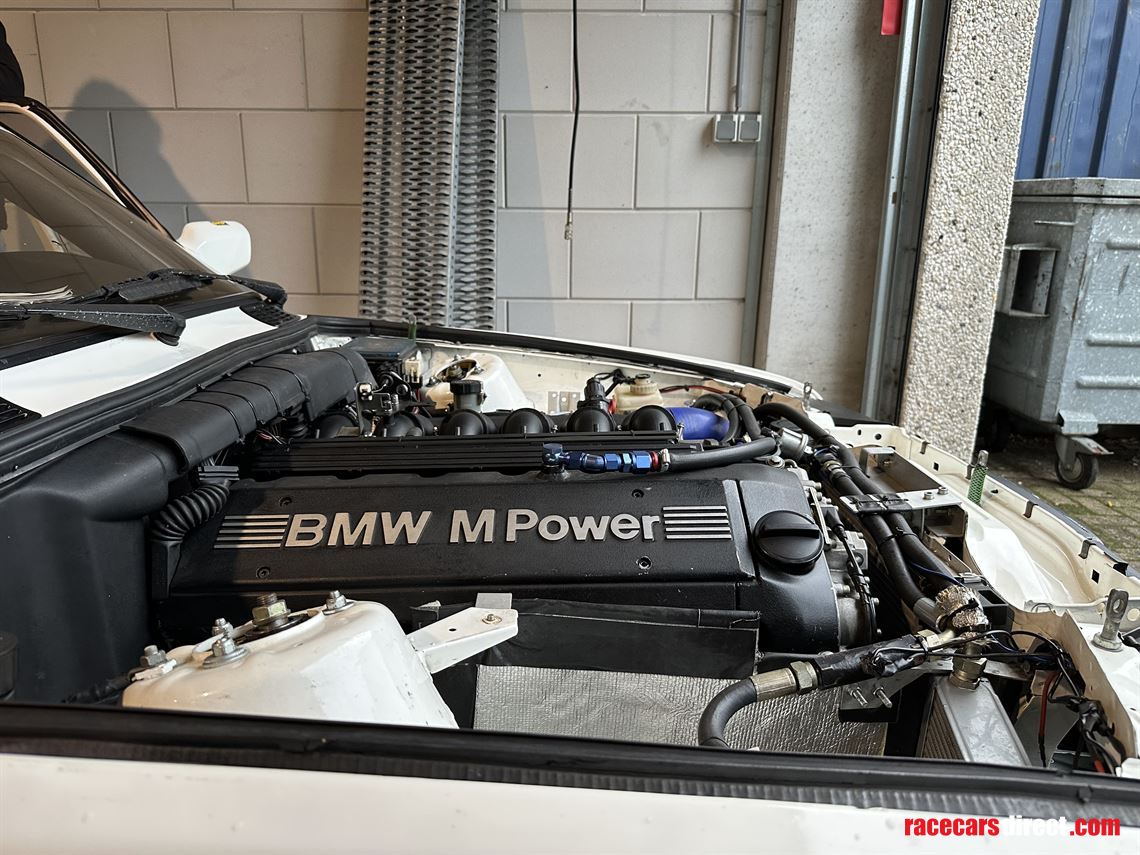

• BMW S50B30 (BMW E36 M3 3 liter) , new bearing shells 1000 miles ago
• Adapted to fit E30:
  • Exhaust manifolds
  • Wiring (carefully done)
  • Speed sensor pickup
• Large air filter
• Crankcase ventilation reworked:
• Large oil vapour outlet on valve cover
• Feeding into catch tank
• Feeding into crankcase
• Large radiator for coolant
• Electric fan for radiator
• Solid engine mounts
• Always used quality Castrol oil
• Big oil cooler
• Exhaust:
  • No catalytic converters
  • Eisenmann street damper (no sound issues at tracks we visited, Zandvoort, Zolder, Spa)
• ECU left standard (standard maximal revs) for engine longevity

Gearbox and Final Drive

• Lightened fly wheel (M20 adapted to M3 engine)
• Sachs race clutch (228mm diameter)
• Standard E36 M3 gearbox (5th gear is 1:1)
• Final drive is 3.73, 40% limited slip, housing with large cooling fins;
• Max speed at Zandvoort or Spa (top of the mountain) is between 225-230 kms (solid 140 mph+)
• Short shoft kit
• Tall shift lever (close to steering wheel)
• Castrol oil for gearbox and final drive

Brakes

• Willwood 300 mm discs all round
• Willwood calipers
• Racing pads (fits various brands)
• Bigger master brake cylinder
• Bias valve (front – rear brakes)
• NO servo
• Brake pedal ratio adapted (so you can push more force)
• Brake fluid with higher boiling point

Suspension

• AST coilovers (adjustable)
• Adjustable camber plates
• Racing springs
• All suspension parts and subframes newly-built for the car (including coating)
• Strut bridge
• Bigger stabilizer bars with solid bushings
• Powerflex for bushings including:
  • Front wishbones
  • Trailing arms
  • Rear Subframe

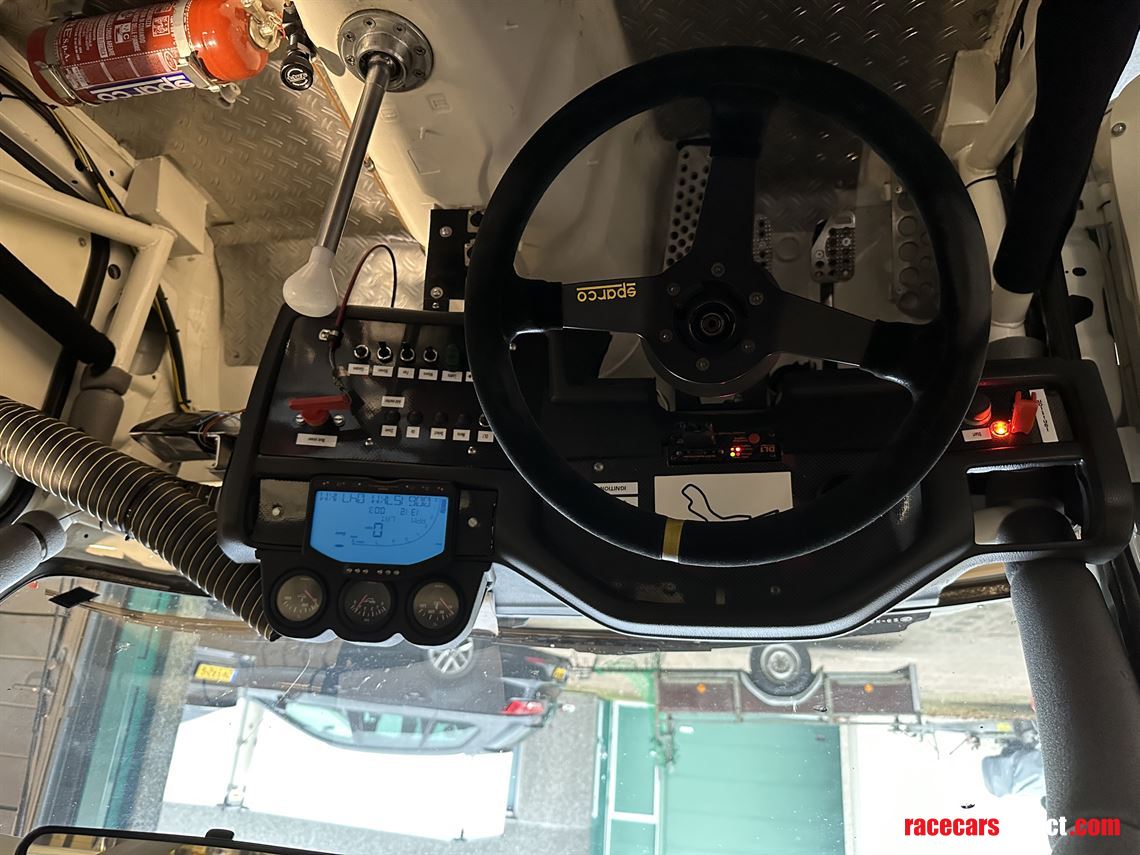

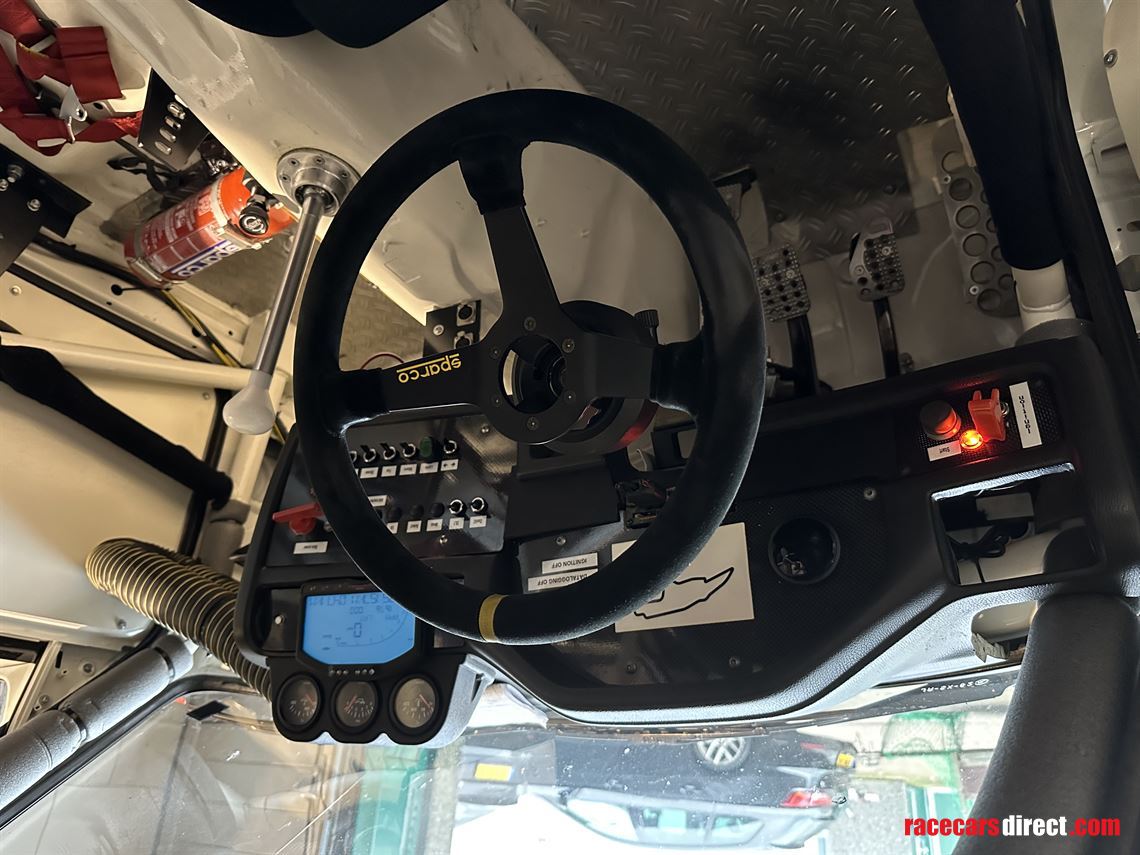

Interior

• Race seat (adjustable)
• 2 sets of six-point harnesses (NOT up to recent regs)
• Alcantara steering wheel
• Analogue meters for
  • Oil pressure
  • Oil temperature
  • Coolant temperature

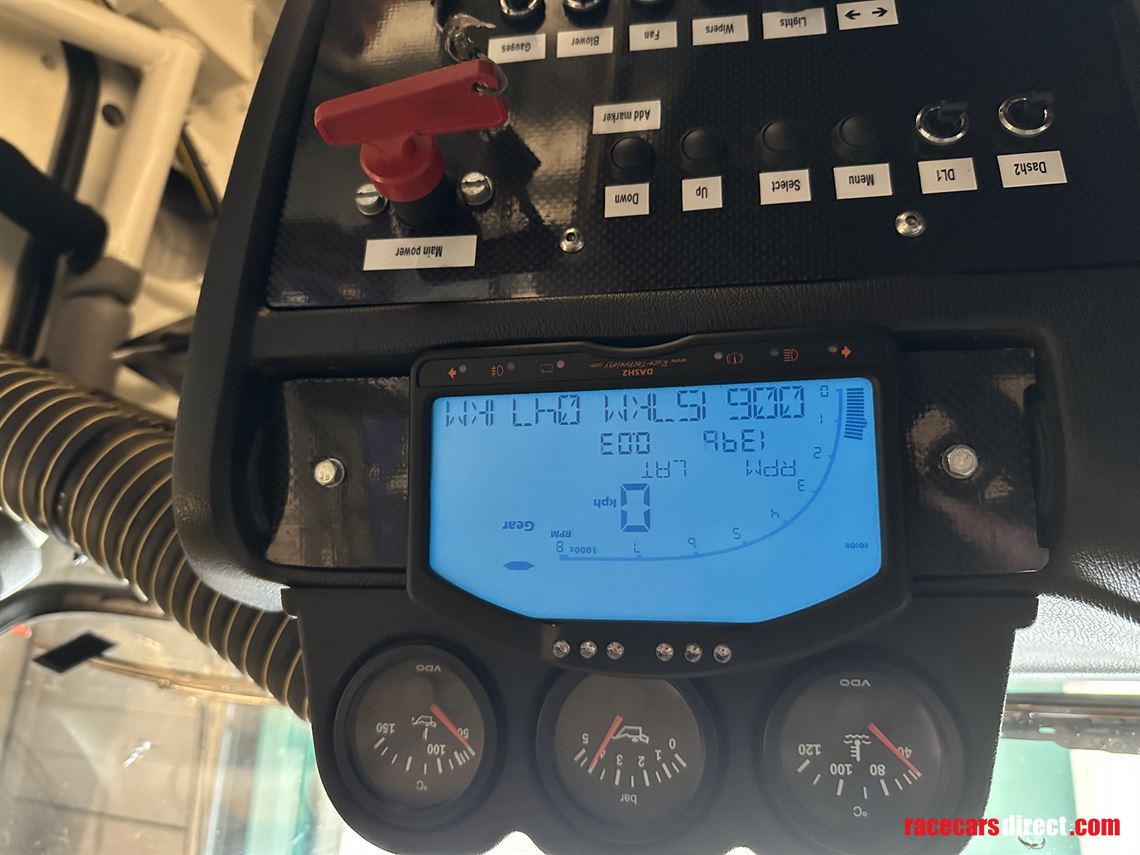

• Race Technology:
  • Digital display DASH 2 for revs/speed
  • DL1 datalogger
  • GPS is currently not operational
• Fire extinguisher
• Interior ventilation fan and ducting
• Firewall (rear) covered
• Battery at right rear seat location
• Switches as per photograph (for cold start, to build up oil pressure, you can use the starter motor with ignition off)

Wheels:

• Three sets, all 17” and 4x100 mm
  • One set with Federal 225/45 semi-slick tyres – used on one track day, nice for passenger rides
  • One set with used slicks (240)
  • One set with unused slicks (240) – these slicks are what the car was set up for. They bring it to life.
• Conversion studs for wheels
•  Wheel nuts

Some spares available.

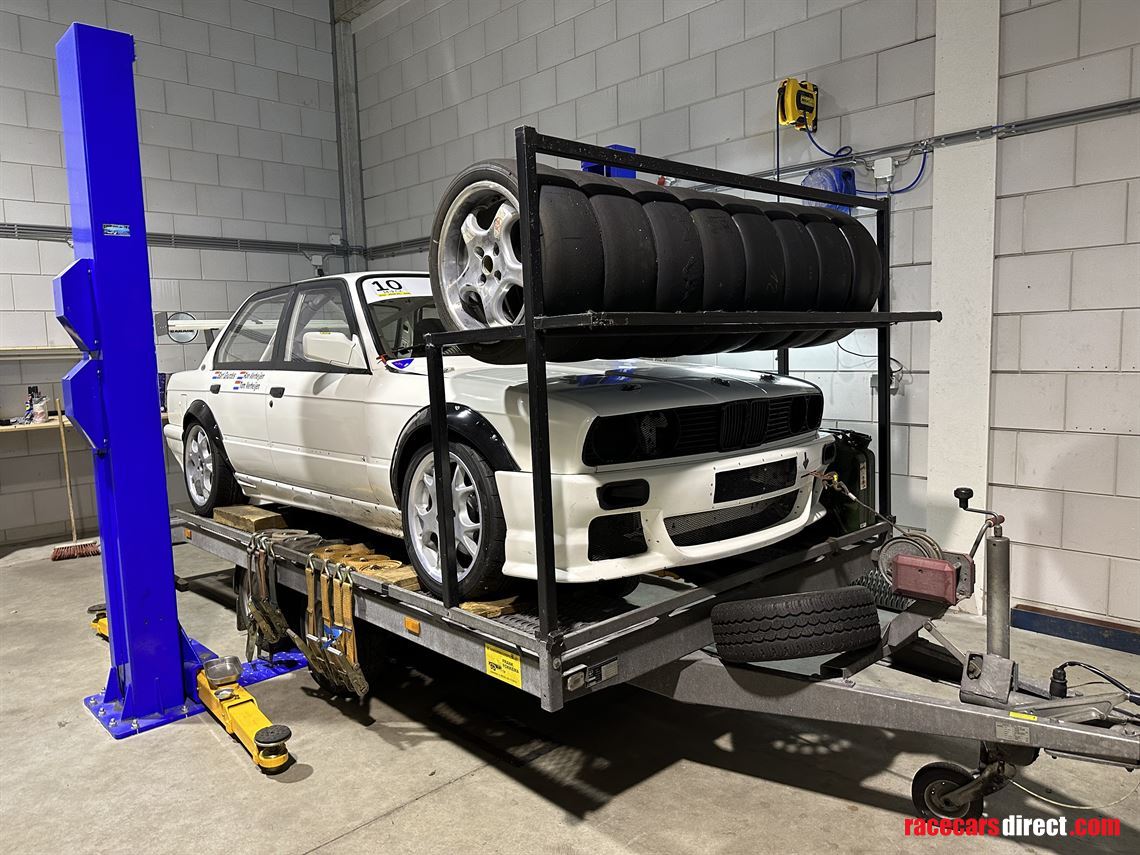

• Race trailer with room for tyres and jerrycans.
