Description:

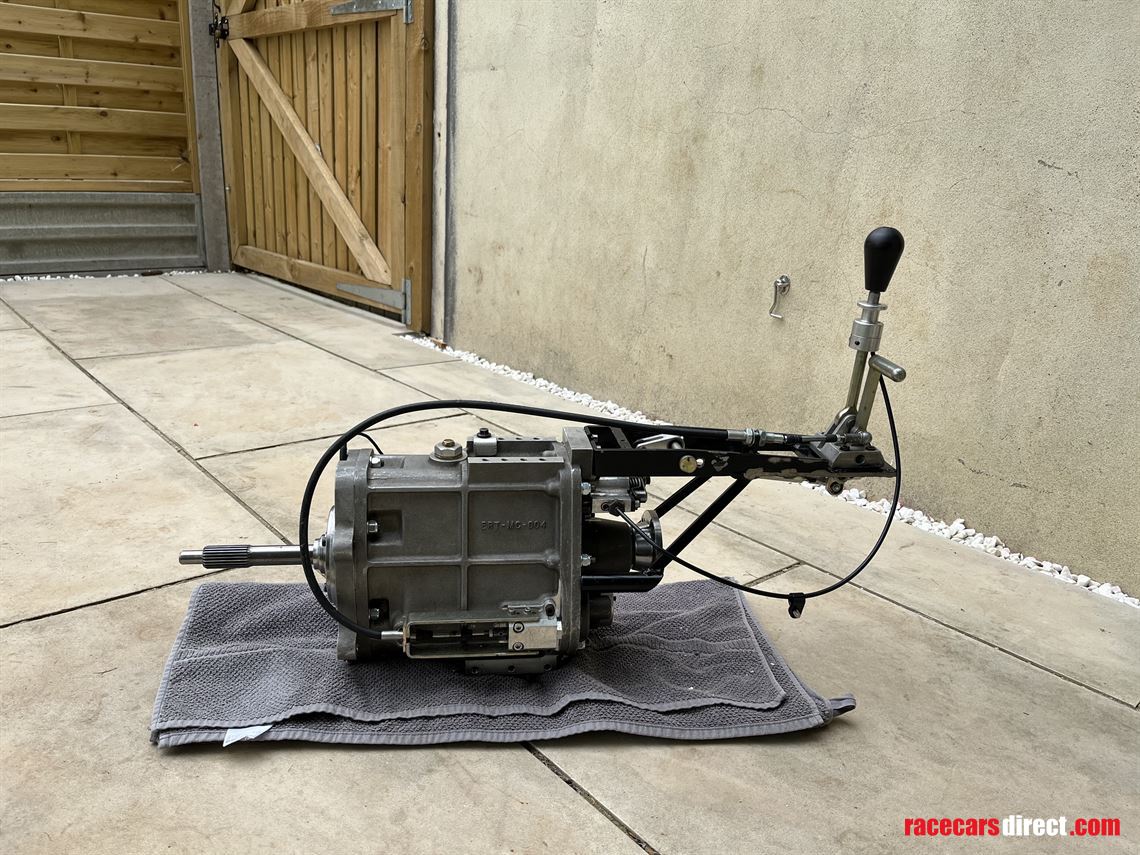

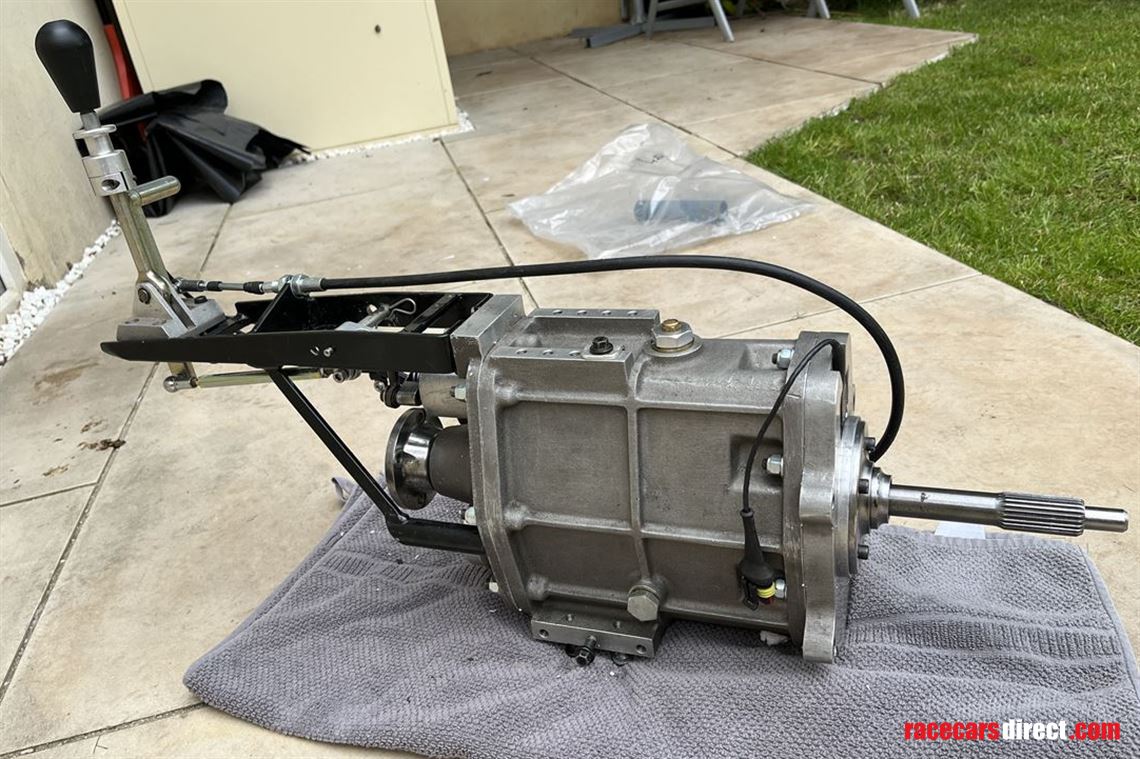

Elite IL 200 6 speed sequential gearbox

Just back from Elite following a full strip, inspect and rebuild.

22 KG dry weight

Upgraded helical cut gears

Flat & paddle shift compatible

Type 9 Mounting face 270 Nm (200 ft lbs) Maximum Torque Capacity.

Sequential gear selection, 6 forward plus reverse with pull neutral/reverse lockout.

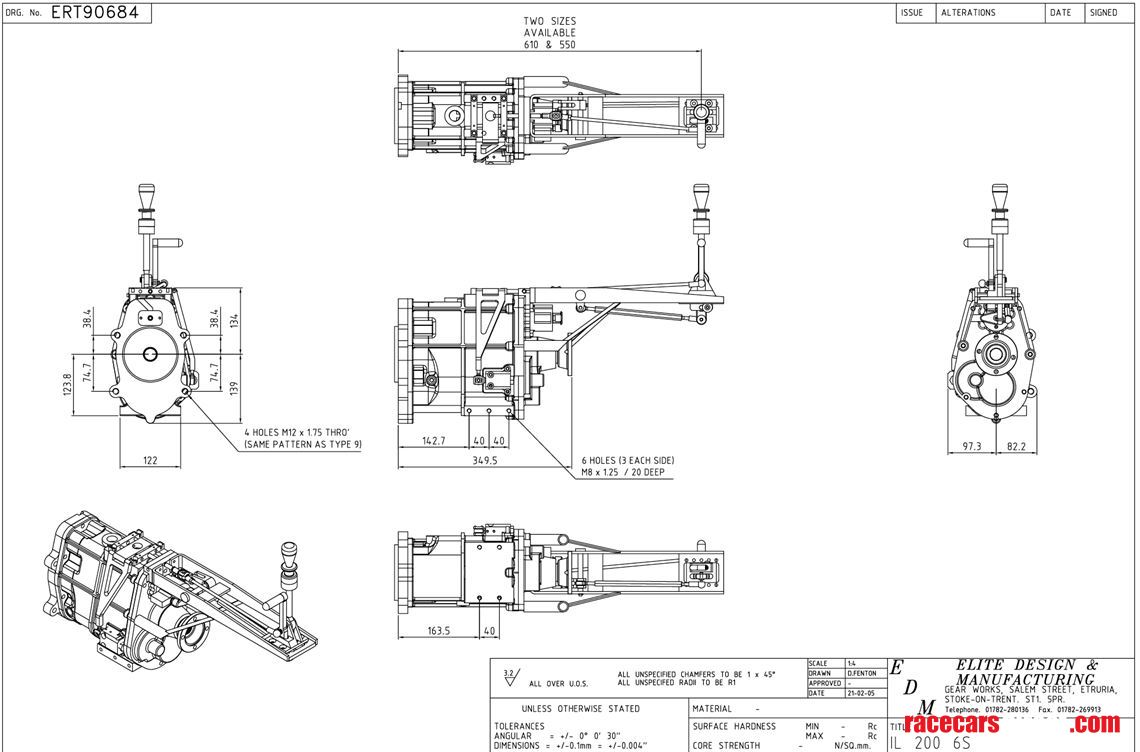

Gearbox front face to gear-stick length adjustable between 550mm and 610mm.

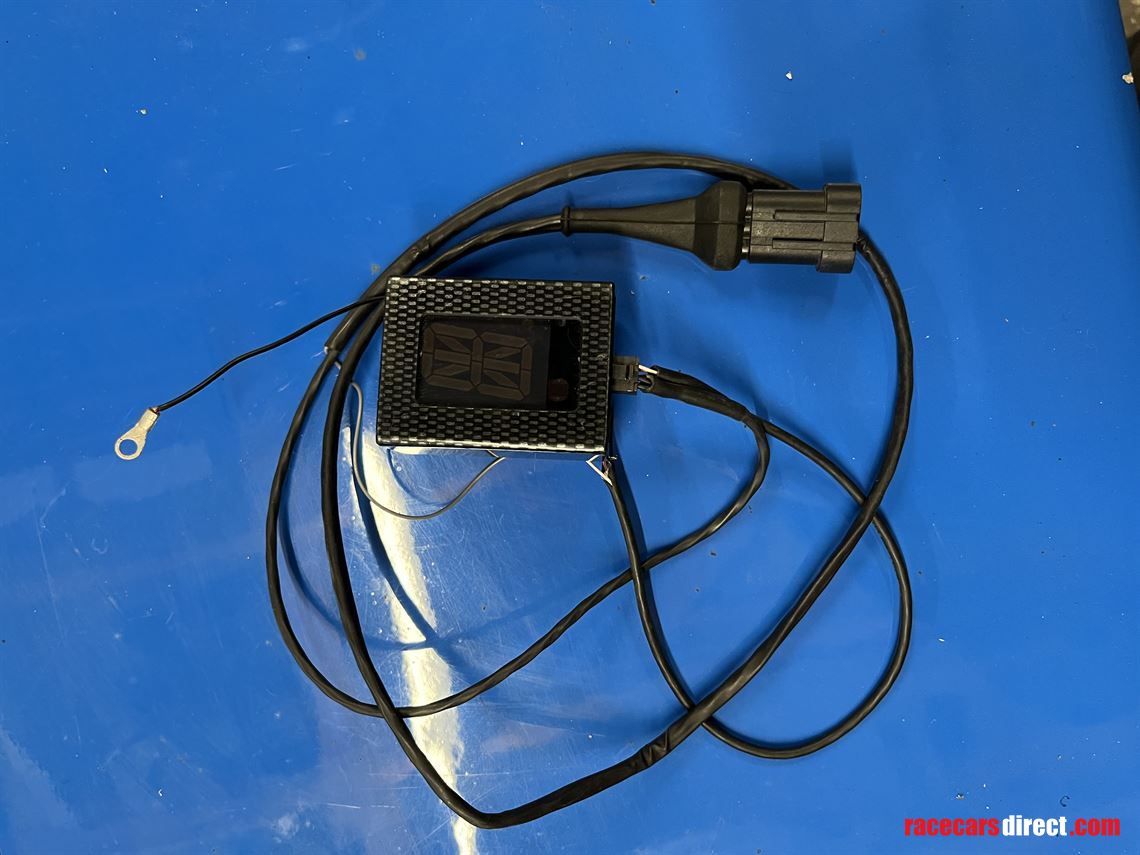

Digital gear indicator system including potentiometer, wiring loom and display box.

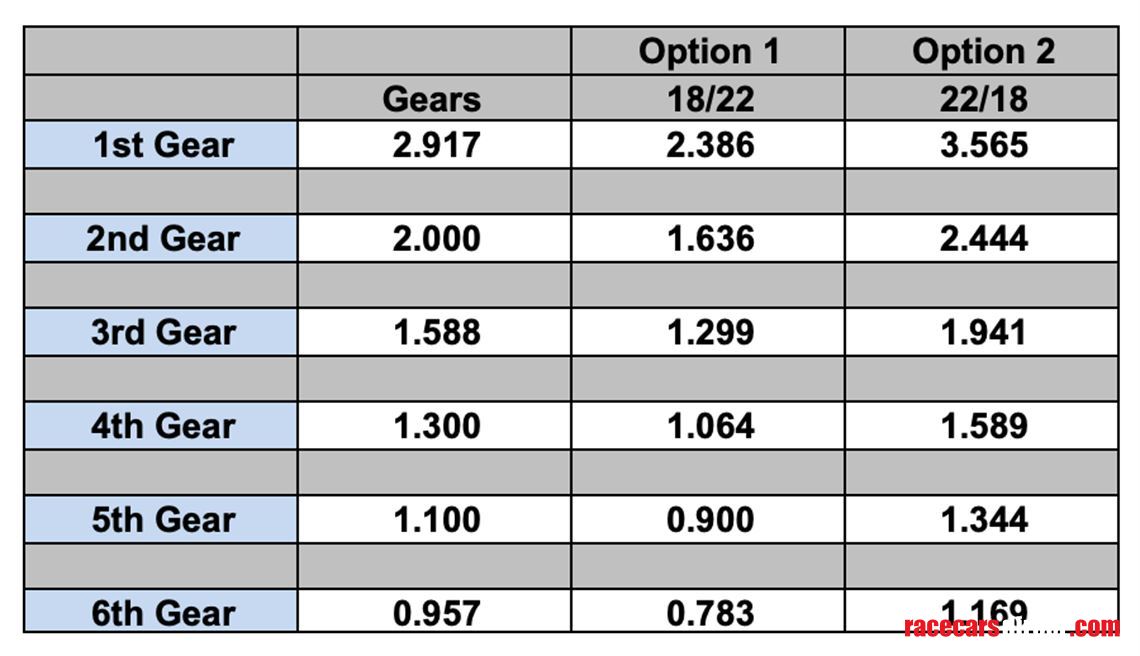

The gearbox utilises a drop gear system to quickly alter your overall gearing without needing to change diff, currently in Option 1 configuration (see picture for ratios and option 2 gearing), other drop gears available from Elite.

 Option 1

1st Gear 2.386

2nd Gear 1.636

3rd Gear 1.299

4th Gear 1.064

5th Gear 0.900

6th Gear 0.783
